5.00mm 180 Degree Nylon66 Wafer Connector

5.00mm 180 Degree Nylon66 Wafer Connector

6 day ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

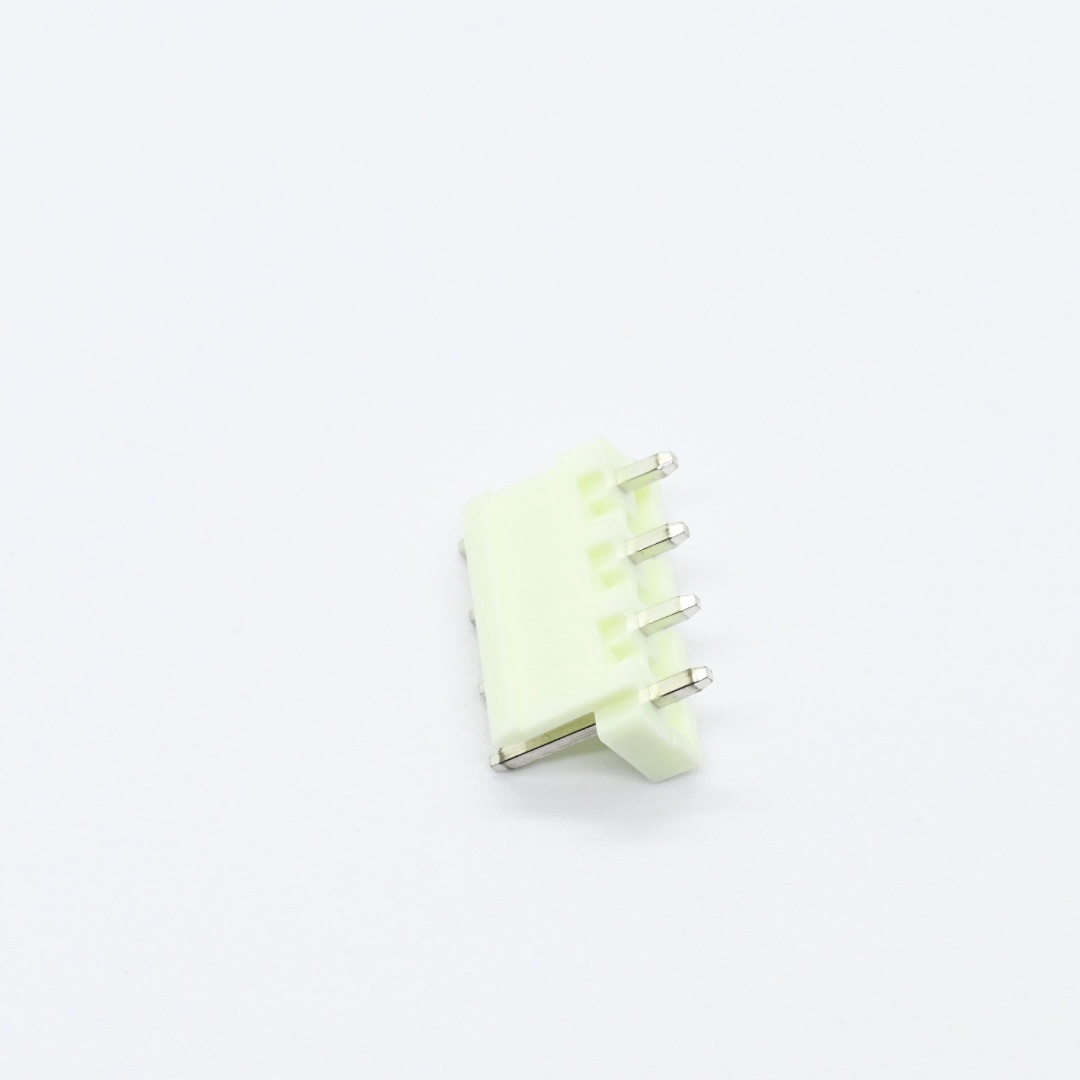

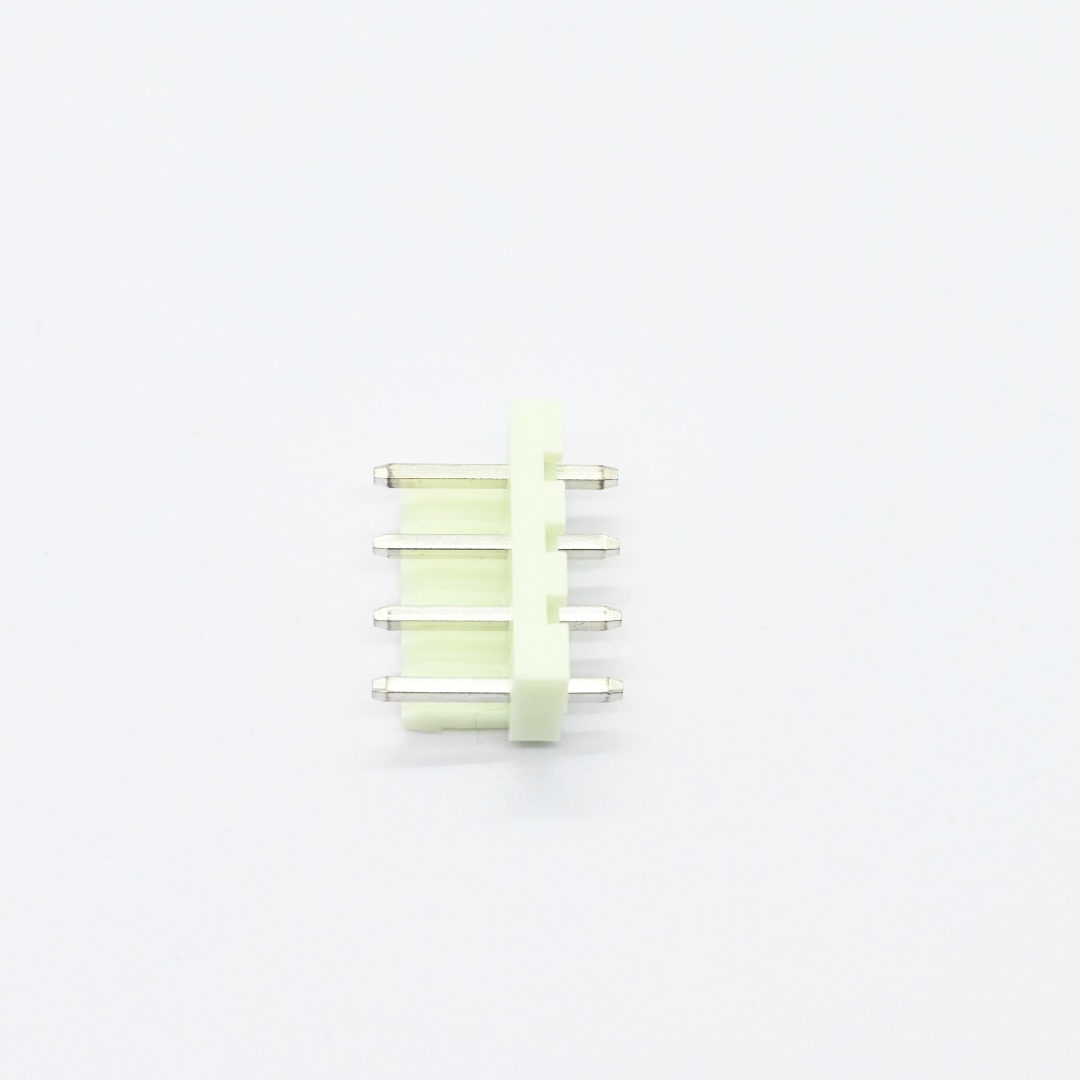

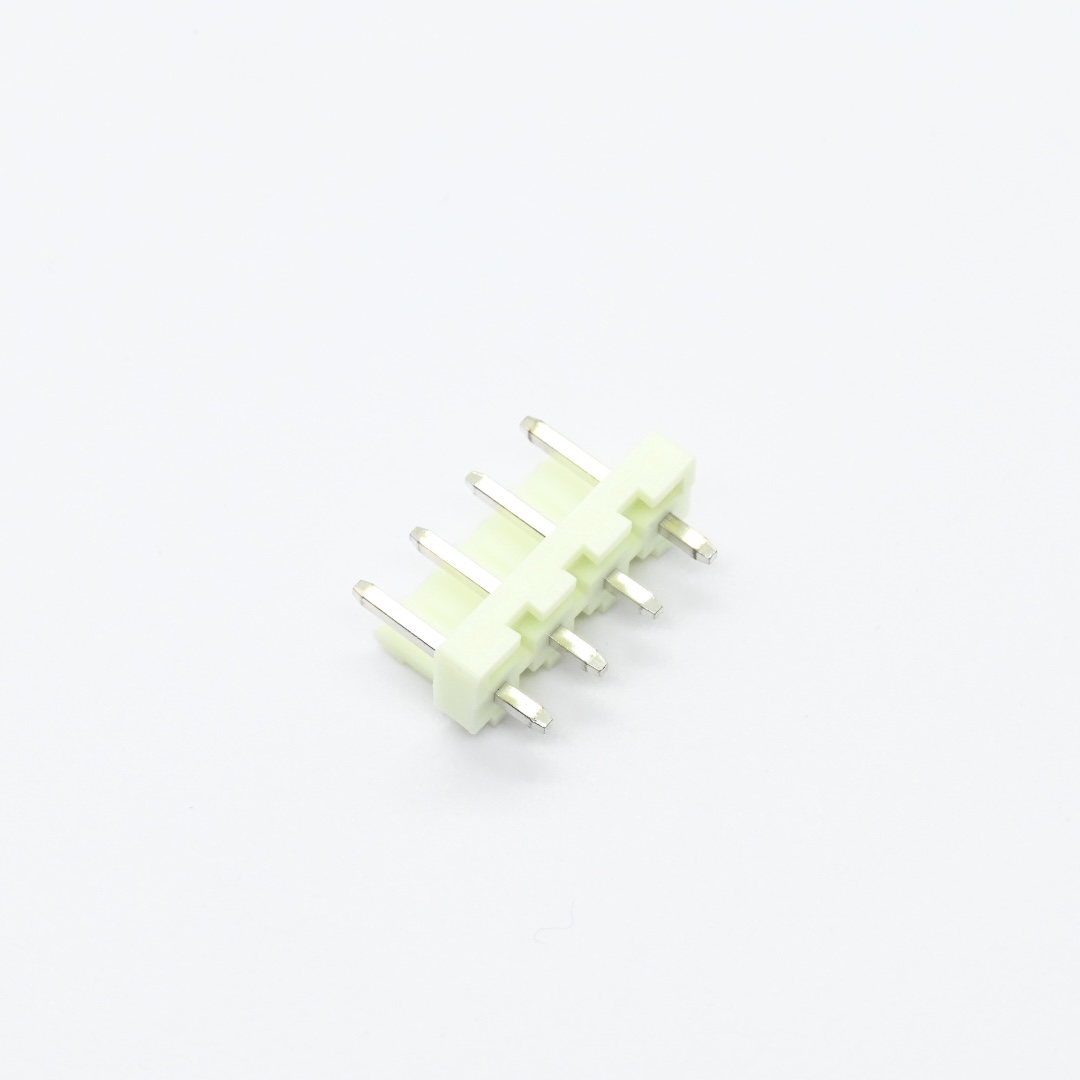

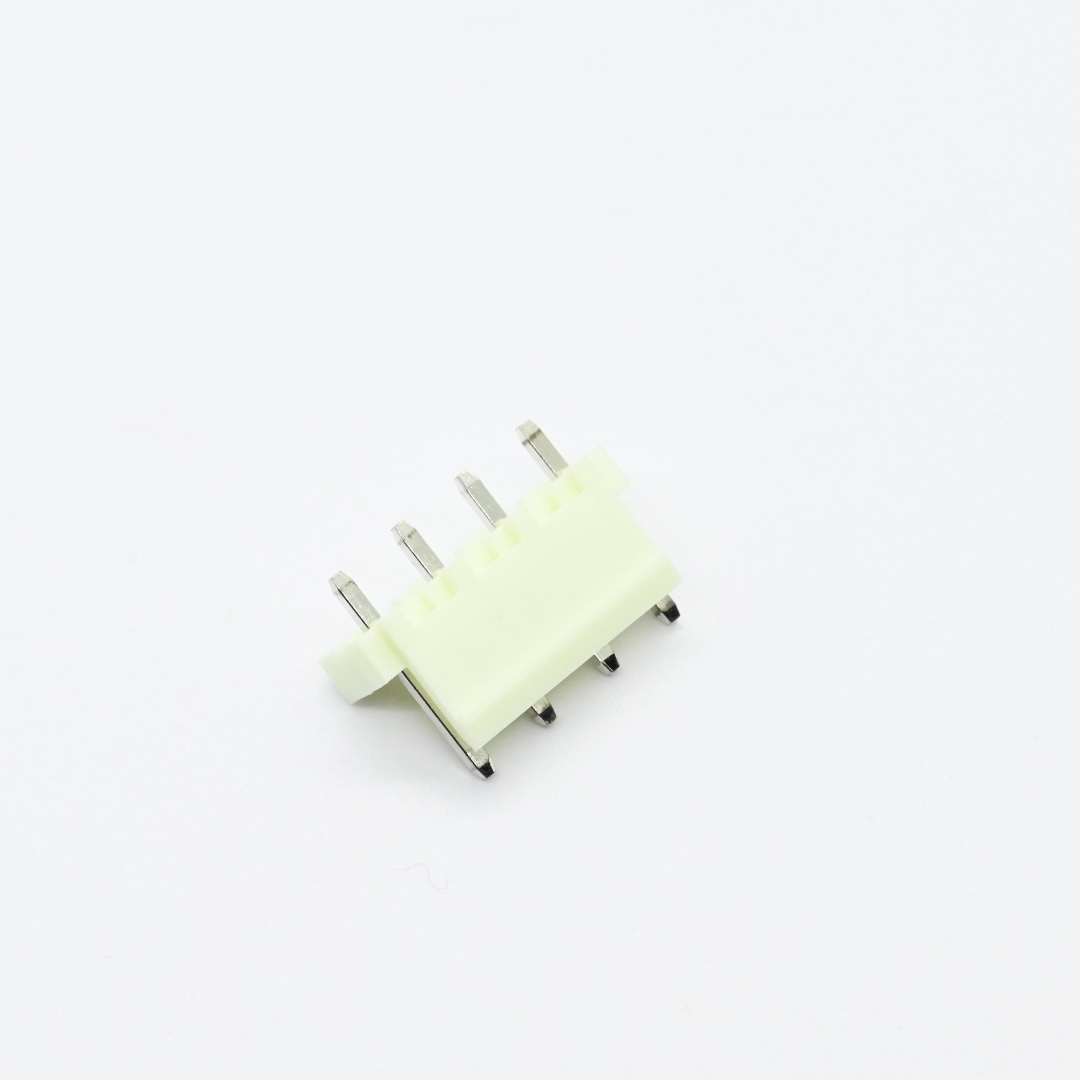

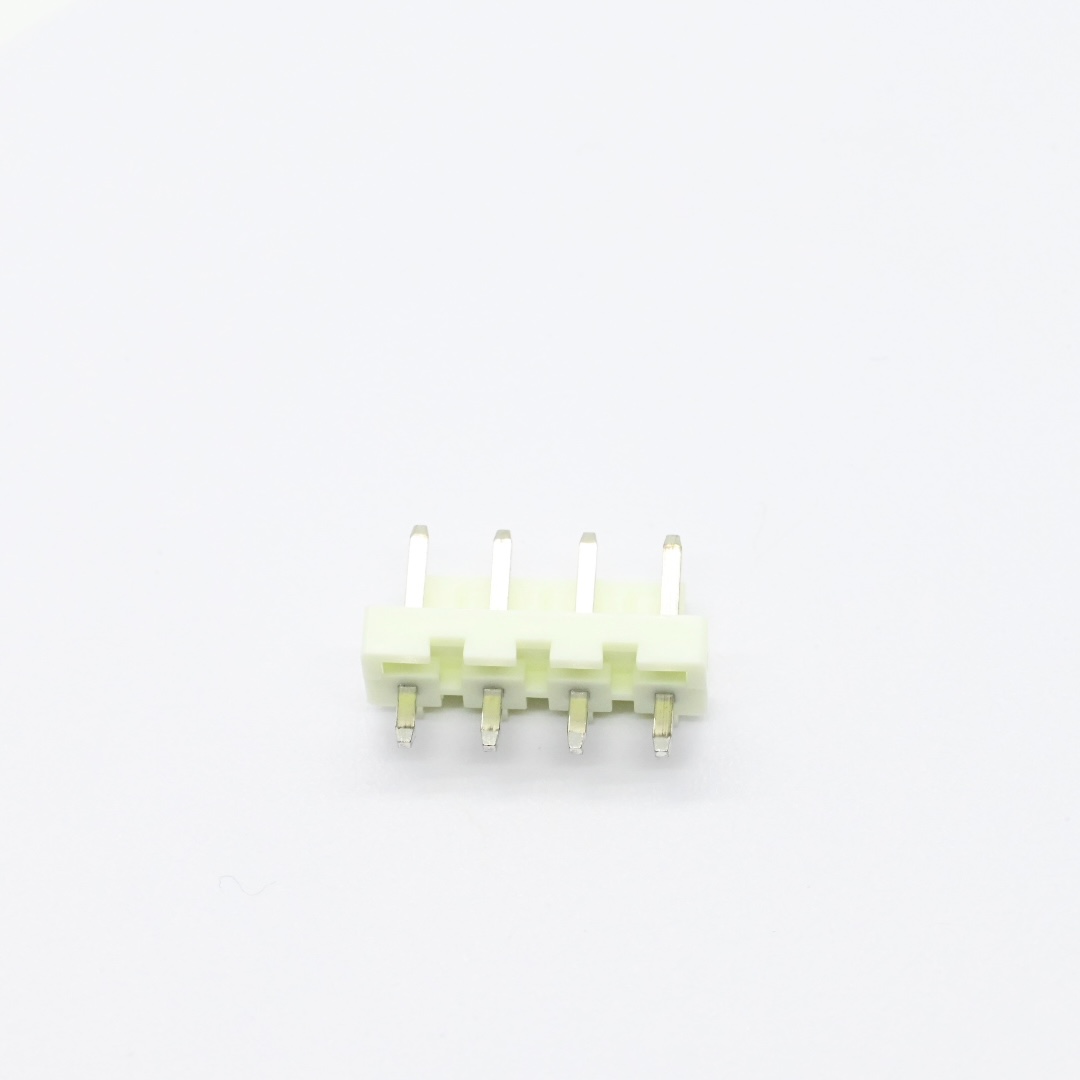

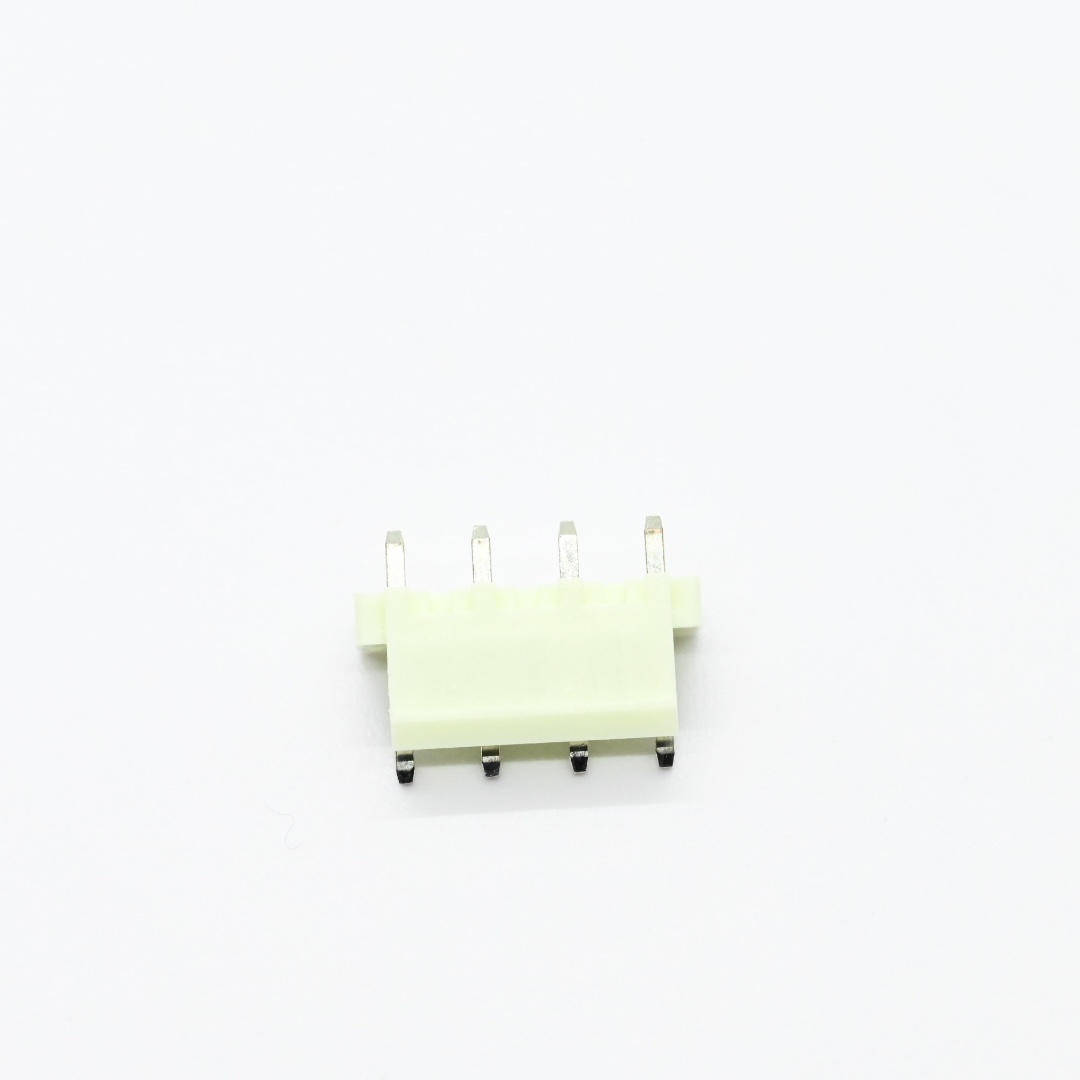

Huizhou Antenk Electronics Co., Ltd. produces AW5001S-XP 5.00mm 180 degree wafer connector header that perfectly mates with AH5001-XP wire harness housing to deliver stable power and signal transmission between PCB boards and wiring assemblies. This wafer connector adopts UL94V0 flame retardant Nylon66 insulating housing paired with 1.14 square brass pins covered with tin flash plating, featuring fixed 5.00mm pin pitch with ±0.10 tolerance, optional 2P 3P 4P circuit counts and unified dimensional tolerances for all structural outlines, with core dimensions including 6.80mm body height, 3.20mm pin base height and 8.00mm pin vertical length. It reaches 250V AC DC voltage rating and 10A current rating, withstands 1500V AC one minute dielectric test, maintains insulation resistance above 1000 megohms and contact resistance under 10 milliohms within -25°C to +85°C working temperature range, fully matching automated PCB wave soldering production. This PCB wafer connector is widely adopted in digital home appliances industrial control communication modules liquid crystal displays electronic toys motor equipment and precision testing instruments. Operators must match it exclusively with AH5001-XP series housing during assembly, follow official PCB layout drawings strictly for soldering operations, avoid excessive bending of square brass pins to prevent terminal deformation and store finished connectors in dry dust-free storage to avoid tin plating oxidation and plastic moisture absorption. Unlike competitors outsourcing mold manufacturing and metal stamping Antenk adopts full self-operated production flow including independent precision plastic and metal mold development, brass high-speed stamping, Nylon66 injection molding, tin electroplating and comprehensive laboratory electrical performance reliability testing, possessing ISO9001 ISO14001 IATF16949 and UL E472792 certifications and complying with RoHS HSF and REACH global environmental standards. We develop hundreds of exclusive precision molds, offer customizable pin quantity schemes, provide 24-hour professional engineering technical support, and over seventy percent of our wafer connectors are exported worldwide supported by our Guangdong Famous Trademark ANTENK and stable consistent mass production quality.

Tin Flash Square Brass Wafer Pin ensures low contact resistance and reliable electrical conduction for PCB wiring connection systems.

High Voltage UL94V0 Wafer Housing delivers outstanding flame retardant and insulation performance under 250V rated working voltage.

Multi Pin 5.00mm PCB Wafer Header supports multiple circuit configurations to meet diverse power and signal transmission layout demands.

1.1 Housing Material: Nylon66 plastic, UL94V-0 flame retardant grade

1.2 Pin Raw Material: Brass, 1.14 square pin specification

1.3 Contact Plating: Tin-Flash coating on contact area

1.4 Mating Matching Part: AH5001-XP series wire harness housing

2. Electrical & Temperature Performance

2.1 Rated Voltage: 250V AC / DC

2.2 Rated Current: 10A AC / DC

2.3 Withstand Voltage: 1500V AC, 1 minute test duration

2.4 Minimum Insulation Resistance: 1000 Megohms

2.5 Maximum Contact Resistance: 10 milliohms

2.6 Operating Temperature Range: -25°C ~ +85°C

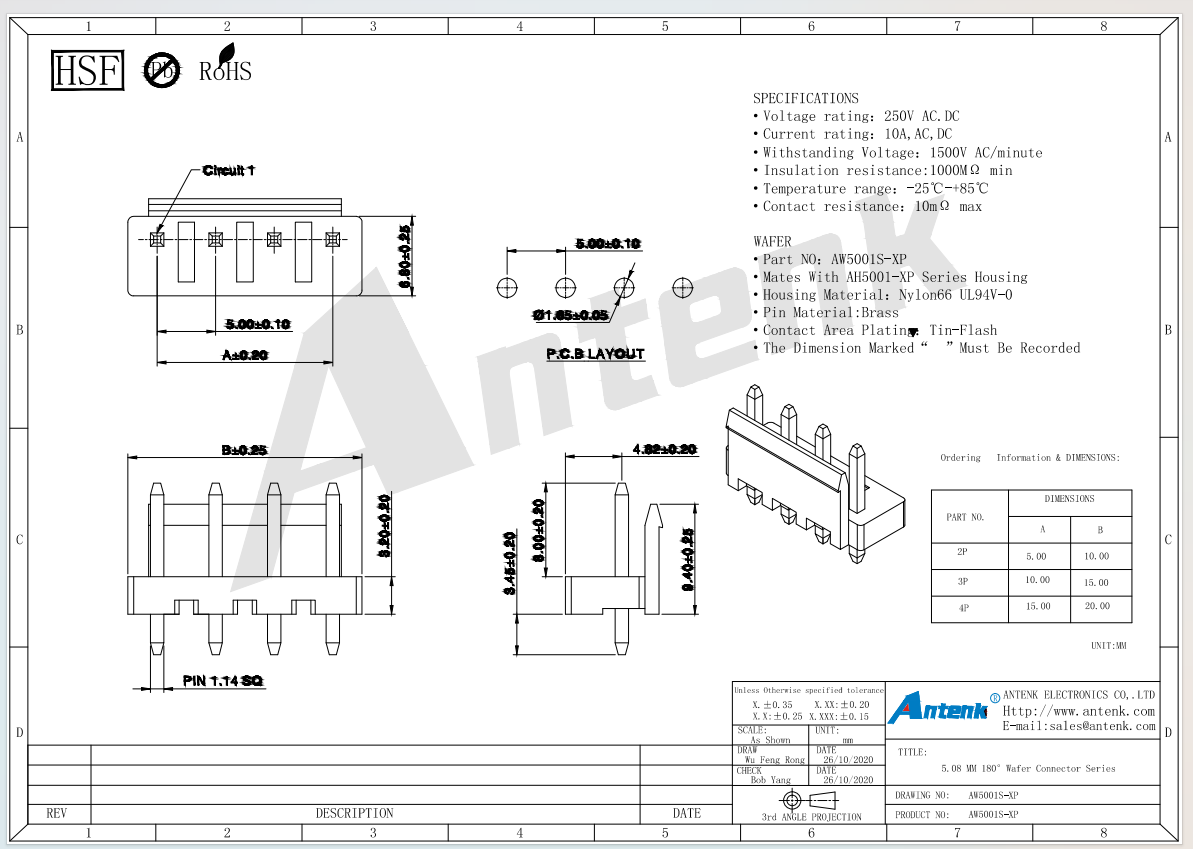

3. Dimensional Parameters (Unit: mm)

3.1 Standard Pin Pitch: 5.00, tolerance ±0.10

3.2 Body Height: 6.80, tolerance ±0.25

3.3 Pin Base Height: 3.20, tolerance ±0.20

3.4 Vertical Pin Length: 8.00, tolerance ±0.20

3.5 Side Buckle Height: 9.45, tolerance ±0.25

3.6 Horizontal Pin Offset: 4.82, tolerance ±0.20

3.7 Bottom Thickness: 3.45, tolerance ±0.20

3.8 Standard dimensional tolerance rules

3.8.1 X. : ±0.35

3.8.2 X.X : ±0.25

3.8.3 X.XX : ±0.20

3.8.4 X.XXX : ±0.15

3.9 Optional Circuit Counts & Corresponding Sizes

3.9.1 2P: A=5.00, B=10.00

3.9.2 3P: A=10.00, B=15.00

3.9.3 4P: A=15.00, B=20.00

4. Environmental Compliance

4.1 Conform to HSF and RoHS lead-free environmental standards

5. Application Scenarios

5.1 Digital household electrical appliances

5.2 Industrial control equipment

5.3 Communication signal modules

5.4 Liquid crystal display devices

5.5 Electronic toys

5.6 Motor drive control equipment

5.7 Precision measuring and testing instruments

6. Usage Precautions

6.1 Only match with AH5001-XP series housing for complete assembly

6.2 Record all key dimensions marked on drawing during inspection and production

6.3 Follow official PCB layout drawing strictly during wave soldering

6.4 Avoid excessive bending of brass square pins to prevent terminal deformation

6.5 Store finished connectors in dry dust-free warehouse to prevent tin plating oxidation and plastic moisture absorption
