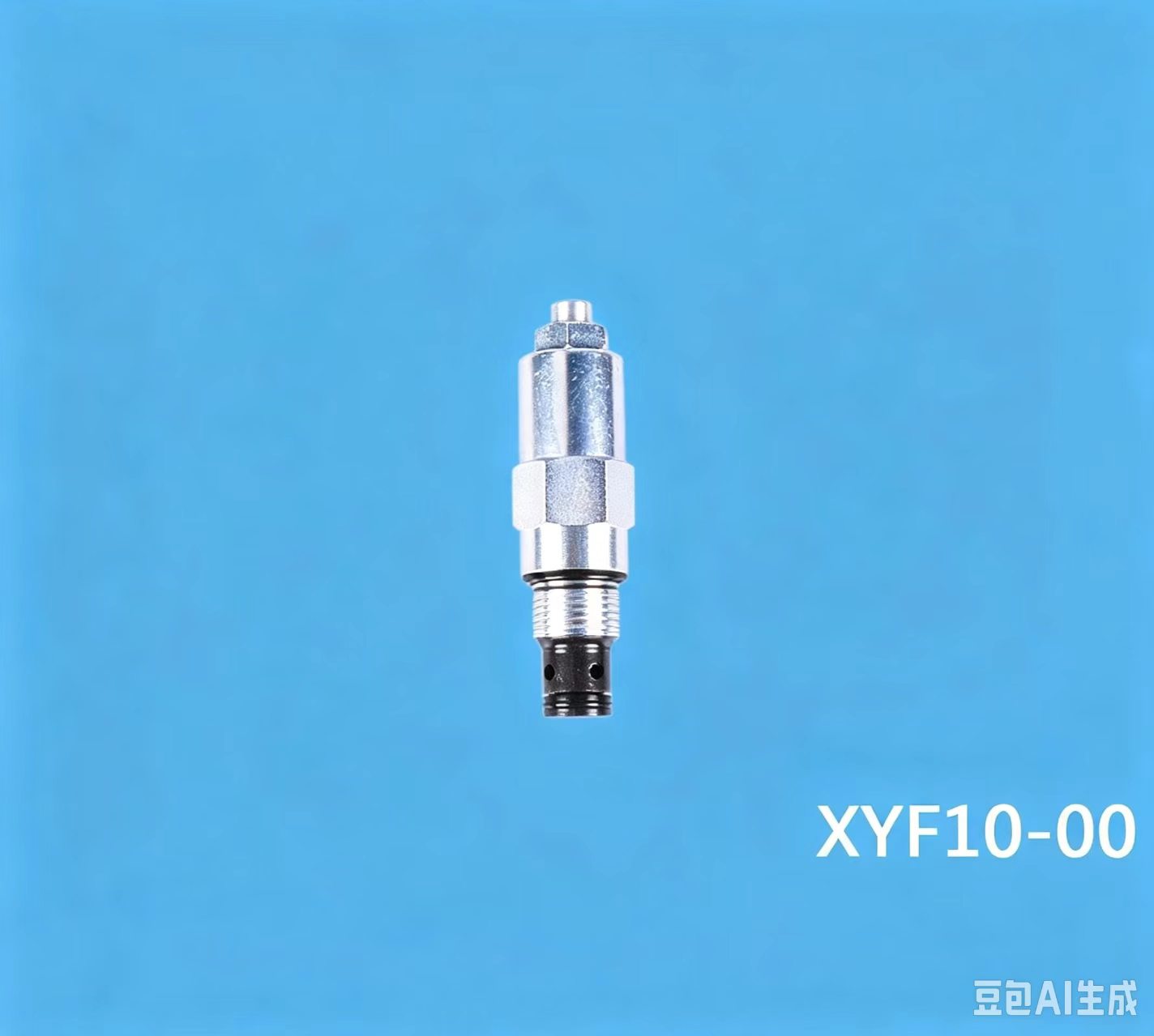

XYF10-00 Threaded Cartridge Valve

1. Product Overview

XYF10-00 is a standard 10-port threaded hydraulic cartridge valve for modular integrated manifold circuits. It features a screw-in installation design to minimize valve block space occupation, and is fully compatible with 10-series matching cartridge valves, manual hydraulic pumps and auxiliary hydraulic components. This valve is widely applied in medium-sized construction machinery, industrial clamping tooling, agricultural equipment and compact hydraulic power packs to complete pressure regulation, overload protection, load holding and basic on-off control.

XYF10-00 Threaded Cartridge Valve is a high-performance Hydraulic valve. As a screw-in CARTRIDGE VALVE, it acts as a vital control component within the hydraulic system. This threaded CARTRIDGE VALVE can be directly mounted into integrated manifold blocks, simplifying pipeline arrangement and making the entire hydraulic system more compact. The Hydraulic valve provides dependable circuit control to meet various working requirements of the hydraulic system for industrial and mobile machinery.

2. Core Technical Specifications

Parameter Specification

Mounting Size Standard 10-size threaded cartridge cavity

Nominal Working Pressure 21 MPa, peak withstand pressure up to 25 MPa

Maximum Adapted Flow 45 L/min for medium small hydraulic circuits

Seal Material Oil-resistant nitrile rubber for mineral hydraulic oil

Recommended Hydraulic Fluid ISO VG32 / VG46 anti-wear hydraulic oil

Operating Temperature -10℃ ~ 80℃

Installation Mode Direct screw-in mounting inside standard 10-size valve manifolds

3. Working Principle

A precision spool matched with preset spring forms the core regulating structure. When inlet hydraulic pressure surpasses the spring calibrated value, the spool displaces to open the overflow passage or cut off the main oil path, limiting system peak pressure to avoid overload damage. The poppet-style sealing structure greatly lowers internal leakage, enabling stable long-duration pressure retention for loaded actuators.

4. Key Advantages

1. Compact screw-in layout supports flexible modular circuit stacking and saves installation space

2. Universal 10-size mounting dimension fits mainstream manifold designs for easy part replacement

3. Hardened valve core delivers strong vibration and abrasion resistance for rugged construction & farm job sites

4. Aging-proof nitrile seals extend service intervals and reduce daily maintenance workload

5. Simple assembly/disassembly streamlines on-site debugging and faulty part swap

5. Typical Applications

- Overload pressure limiting for medium hydraulic clamping jigs and fixture loops

- Main/auxiliary circuit pressure control for mini excavators, loaders and agricultural machinery

- Pressure stabilization for portable hydraulic power units driven by manual or small electric pumps

- Load holding protection for small lifting, jacking and actuator hydraulic systems
