90 Degree DIP DIN41612 32P Male Connector

90 Degree DIP DIN41612 32P Male Connector

3 week ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Huizhou Antenk Electronics Co., Ltd. manufactures DMR-24-B-32-XX-M01 DIN 41612 M type 90 degree DIP male connector with 24 signal pins plus 8 power pins to realize stable signal and power transmission between industrial backplanes and circuit boards, adopting glass fibre filled thermoplastic resin insulator with UL94V0 flame retardant grade and copper alloy conductive contacts to meet wide temperature working demands ranging from minus 40 degree Celsius to plus 105 degree Celsius. This male DIN connector supports diversified plating solutions including pure tin, full gold plating and selective gold-tin composite plating with customizable gold thickness of gold flash, 3μ",5μ",10μ",15μ" and 30μ" over nickel underlayer, standard 2.54mm pin pitch and fixed 3.0mm solder tail length, complying with unified DIN41612 industry standards and RoHS HSF environmental control rules. This multi-pin backplane connector is widely applied in industrial control cabinets, communication base station equipment, automotive electronic control modules, precision measuring instruments and industrial power supply systems. Operators should select appropriate contact plating type based on equipment service life and anti-corrosion environment, complete through-hole DIP soldering strictly following PCB layout drawing with tolerance ±0.05, avoid excessive force during plugging to prevent contact deformation and store finished connectors in dry sealed packages to avoid plating oxidation. Unlike competitors outsourcing mold and stamping procedures Antenk implements full independent production flow including self-developed plastic and metal mold manufacturing, copper alloy high speed stamping, glass filled plastic injection molding, multi-layer precision electroplating and complete high-low temperature cycle reliability lab testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications and complying with global RoHS HSF REACH standards. We own hundreds of self-designed precision molds, offer customizable pin configuration and packaging options, provide all-day professional engineering technical support, and more than seventy percent of our DIN connector products are exported globally relying on our Guangdong Famous Trademark ANTENK and consistent stable mass production quality.

Glass Filled UL94V0 DIN Insulator delivers outstanding heat resistance and structural rigidity under wide industrial temperature ranges.

Bi Plated Copper Alloy DIN Contact maintains low contact resistance and anti-corrosion performance for long-term signal and power transmission.

90 Degree DIP Solder DIN Male Pin enables stable through-hole PCB assembly and standardized mating with matching DIN female terminals.

1. Material & Contact Plating

1.1 Insulator: Glass-fibre filled thermoplastic resin, UL94V-0 flame retardant

1.2 Contact Base Material: Copper alloy

1.3 Nickel underlayer for all contact plating

1.4 Single plating options: Gold flash, 3μ",5μ",10μ",15μ",30μ" gold, pure tin(SN)

1.5 Bi-plated composite options: Gold flash/tin, 3μ" gold/tin, 5μ" gold/tin, 10μ" gold/tin,15μ" gold/tin,30μ" gold/tin

2. Electrical & Environmental Performance

2.1 Operating temperature range: -40°C ~ +105°C

3. Pin Configuration & Structure Feature

3.1 Model 24P: 24 signal contacts without power pins

3.2 Model 32P: 24 signal pins + 8 power pins

3.3 Assembly type: 90 degree through-hole DIP male header

3.4 Standard solder tail length: 3.0mm

3.5 Pin pitch: 2.54mm

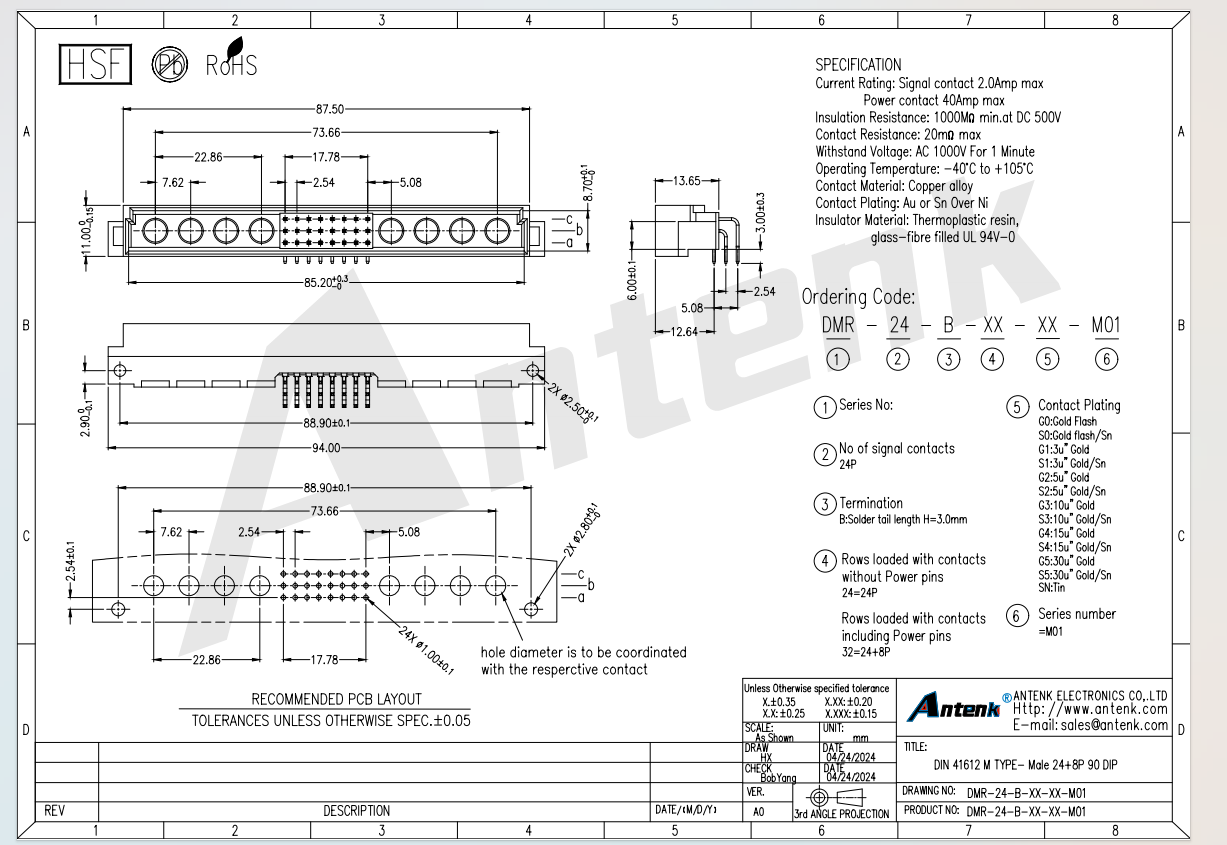

4. Dimensional & Tolerance Rules (Unit: mm)

4.1 PCB layout recommended tolerance: ±0.05

4.2 Single hole diameter for contacts: 1.00±0.1

4.3 General dimensional tolerance standard

4.3.1 X. : ±0.35

4.3.2 X.X : ±0.25

4.3.3 X.XX : ±0.20

4.3.4 X.XXX : ±0.15

5. Product Standard

5.1 Conforms to DIN 41612 M industry standard

5.2 Series code: M01

6. Environmental Compliance

6.1 Meet RoHS and HSF lead-free material control standards

7. Application Scenarios

7.1 Industrial control cabinet backplane connection

7.2 Communication base station power and signal modules

7.3 Automotive electronic control units

7.4 Precision industrial measuring instruments

7.5 Industrial power supply equipment

8. Operation & Storage Precautions

8.1 Select 24P or 32P pin version based on actual signal and power demand

8.2 Choose single gold/tin or bi-composite plating according to service environment

8.9 Complete DIP welding strictly follow official PCB layout dimension tolerance

8.10 Avoid violent plugging to prevent copper alloy contact bending or breakage

8.11 Store finished connectors in dry dust-free sealed packaging to prevent plating oxidation

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

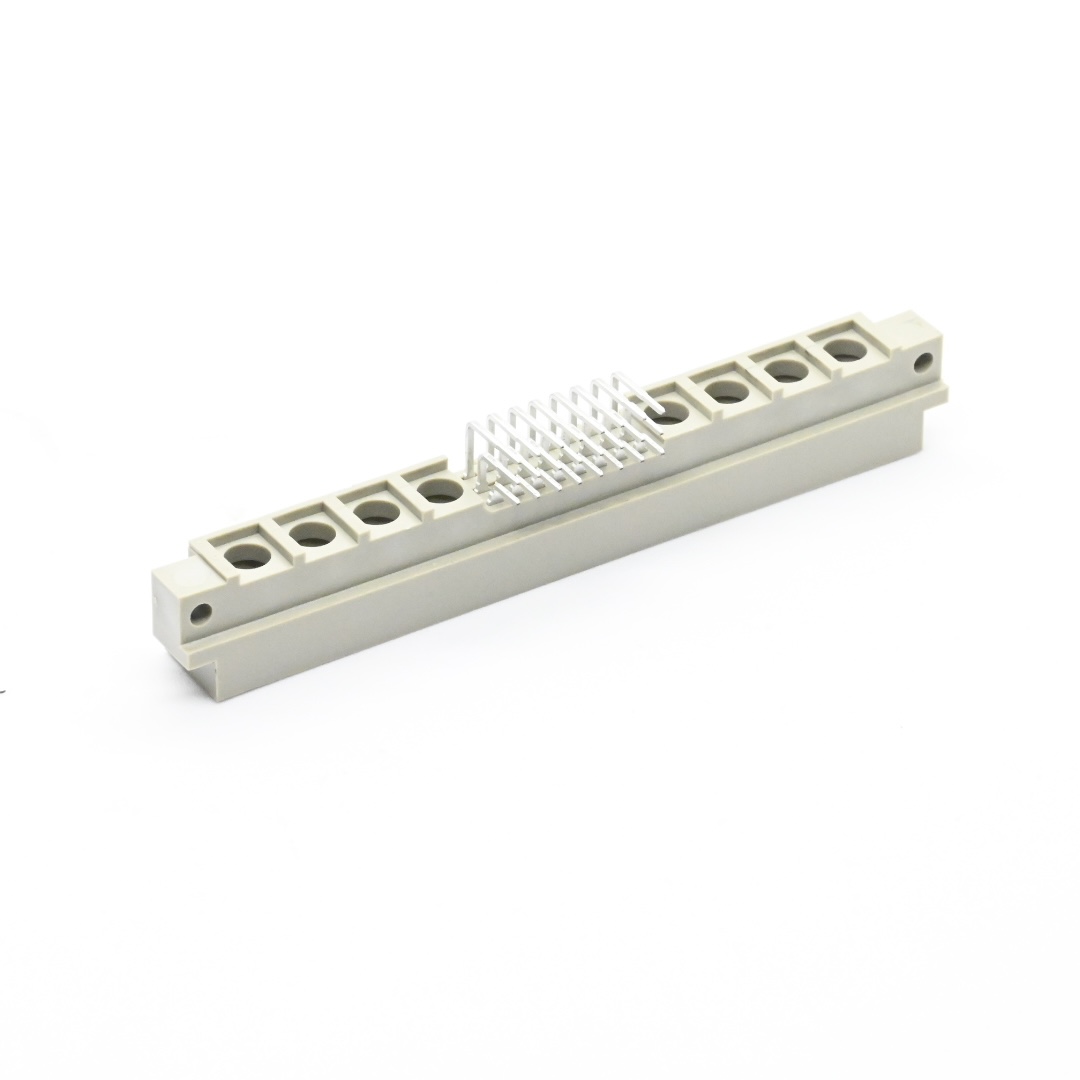

DMR-24-B-24-S0-M01+DIN 41612 M TYPE- Male 24+8P 90 DIP（5）

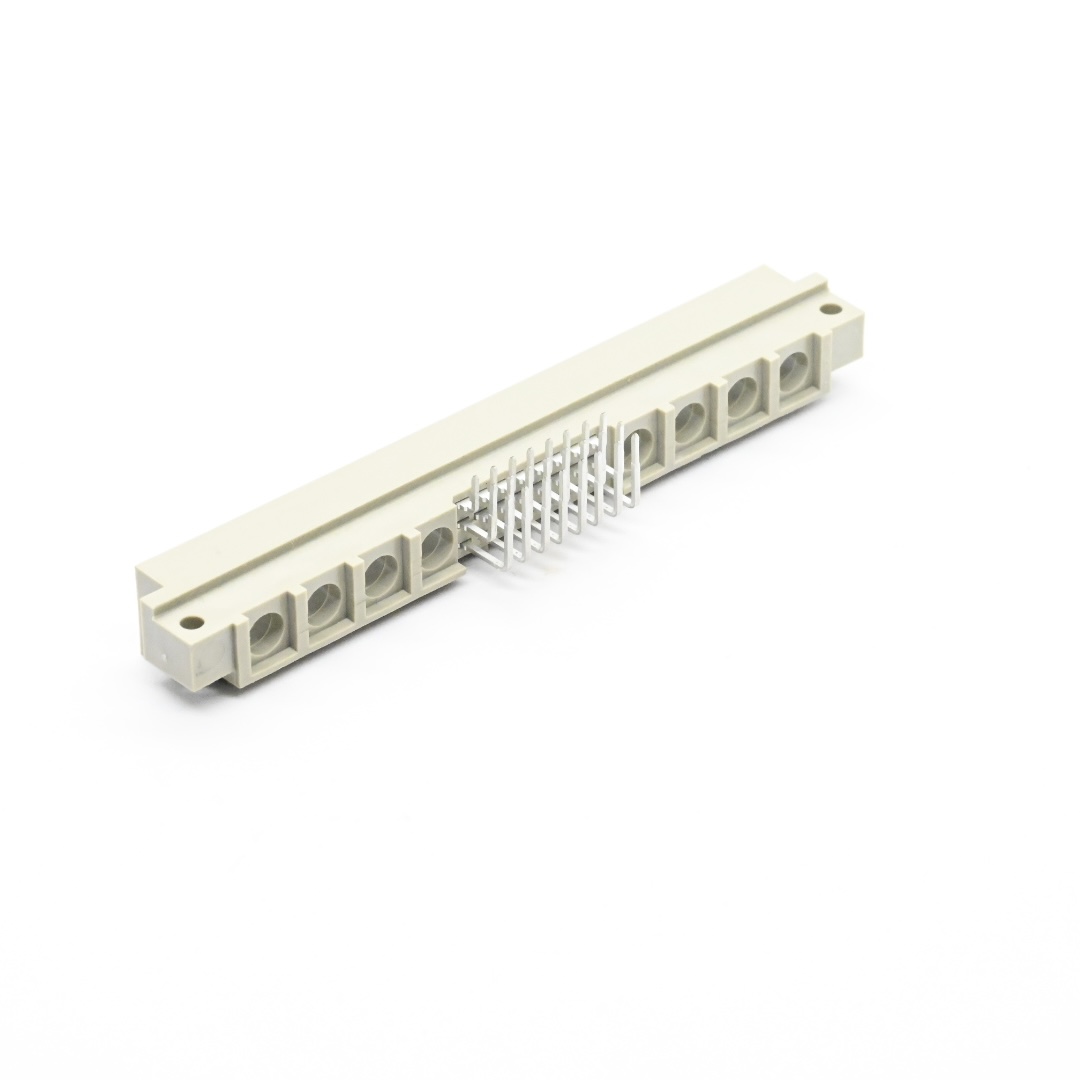

DMR-24-B-24-S0-M01+DIN 41612 M TYPE- Male 24+8P 90 DIP（4）

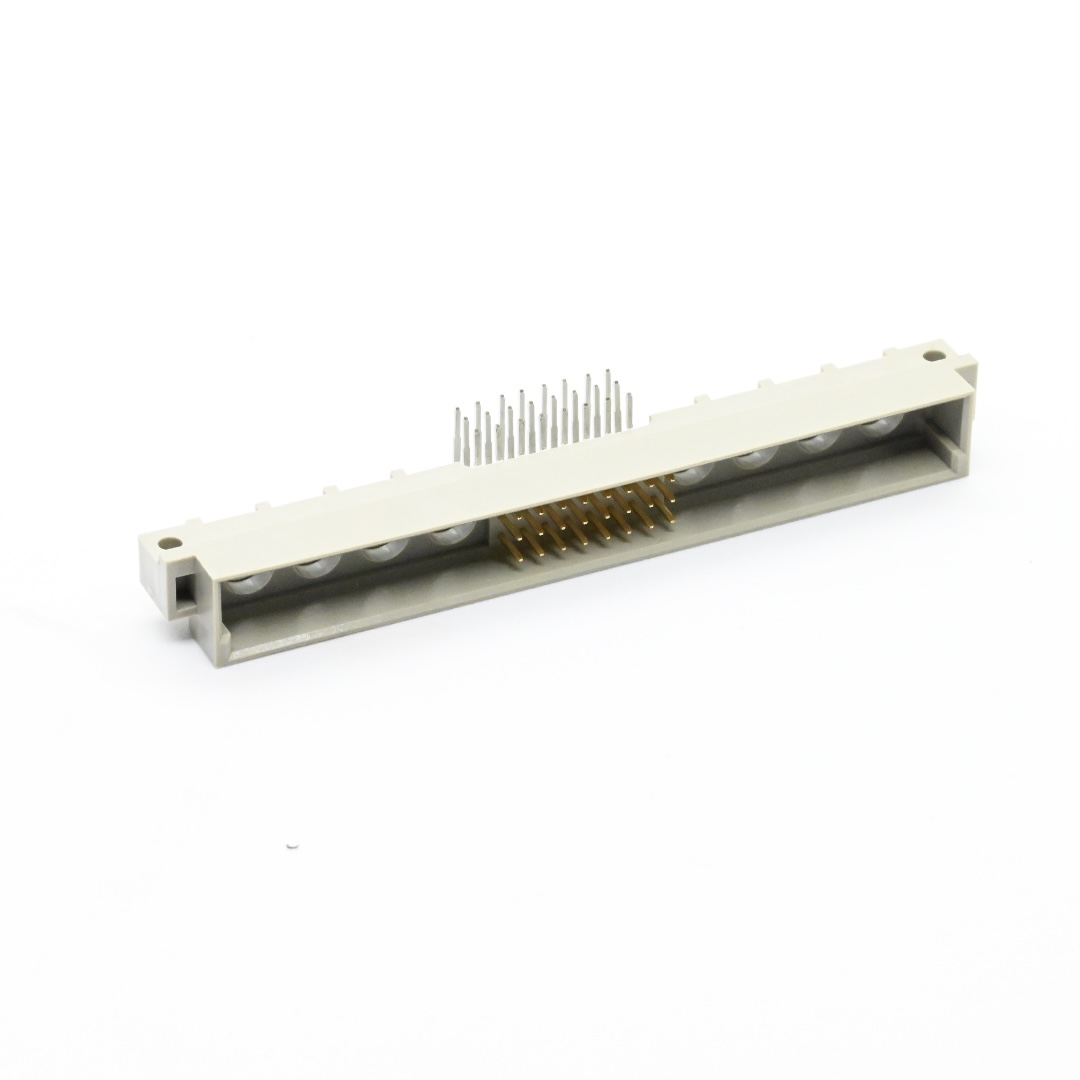

DMR-24-B-24-S0-M01+DIN 41612 M TYPE- Male 24+8P 90 DIP（6）

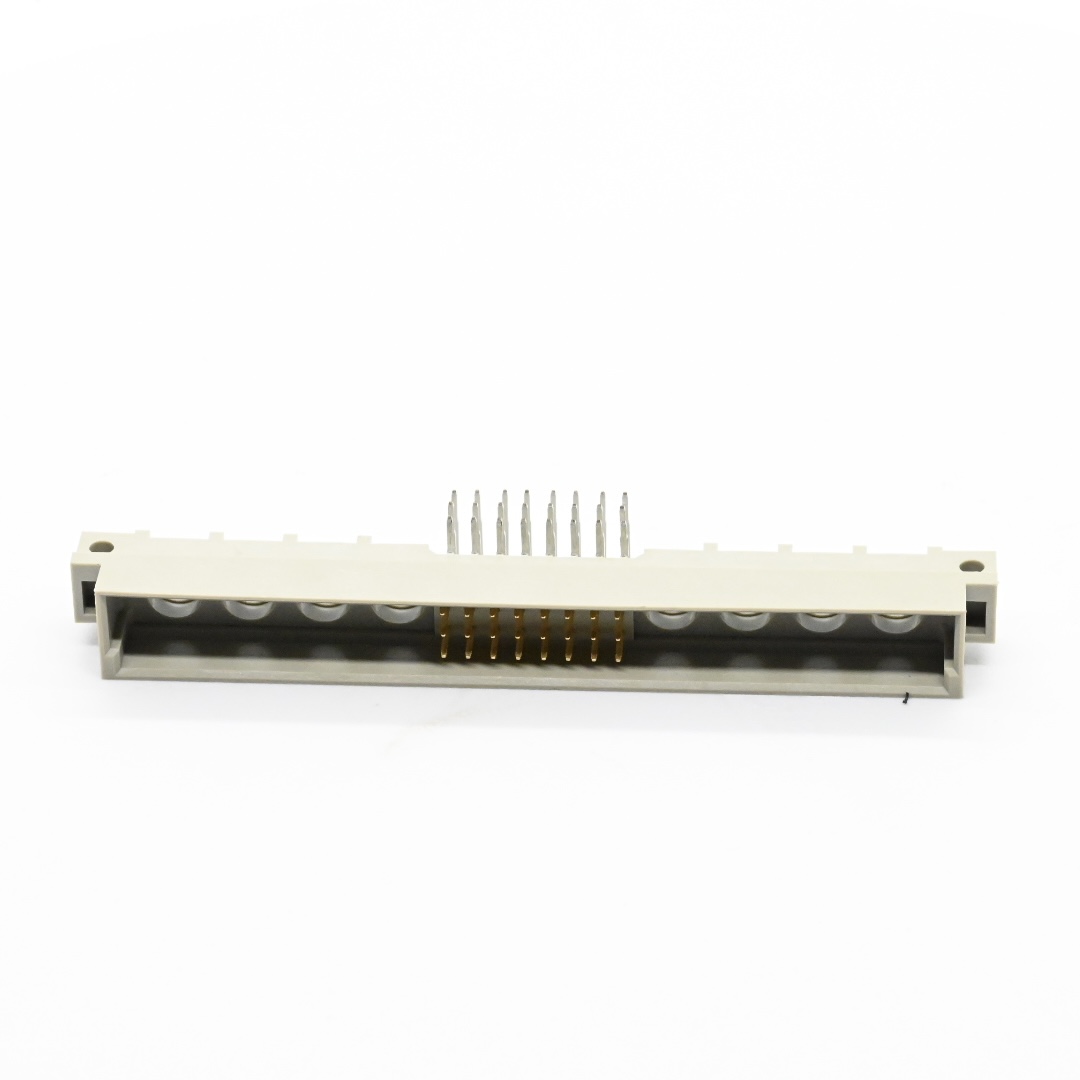

DMR-24-B-24-S0-M01+DIN 41612 M TYPE- Male 24+8P 90 DIP（1）

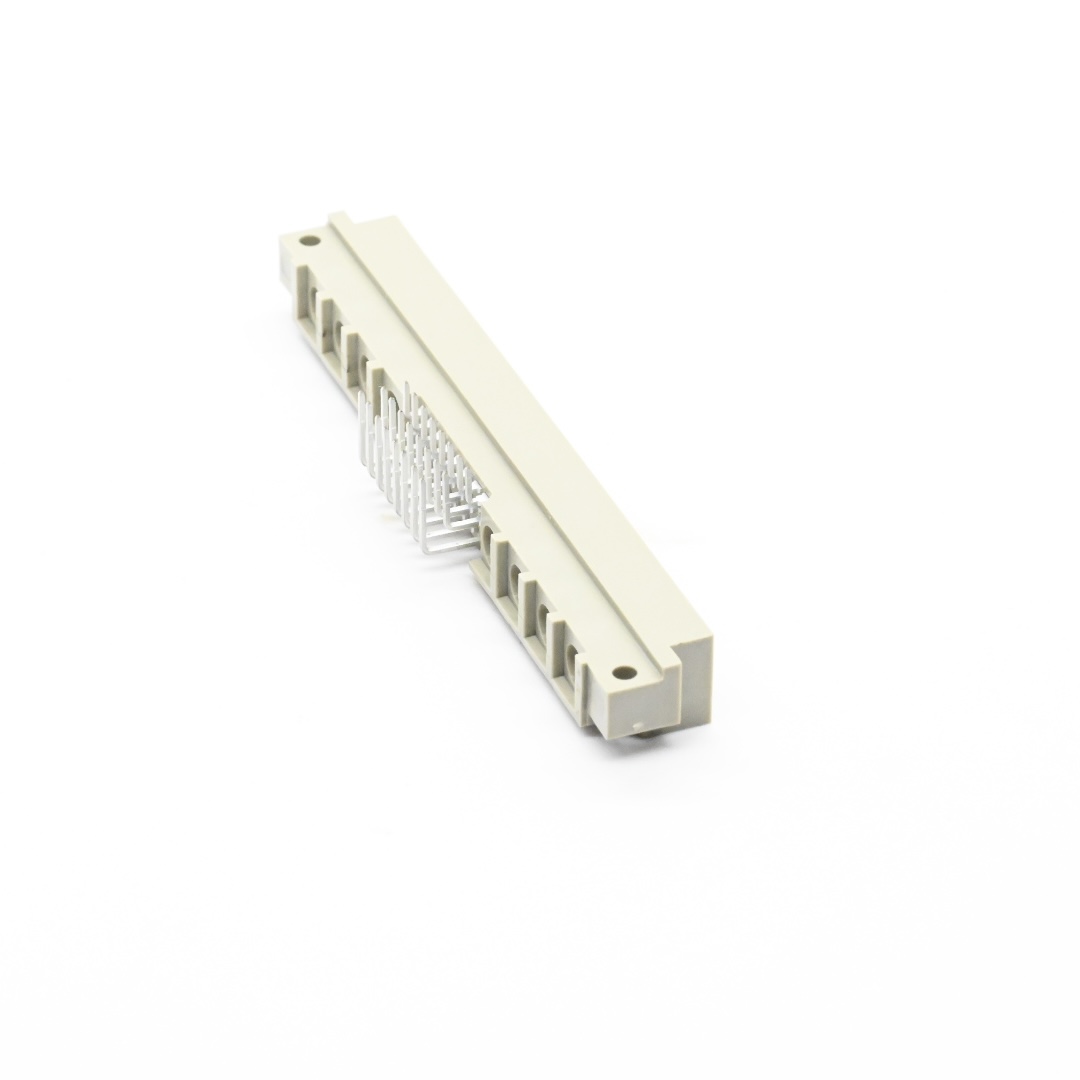

DMR-24-B-24-S0-M01+DIN 41612 M TYPE- Male 24+8P 90 DIP（3）

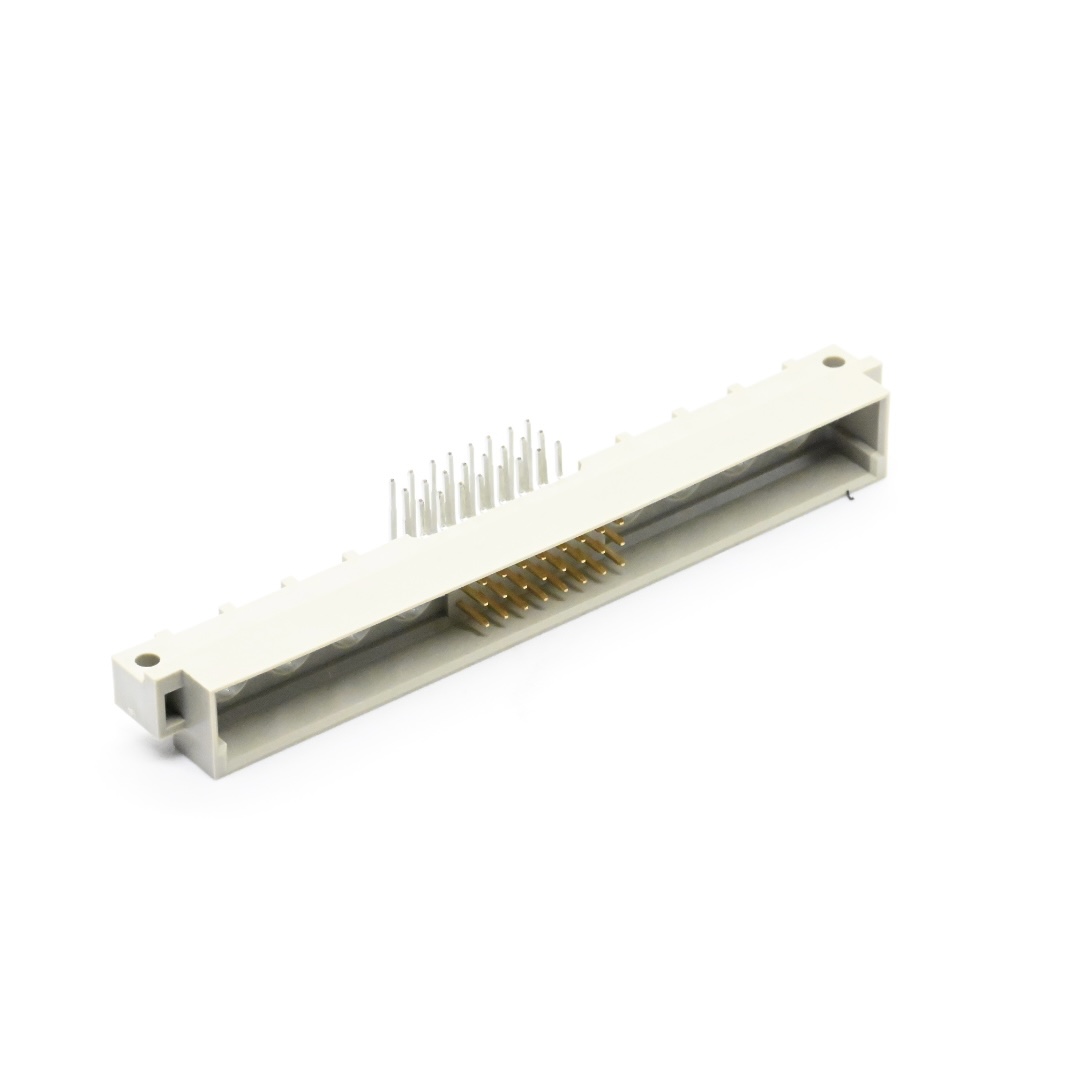

DMR-24-B-24-S0-M01+DIN 41612 M TYPE- Male 24+8P 90 DIP（2）
