Angle DIP USB A Type Female Receptacle

Angle DIP USB A Type Female Receptacle

2 week ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Huizhou Antenk Electronics Co., Ltd. produces UAFR01 series angle DIP USB A type receptacle to achieve stable data transmission and power supply connection between USB peripheral plugs and printed circuit boards, rated for maximum 1.5A current, 500V AC withstand voltage and insulation resistance above 1000 megaohms with contact resistance controlled below 30 milliohms. This angled through-hole USB jack adopts UL94V0 flame retardant thermoplastic insulator, two optional contact base materials including brass and phosphor copper, iron shell shielding structure and 0.30mm thick tin pre-plated contact base with customizable gold plating thickness covering gold flash, 3μ",5μ",15μ",30μ" gold for mating surfaces, fully compliant with RoHS and HSF environmental standards, with standardized PCB layout dimensions and unified tolerance standards for accurate DIP soldering assembly. This universal USB connector is widely used in digital household appliances, desktop and laptop computers, portable storage devices, communication equipment, electronic toys, industrial control panels and precision testing instruments. Operators should select brass or phosphor copper contacts and matching gold plating specifications according to usage frequency, complete through-hole soldering strictly following official PCB layout drawing parameters, avoid frequent rough plugging to reduce contact wear and store finished USB receptacles in dry dust-free sealed packaging to prevent plating layer oxidation. Unlike competitors outsourcing mold stamping and injection molding Antenk adopts full independent production process including self-developed plastic and metal precision mold manufacturing, high-speed terminal stamping, thermoplastic injection molding, multi-layer tin gold electroplating and comprehensive electrical performance laboratory testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications while meeting RoHS HSF and REACH global environmental regulations. We own more than two hundred fifty sets of proprietary plastic connector molds and one hundred eighty sets of metal terminal molds, provide customized shielding plating and packaging solutions, supply round-the-clock professional engineering technical support, and over seventy percent of our USB connector products are exported to global markets relying on our Guangdong Famous Trademark ANTENK and stable consistent mass production quality.

UL94V0 Thermoplastic USB Insulator offers reliable flame retardant performance and stable structural support for long-term USB connector operation.

Low Resistance Brass USB Contact ensures efficient power delivery and smooth high-speed data transmission under continuous plug-and-play cycles.

Iron Shield Angle DIP USB Jack effectively blocks external electromagnetic interference and fits standard angled through-hole PCB assembly layouts.

1. Electrical Performance Parameters

1.1 Max Rated Current: 1.5A

1.2 Max Contact Resistance: 30 milliohms

1.3 Withstand Voltage: 500V AC

1.4 Minimum Insulation Resistance: 1000 Megaohms

2. Raw Material Composition

2.1 Insulator: UL94V-0 flame retardant thermoplastic

2.2 Shell Material Options: Iron, Stainless steel

2.3 Contact Base Material Options

2.3.1 LCP: Phosphor copper

2.3.2 B: Brass

2.4 Contact Base Thickness: 0.30mm, pre-tinned with nickel base

3. Contact Plating Options

3.1 Gold plating series: Gold flash, 3μ",5μ",15μ",30μ" gold on mating area

3.2 Solder tail surface: Pure tin plating

4. Mechanical Structure & Dimension (Unit: mm)

4.1 Mounting form: Angled through-hole DIP type

4.2 Overall length tolerance: 15.80±0.15

4.3 Standard PCB layout hole diameters: Φ0.92, Φ2.3

4.4 Unified dimensional tolerance standard: X.±0.35, X.X±0.29

5. Packaging Options

5.1 Tray packing: T

5.2 Tape & reel packing: B

6. Environmental Compliance

6.1 Conform to HSF and RoHS lead-free standards

7. Application Scenarios

7.1 Desktop & notebook computer peripheral equipment

7.2 Digital household appliances and electronic toys

7.3 Portable mobile storage devices

7.4 Communication terminal equipment

7.5 Industrial control panels and precision testing instruments

8. Operation & Storage Precautions

8.1 Select brass or phosphor copper contacts according to plugging frequency

8.2 Choose gold plating thickness based on service life and anti-corrosion demand

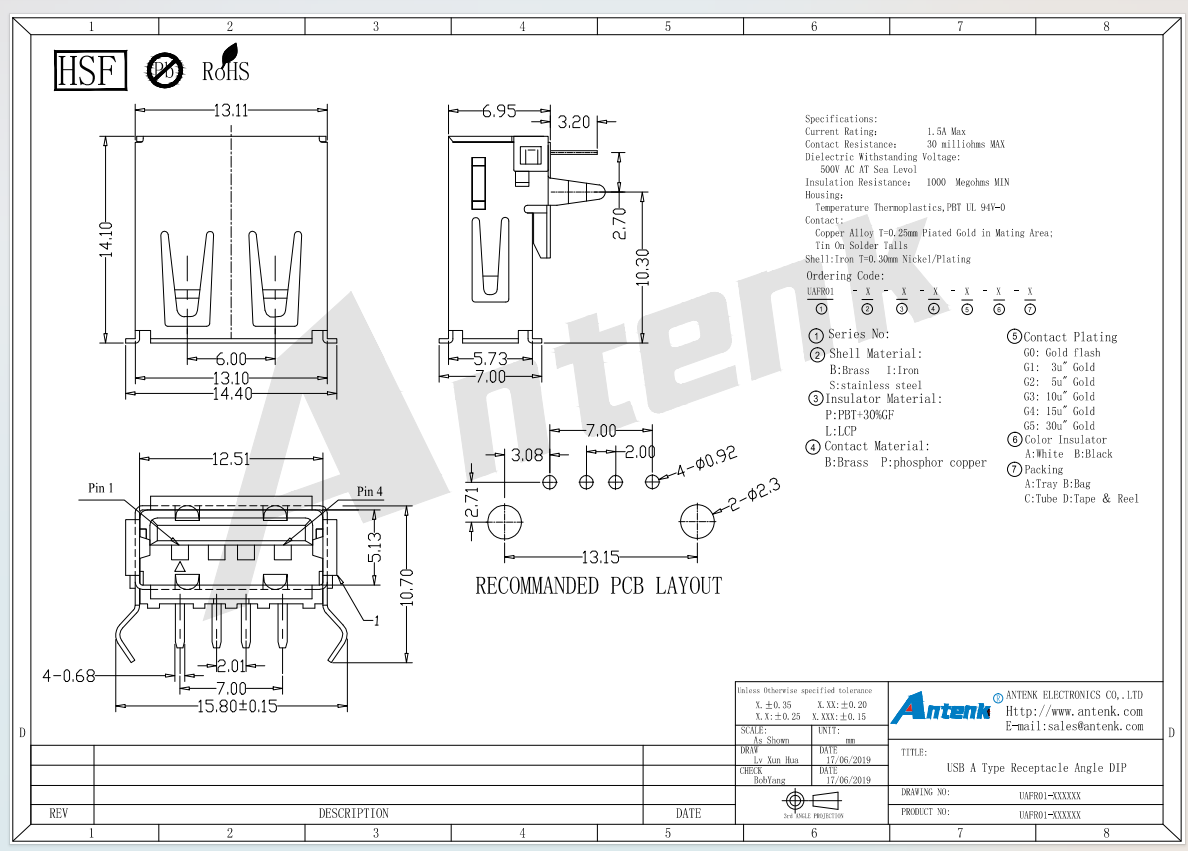

8.3 Complete DIP soldering strictly follow official recommended PCB layout drawing

8.4 Avoid violent repeated plugging to prevent contact abrasion

8.5 Store finished USB receptacles in dry sealed packaging to avoid plating oxidation

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

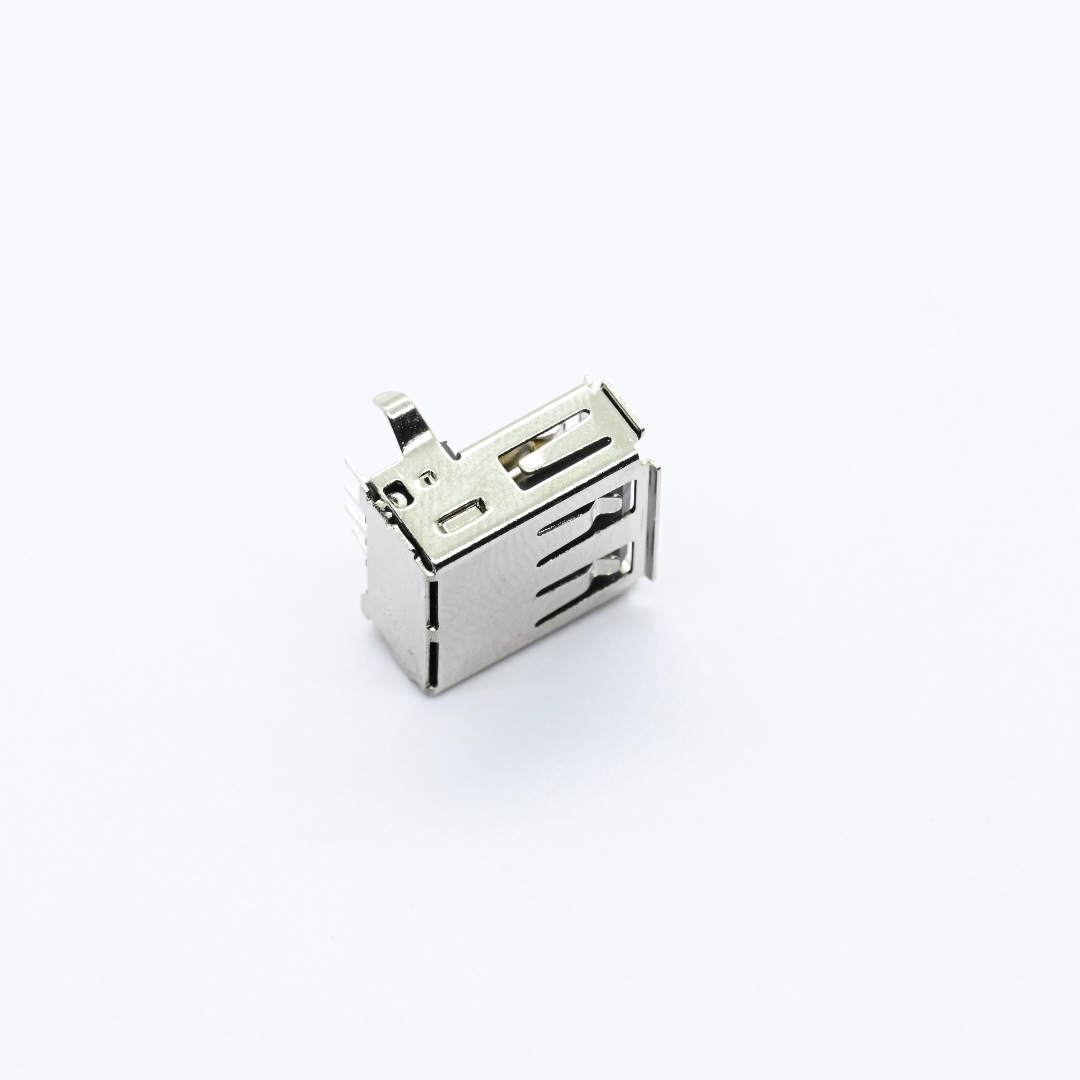

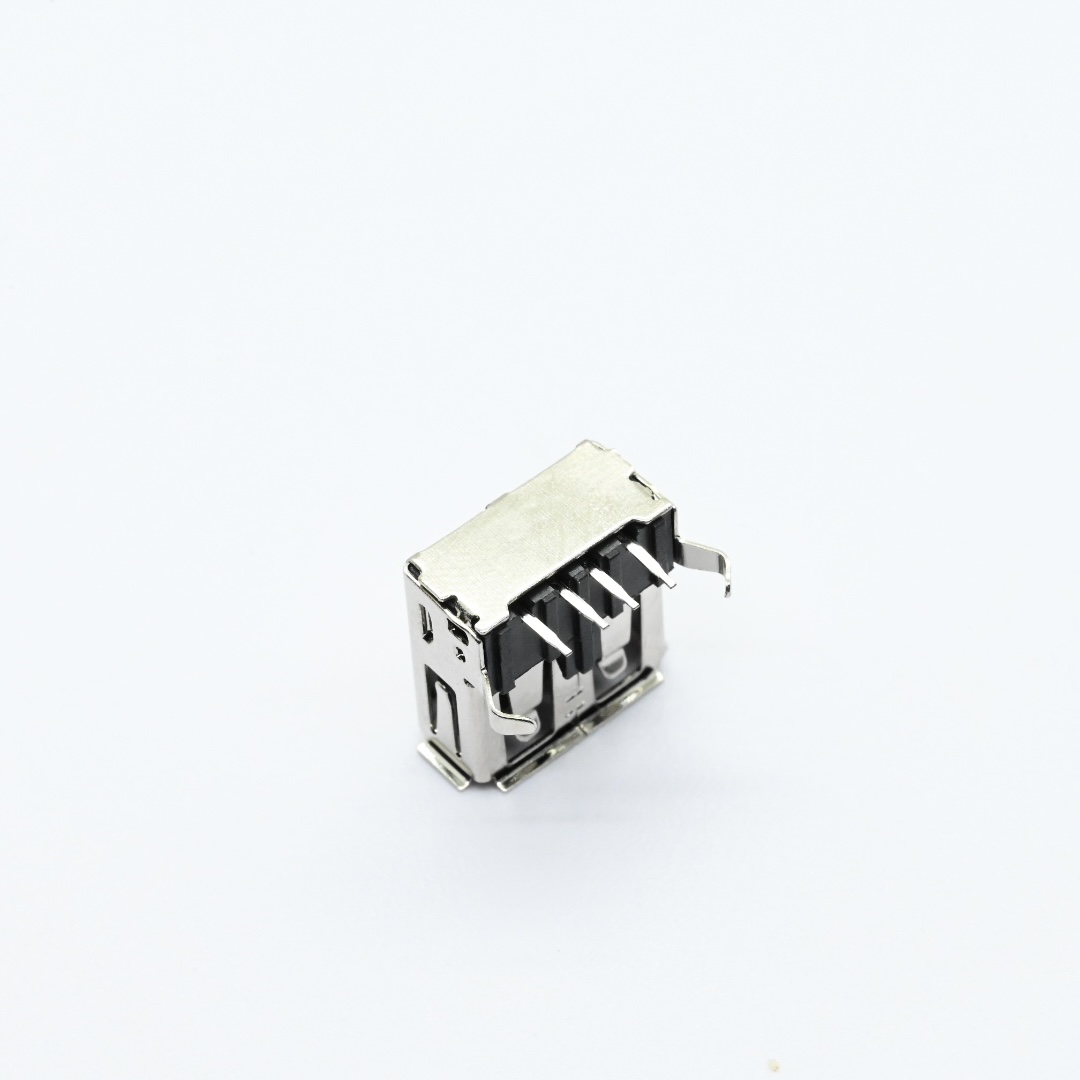

UAFR0l-BPBGOBA+USB A Type Receptacle Angle DIP（6）

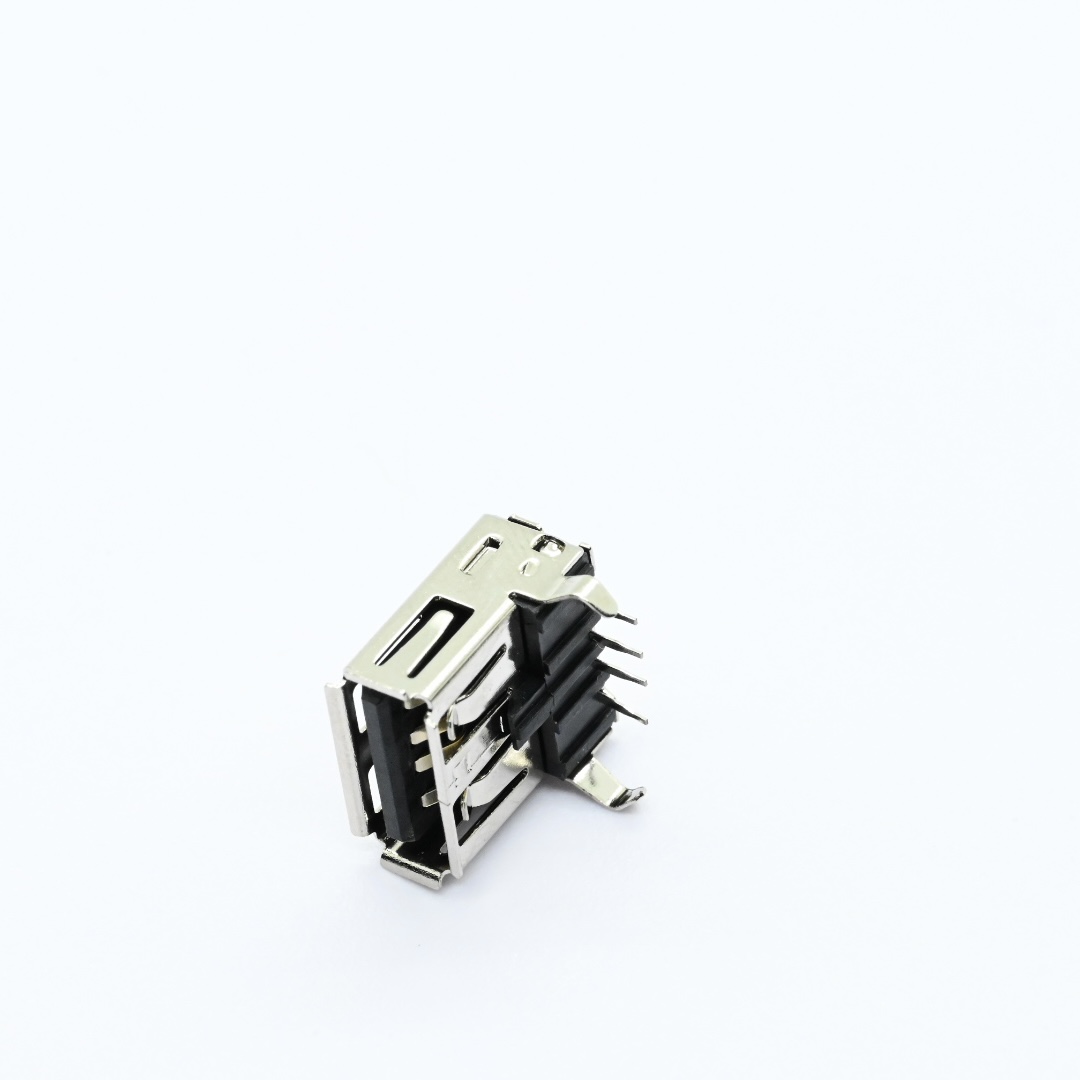

UAFR0l-BPBGOBA+USB A Type Receptacle Angle DIP（5）

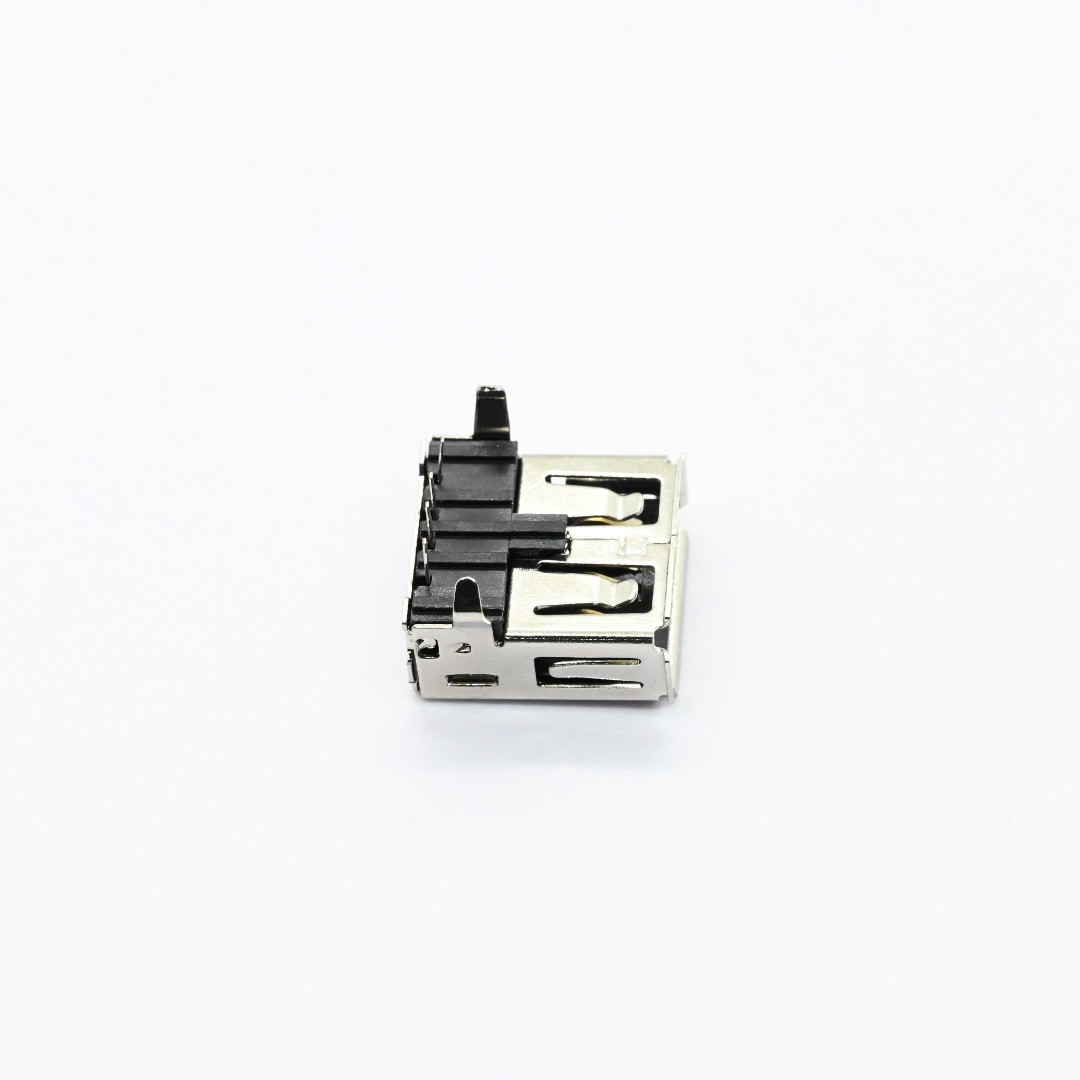

UAFR0l-BPBGOBA+USB A Type Receptacle Angle DIP（4）

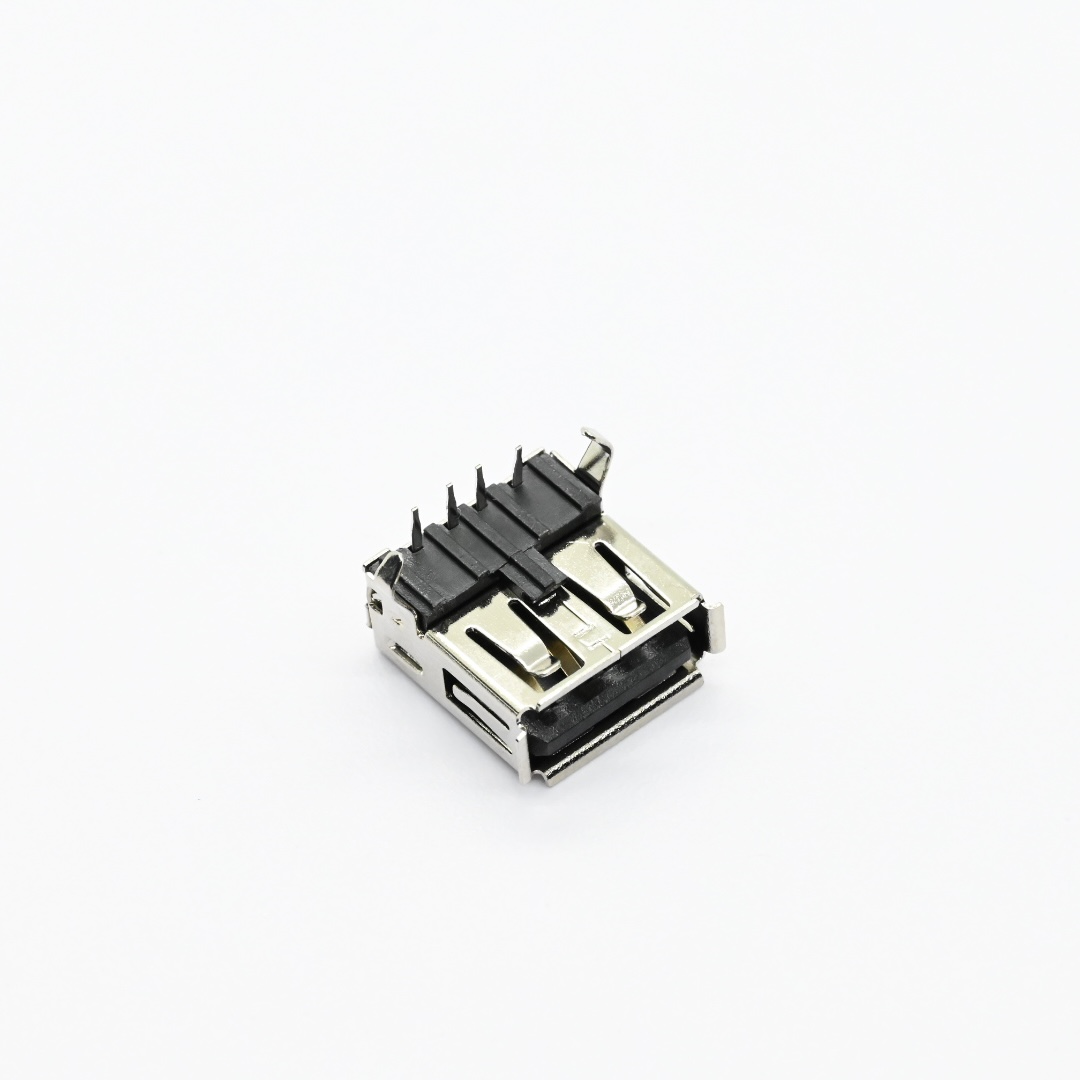

UAFR0l-BPBGOBA+USB A Type Receptacle Angle DIP（2）

UAFR0l-BPBGOBA+USB A Type Receptacle Angle DIP（3）

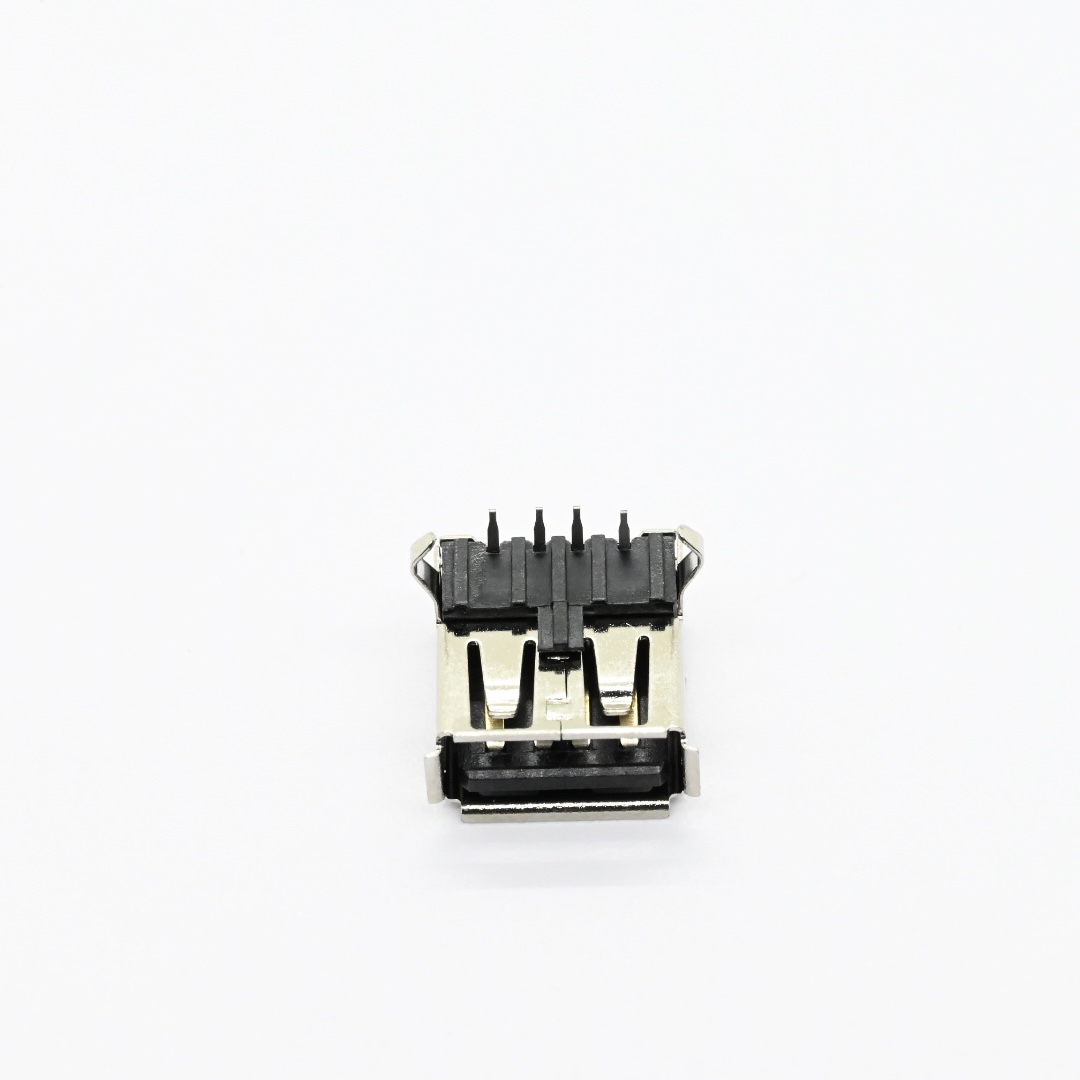

UAFR0l-BPBGOBA+USB A Type Receptacle Angle DIP（1）
