Product details

Huizhou Antenk Electronics Co., Ltd. manufactures AH2543A series 2.54mm pitch connector housings to form stable wire-to-board connection systems by matching with AT2543T terminals and AW2543 series wafers, supporting pin counts ranging from 2P up to 25P with standardized 2.54±0.10mm pitch and size dimensions adjusted according to pole numbers. This plastic housing is made of UL94V0 flame retardant Nylon 66, available in default brown and optional white colors, rated for 4A AC DC current and 250V AC DC voltage, with 1000V AC one-minute withstanding voltage and minimum 1000 megaohm insulation resistance, adapting to wide working temperature from minus 40 degree Celsius to plus 105 degree Celsius and fully complying with RoHS and REACH environmental regulations, unified dimensional tolerances ensure precise assembly with matched terminals and wafers. This general-purpose wire connector housing is widely used in liquid crystal display equipment, digital cameras, communication modules, industrial control panels, portable storage drives, digital home appliances, electronic toys, computer peripherals, automotive electronics and precision measuring instruments. Operators must select housing pin quantity consistent with circuit wiring demands, assemble paired AT2543T terminals into housing cavities completely before mating with AW2543 wafers, avoid violent extrusion to prevent nylon housing cracking and store finished housings in dry dust-free sealed packages to resist moisture aging. Unlike competitors outsourcing plastic molding and mold processing Antenk implements full independent production process covering self-developed plastic mold design and manufacturing, precision nylon injection molding, post-molding dimensional inspection and complete temperature cycle reliability laboratory testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications while meeting global environmental standards. We own over two hundred fifty sets of proprietary plastic connector molds, offer customizable pin number and housing color options, provide round-the-clock professional engineering technical support, and more than seventy percent of our 2.54mm pitch connector housing products are exported worldwide relying on our Guangdong Famous Trademark ANTENK and stable consistent mass production quality.

UL94V0 Nylon 66 Connector Housing provides superior flame retardant property and stable structural performance under various industrial working temperatures.

Wide Temp 2.54mm Wire Housing maintains intact insulation and assembly performance from -40°C to +105°C for long-term wiring connection.

Multi-Pin RoHS Compliant Housing supports 2P to 25P pin configurations and fully meets global lead-free environmental control standards.

1. Electrical Performance

1.1 Rated Current: 4A AC/DC

1.2 Rated Voltage: 250V AC/DC

1.3 Withstand Voltage: 1000V AC per minute

1.4 Minimum Insulation Resistance: 1000 MΩ

2. Environmental Parameters

2.1 Operating Temperature Range: -40°C ~ +105°C

2.2 Compliance Standard: RoHS, REACH

3. Material & Color Options

3.1 Housing Material: Nylon 66, UL94V-0 flame retardant grade

3.2 Available Colors: Default brown, optional white (WH)

4. Matching Components

4.1 Matched Terminal: AT2543T series terminal

4.2 Mating Wafer: AW2543 series wafer

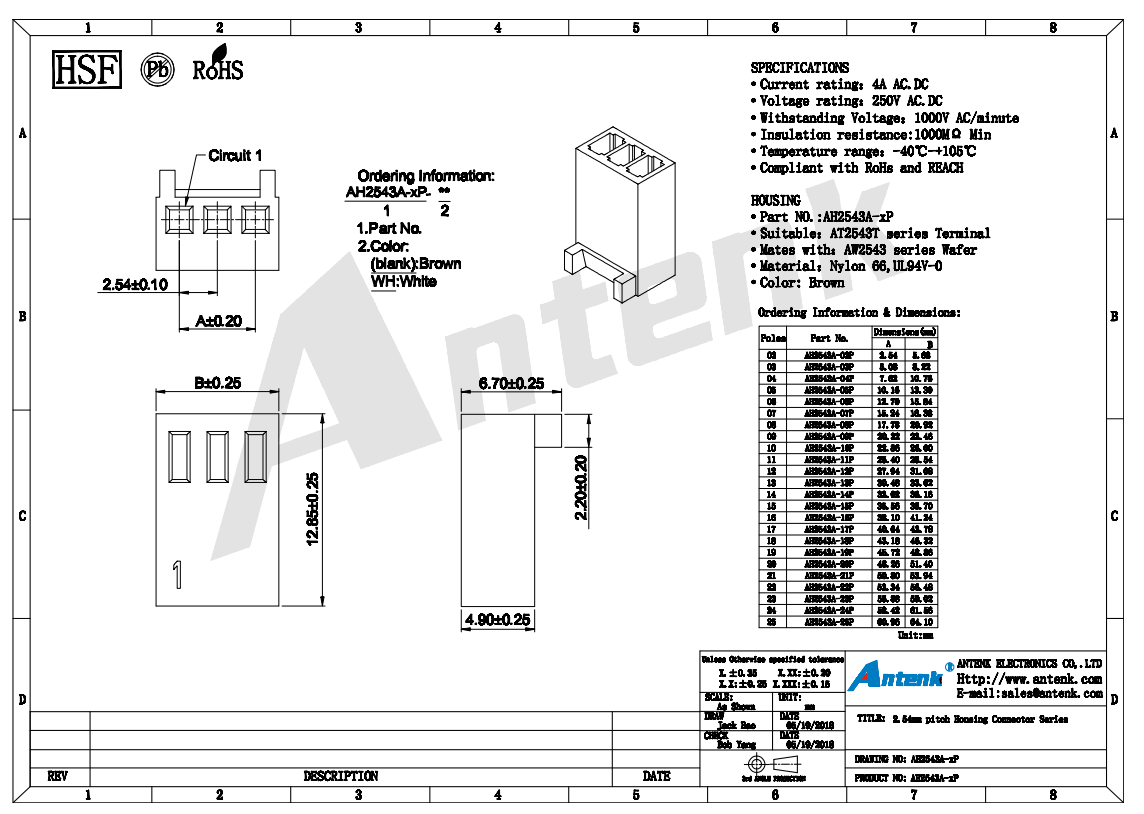

5. Mechanical & Dimensional Info (Unit: mm)

5.1 Standard Pitch: 2.54mm

5.2 Fixed dimension C: 4.90±0.25

5.3 Tolerance rules: B±0.25, 6.70±0.25, 2.0±0.20

5.4 Available pole counts: 2P to 25P with corresponding customized length

6. Application Scenarios

6.1 Liquid crystal display equipment

6.2 Digital cameras & portable storage devices

6.3 Communication modules & industrial control panels

6.4 Digital home appliances and electronic toys

6.5 Computer peripherals, automotive electronics, precision measuring instruments

7. Operation & Storage Precautions

7.1 Select corresponding pin count housing based on actual circuit wiring quantity

7.2 Assemble AT2543T terminals fully into housing before mating with AW2543 wafer

7.3 Avoid heavy impact or extrusion to prevent nylon housing cracking

7.4 Store finished housings in dry sealed packages to avoid moisture-induced insulation decline

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

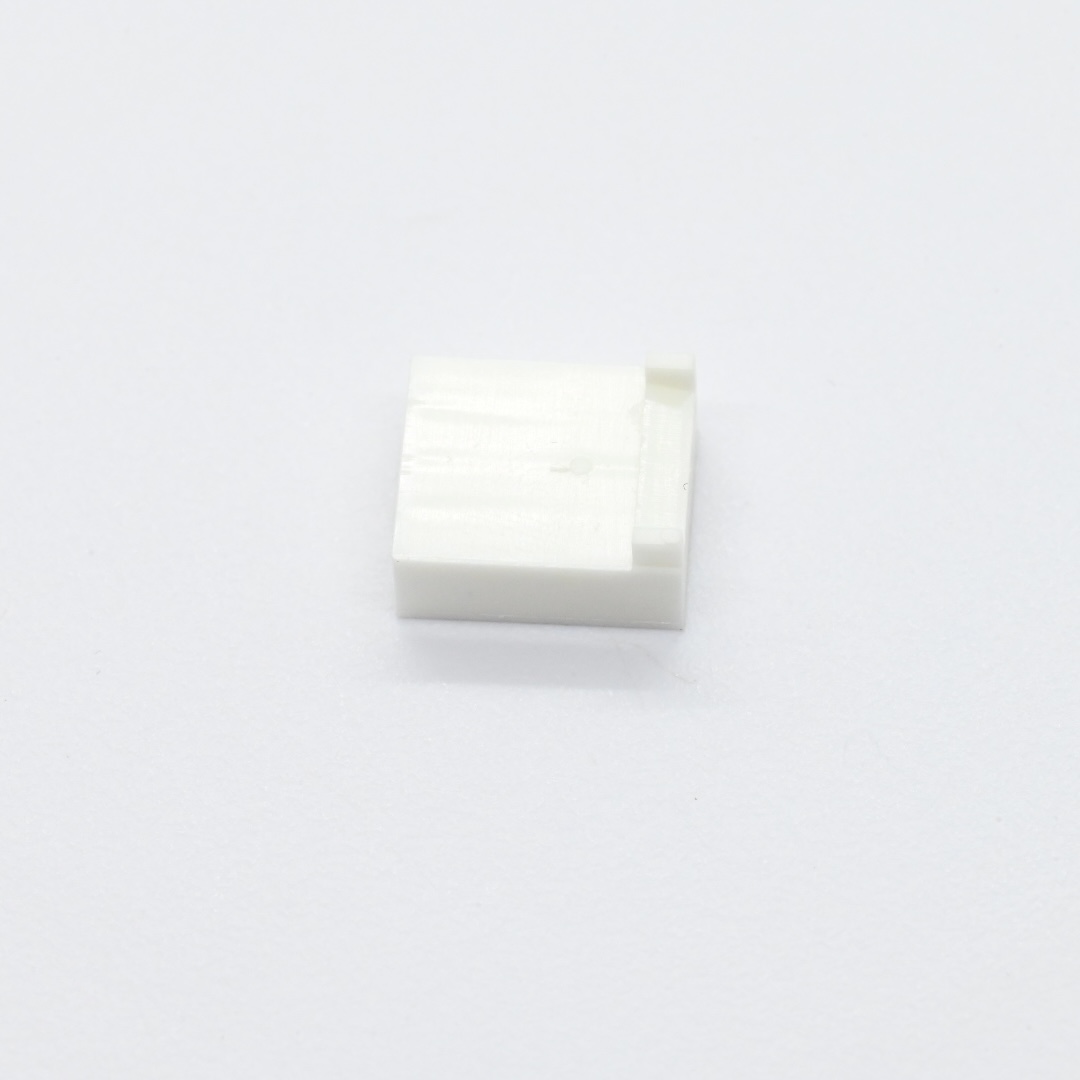

AH2543A-4P+2.54mm pitch Housing Connector Series（2）

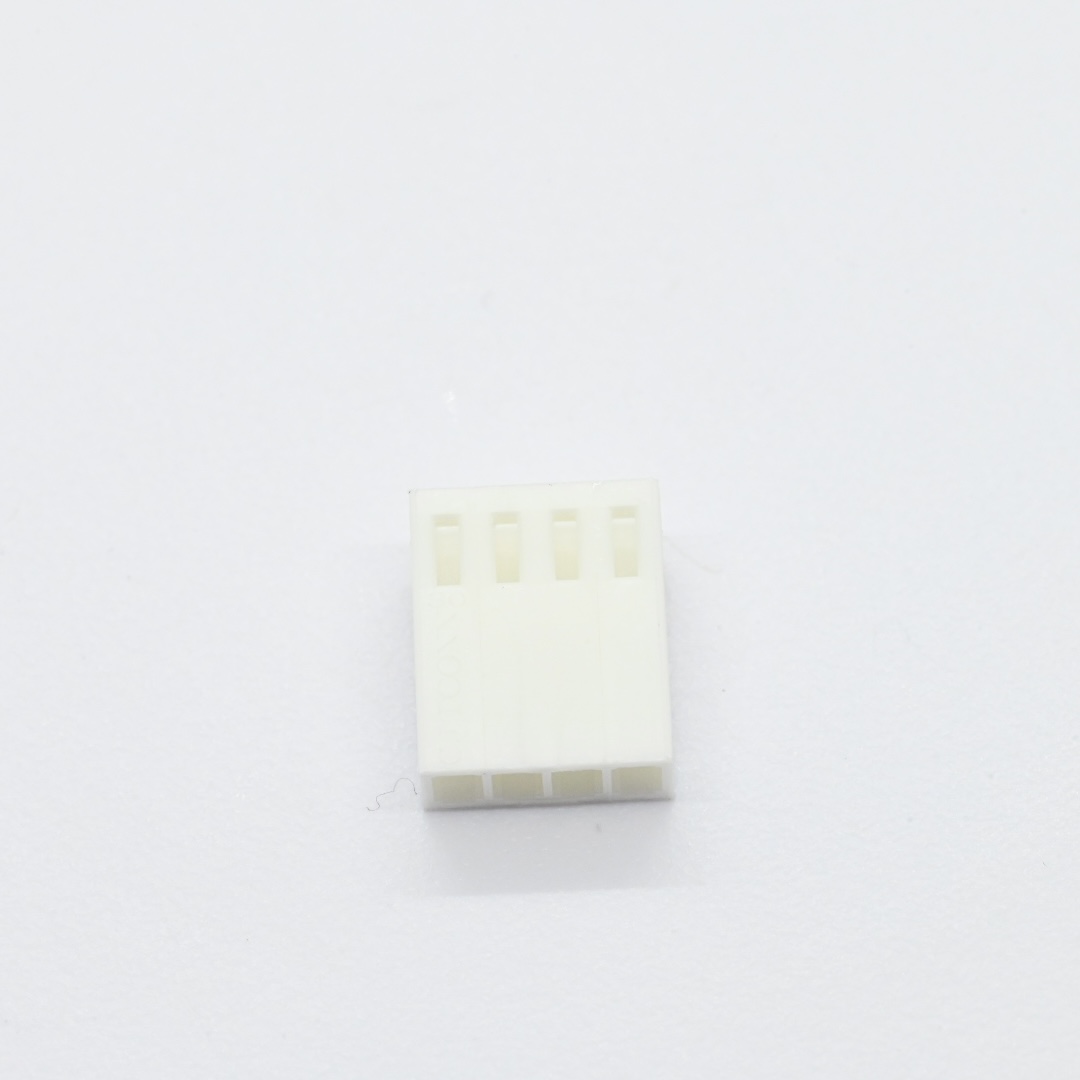

AH2543A-4P+2.54mm pitch Housing Connector Series（5）

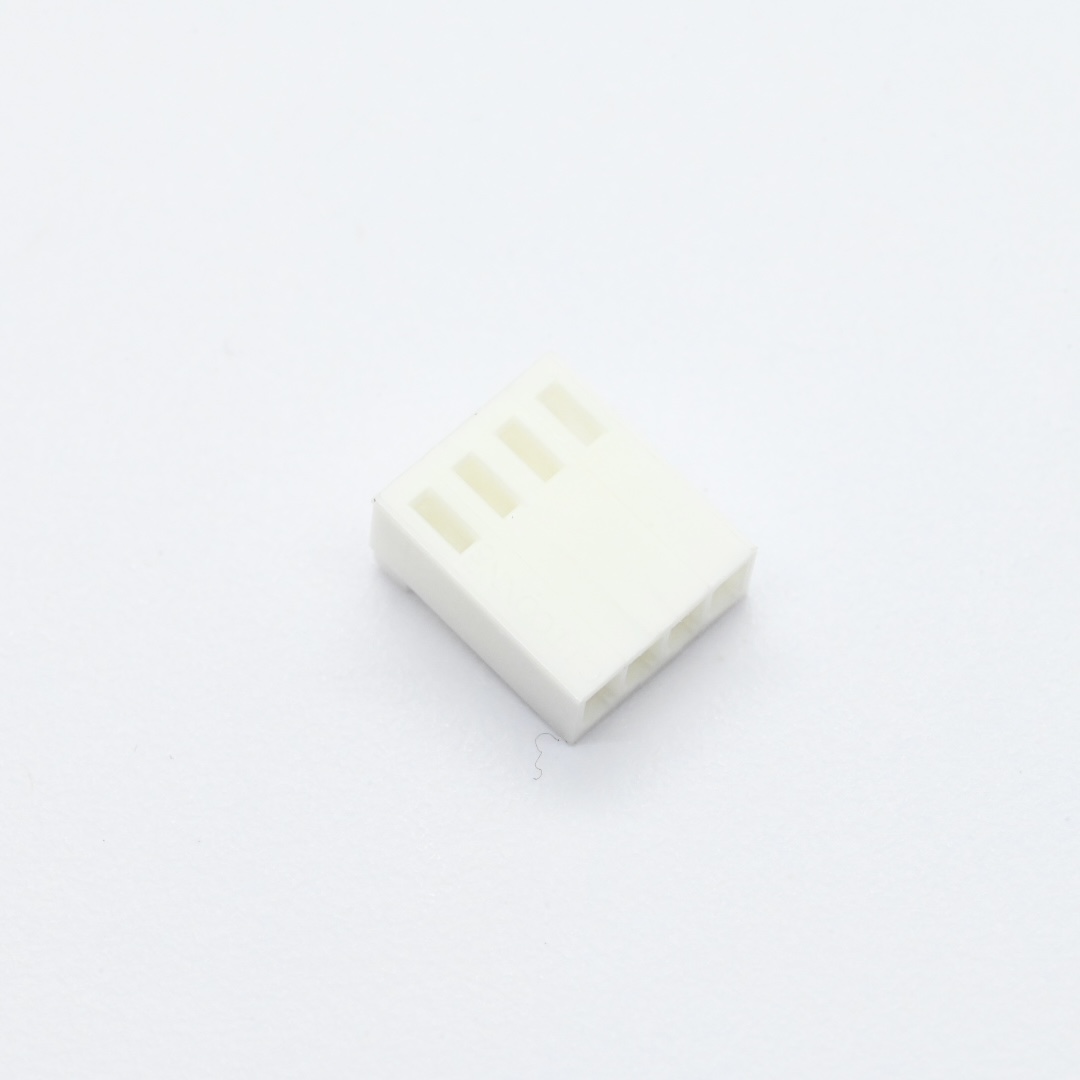

AH2543A-4P+2.54mm pitch Housing Connector Series（6）

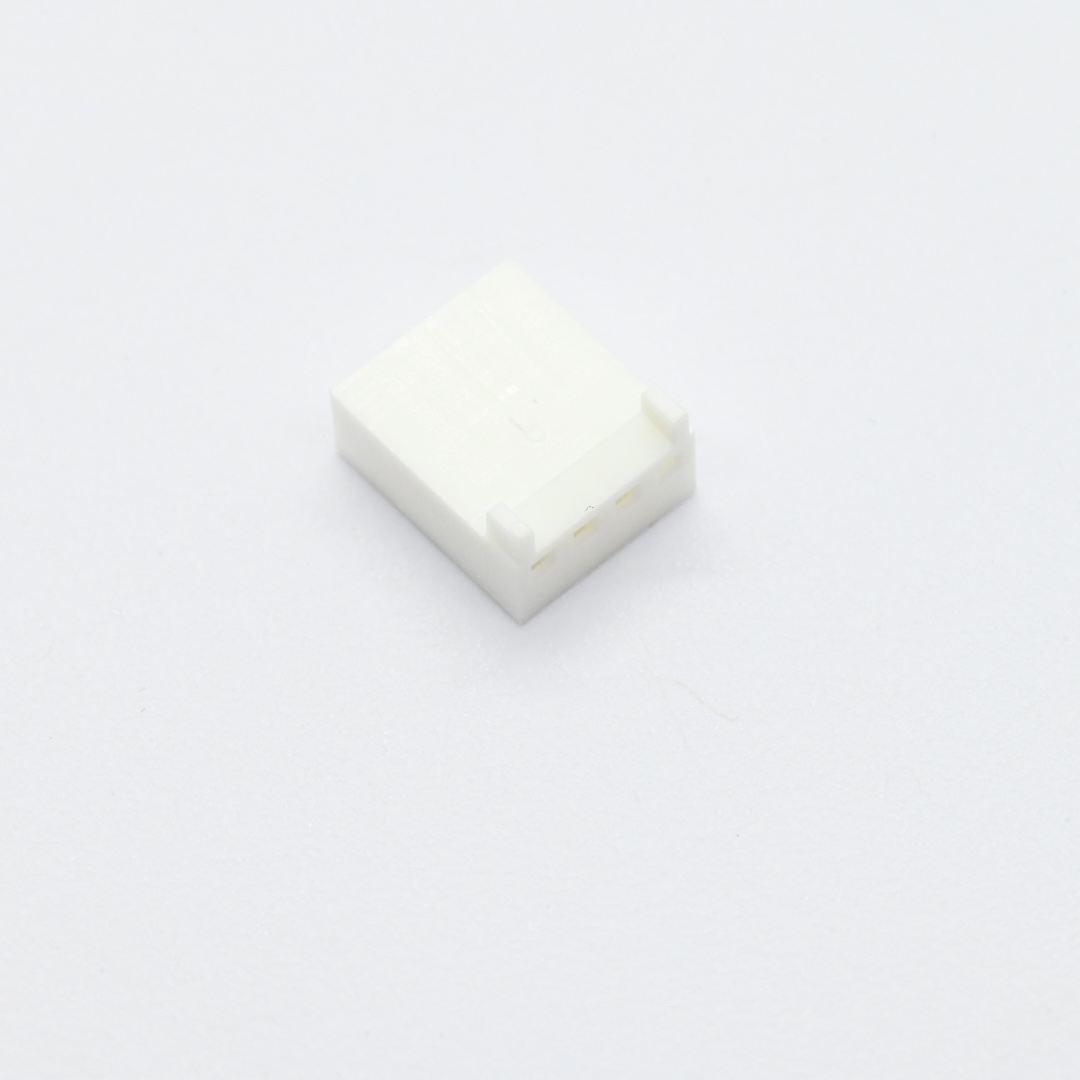

AH2543A-4P+2.54mm pitch Housing Connector Series（1）

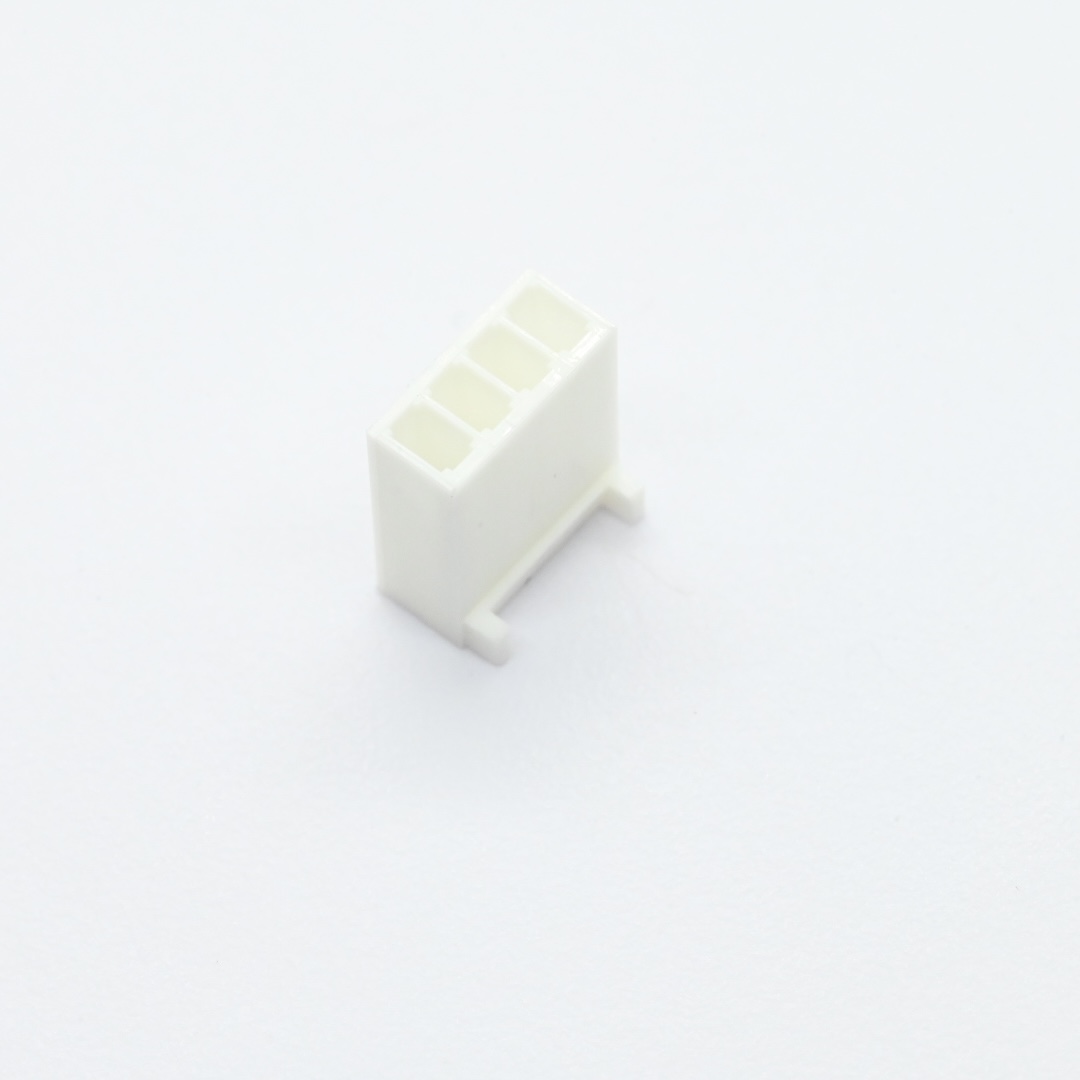

AH2543A-4P+2.54mm pitch Housing Connector Series（3）

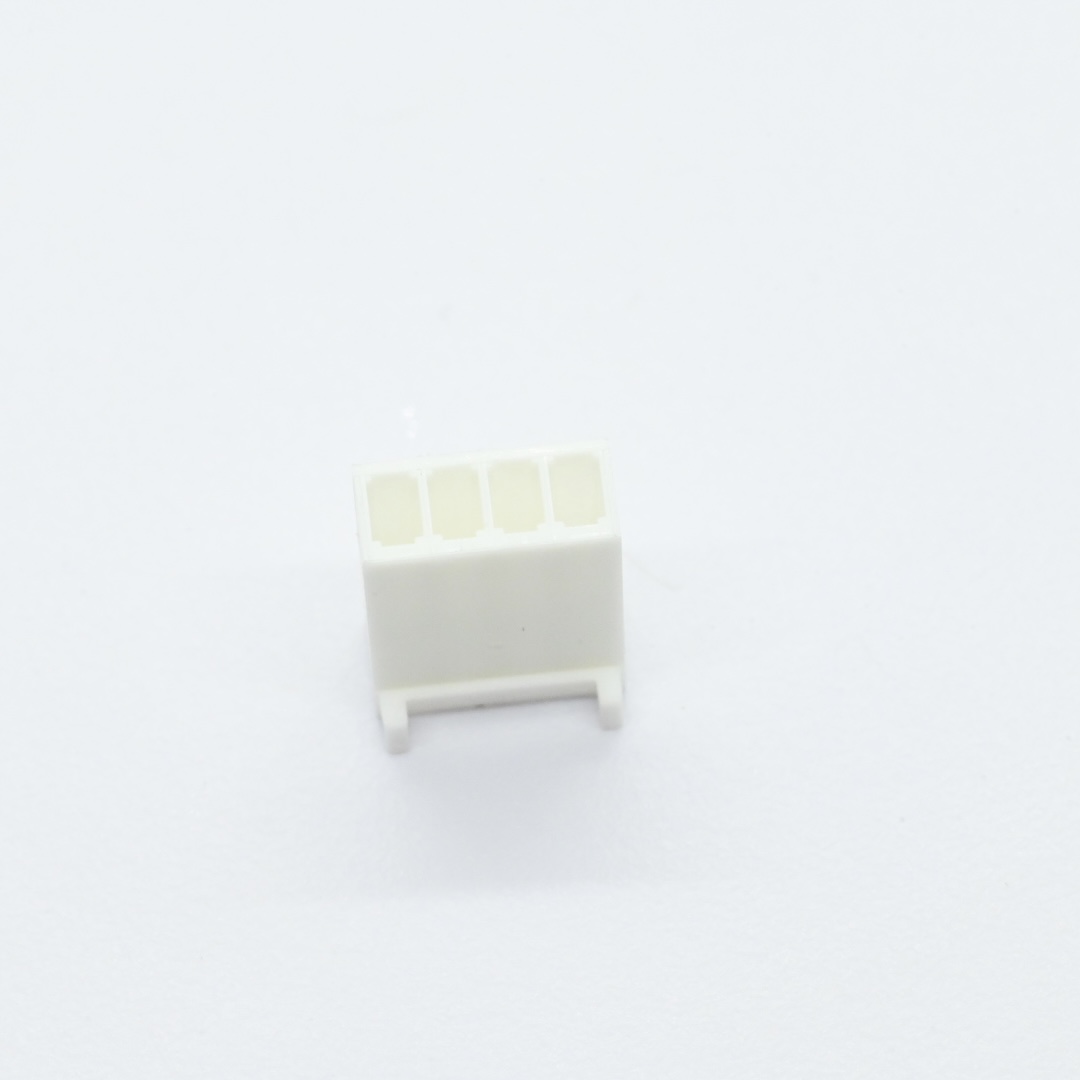

AH2543A-4P+2.54mm pitch Housing Connector Series（4）
