2.54mm 180 Degree PCB Wafer Connector

2.54mm 180 Degree PCB Wafer Connector

2 week ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Huizhou Antenk Electronics Co., Ltd. produces AW2543VA series 2.54mm pitch 180 degree PCB wafers to build stable wire-to-board connection systems matched perfectly with AH2543 series connector housings, supporting pole specifications ranging from 2P to 28P with fixed 2.54±0.10mm standard pitch and customized overall length corresponding to different pin counts. This straight vertical wafer adopts UL94V0 flame retardant Nylon 66 insulating body, square 0.64mm brass pins covered with tin over nickel plating to lower contact resistance, supplied in standard brown and optional white housing colors, electrically rated at 4A AC DC current and 250V AC DC voltage, equipped with 1000V AC one-minute dielectric withstand capacity and insulation resistance above 1000 megaohms, capable of stable operation under wide temperature range from minus 40 degree Celsius to plus 105 degree Celsius and fully compliant with RoHS and HSF environmental control standards with standardized dimensional tolerances for accurate PCB soldering and housing mating. This general-purpose PCB wafer connector is widely deployed in liquid crystal display modules, digital cameras, communication terminal equipment, industrial control panels, portable storage drives, digital household appliances, electronic toys, computer peripherals, automotive electronic assemblies and precision measuring instruments. Operators should select wafer pole quantity matching circuit wiring layout, complete through-hole soldering strictly following official dimension drawings, avoid excessive plugging force to prevent brass pin bending deformation and store finished wafers in dry sealed packaging to stop plating layer oxidation. Unlike competitors outsourcing mold stamping and plastic injection molding Antenk adopts full self-controlled production workflow covering independent plastic and metal precision mold development, high-speed brass pin stamping, nylon injection molding, multi-layer tin-nickel electroplating and full-range high-low temperature cycle reliability lab testing, certified with ISO9001 ISO14001 IATF16949 and UL E472792 while satisfying RoHS HSF and REACH global environmental regulations. We own more than two hundred fifty sets of proprietary plastic connector molds and one hundred eighty sets of metal pin molds, offer customizable pole count and insulator color solutions, deliver round-the-clock professional engineering technical support, and over seventy percent of our 2.54mm PCB wafer products are exported worldwide backed by our Guangdong Famous Trademark ANTENK and steady mass production quality consistency.

Tin Nickel Plated Brass Wafer Pin delivers low contact resistance and reliable anti-corrosion performance for long-term PCB connection use.

UL94V0 Nylon 66 Wafer Insulator offers excellent flame retardancy and stable insulation under -40°C to +105°C working conditions.

180 Degree 2P-28P PCB Wafer perfectly mates with AH2543 series housing and fits diverse multi-circuit PCB wiring layouts.

1. Electrical Performance Parameters

1.1 Rated Current: 4A AC/DC

1.2 Rated Voltage: 250V AC/DC

1.3 Withstand Voltage: 1000V AC per minute

1.4 Minimum Insulation Resistance: 1000 MΩ

2. Environmental Performance

2.1 Operating Temperature Range: -40°C ~ +105°C

2.2 Compliance Certifications: HSF, RoHS

3. Raw Material Composition

3.1 Insulator Housing: Nylon 66, UL94V-0 flame retardant

3.2 Contact Pin: Square 0.64mm brass, tin over nickel plated

4. Matching Parts

4.1 Compatible Mating Component: AH2543 series connector housing

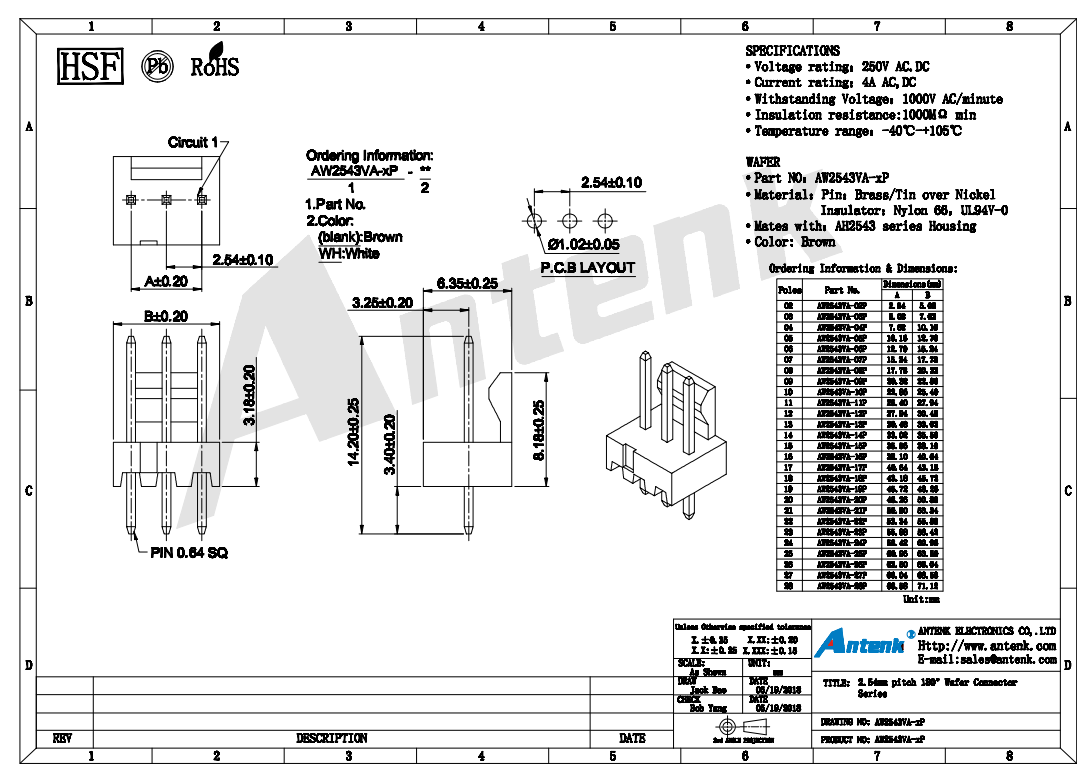

5. Mechanical & Dimensional Data (Unit: mm)

5.1 Standard Pitch: 2.54±0.10

5.2 Pin Structure: Vertical 180° straight through-hole type

5.3 Available Pole Count: 2P to 28P, corresponding length A and B for each pin number

5.4 Dimensional Tolerance Rules: A±0.20, B±0.20, 6.35±0.25, 3.25±0.20

6. Customizable Options

6.1 Insulator Colors: Default brown, optional white (WH)

7. Application Scenarios

7.1 Industrial control equipment and precision testing instruments

7.2 Digital household appliances, electronic toys, computer peripherals

7.3 Liquid crystal displays, digital cameras, portable storage devices

7.4 Communication modules and automotive electronic assemblies

8. Operation & Storage Precautions

8.1 Select wafer pole quantity according to actual circuit wiring requirements

8.2 Conduct PCB soldering strictly following official dimensional tolerance standards

8.3 Avoid excessive bending force to prevent deformation of square brass pins

8.4 Match with AH2543 series housing for complete and stable electrical connection

8.5 Store finished wafers in dry sealed packaging to avoid oxidation of tin-nickel plating layer

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

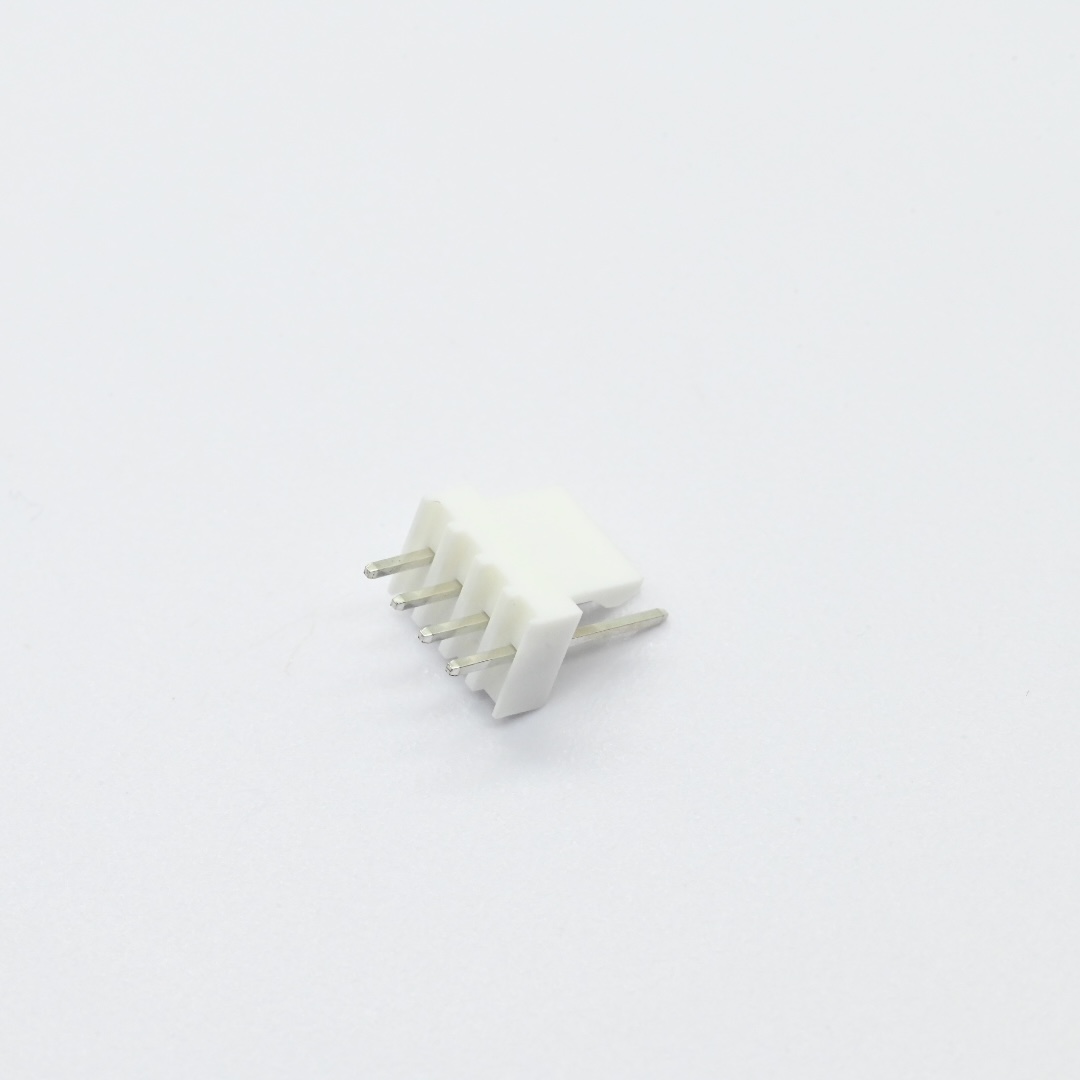

2.54mm pitch 180° Wafer Connector Series+AW2543VA-4P（3）

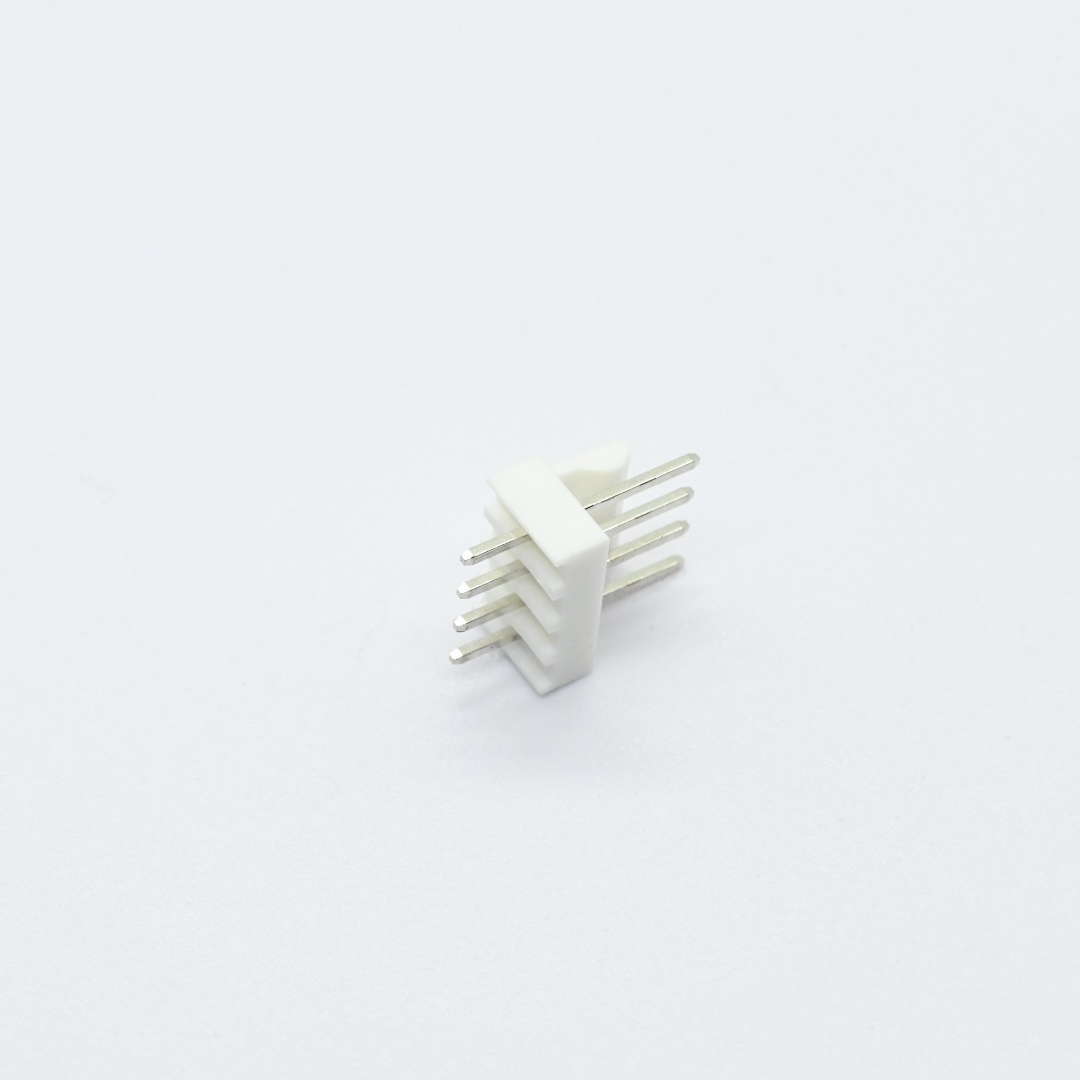

2.54mm pitch 180° Wafer Connector Series+AW2543VA-4P（2）

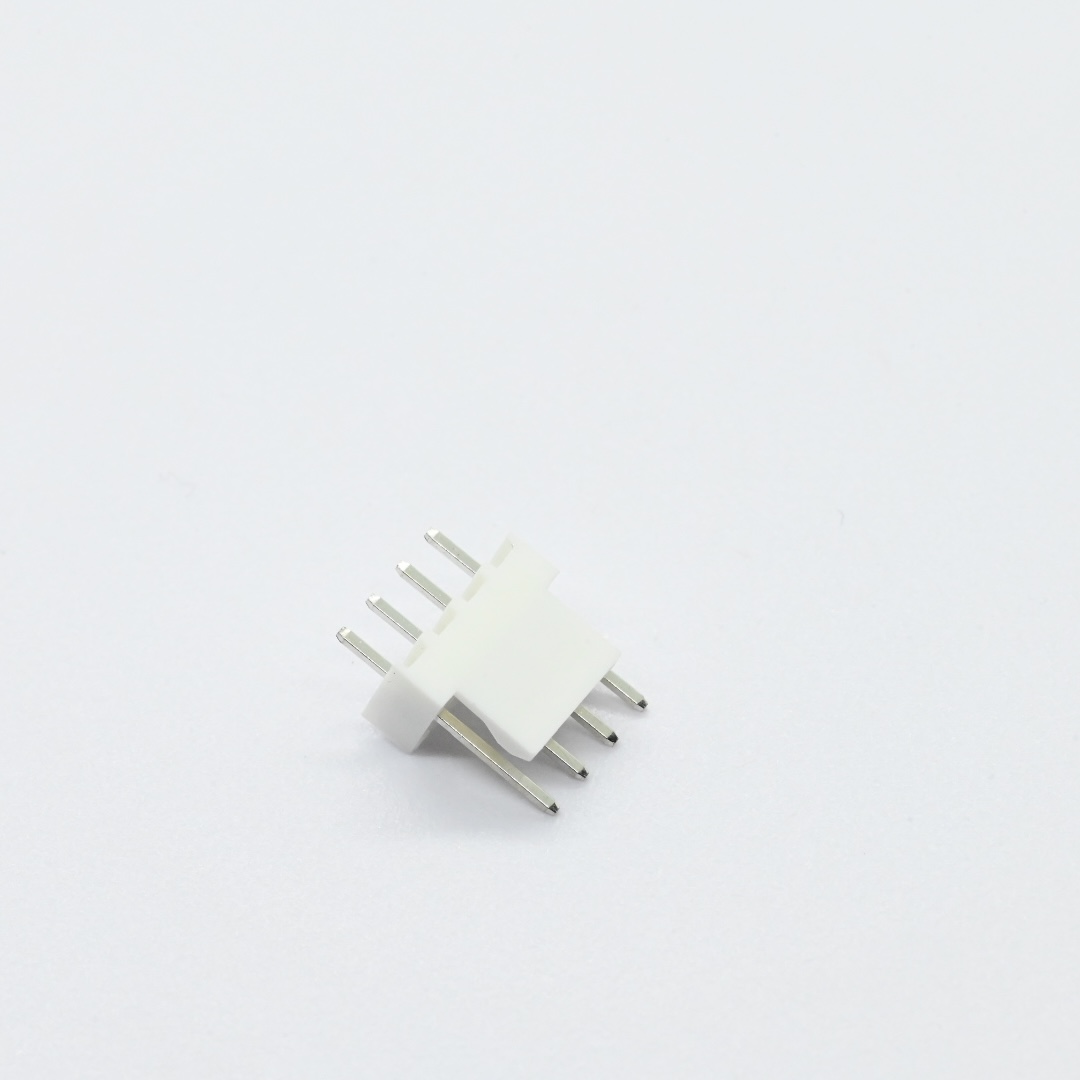

2.54mm pitch 180° Wafer Connector Series+AW2543VA-4P（6）

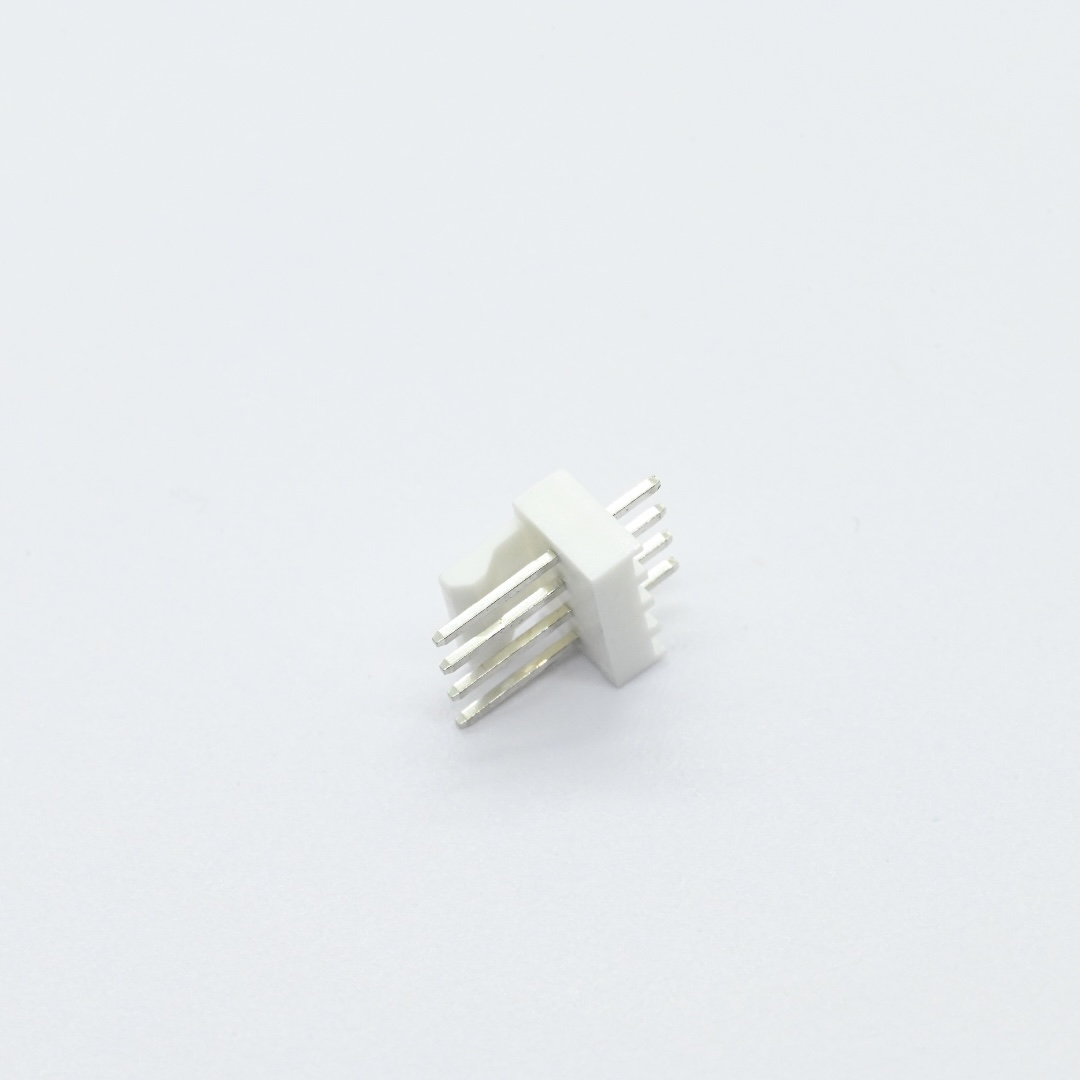

2.54mm pitch 180° Wafer Connector Series+AW2543VA-4P（5）

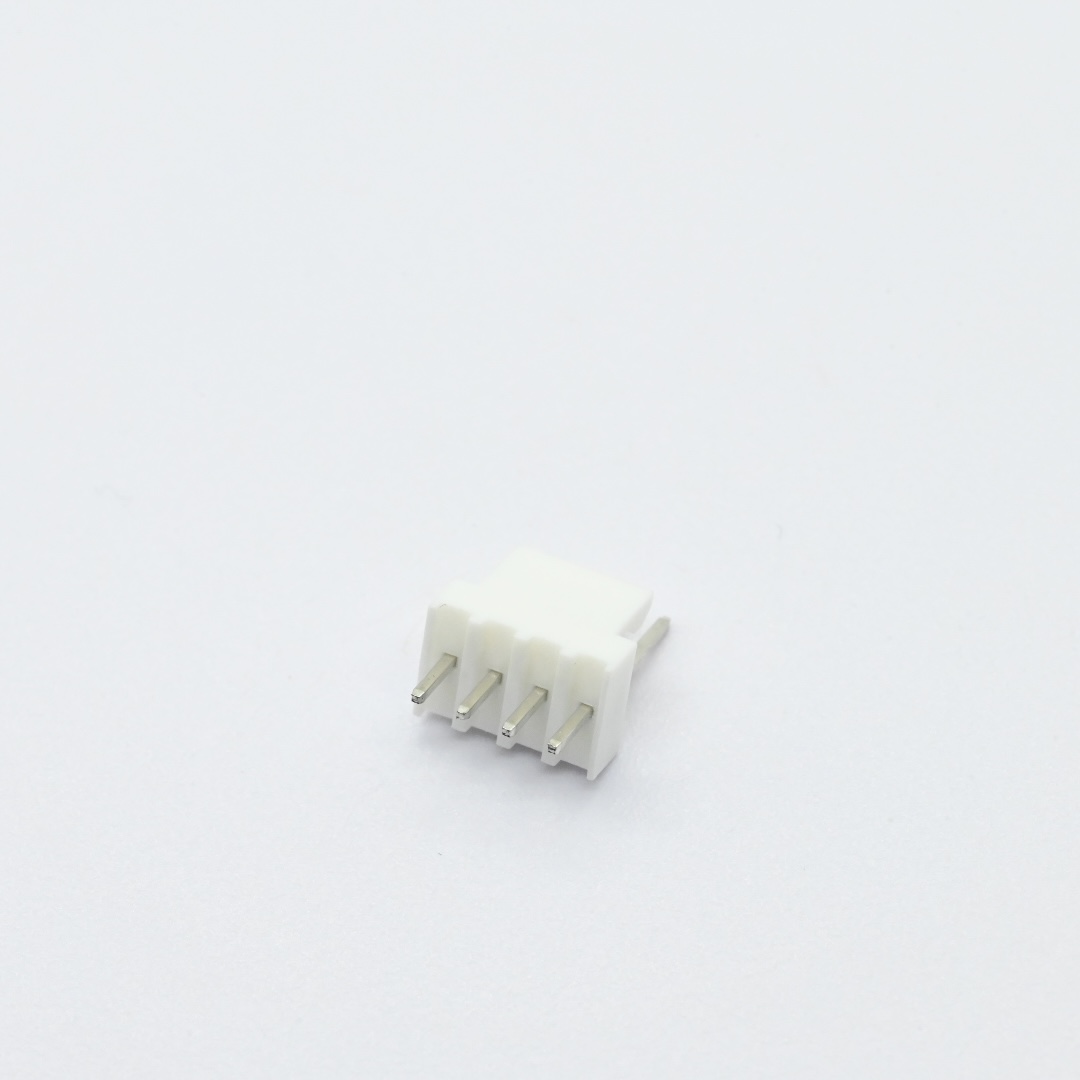

2.54mm pitch 180° Wafer Connector Series+AW2543VA-4P（4）

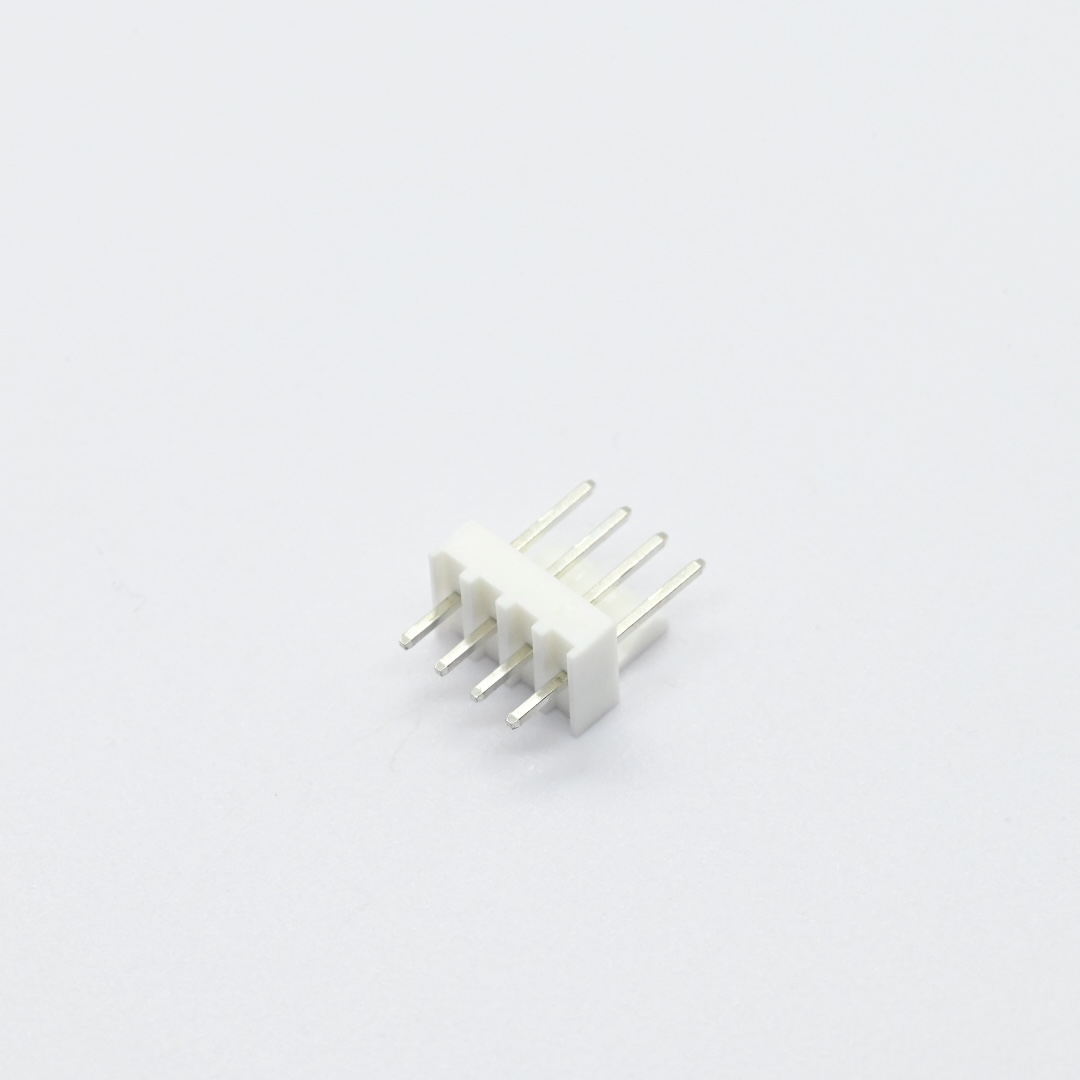

2.54mm pitch 180° Wafer Connector Series+AW2543VA-4P（1）
