1.27mm White IDC Cable Connector PFCI01

1.27mm White IDC Cable Connector PFCI01

2 day ago

2 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Huizhou Antenk Electronics Co., Ltd. manufactures PFCI01 series 1.27mm white IDC cable connectors to realize fast reliable flat cable wiring connection without soldering, compatible with 26AWG and 28AWG flat cables and available in pole counts ranging from 4P to 26P with fixed 1.27±0.10mm single pitch and double 2.54±0.10mm row pitch. This IDC connector adopts UL94V0 flame retardant white PBT thermoplastic housing, brass contacts with customizable plating options including gold flash, 3u",5u",10u",15u",30u" gold over nickel or pure tin plating to reduce contact resistance below 20 milliohms, electrically rated for maximum 2.4A current and 500V AC withstand voltage with minimum 1000 megohm insulation resistance, supporting stable operation between minus 40 degree Celsius and plus 105 degree Celsius and fully compliant with HSF and RoHS lead-free standards, multiple packaging choices of tray tube tape and reel for different assembly production lines. This insulation displacement cable connector is widely used in liquid crystal display modules, digital cameras, communication devices, industrial control panels, portable storage equipment, digital household appliances, electronic toys, computer peripherals, automotive electronics and precision testing instruments. Operators need to match 26 or 28 AWG flat cables with corresponding pin count connectors, align flat cable conductors fully with IDC terminal cutting blades before pressing tightly, avoid excessive extrusion to prevent PBT housing cracking and store finished connectors in dry sealed packages to avoid contact plating oxidation. Unlike competitors outsourcing mold stamping and plastic injection molding Antenk carries out complete independent production process including self-developed plastic and metal precision mold design, high-speed brass terminal stamping, PBT injection molding, multi-layer gold nickel tin electroplating and comprehensive temperature cycling reliability laboratory testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications while complying with RoHS HSF and REACH global environmental norms. We own more than two hundred fifty sets of proprietary plastic connector molds and one hundred eighty sets of metal terminal molds, provide customizable pole number contact plating and packaging schemes, offer round-the-clock professional engineering technical support, and over seventy percent of our IDC connector products are exported to global markets relying on our Guangdong Famous Trademark ANTENK and stable consistent mass production quality.

UL94V0 White PBT IDC Housing delivers superior flame retardant performance and stable insulation under wide temperature operating environments.

Nickel Tin Brass IDC Contact maintains low contact resistance and outstanding anti-corrosion capability for long-term flat cable connection.

Multi Gold Plating IDC Terminal supports multiple gold thickness plating options to meet different service life and wear resistance demands.

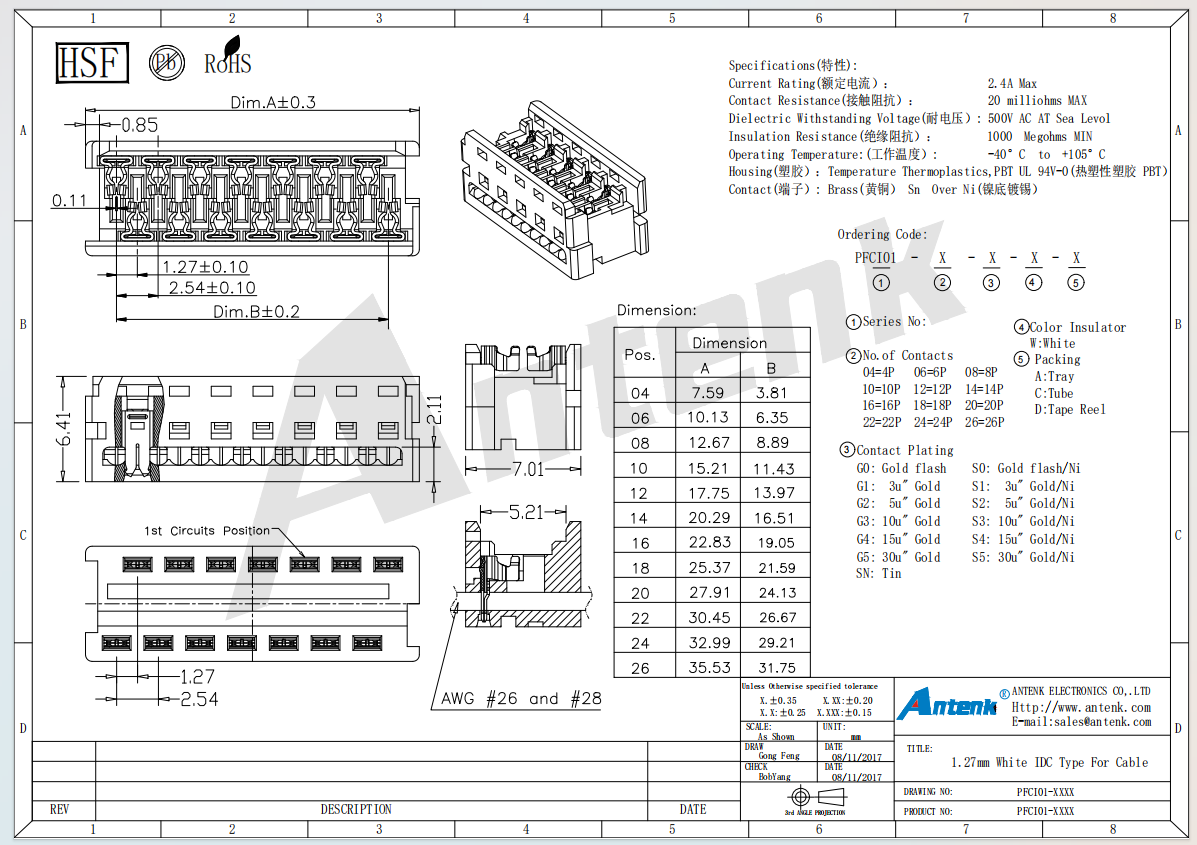

1. Electrical Performance

1.1 Max Rated Current: 2.4A

1.2 Max Contact Resistance: 20 milliohms

1.3 Dielectric Withstanding Voltage: 500V AC

1.4 Minimum Insulation Resistance: 1000 Megohms

2. Environmental Parameters

2.1 Operating Temperature Range: -40°C ~ +105°C

2.2 Compliance Standard: HSF, RoHS

3. Material Composition

3.1 Housing: PBT thermoplastic, UL94V-0 flame retardant, white color

3.2 Contact Base: Brass

3.3 Base Plating Standard: Tin over nickel

4. Customizable Contact Plating Options

4.1 Gold plating grades: Gold flash, 3μ", 5μ", 10μ", 15μ", 30μ" gold

4.2 Composite plating: Gold/nickel layers, pure tin plating available

5. Dimensional & Structural Info (Unit: mm)

5.1 Single pin pitch: 1.27±0.10

5.2 Double row overall pitch: 2.54±0.10

5.3 Compatible wire gauge: 26AWG, 28AWG flat cable

5.4 Available pole range: 4P to 26P

5.5 General dimensional tolerance rules: X.±0.35, X.X±0.25, X.XX±0.20, X.XXX±0.15

6. Packaging Selections

6.1 A: Tray packaging

6.2 C: Tube packaging

6.3 D: Tape & reel packaging

7. Application Scenarios

7.1 Liquid crystal display equipment, digital cameras

7.2 Communication modules, industrial control panels

7.3 Portable storage devices, digital home appliances

7.4 Electronic toys, computer peripheral hardware

7.5 Automotive electronics, precision measuring instruments

8. Operation & Storage Precautions

8.1 Only match 26AWG or 28AWG flat cables for IDC crimping connection

8.2 Align flat cable conductors fully with terminal cutting blades before uniform pressing

8.3 Avoid over-extrusion force to prevent cracking of PBT plastic housing

8.4 Select appropriate gold plating thickness based on plugging frequency and service life

8.5 Store finished connectors in dry sealed environment to avoid oxidation of contact plating layer
