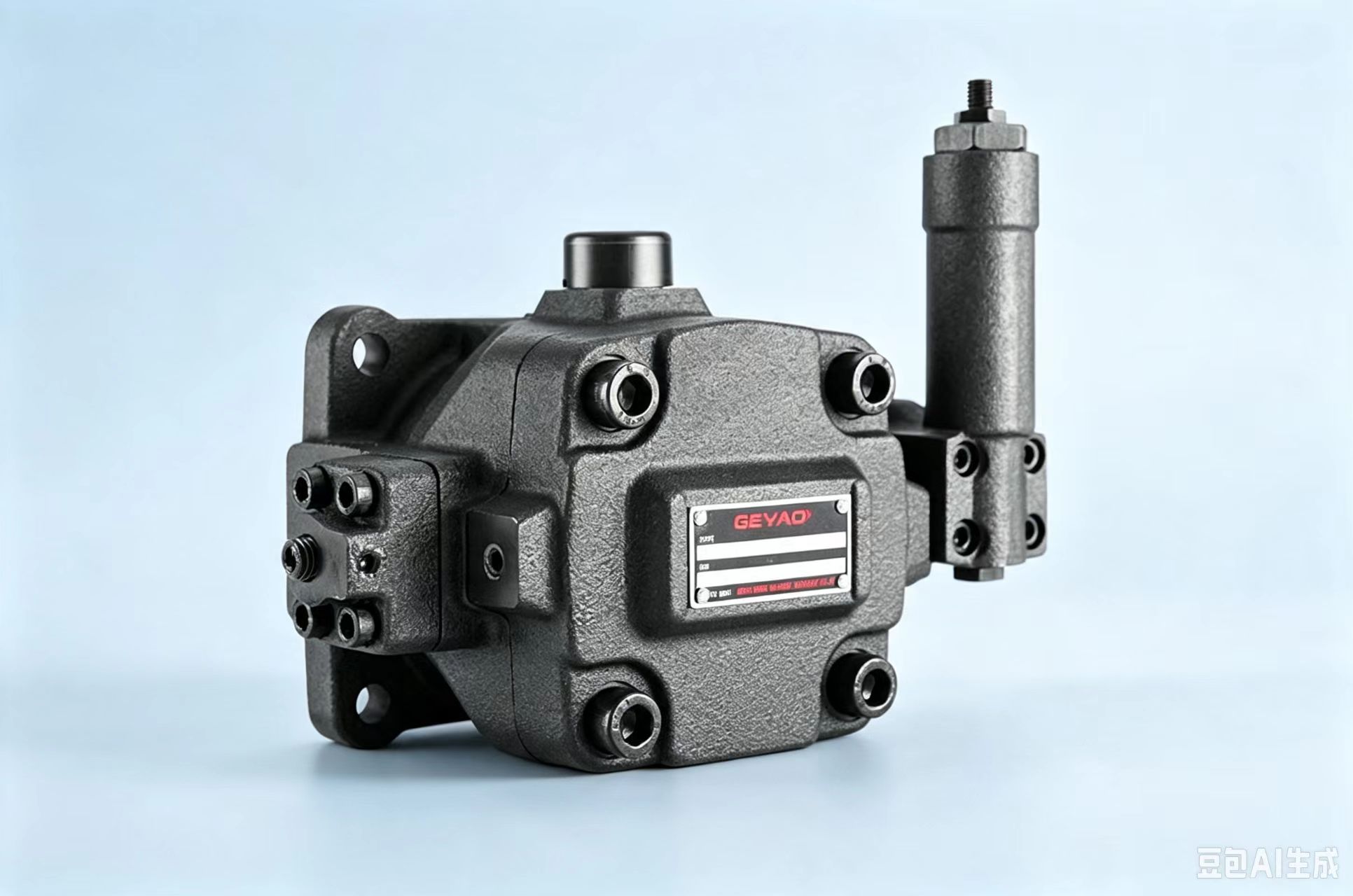

Medium Pressure Variable Vane Pump

1. Product Overview

Medium Pressure Variable Vane Pump is a widely used energy-saving hydraulic power component for general industrial hydraulic systems. It adjusts displacement automatically by changing the eccentricity between rotor and stator . Optimized structural design enables stable operation under medium pressure conditions. Featuring low noise, small pressure pulsation and reliable durability, this pump is the preferred power source for medium-load hydraulic machinery.

2. Main Technical Specifications

Parameter Specification

Pump Type Medium Pressure Variable Displacement Vane Pump

Working Pressure Range 1.0 ~ 14.0 MPa

Displacement Options 12/15/20/30/40/50/70 ml/r optional

Rotation Direction Clockwise / Counter-clockwise customizable

Rated Operating Speed 800 ~ 1800 rpm

Recommended Hydraulic Fluid ISO VG32 / VG46 anti-wear hydraulic oil

Operating Temperature -10℃ ~ +70℃

Installation Form Foot mounting / Flange mounting

3. Core Advantages

1. Medium pressure grade design, suitable for medium load working conditions, wider application range than low-pressure vane pumps.

2. Automatic flow adjustment according to system load, reduces power loss and achieves energy-saving effect.

3. Optimized stator, vane and rotor friction pair, low internal leakage and extended service life.

4. Low running noise and minor pressure fluctuation, ensuring steady movement of actuators.

5. Built-in pressure control mechanism, convenient pressure setting without extra valve components.

6. Compact integrated casting pump body, easy installation inside hydraulic power units.

7. Simple internal construction, convenient inspection and low maintenance costs.

4. Application Scope

It is widely matched to medium-load industrial equipment: injection molding auxiliary machinery, die-casting auxiliary equipment, general-purpose machine tools, automation equipment, packaging machinery, hydraulic fixtures, medium-duty hydraulic presses and metallurgical auxiliary machinery.
