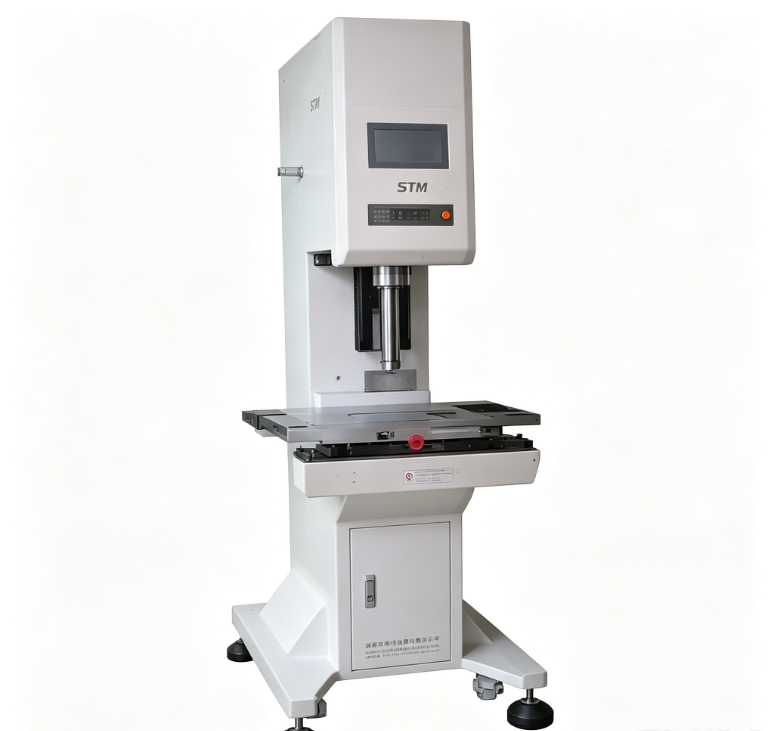

C Frame Open Throat Press

Product overview

Shenzhen Xintaiming Intelligent Equipment Co., Ltd. builds gap-frame presses in Shenzhen and ships them from the Jiangxi plant. This page is only the open-side machine. A buyer rolls a fixture in from the front or the side, brings the ram down, holds force, and returns. The pump on this listing is a standard hydraulic circuit. A servo package is a different page.

The weldment is a C-body: one column at the rear and a clear throat at the front. That is why a Single Column Hydraulic Press takes a smaller floor print than a closed four-post stack. The same body is sold in the trade as a C-frame hydraulic press or a single-column hydraulic press. Force, stroke, throat depth, daylight and table size are frozen in the order, not printed as a public model code on this page. Export frames commonly run from 10 ton to 200 ton; other sizes use the same column.

What the ram is for

Shops send this frame when a long part or a fixture cannot pass through a four-post gate. Typical jobs on this body are an Open throat press for bearings on a housing, a Gap frame press for shafts on a coupling, and a C frame press for housings on a small gearbox. The ram does not change name by industry. Tonnage and the tool decide whether the press-fit is safe.

The same open column is also called a Single-arm hydraulic press when the buyer only needs side access and a short floor line. If the job needs a closed gate and even deflection on four posts, use the four-column listing instead of this page.

Core advantages

Open throat. A shaft or a fixture slides in from the side. No lift over a four-post beam.

Wall-side footprint. The C-body sits against a bench or a wall.

Standard circuit. Pressure, hold time and return are set on the valves. No motion program is required to run the first parts.

Guards and two-hand control are quoted with the frame after the force and the throat are fixed.

What to send in the first mail

Force, throat depth, stroke, daylight, voltage, and a photo of the old C-frame or the fixture. Write C Frame Open Throat Press in the subject if you want this body and not the four-column stack.

FAQ

Q1. Is this a servo press?

A. No. This page is a conventional hydraulic C-frame. Servo pump frames are listed separately.

Q2. Can the same ram do a bearing and a shaft?

A. Yes, if the tonnage and the tool cover both fits. The frame does not care about the part name.

Q3. Do you send a technician abroad?

A. Video start-up is standard. Travel is only in the contract if that line is written.

Q4. Why is the public model field empty?

A. The nameplate is cut after force, throat and table are agreed. This page stays on the frame type.

Q5. What if floor space is not the problem?

A. Use the four-column page. This listing exists for side loading and a short floor line.

To price the machine, send force and throat depth to Shenzhen Xintaiming Intelligent Equipment Co., Ltd. Name the C Frame Open Throat Press and state whether the first job is a bearing, a shaft or a housing so the pump and the guards are quoted on the same sheet.
