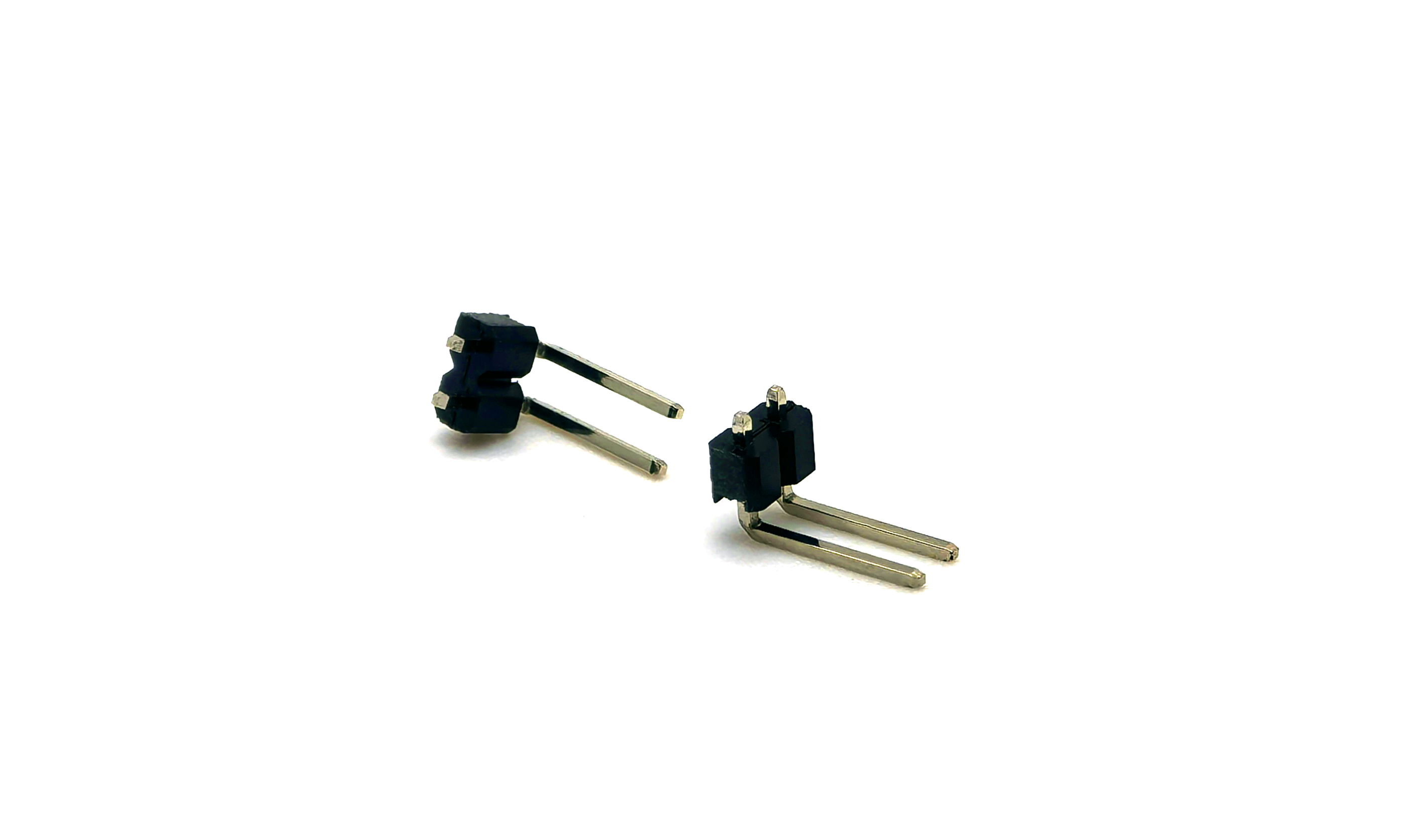

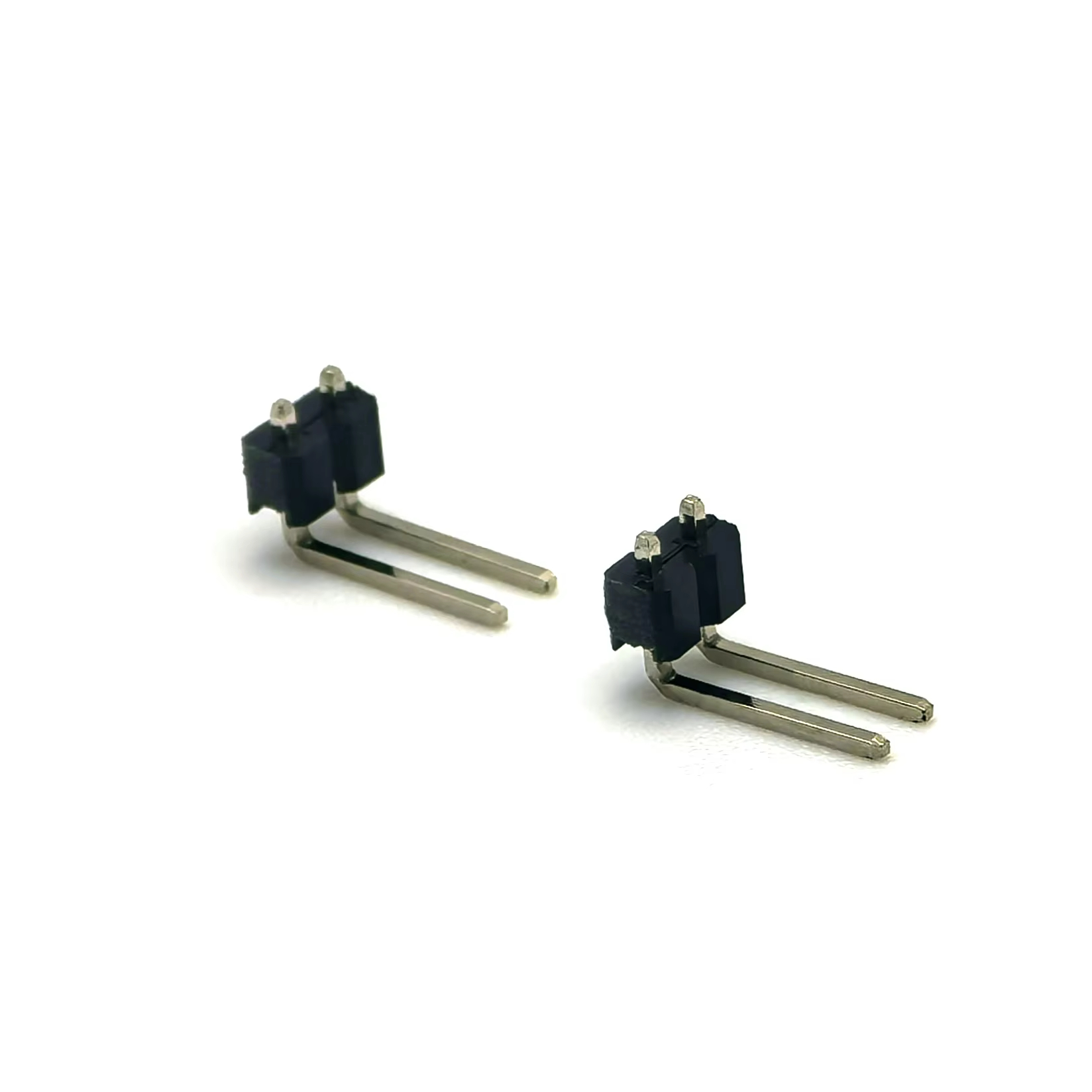

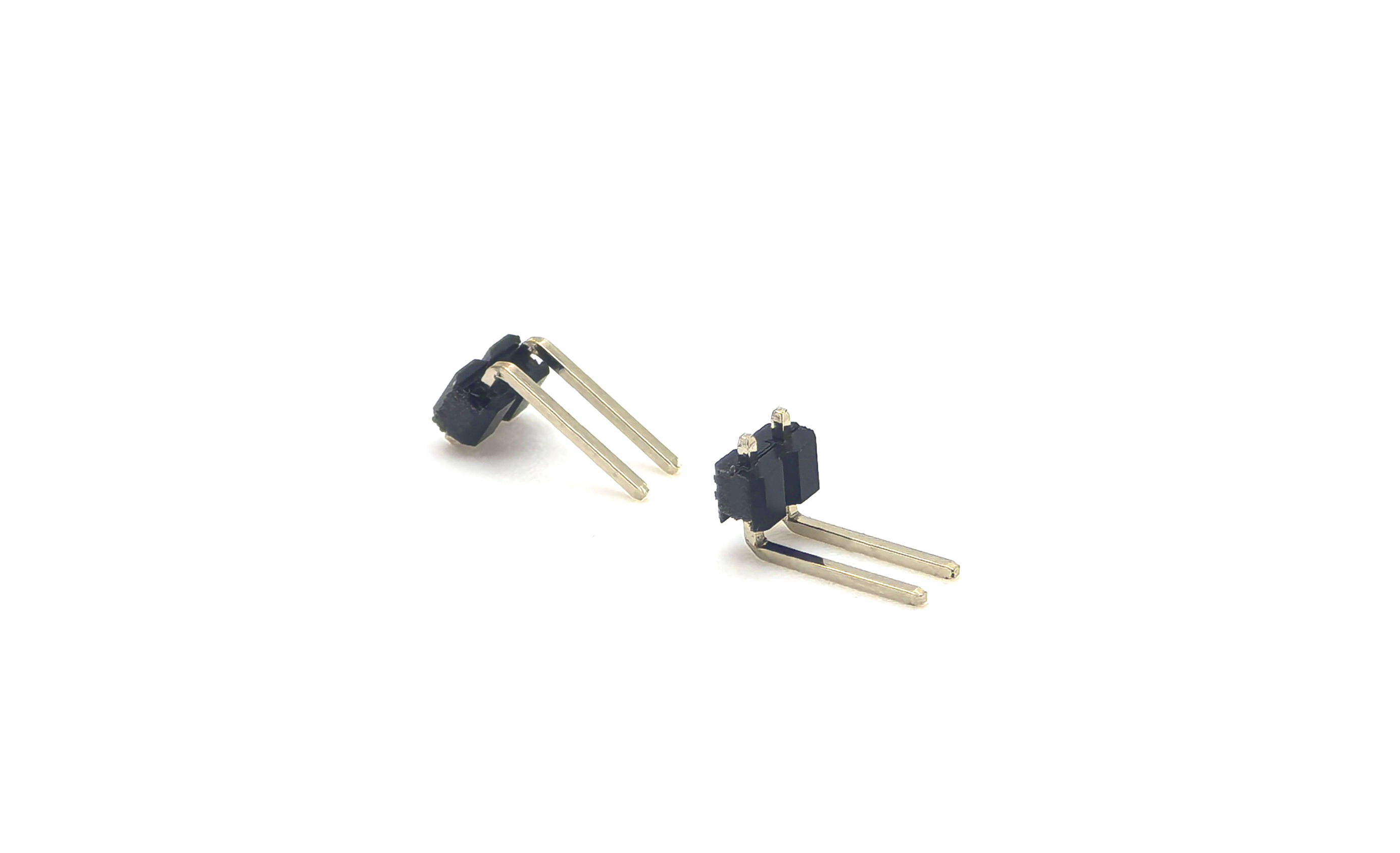

2.0mm Pitch Pin header Connector 2P
Engineered for reliable board-to-board or wire-to-board connections,the YZTECH 2.0mm Pitch Pin Header Connector delivers precision performance in compact electronic assemblies.This single-row,2-position male h2.0mm 2.0mm pin header features a right-angle bending insertion design,ideal for space-constrained PCB layouts where horizontal mating is required.With a low profile height of just 2.0mm and a PC tail length of 5.75mm,it offers stable solder anchoring while maintaining a slim footprint.It could be found in the 2.0mm Pin Header of the catalog.
Rated for 2A per contact and 500V,this 2.0mm pin header pc5.75 is purpose-built for industrial control,power supply modules,and automation equipment where consistent signal transmission is critical.The gold coating also enhances solderability and ensures repeated mating cycles without performance degradation.Operating reliably across a wide temperature range from -40°C to+105°C,this header withstands thermal stress in both outdoor and high-heat industrial settings.The PA6T insulator offers high creep resistance and meets UL flammability standards,while the maximum welding temperature of 260°C for 10 seconds supports lead-free reflow processes.
Each YZTECH 2.0mm pin header connector 2p is manufactured under strict process controls to ensure consistent coplanarity and insertion force.The gold-plated contacts undergo accelerated aging tests to guarantee long-term reliability in field applications.For logistics convenience,products are supplied in bag-and-box packaging that prevents pin deformation during transit and storage.
