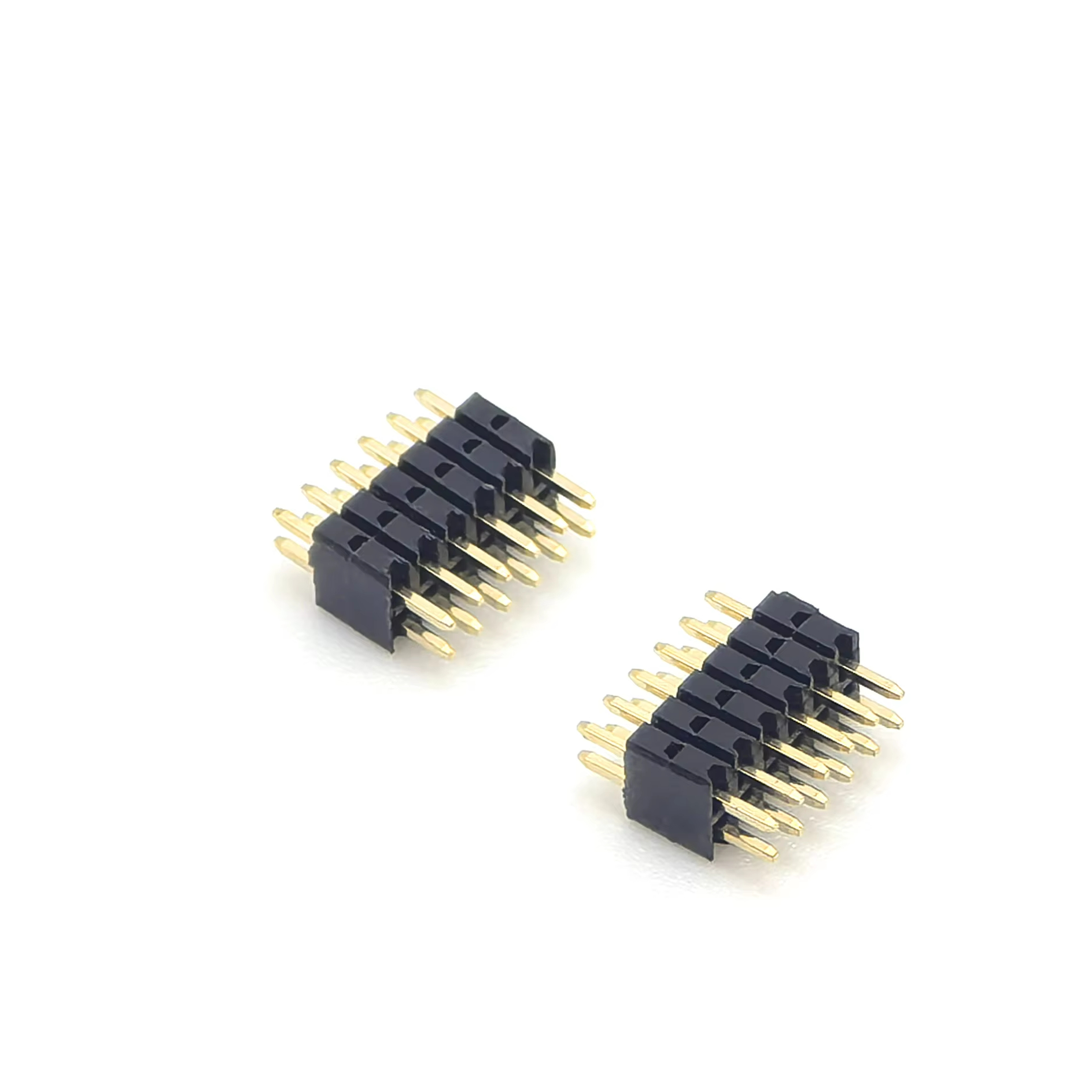

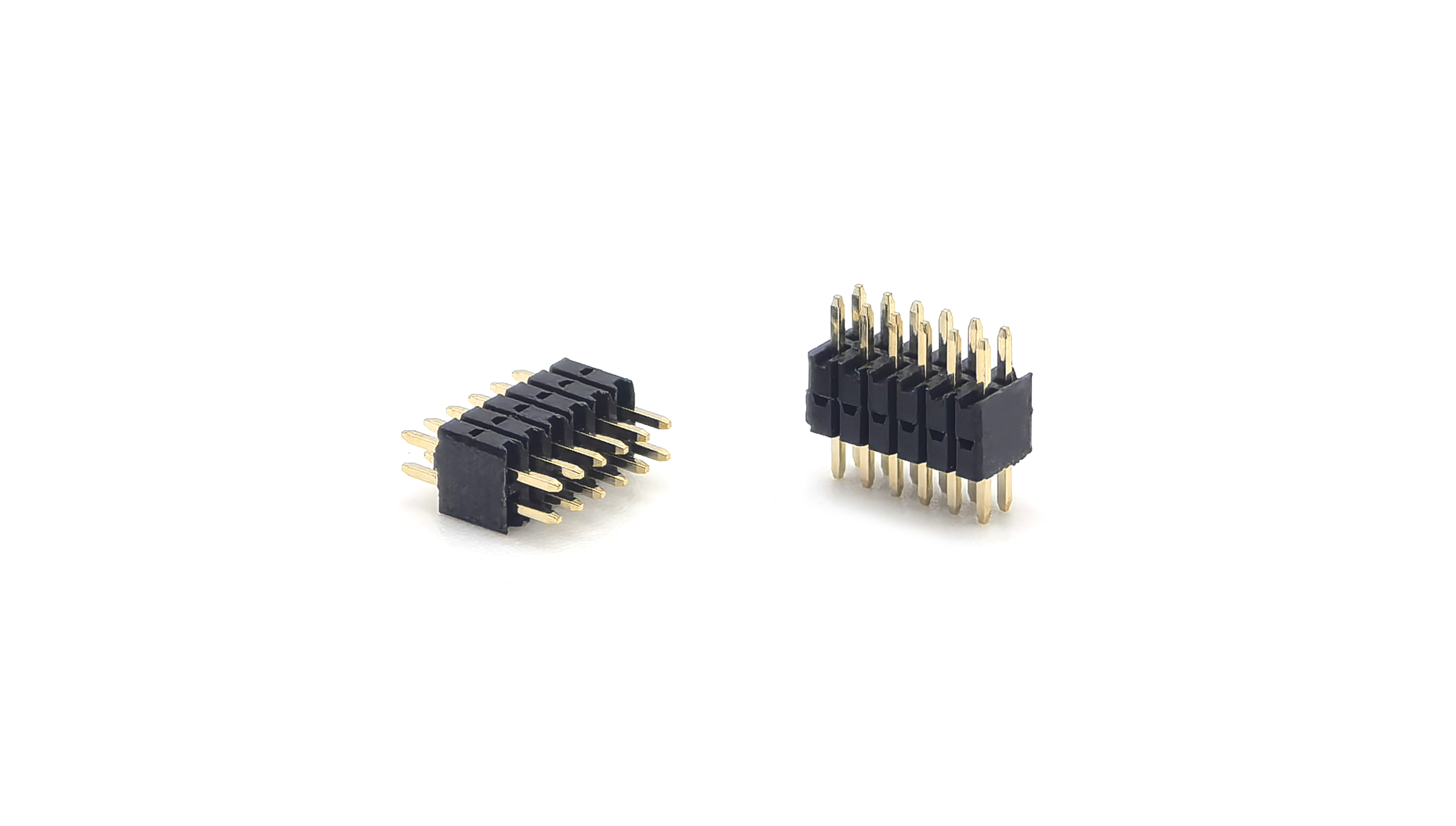

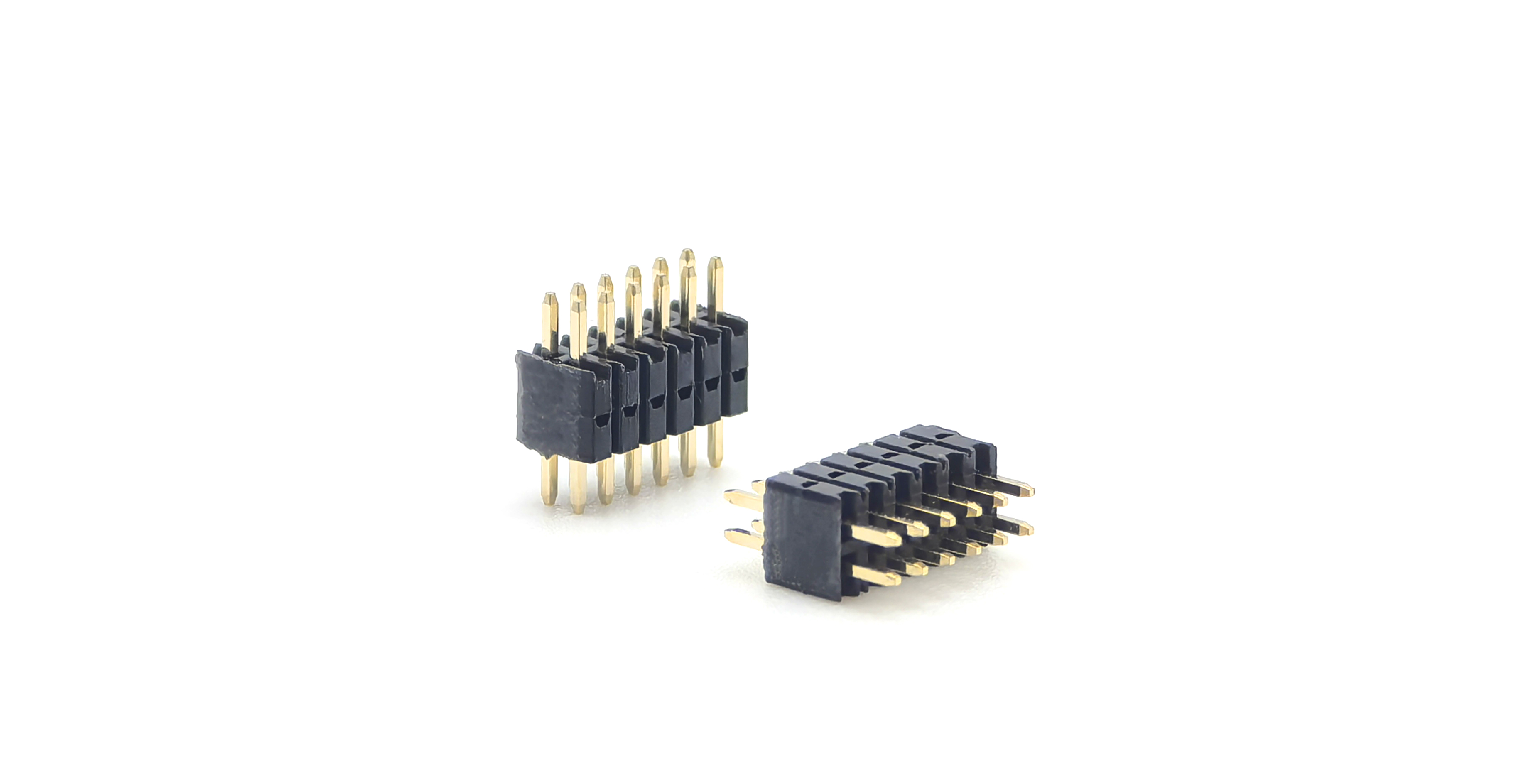

Built with a rugged brass contact base and a durable PA6T colloidal housing,this au1.0 pin header 1.27mm pitch supports a maximum soldering temperature of 220℃ for up to 10 seconds,safeguarding board assembly processes.The gold coating on each male pin minimizes contact resistance and enhances durability over repeated mating cycles.Compared to standard tin-plated alternatives,the 1.0µ" gold finish offers superior oxidation protection and lower insertion force.With a current rating of 2A and voltage rating of 300V,this pin header 1.27mm 12p meets stringent demand for low-profile,high-reliability interconnections in compact PCB layouts.Its dual-row structure further boosts routing density without sacrificing mechanical stability.
Each unit is supplied in bag-and-small white box packaging to prevent static or physical damage during logistics.Engineered for automated pick-and-place assembly,the straight insertion design simplifies high-volume production.The 1.27mm dual-row straight pin header fits seamlessly into DIN-standard interfaces,making it suitable for test equipment,automotive electronics,and data acquisition systems.YZTECH ensures consistent performance across all batches,with the PA6T material providing excellent heat resistance and dimensional stability.
