180° H9.00 2.54mm Dual Row Box Header

180° H9.00 2.54mm Dual Row Box Header

2 week ago

1 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Huizhou Antenk Electronics Co., Ltd. develops BHDS09 series 2.54mm pitch 180 degree dual row box headers with fixed 9.00mm housing height to deliver stable board-to-board power and signal transmission on PCBs, supporting pole specifications covering 8P to 64P with standard 2.54mm pin spacing and unified dimensional tolerances for accurate through-hole soldering. This shrouded header housing selects UL94V0 glass filled PBT as standard insulator, alternative high-temperature PA6T LCP PA46 PA9T materials are available, square 0.64SQ brass pins adopt full nickel underlayer plating with optional surface finishes including tin, gold flash, 3u",5u",10u",15u",30u" full or selective gold plating, electrically rated at maximum 3.0A current, 500V AC DC withstand voltage, below 10 milliohm contact resistance and over 1000 megohm insulation resistance, supporting extreme wide working temperature range from minus 55 degree Celsius to plus 125 degree Celsius and fully complying with HSF Pb-free and RoHS environmental standards, six packaging options including tray bag tube tube with cap tape reel and tape reel with cap satisfy different automated assembly production demands. This high temperature resistant dual row box header is widely applied in liquid crystal display modules, digital cameras, communication equipment, industrial control panels, portable storage devices, digital household appliances, electronic toys, computer peripherals, automotive electronic modules and precision measuring instruments requiring long-term stable PCB interconnection. Operators should select pin quantity matching circuit layout, strictly follow PCB pad dimension drawing for DIP soldering, avoid violent bending to prevent brass pin fracture and store finished headers in dry sealed packages to stop plating layer oxidation. Unlike competitors outsourcing mold manufacturing and plastic injection Antenk executes full self-contained production flow including independent plastic and metal precision mold design, high-speed brass terminal stamping, high-temperature PBT injection molding, multi-layer nickel gold electroplating and complete high-low temperature cycle reliability lab testing, certified with ISO9001 ISO14001 IATF16949 and UL E472792 while meeting REACH global environmental standards. We own more than two hundred fifty proprietary plastic connector molds and one hundred eighty metal terminal molds, offer customizable insulator color pin count plating thickness and packaging modes, provide round-the-clock professional engineering technical support, and over seventy percent of our box header products are exported globally relying on our Guangdong Famous Trademark ANTENK and consistent stable mass production quality.

Glass Filled PBT Box Header Housing provides outstanding high temperature resistance and UL94V0 flame retardant performance for harsh PCB working environments.

Nickel Gold Plated Brass Pin maintains ultra-low contact resistance and strong anti-corrosion capacity for long-term board-to-board signal transmission.

Dual Row 8P-64P Box Header covers abundant pin specifications to match diverse multi-circuit PCB connection layout demands.

1. Electrical Performance Parameters

1.1 Rated Current: 3.0A

1.2 Withstand Voltage: 500V AC/DC

1.3 Max Contact Resistance: 10mΩ

1.4 Min Insulation Resistance: 1000MΩ

2. Environmental Performance

2.1 Operating Temperature Range: -55°C ~ +125°C

2.2 Compliance Standards: RoHS, HSF, Lead-free

3. Insulator Material & Color Options

3.1 Standard Housing: Glass filled PBT, UL94V-0 flame retardant

3.2 Optional High Temp Materials: PA6T, LCP, PA46, PA9T

3.3 Housing Colors: Black, Blue, Gray

4. Contact Material & Plating Options

4.1 Base Material: Square 0.64SQ brass pin

4.2 Base Underlayer: Full nickel plating

4.3 Full Plating Types: Tin, gold flash, 3μ",5μ",10μ",15μ",30μ" gold

4.4 Selective Plating Types: Selective gold flash, 3μ",5μ",10μ",15μ",30μ" gold

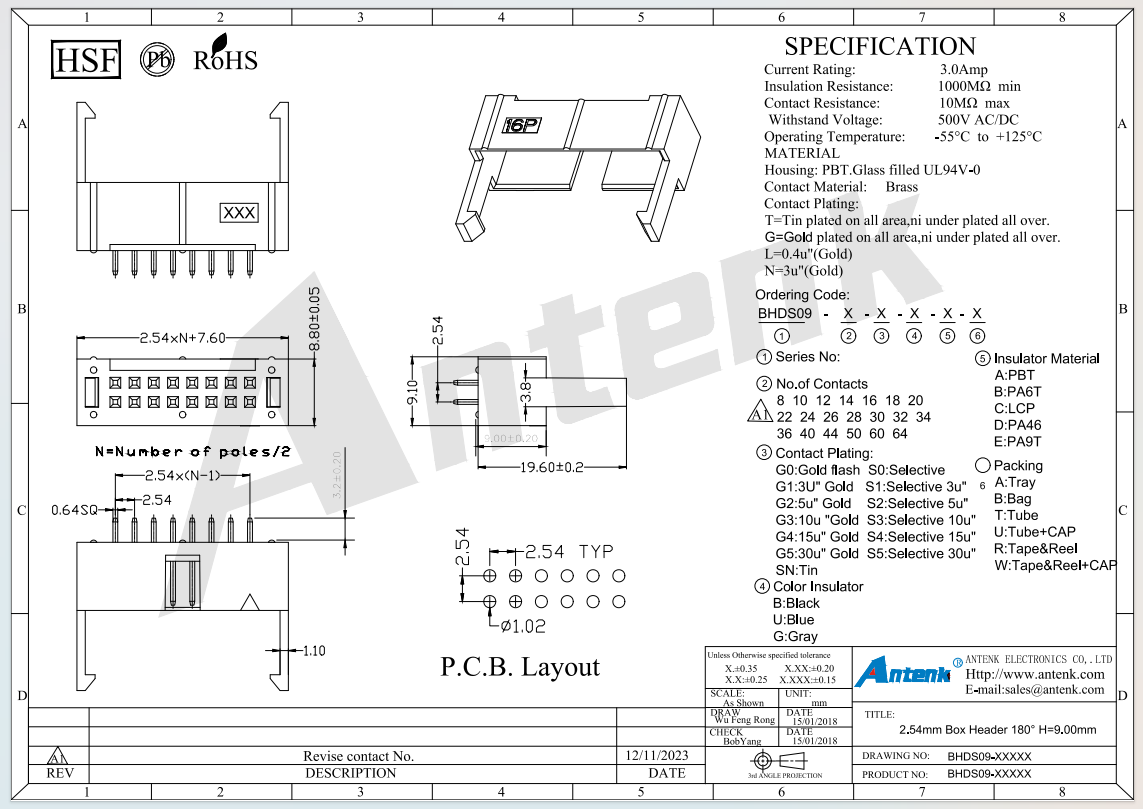

5. Dimensional Specifications (Unit: mm)

5.1 Standard Pitch: 2.54

5.2 Fixed Housing Height: 9.00±0.20

5.3 Available Pole Count: Dual row 8P to 64P

5.4 General Tolerance Rules: X.±0.35, X.X±0.25, X.XX±0.20, X.XXX±0.15

6. Packaging Selections

6.1 A: Tray packing

6.2 B: Bag packing

6.3 T: Tube packing

6.4 U: Tube with cap packing

6.5 R: Tape & reel packing

6.6 W: Tape & reel with cap packing

7. Application Scenarios

7.1 Liquid crystal display modules, digital cameras

7.2 Communication equipment, industrial control panels

7.3 Portable storage devices, digital household appliances

7.4 Electronic toys, computer peripheral hardware

7.5 Automotive electronics, precision measuring instruments

8. Operation & Storage Precautions

8.1 Select corresponding pole quantity according to PCB circuit layout

8.2 Complete DIP soldering strictly following official PCB layout dimension drawing

8.3 Avoid excessive bending force to prevent brass square pins deformation or breakage

8.4 Choose suitable insulator material for high-temperature working environments

8.5 Match gold plating thickness based on plugging frequency and service life requirements

8.6 Store finished box headers in dry sealed packages to avoid oxidation of nickel-gold plating layer

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

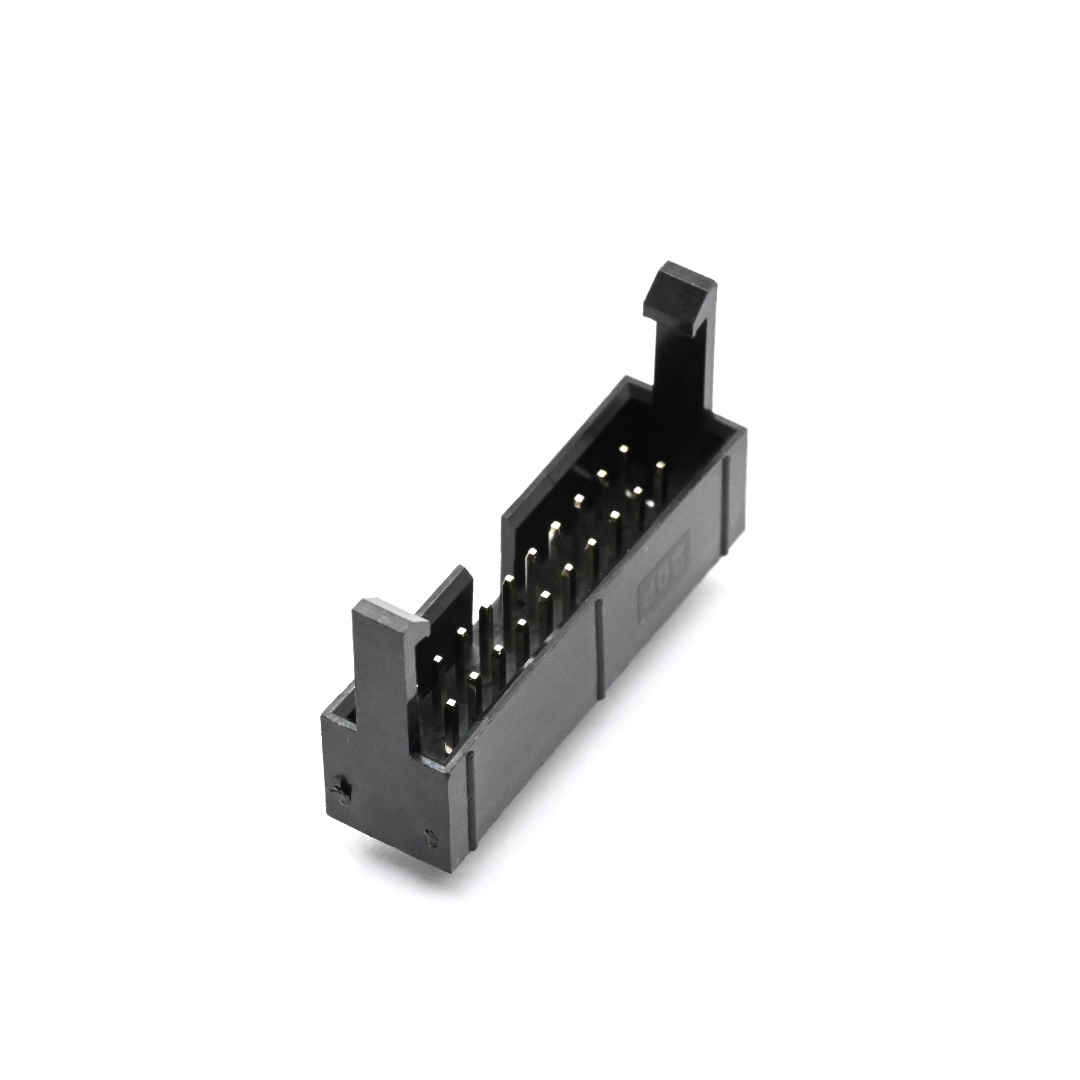

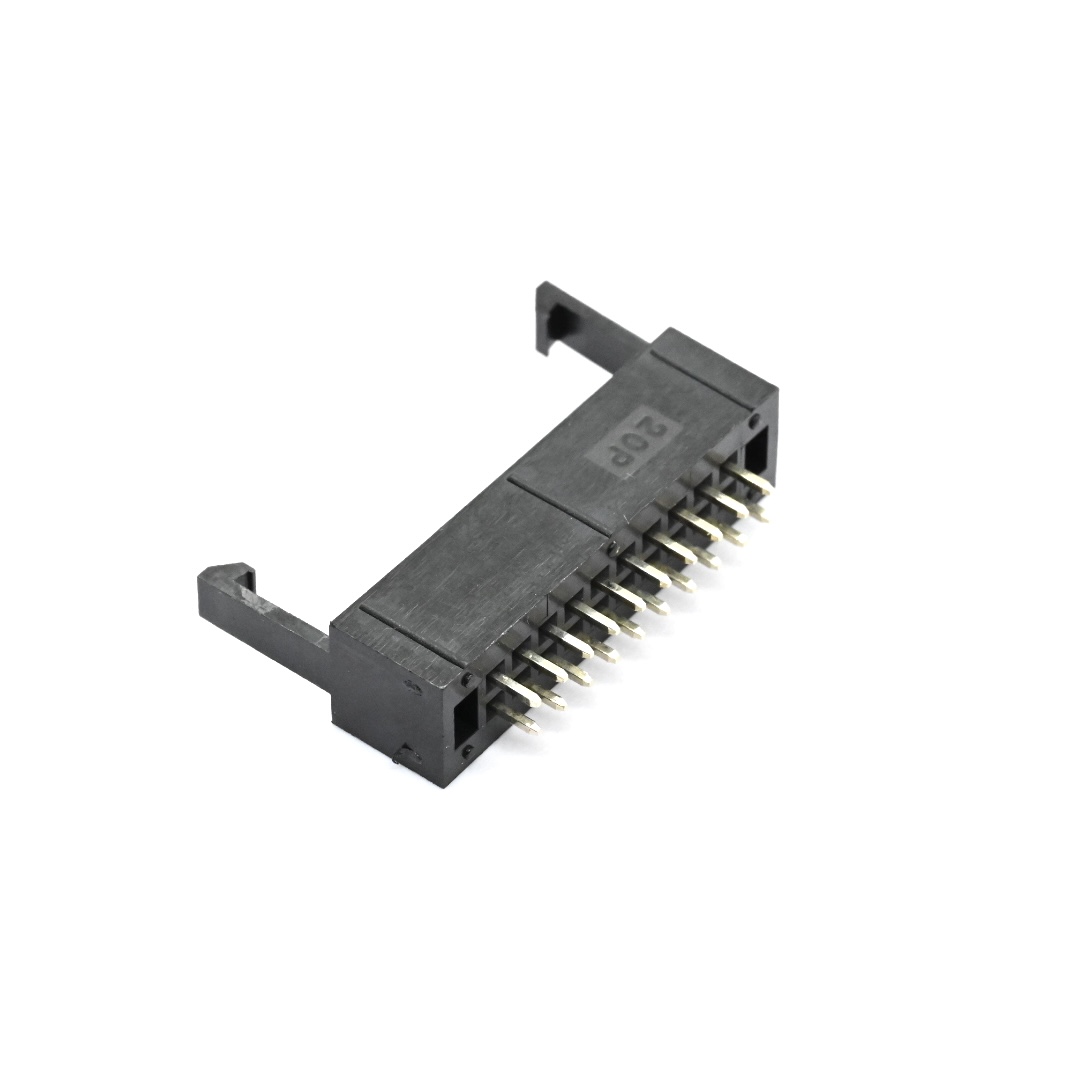

BHDS09-20-G0-B-A-A+2.54mm Box Header 180° H=9.00mm（4）

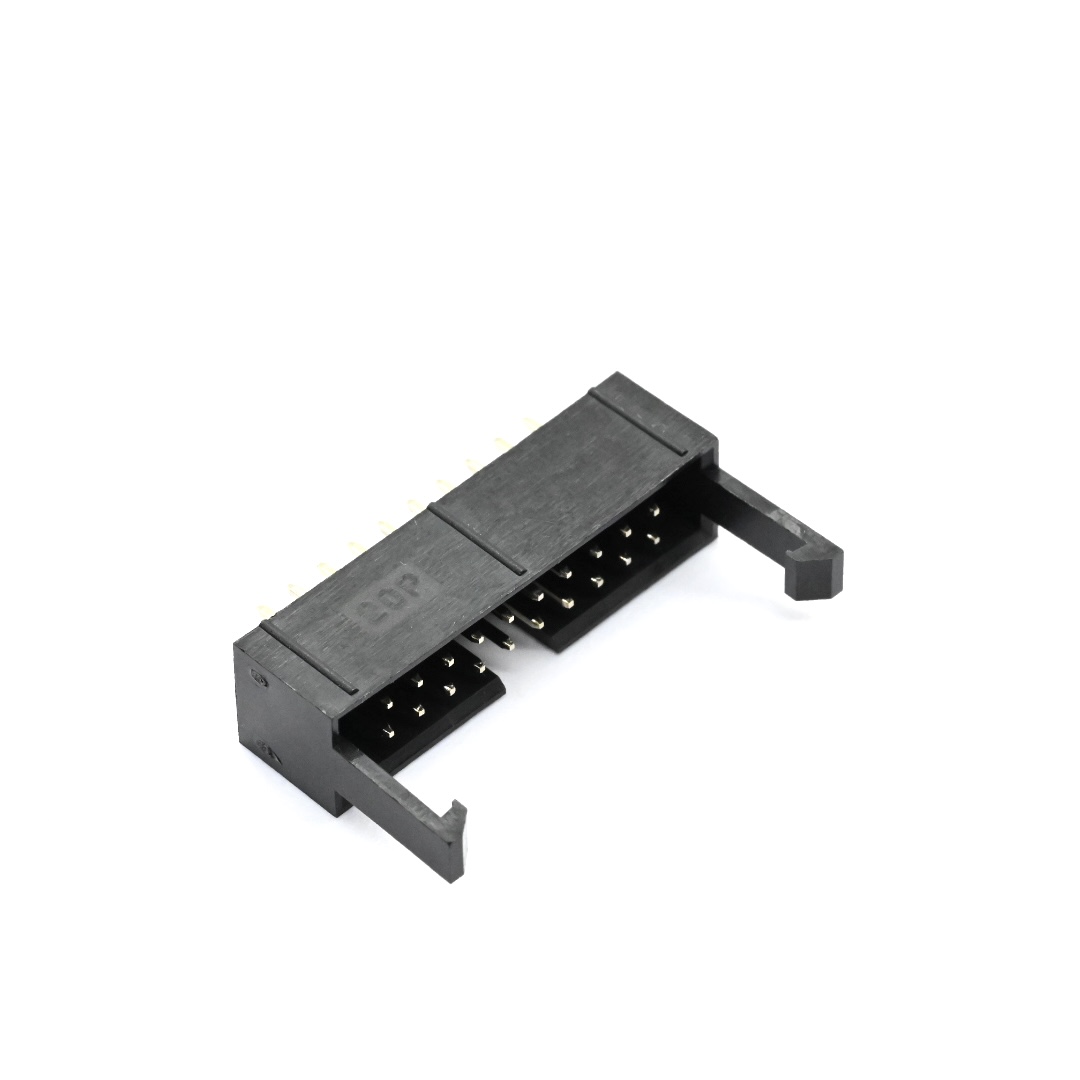

BHDS09-20-G0-B-A-A+2.54mm Box Header 180° H=9.00mm（2）

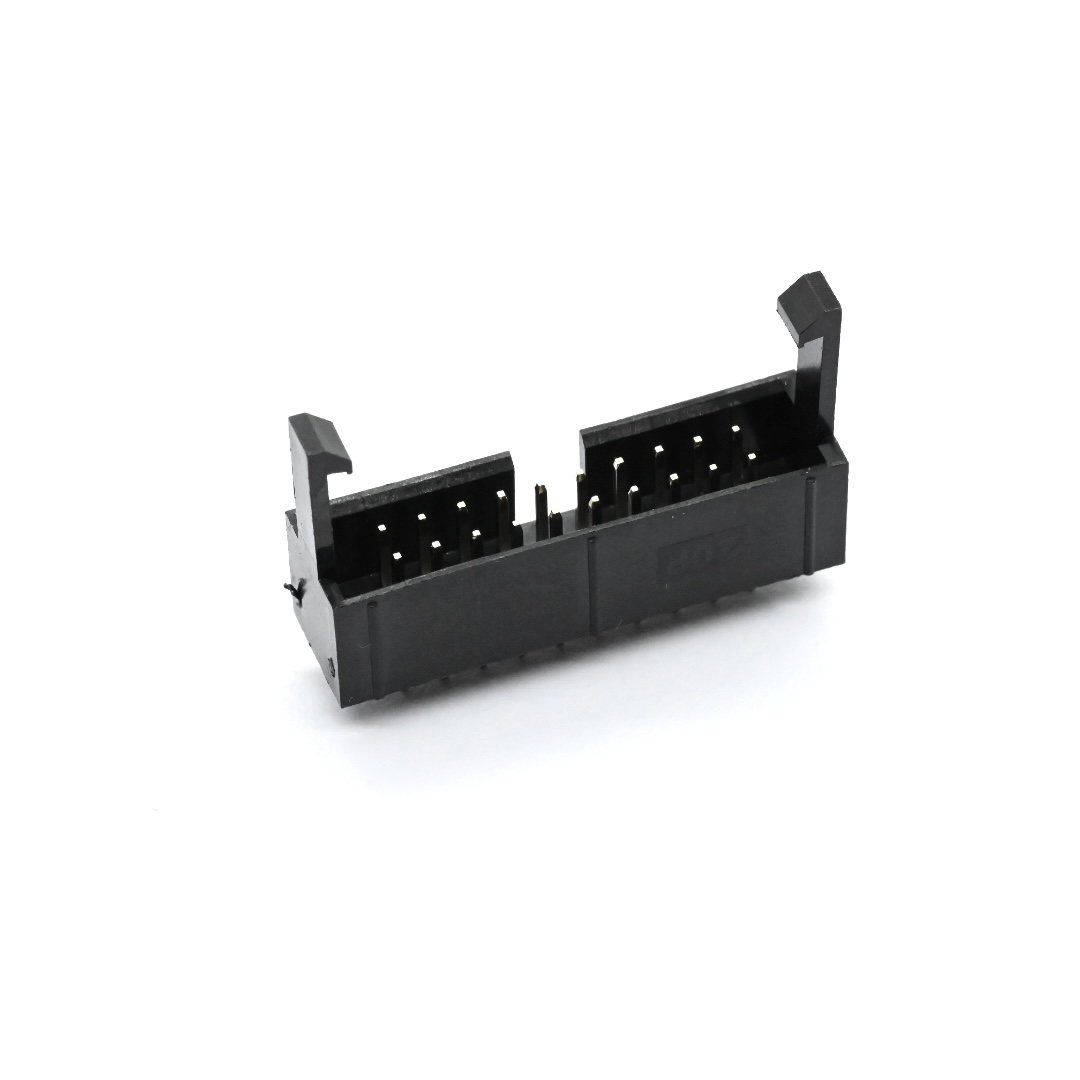

BHDS09-20-G0-B-A-A+2.54mm Box Header 180° H=9.00mm（5）

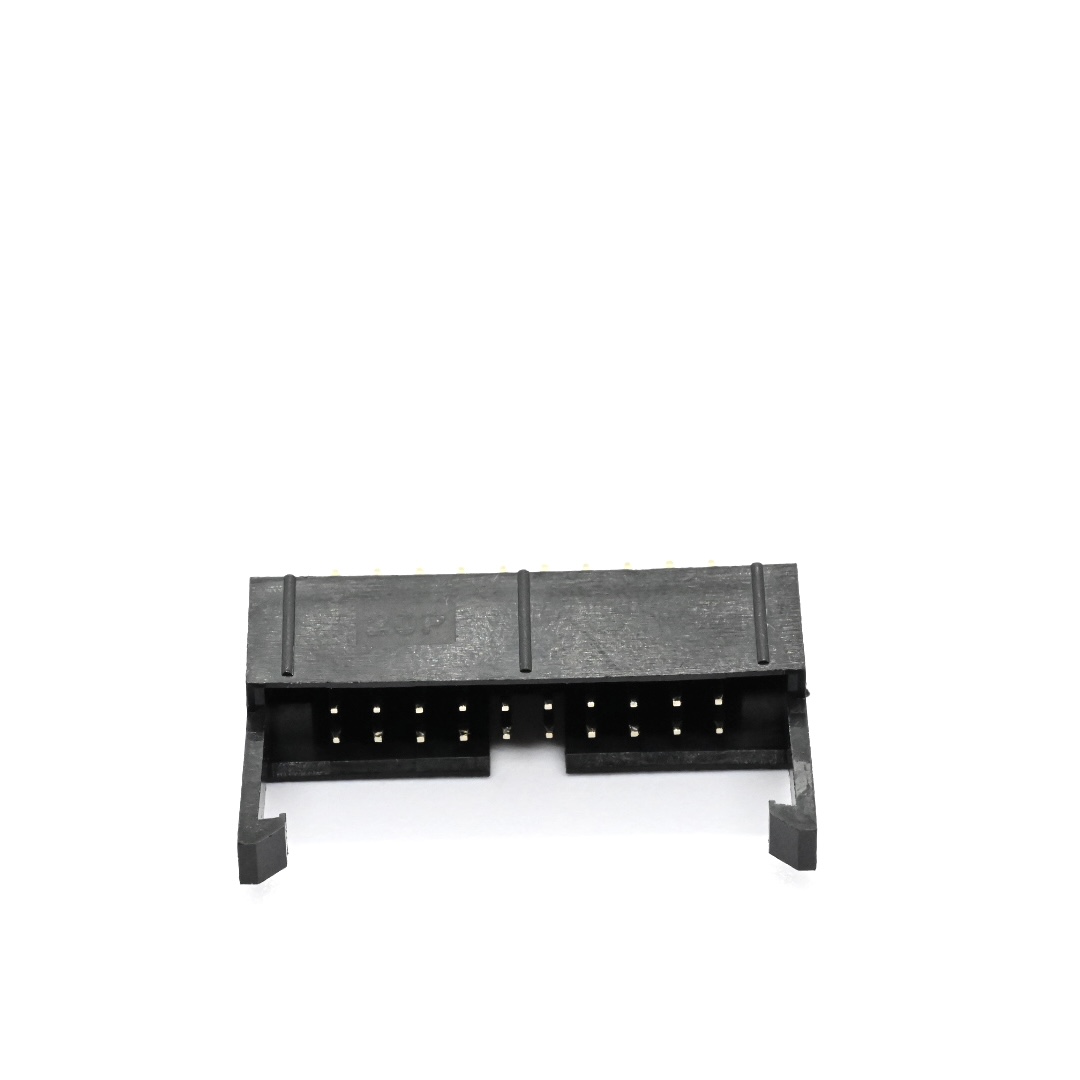

BHDS09-20-G0-B-A-A+2.54mm Box Header 180° H=9.00mm（1）

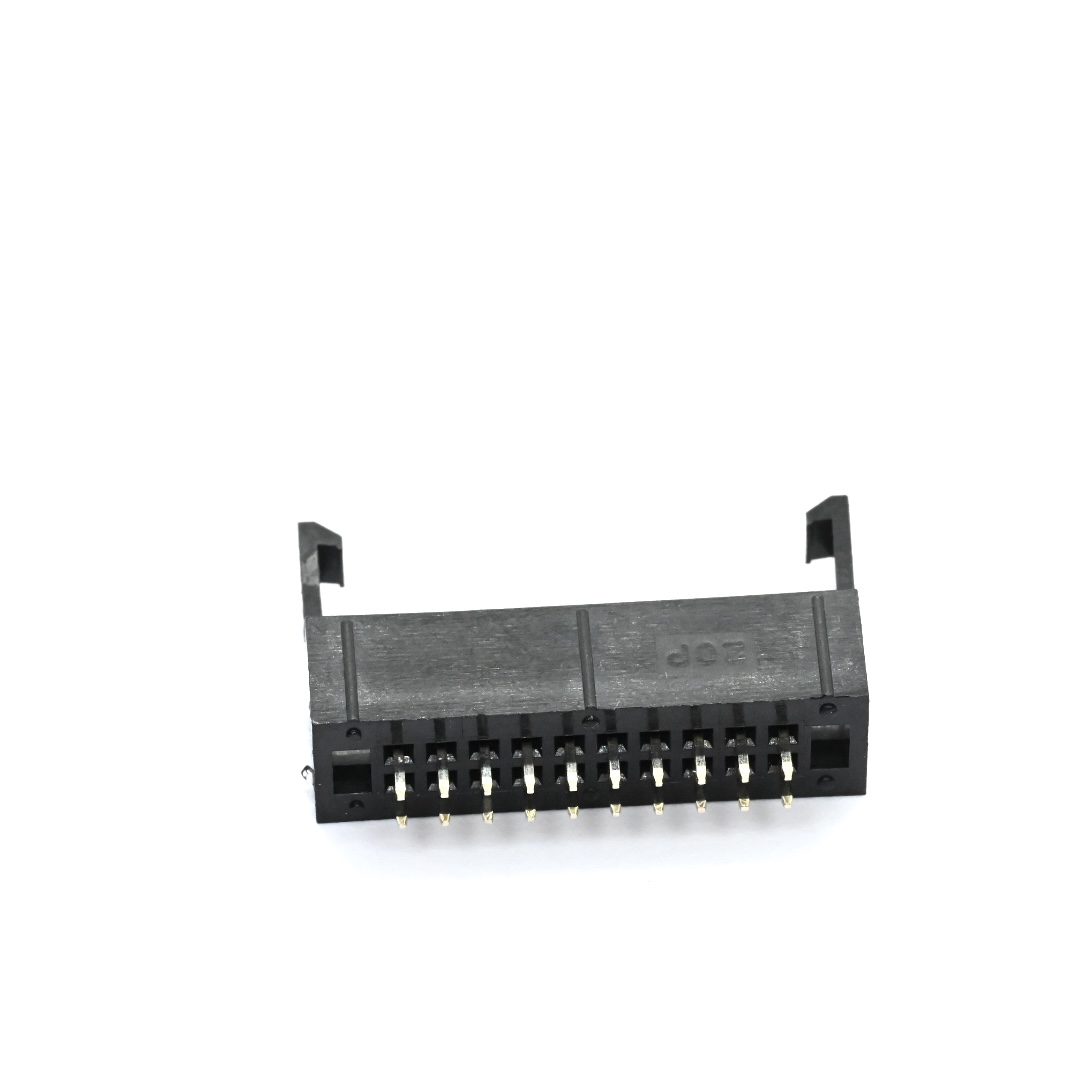

BHDS09-20-G0-B-A-A+2.54mm Box Header 180° H=9.00mm（3）

BHDS09-20-G0-B-A-A+2.54mm Box Header 180° H=9.00mm（6）
