2.54mm Dual Row Angle SMT Pin Header
Acoustic Components Amplifiers and Comparators Capacitors Connectors and Accessories Crystals, Oscillators and Resonators Development Systems Diodes, Transistors and Thyristors Displays, Signage and Optoelectronics EL Products Electronic Accessories & Supplies Electronic Data Systems Electronic Signs Electronics Stocks Filters Inductors Integrated Circuits Microcontrollers, Standard and Specialty Optoelectronic Displays Optoelectronics Other Electronic Components PCB & PCBA Potentiometers Power Driver Modules Power Supplies and Circuit Protection Relay Resistors Sensors Switches Telecommunications Wireless & IoT
Related Video

2.54mm Dual Row Angle SMT Pin Header

Home Electronic Components, Accessories & Telecommunications 2.54mm Dual Row Angle SMT Pin Header
2 week ago
1 0
Pin Header Section 2.54mm Pitch 2.54mm Dual Row Angle SMT Pin Header
HuiZhou Antenk Electronics Co., LTD
5 year year
Product details
Huizhou Antenk Electronics Co., Ltd. manufactures PHEM07 series 2.54mm dual row angle SMT pin headers equipped with optional locating posts to realize reliable surface mount board-to-board signal and power transmission, pin count ranges from 02P to 80P with standard 2.54mm pitch and two angle types Type A and Type B for different PCB layout demands, fixed width of 6.1mm with standardized dimensional tolerances to match precise SMT reflow soldering. This angled SMT header adopts UL94V0 flame retardant PA6T plastic insulator, square 0.64SQ brass pins with full nickel base plating and diverse plating choices including tin, gold flash, 3u",5u",10u",15u",30u" full or selective gold plating, electrically rated at maximum 3A current, 1000 megohm minimum insulation resistance and 20 milliohm maximum contact resistance, supporting stable operation between minus 65 degree Celsius and plus 125 degree Celsius and fully compliant with HSF and RoHS lead-free environmental standards, multiple packaging solutions such as tray bag tube tube with cap tape reel and tape reel with cap adapt to automatic SMT assembly production lines. This locating post equipped dual row SMT pin header is widely applied in liquid crystal display modules, digital cameras, communication devices, industrial control panels, portable storage equipment, digital household appliances, electronic toys, computer peripherals, automotive electronic assemblies and precision measuring instruments that require compact surface mount interconnection. Operators should select proper pin quantity angle type and locating post configuration matching circuit design, conduct standard reflow soldering on designated PCB pads, avoid over extrusion to prevent insulator deformation and store finished headers in dry sealed packaging to prevent pin plating oxidation. Unlike competitors outsourcing mold stamping and plastic injection molding Antenk implements full independent production process covering self-developed plastic and metal precision mold manufacturing, high-speed brass pin stamping, PA6T injection molding, multi-layer nickel gold electroplating and complete high-low temperature cycle reliability laboratory testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications while complying with RoHS HSF and REACH global environmental regulations. We own more than two hundred fifty sets of proprietary plastic connector molds and one hundred eighty sets of metal pin molds, provide customizable insulator material pin plating thickness and packaging schemes, deliver round-the-clock professional engineering technical support, and over seventy percent of our SMT pin header products are exported worldwide relying on our Guangdong Famous Trademark ANTENK and steady consistent mass production quality.

UL94V0 PA6T SMT Pin Insulator delivers outstanding heat resistance and flame retardancy to fit high temperature SMT reflow soldering processes.
Nickel Pre Plated Square Brass Pin ensures low contact resistance and long term anti oxidation performance for stable PCB electrical connection.
Dual Row Angled SMT Header provides two angle structural options to adapt to diverse compact PCB layout space requirements.

1. Electrical Performance
    1.1 Rated Current: 3 Amp
    1.2 Minimum Insulation Resistance: 1000 Megohms
    1.3 Maximum Contact Resistance: 20 milliohms
2. Environmental Parameters
    2.1 Operating Temperature Range: -65°C ~ +125°C
    2.2 Compliance Standards: HSF, RoHS Lead-free
3. Material Composition
    3.1 Insulator Base Material: PA6T, UL94V-0 flame retardant
    3.2 Contact Raw Material: Square 0.64SQ brass pin
    3.3 Base Plating: Full pre nickel plating
4. Customizable Contact Plating Options
    4.1 Full plating: Tin, gold flash, 3μ",5μ",10μ",15μ",30μ" gold
    4.2 Selective plating: Selective gold flash, 3μ",5μ",10μ",15μ",30μ" gold
5. Dimensional & Structural Info (Unit: mm)
    5.1 Standard Pin Pitch: 2.54
    5.2 Fixed Product Width: 6.1
    5.3 Available Pole Range: 02P to 80P dual row
    5.2 Two Angle Types: Type A, Type B for different PCB layout
    5.3 Optional accessory: Locating post for positioning
    5.4 Standard dimensional tolerance rules marked on drawing
6. Packaging Options
    6.1 A: Tray packing
    6.2 B: Bag packing
    6.3 T: Tube packing
    6.4 U: Tube with CAP packing
    6.5 R: Tape & reel packing
    6.6 W: Tape & reel with CAP packing
7. Application Scenarios
    7.1 Liquid crystal display modules, digital cameras
    7.2 Communication equipment, industrial control panels
    7.3 Portable storage devices, digital home appliances
    7.4 Electronic toys, computer peripheral hardware
    7.5 Automotive electronics, precision measuring instruments
8. Operation & Storage Precautions
    8.1 Choose matching pole count, angle type and locating post design based on PCB circuit layout
    8.2 Complete SMT reflow soldering strictly follow official PCB layout drawing
    8.3 Avoid excessive extrusion force to prevent PA6T insulator deformation and brass pin bending
    8.4 Select appropriate gold plating thickness according to plugging frequency and service life
    8.5 Store finished pin headers in dry sealed environment to avoid oxidation of nickel gold plating layer

FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

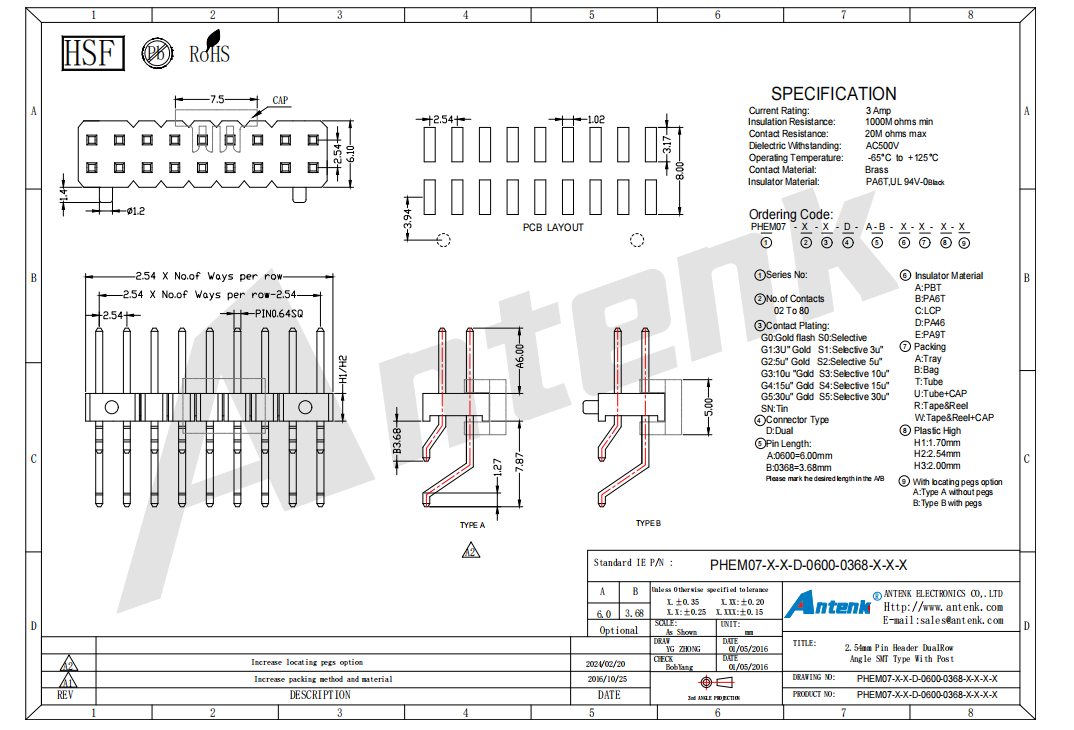

PHEM07-X-X-D-0600-0368-X-X-X-X

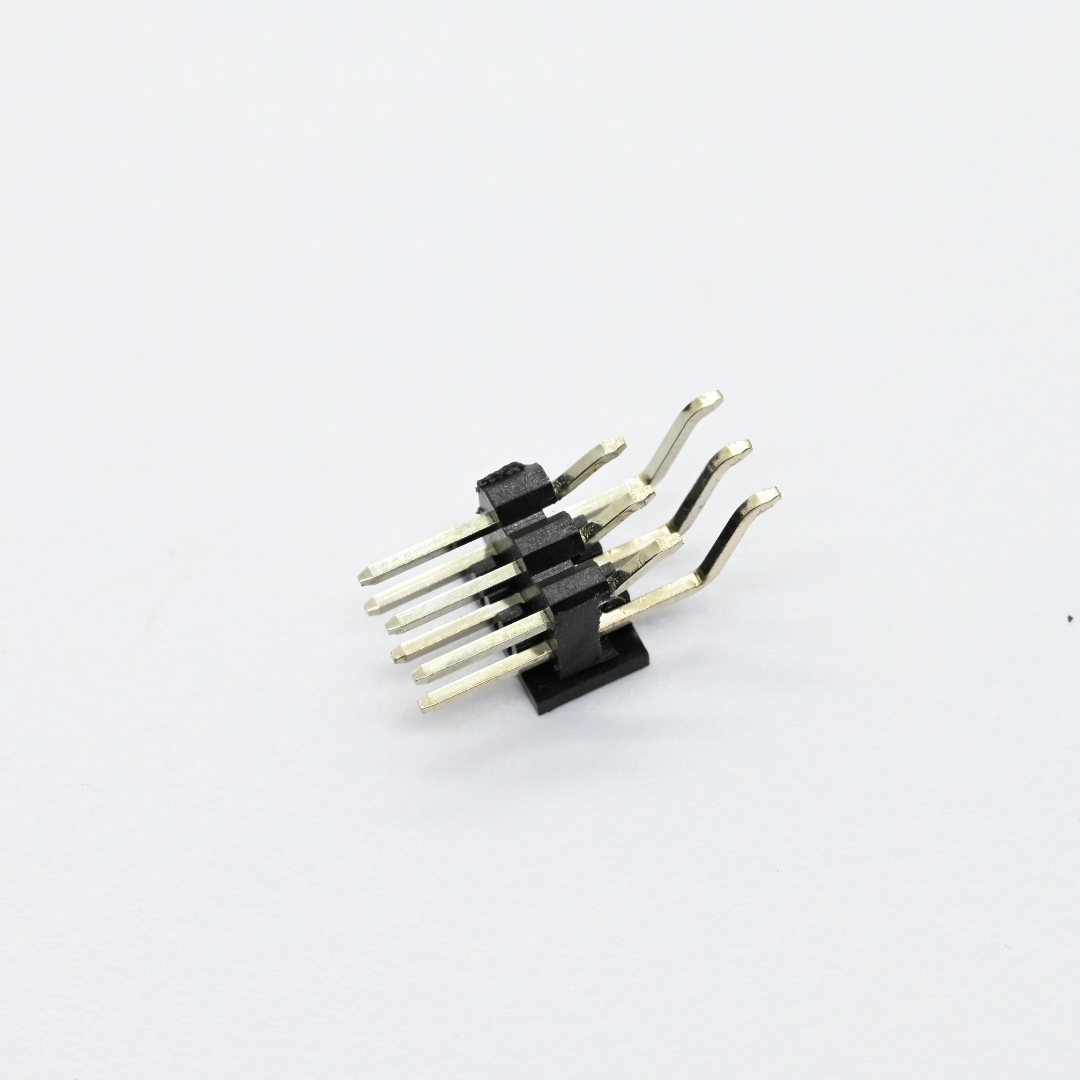

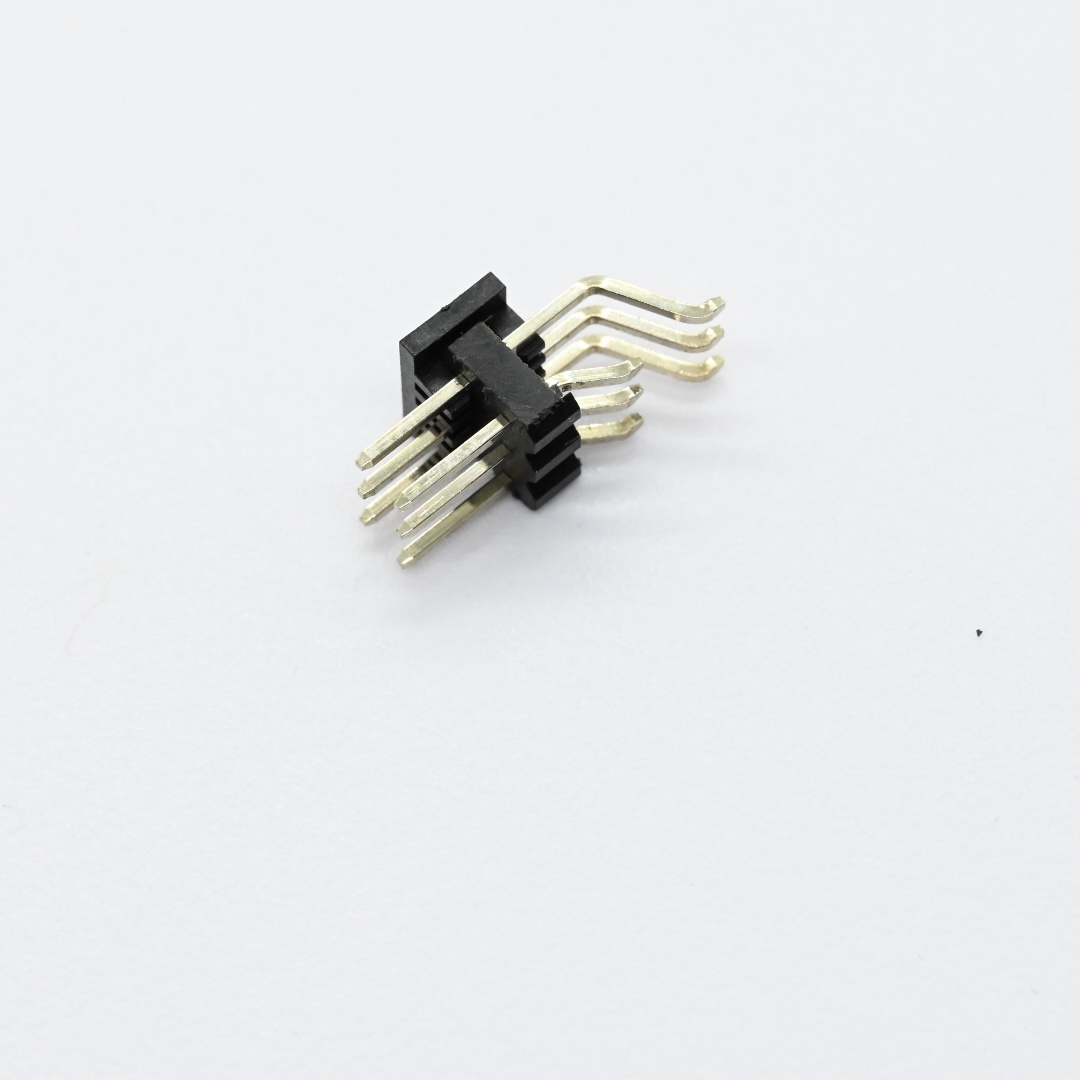

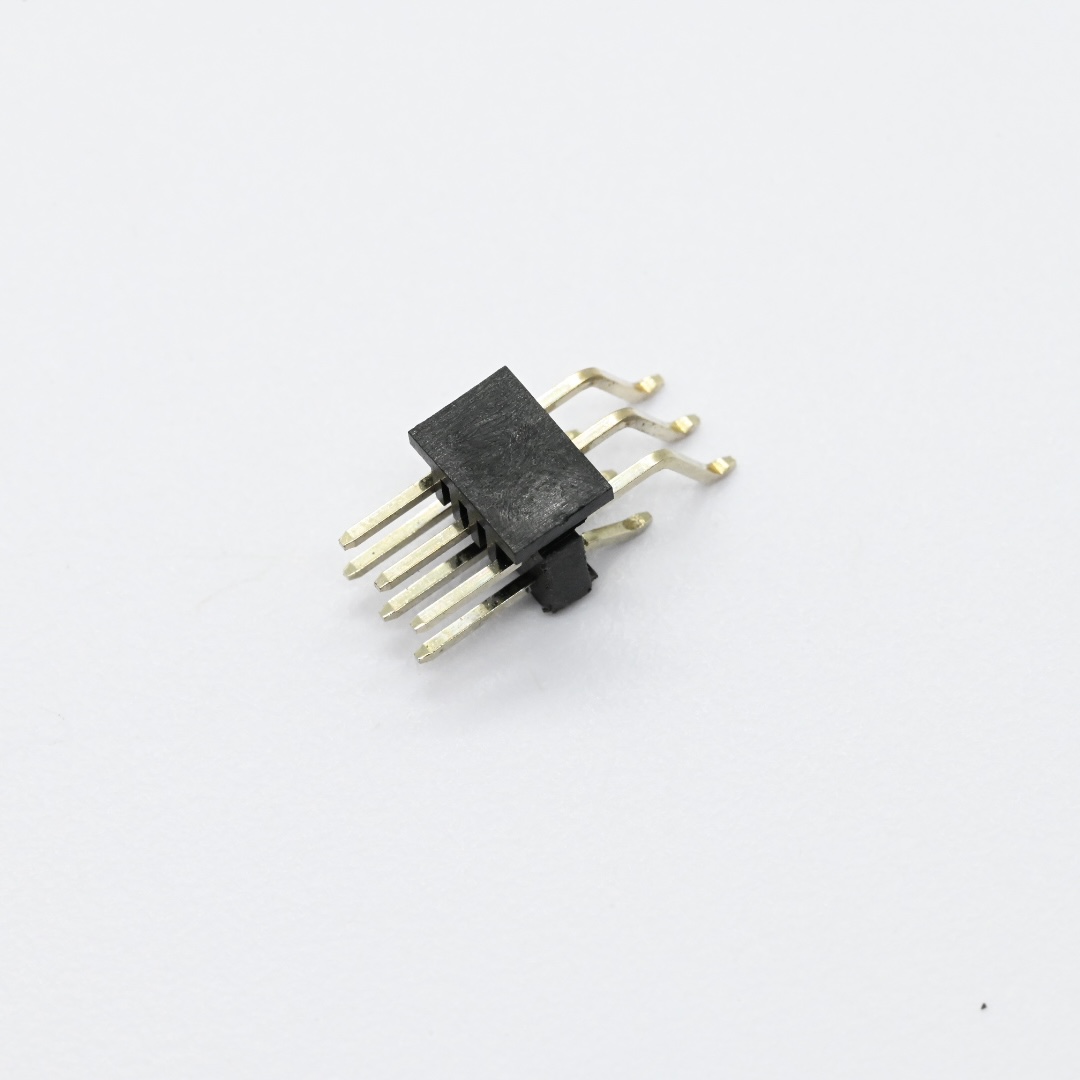

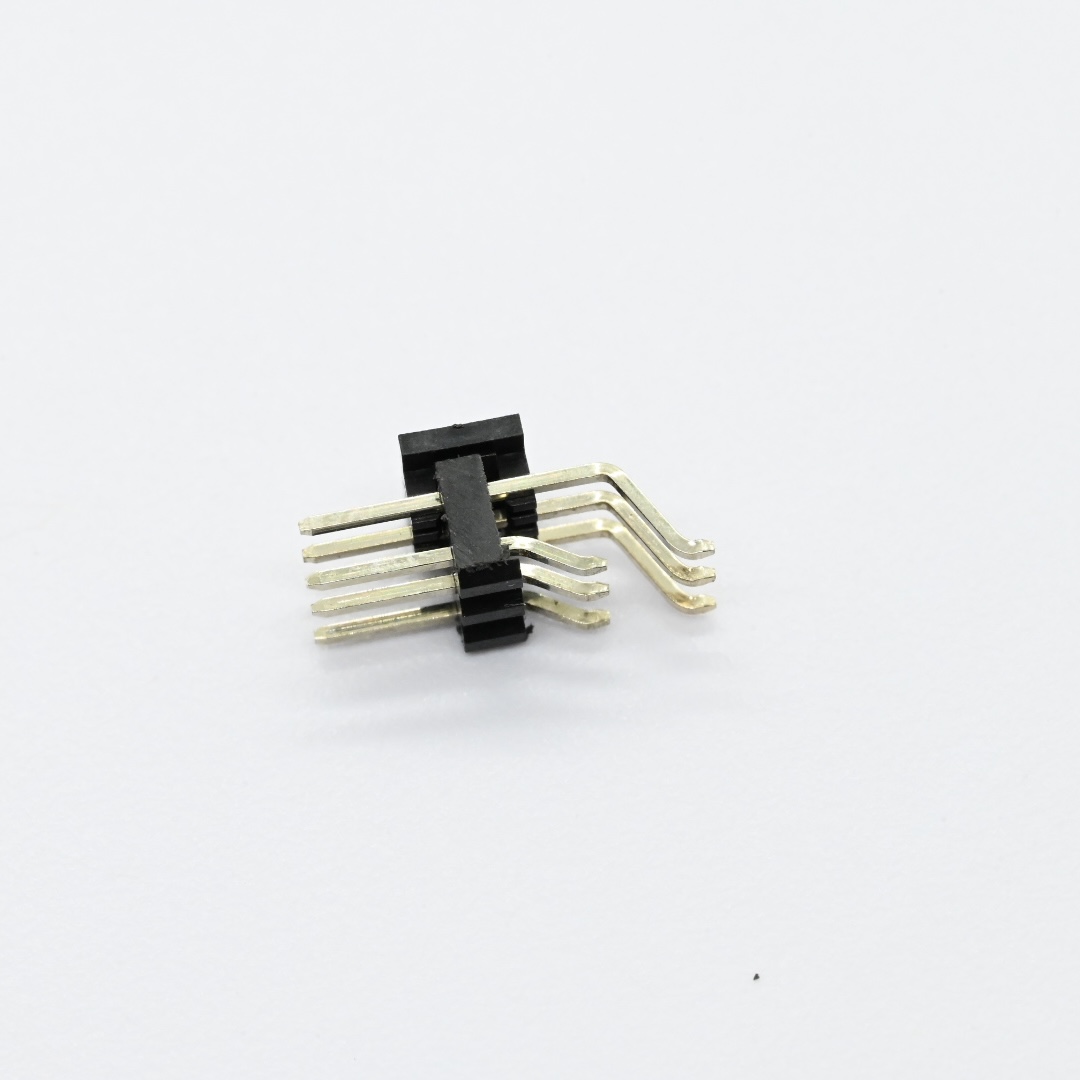

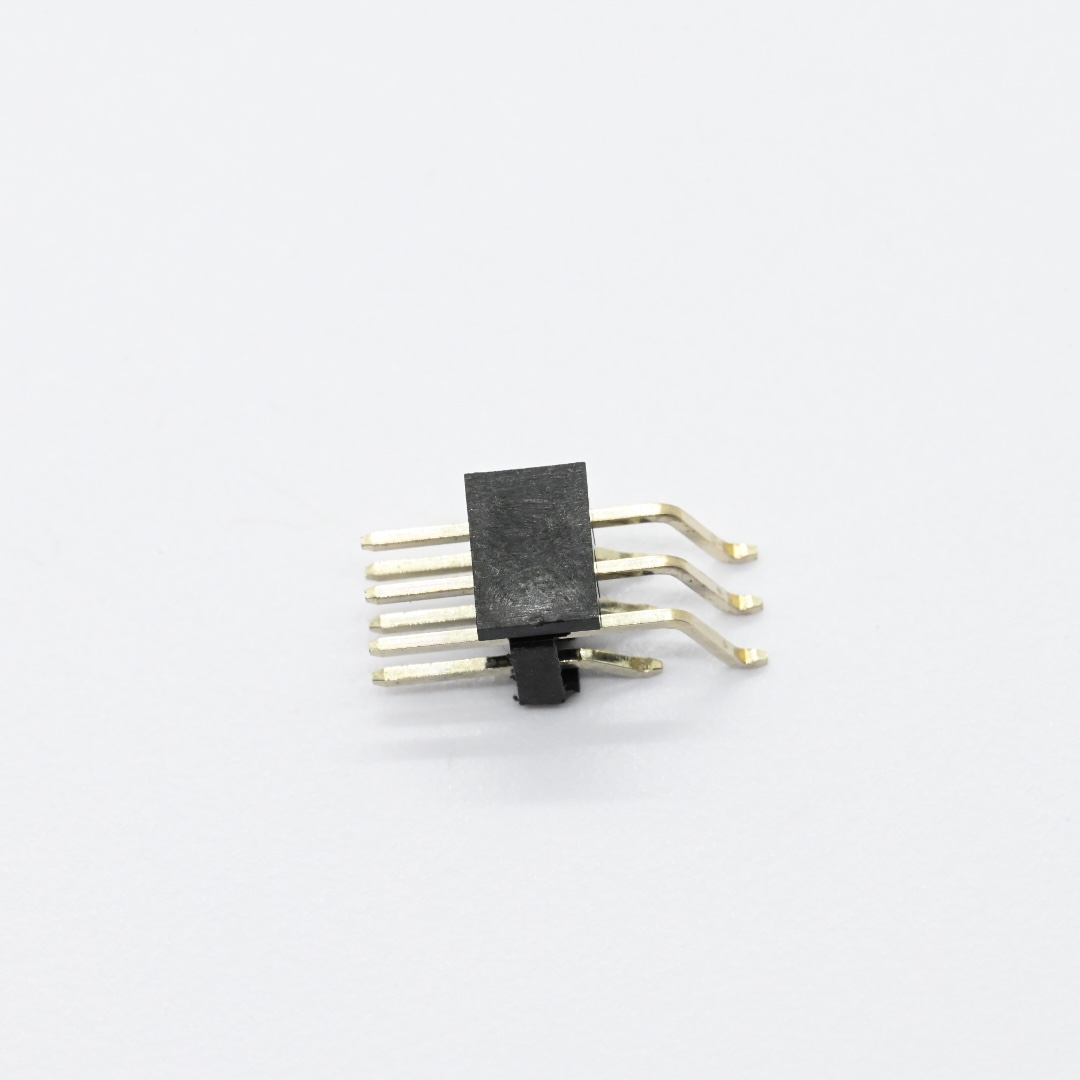

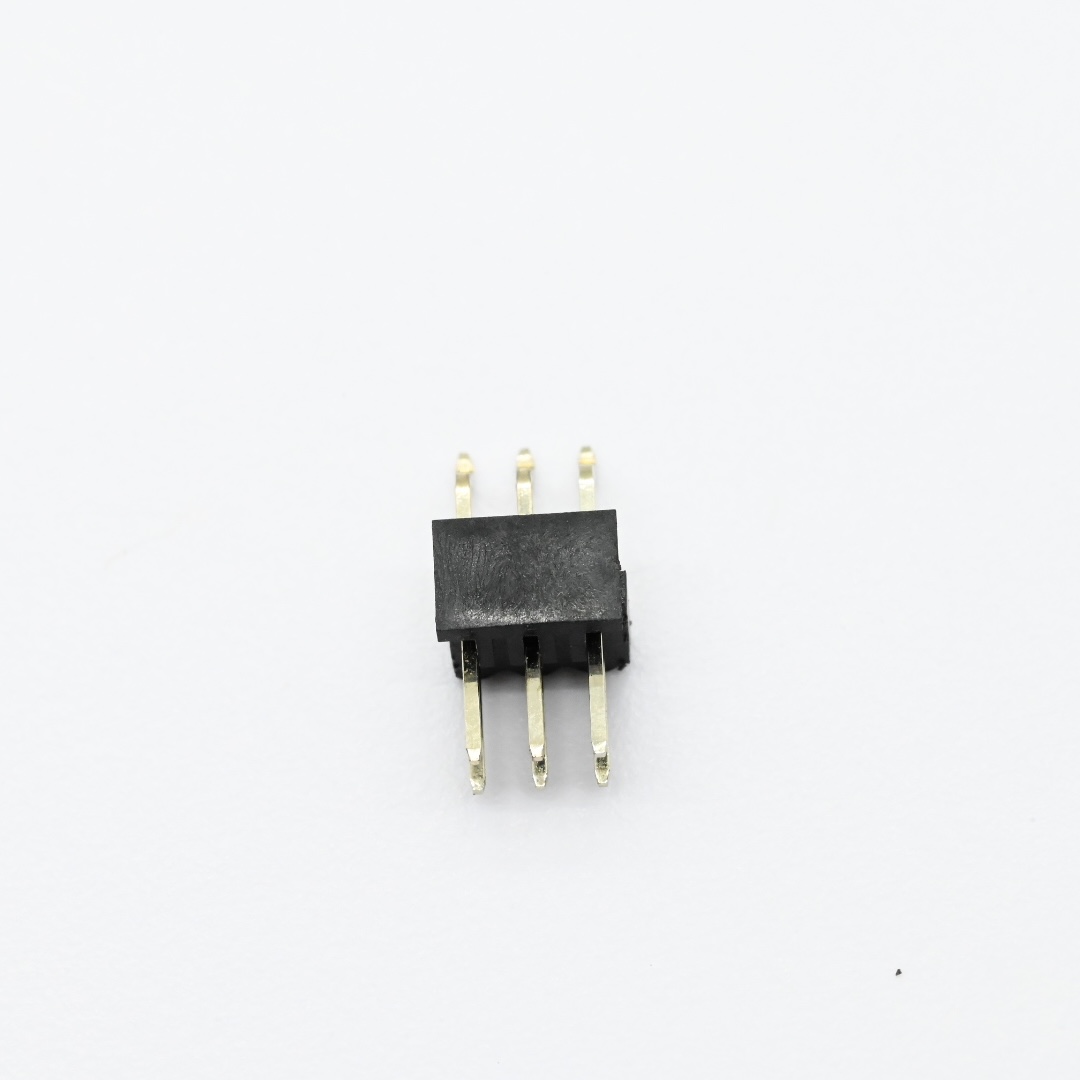

PHEM07-06G0D05840368BBH2A+2.54mm Pin Header DualRow（5）PHEM07-06G0D05840368BBH2A+2.54mm Pin Header DualRow（6）PHEM07-06G0D05840368BBH2A+2.54mm Pin Header DualRow（3）PHEM07-06G0D05840368BBH2A+2.54mm Pin Header DualRow（4）PHEM07-06G0D05840368BBH2A+2.54mm Pin Header DualRow（1）PHEM07-06G0D05840368BBH2A+2.54mm Pin Header DualRow（2）
