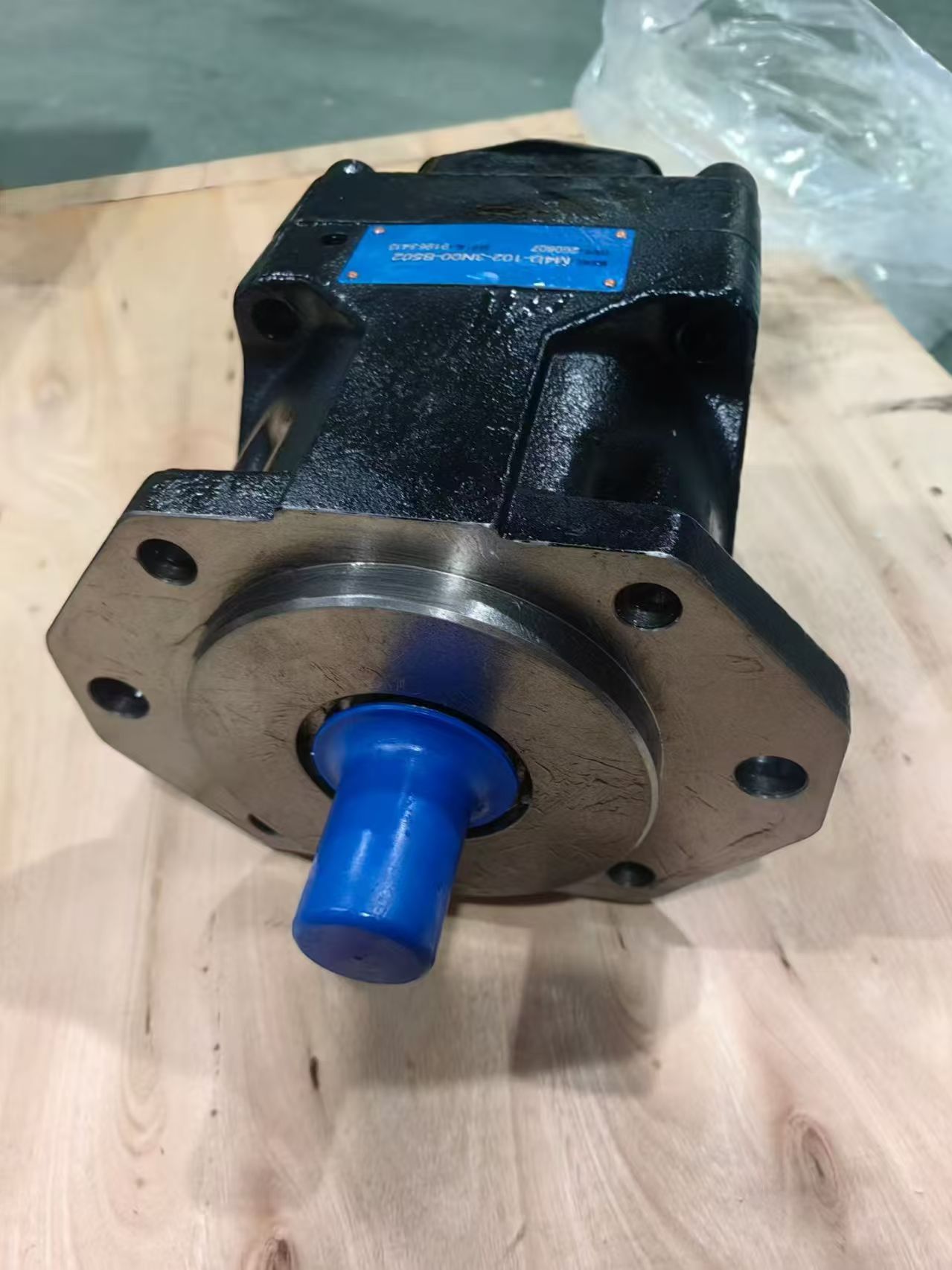

M4D-102-3N00-B502 Hydraulic Vane Motor

1. Product Overview

M4D-102-3N00-B502 is a fixed-displacement high-speed vane hydraulic motor from Parker Denison M4D series, adopting fully pressure-balanced vane structure and external drain design. It features compact size, low noise, stable torque output and strong resistance to external radial load. Widely used in industrial hydraulic systems, machine tools, packaging machinery, conveyors and auxiliary driving equipment, it is a high-performance alternative to original Denison vane motors.

2. Model Code Interpretation

- M4D: Series code, fixed displacement vane motor, external drain type

- 102: Displacement grade, theoretical displacement 105.5 mL/rev

- 3: Shaft type: SAE A splined shaft

- N: Bi-directional rotation (clockwise & counter-clockwise available)

- 00: Standard seal configuration

- B502: Standard mounting flange & port layout specification

3. Core Technical Specifications

Parameter Specification

Motor Type Fixed Displacement Vane Hydraulic Motor

Geometric Displacement 105.5 mL/rev

Continuous Rated Pressure 210 bar (21 MPa)

Peak Intermittent Pressure 230 bar (23 MPa)

Maximum Continuous Speed 2500 rpm

Theoretical Torque 1.67 N·m/bar

Rotation Direction Bi-directional

Drain Mode External drain (M4D standard)

Seal Material Standard NBR (Viton optional for high temperature)

Applicable Fluid ISO VG32 / VG46 anti-wear hydraulic oil

Operating Temperature -20℃ ~ +80℃

Mounting Flange SAE standard 2-bolt / 4-bolt flange

4. Structural & Performance Advantages

1. Fully pressure-balanced vane cam ring design, low internal leakage, high volumetric efficiency under full speed range.

2. 10-vane structure with optimized contour, low torque ripple and ultra-low operating noise.

3. Heavy-duty bearing assembly withstands large radial and axial shaft loads, suitable for direct drive of rollers/conveyors.

4. Bi-directional rotation design, flexible for forward and reverse working conditions.

5. Compact monoblock housing, simple installation and interchangeable with original Denison M4D motors.

6. Double-lip vane structure improves tolerance to hydraulic oil pollution, extends service life.

7. Standard B502 port arrangement, universal piping connection for industrial hydraulic stations.

5. Typical Application Scenarios

Machine tool spindle drive, conveyor belt driving mechanism, packaging machinery rotary actuator, hydraulic fixture rotation, light engineering auxiliary drive, printing machinery, textile equipment and other medium-pressure high-speed hydraulic drive occasions.
