2.54mm Straight Single Row H5.0 Female Header

2.54mm Straight Single Row H5.0 Female Header

2 week ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Huizhou Antenk Electronics Co., Ltd. produces FHES03 series 2.54mm pitch single row straight female headers with fixed 5.0mm plastic height to realize stable board-to-board signal and power interconnection on PCBs, supporting contact pin counts ranging from 01P to 40P with uniform 2.54mm pin spacing and standardized dimensional tolerances for accurate through-hole soldering. This straight female header insulator adopts UL94V0 flame retardant black PBT as standard raw material, alternative high-temperature resistant PA6T LCP PA46 PA9T plastic materials are available, 0.80X0.25 rectangular brass female terminals adopt full nickel underlayer plating and abundant surface plating options including tin, gold flash, 3u",5u",10u",15u",30u" full or selective gold plating, electrically rated for maximum 3.0A current, 500V AC dielectric withstand voltage, maximum 20 milliohm contact resistance and minimum 1000 megohm insulation resistance, maintaining reliable performance within minus 65 degree Celsius to plus 125 degree Celsius and fully complying with HSF lead-free and RoHS environmental standards, six packing modes tray bag tube tube with cap tape reel tape reel with cap satisfy both manual and automated assembly production requirements. This H5.0 single row straight female header is widely used in liquid crystal display modules, digital cameras, communication devices, industrial control panels, portable storage equipment, digital household appliances, electronic toys, computer peripherals, automotive electronic modules and precision measuring instruments that need simple compact PCB connection. Operators should select matching pin quantity and plating thickness based on circuit design, conduct standard DIP soldering following official PCB layout drawing, avoid excessive force squeezing to prevent PBT insulator deformation and brass terminal bending, and store finished female headers in dry sealed packages to avoid plating layer oxidation. Unlike competitors outsourcing mold development and plastic injection Antenk implements complete independent production flow including self-designed plastic and metal precision mold manufacturing, high-speed brass terminal stamping, high temperature PBT injection molding, multi-layer nickel gold electroplating and comprehensive high-low temperature cycle reliability laboratory testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications while meeting REACH international environmental standards. We own more than two hundred fifty proprietary plastic connector molds and one hundred eighty metal terminal molds, offer customizable insulator material color plating specification and packaging types, provide all-day professional engineering technical support, and more than seventy percent of our female header products are exported globally supported by our Guangdong Famous Trademark ANTENK and consistent stable mass production quality.

H5.0 Straight PBT Female Housing delivers stable flame retardant and heat resistant performance for long term PCB through hole assembly.

0.80×0.25 Brass Female Terminal maintains low contact resistance and excellent elasticity for repeated plug and unplug operations.

Single Row 1P-40P Female Header covers complete pin range to match diverse single line circuit connection layout demands.

1. Electrical Performance

1.1 Rated Current: 3.0 Amp

1.2 Dielectric Withstand Voltage: AC 500V

1.3 Max Contact Resistance: 20 milliohms

1.4 Min Insulation Resistance: 1000 Megohms

2. Environmental Parameters

2.1 Operating Temperature Range: -65°C ~ +125°C

2.2 Compliance Standards: HSF, Lead-free, RoHS

3. Material Configuration

3.1 Standard Insulator: Black PBT, UL94V-0 flame retardant

3.2 Optional High Temperature Insulators: PA6T, LCP, PA46, PA9T

3.3 Contact Raw Material: Brass, size 0.80×0.25 rectangular terminal

4. Contact Plating Options

4.1 Full plating types: Tin, gold flash, 3μ",5μ",10μ",15μ",30μ" gold

4.2 Selective plating types: Selective gold flash, 3μ",5μ",10μ",15μ",30μ" gold

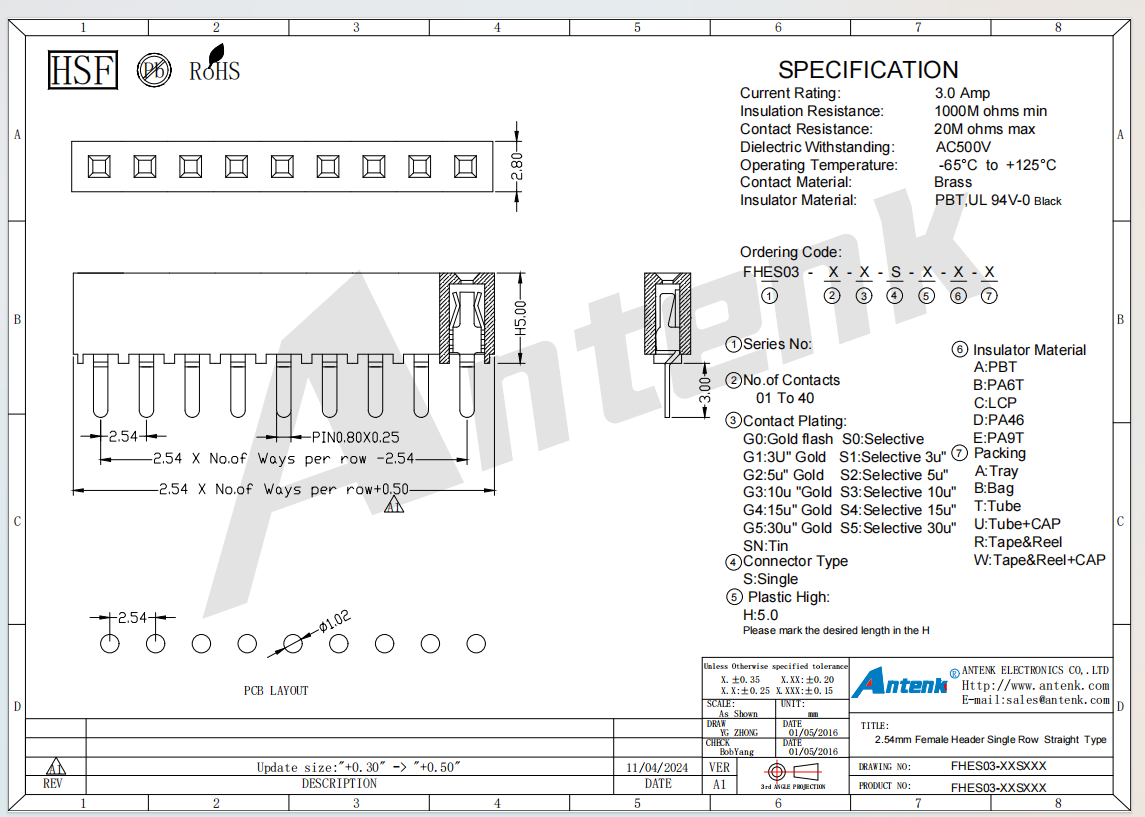

5. Dimension & Structural Specifications (Unit: mm)

5.1 Standard Pin Pitch: 2.54

5.2 Fixed Insulator Height: H5.0

5.3 Contact Quantity Range: Single row 01P to 40P

5.4 Structure Type: Straight single row female header

5.5 General Tolerance Rules: X.±0.35, X.X±0.25, X.XX±0.20, shtur±0.15

6. Packaging Selections

6.1 A: Tray packing

6.2 B: Bag packing

6.3 T: Tube packing

6.4 U: Tube with CAP packing

6.5 R: Tape & reel packing

6.6 W: Tape & reel with CAP packing

7. Application Scenarios

7.1 Liquid crystal display modules, digital cameras

7.2 Communication equipment, industrial control panels

7.3 Portable storage devices, digital household appliances

7.4 Electronic toys, computer peripheral hardware

7.5 Automotive electronics, precision measuring instruments

8. Operation & Storage Precautions

8.1 Select proper pin count, insulator material and plating thickness matching PCB circuit layout

8.2 Perform DIP through-hole soldering strictly follow the official PCB layout drawing

8.3 Avoid strong squeezing force to prevent PBT insulator deformation and brass terminal distortion

8.4 Choose thicker gold plating for products with frequent plugging and unplugging cycles

8.5 Store finished female headers in dry sealed environment to prevent oxidation of nickel-gold plating layer

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

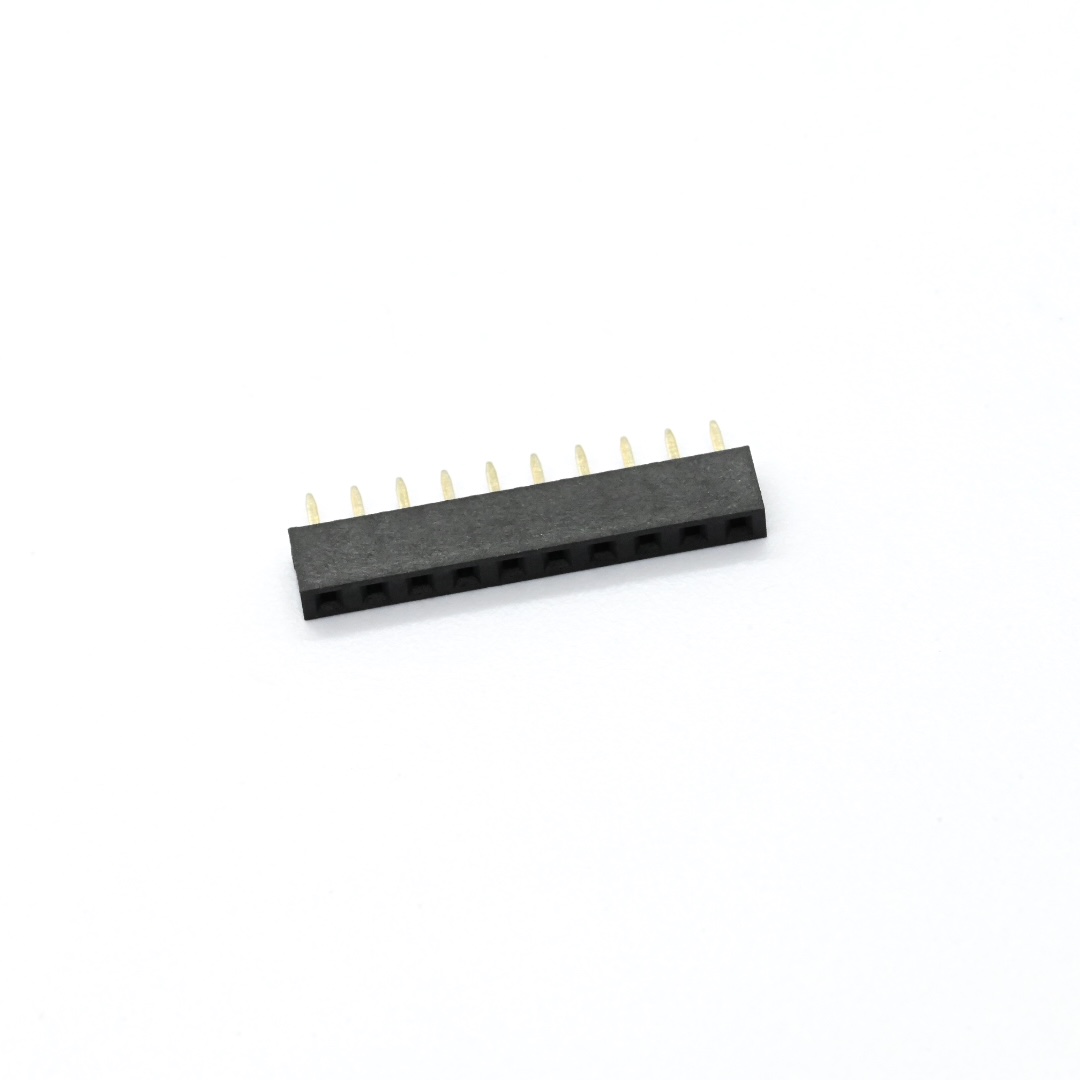

FHES03-10G0SHAA+2.54mm Female Header Single Row Straight Type（6）

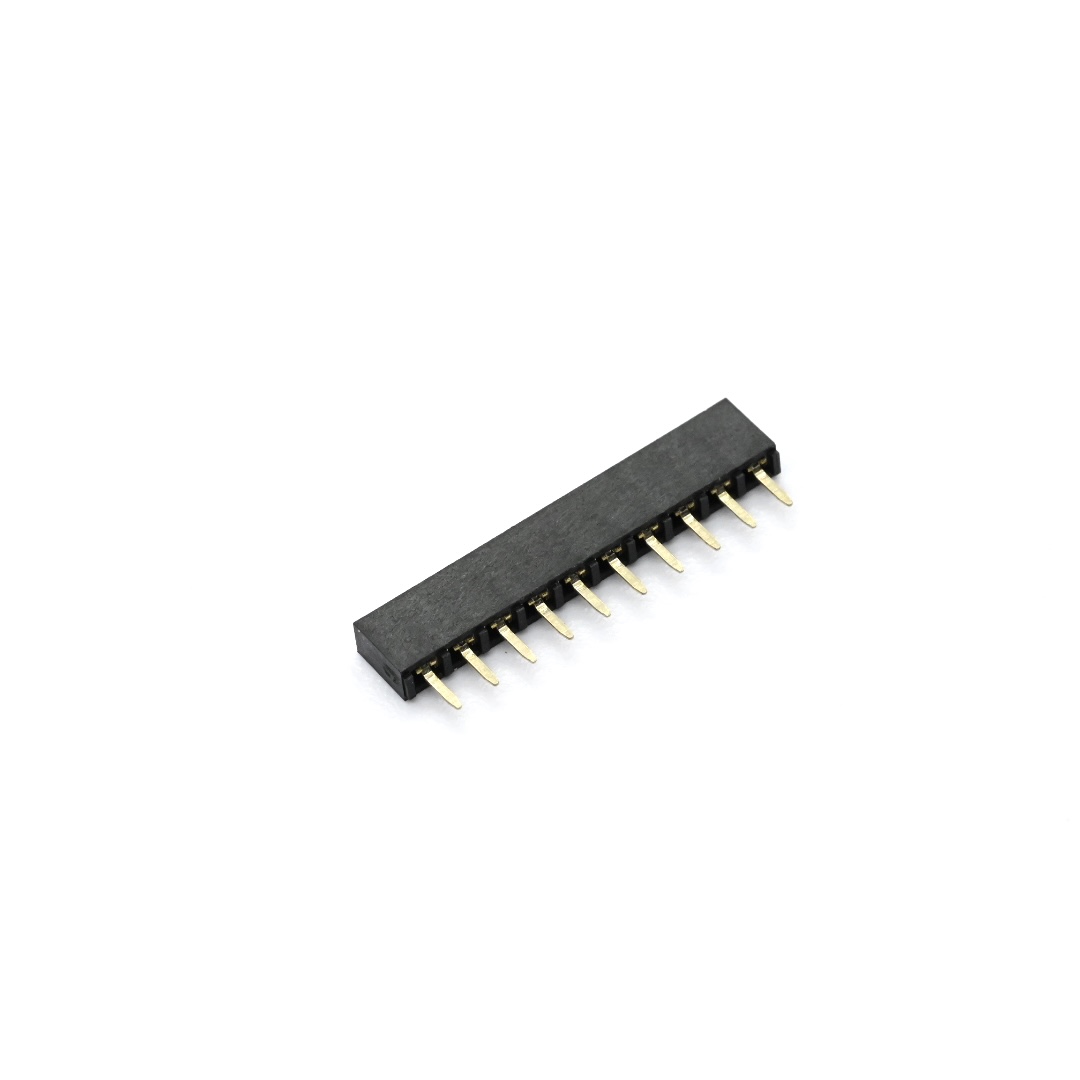

FHES03-10G0SHAA+2.54mm Female Header Single Row Straight Type（2）

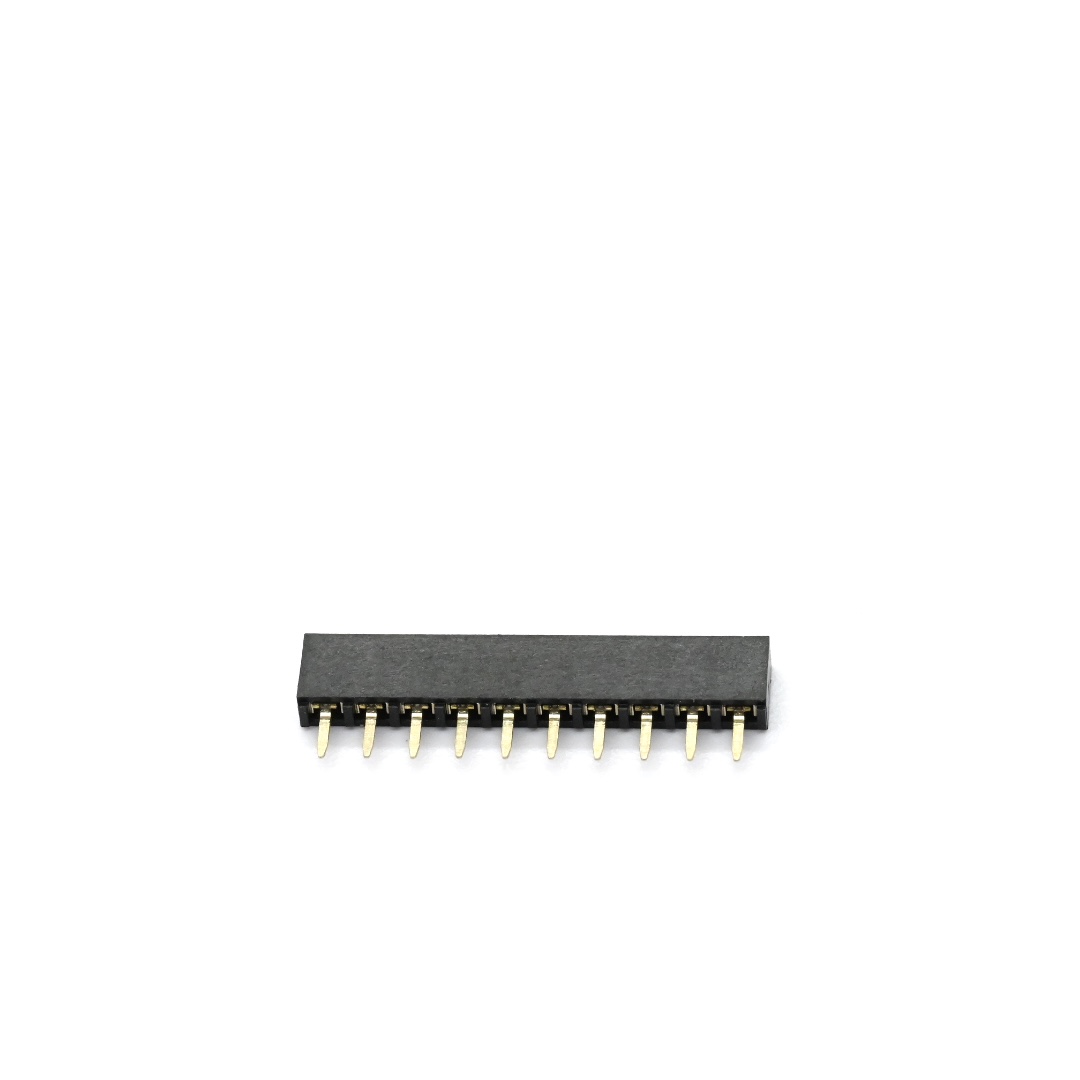

FHES03-10G0SHAA+2.54mm Female Header Single Row Straight Type（1）

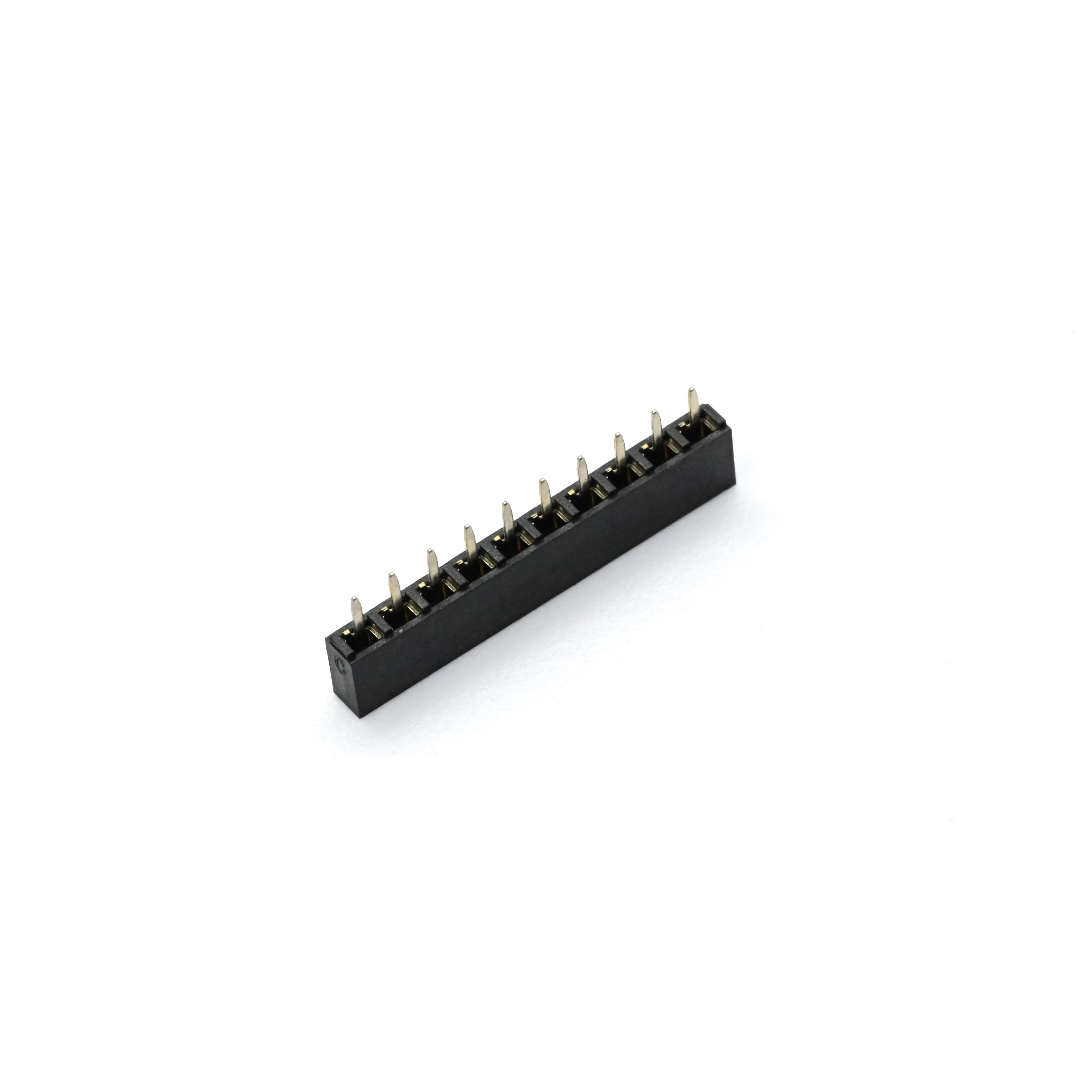

FHES03-10G0SHAA+2.54mm Female Header Single Row Straight Type（5）

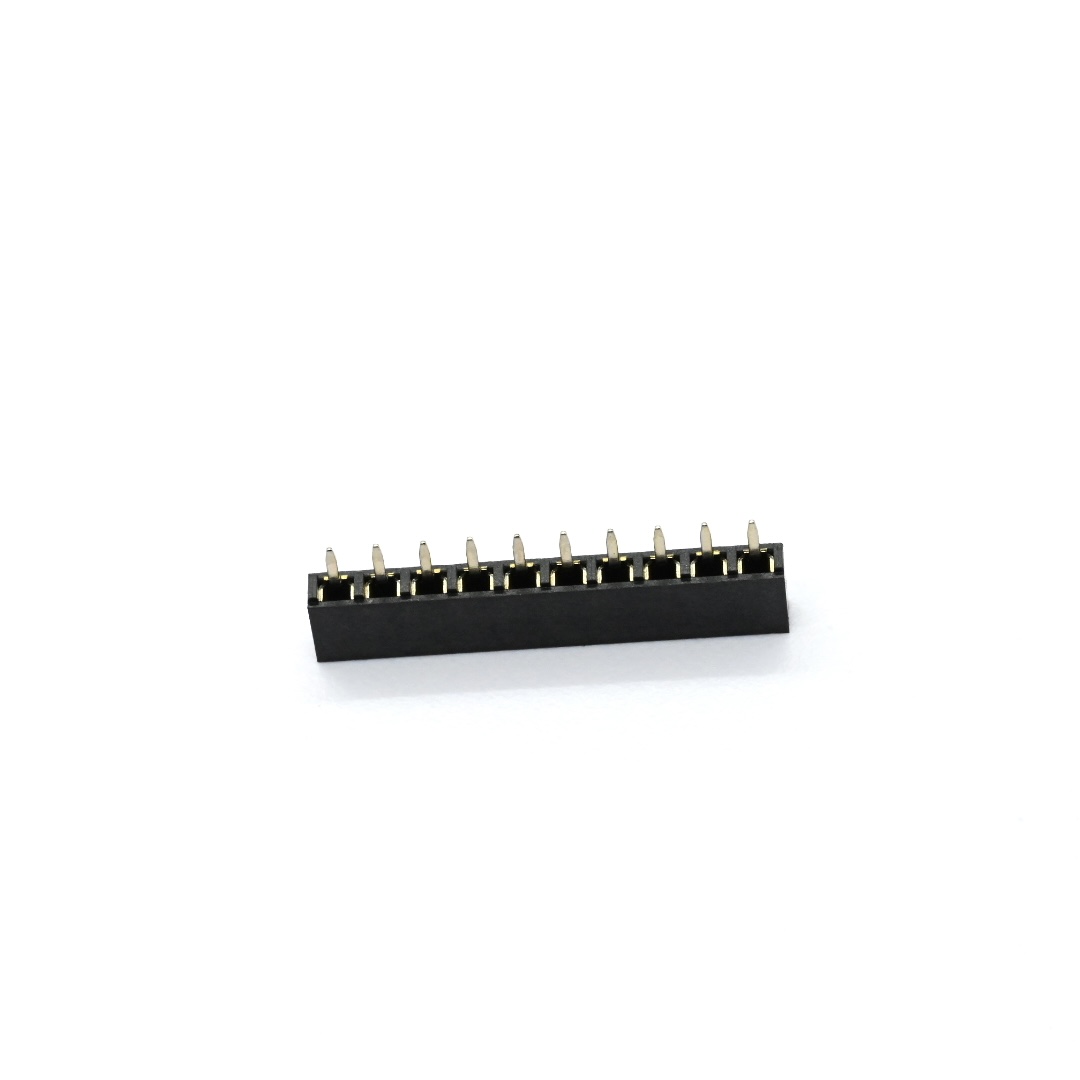

FHES03-10G0SHAA+2.54mm Female Header Single Row Straight Type（4）

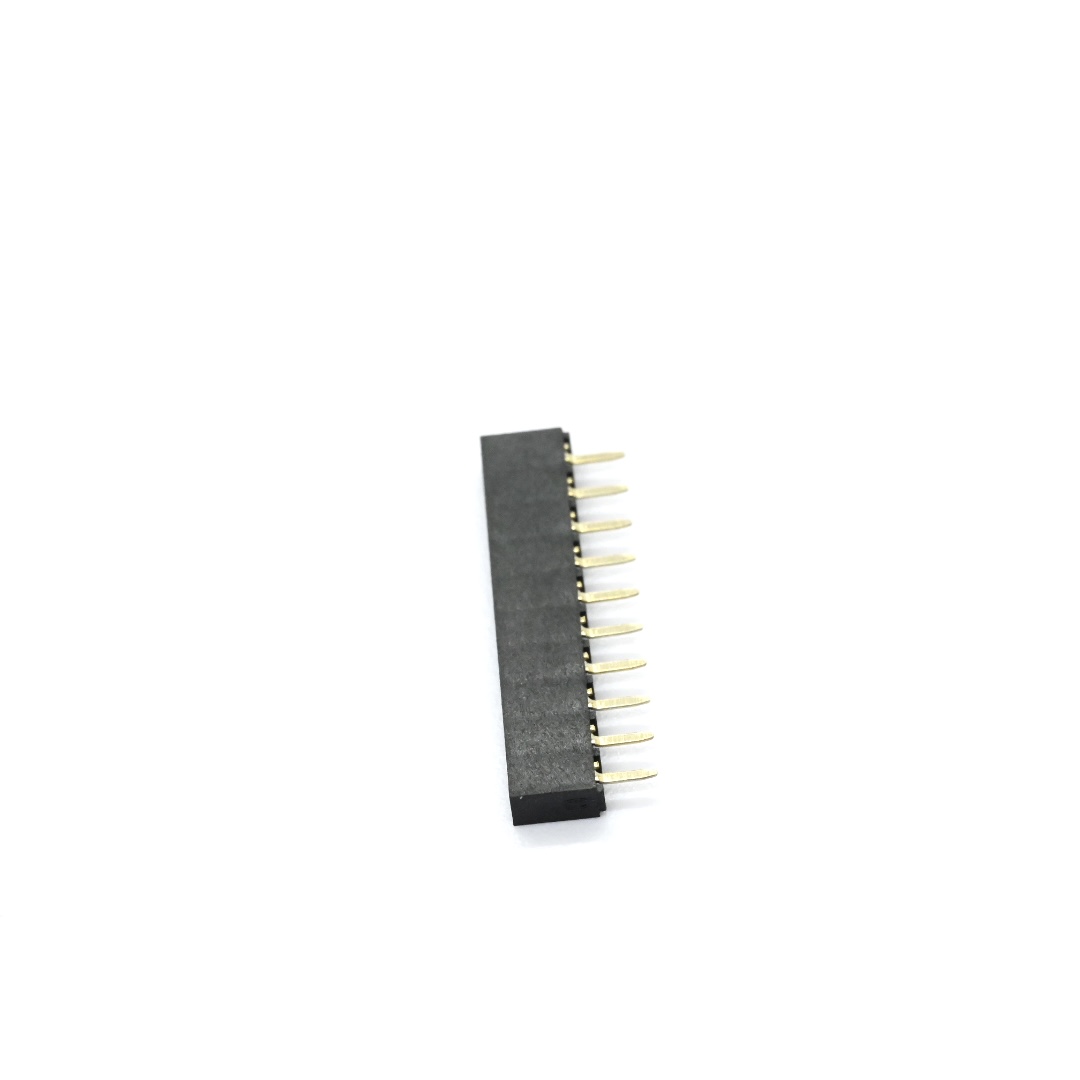

FHES03-10G0SHAA+2.54mm Female Header Single Row Straight Type（3）
