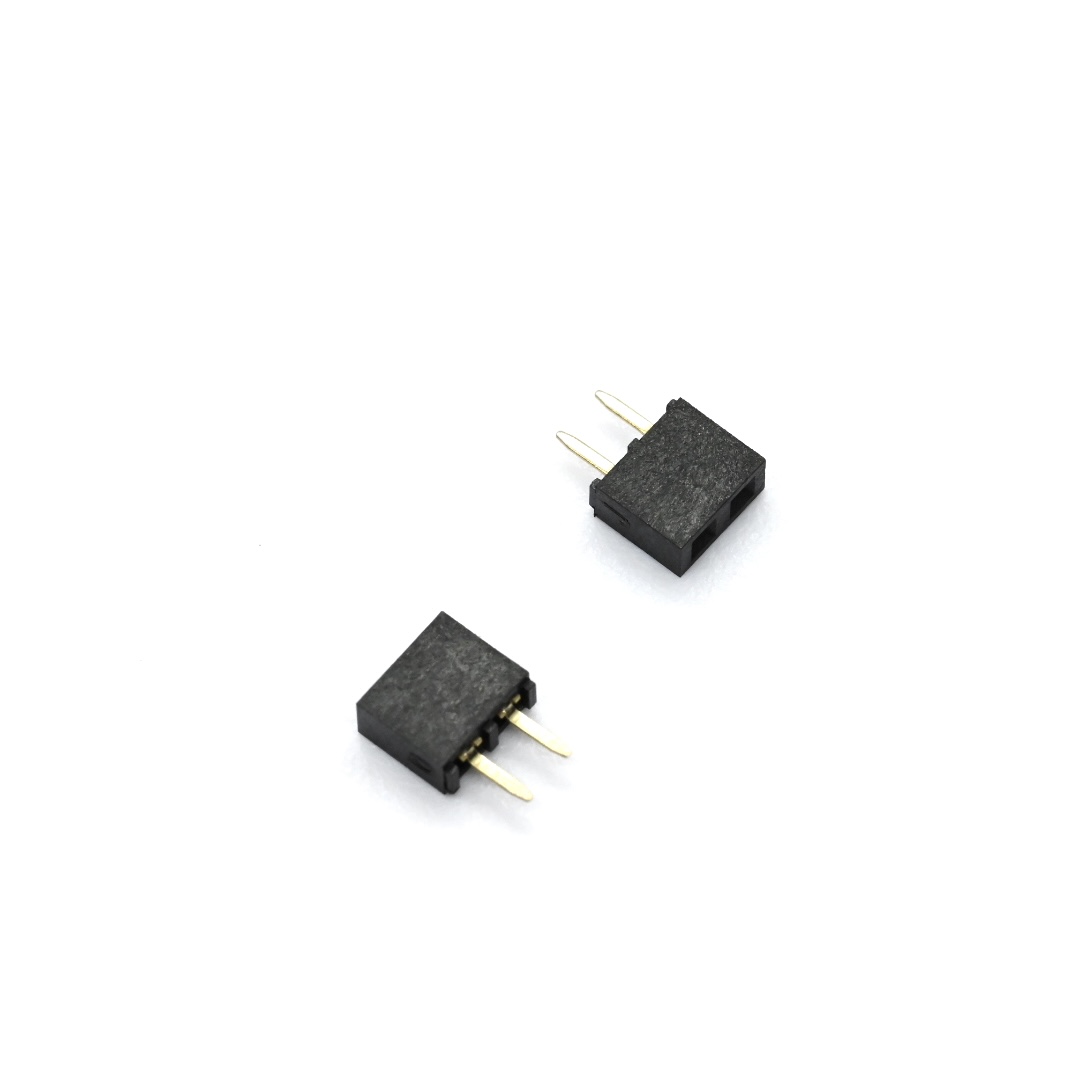

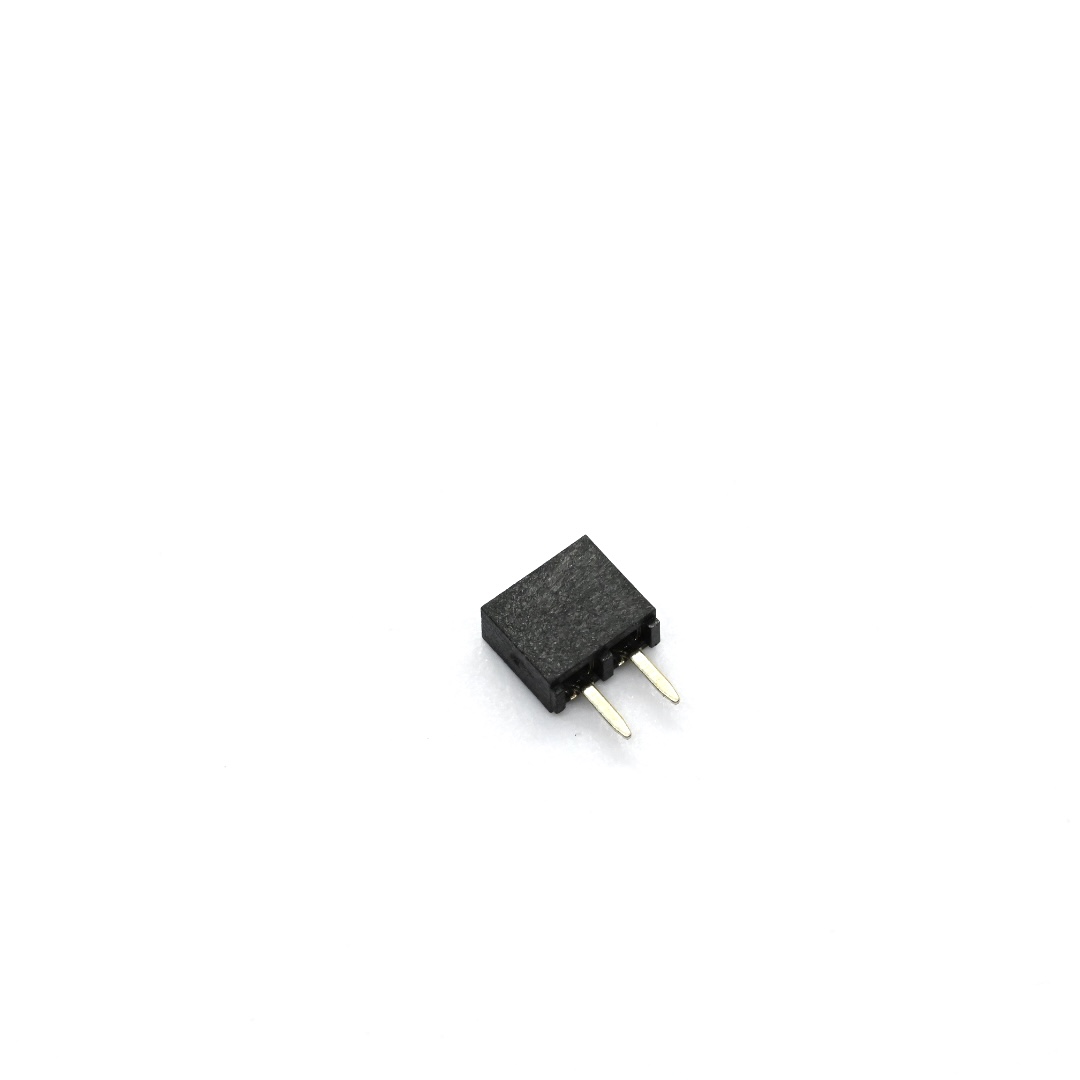

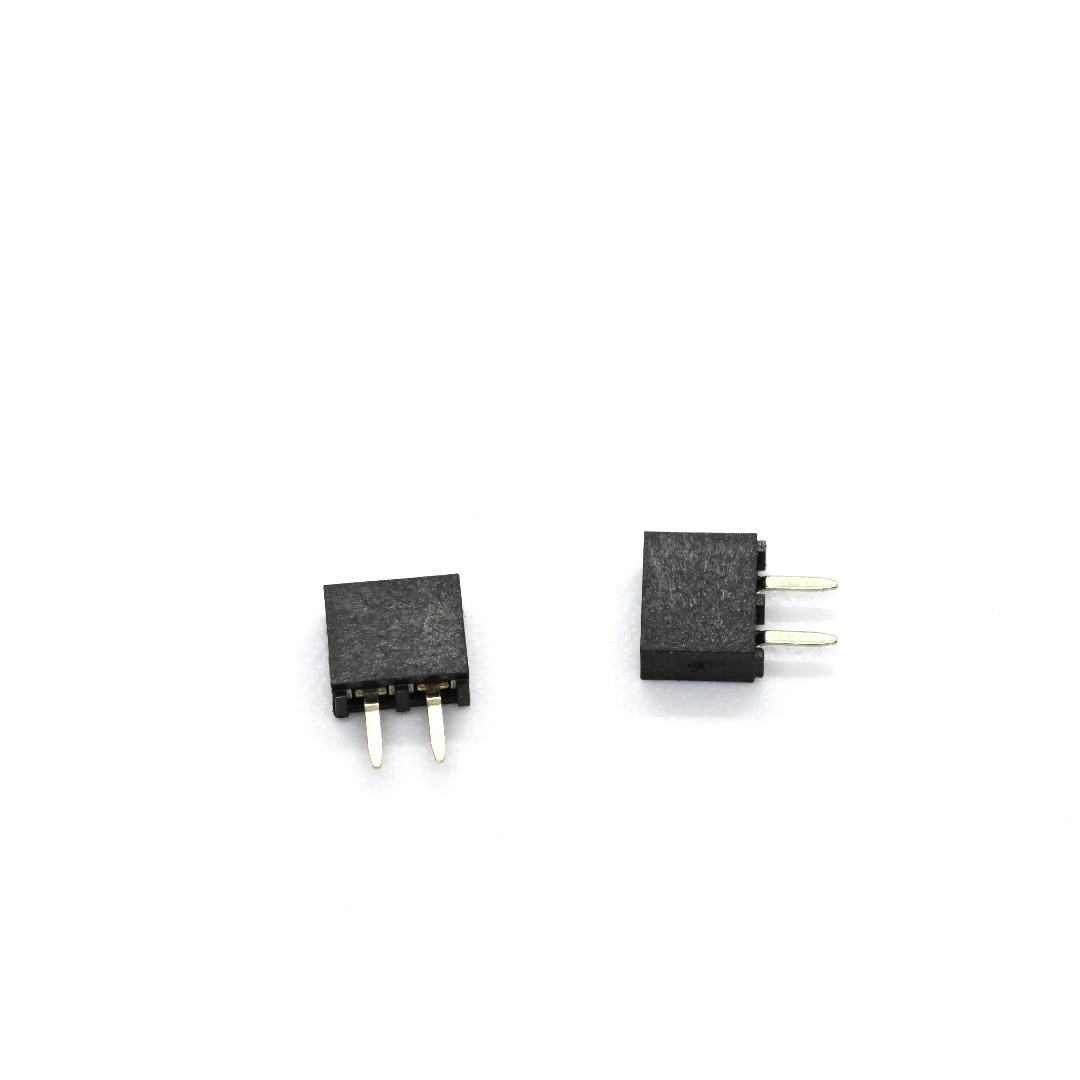

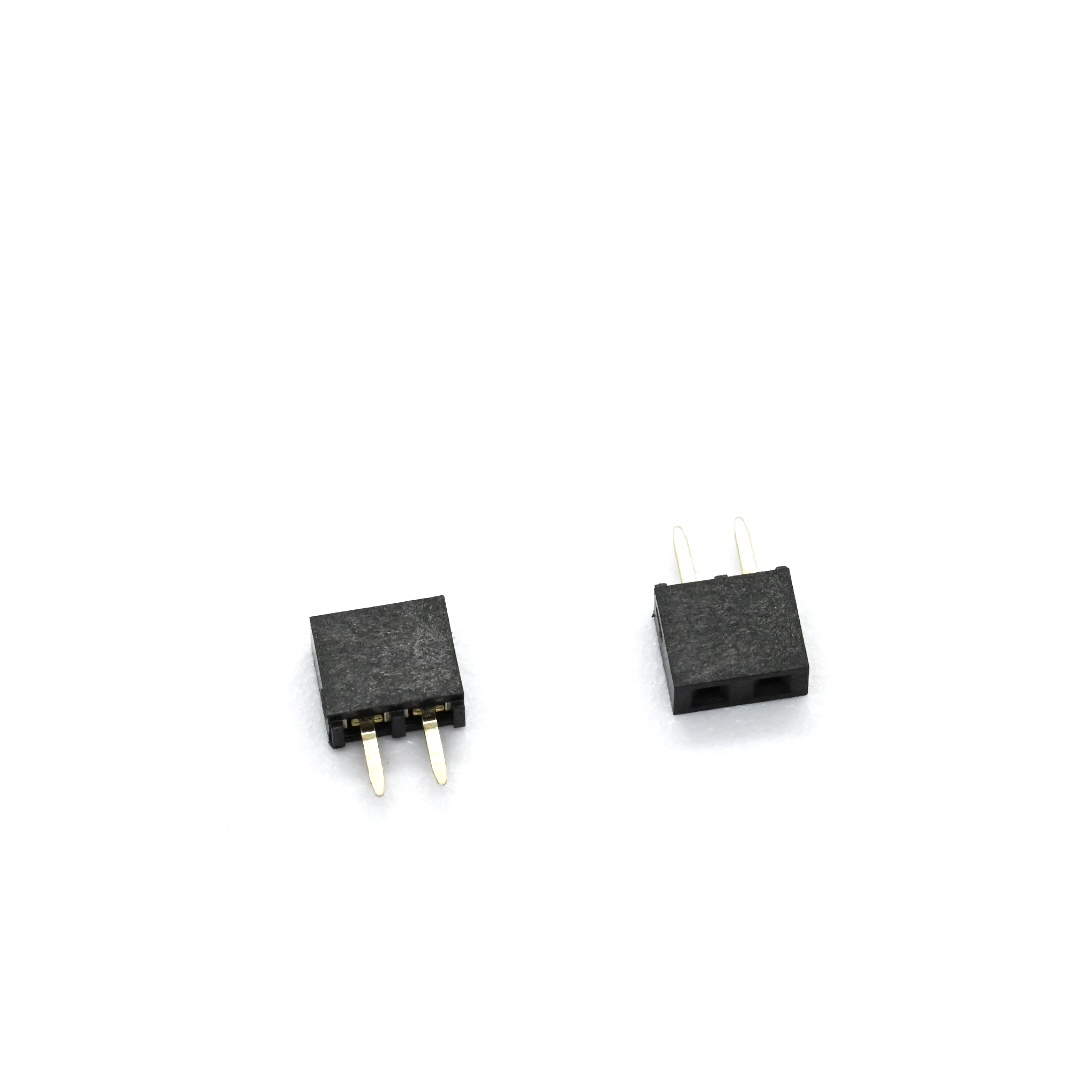

Huizhou Antenk Electronics Co., Ltd. manufactures FHES03 series 2.54mm single row straight H5.0 female headers to deliver reliable board-to-board signal and power interconnection on standard PCBs, covering 01P to 40P contact counts with uniform 2.54mm pin pitch and standardized dimensional tolerances to guarantee precise through-hole DIP soldering matching official PCB layout specifications. This straight female header insulator uses UL94V0 flame retardant black PBT as standard material, with alternative high temperature resistant PA6T LCP PA46 PA9T insulators for high heat working scenarios, 0.80X0.25 brass female terminals adopt full nickel base plating and diverse finish options including tin, gold flash, 3u",5u",10u",15u",30u" full or selective gold plating, electrically rated for maximum 3.0A current, 500V AC dielectric withstand voltage, below 20 milliohm contact resistance and over 1000 megohm insulation resistance, operating stably between minus 65 degree Celsius and plus 125 degree Celsius and fully complying with HSF lead-free and RoHS environmental standards, six packing variants tray bag tube tube with cap tape reel tape reel with cap fit both manual and automatic through-hole assembly production lines. This H5.0 single row straight female header is widely adopted in liquid crystal display modules, digital cameras, communication equipment, industrial control panels, portable storage hardware, digital household appliances, electronic toys, computer peripherals, automotive electronic modules and precision measuring instruments requiring compact low-cost PCB interconnection. Operators need to select matching pin quantity insulator material and plating thickness according to circuit design, perform standard through-hole soldering strictly following PCB pad drawings, avoid heavy squeezing force to prevent PBT insulator deformation and brass terminal bending, and store finished headers in dry sealed packages to avoid nickel gold plating oxidation. Unlike competitors outsourcing mold development and plastic injection molding Antenk runs a full independent production workflow including self-designed plastic and metal precision mold manufacturing, high-speed brass terminal stamping, high temperature PBT injection molding, multi-layer nickel gold electroplating and complete high-low temperature cycle reliability laboratory testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications while meeting REACH global environmental standards. We own more than two hundred fifty proprietary plastic connector molds and one hundred eighty metal terminal molds, provide fully customizable insulator color plating specification and packaging schemes, offer round-the-clock professional engineering technical support, and over seventy percent of our female header products are exported worldwide backed by our Guangdong Famous Trademark ANTENK and consistent stable mass production quality.
High Temp PA9T Female Insulator provides stable flame retardant performance for long-term high temperature circuit working environments.
Elastic Brass Socket maintains low contact resistance and stable elasticity for repeated plugging and unplugging operations.
1P-40P Single Row Through Socket covers full pin count range to satisfy diverse single line through-hole PCB connection demands.
1. Electrical Performance Parameters
1.1 Rated Current: 3.0 Amp
1.2 Dielectric Withstanding Voltage: AC 500V
1.3 Max Contact Resistance: 20 milliohms
1.4 Minimum Insulation Resistance: 1000 Megohms
2. Environmental Performance
2.1 Operating Temperature Range: -65°C ~ +125°C
2.2 Compliance Standards: HSF, Lead-free, RoHS
3. Material Composition
3.1 Standard Insulator: Black PBT, UL94V-0 flame retardant
3.2 Optional High-temperature Insulators: PA6T, LCP, PA46, PA9T
3.3 Contact Material: Brass, size 0.80×0.25 rectangular terminal
4. Contact Plating Options
4.1 Full plating types: Tin, gold flash, 3μ", 5μ", 10μ", 15μ", 30μ" gold
4.2 Selective plating types: Selective gold flash, 3μ", 5μ", 10μ", 15μ", 30μ" gold

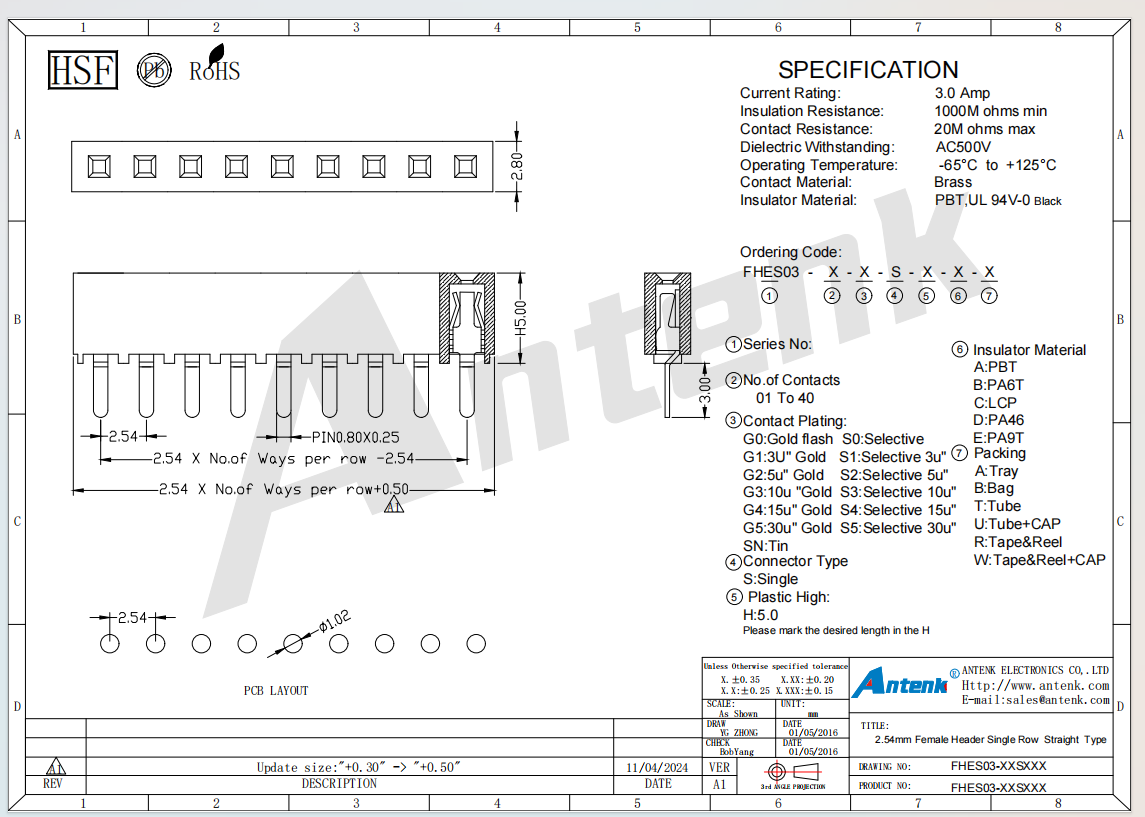

5. Dimension & Structural Specifications (Unit: mm)
5.1 Standard Pin Pitch: 2.54
5.2 Fixed Insulator Height: H5.0
5.3 Contact Quantity Range: Single row 01P to 40P
5.4 Structure Type: Straight single row through-hole female header
5.5 General Dimensional Tolerance Rules: X.±0.35, X.X±0.25, X.XX±0.20, X.XXX±0.15
6. Packaging Selections
6.1 A: Tray packing
6.2 B: Bag packing
6.3 T: Tube packing
6.4 U: Tube with CAP packing
6.5 R: Tape & reel packing
6.6 W: Tape & reel with CAP packing
7. Application Scenarios
7.1 Liquid crystal display modules, digital cameras
7.2 Communication equipment, industrial control panels
7.3 Portable storage devices, digital household appliances
7.4 Electronic toys, computer peripheral hardware
7.5 Automotive electronics, precision measuring instruments
8. Operation & Storage Precautions
8.1 Match pin count, insulator material and plating thickness with PCB circuit layout
8.2 Complete through-hole DIP soldering strictly follow official PCB layout drawing
8.3 Avoid heavy squeezing force to prevent PBT insulator deformation and brass terminal distortion
8.4 Select thicker gold plating for connectors with frequent plugging cycles
8.5 Store finished female headers in dry sealed environment to prevent plating layer oxidation
