Huizhou Antenk Electronics Co., Ltd. produces HPZTD-FXX 1.27mm straight full plastic female receptacles to deliver stable low-loss board-to-board signal connection for compact PCB circuit layouts, covering pin counts from 20P to 100P with standardized dimensional formulas and unified precision tolerances to match designated PCB mounting hole layouts split for 30P 50P and other pin versions. This full plastic receptacle uses black LCP plus 30 percent glass fiber as insulator material for outstanding high temperature resistance, internal conductive contacts are made of durable phosphor bronze with multiple selective gold plating grades including gold flash 5u 15u and 30u gold to fit different plug frequency demands, electrically rated for 1A maximum current, 500 megohms minimum insulation resistance, 35 milliohms maximum contact resistance and 500V AC one minute dielectric withstand voltage, stably operating between minus 40 degree Celsius and plus 105 degree Celsius while fully meeting HSF lead-free and RoHS green electronic standards. This lightweight full plastic female socket is widely deployed in liquid crystal display modules, digital cameras, communication devices, industrial control panels, portable storage hardware, digital household appliances, electronic toys, computer peripherals, automotive electronic modules and precision measuring instruments requiring compact multi-pin interconnection. Operators should select matching pin quantity and selective gold plating thickness according to circuit transmission demands, complete standard through-hole soldering following official PCB layout drawings, avoid excessive extrusion force to prevent LCP housing cracking and phosphor bronze contact permanent deformation, and store finished receptacles in dry sealed packages to slow gold plating oxidation. Unlike rivals outsourcing mold fabrication and terminal stamping Antenk runs complete independent production procedures including self-developed precision plastic and metal mold manufacturing, high-speed phosphor bronze terminal stamping, high temperature LCP injection molding, selective gold electroplating and full environmental reliability laboratory testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications and complying with REACH international environmental rules. We own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, offer customizable pin counts plating specifications and structural dimensions, provide round-the-clock professional engineering technical support, and more than seventy percent of our receptacle products are exported globally backed by our Guangdong Famous Trademark ANTENK and consistent stable mass production quality.
1. Electrical Parameters
1.1 Rated Current: 1AMP
1.2 Minimum Insulation Resistance: 500M ohms
1.3 Maximum Contact Resistance: 35 milliohms
1.4 Dielectric Withstanding Voltage: 500V AC for 1 minute
2. Material Composition
2.1 Insulator: LCP+30%G/F, black
2.2 Contact Material: Phosphor bronze
3. Contact Selective Plating Options
3.1 S0: Gold Flash Selective Plating
3.2 S2: 5u" Gold Selective Plating
3.3 S4: 15u" Gold Selective Plating
3.4 S5: 30u" Gold Selective Plating

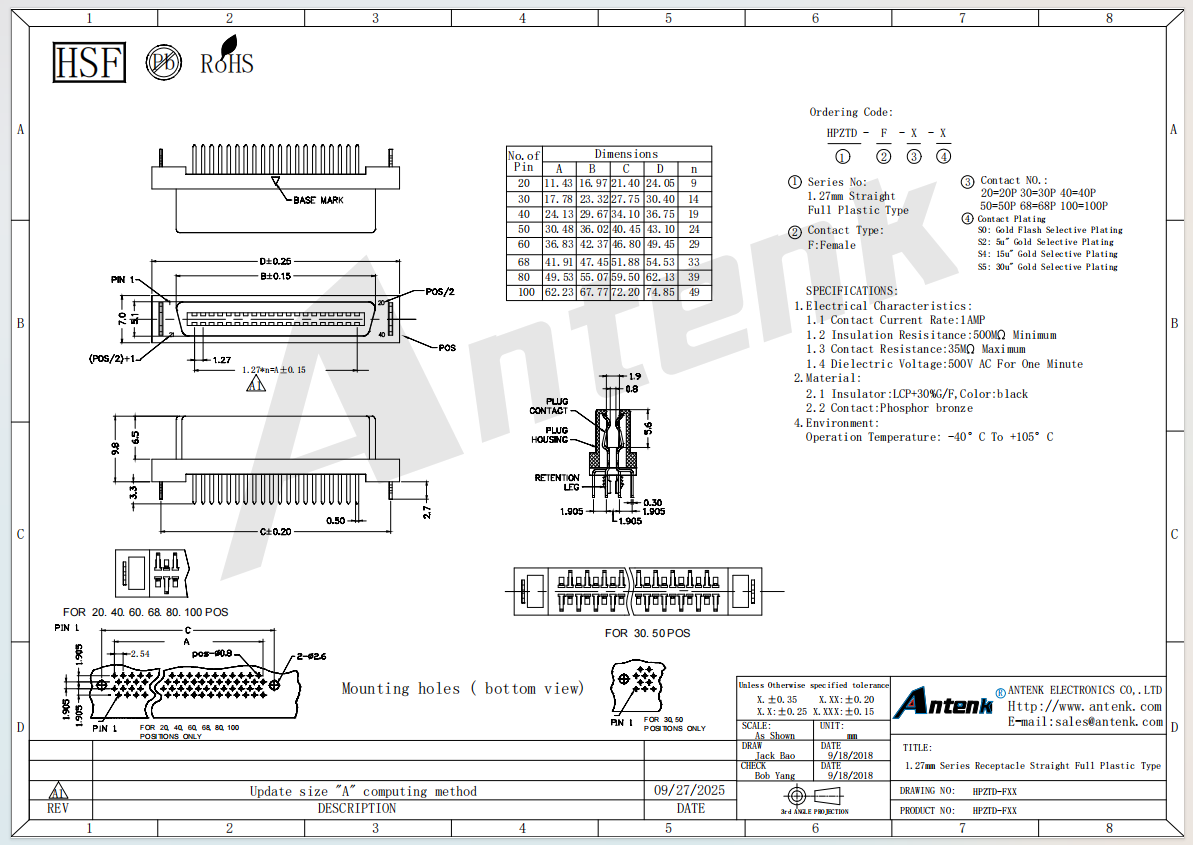

4. Dimension & Structural Specifications (Unit: mm)
4.1 Fixed Pitch: 1.27
4.2 Pin count range: 20P, 30P, 40P, 50P, 60P, 68P, 80P, 100P
4.3 Dimensional calculation rule: 1.27*n=A±0.15
4.4 Tolerance standard: X.±0.35, X.X±0.25, X.XX±0.20, X.XXX±0.15
4.5 Mounting hole layout: Separate layout for 30P/50P and 20P/40P/60P/68P/80P/100P

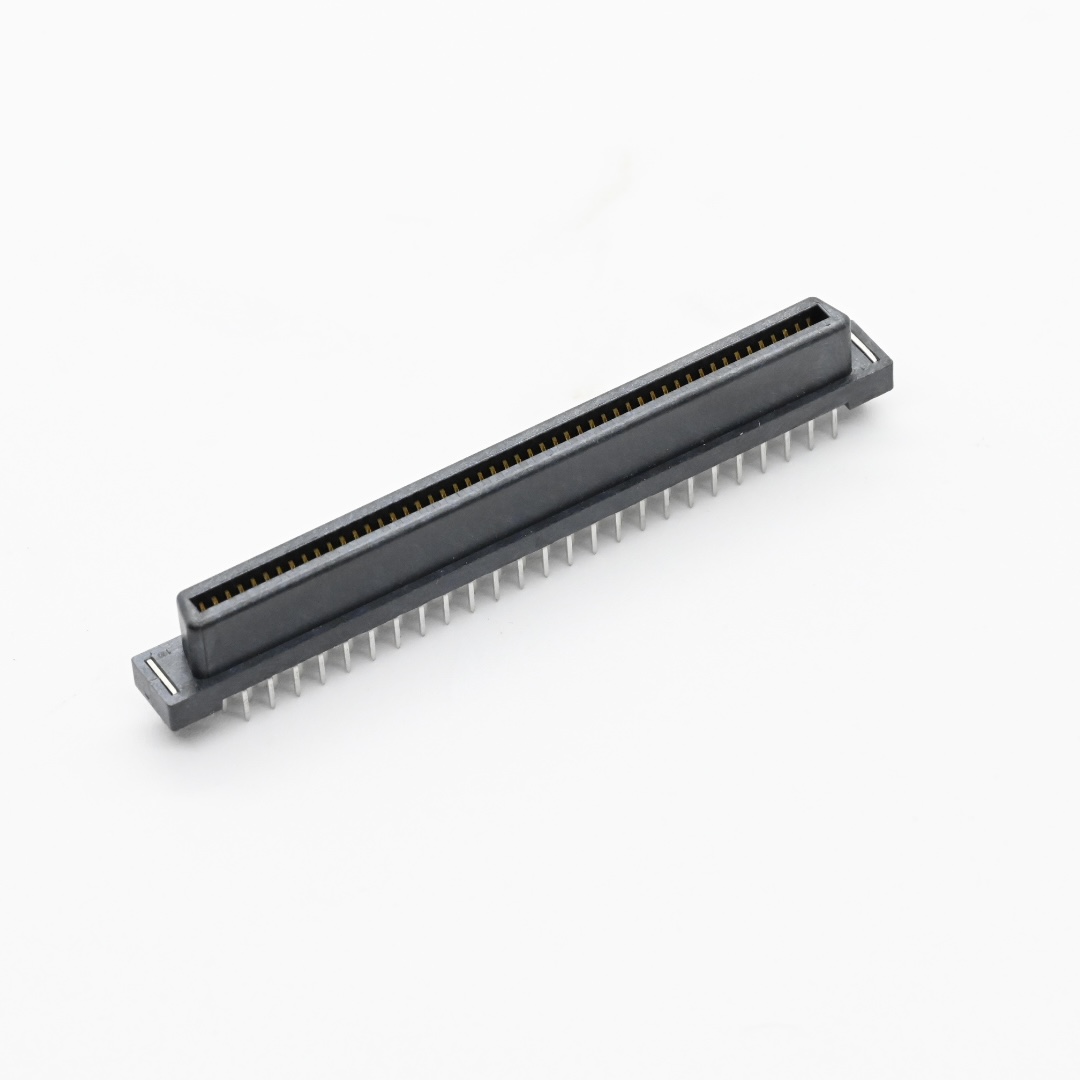

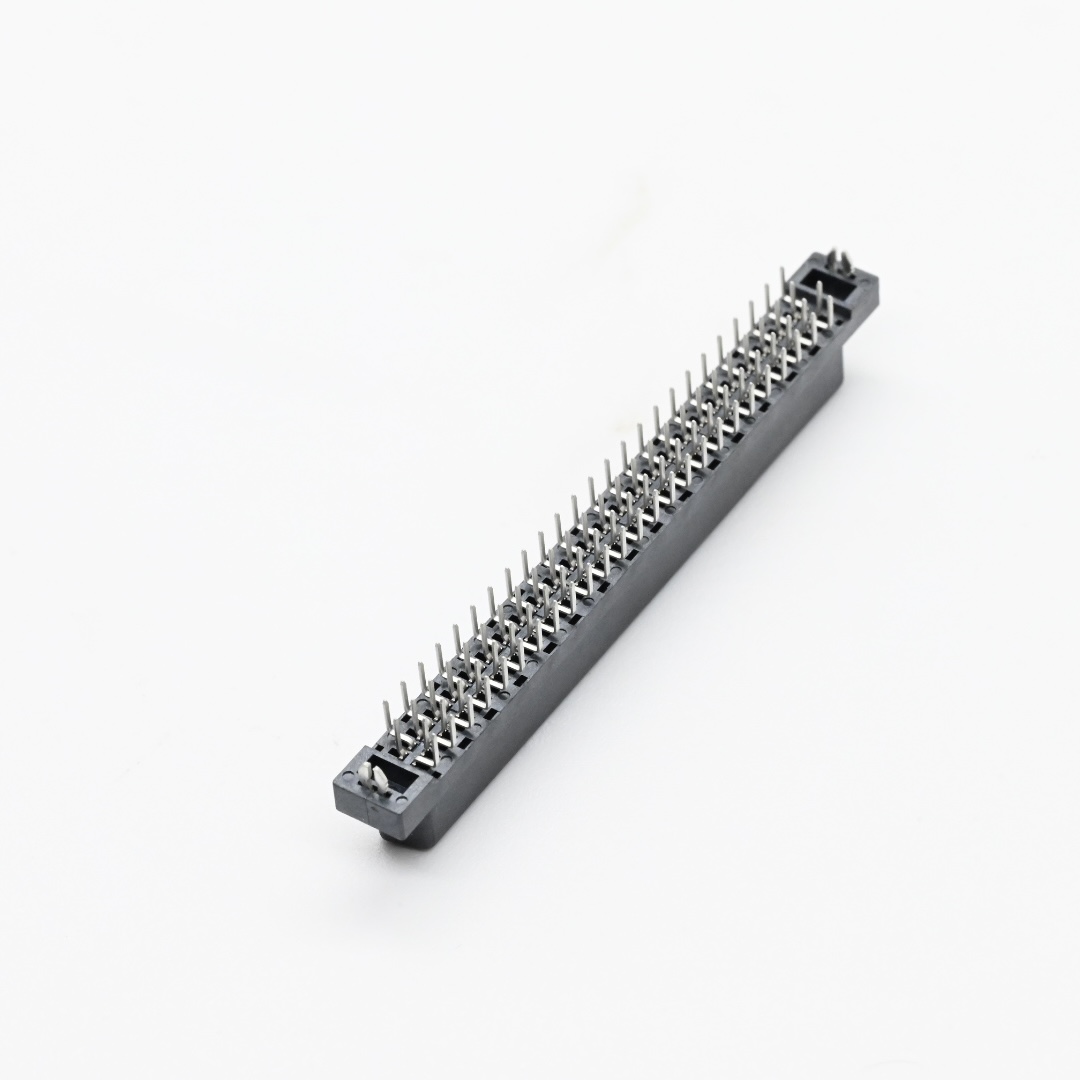

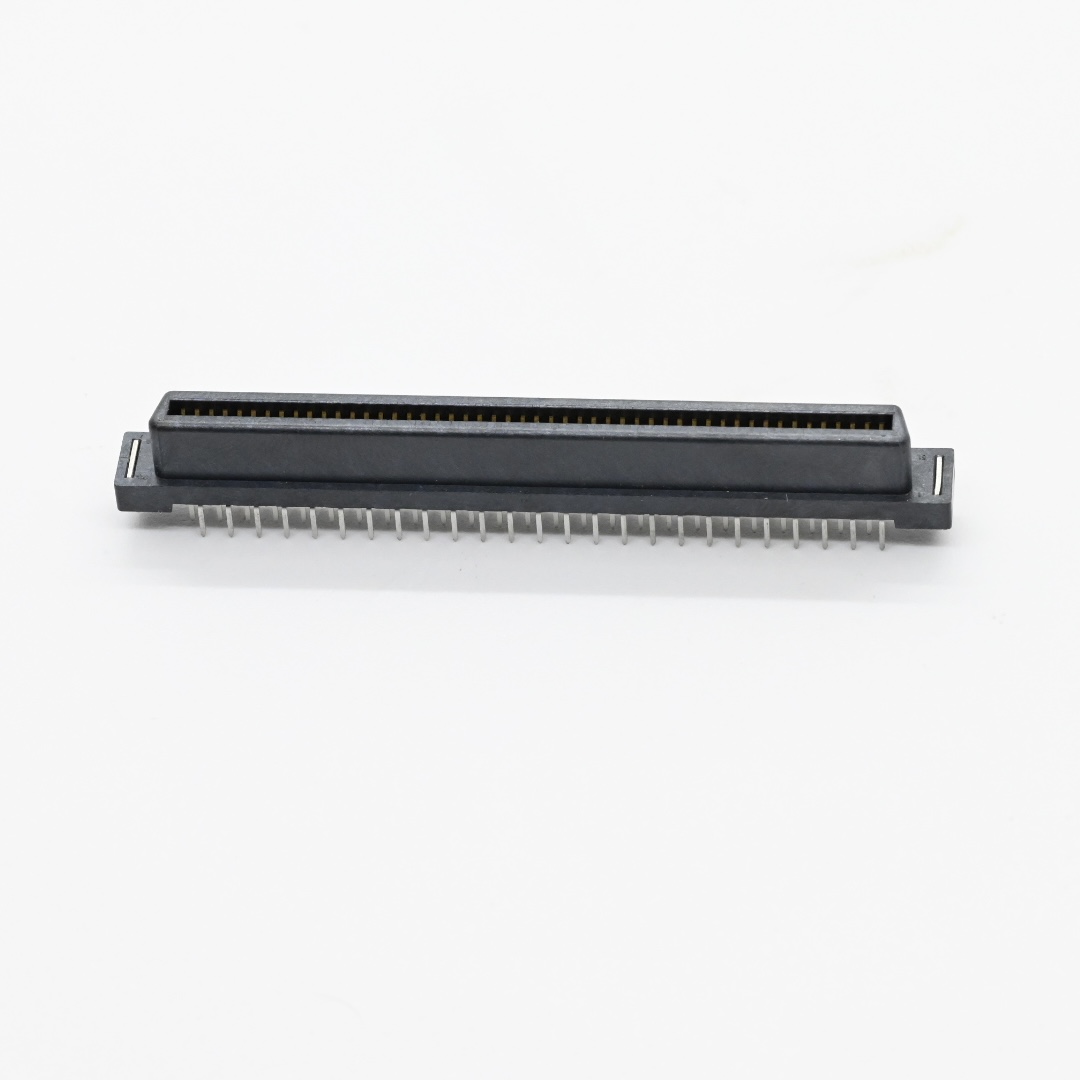

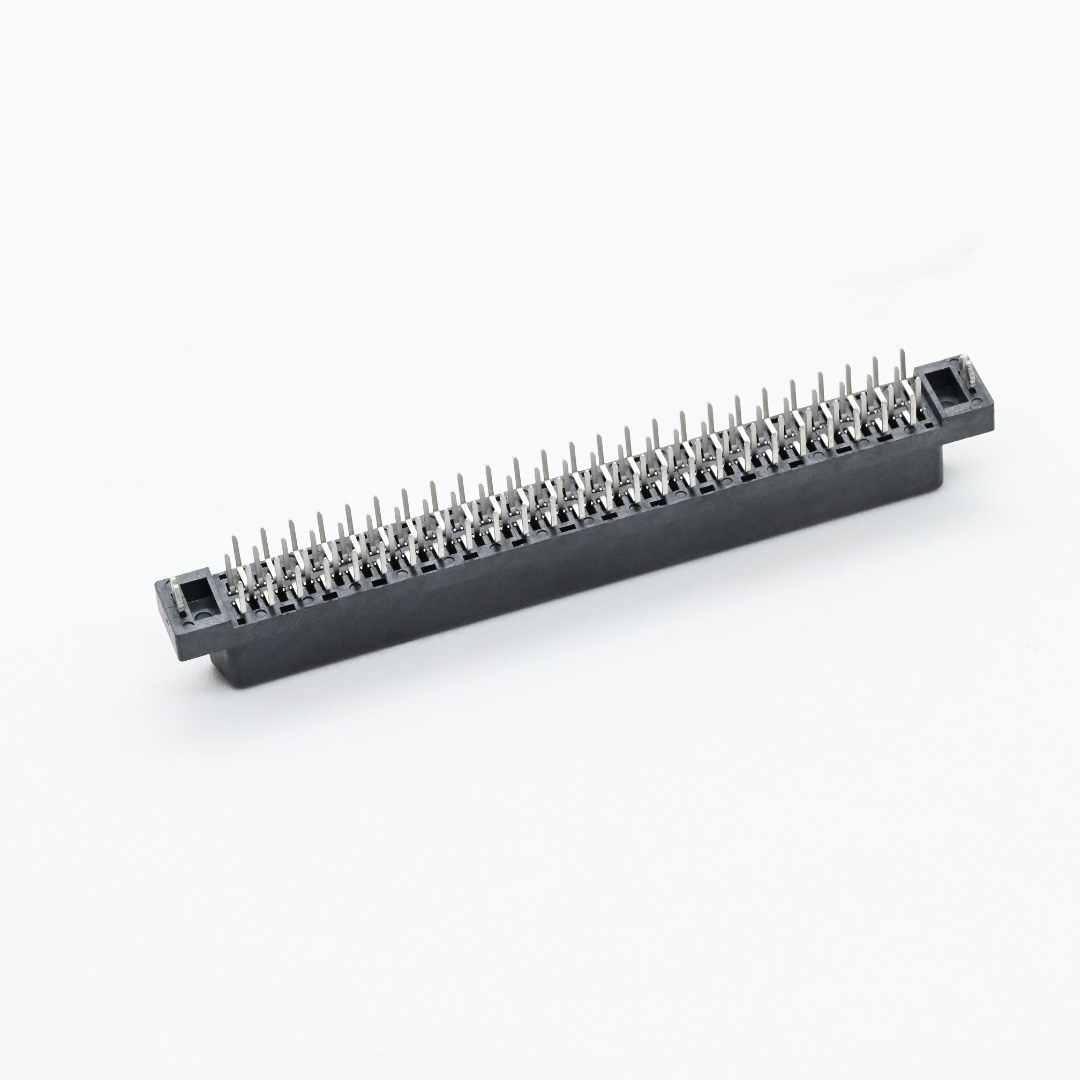

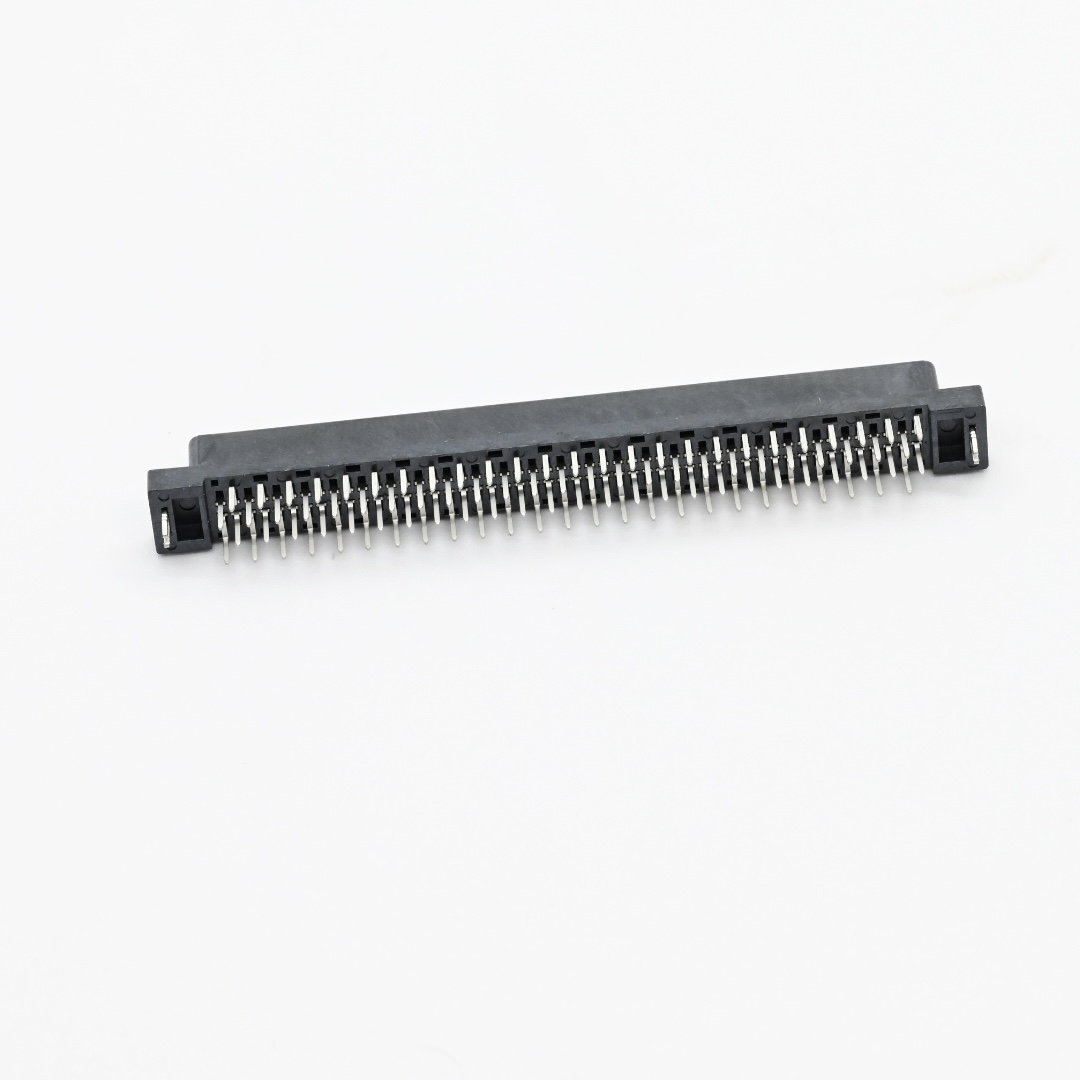

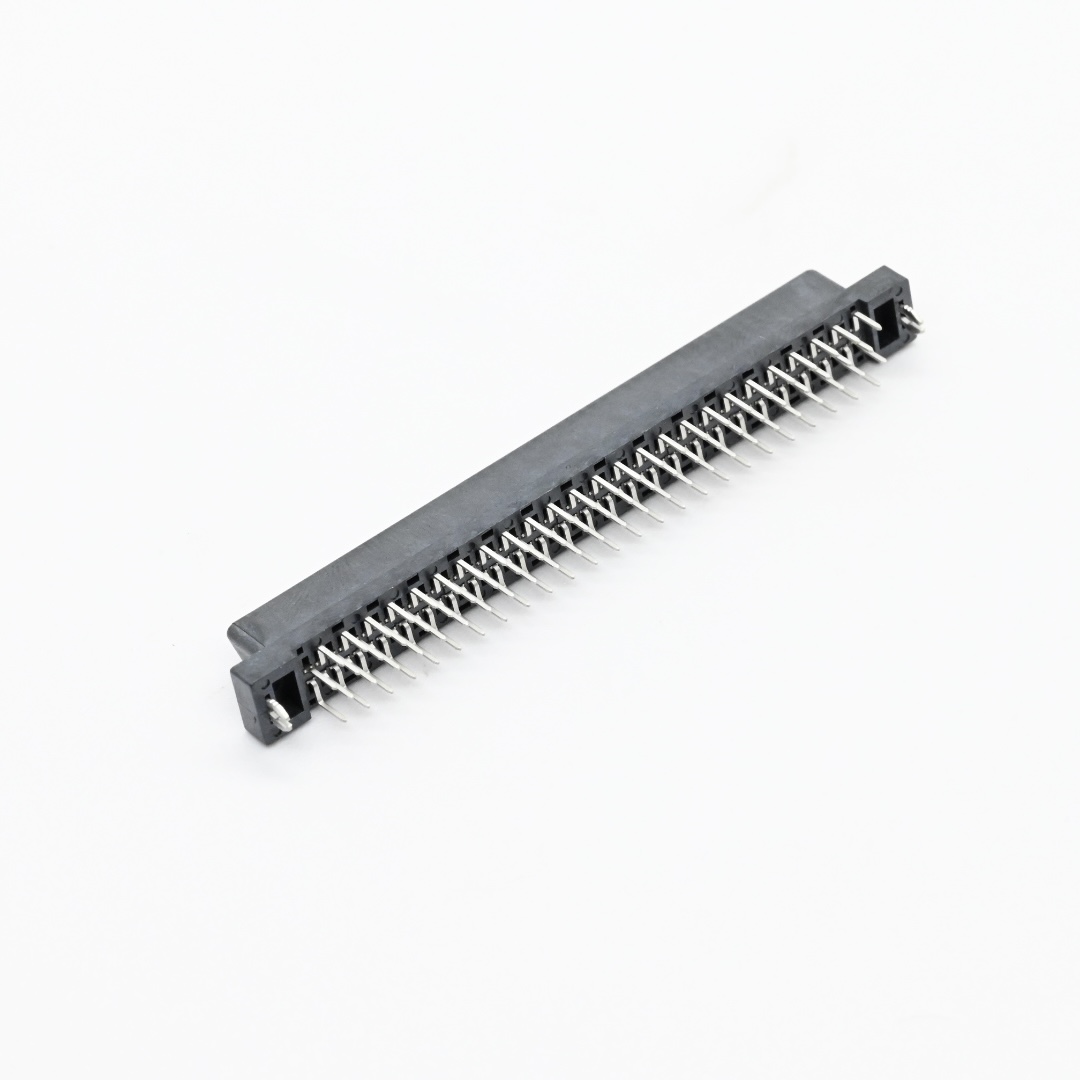

4.6 Structure type: Straight full plastic female board mount receptacle
5. Environmental Performance
5.1 Operating Temperature Range: -40°C ~ +105°C
6. Environmental Compliance
6.1 Certification Standards: HSF, Lead-free, RoHS
7. Application Scenarios
7.1 Liquid crystal display modules, digital cameras
7.2 Communication equipment, industrial control panels
7.3 Portable storage devices, digital household appliances
7.4 Electronic toys, computer peripheral hardware
7.5 Automotive electronics, precision measuring instruments
8. Operation & Storage Precautions
8.1 Select proper pin count and selective gold plating thickness according to circuit design
8.2 Complete through-hole soldering strictly follow official PCB layout drawing
8.3 Avoid heavy squeezing force to prevent LCP insulator cracking and phosphor bronze contact deformation
8.4 Store finished receptacles in dry sealed packages to avoid oxidation of gold plating layer
