Product details

Huizhou Antenk Electronics Co., Ltd. produces PHDM06 series 2.00mm dual row double plastic SMT pin headers to deliver stable surface mount electrical connection for compact PCB layouts, supporting customizable pin lengths and two structural types Type A and Type B with matched standardized PCB pad layout to ensure accurate automated SMT soldering. This pin header uses black PA6T UL94V0 flame retardant plastic as double-layer insulator, conductive pins are made of solid brass with abundant plating options including gold flash, graded selective gold plating from 3u to 30u gold and pure tin plating, electrically rated for maximum 1A current, 1000M minimum insulation resistance, 20M maximum contact resistance and 500V AC dielectric withstand voltage, stably working between minus 65 degree Celsius and plus 125 degree Celsius while fully meeting HSF lead-free and RoHS environmental standards, with multiple packaging solutions such as tray and tape reel to fit high-volume automated production lines. This dual plastic SMT pin header is widely deployed in liquid crystal display modules, digital cameras, communication hardware, industrial control devices, portable storage equipment, digital home appliances, electronic toys, computer peripherals, automotive electronic components and precision measuring instruments requiring reliable surface mount interconnection. Operators should confirm pin length plating type and structural style according to circuit design, complete standard SMT reflow soldering following official PCB layout drawings, avoid excessive mechanical bending to prevent brass pin breakage and PA6T insulator cracking, and store finished headers in dry sealed packages to slow plating oxidation. Unlike competitors outsourcing mold fabrication and electroplating Antenk runs a full independent production workflow covering self-developed plastic and metal precision mold manufacturing, high-speed brass terminal stamping, high-temperature PA6T injection molding, multi-grade gold electroplating and complete high-low temperature reliability laboratory testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications and complying with REACH international environmental regulations. We own more than two hundred fifty proprietary plastic connector molds and one hundred eighty metal terminal molds, provide customizable pin counts pin lengths plating layers and packaging modes, deliver round-the-clock professional engineering technical support, and over seventy percent of our pin header products are exported globally backed by our Guangdong Famous Trademark ANTENK and consistent stable mass production quality.

PA6T UL94V0 SMT Insulator offers outstanding high temperature resistance and flame retardant performance for automated surface mount assembly.

Multi-Spec Gold Plated Brass Pin maintains ultra-low contact resistance and stable signal transmission under long-term plugging cycles.

Dual Layer Plastic Pin Header enhances structural rigidity and insulation safety for compact dual-row PCB connection applications.

1. Electrical Parameters

1.1 Rated Current: 1.5 Amp

1.2 Minimum Insulation Resistance: 1000M ohms

1.3 Maximum Contact Resistance: 20M ohms

1.4 Dielectric Withstanding Voltage: 500V AC

2. Material Composition

2.1 Insulator: PA6T UL94V-0, black

2.2 Contact Pin Material: Brass

3. Contact Plating Options

3.1 S0: Gold Flash Selective Plating

3.2 G1/S1: 3u" Gold / 3u" Selective Gold

3.3 G2/S2: 15u" Gold / 15u" Selective Gold

3.4 G3/S3: 30u" Gold / 30u" Selective Gold

3.5 SN: Pure Tin Plating

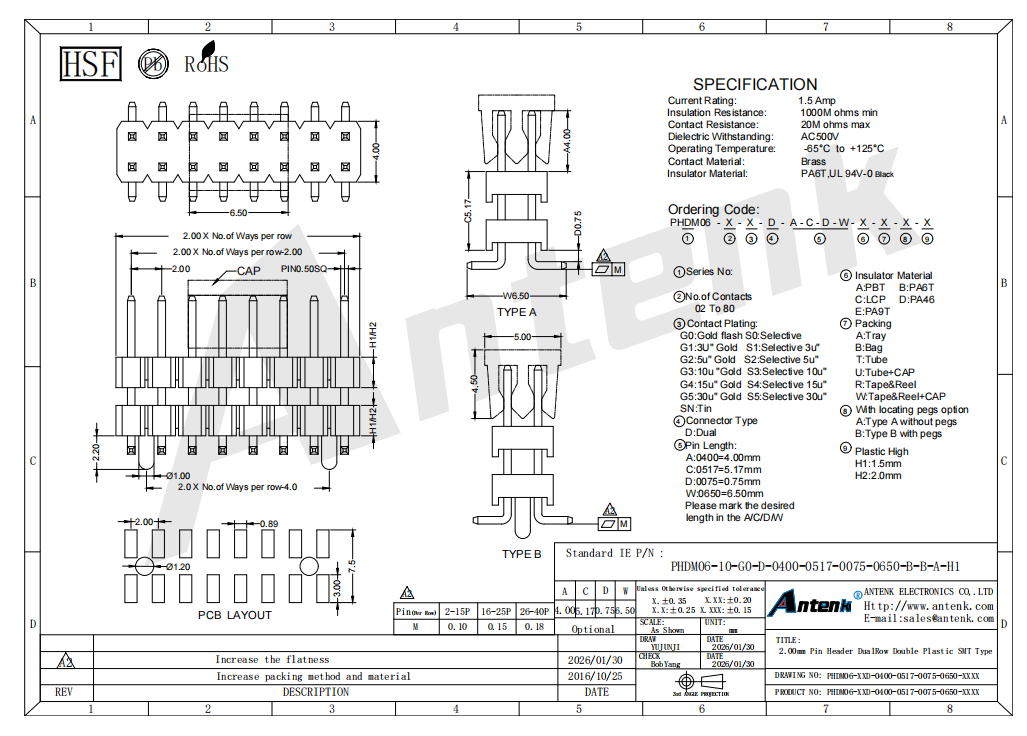

4. Dimension & Structural Specifications (Unit: mm)

4.1 Pitch: 2.00 fixed dual row spacing

4.2 Structure Type: Double plastic SMT header, Type A / Type B two versions

4.3 Optional Pin Length: A0400=4.00, C0517=5.17, W0650=6.50

4.4 Plastic height options: H1=1.5, H2=2.0

4.5 Optional accessory: T-Type with CAP, T-Type without CAP

4.6 Locking peg: Optional with pegs or without pegs

4.7 Matching standardized PCB layout for SMT reflow soldering

5. Environmental Performance

5.1 Operating Temperature Range: -65°C ~ +125°C

6. Environmental Compliance

6.1 Standards: HSF, Lead-free, RoHS

7. Application Scenarios

7.1 Liquid crystal display modules, digital cameras

7.2 Communication equipment, industrial control panels

7.3 Portable storage devices, digital household appliances

7.4 Electronic toys, computer peripheral hardware

7.5 Automotive electronics, precision measuring instruments

8. Operation & Storage Precautions

8.1 Confirm pin length, plating style, plastic height and locking peg design according to PCB circuit requirements

8.2 Complete SMT reflow soldering strictly follow official PCB layout drawing

8.3 Avoid forced bending to prevent brass pin fracture and PA6T insulator cracking

8.4 Store finished pin headers in dry sealed packaging to prevent oxidation of gold or tin plating layers

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you

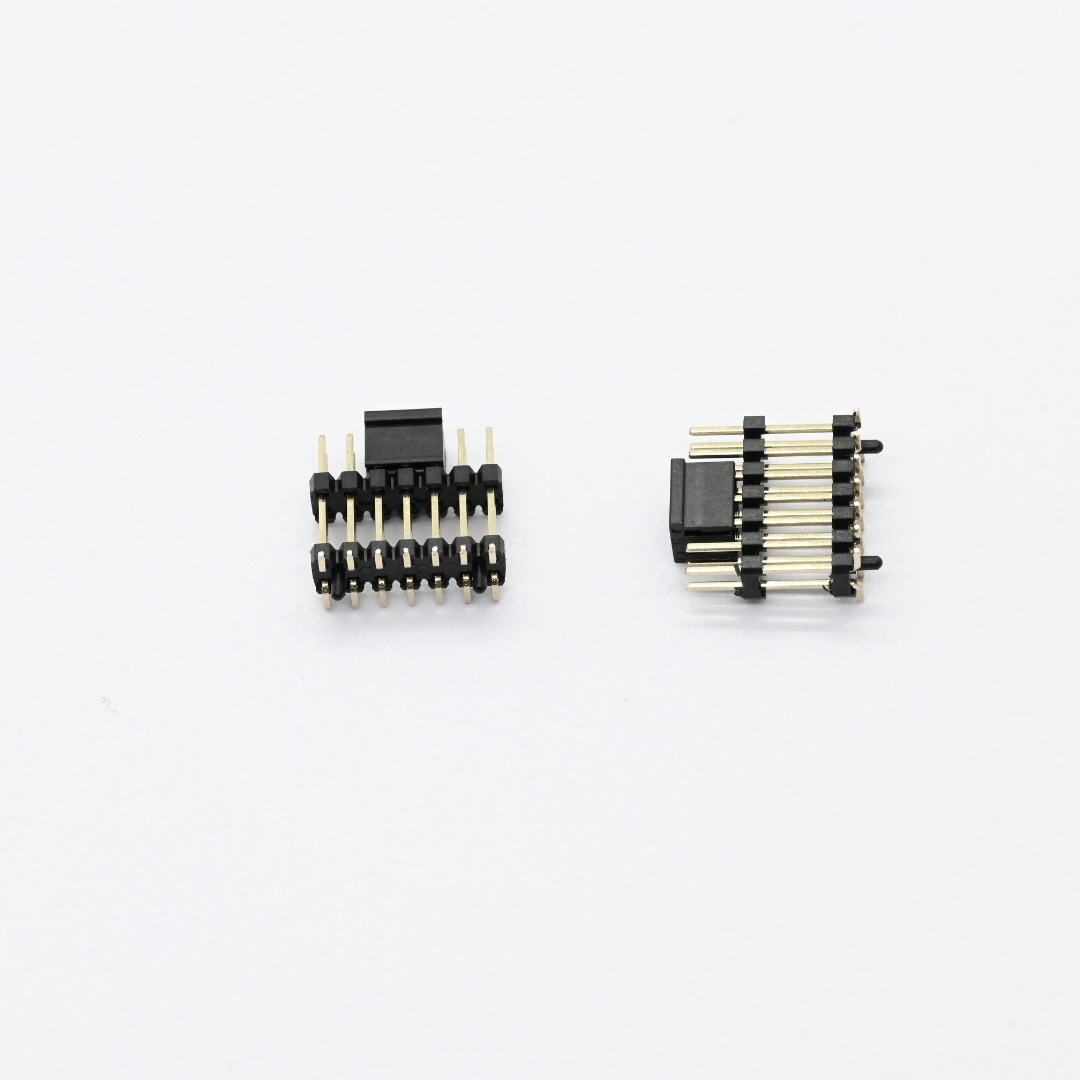

PHDM06-14G0D0400078800000650EWBH1+2.00mm Pin Header DualRow Double Plastic SMT Type（5）

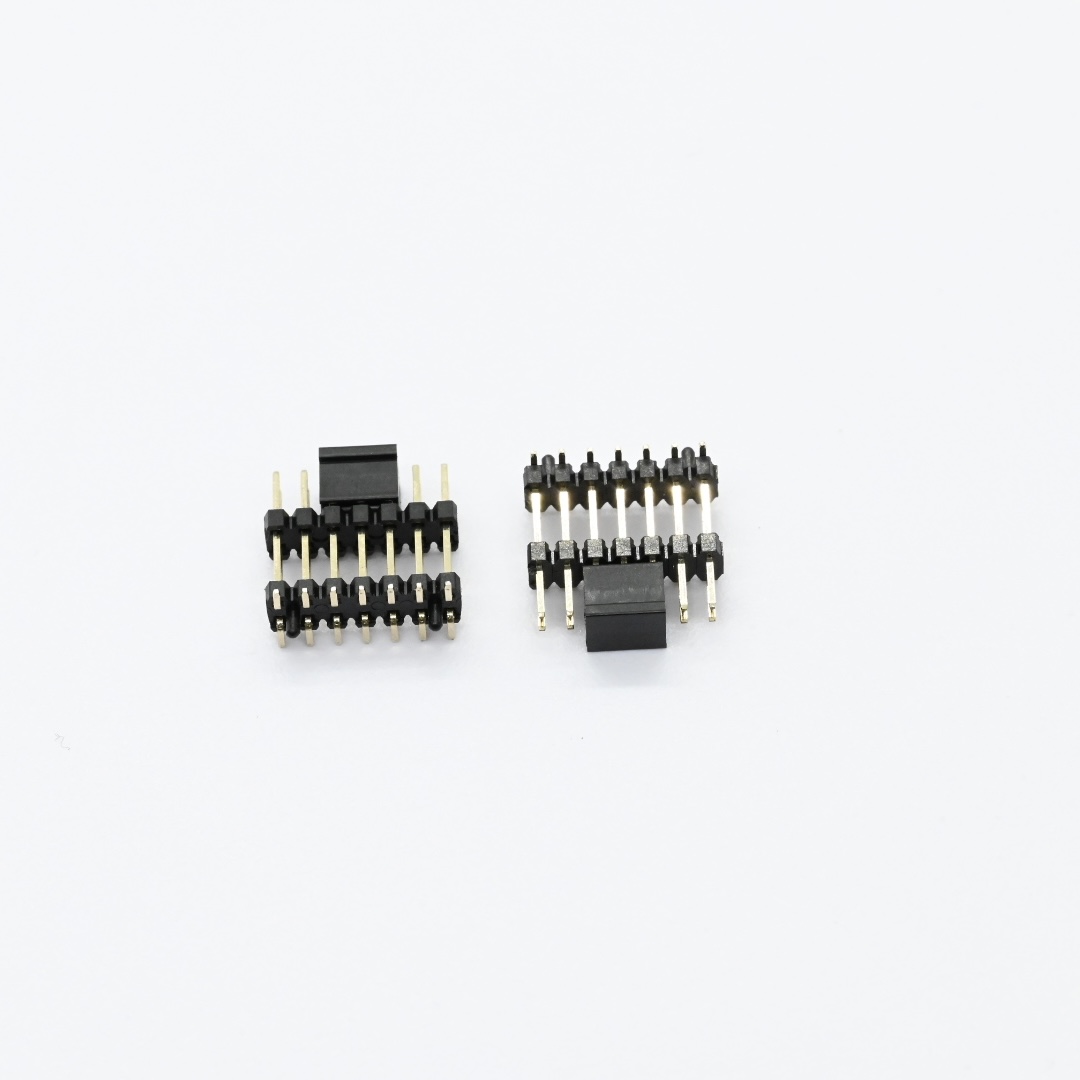

PHDM06-14G0D0400078800000650EWBH1+2.00mm Pin Header DualRow Double Plastic SMT Type（6）

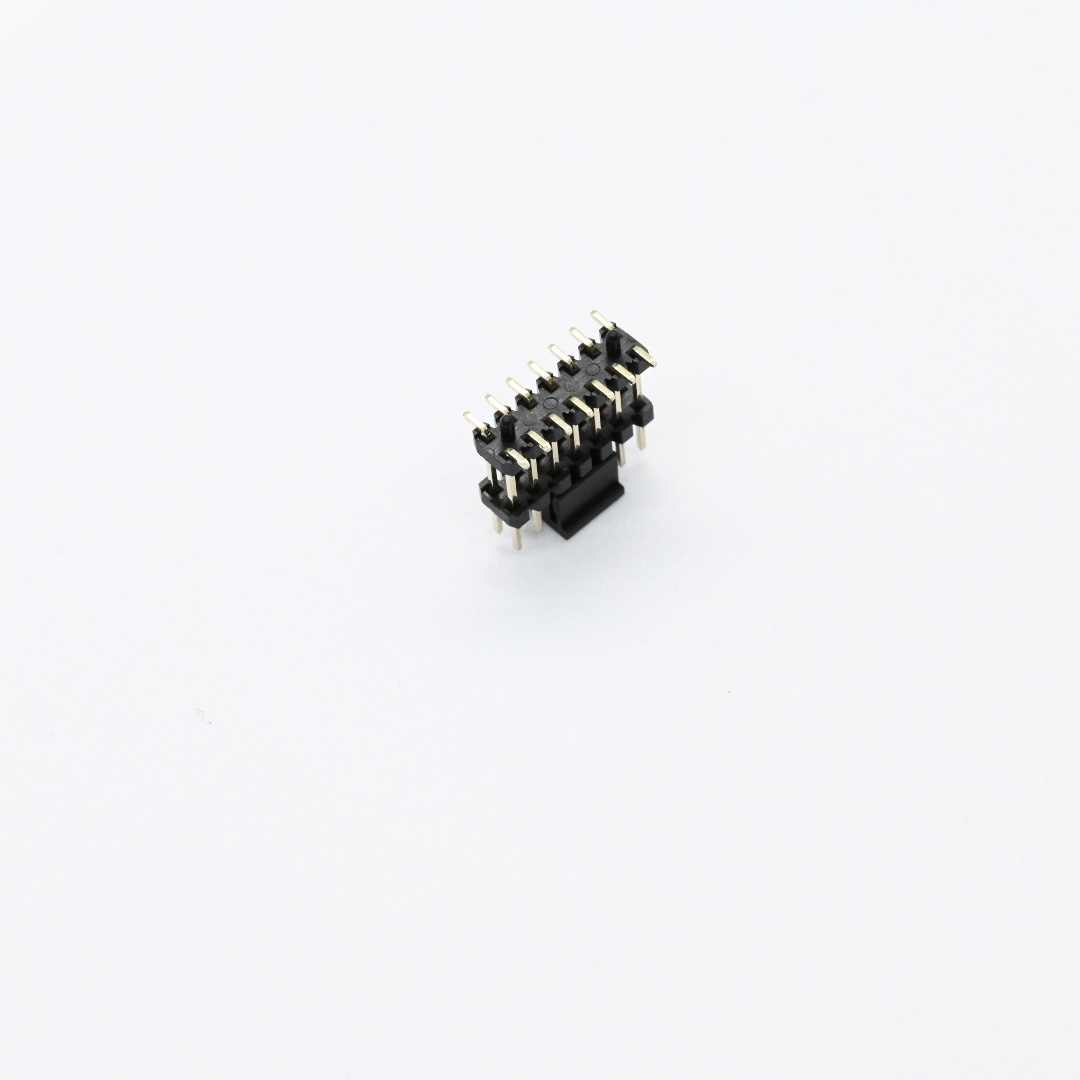

PHDM06-14G0D0400078800000650EWBH1+2.00mm Pin Header DualRow Double Plastic SMT Type（4）

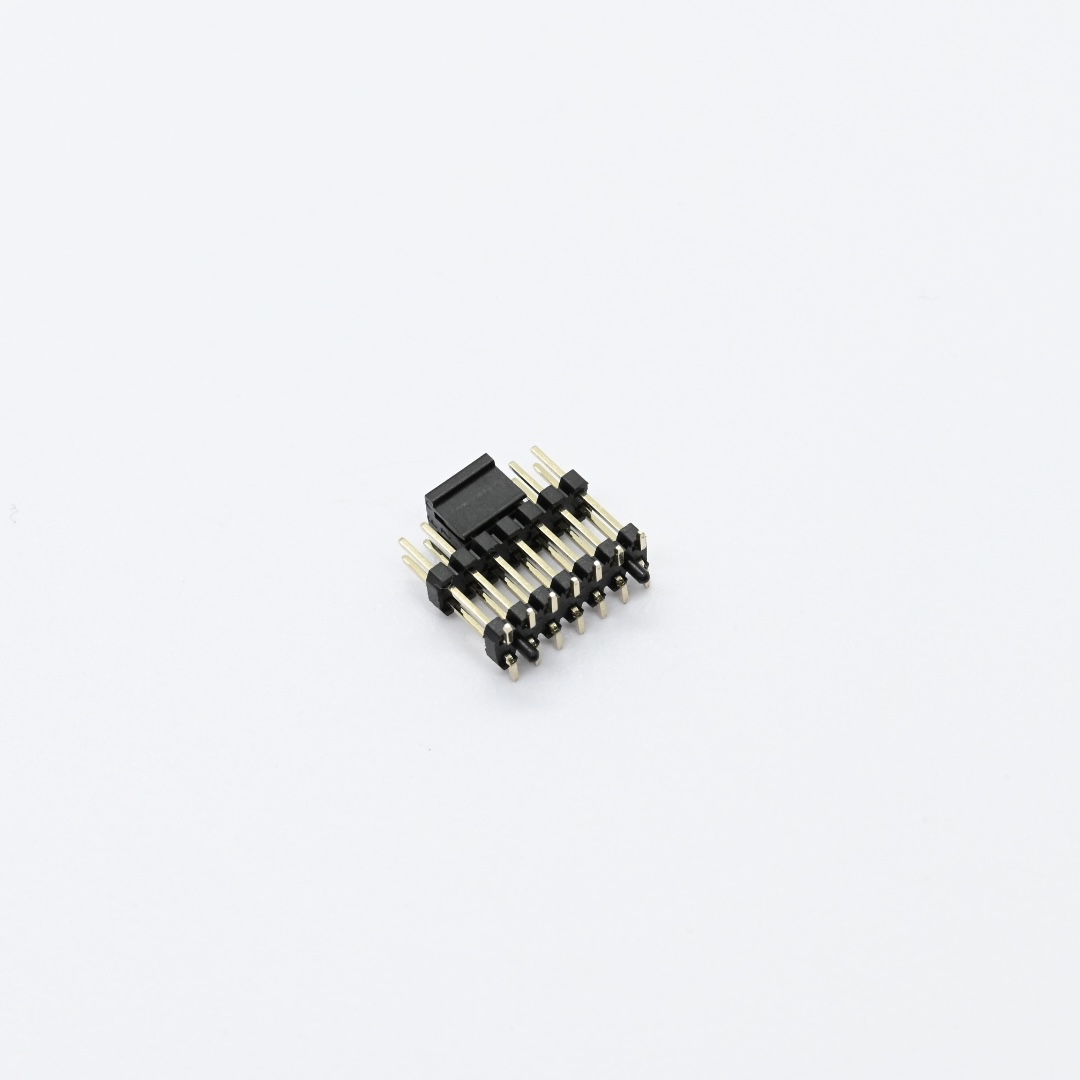

PHDM06-14G0D0400078800000650EWBH1+2.00mm Pin Header DualRow Double Plastic SMT Type（2）

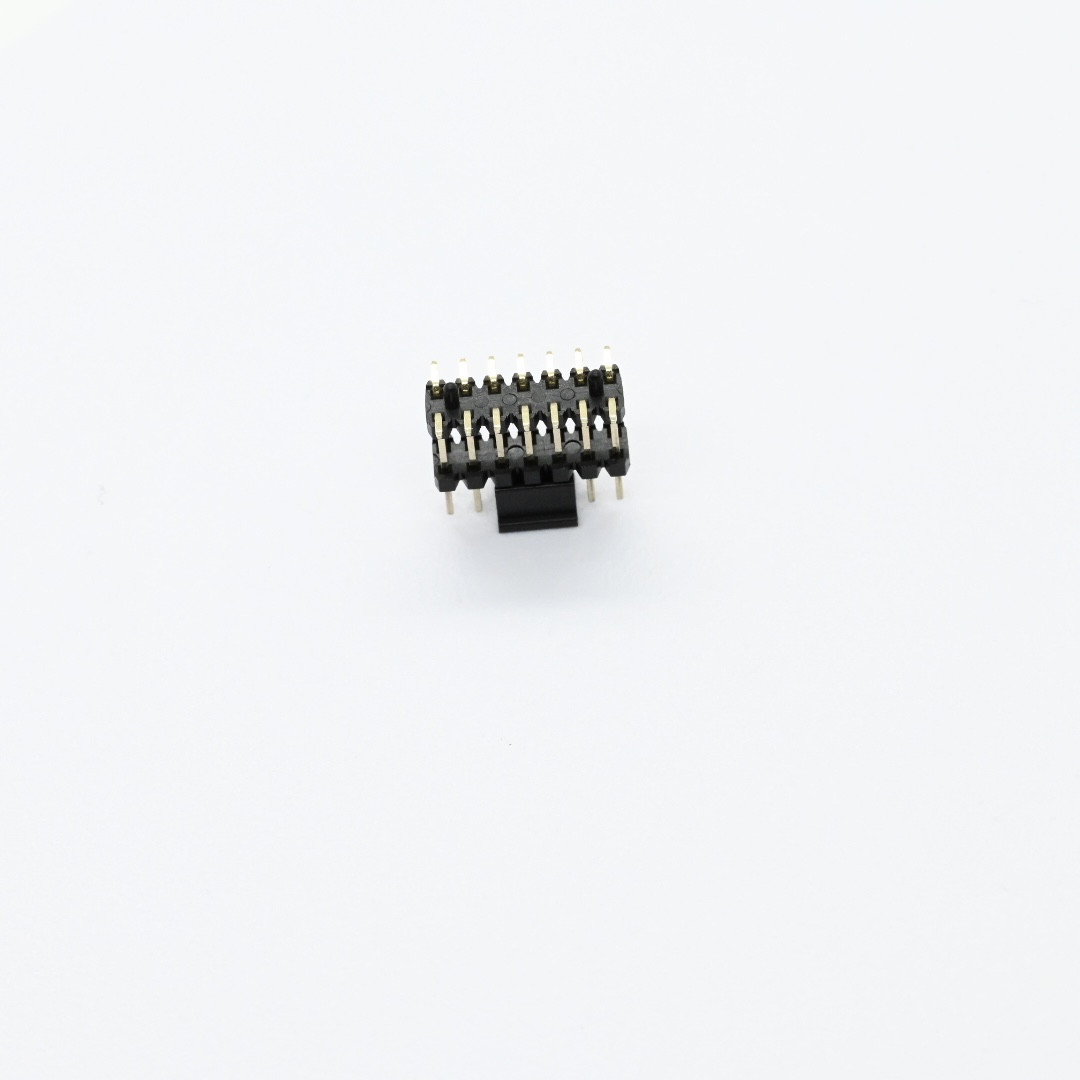

PHDM06-14G0D0400078800000650EWBH1+2.00mm Pin Header DualRow Double Plastic SMT Type（3）

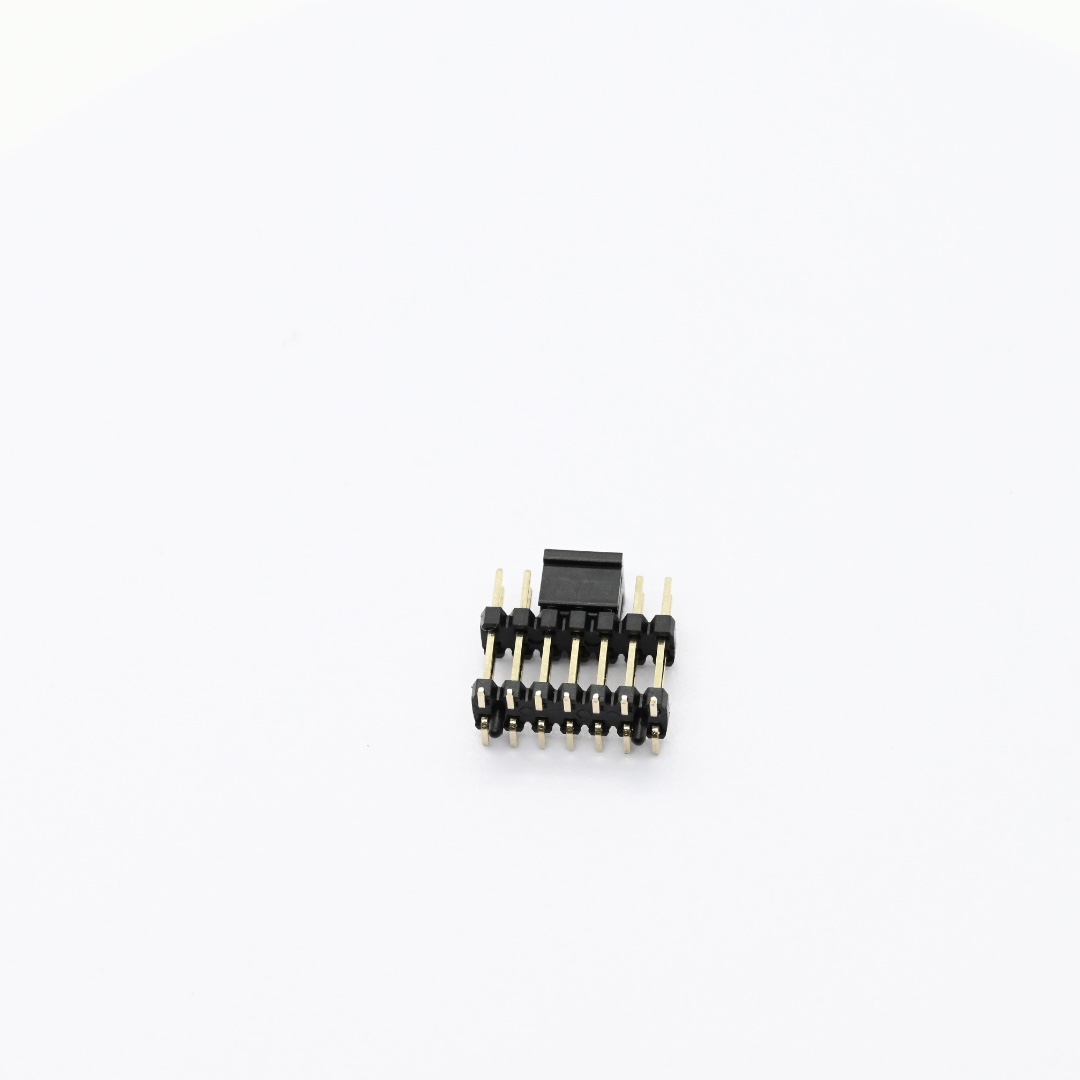

PHDM06-14G0D0400078800000650EWBH1+2.00mm Pin Header DualRow Double Plastic SMT Type（1）
