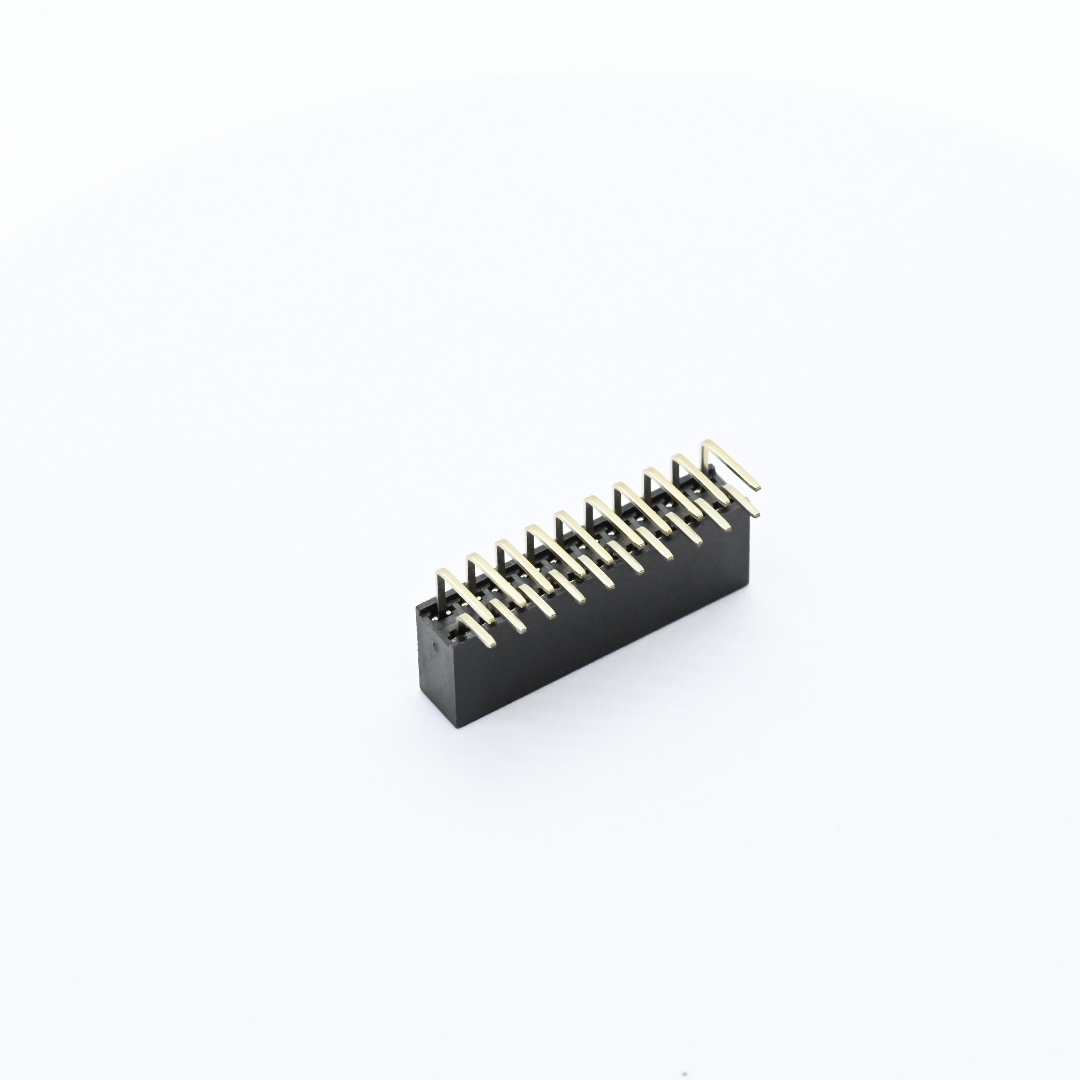

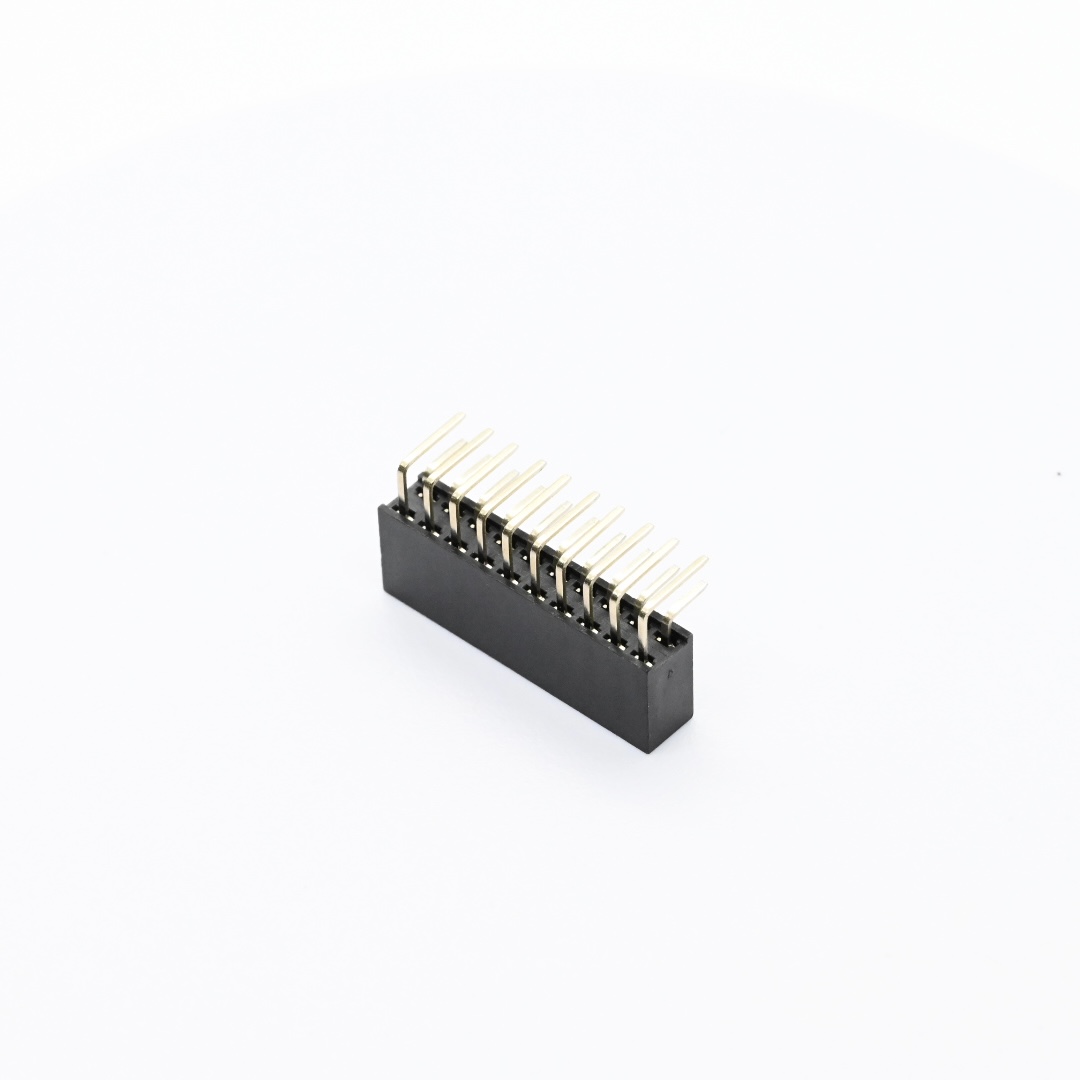

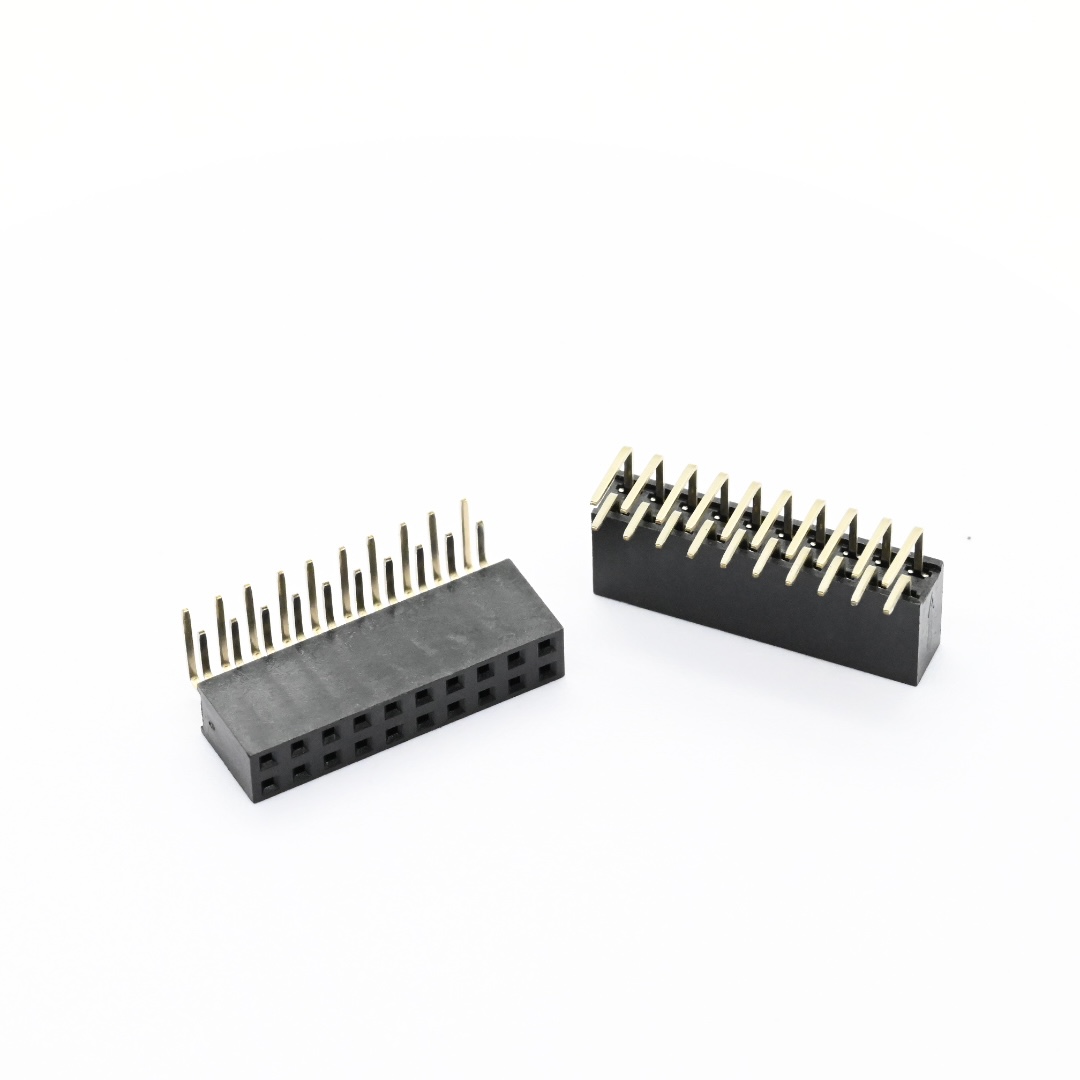

Huizhou Antenk Electronics Co., Ltd. manufactures FHER06 series 2.54mm dual row angle type female headers with fixed plastic height H8.5 to deliver right angle horizontal board-to-board interconnection for space-limited PCB layouts, supporting contact counts from 02P to 80P and multiple customizable insulator materials including PBT PA6T LCP PA46 and PA9T, with standardized PCB pad layout and unified multi-level dimensional tolerances to ensure accurate through-hole soldering assembly. This angle female header adopts black UL94V0 PBT as standard flame retardant insulator, internal conductive contacts are made of elastic brass with comprehensive plating options including gold flash, 3u to 30u full gold plating, 3u to 30u selective gold plating and pure tin plating, electrically rated for maximum 3A working current, 1000 megohms minimum insulation resistance, 20 milliohms maximum contact resistance and 500V AC one minute dielectric withstand voltage, stably operating from minus 65 degrees Celsius to plus 125 degrees Celsius while fully complying with HSF lead-free and RoHS environmental standards, equipped with diverse packaging modes of tray bag tube tube with cap tape reel and tape reel with cap to match automated high-volume production. This offset dual row female header is widely applied in liquid crystal display modules, digital cameras, communication equipment, industrial control panels, portable storage devices, digital household appliances, electronic toys, computer peripherals, automotive electronic modules and precision measuring instruments needing lateral plugging connection. Operators should select proper pin quantity insulator material plating thickness and packaging style based on circuit design demands, complete standard through-hole soldering following official PCB layout drawings, avoid excessive plugging pressure to prevent PBT shell deformation and brass contact permanent fatigue, and store finished headers in dry sealed packages to slow plating oxidation. Unlike competitors outsourcing mold production and electroplating Antenk owns full independent production workflows covering self-developed plastic and metal precision mold manufacturing, high-speed brass terminal stamping, high-temperature plastic injection molding, multi-spec gold electroplating and comprehensive high-low temperature reliability lab testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications and conforming to REACH global environmental regulations. We possess more than two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, provide customizable pin numbers plating layers and structural dimensions, offer round-the-clock professional engineering technical support, and over seventy percent of our female header products are exported globally supported by our Guangdong Famous Trademark ANTENK and consistent stable mass production quality.

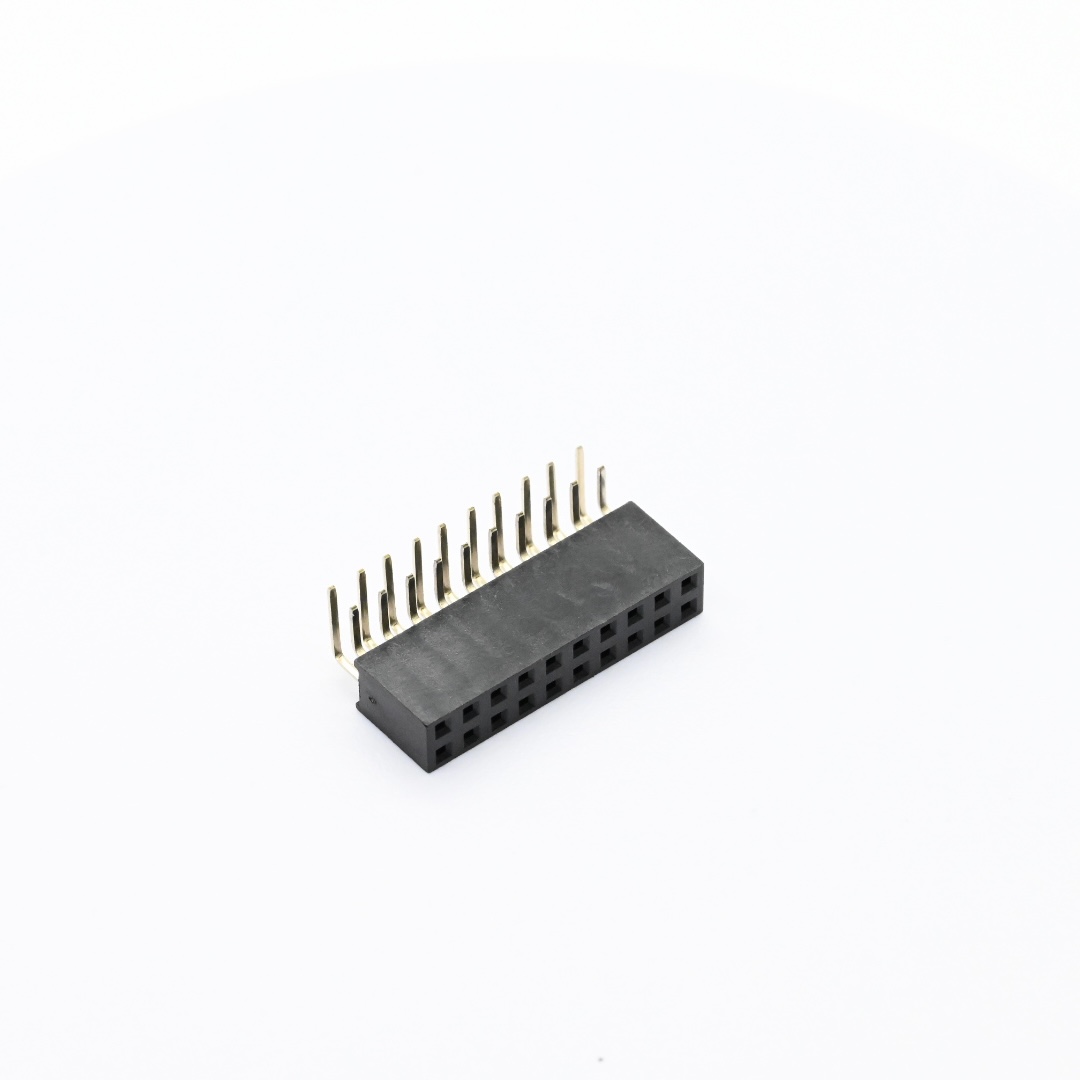

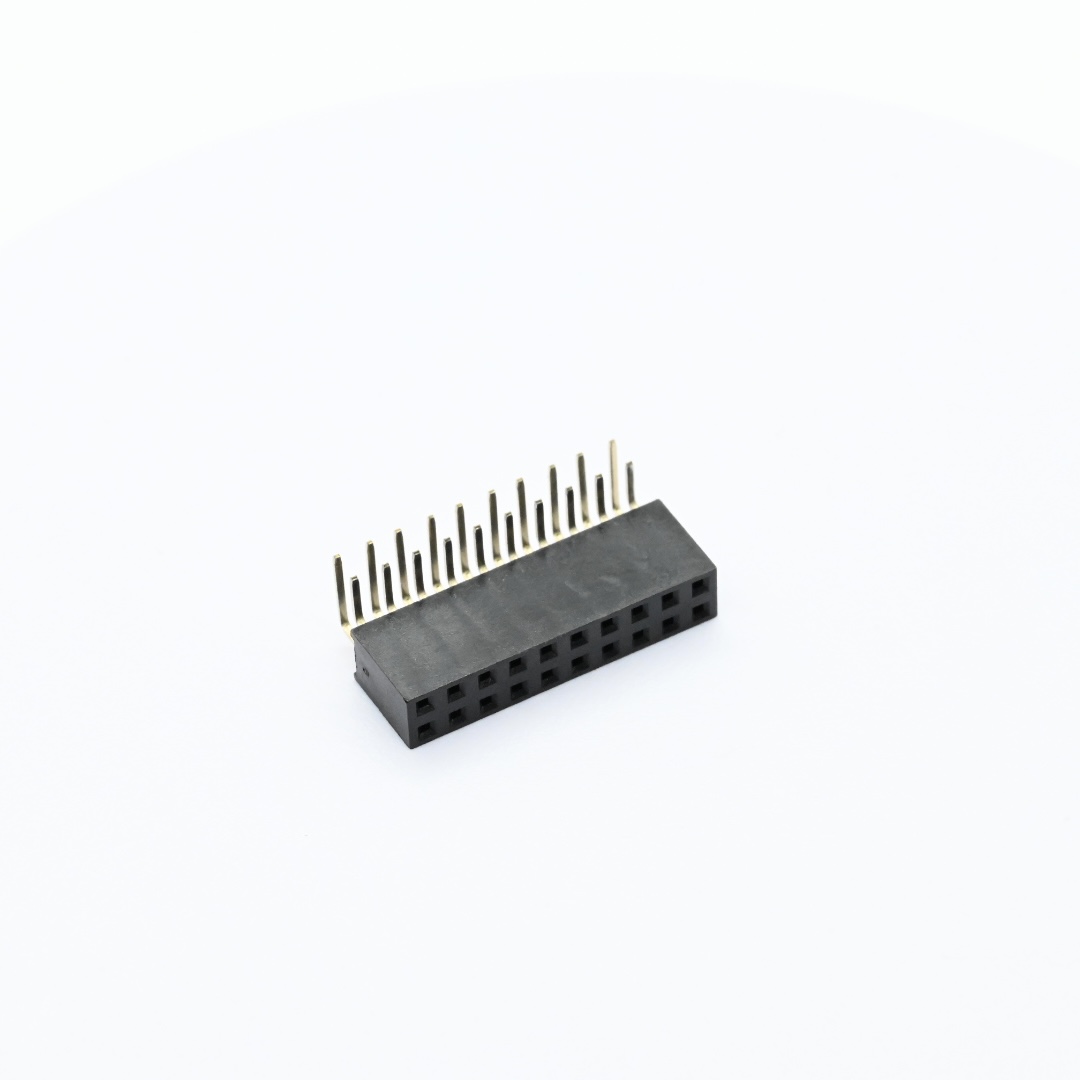

Right Angle PBT Female Housing provides compact lateral PCB connection with reliable UL94V0 flame retardant performance.
Multi-Grade Plated Brass Contact delivers stable low-resistance signal transmission for frequent plug-and-unplug cycles.

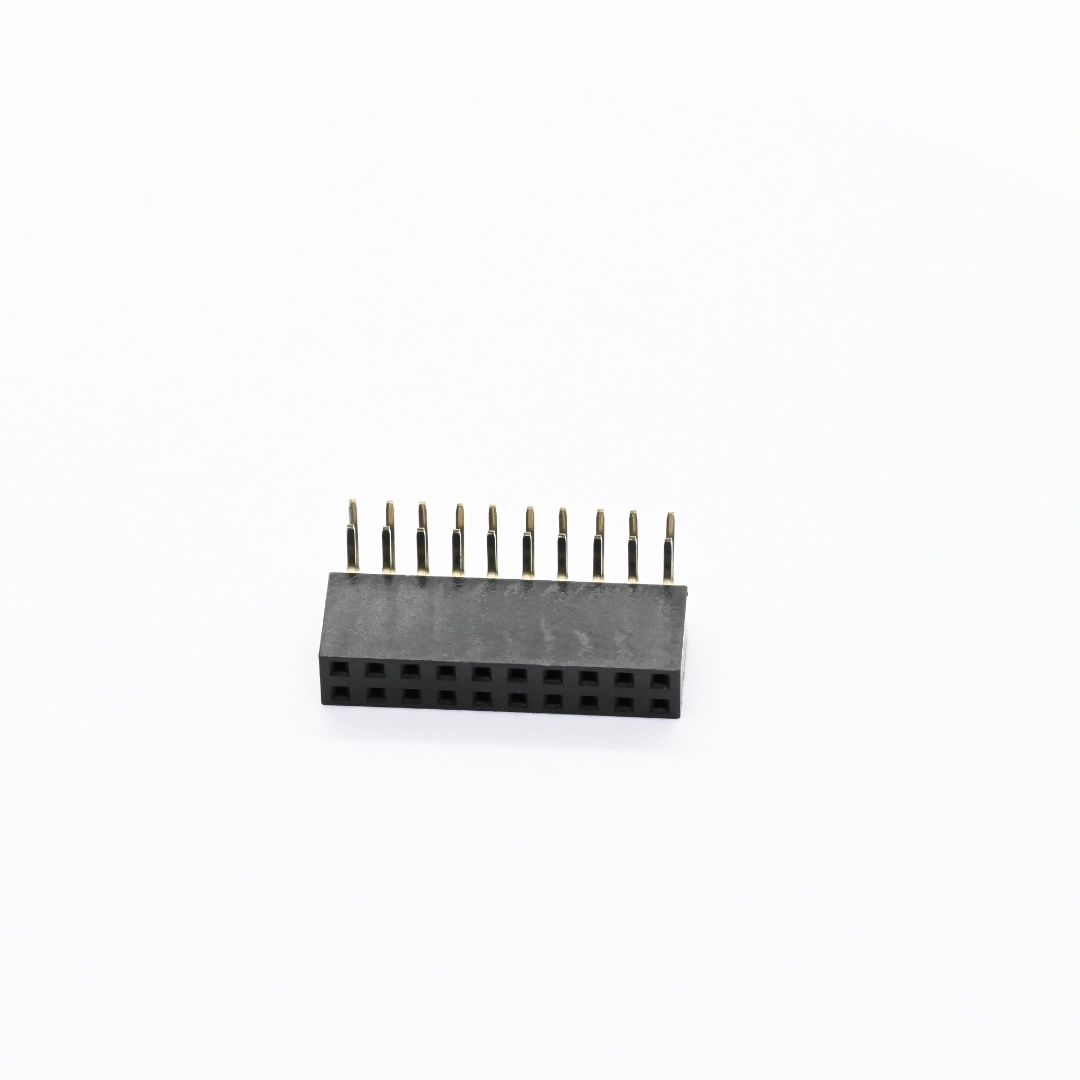

H8.5 Offset Dual Female Header features fixed 8.5mm plastic height to match standard 2.54mm dual-row mating pin headers.
1. Electrical Specifications
1.1 Rated Current: 3.0 Amp
1.2 Minimum Insulation Resistance: 1000M ohms
1.3 Maximum Contact Resistance: 20M ohms
1.4 Dielectric Withstanding Voltage: AC 500V
2. Material Information
2.1 Standard Insulator: Black PBT UL94V-0
2.2 Optional Insulator Materials: PA6T, LCP, PA46, PA9T
2.3 Contact Raw Material: Brass
3. Contact Surface Plating Options
3.1 Full Gold Plating: G0 Gold Flash, G1 3u", G2 5u", G3 10u", G4 15u", G5 30u"
3.2 Selective Gold Plating: S0 Gold Flash, S1 3u", S2 5u", S3 10u", S4 15u", S5 30u"
3.3 Anti-oxidation Plating: SN Pure Tin
4. Dimension & Structural Data (Unit: mm)
4.1 Fixed Pitch: 2.54 dual row pitch

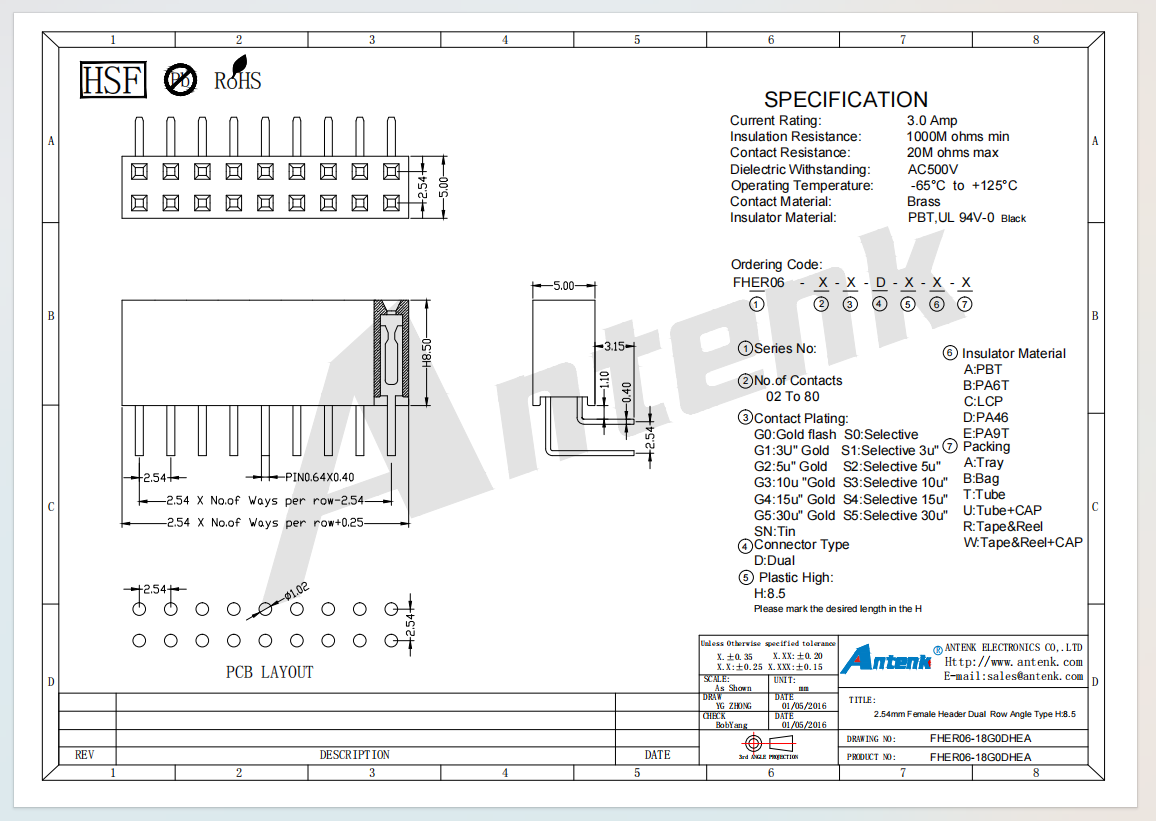

4.2 Fixed Plastic Height: H8.5, Width: 5.0
4.3 Single Pin Size: 0.64 × 0.40
4.4 Contact Quantity Range: 02P to 80P
4.5 Structure Type: Dual row right angle through-hole female header
4.6 Dimensional Tolerance: X.±0.35, X.X±0.25, X.XX±0.20, X.XXX±0.15
4.7 Matching dedicated PCB layout for through-hole soldering
5. Packaging Selections
5.1 A: Tray
5.2 B: Bag
5.3 T: Tube
5.4 U: Tube with CAP
5.5 R: Tape & Reel
5.6 W: Tape & Reel with CAP
6. Environmental Working Conditions
6.1 Operating Temperature Range: -65°C ~ +125°C
7. Environmental Compliance
7.1 Meet HSF Lead-free and RoHS standards
8. Application Scopes
8.1 Liquid crystal displays, digital cameras
8.2 Communication devices, industrial control equipment
8.3 Portable storage, digital home appliances
8.4 Electronic toys, computer peripheral hardware
8.5 Automotive electronics, precision measuring instruments
9. Operation & Storage Precautions
9.1 Confirm contact count, insulator material, plating type and packaging before ordering
9.2 Complete through-hole soldering strictly follow the official PCB layout drawing
9.3 Avoid excessive plugging force to prevent brass contact fatigue and PBT insulator deformation
9.4 Keep finished connectors sealed and dry to avoid oxidation of gold or tin plating layers
