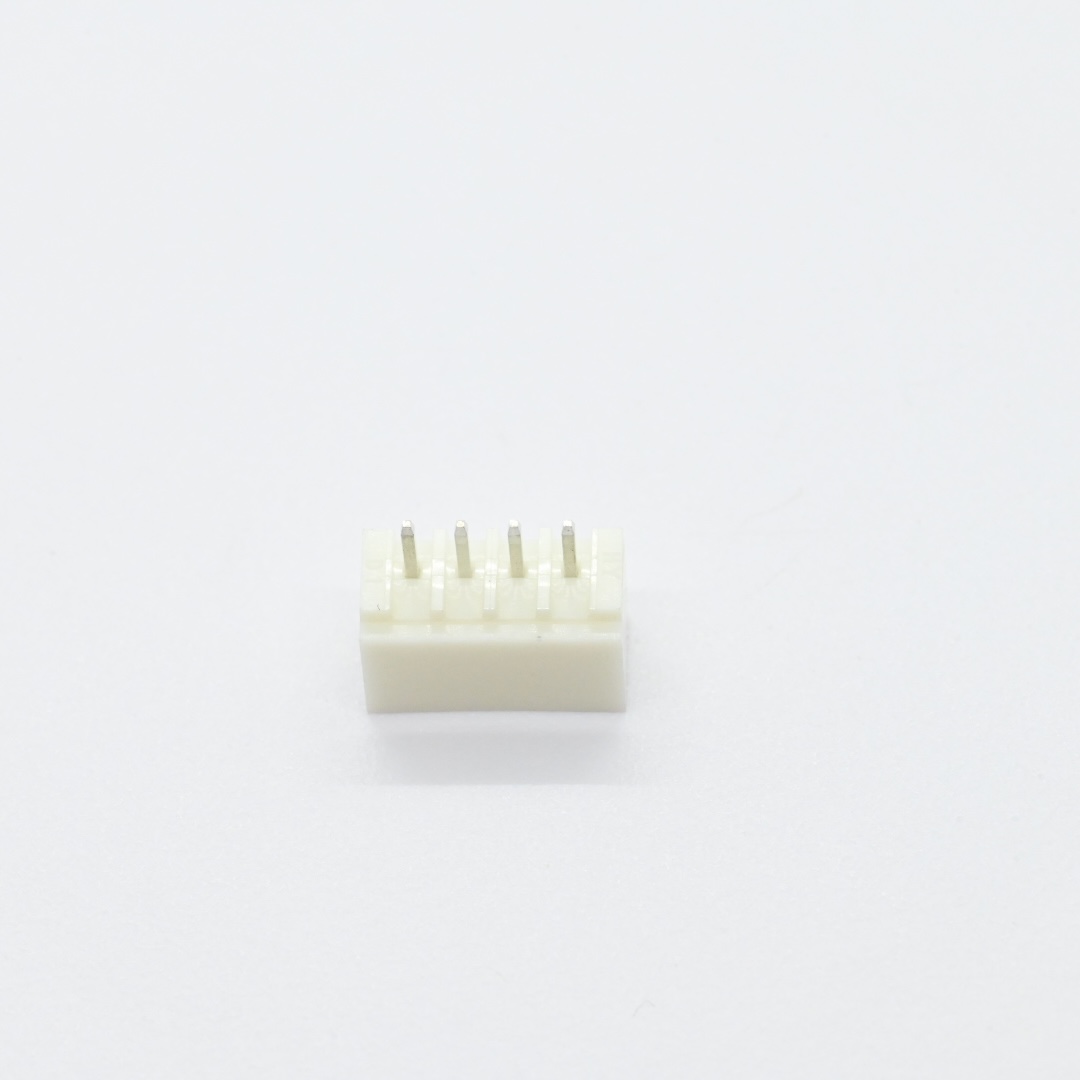

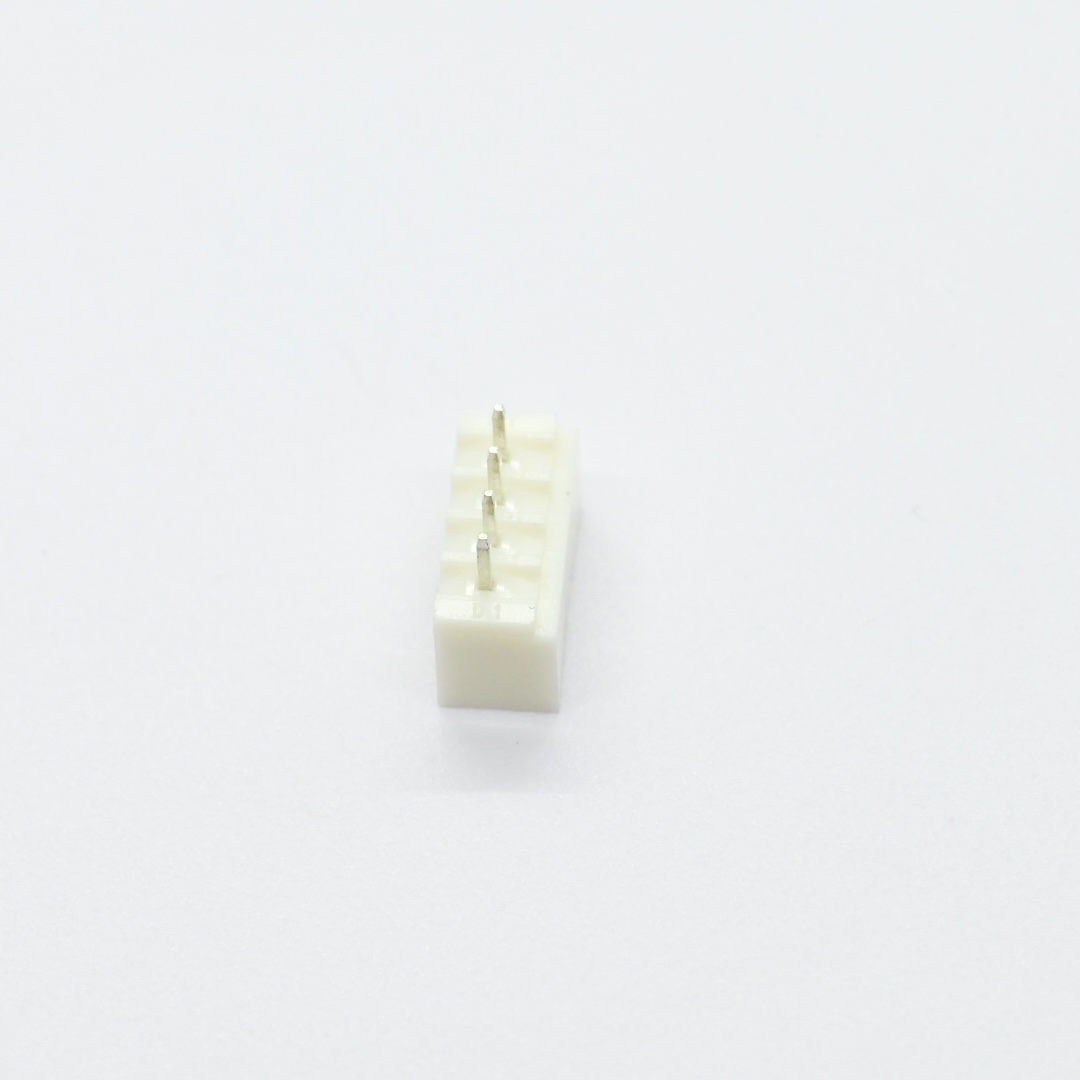

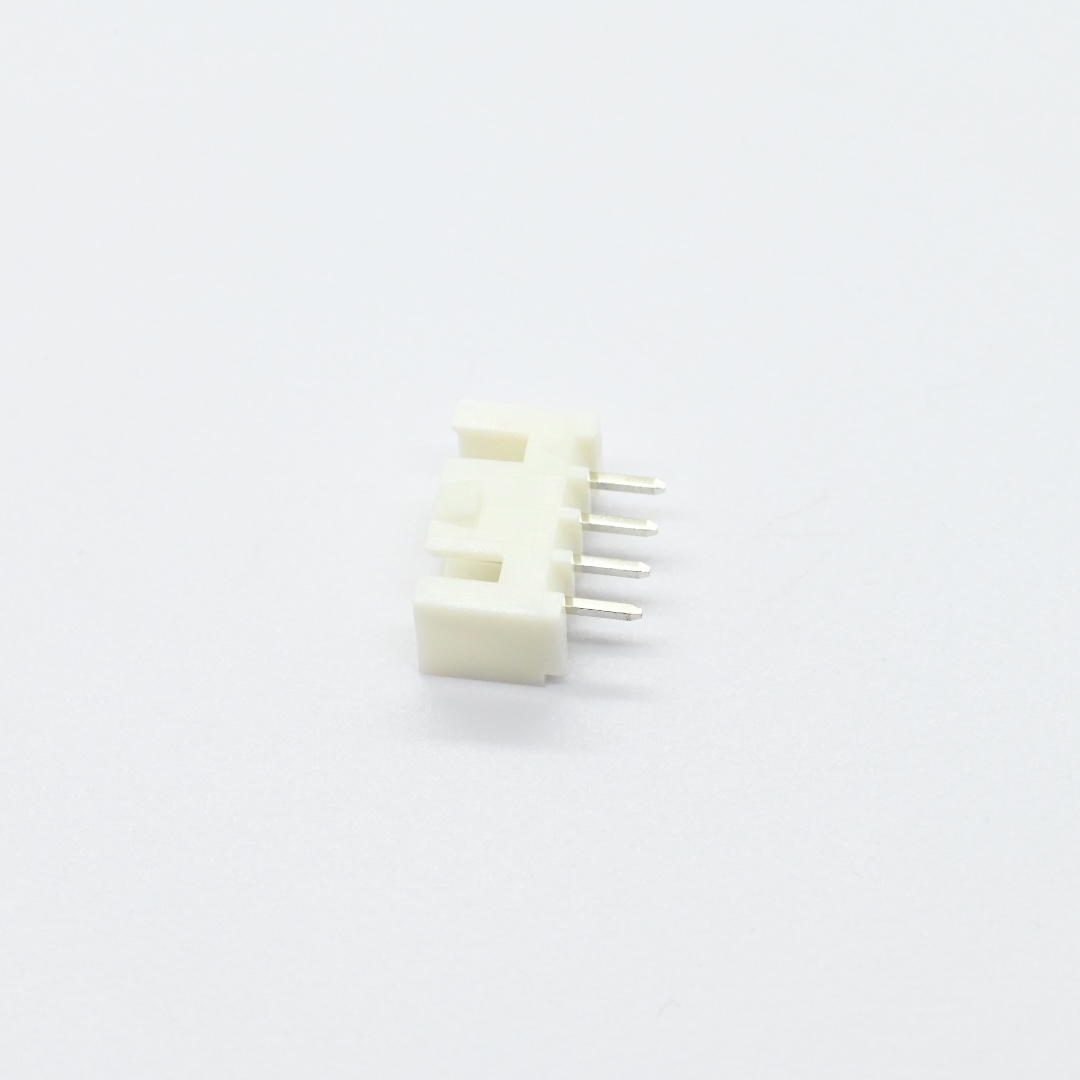

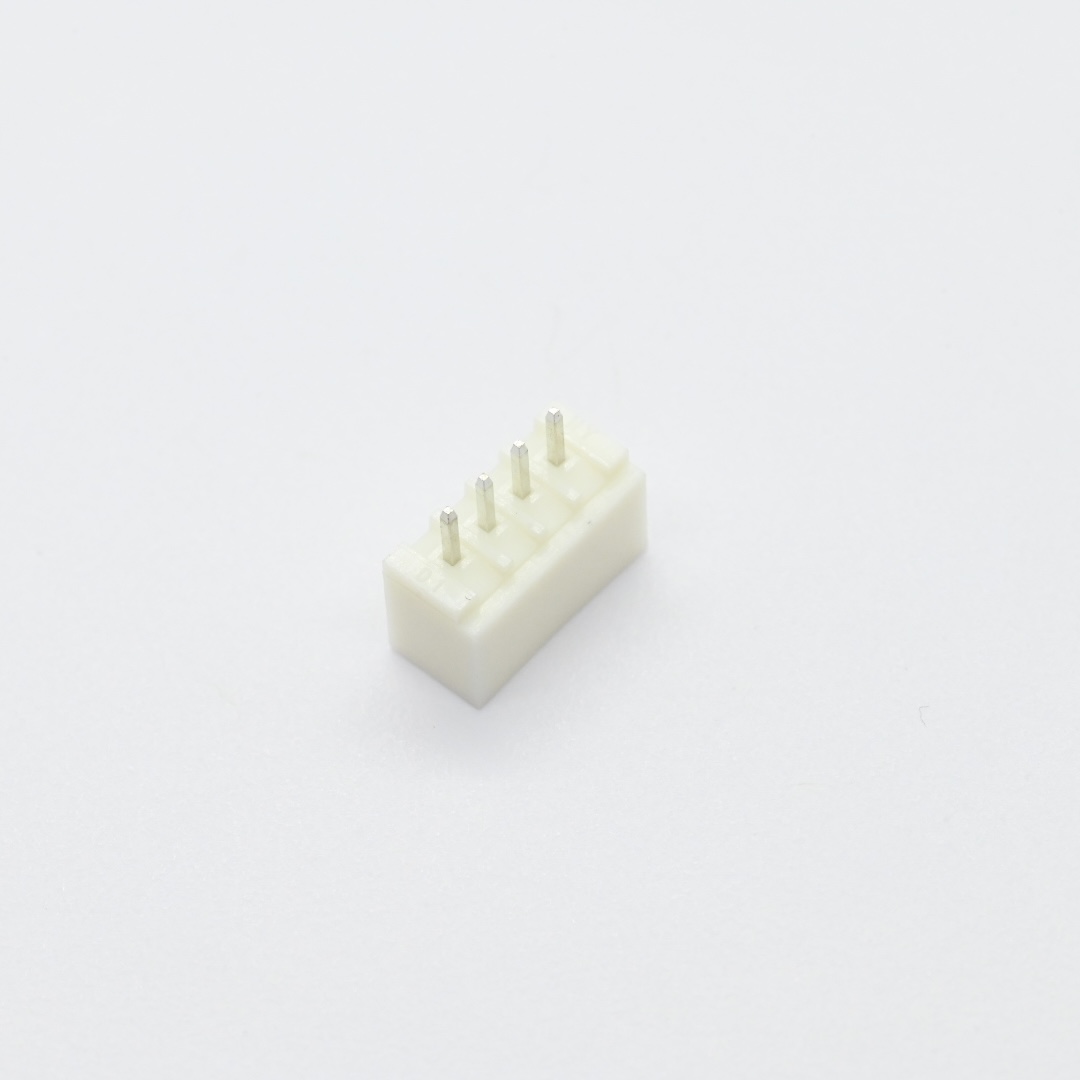

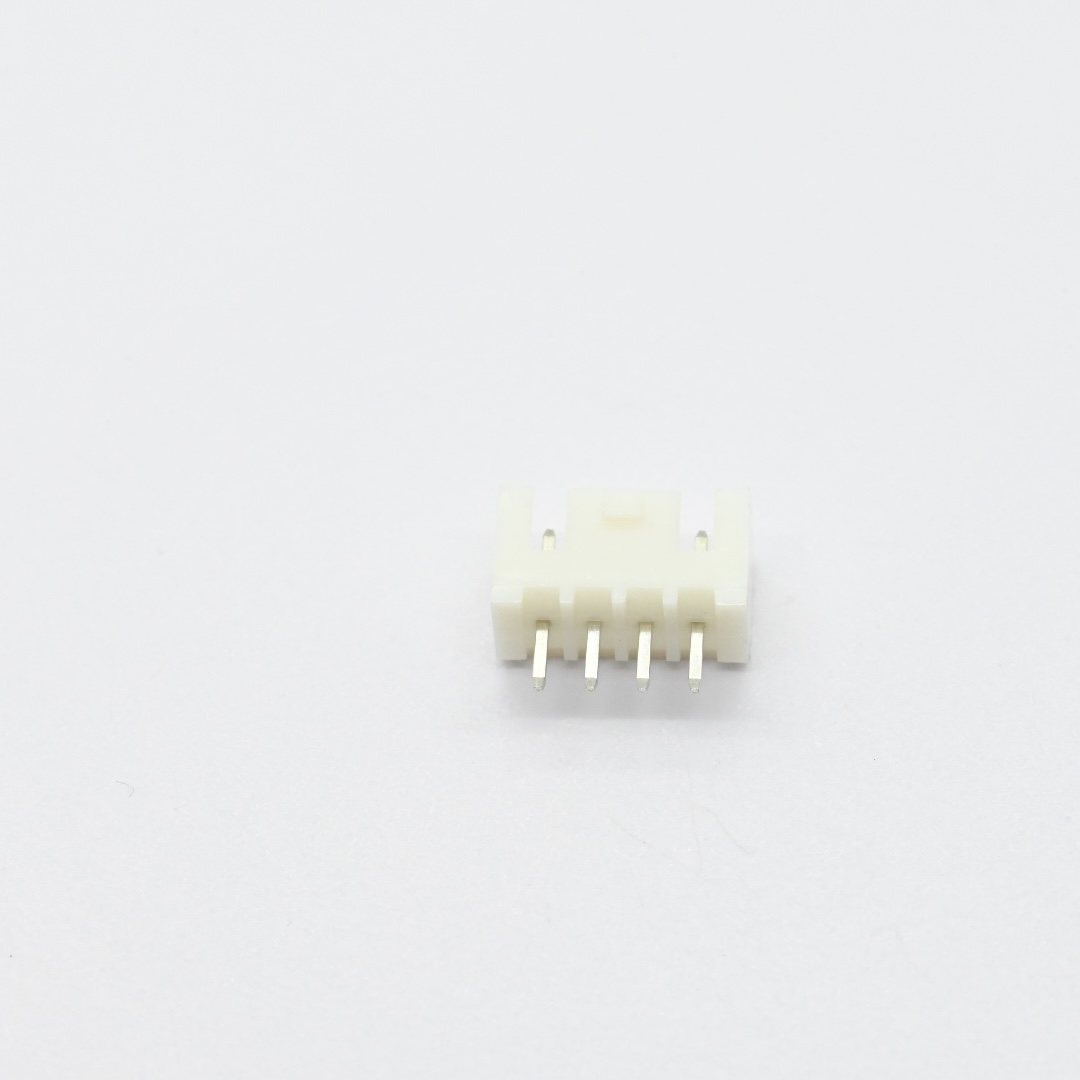

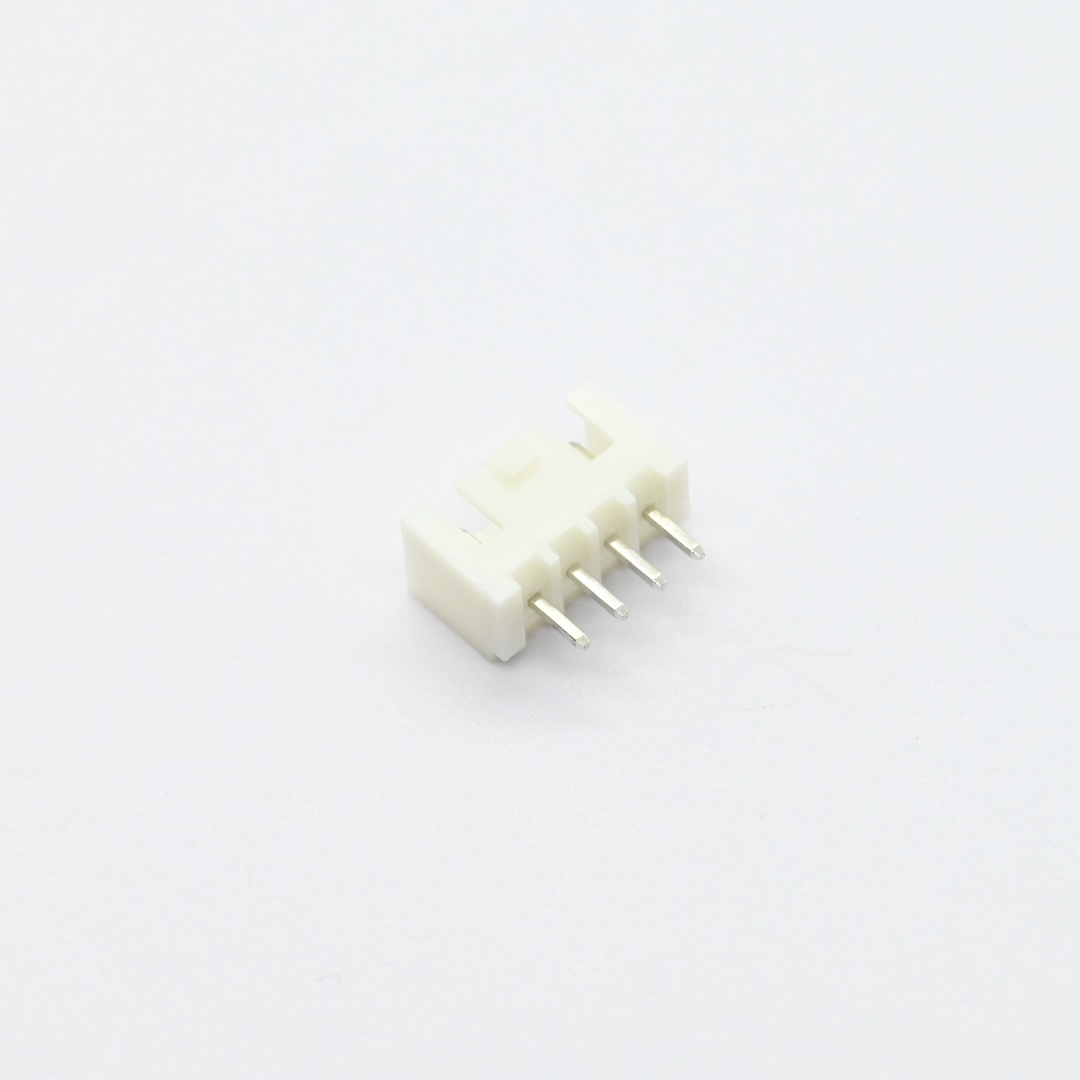

2.50mm 180 Degree Straight Wafer Connector

2.50mm 180 Degree Straight Wafer Connector

2 week ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Huizhou Antenk Electronics Co., Ltd. develops and manufactures AW2512V series 2.50mm pitch 180° wafer connectors to deliver stable wire-to-board vertical connection for compact PCB wiring layouts, supporting pin specifications ranging from 2P to 15P with two structural types Type 1 and Type 2 to match different pin count ranges, complete with standardized PCB layout and multi-stage dimensional tolerances for accurate through-hole soldering assembly. This wafer connector adopts white UL94V0 Nylon 66 as flame retardant insulator material, square conductive pins are crafted from brass with nickel-tin double plating for strong anti-oxidation performance, electrically rated for 3A alternating and direct current, 500V AC DC nominal voltage, 1000V AC one minute dielectric withstand voltage and minimum 500MΩ insulation resistance, capable of stable operation within minus 40 degrees Celsius to plus 105 degrees Celsius while fully complying with HSF lead-free and RoHS environmental standards, precisely sized with exclusive A and B dimension parameters corresponding to each pin number for seamless matching with supporting AW2512 series wafer housings. This straight 180° wafer connector is widely deployed in liquid crystal display modules, digital cameras, communication hardware, industrial control equipment, portable storage devices, digital household appliances, electronic toys, computer peripherals, automotive electronic assemblies and precision measuring instruments requiring compact wire-to-board linking. Operators need to select proper pin quantity and connector type according to wiring load requirements, implement standard through-hole soldering following official PCB layout drawings, avoid heavy extrusion to prevent nylon insulator cracking and brass pin bending deformation, and store finished connectors in dry sealed packaging to delay surface plating oxidation. Unlike competitors outsourcing mold development and electroplating Antenk runs a full independent production workflow including self-designed plastic and metal precision mold fabrication, high-speed brass terminal stamping, high-temperature nylon injection molding, nickel-tin electroplating and full environmental reliability laboratory testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications and complying with REACH international green regulations. We own more than two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, provide customizable pin counts and structural styles, off er round-the-clock professional engineering technical support, and over seventy percent of our wafer connector products are exported globally relying on our Guangdong Famous Trademark ANTENK and consistent stable mass production quality.

White UL94V0 Nylon Housing provides reliable flame retardant insulation and stable structural support for 2.50mm pitch wafer connection systems.

Nickel-Tin Plated Brass Pin achieves excellent anti-oxidation property and steady electrical conduction under long-term service conditions.

Dual Type 2.50mm Wafer Plug comes with two distinct structural forms to fit 2P-15P pin configurations for diverse PCB wiring demands.

1. Electrical Parameters

1.1 Rated Voltage: 500V AC/DC

1.2 Rated Current: 3A AC/DC

1.3 Dielectric Withstanding Voltage: 1000V AC per minute

1.4 Minimum Insulation Resistance: 500MΩ

2. Material Composition

2.1 Insulator: White Nylon 66 UL94V-0

2.2 Contact Pin: Brass with tin over nickel plating

3. Structural & Type Specifications

3.1 Pitch: Fixed 2.50mm

3.2 Connector Angle: 180° straight type

3.2 Pin Range: 2P to 15P

3.3 Two Structure Types: Type1 for 2P–5P, Type2 for 6P–15P

3.4 Pin Size: 0.64 square mm

3.5 Mating Partner: Matches AW2512 series housing

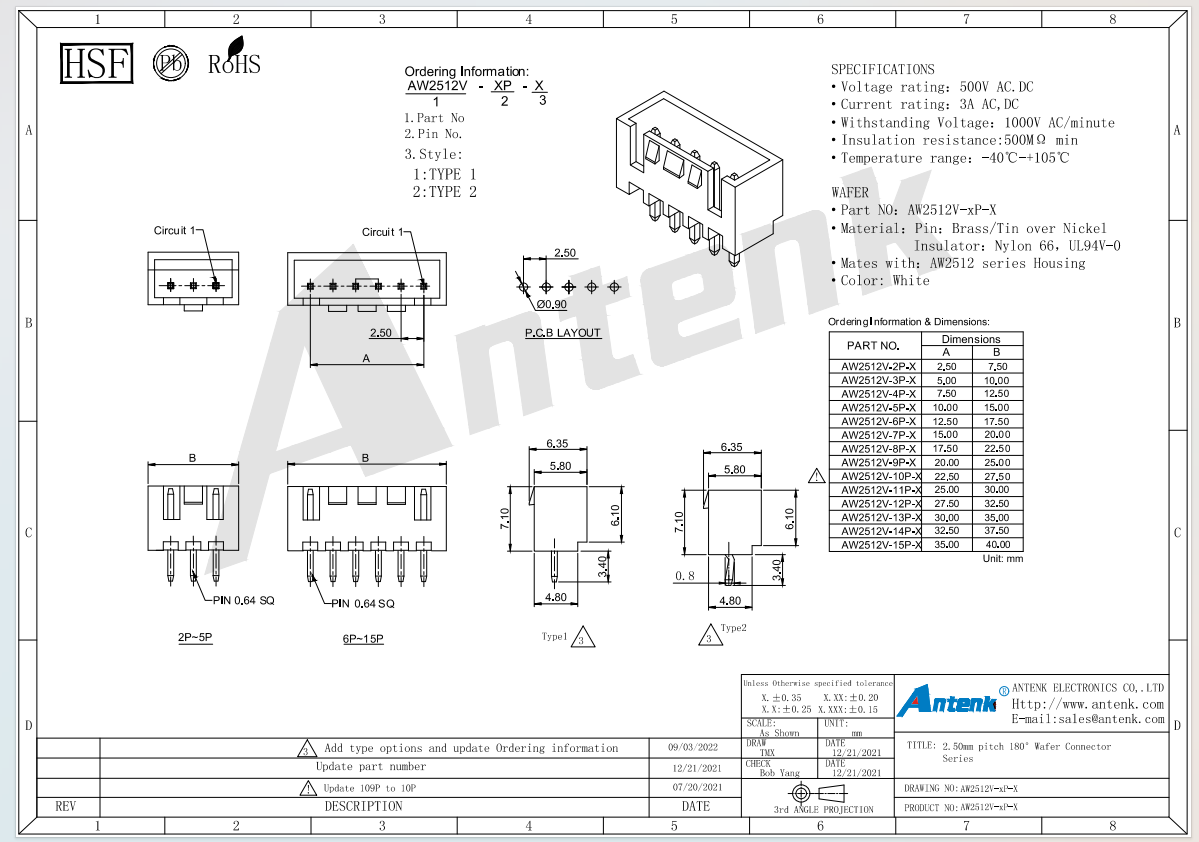

4. Dimension Standards (Unit: mm)

4.1 Independent A and B length dimensions for each pin count from 2P to 15P

4.2 PCB hole diameter: Ø0.90

4.3 Uniform dimensional tolerances: X.±0.35, X.X±0.25, X.XX±0.20, X.XXX±0.15

5. Environmental Performance

5.1 Operating Temperature Range: -40℃ ~ +105℃

6. Compliance Standards

6.1 HSF lead-free and RoHS compliant

7. Application Scenarios

7.1 LCD modules, digital cameras

7.2 Communication devices, industrial control equipment

7.3 Portable storage, digital home appliances

7.4 Electronic toys, computer peripherals

7.5 Automotive electronics, precision measuring instruments

8. Operation & Storage Precautions

8.1 Select Type1 or Type2 according to actual pin quantity

8.2 Complete through-hole soldering strictly follow the official PCB layout drawing

8.3 Avoid strong bending or squeezing to prevent nylon insulator crack and brass pin deformation

8.4 Store connectors in dry sealed packaging to prevent nickel-tin plating oxidation
