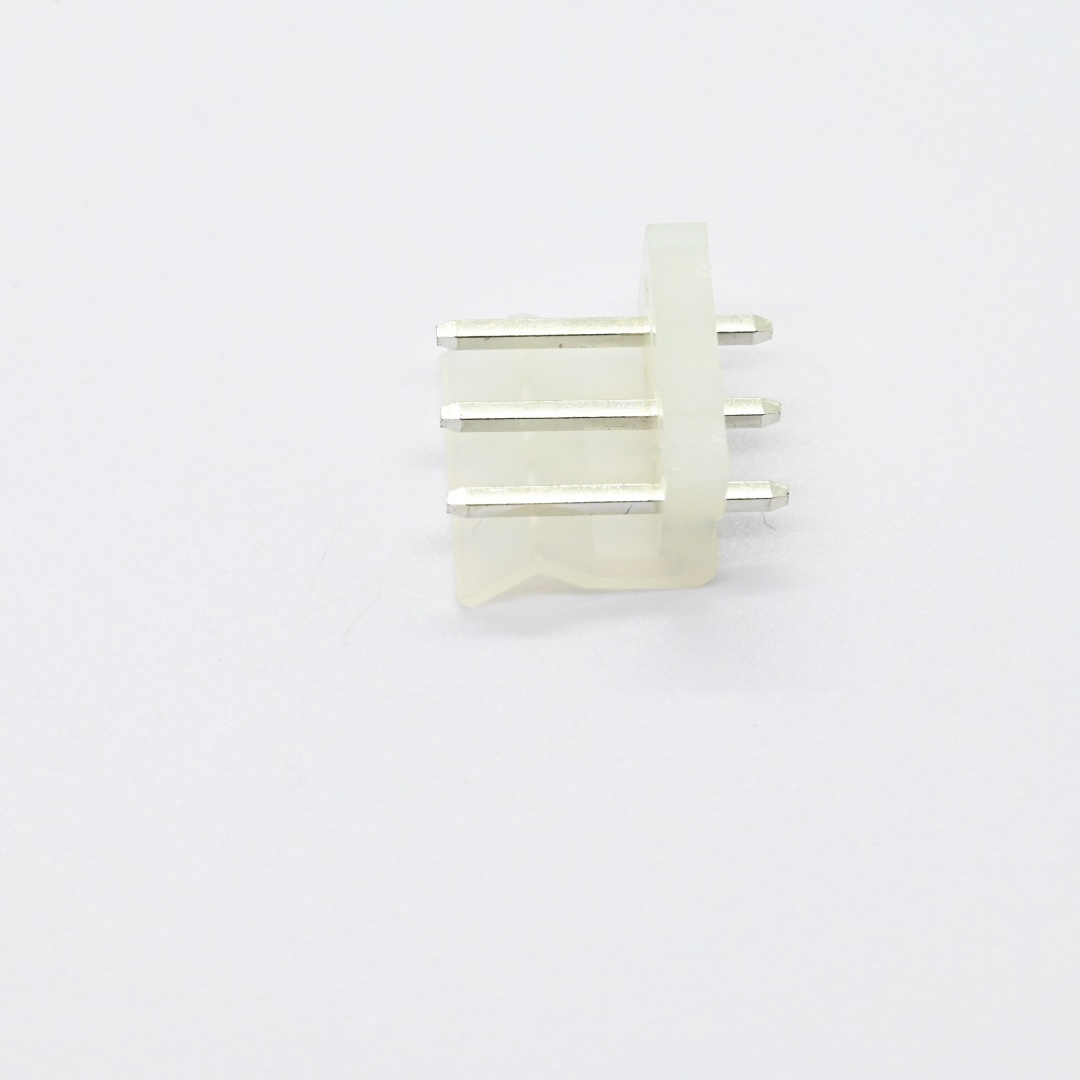

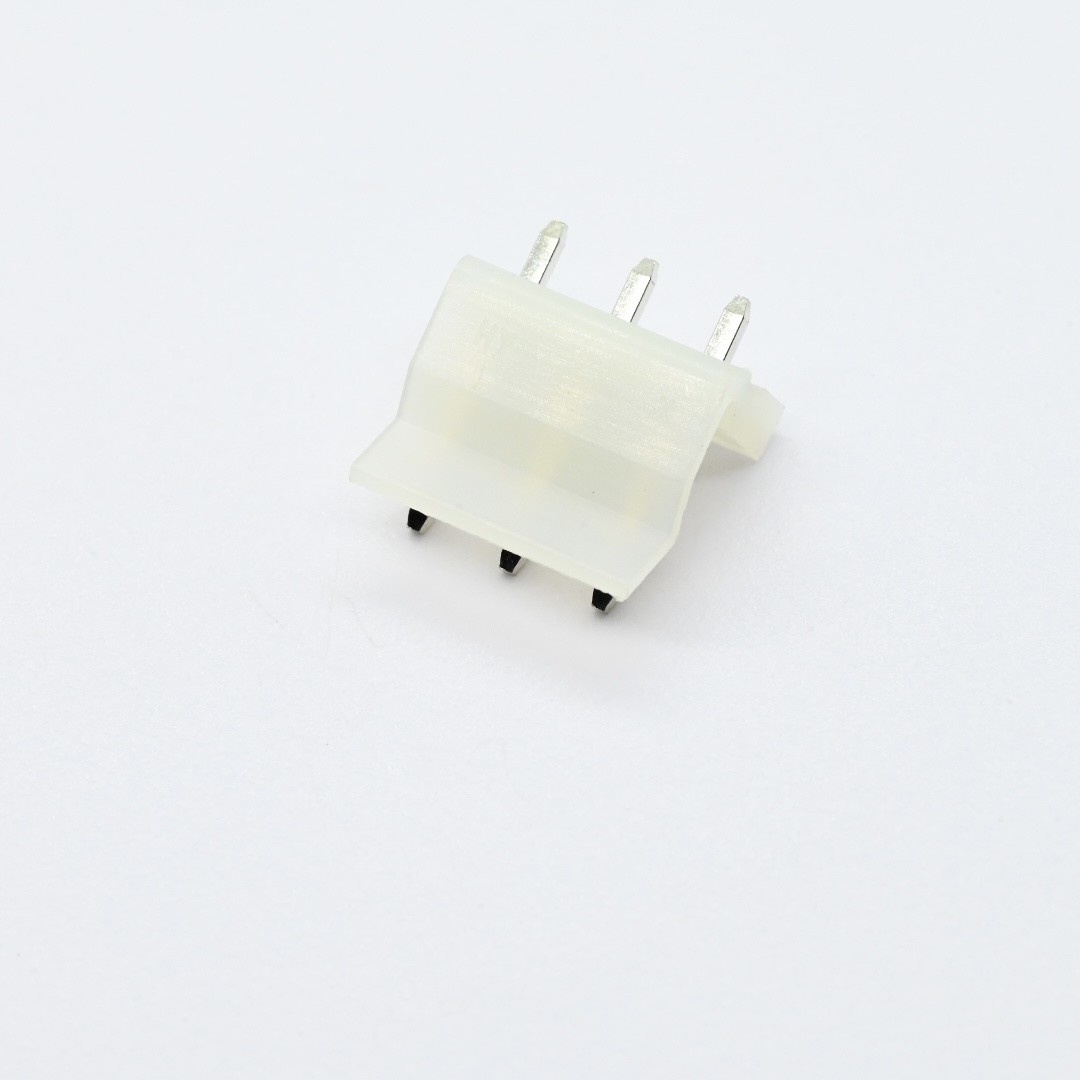

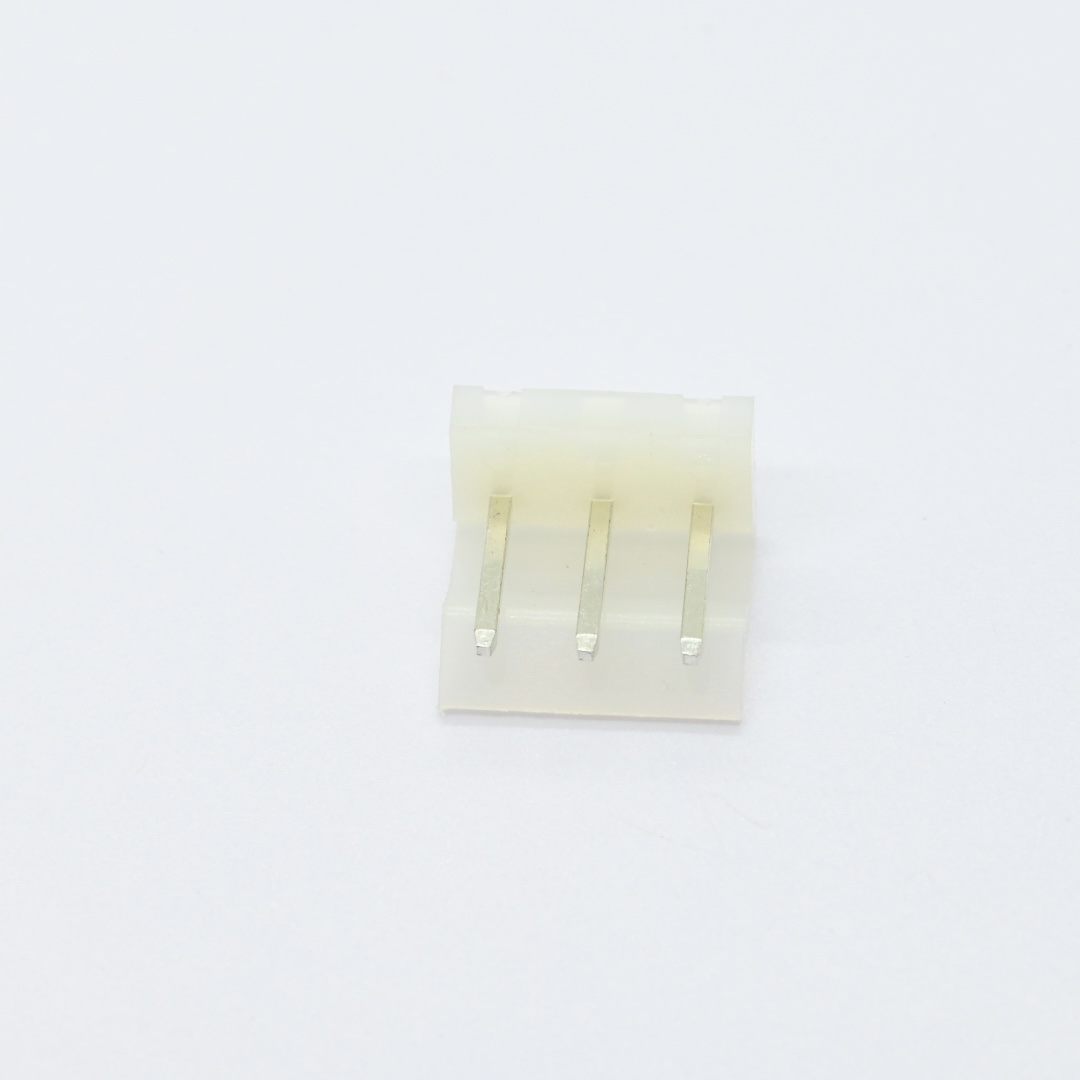

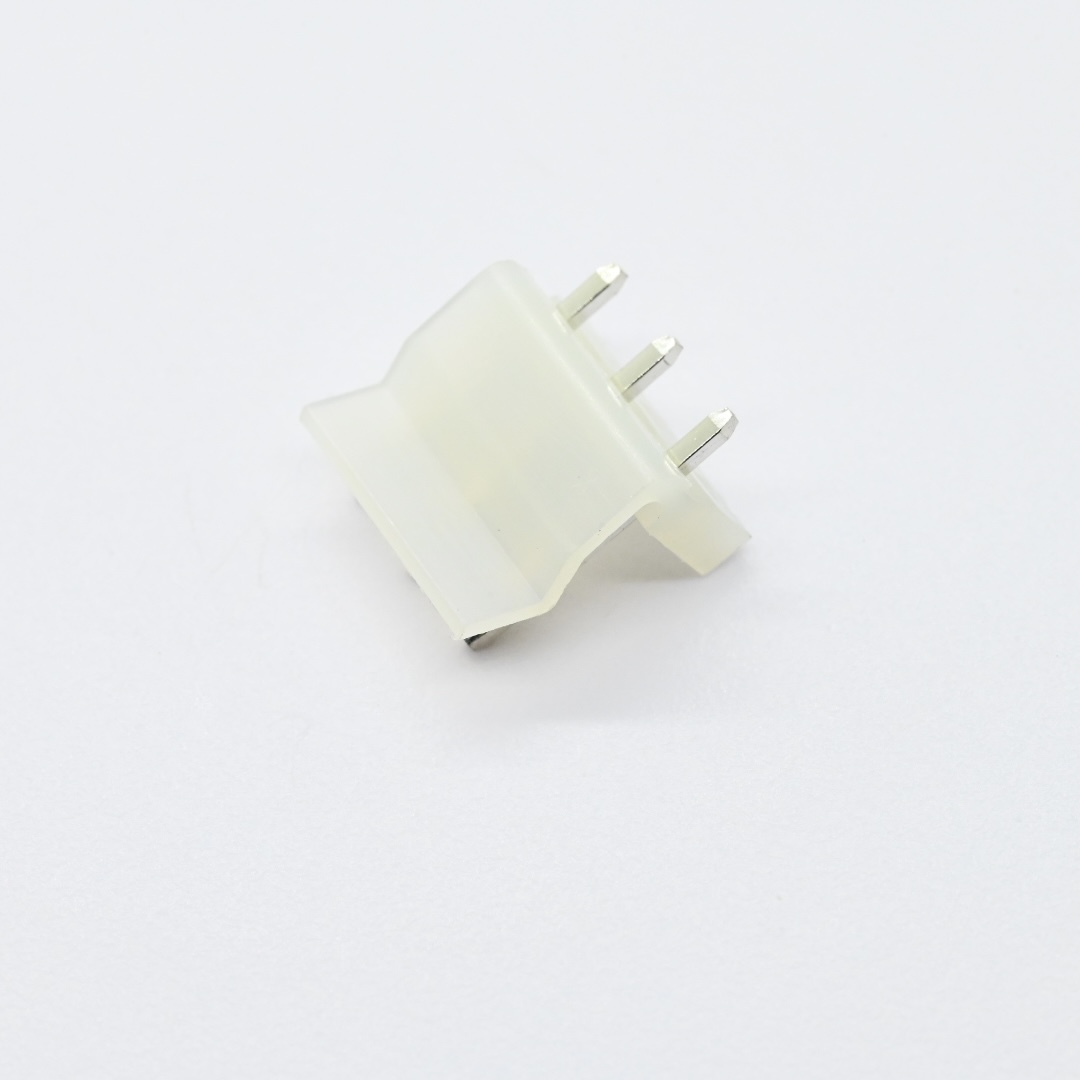

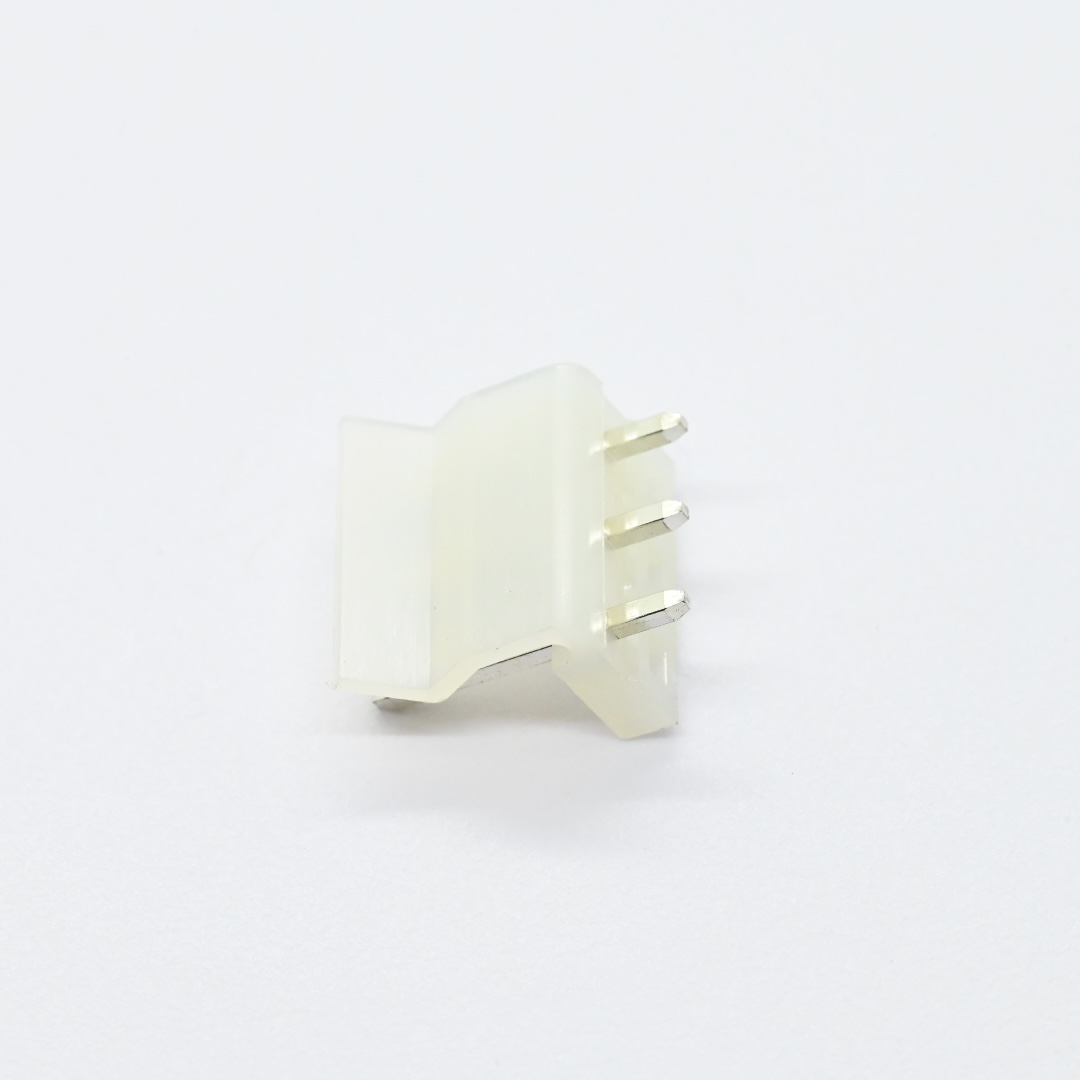

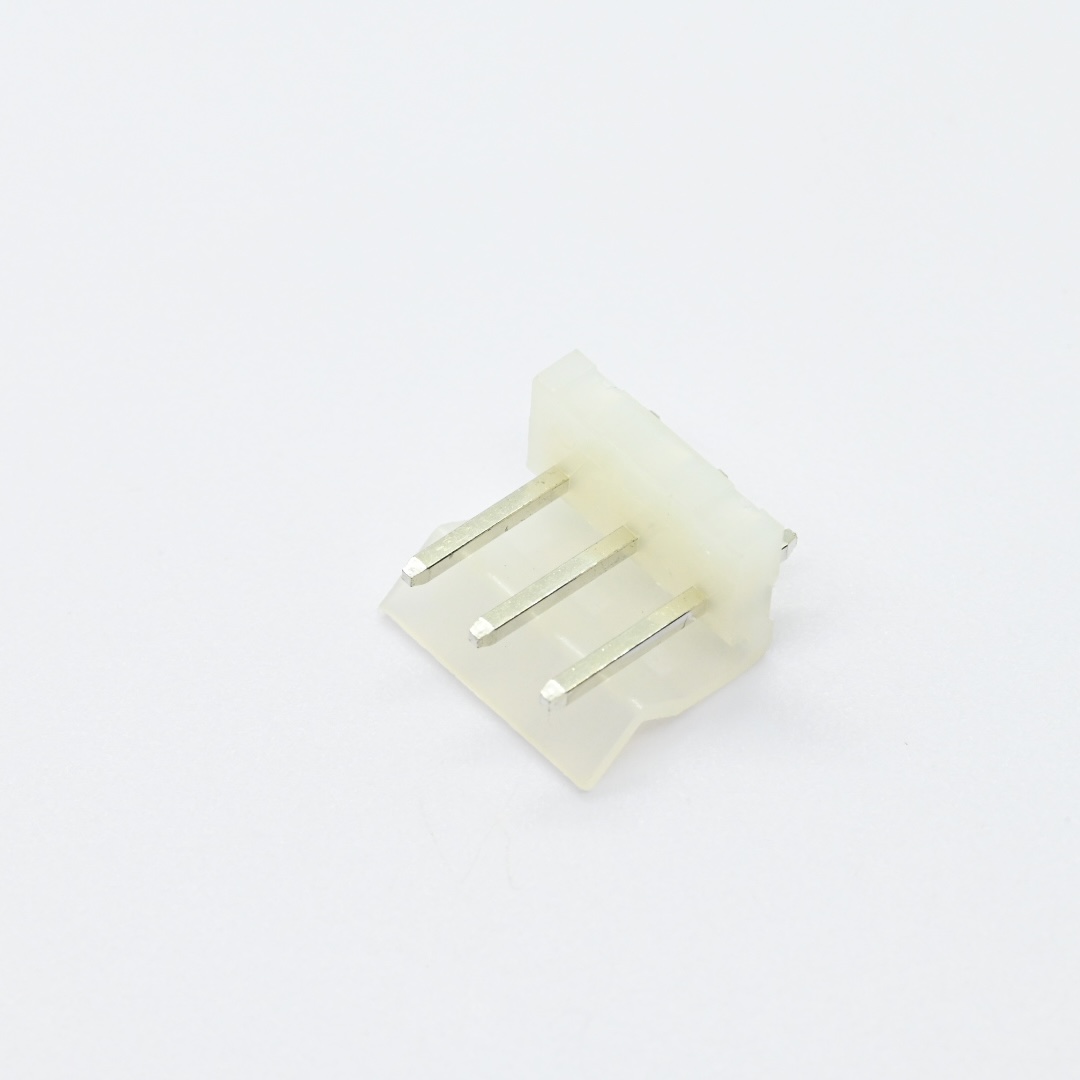

5.08mm 180 Degree Straight Tin Wafer Connector

5.08mm 180 Degree Straight Tin Wafer Connector

2 month ago

6 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Huizhou Antenk Electronics Co., Ltd. manufactures AW5081WV-NP series 5.08mm pitch 180° straight wafer connectors to deliver stable high-current wire-to-board vertical interconnection for industrial and household PCB wiring layouts, supporting pole specifications ranging from 02P to 20P with exclusive fixed overall dimensions for each pole count and standardized PCB pad layout with unified multi-level dimensional tolerances to guarantee accurate through-hole soldering assembly. This wafer connector adopts UL94V2 Nylon 66 as insulating housing material, conductive pins are made of solid brass with full tin plating on contact areas for stable conduction and oxidation resistance, electrically rated for 7A alternating and direct current, 250V AC DC nominal voltage, 1500V AC one minute dielectric withstand voltage, maximum 20 milliohms contact resistance and minimum 1000MΩ insulation resistance, operating reliably from minus 25 degrees Celsius to plus 85 degrees Celsius while fully complying with HSF lead-free and RoHS environmental standards, each pole variant has matched precise length dimensions to ensure consistent assembly compatibility. This wide pitch straight wafer connector is widely applied in liquid crystal display modules, digital cameras, communication equipment, industrial control panels, portable storage devices, digital household appliances, electronic toys, computer peripherals, automotive electronic components and precision measuring instruments requiring high power wire-to-board connection. Operators should select suitable pole quantity according to circuit load parameters, complete standard through-hole soldering following official PCB layout drawings, avoid severe squeezing and bending to prevent nylon housing cracking and brass pin deformation, and store finished connectors in dry sealed packages to slow tin plating surface oxidation. Unlike competitors outsourcing mold production and electroplating Antenk owns full independent production workflows covering self-developed plastic and metal precision mold manufacturing, high-speed brass terminal stamping, high-temperature nylon injection molding, tin electroplating and comprehensive high-low temperature reliability laboratory testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications and conforming to REACH international green electronic regulations. We possess more than two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, provide customizable pole quantity options, offer round-the-clock professional engineering technical support, and over seventy percent of our wafer connector products are exported globally supported by our Guangdong Famous Trademark ANTENK and steady mass production quality consistency.

UL94V2 Nylon Wafer Housing delivers moderate flame retardant performance and stable structural support for 5.08mm pitch wire-to-board connection systems.

Pure Tin Plated Brass Pin provides great anti-corrosion property and consistent high-current conduction under long-term working conditions.

High Current 5.08mm Wafer Plug supports 7A rated load and covers 02P to 20P pole options for diverse industrial PCB wiring demands.

1. Electrical Specifications

1.1 Rated Voltage: 250V AC/DC

1.2 Rated Current: 7A AC/DC

1.3 Dielectric Withstanding Voltage: 1500V AC per minute

1.4 Minimum Insulation Resistance: 1000MΩ

1.5 Maximum Contact Resistance: 20mΩ

2. Material Details

2.1 Insulator Housing: Nylon 66, UL94V-2

2.2 Contact Pin Base Material: Brass

2.3 Contact Surface Plating: Pure Tin Plated

3. Structural & Pitch Parameters

3.1 Pitch Size: 5.08mm ±0.10mm

3.2 Connector Type: 180° straight wafer type

3.3 Pole Range: 02P to 20P

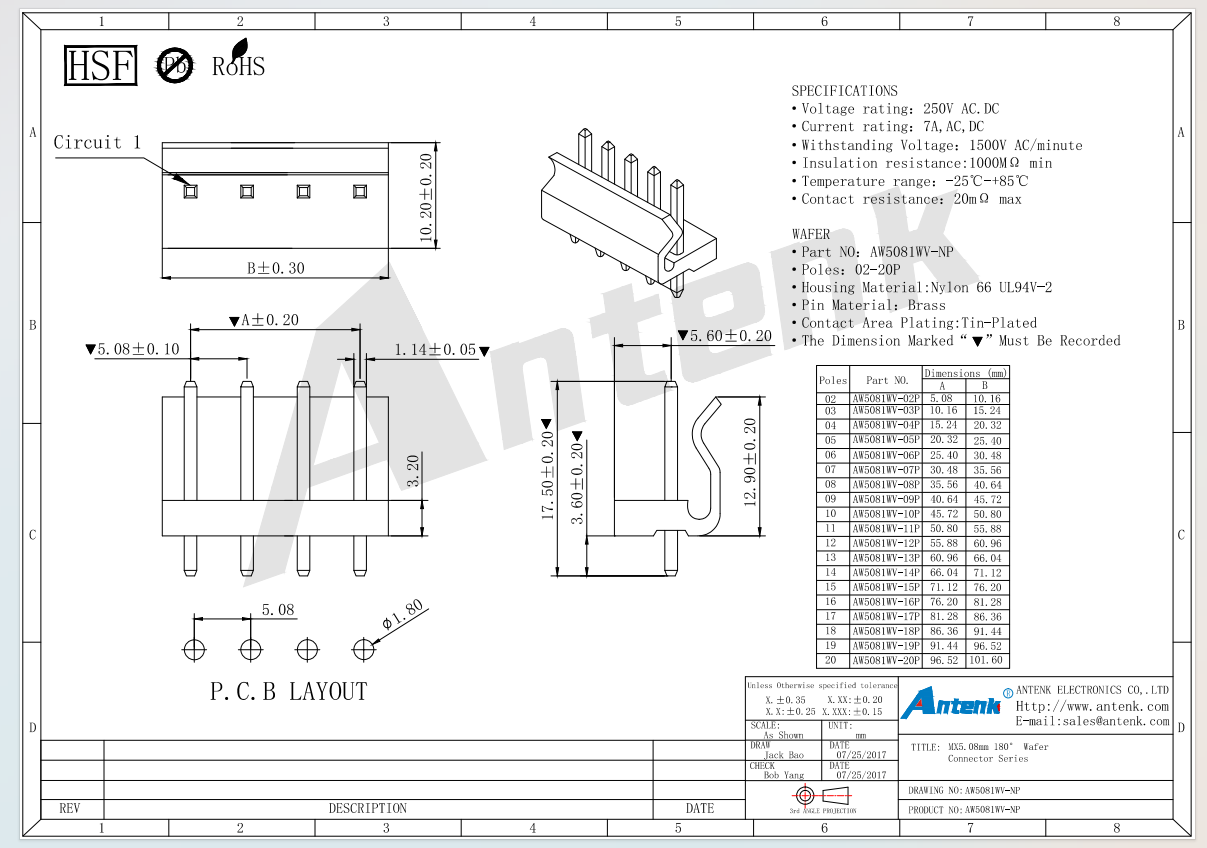

4. Dimensional Standards (Unit: mm)

4.1 Core fixed dimension: 5.60±0.20, 1.14±0.05

4.2 Variable length A and B dimensions for each pole from 02P to 20P

4.3 Uniform dimensional tolerances: X.±0.35, X.X±0.25, X.XX±0.20, X.XXX±0.15

4.4 Dimensional marks with mandatory recording requirement

5. Environmental Working Range

5.1 Operating Temperature: -25°C ~ +85°C

6. Compliance Standards

6.1 HSF lead-free and RoHS compliant

7. Application Scopes

7.1 LCD modules, digital cameras

7.2 Communication devices, industrial control equipment

7.3 Portable storage, digital home appliances

7.4 Electronic toys, computer peripheral hardware

7.5 Automotive electronics, precision measuring instruments

8. Operation & Storage Precautions

8.1 Select pole quantity from 02P to 20P according to circuit current load

8.2 Complete through-hole soldering strictly follow the official PCB layout drawing

8.3 Avoid excessive bending or extrusion to prevent nylon housing crack and brass pin deformation

8.4 Store finished connectors in dry sealed packages to prevent oxidation of tin plating layers
