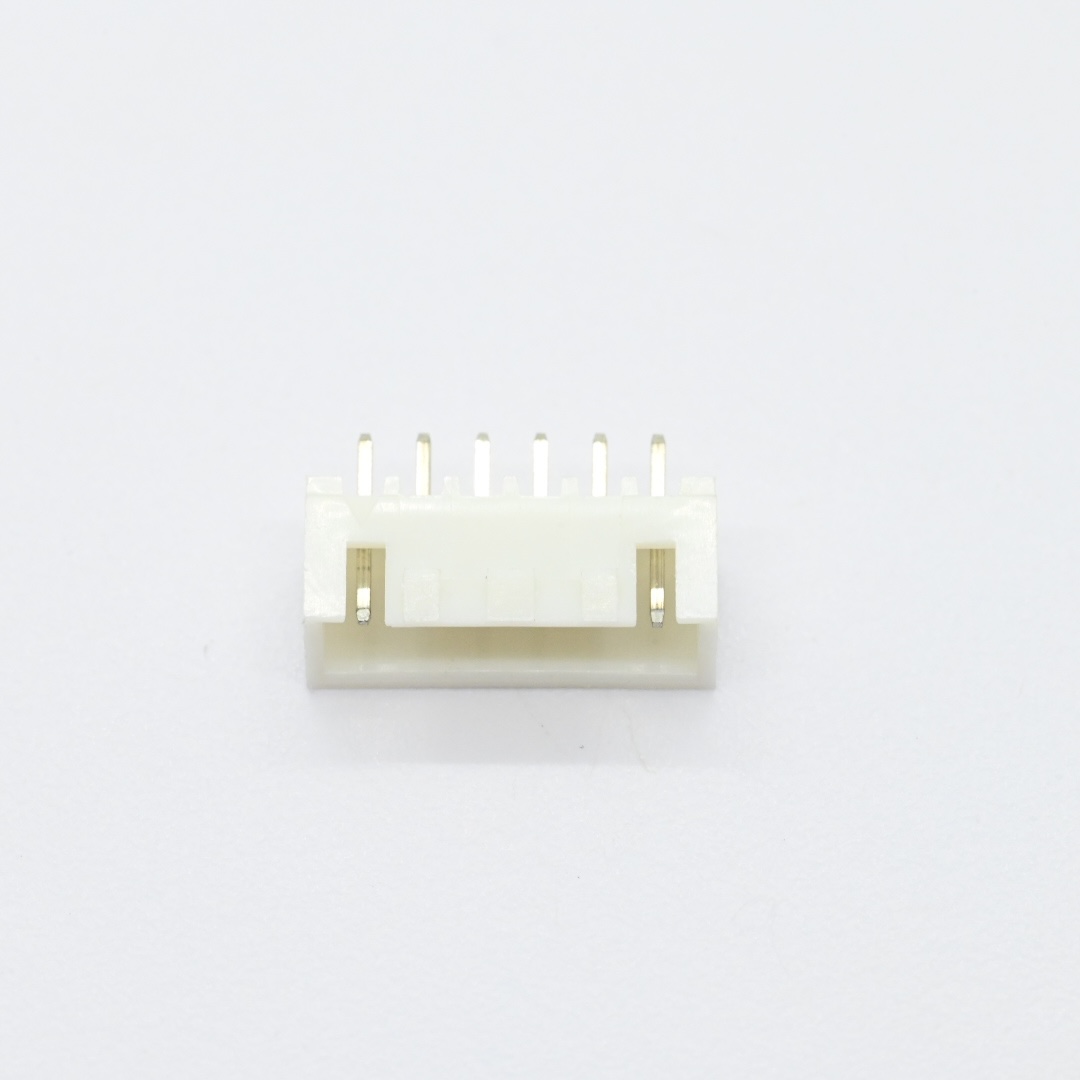

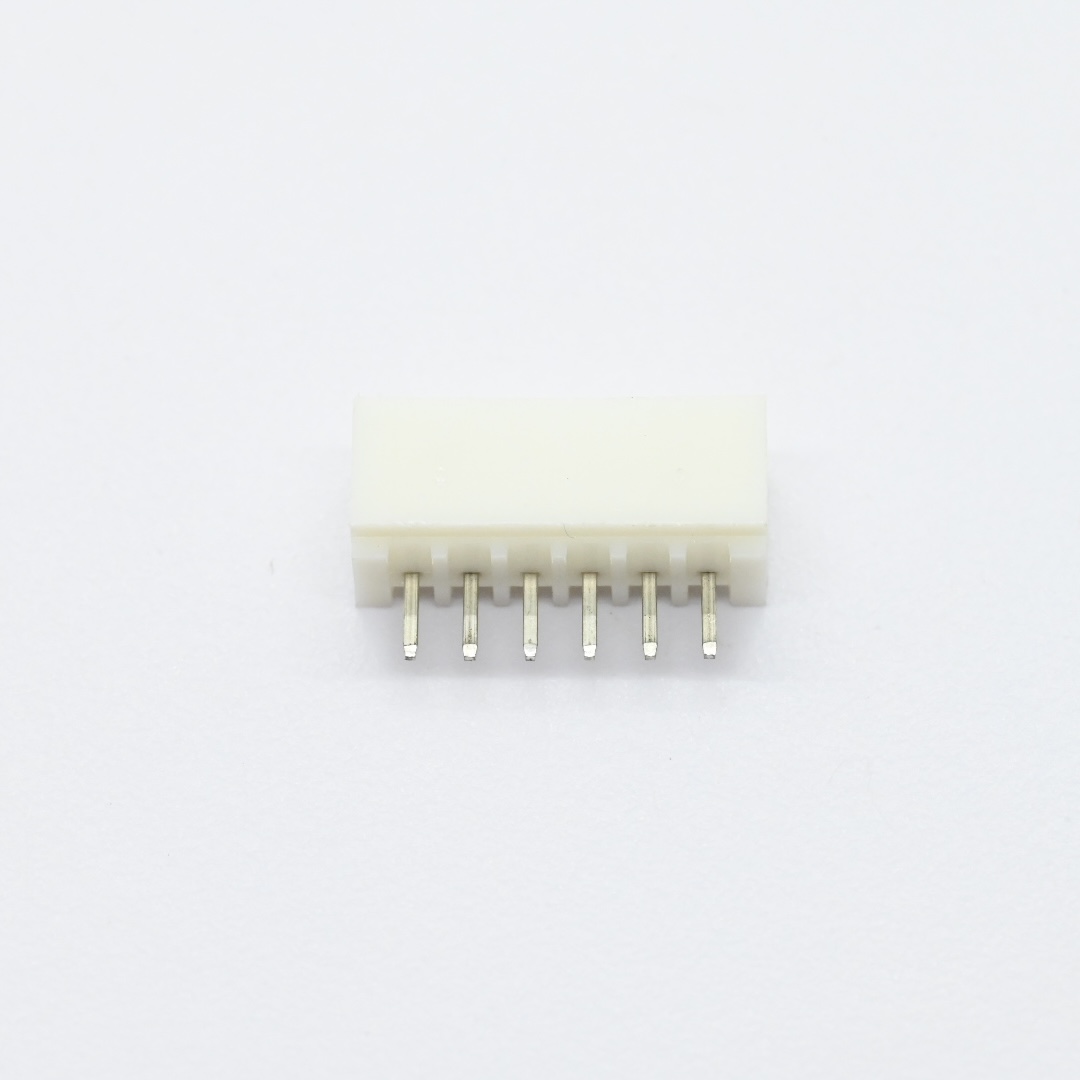

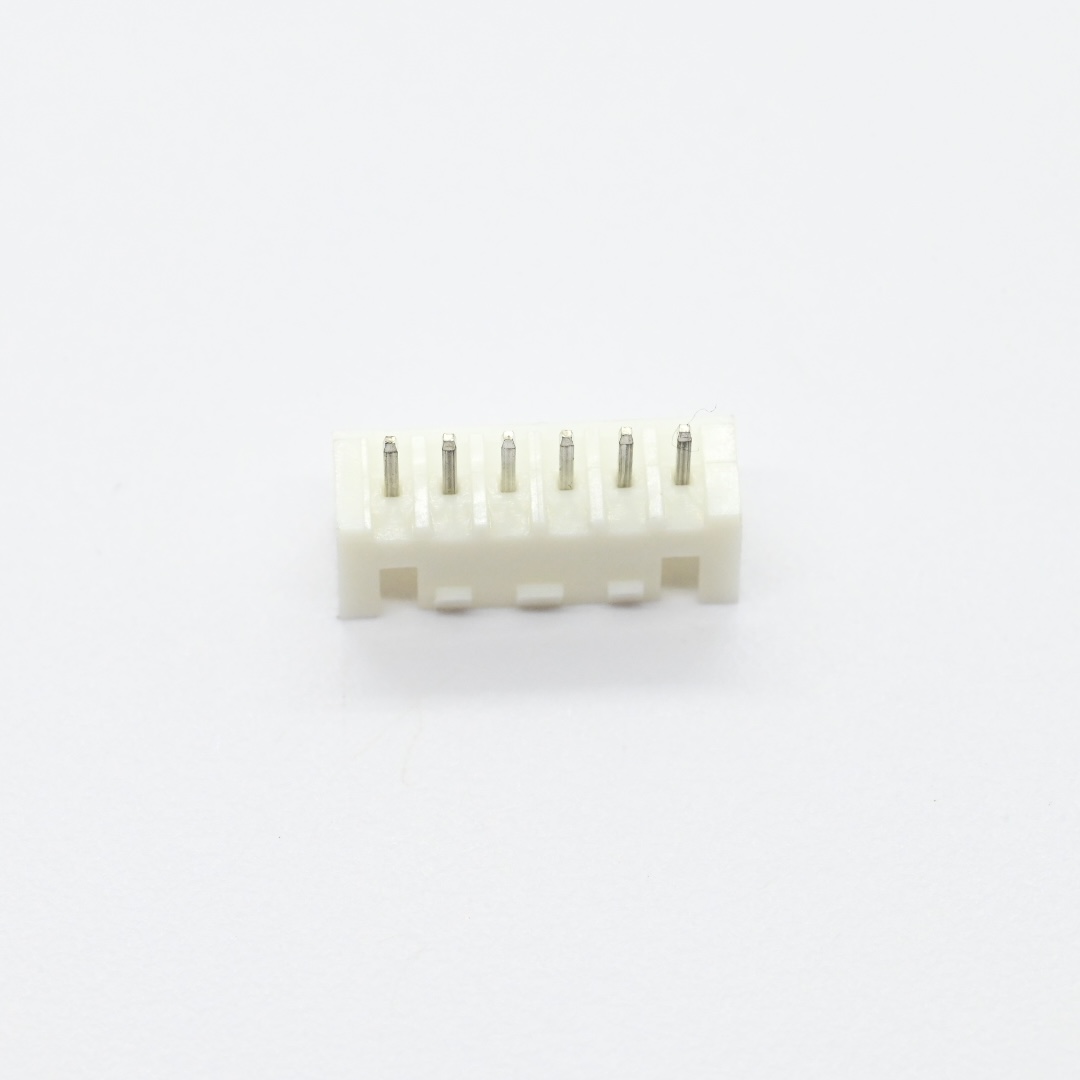

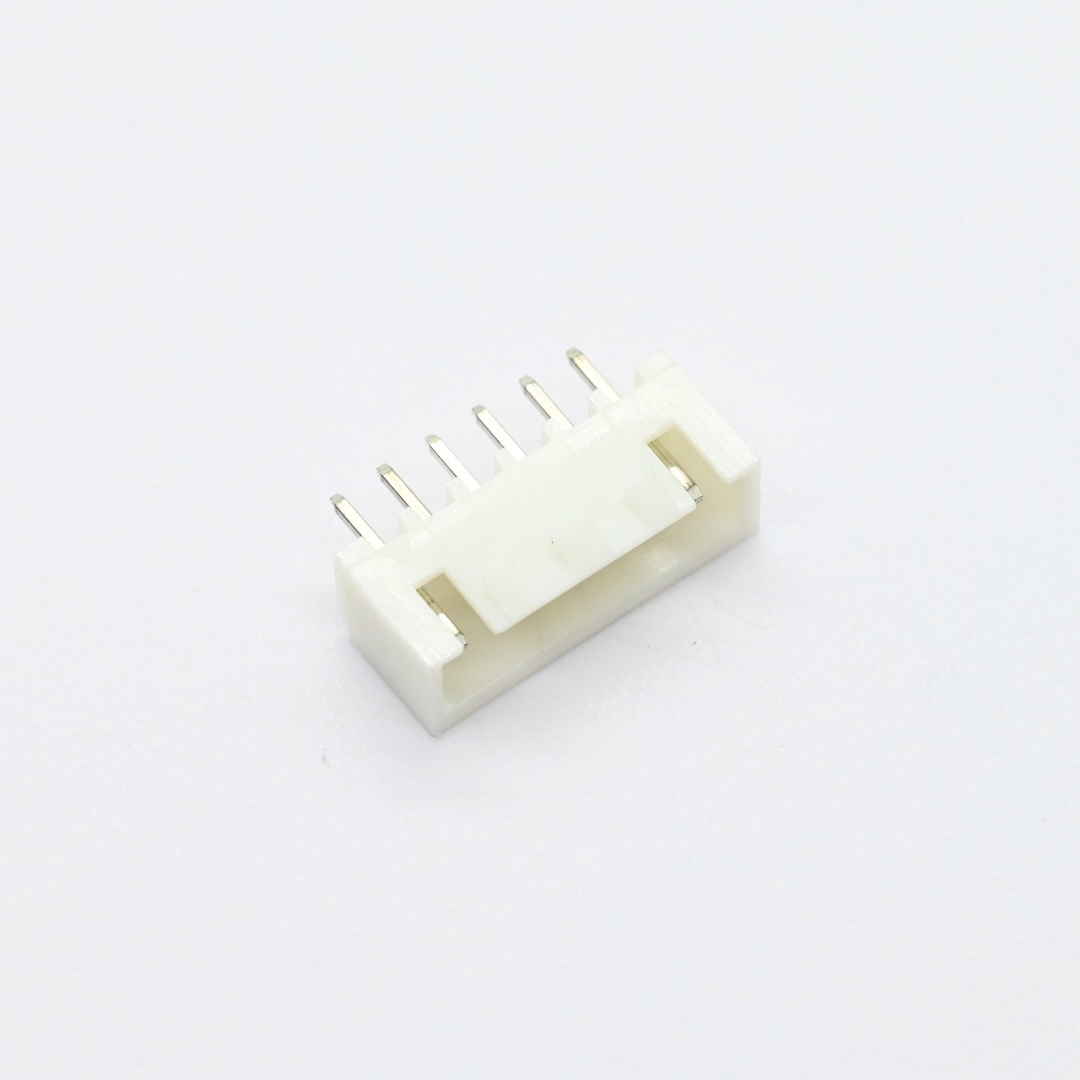

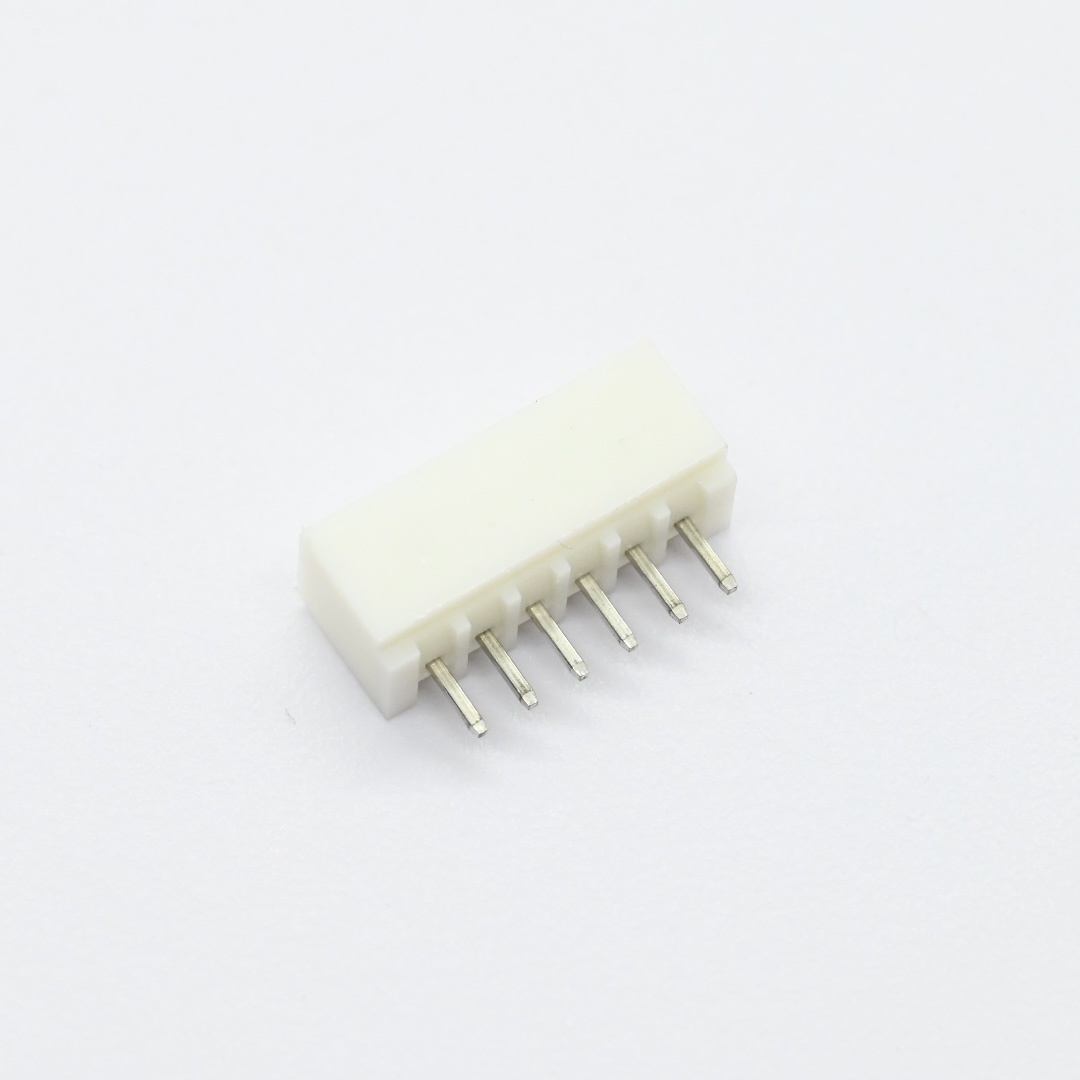

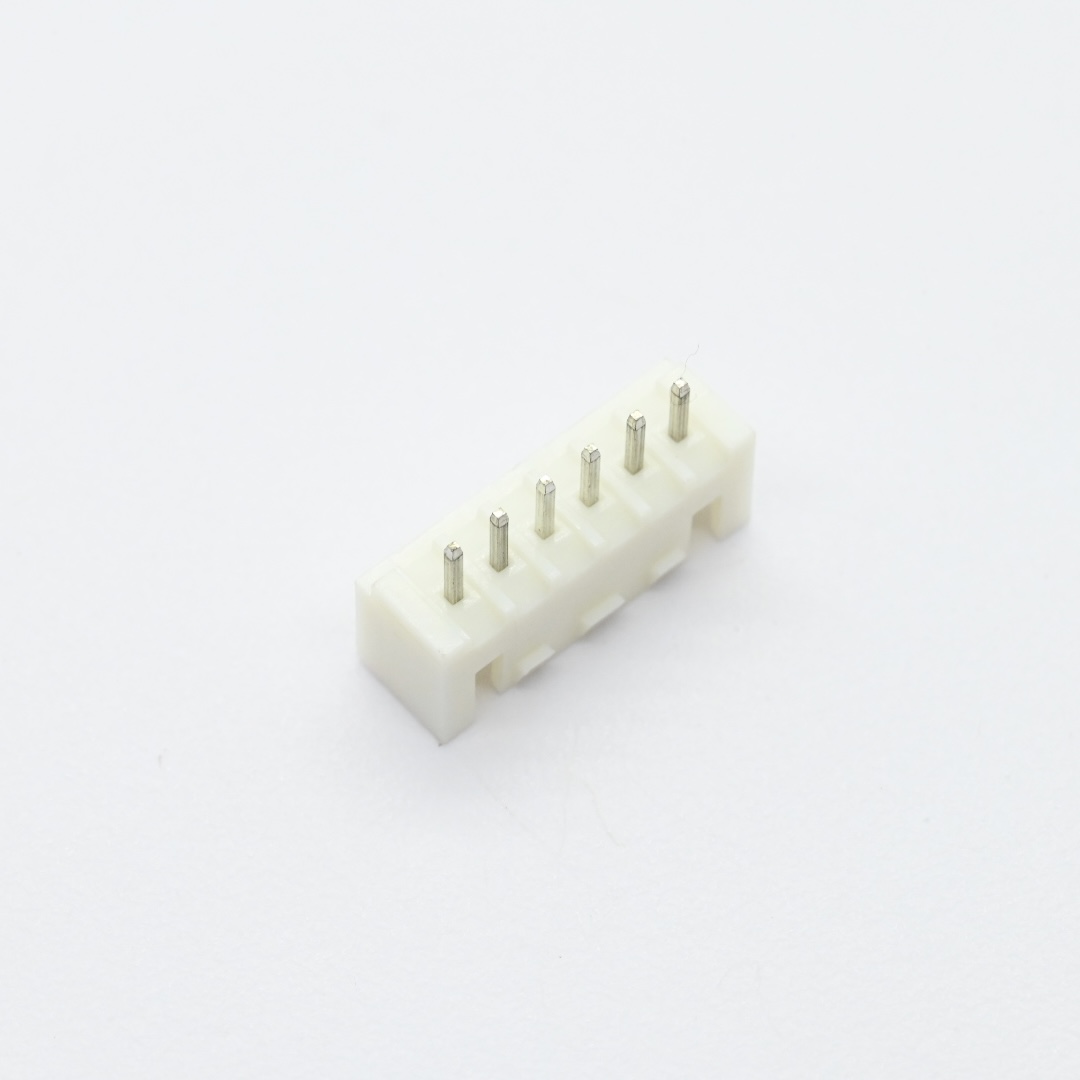

Huizhou Antenk Electronics Co., Ltd. develops and manufactures AW2512V series 2.50mm pitch 180° vertical wafer connectors to deliver compact wire-to-board interconnection for miniaturized PCB layouts, supporting pin quantities ranging from 2P to 15P with two exclusive structural styles Type 1 for 2P to 5P and Type 2 for 6P to 15P, matched with standardized PCB pad layout and multi-level dimensional tolerances to guarantee accurate through-hole soldering assembly. This wafer connector adopts white UL94V0 Nylon 66 as flame retardant insulator, square 0.64mm conductive pins are made of brass with nickel-tin double plating for stable conduction and long-lasting anti-oxidation performance, electrically rated for 3A alternating and direct current, 500V AC DC nominal voltage, 1000V AC one minute dielectric withstand voltage and minimum 500MΩ insulation resistance, operating steadily from minus 40 degrees Celsius to plus 105 degrees Celsius while fully complying with HSF lead-free and RoHS environmental standards, each pin specification has exclusive A and B dimension parameters to perfectly mate with supporting AW2512 series wafer housings. This narrow-pitch vertical wafer connector is widely deployed in liquid crystal display modules, digital cameras, communication hardware, industrial control equipment, portable storage devices, digital household appliances, electronic toys, computer peripherals, automotive electronic assemblies and precision mini measuring instruments requiring compact signal wiring links. Operators need to select proper pin quantity and connector style according to circuit layout space and load requirements, complete standard through-hole soldering following official PCB layout drawings, avoid heavy extrusion or bending to prevent nylon insulator cracking and brass pin permanent deformation, and store finished connectors in dry sealed packaging to slow nickel-tin plating oxidation. Unlike competitors outsourcing mold development and electroplating Antenk runs a full independent production workflow including self-designed plastic and metal precision mold fabrication, high-speed brass terminal stamping, high-temperature nylon injection molding, nickel-tin electroplating and comprehensive high-low temperature reliability laboratory testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications and conforming to REACH international green regulations. We own more than two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, provide customizable pin counts and structural styles, offer round-the-clock professional engineering technical support, and over seventy percent of our wafer connector products are exported globally relying on our Guangdong Famous Trademark ANTENK and consistent stable mass production quality.
1. Electrical Performance
1.1 Rated Voltage: 500V AC/DC
1.2 Rated Current: 3A AC/DC
1.3 Dielectric Withstanding Voltage: 1000V AC per minute
1.4 Minimum Insulation Resistance: 500MΩ
2. Material Composition
2.1 Insulator: White Nylon 66 with UL94V-0 flame retardant grade
2.2 Contact Pin Base: Brass
2.3 Pin Surface Plating: Tin over Nickel double plating
3. Structural & Type Specifications
3.1 Fixed Pitch: 2.50mm
3.2 Installation Angle: 180° straight vertical type
3.3 Pin Range: 2P to 15P
3.4 Two Structural Types: Type 1 for 2P–5P, Type 2 for 6P–15P
3.5 Pin Size: 0.64 square mm
3.6 Matching Part: Compatible with AW2512 series wafer housing
4. Dimension Parameters (Unit: mm)
4.1 Independent A and B length dimensions for each pin count from 2P to 15P
4.2 PCB mounting hole diameter: Ø0.90
4.3 Unified dimensional tolerance standard: X.±0.35, X.X±0.25, X.XX±0.20, shtur±0.15
5. Environmental Working Condition
5.1 Operating Temperature Range: -40℃ ~ +105℃
6. Environmental Compliance
6.1 Comply with HSF lead-free and RoHS standards
7. Application Scenarios
7.1 Liquid crystal display modules, digital cameras
7.2 Communication equipment, industrial control panels
7.3 Portable storage devices, digital household appliances
7.4 Electronic toys, computer peripheral hardware
7.5 Automotive electronic modules, precision measuring instruments
8. Operation & Storage Precautions
8.1 Select Type 1 or Type 2 according to actual pin quantity
8.2 Complete through-hole soldering strictly follow official PCB layout drawing
8.3 Avoid heavy squeezing and bending to prevent nylon housing crack and brass pin deformation
8.4 Store finished connectors in dry sealed packages to prevent nickel-tin plating oxidation
FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

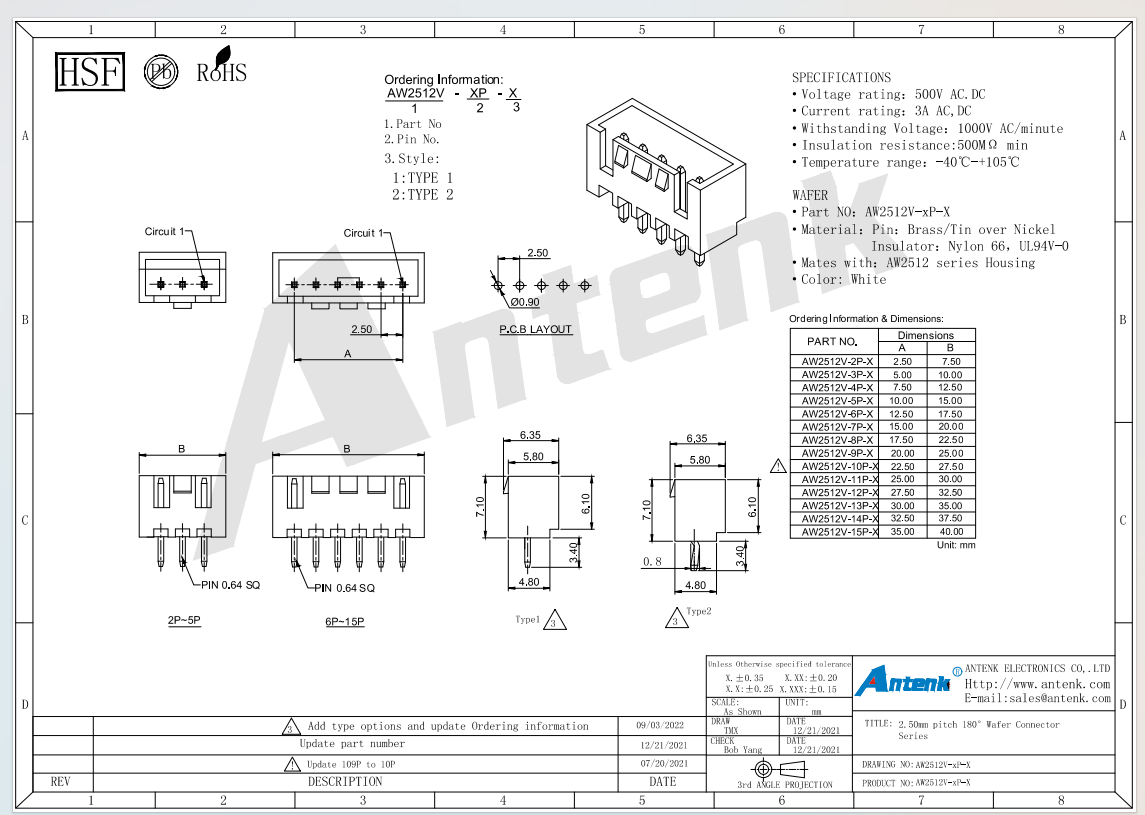

Product Drawing:
