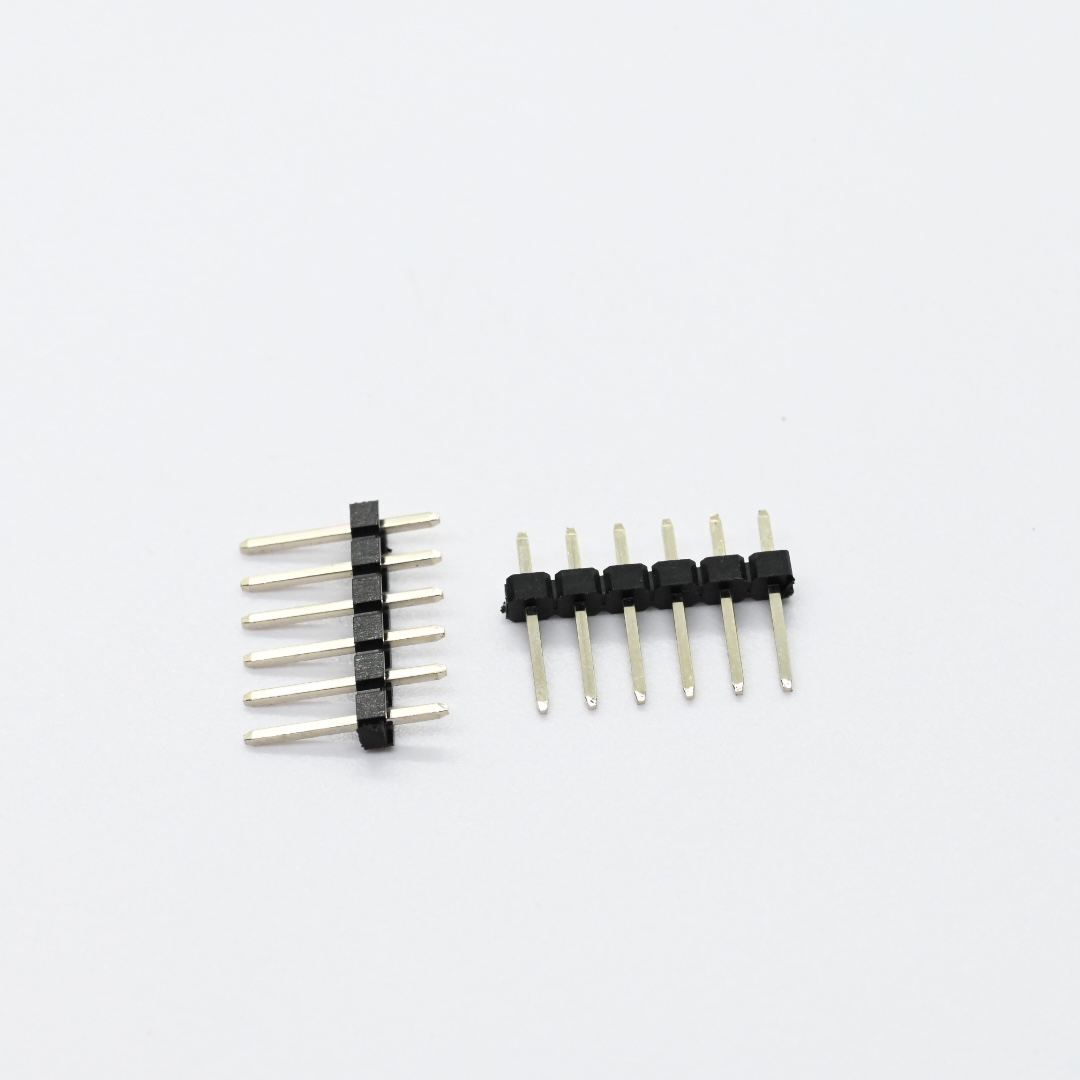

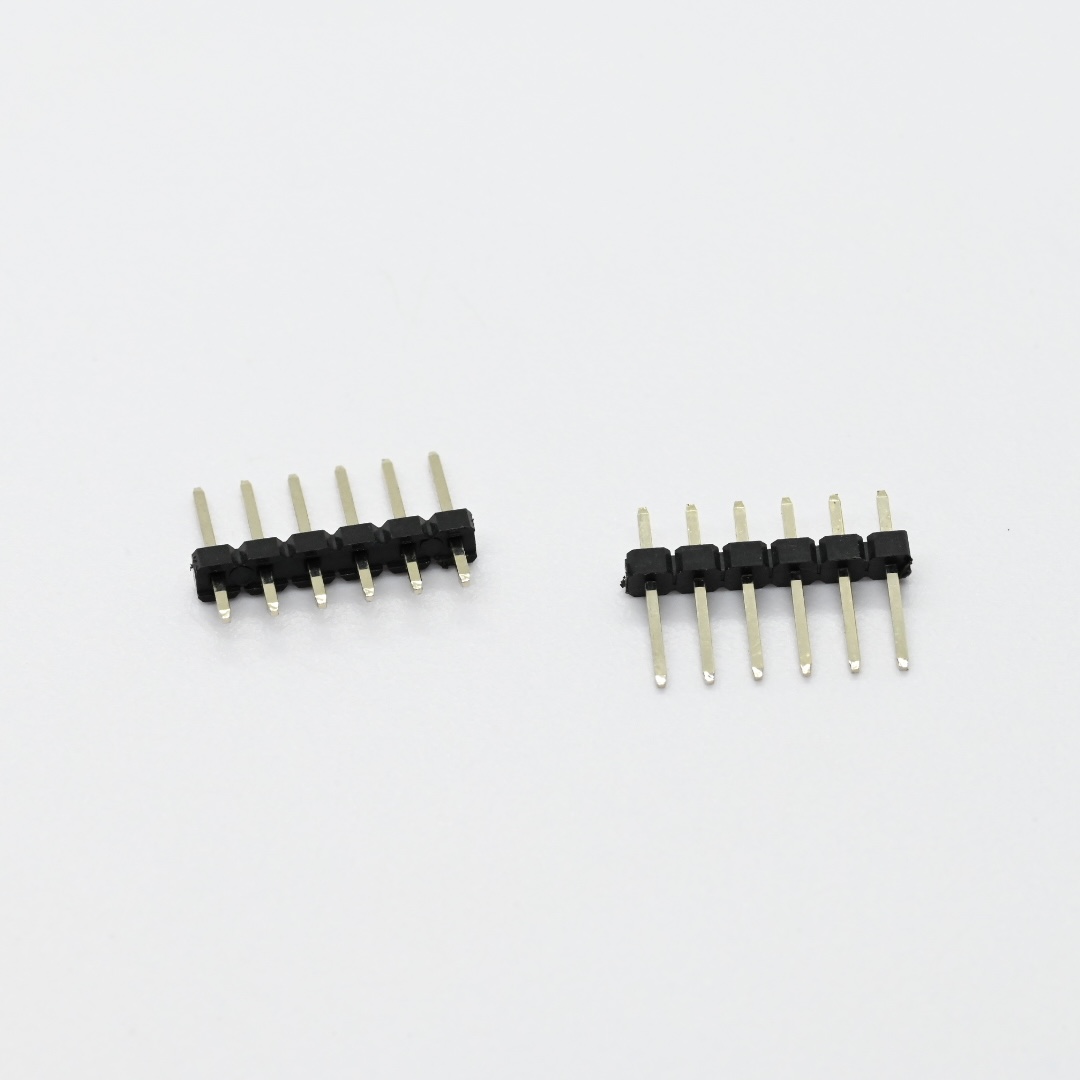

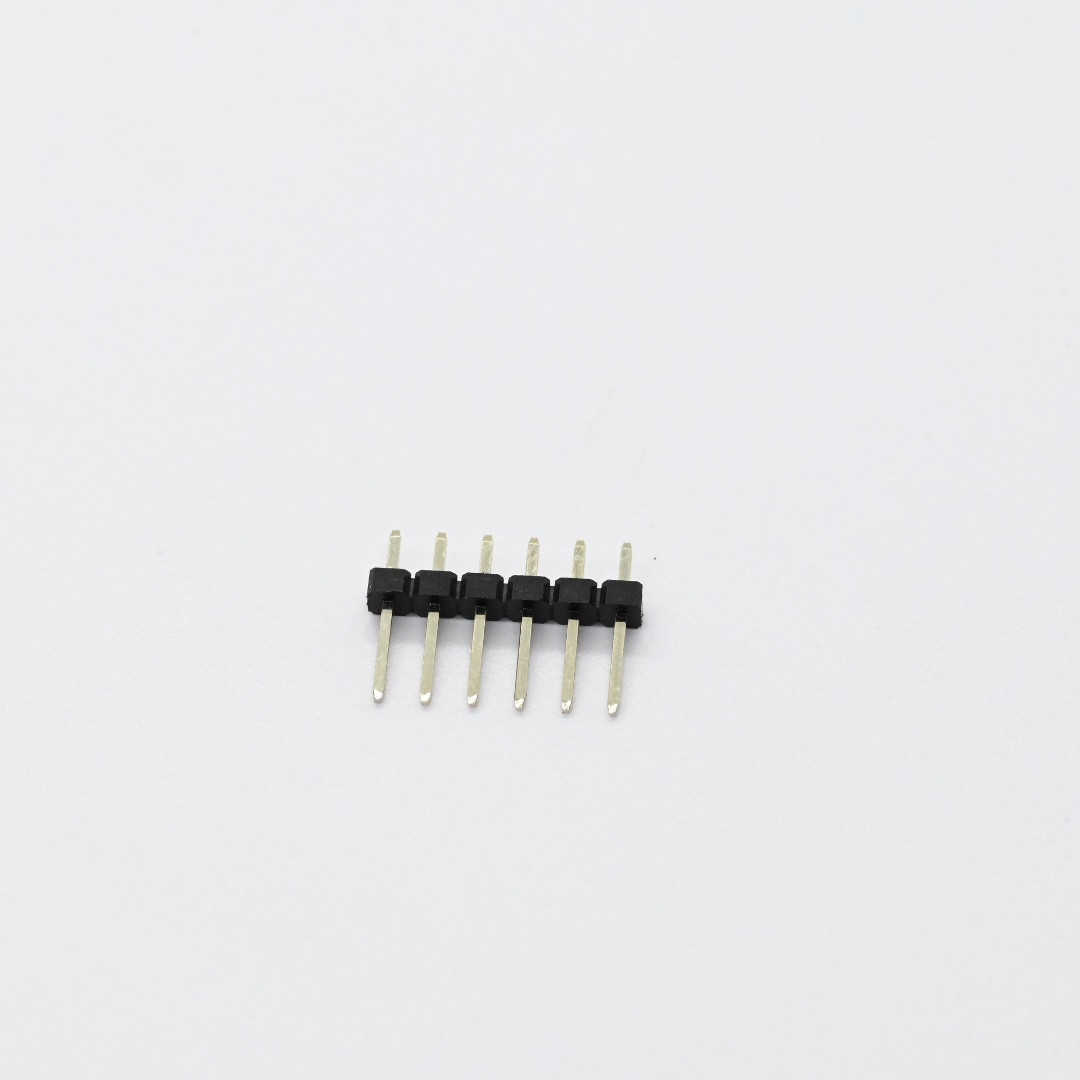

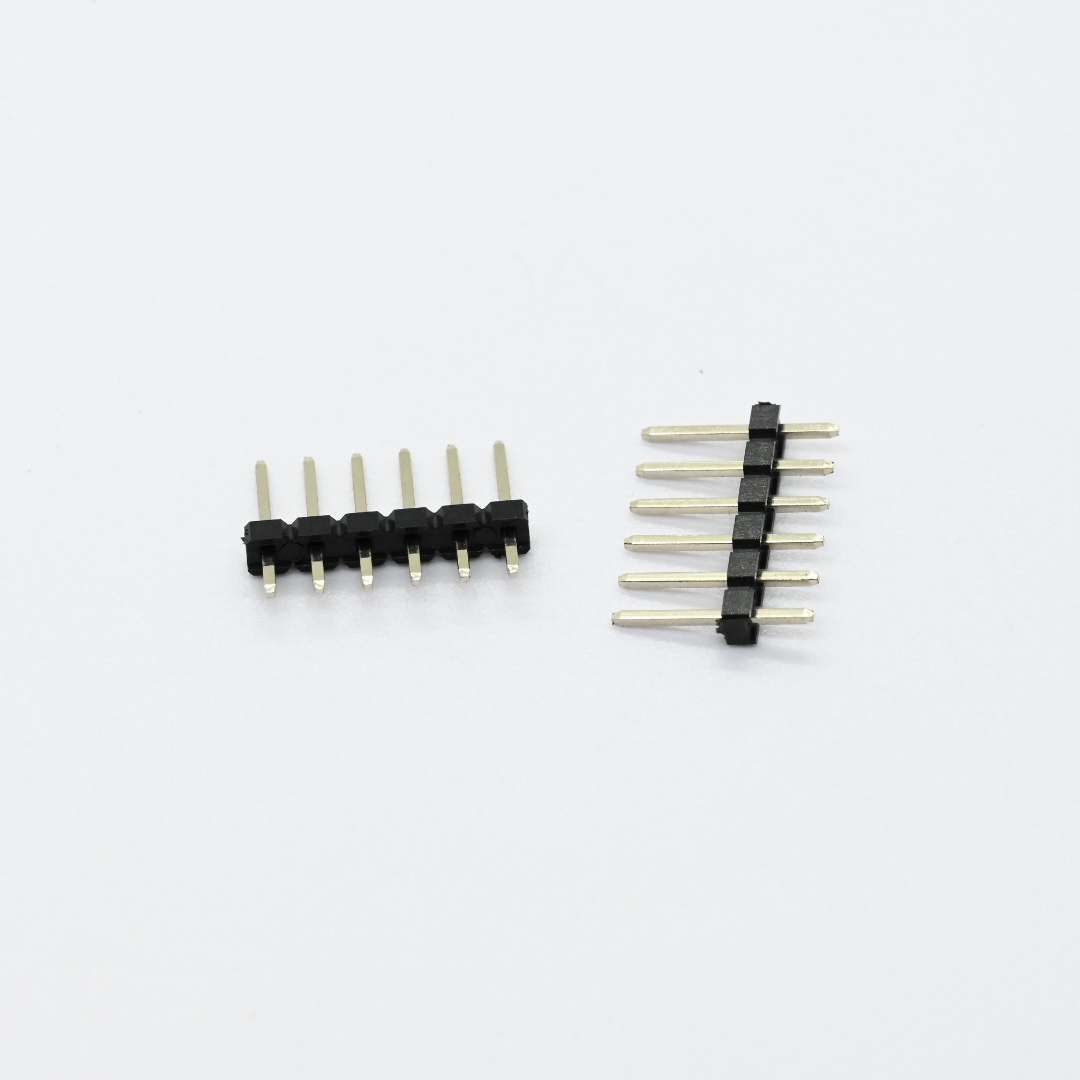

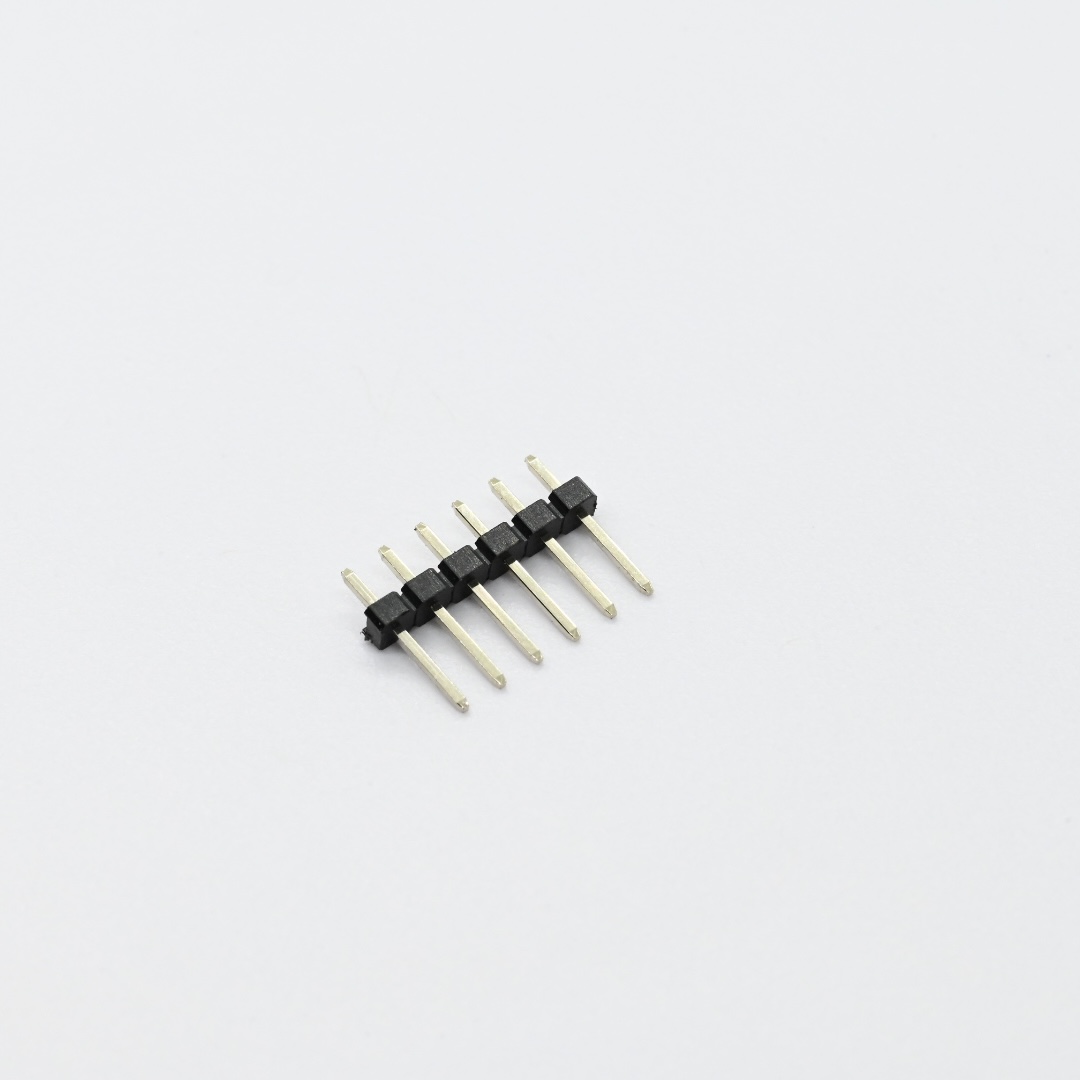

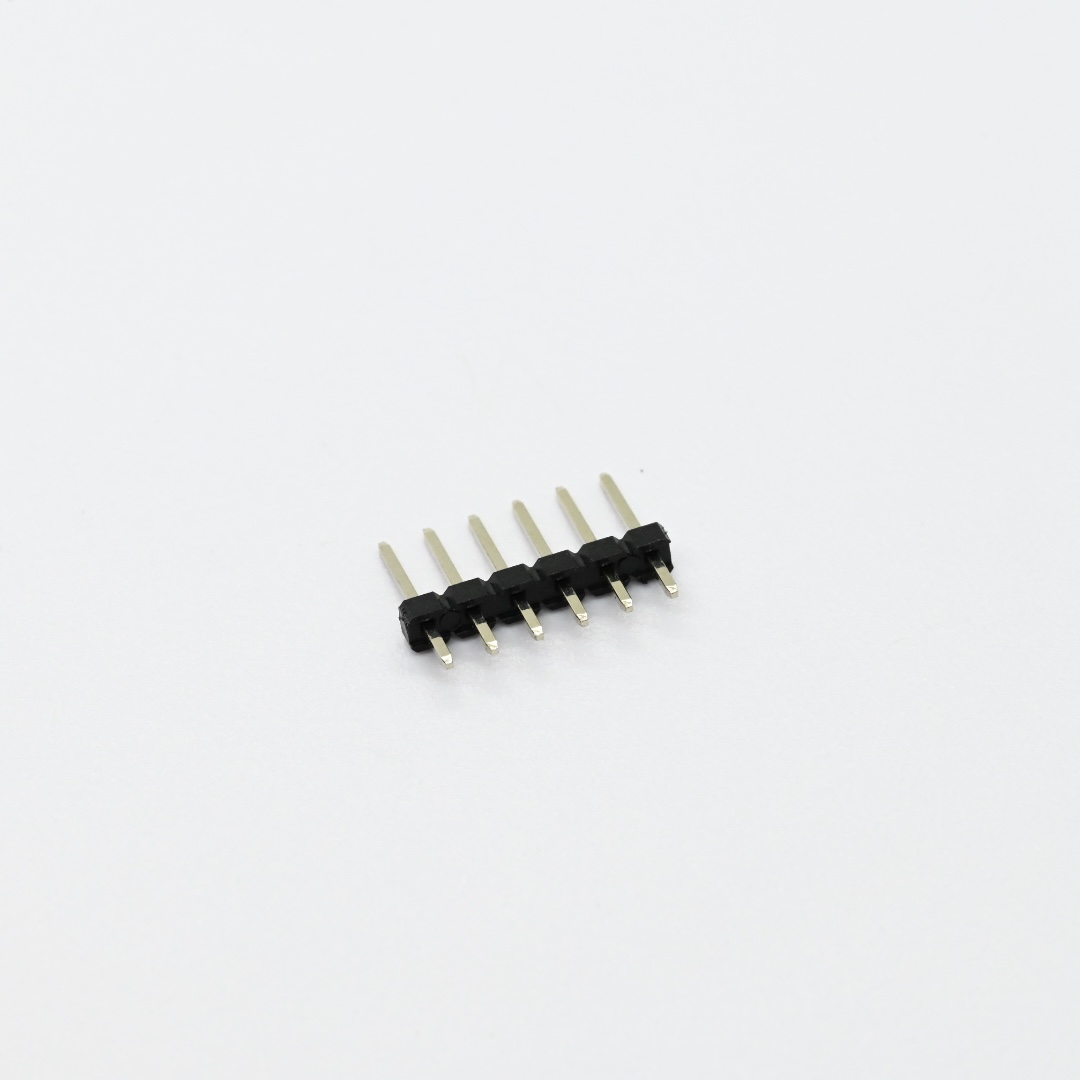

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures PHES01 series 2.54mm single row straight pin headers to deliver standard through-hole board-to-board interconnection for general and industrial PCB designs, supporting contact quantities ranging from 02P to 40P with customizable plastic heights H1 H2 H3 H4 and two optional pin lengths of 6.00mm and 3.00mm, matched with standardized PCB layout and unified multi-level dimensional tolerances to guarantee consistent precise soldering assembly. This straight pin header adopts black UL94V0 PBT as standard flame retardant insulator, with alternative insulator materials PA6T LCP PA46 PA9T available, square 0.64SQ conductive pins are made of brass with abundant plating options including gold flash, selective gold plating from 3u" to 30u" and pure tin plating, electrically rated for maximum 3A working current, 1000MΩ minimum insulation resistance, 20MΩ maximum contact resistance and AC500V dielectric withstand voltage, operating stably from minus 65 degrees Celsius to plus 125 degrees Celsius while fully complying with HSF lead-free and RoHS environmental standards, and supplied with diverse packaging solutions including tray bag tube tape reel and tape reel with cap to match automated mass production lines. This universal single row straight pin header is widely applied in liquid crystal display modules, digital cameras, communication hardware, industrial control panels, portable storage devices, digital home appliances, electronic toys, computer peripherals, automotive electronic assemblies and precision measuring instruments requiring simple stable PCB connection. Operators need to select proper pin count plastic height pin length plating type and packaging mode according to circuit layout and production demands, complete standard through-hole soldering following official PCB layout drawings, avoid violent bending and extrusion to prevent PBT housing cracking and brass pin permanent deformation, and store finished headers in dry sealed packages to slow plating layer oxidation. Unlike competitors outsourcing mold development and electroplating Antenk owns full independent production workflows covering self-developed plastic and metal precision mold manufacturing, high-speed brass terminal stamping, high-temperature plastic injection molding, multi-spec gold tin electroplating and comprehensive high-low temperature reliability laboratory testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications and conforming to REACH international green electronic regulations. We own more than two hundred fifty plastic connector molds and one ：hundred eighty metal terminal molds, provide full customization on pin count dimension plating and packaging, offer round-the-clock professional engineering technical support, and over seventy percent of our pin header products are exported globally supported by our Guangdong Famous Trademark ANTENK and steady mass production quality consistency.

1. Multi-Height Black PBT Housing provides multiple plastic height options and UL94V0 flame retardant performance for 2.54mm single row pin header assemblies.

2. Graded Gold Square Brass Pin offers various gold plating thickness selections and stable conductive performance under wide temperature working conditions.

3. Custom-Length Single Row Header supports adjustable 3.00mm and 6.00mm pin lengths to fit diverse through-hole PCB wiring requirements.

Detailed Specifications：

1. Electrical Parameters

1.1 Rated Current: 3 Amp

1.2 Dielectric Withstanding Voltage: AC500V

1.3 Minimum Insulation Resistance: 1000M ohms

1.4 Maximum Contact Resistance: 20M ohms

2. Material Information

2.1 Contact Pin Raw Material: Brass, 0.64SQ square pin

2.2 Standard Insulator: Black PBT UL94V-0

2.3 Optional Insulator Materials: PA6T, LCP, PA46, PA9T

2.4 Contact Plating Options: Gold flash, 3u" to 30u" full gold, 3u" to 30u" selective gold, pure tin

3. Structural & Pitch Specifications

3.1 Pitch Size: 2.54mm

3.2 Type: Single row straight through-hole header

3.3 Contact Quantity Range: 01P to 40P

3.4 Plastic Height Options: H1=1.7mm, H2=2.54mm, H3=2.00mm, H4=1.50mm

3.5 Pin Length Options: A=6.00mm, B=3.00mm

4. Dimensional Standards (Unit: mm)

4.1 Base pitch interval fixed at 2.54mm

4.2 Unified tolerance rules: shtur±0.15, X.XX±0.20, X.X±0.25, X.±0.35

4.3 Customizable overall length matched with pin count

5. Environmental Performance

5.1 Operating Temperature Range: -65°C ~ +125°C

6. Compliance Standards

6.1 HSF lead-free and RoHS compliant

7. Available Packaging Modes

7.1 Tray, Bag, Tube, Tube+CAP, Tape&Reel, Tape&Reel+CAP

8. Application Scenarios

8.1 LCD modules, digital cameras

8.2 Communication devices, industrial control panels

8.3 Portable storage, digital home appliances

8.4 Electronic toys, computer peripherals

8.5 Automotive electronics, precision measuring instruments

9. Operation & Storage Precautions

9.1 Confirm pin count, plastic height, pin length, plating and packaging before ordering

9.2 Complete standard through-hole soldering following official PCB layout drawings

9.3 Avoid excessive bending force to prevent brass pin fatigue and plastic housing cracking

9.4 Store finished headers in dry sealed packages to prevent plating oxidation

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

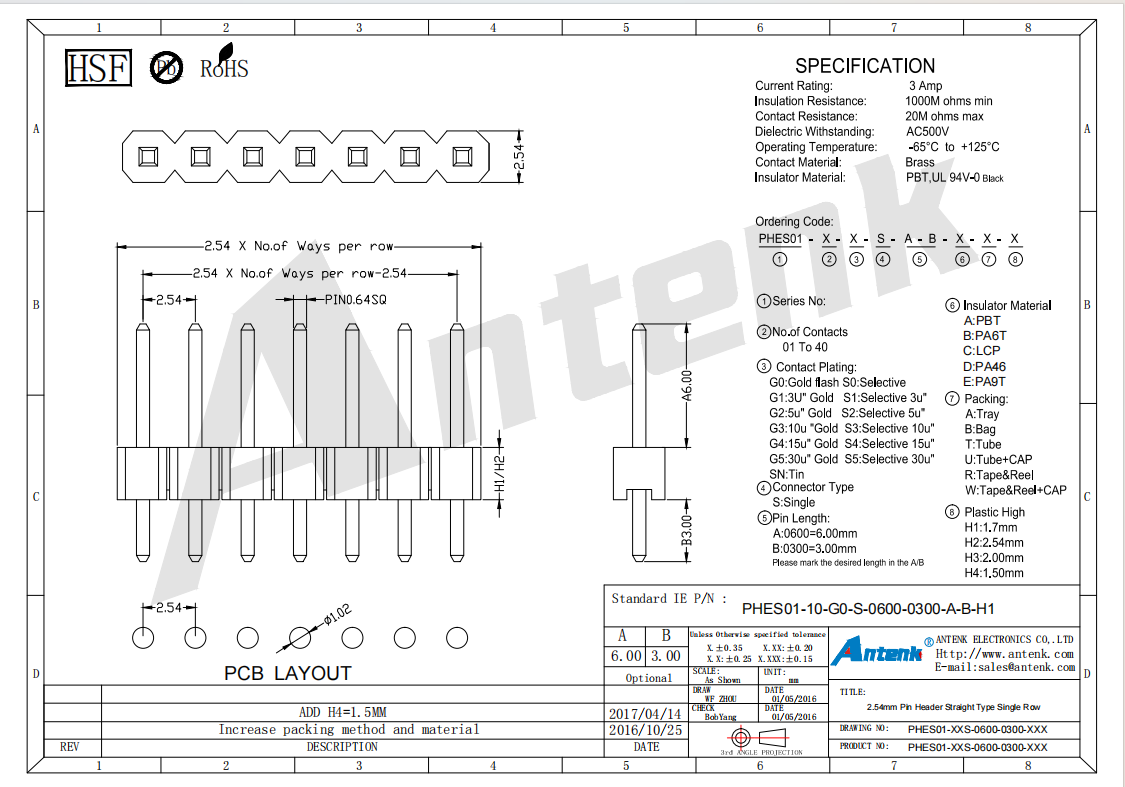

Product Drawing：
