2.50mm White Matching Wafer Housing

2.50mm White Matching Wafer Housing

2 week ago

1 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. produces AH2512-xP series 2.50mm pitch connector housings as matching mating shells for AW2512 series wafer connectors and compatible with AT2512T terminals, delivering stable wire-to-board matching connection for compact PCB wiring layouts and supporting pole specifications ranging from 2P to 15P with exclusive A B C dimension parameters for each pole count and unified multi-level dimensional tolerances to ensure seamless assembly with matched terminals and wafers. This connector housing adopts white UL94V0 Nylon 66 as flame retardant insulating material, electrically matched for 3A alternating and direct current, 500V AC DC nominal voltage, 1000V AC one minute dielectric withstand voltage and minimum 500MΩ insulation resistance, operating reliably between minus 40 degrees Celsius and plus 105 degrees Celsius while fully complying with HSF lead-free RoHS and REACH international environmental standards, standard fixed structural sizes including 7.62mm width, 4.00mm bottom thickness and 9.30mm height for universal assembly compatibility. This standard matching wafer housing is widely deployed in liquid crystal display modules, digital cameras, communication hardware, industrial control equipment, portable storage devices, digital household appliances, electronic toys, computer peripherals, automotive electronic assemblies and precision measuring instruments requiring matched wire-to-board connection collocation. Operators need to select matching pole housing according to supporting wafer and terminal specifications, complete terminal crimping and housing insertion following official dimension drawings, avoid heavy impact or extrusion to prevent nylon housing crack and internal terminal slot deformation, and store finished housings in dry sealed packaging to avoid plastic aging and dust contamination. Unlike competitors outsourcing mold production and plastic molding Antenk owns full independent production workflows covering self-developed plastic precision mold manufacturing, high-temperature nylon injection molding and comprehensive high-low temperature reliability laboratory testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications and conforming to REACH green electronic regulations. We possess more than two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, provide customizable pole quantity options, offer round-the-clock professional engineering technical support, and over seventy percent of our connector housing products are exported globally supported by our Guangdong Famous Trademark ANTENK and consistent stable mass production quality.

1. UL94V0 Nylon Connector Shell provides excellent flame retardant property and stable insulation for 2.50mm pitch wire-to-board matching assemblies.

2. 2P-15P Mating Wafer Housing perfectly matches AW2512 series wafer connectors and AT2512T terminals for diversified circuit wiring demands.

3. RoHS REACH White Plastic Shell fully meets global environmental standards and works steadily within -40°C to +105°C wide temperature range.

Detailed Specifications：

1. Electrical Performance

1.1 Rated Current: 3A AC/DC

1.2 Rated Voltage: 500V AC/DC

1.3 Dielectric Withstanding Voltage: 1000V AC per minute

1.4 Minimum Insulation Resistance: 500MΩ

2. Material & Appearance

2.1 Housing Material: Nylon 66 with UL94V-0 flame retardant grade

2.2 Color: White

3. Matching Compatibility

3.1 Matched Terminal: AT2512T series terminals

3.2 Mating Partner: AW2512 series wafer connectors

4. Structural & Pole Specifications

4.1 Fixed Pitch: 2.50mm

4.2 Pole Range: 2P to 15P

5. Dimension Parameters (Unit: mm)

5.1 Fixed overall structural size: Width 7.62, Base thickness 4.00, Height 9.30

5.2 Independent A, B, C length dimensions for each pole count from 2P to 15P

5.3 Unified dimensional tolerance standard: X.±0.35, X.X±0.25, X.XX±0.20, shtur±0.15

6. Environmental Working Condition

6.1 Operating Temperature Range: -40°C ~ +105°C

7. Environmental Compliance

7.1 Comply with RoHS and REACH standards

8. Application Scenarios

8.1 Liquid crystal display modules, digital cameras

8.2 Communication equipment, industrial control panels

8.3 Portable storage devices, digital household appliances

8.4 Electronic toys, computer peripheral hardware

8.5 Automotive electronic modules, precision measuring instruments

9. Operation & Storage Precautions

9.1 Select housing pole quantity consistent with matched AW2512 wafer and AT2512T terminals

9.2 Complete terminal crimping and insertion into housing strictly follow official dimension drawings

9.3 Avoid heavy impact, extrusion or squeezing to prevent nylon housing cracking and internal slot deformation

9.4 Store finished housings in dry sealed packages to prevent dust pollution and plastic aging

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

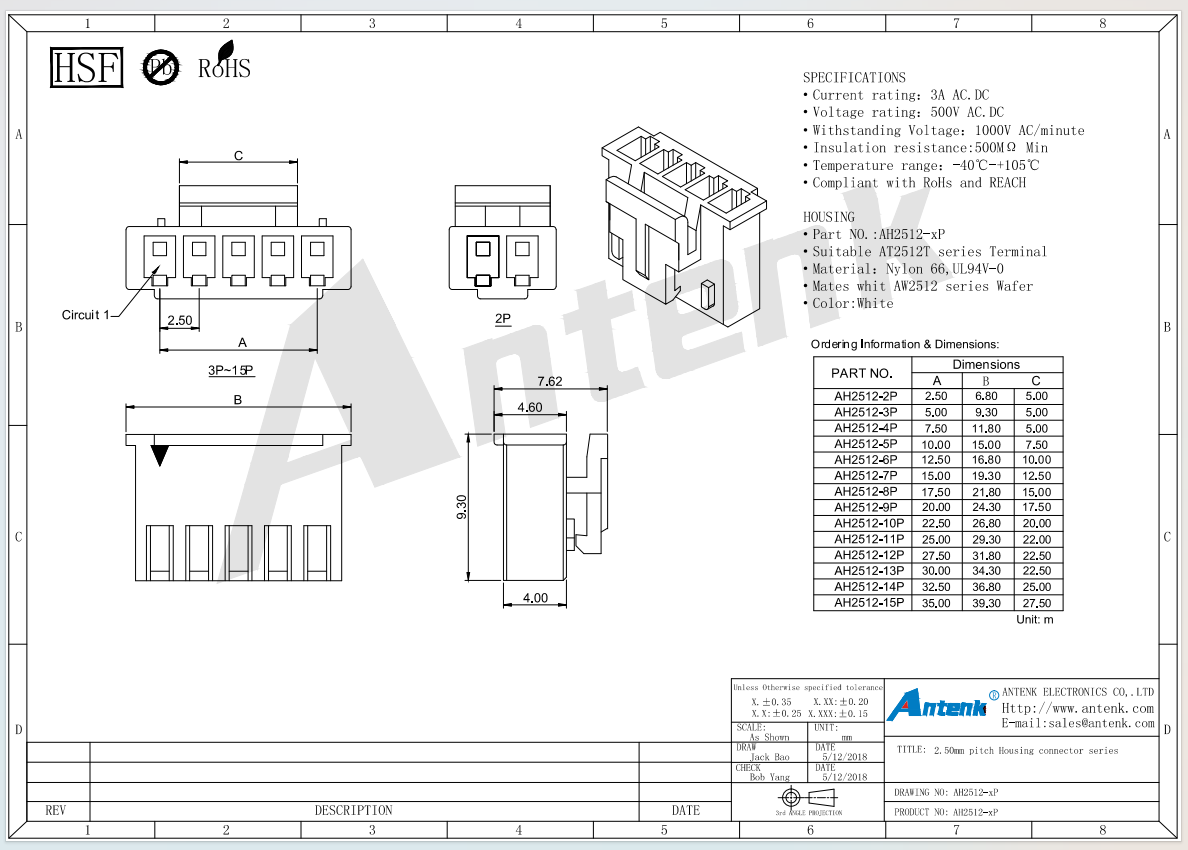

Product Drawing：

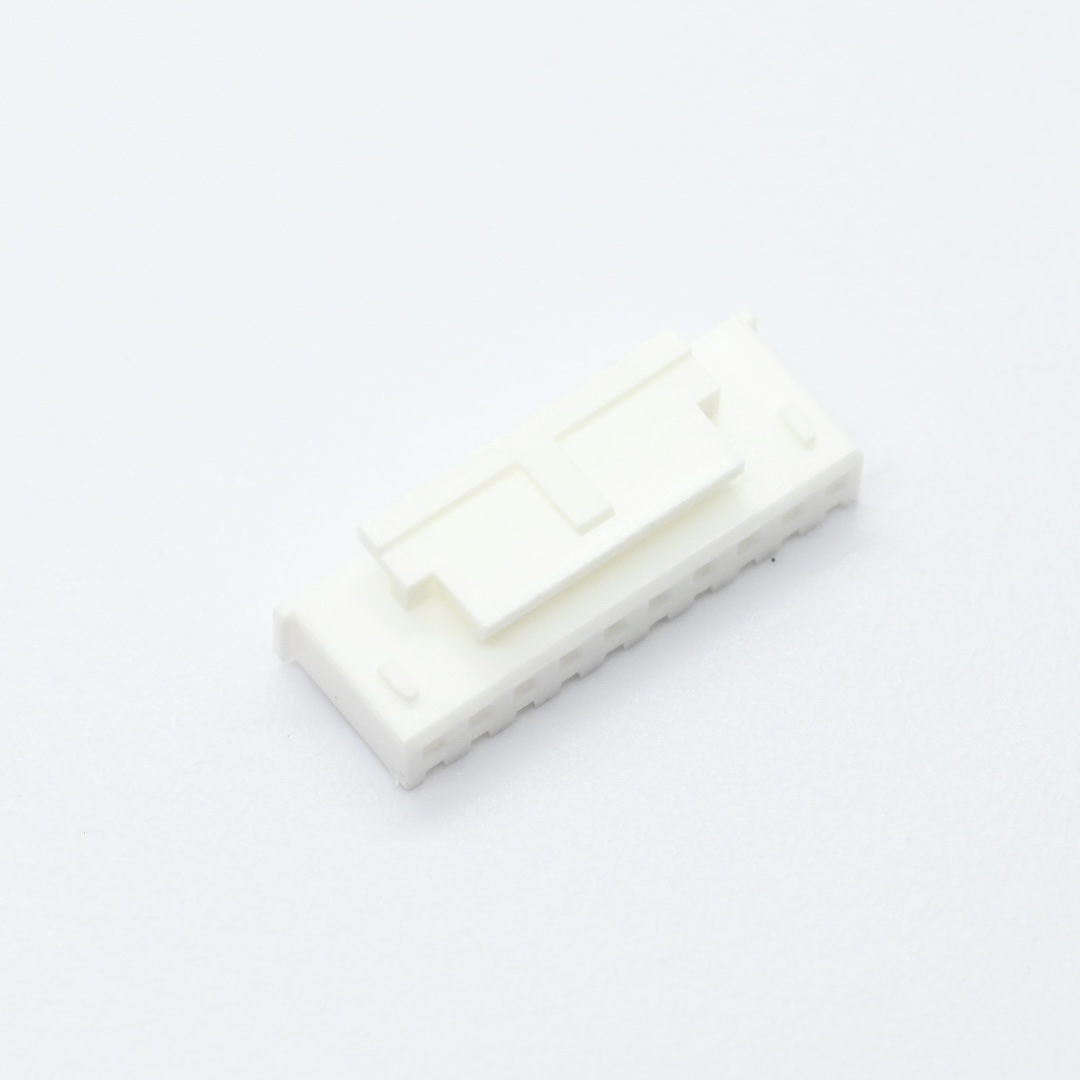

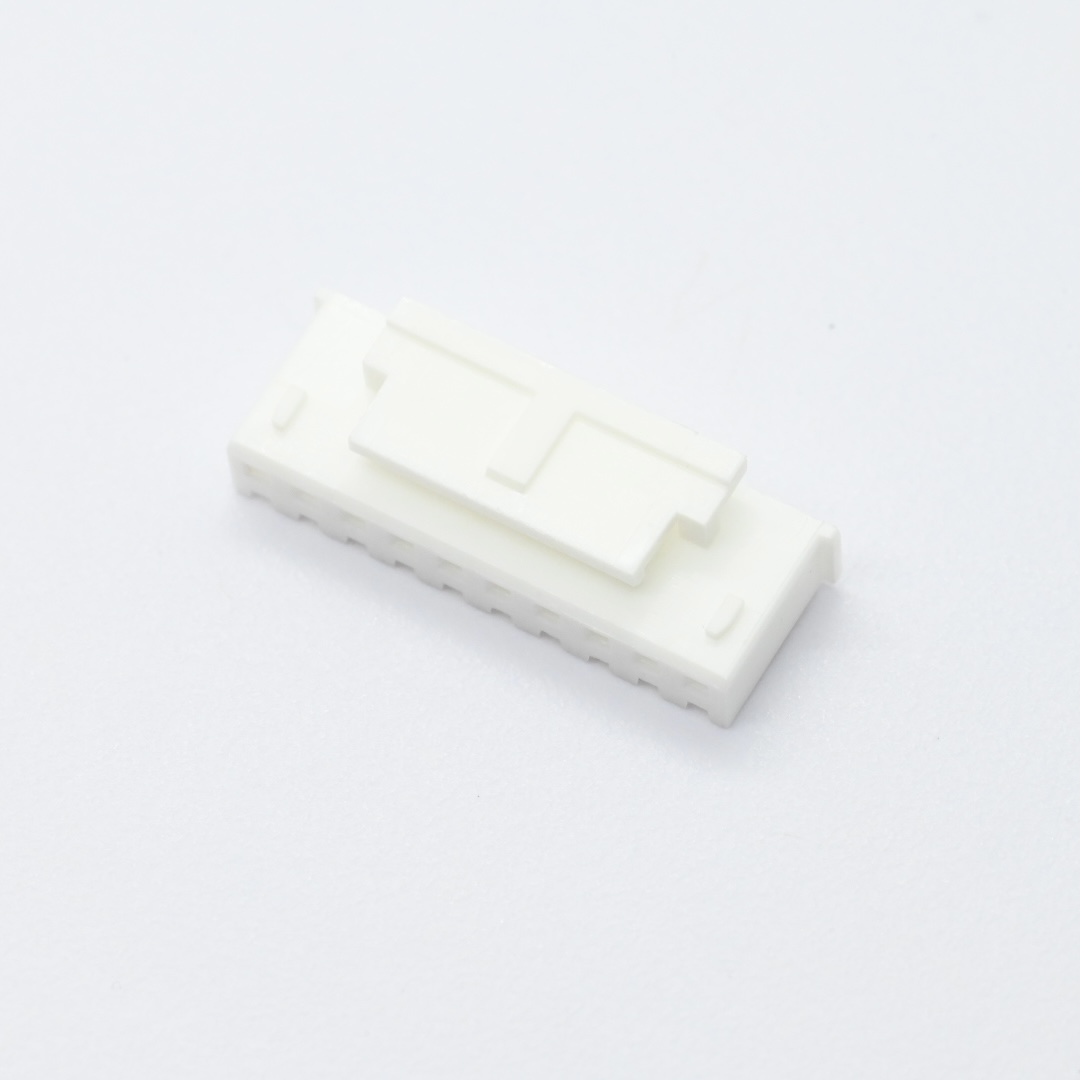

AH2512-10P+2.50mm pitch Housing connector series（6）

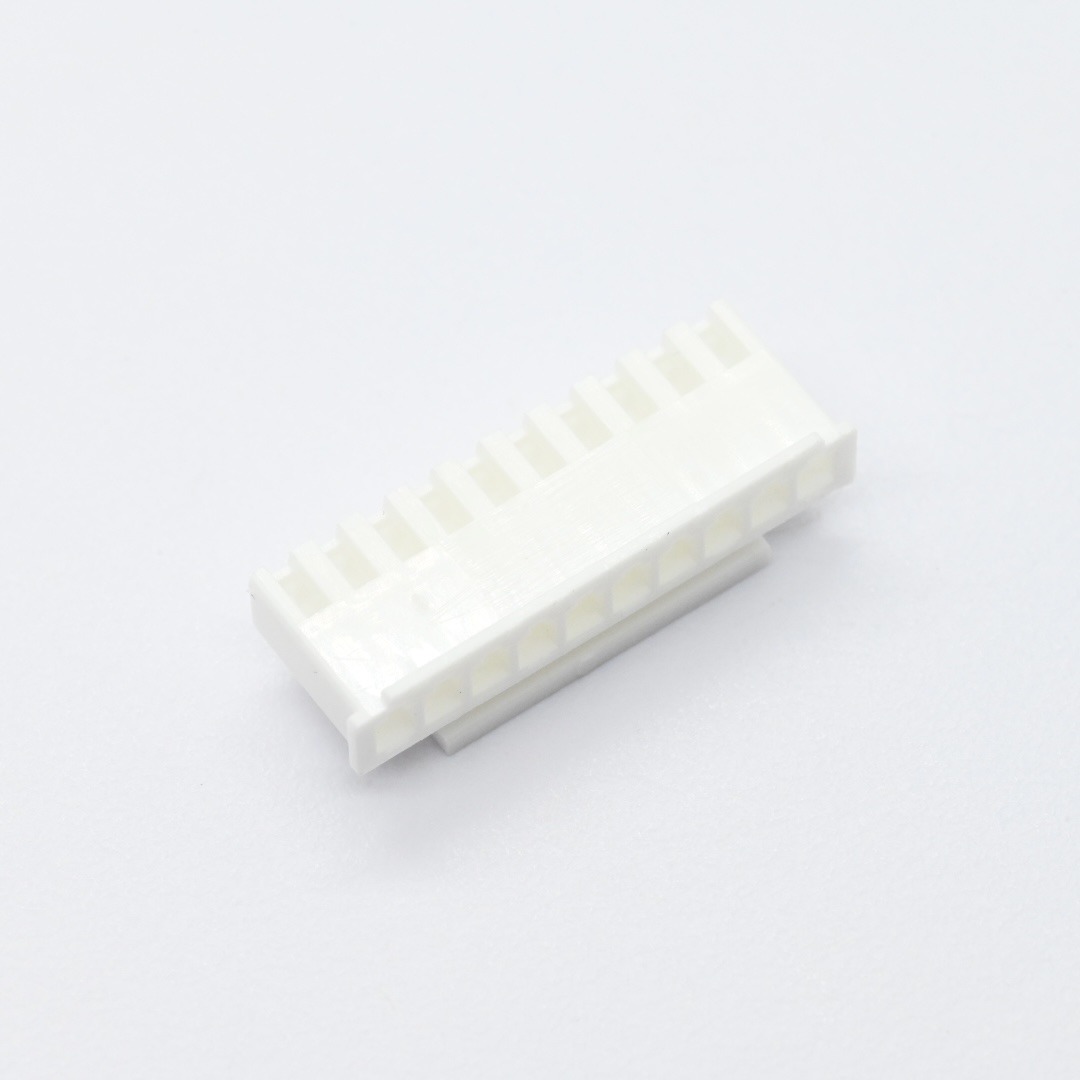

AH2512-10P+2.50mm pitch Housing connector series（4）

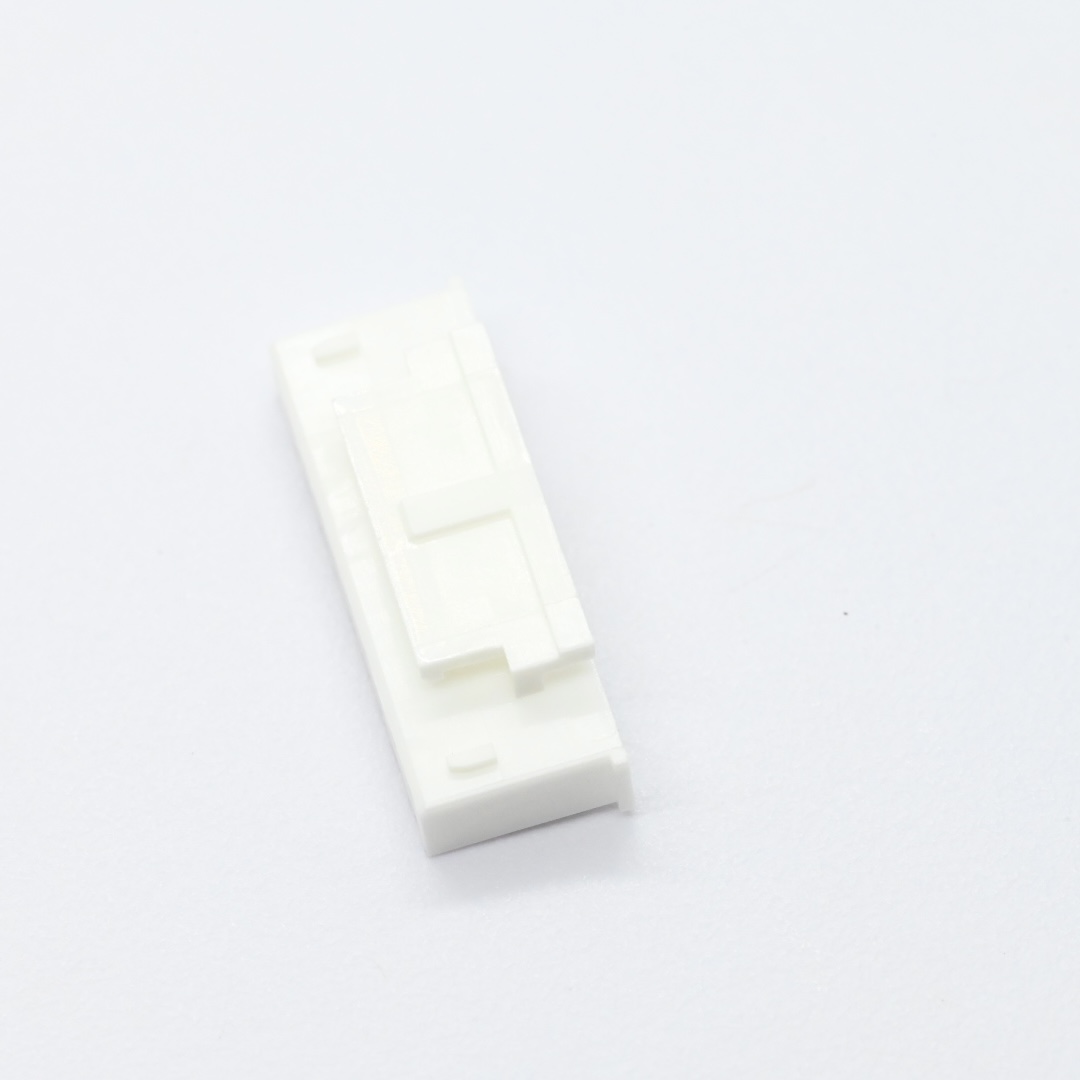

AH2512-10P+2.50mm pitch Housing connector series（5）

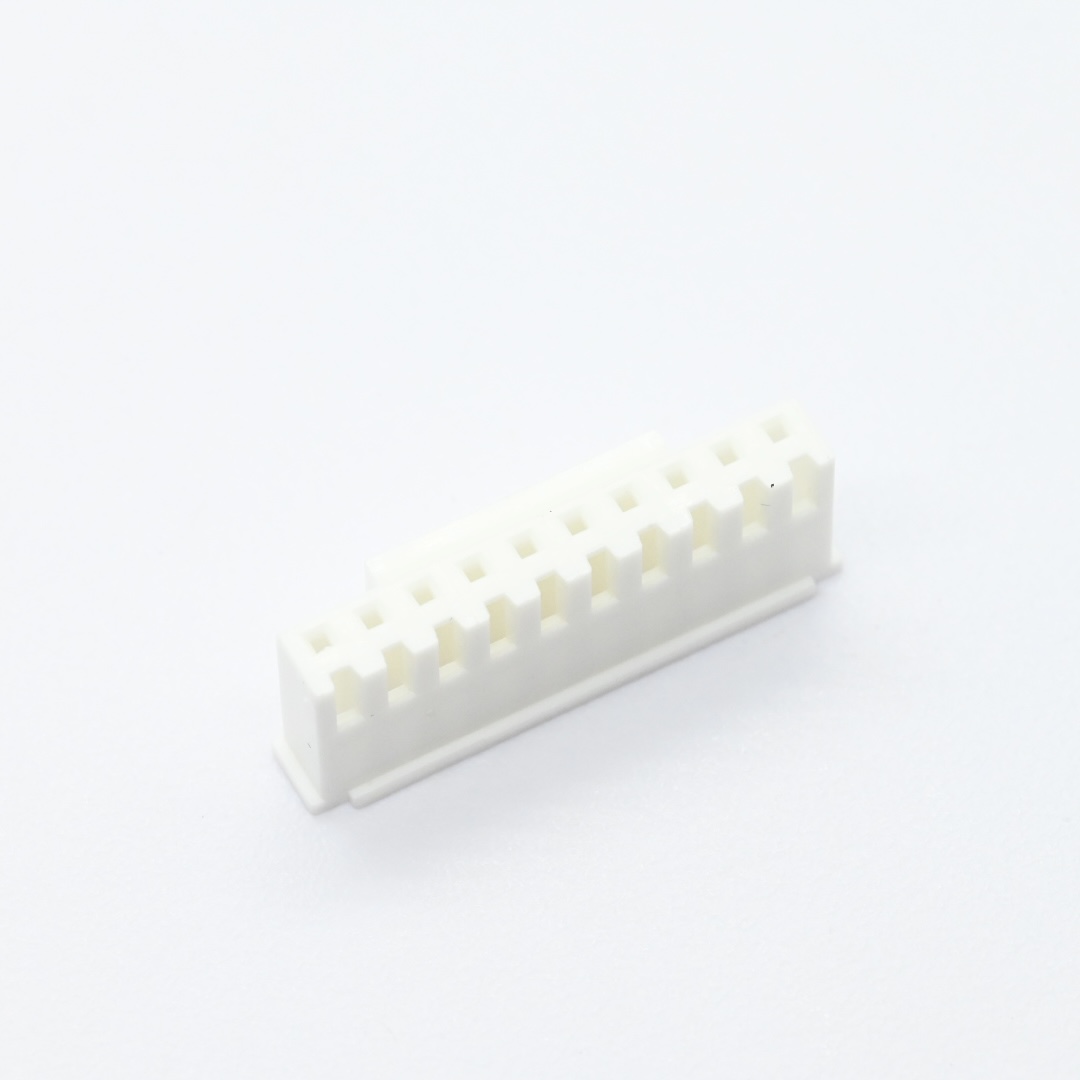

AH2512-10P+2.50mm pitch Housing connector series（3）

AH2512-10P+2.50mm pitch Housing connector series（2）

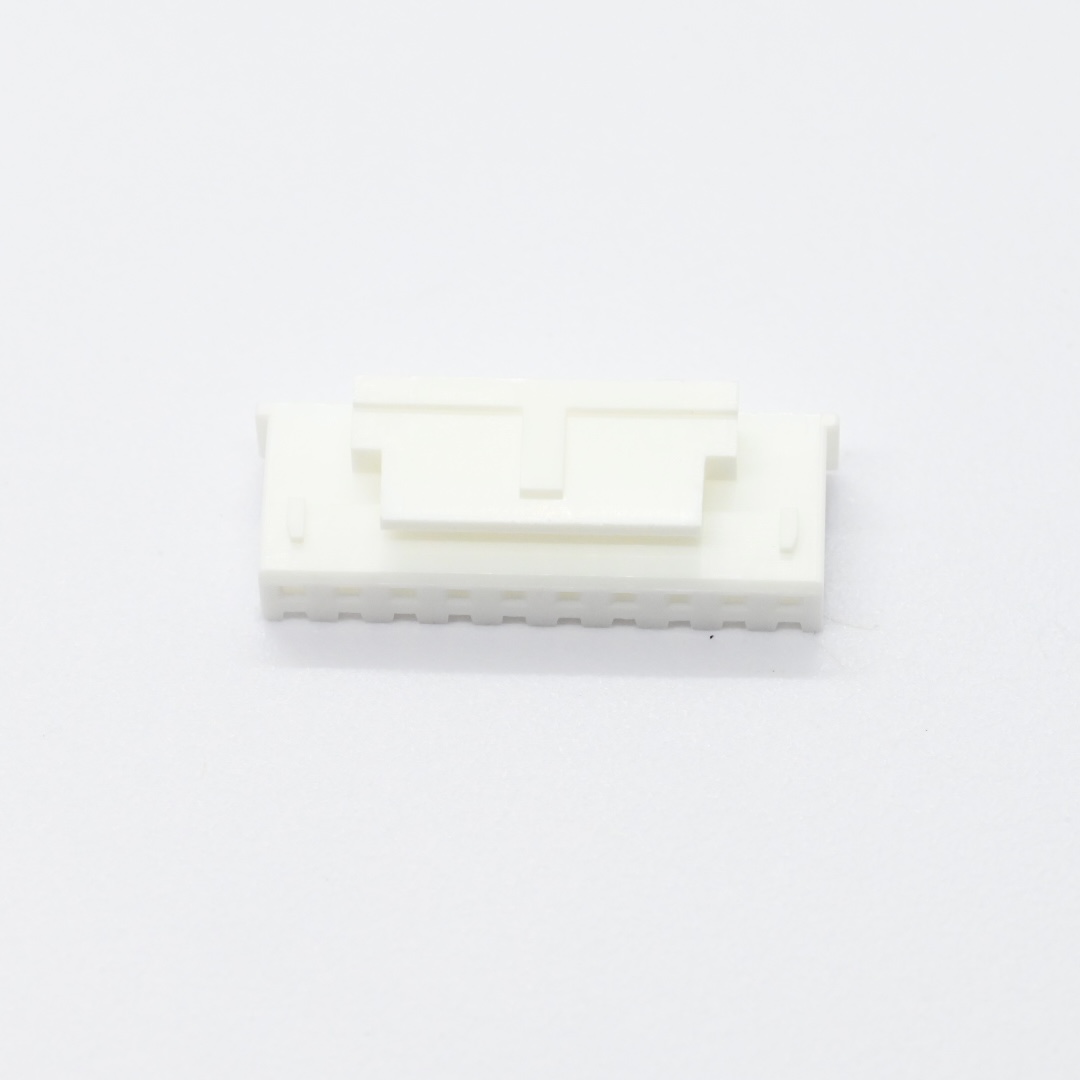

AH2512-10P+2.50mm pitch Housing connector series（1）
