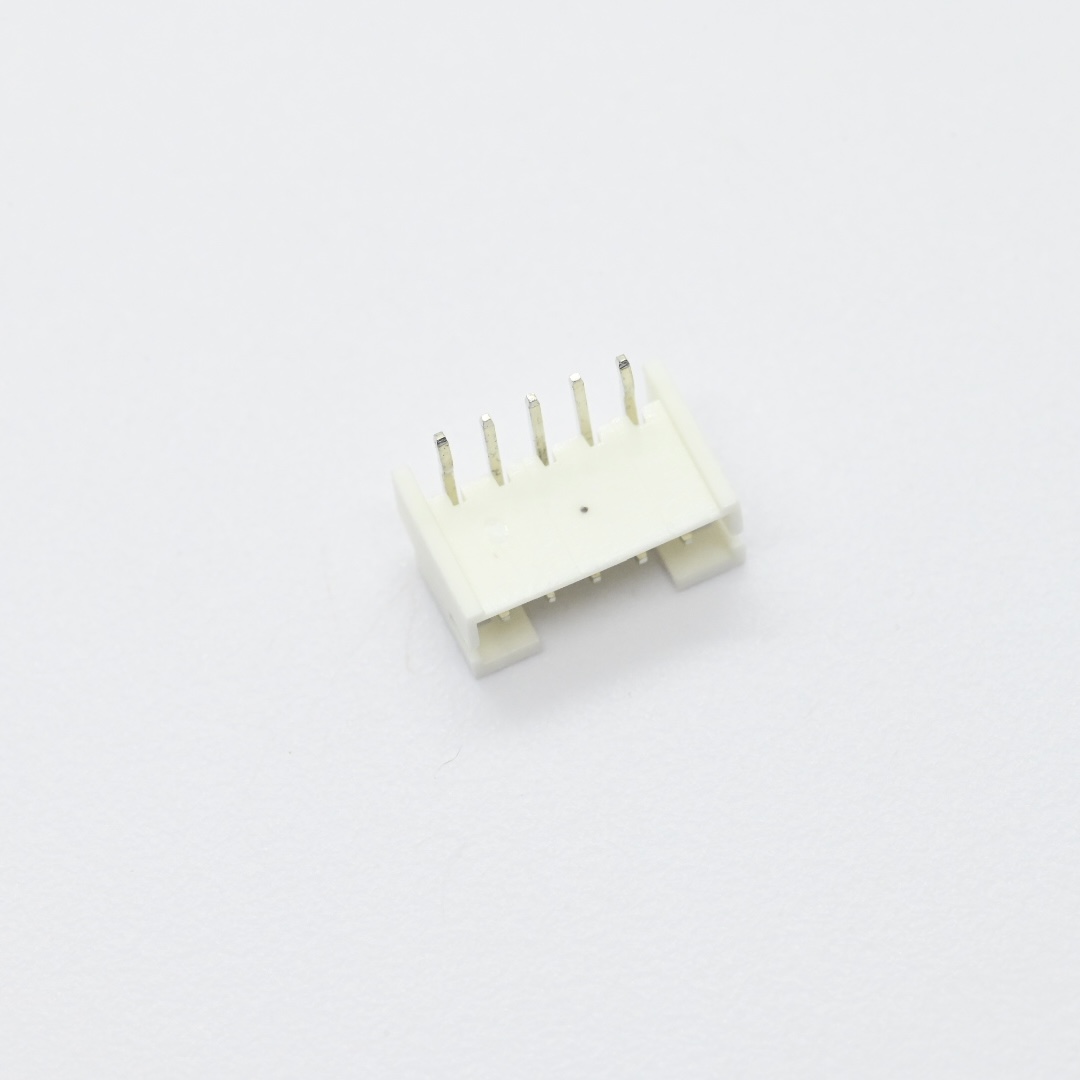

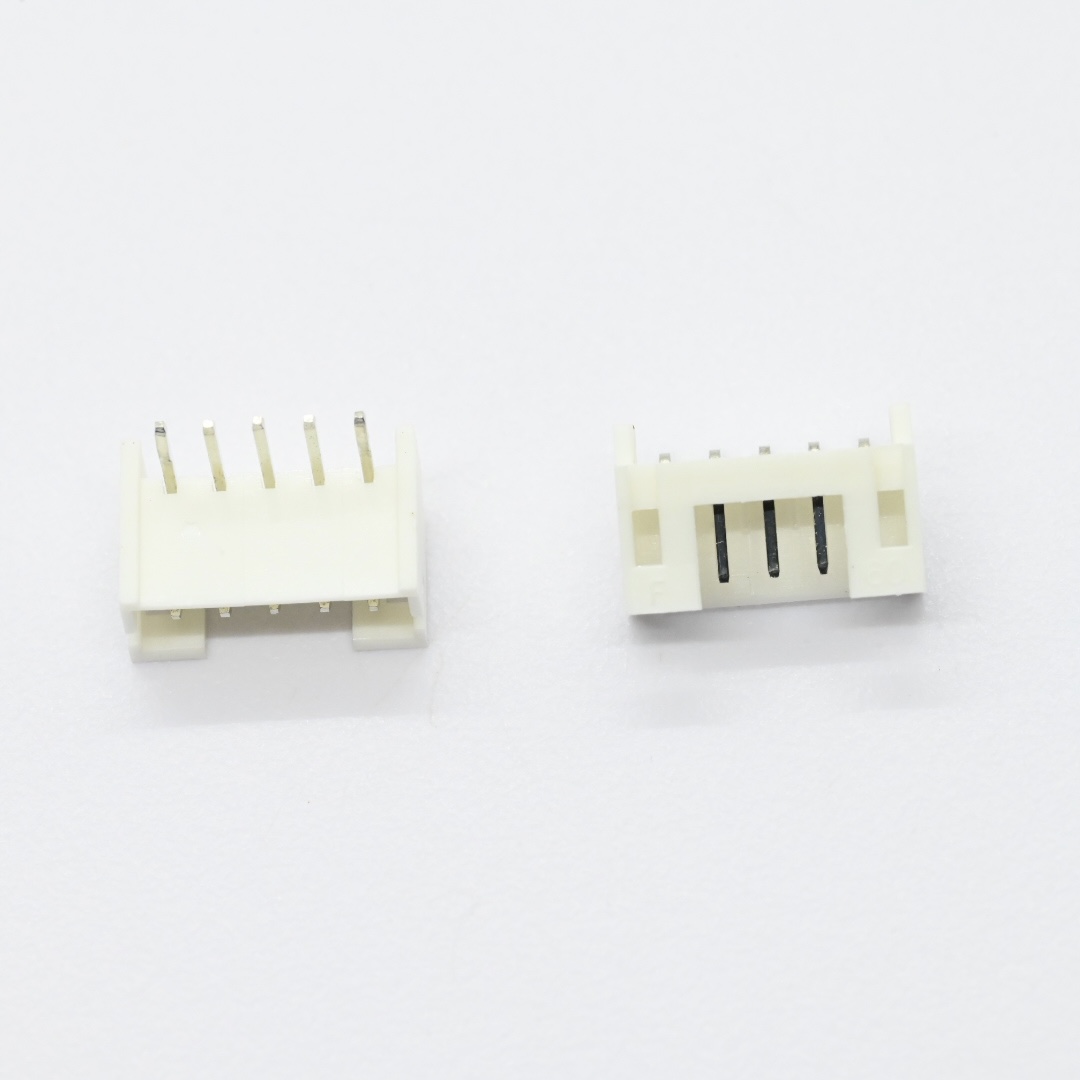

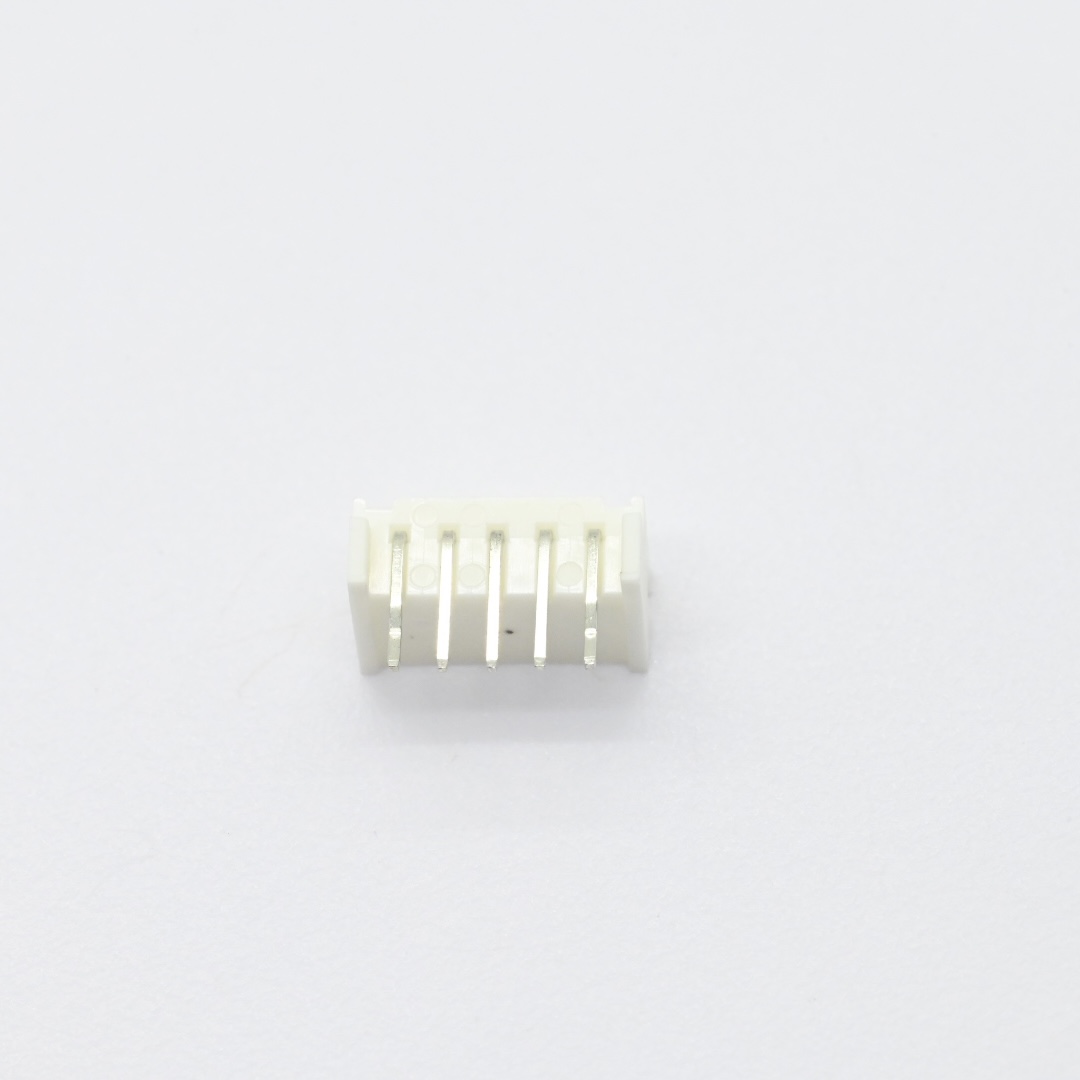

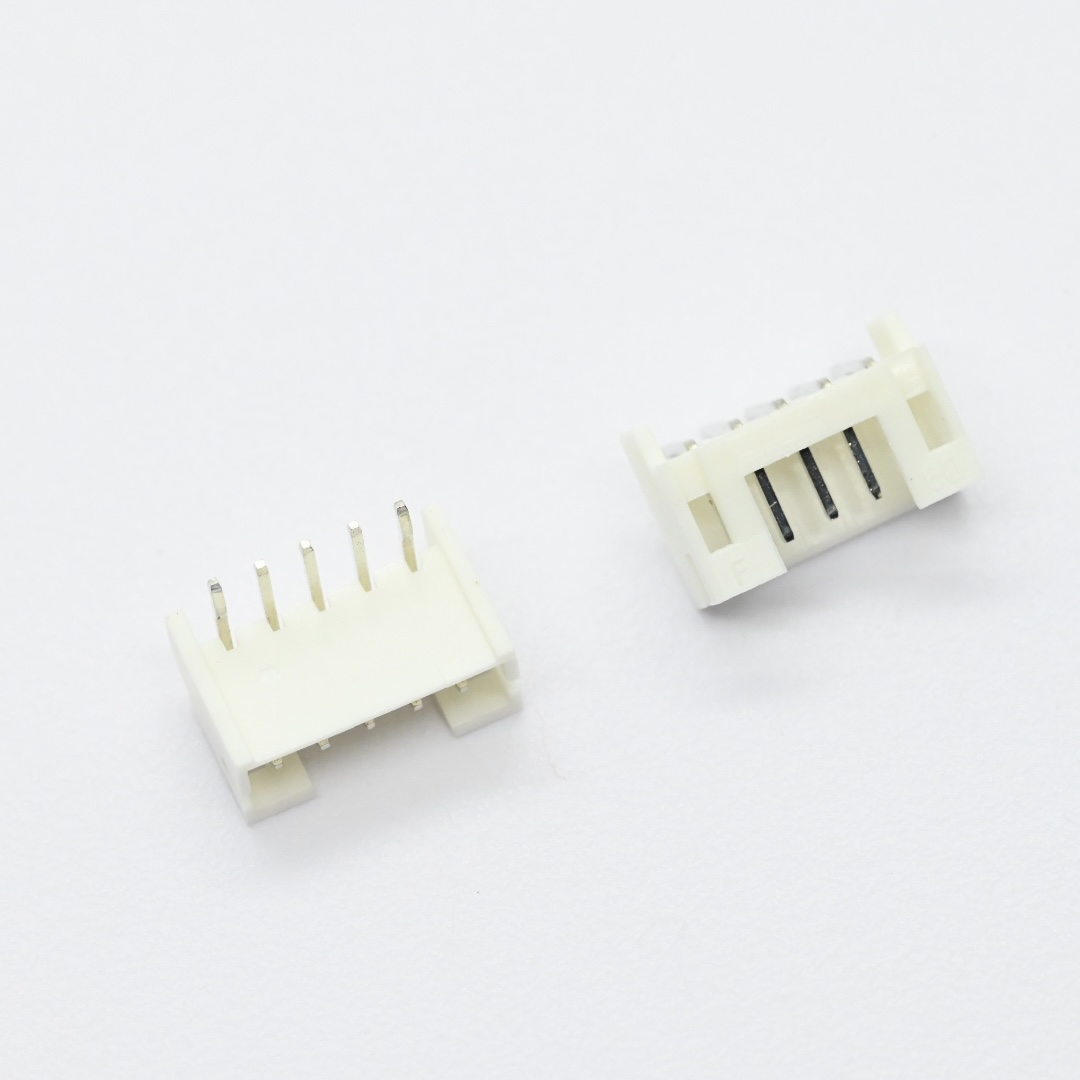

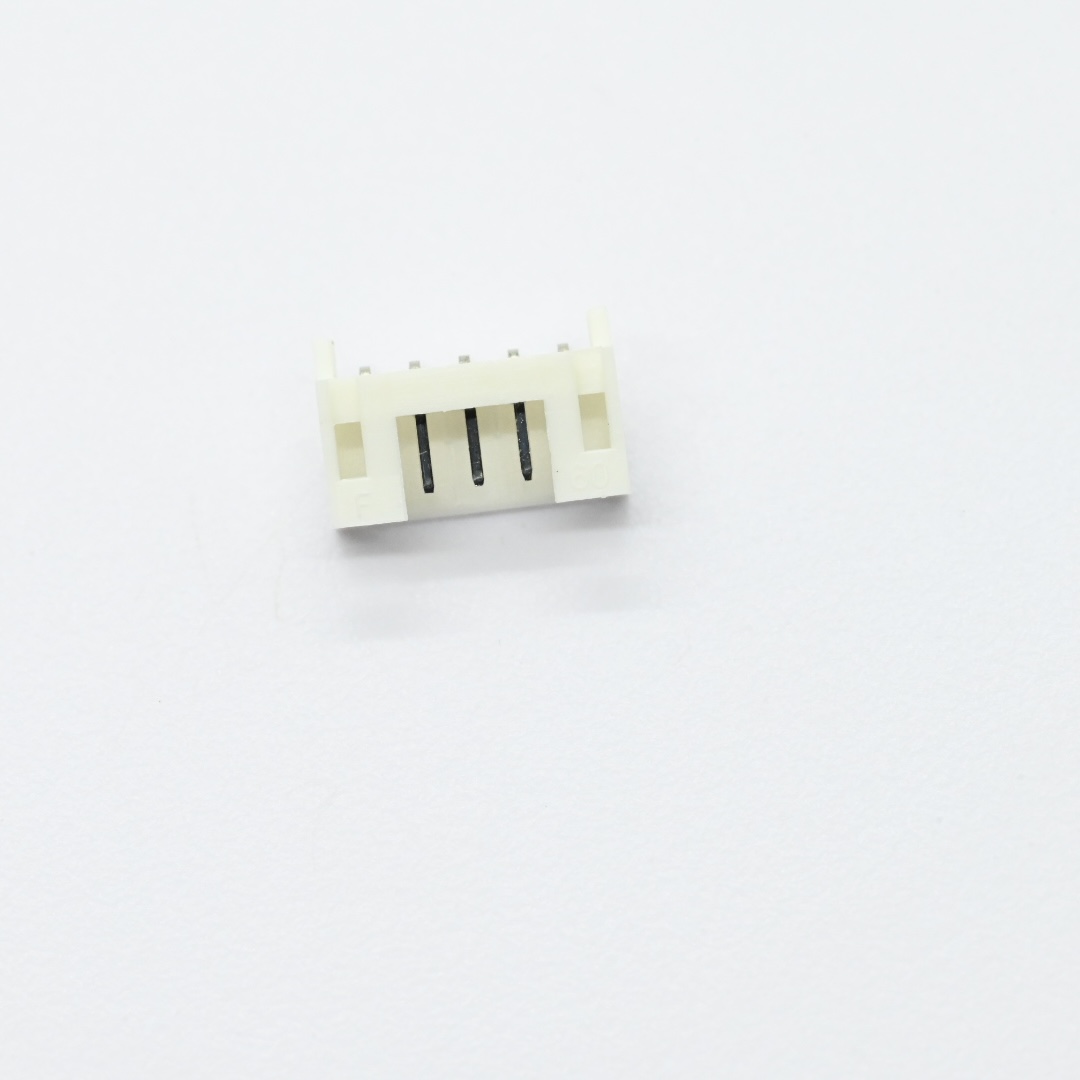

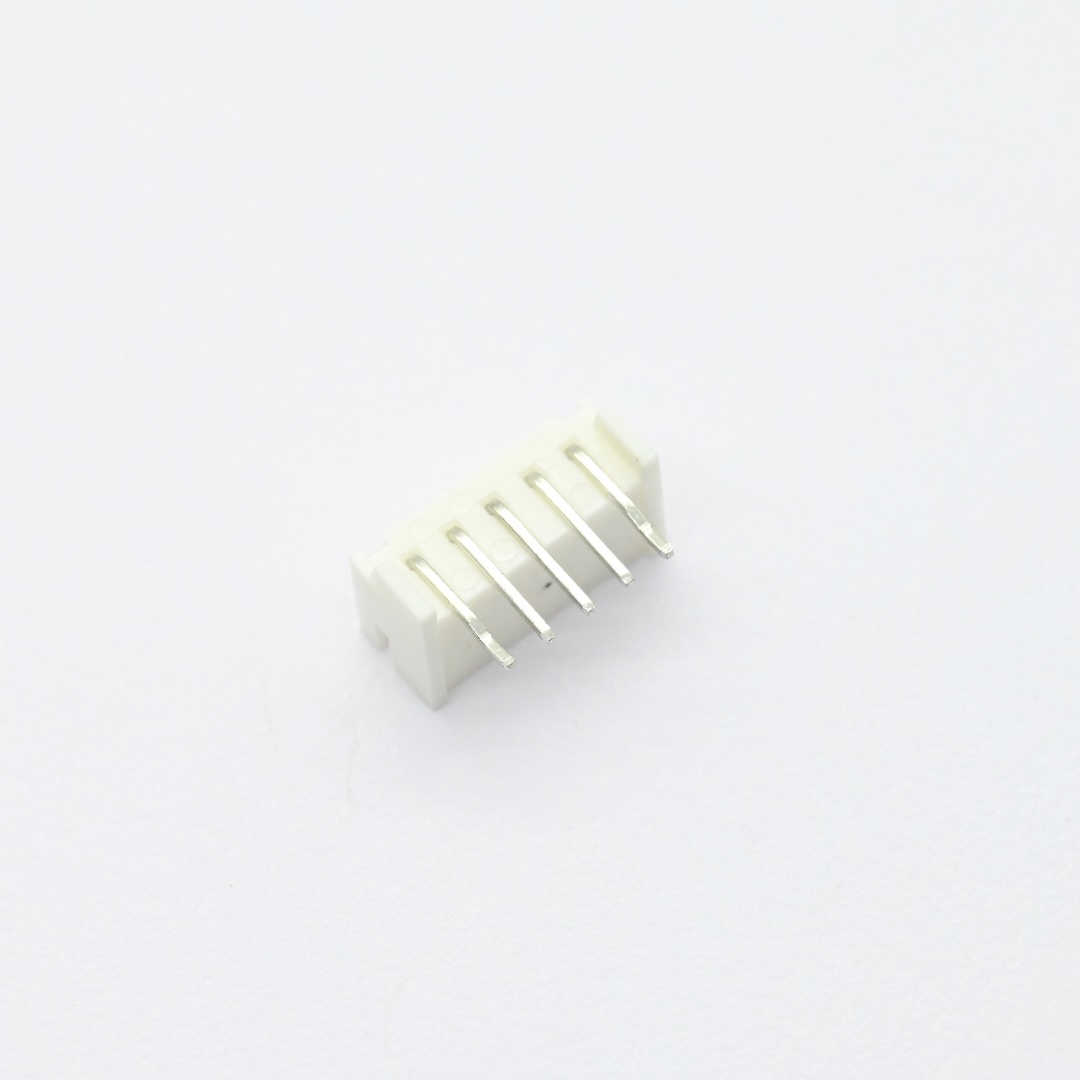

Huizhou Antenk Electronics Co., Ltd. manufactures AW2001R-S-xxP series 2.00mm pitch 90 degree SMT wafer connectors to deliver compact right-angle wire-to-board surface mount interconnection for miniature PCB layouts, supporting pole quantities ranging from 02P to 20P with exclusive fixed B dimension for each pole variant and standardized SMT PCB layout paired with unified multi-level dimensional tolerances to guarantee precise reflow soldering assembly. This SMT wafer connector adopts white UL94V0 Nylon 6T as high-temperature flame retardant insulator, square 0.50SQ conductive pins are made of brass with nickel-tin double plating for stable conduction and long-term anti-corrosion performance, electrically rated for 2A alternating and direct current, 100V AC DC nominal voltage, 800V AC one minute dielectric withstand voltage and minimum 1000MΩ insulation resistance, operating steadily from minus 40 degrees Celsius to plus 105 degrees Celsius while fully complying with HSF lead-free and RoHS environmental standards, and perfectly mates with AH2001 series plastic housings to complete full wire connection assemblies. This narrow-pitch right-angle SMT wafer connector is widely applied in liquid crystal display modules, digital cameras, communication hardware, industrial control panels, portable storage devices, digital household appliances, electronic toys, computer peripherals, automotive electronic assemblies and precision mini measuring instruments requiring space-saving surface mount wiring links. Operators should select proper pole quantity according to circuit layout space and load parameters, finish standard SMT reflow soldering following official PCB layout drawings, avoid violent squeezing and bending to prevent nylon insulator cracking and brass pin permanent deformation, and store finished connectors in dry sealed packaging to slow nickel-tin plating oxidation. Unlike competitors outsourcing mold development and electroplating Antenk owns full independent production workflows covering self-developed plastic and metal precision mold fabrication, high-speed brass terminal stamping, high-temperature nylon injection molding, nickel-tin electroplating and comprehensive high-low temperature reliability laboratory testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications and conforming to REACH international green electronic regulations. We own more than two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, provide customizable pole quantity options, offer round-the-clock professional engineering technical support, and over seventy percent of our wafer connector products are exported globally relying on our Guangdong Famous Trademark ANTENK and consistent stable mass production quality.
Detailed Specifications :
1. Electrical Parameters
1.1 Rated Voltage: 100V AC/DC
1.2 Rated Current: 2A AC/DC
1.3 Dielectric Withstanding Voltage: 800V AC per minute
1.4 Minimum Insulation Resistance: 1000MΩ
2. Material Composition
2.1 Insulator Housing: White Nylon 6T, UL94V-0 flame retardant grade
2.2 Contact Pin Base Material: Brass
2.3 Pin Plating: Tin over Nickel double plating
2.4 Pin Size: 0.50 square mm
3. Structural & Matching Specifications
3.1 Pitch: 2.00mm ±0.10mm
3.2 Structure Type: 90° right-angle SMT surface mount wafer connector
3.3 Pole Range: 02P to 20P
3.4 Mating Part: Compatible with AH2001 series connector housing
4. Dimensional Standards (Unit: mm)
4.1 Fixed core dimensions: 1.00±0.05, 1.50±0.10, 1.60±0.10, 2.43±0.20, 5.50±0.25
4.2 Independent A and B length dimensions for each pole count from 02P to 20P
4.3 Unified dimensional tolerance rules: X.±0.35, X.X±0.25, X.XX±0.20, shtur±0.15
4.4 Standard PCB layout size reserved for SMT mounting
5. Environmental Performance
5.1 Operating Temperature Range: -40°C ~ +105°C
6. Environmental Compliance
6.1 Meet HSF lead-free and RoHS standards
7. Application Scenarios
7.1 LCD modules, digital cameras
7.2 Communication equipment, industrial control panels
7.3 Portable storage, digital home appliances
7.4 Electronic toys, computer peripheral hardware
7.5 Automotive electronics, precision measuring instruments
8. Operation & Storage Precautions
8.1 Select matching pole quantity to cooperate with AH2001 series housing
8.2 Complete SMT reflow soldering strictly follow official PCB layout drawings
8.3 Avoid strong extrusion or bending to prevent Nylon 6T housing crack and brass pin deformation
8.4 Store finished connectors in dry sealed packages to prevent nickel-tin plating oxidation
FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

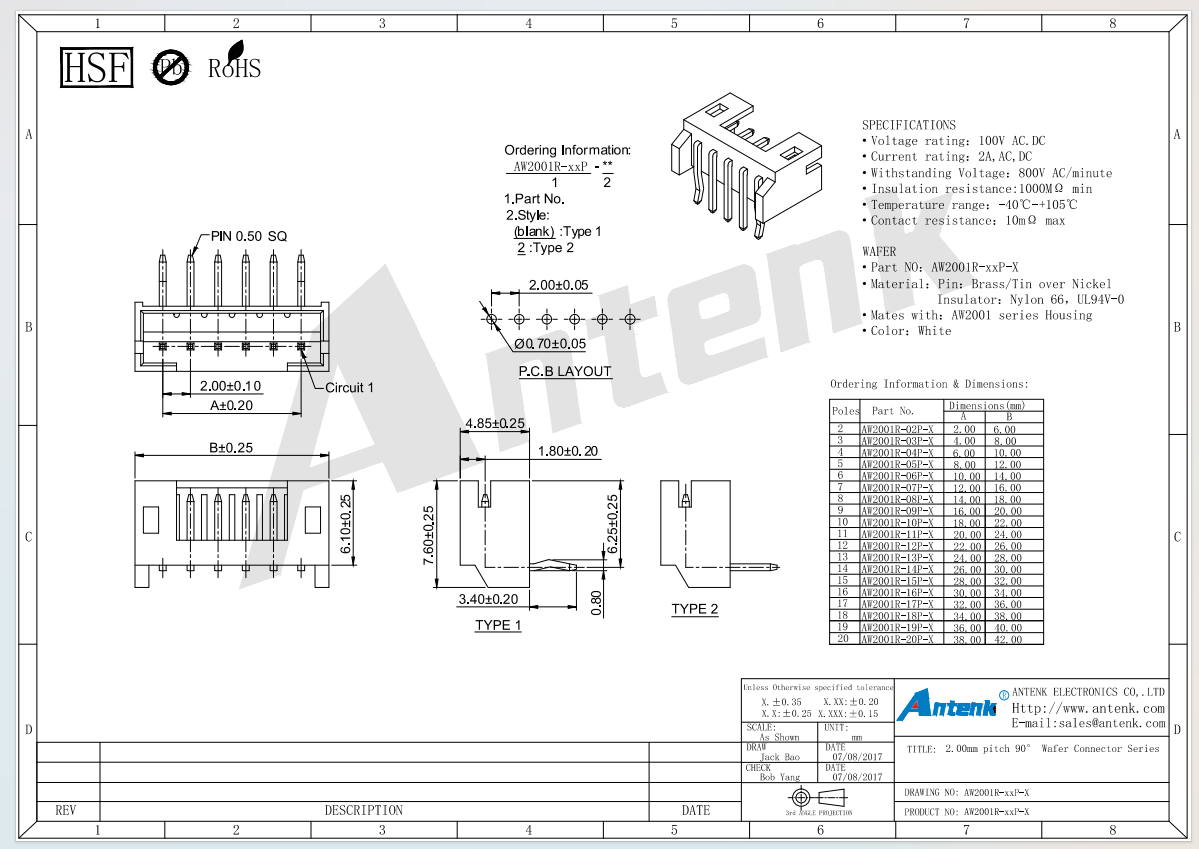

Product Drawing:
