0.3mm 1.0H Dual‑Contact Back‑Lock FPC Connector

0.3mm 1.0H Dual‑Contact Back‑Lock FPC Connector

2 month ago

6 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Peoduct Description:

Huizhou Antenk Electronics Co., Ltd. manufactures FPC0.3‑XXRMDXX1 series 0.3mm pitch 1.0H SMT right‑angle dual‑contact back‑lock FPC connectors to deliver high‑density flexible cable interconnection for compact miniaturized PCB layouts, supporting pin counts ranging from 09P to 71P and matching 0.20±0.03mm thickness FFC or FPC cables, with dedicated dimension values for each pin variant and unified multi‑level dimensional tolerances to ensure reliable SMT reflow soldering assembly. This FPC connector adopts UL94V‑0 grade Nylon66 as flame‑retardant insulator, dual‑contact phosphor bronze terminals support multiple plating options including gold flash, selective gold plating and matt tin plating, electrically rated for 0.3A working current and 30V AC DC nominal voltage, operating stably within minus 25 degrees Celsius to plus 85 degrees Celsius while complying with HSF lead‑free and RoHS standards, and supplied with tray tube tape and reel packaging choices to satisfy automated production requirements. This low‑profile back‑lock FPC receptacle is widely applied in liquid crystal display modules, digital cameras, communication hardware, industrial control panels, portable storage devices, digital household appliances, electronic toys, computer peripherals, automotive electronic assemblies and precision measuring instruments requiring space‑saving flexible circuit connections. Operators should select correct pin count for matched FFC FPC cables, complete SMT soldering following official PCB layout drawings, avoid over‑forcing back‑lock actuator and prevent terminal deformation or housing cracking, and store finished units inside dry sealed packages to protect contact plating layers. Unlike competitors outsourcing mold and stamping processes Antenk implements complete in‑house production workflow covering self‑developed precision plastic and metal mold manufacturing, phosphor bronze terminal stamping, high‑temperature nylon injection molding, selective gold and tin electroplating plus comprehensive environmental reliability lab testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications compliant with REACH rules. We own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, deliver custom plating and packaging solutions, provide round‑the‑clock engineering support, and over seventy percent of our FPC connector products are exported globally backed by ANTENK brand and stable mass‑production quality.

1. UL94V 0 Nylon66 FPC Housing offers dependable flame retardant performance and structural stability for high‑density flexible circuit connection applications.

2. Phosphor Bronze Dual Contact Terminal provides secure dual‑point contact force and multiple plating alternatives to maintain stable signal transmission under operating conditions.

3. 09P 71P Right Angle SMT FPC supports broad pin range selections and fits 0.20±0.03mm thickness FFC FPC for miniature surface‑mount PCB designs.

Detailed Specifications :

1. Electrical Parameters

1.1 Rated Current: 0.3 Amp

1.2 Rated Voltage: 30V AC/DC

2. Material & Plating Options

2.1 Insulator Material: Nylon66, UL94V‑0 flame retardant grade

2.2 Contact Base Material: Phosphor Bronze

2.3 Available Plating: Gold flash, 3U gold, selective gold, matt‑tin 90‑120U"

3. Structural & Matching Specifications

3.1 Pitch: 0.3mm

3.2 Height: 1.0H

3.3 Type: SMT Right‑Angle, Dual‑Contact, Back‑Lock structure

3.4 Pin Count Range: 09P‑71P

3.5 Compatible Cable: FFC / FPC with thickness 0.20±0.03mm

4. Dimensional Standards (Unit: mm)

4.1 Each pin count corresponds to exclusive B and D dimension values

4.2 General tolerance rule: X.±0.35, X.X±0.25, X.XX±0.20, X.XXX±0.15

4.3 Special dedicated PCB layout for SMT soldering and PIN‑1 positioning mark

5. Environmental Performance

5.1 Operating Temperature Range: ‑25°C ~ +85°C

6. Compliance Standard

6.1 Comply with HSF lead‑free and RoHS requirements

7. Available Packaging Modes

7.1 Tray packing, Tube packing, Tape & Reel

8. Application Scenarios

8.1 Liquid crystal display modules, digital cameras

8.2 Communication hardware, industrial control panels

8.3 Portable storage devices, digital home appliances

8.4 Electronic toys, computer peripherals

8.5 Automotive electronic assemblies, precision measuring instruments

9. Operation & Storage Precautions

9.1 Select correct pin count matching the size of FFC or FPC flexible cables

9.2 Perform SMT reflow soldering strictly following official recommended PCB layout

9.3 Do not apply excessive force on back‑lock mechanism to avoid terminal deformation or insulator cracking

9.4 Store finished connectors in dry sealed packages to prevent contact plating corrosion and contamination

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

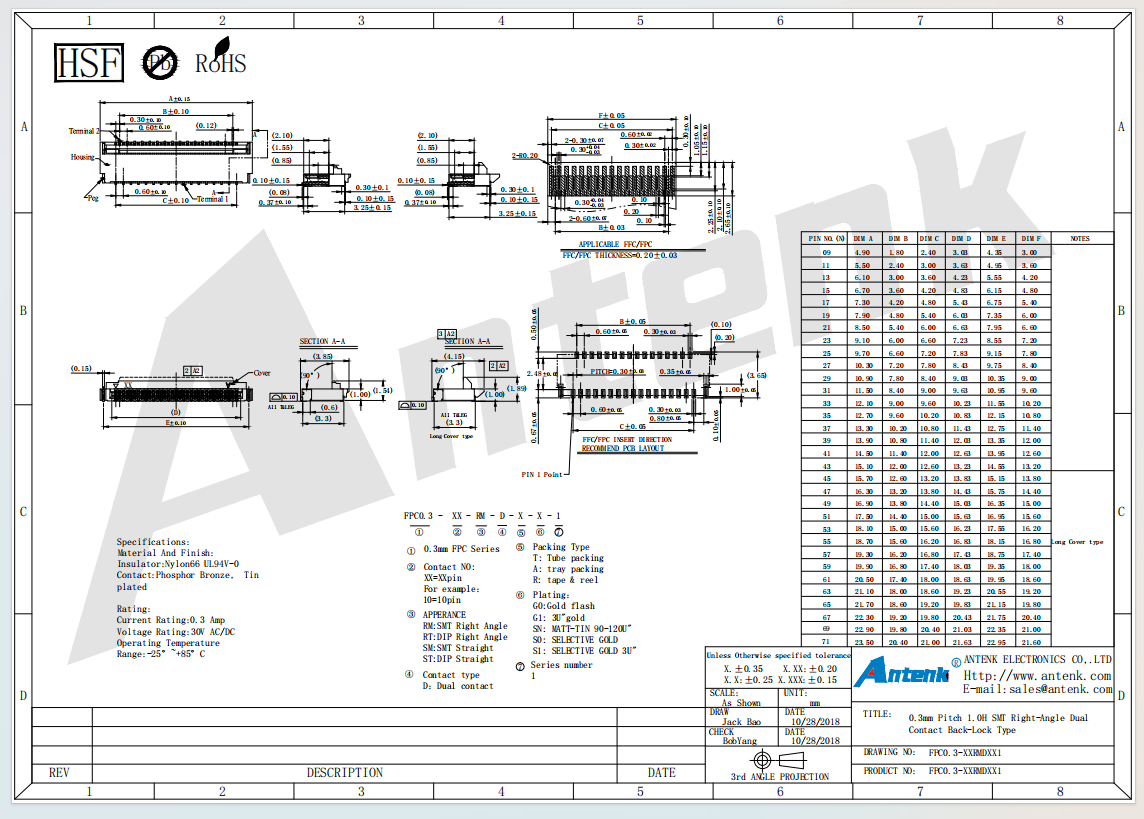

Product Drawing：

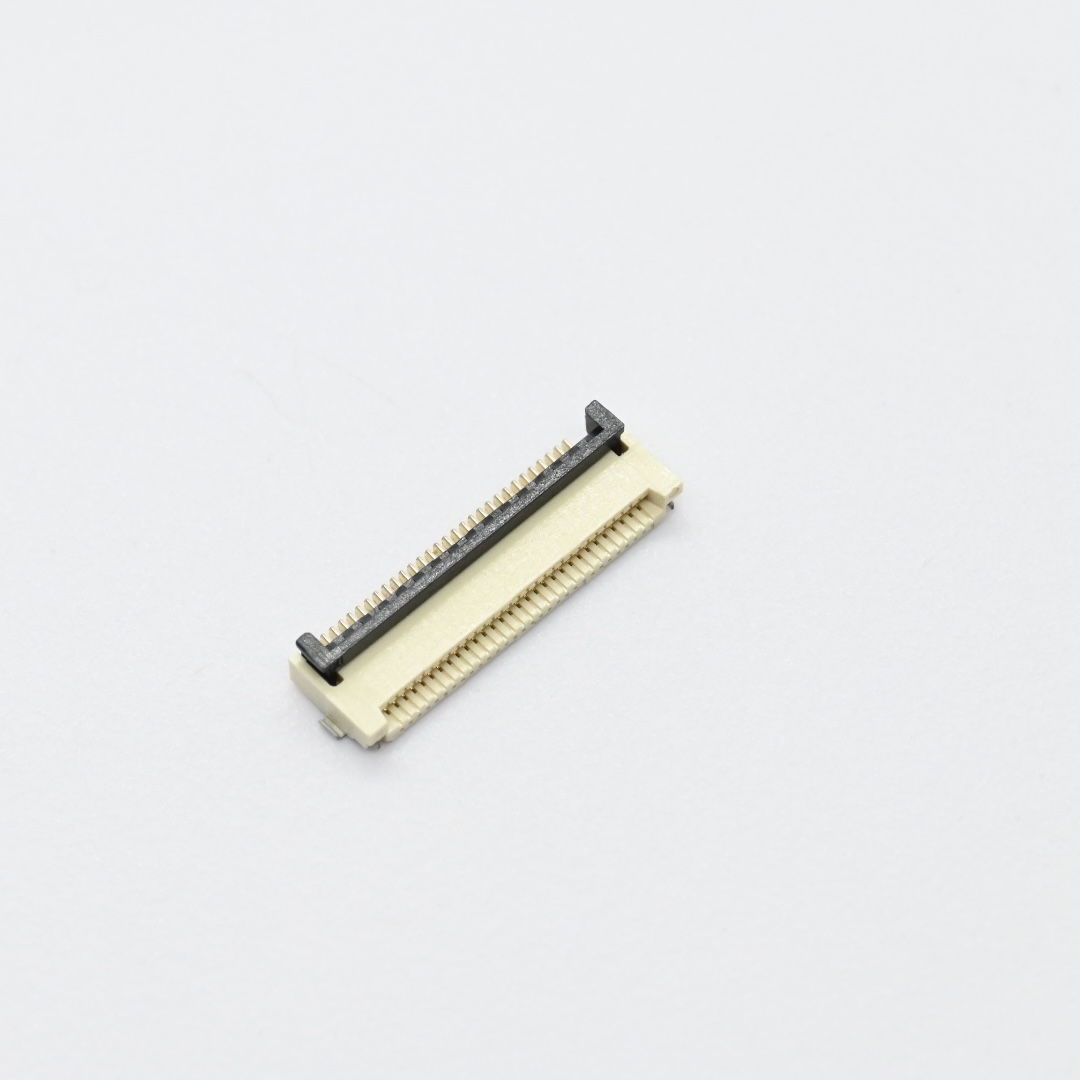

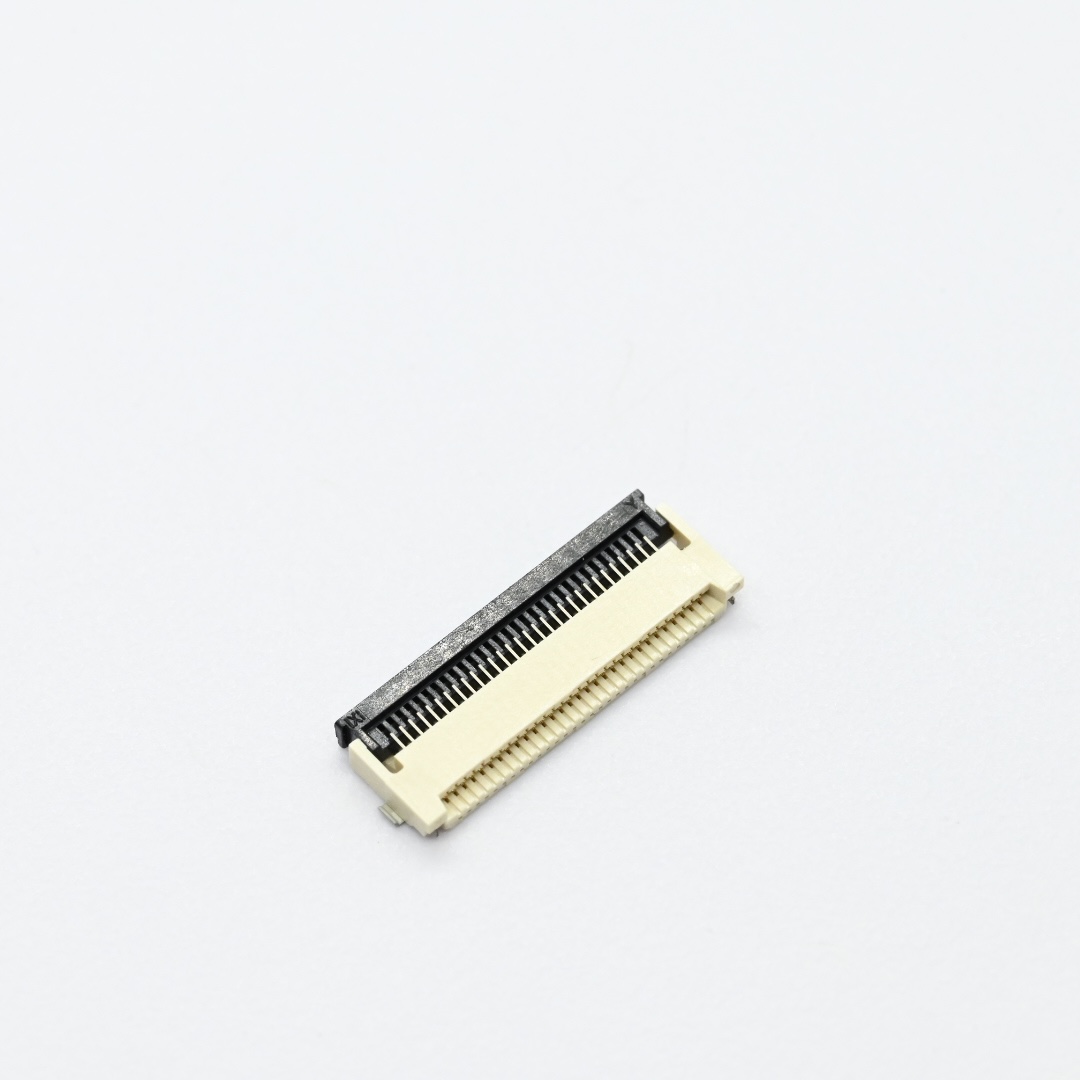

FPC0.3-39-RM-D-R-SN-1+0.3mm Pitch 1.0H SMT Right-Angle Dual（2）

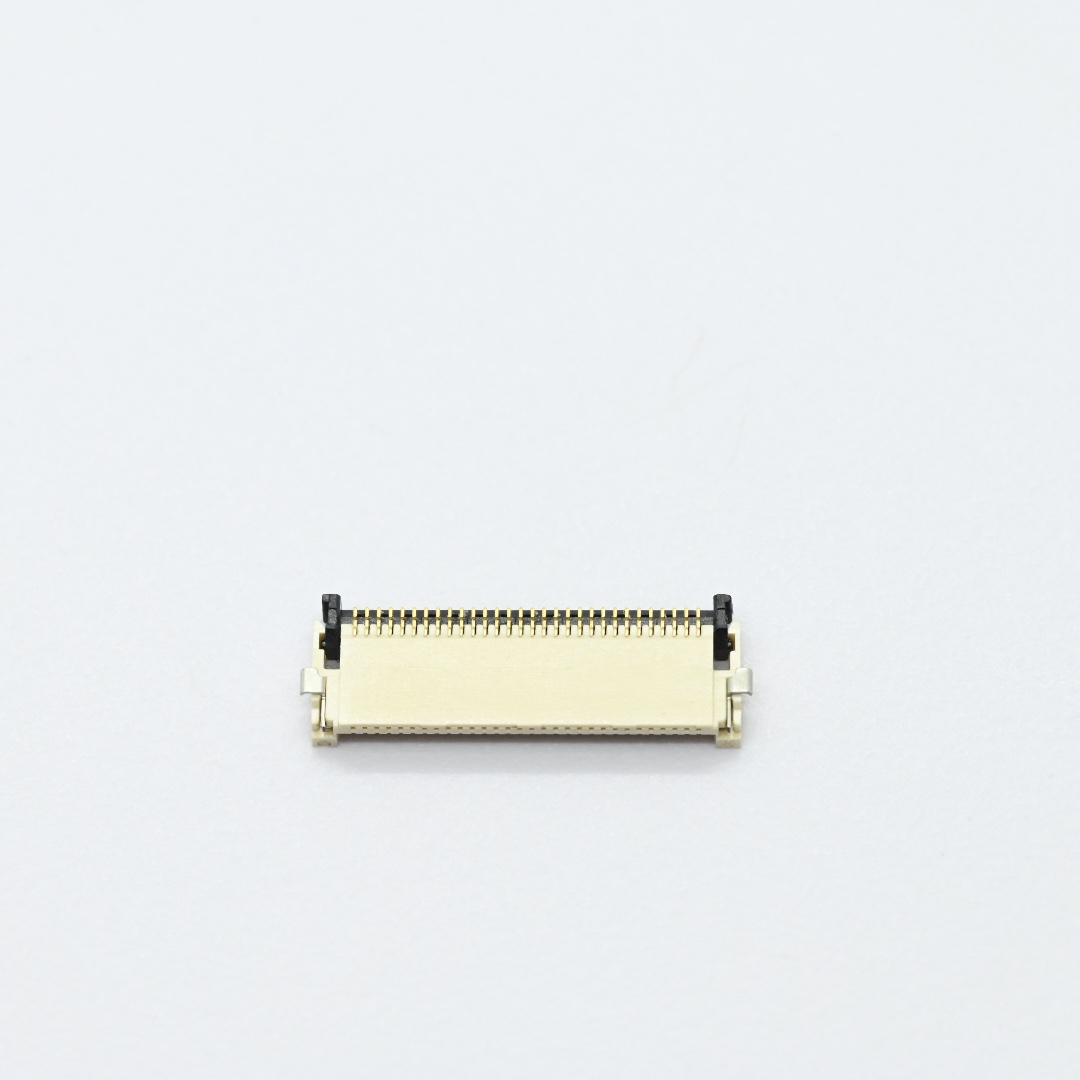

FPC0.3-39-RM-D-R-SN-1+0.3mm Pitch 1.0H SMT Right-Angle Dual（3）

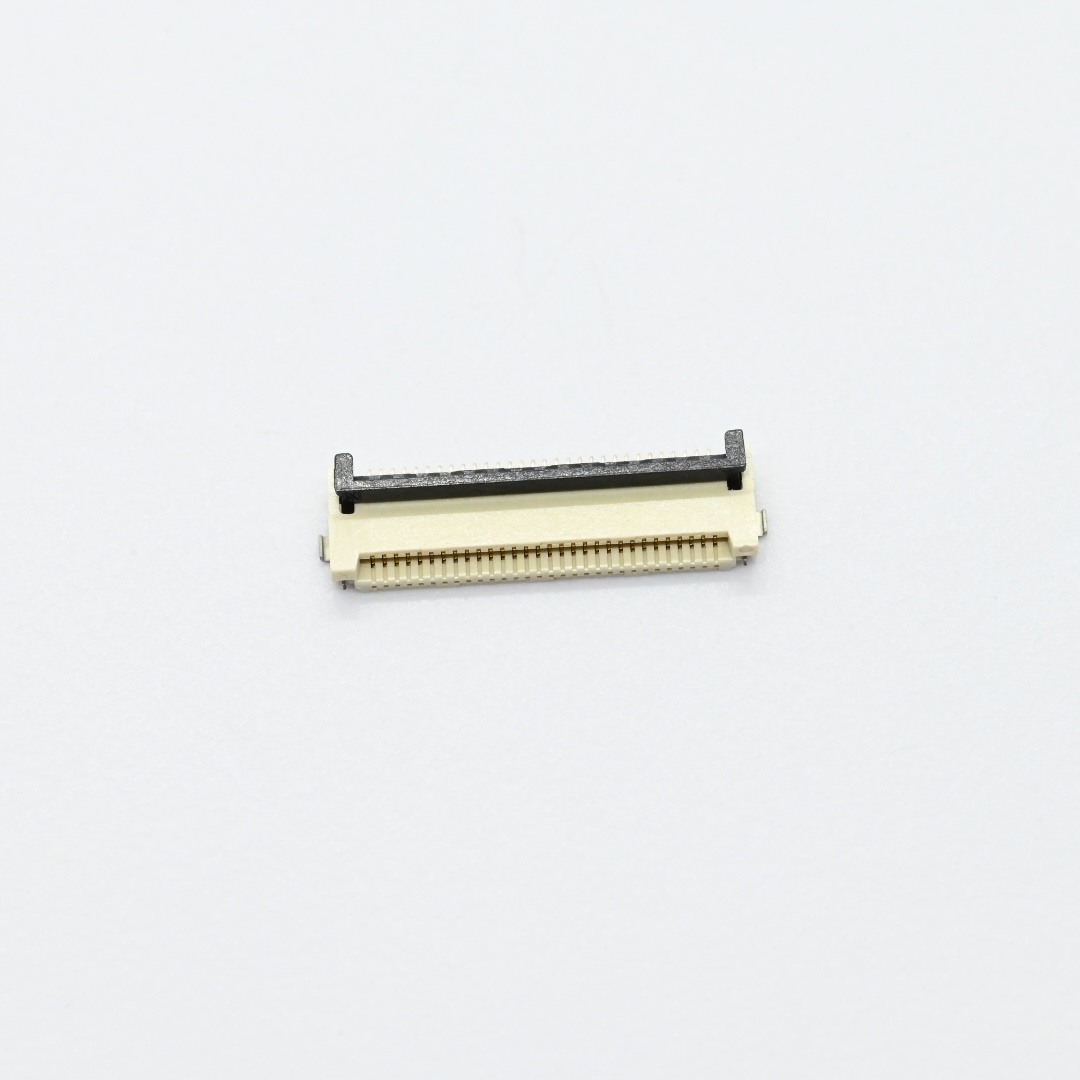

FPC0.3-39-RM-D-R-SN-1+0.3mm Pitch 1.0H SMT Right-Angle Dual（5）

FPC0.3-39-RM-D-R-SN-1+0.3mm Pitch 1.0H SMT Right-Angle Dual（6）

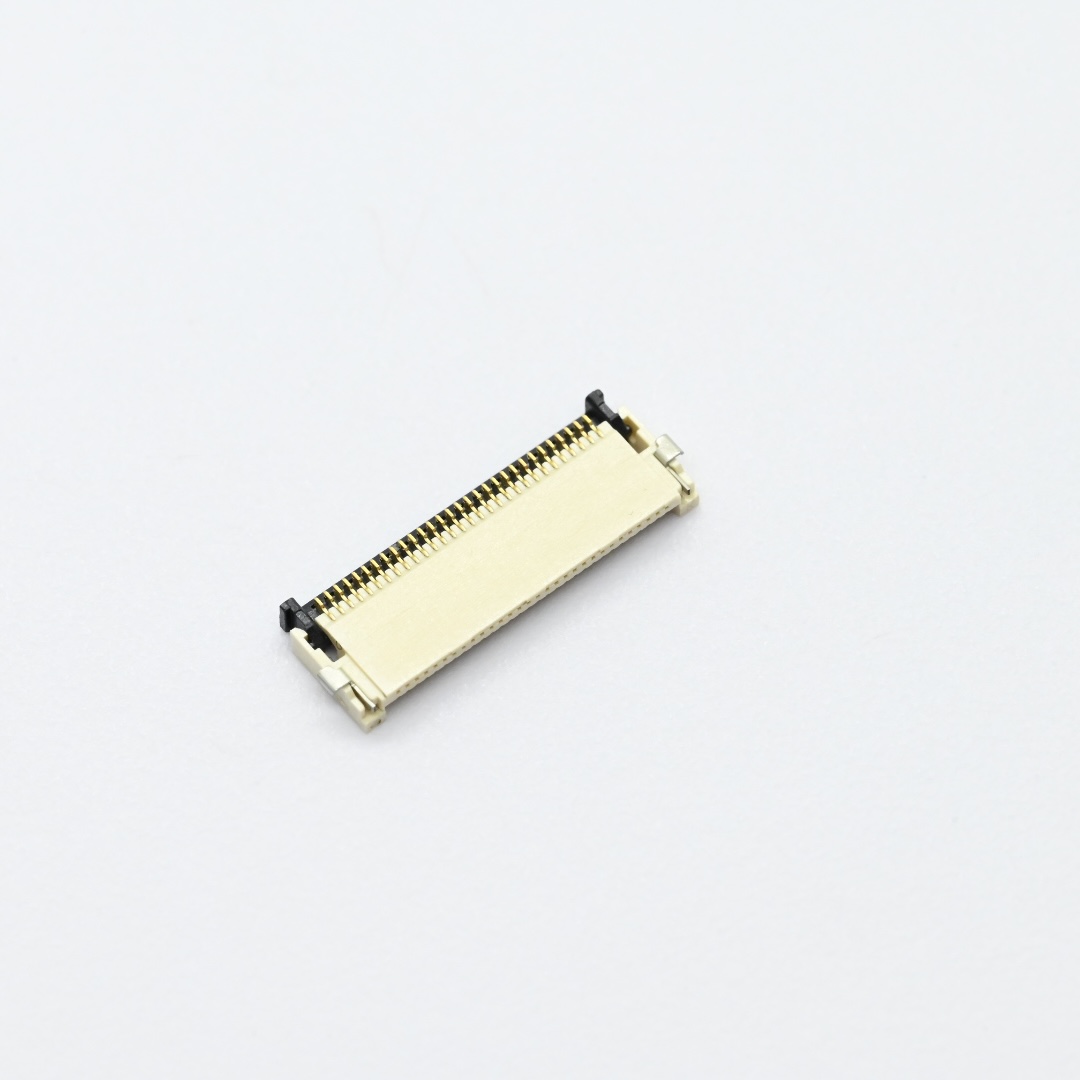

FPC0.3-39-RM-D-R-SN-1+0.3mm Pitch 1.0H SMT Right-Angle Dual（4）

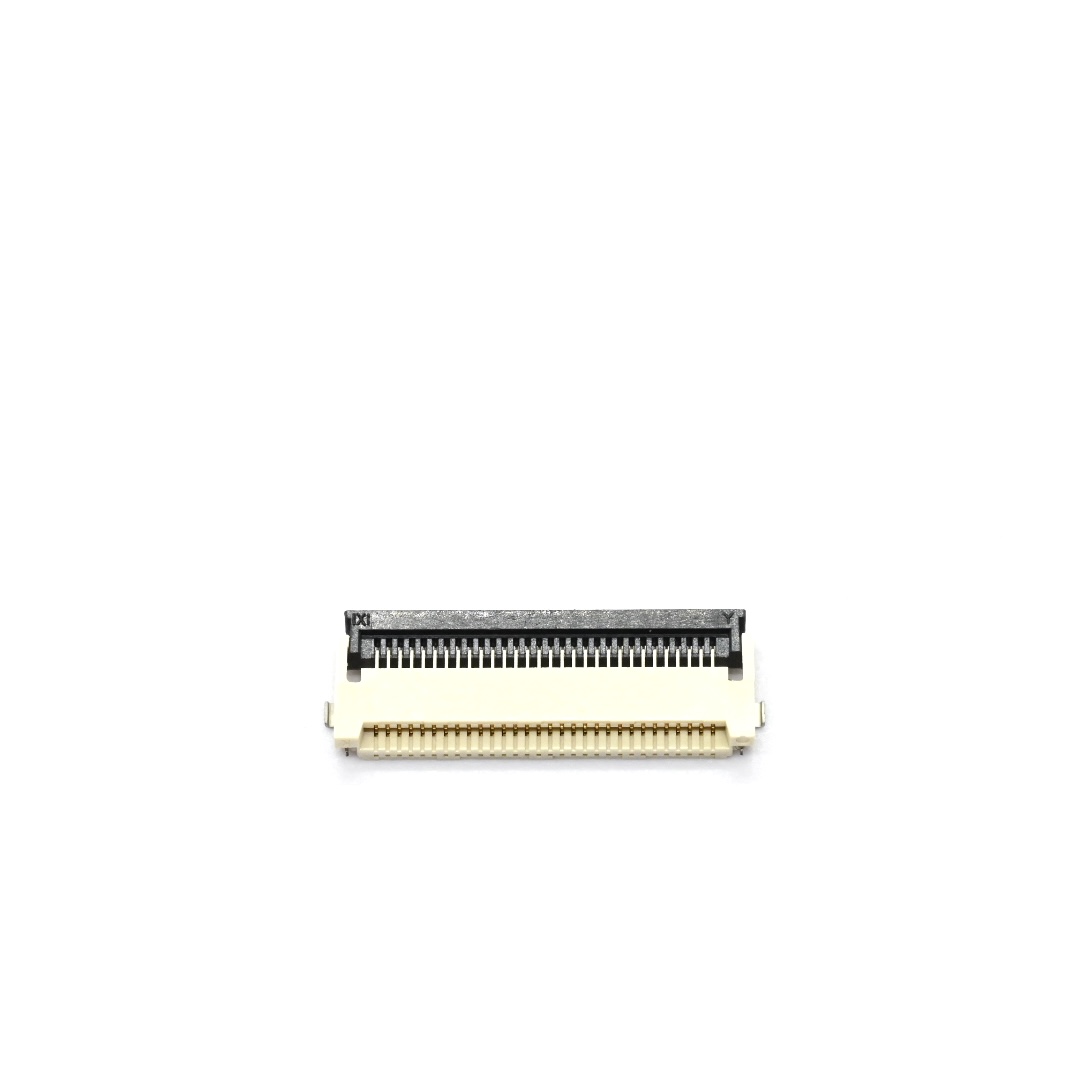

FPC0.3-39-RM-D-R-SN-1+0.3mm Pitch 1.0H SMT Right-Angle Dual（1）
