Spindle Servo Drive for Machine Tool

The VTS series is a high-performance drive that utilizes a modular design concept. The control board is divided into an I/O card, communication card, and encoder card. This product adopts vector control technology and integrates speed control, torque control, and position control. It is well-suited for controlling three-phase AC induction motors and PM (Permanent Magnet) motors, offering powerful functions to meet the motor drive applications of various industries.

Product Features

Standard equipped with a Chinese LCD keyboard for easy use

Keyboard copy parameters for convenient batch installation.
Compatible with synchronous spindle motors, asynchronous spindle motors, and various commonly used encoders. Open-loop maximum speed of 240,000 RPM, closed-loop maximum speed of 60,000 RPM.
Especially proficient in applications in the machine tool industry. Suitable for cnc lathe, precision machining centers, five-axis machines, etc.

Industrial Application Characteristics

Compatible with synchronous and asynchronous spindle motors; can be adapted to spindle servo motor from different manufacturers.
Supports common system commands such as analog signals, pulses, 485 communication, and EtherCAT communication.
Supports temperature detection for KTY84, PT100, and PTC130 motor temperature sensors.
Can perform positioning at any angle and tapping operations.

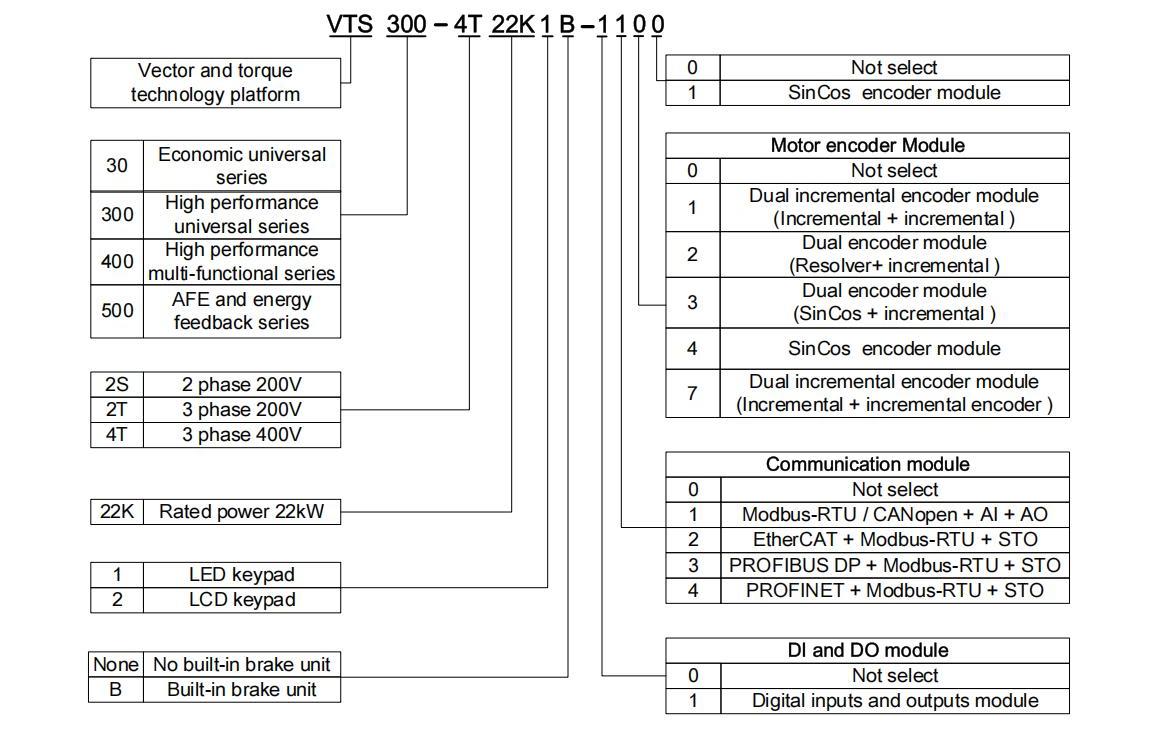

Model Description

VTS Series Universal Variable Speed AC Drive

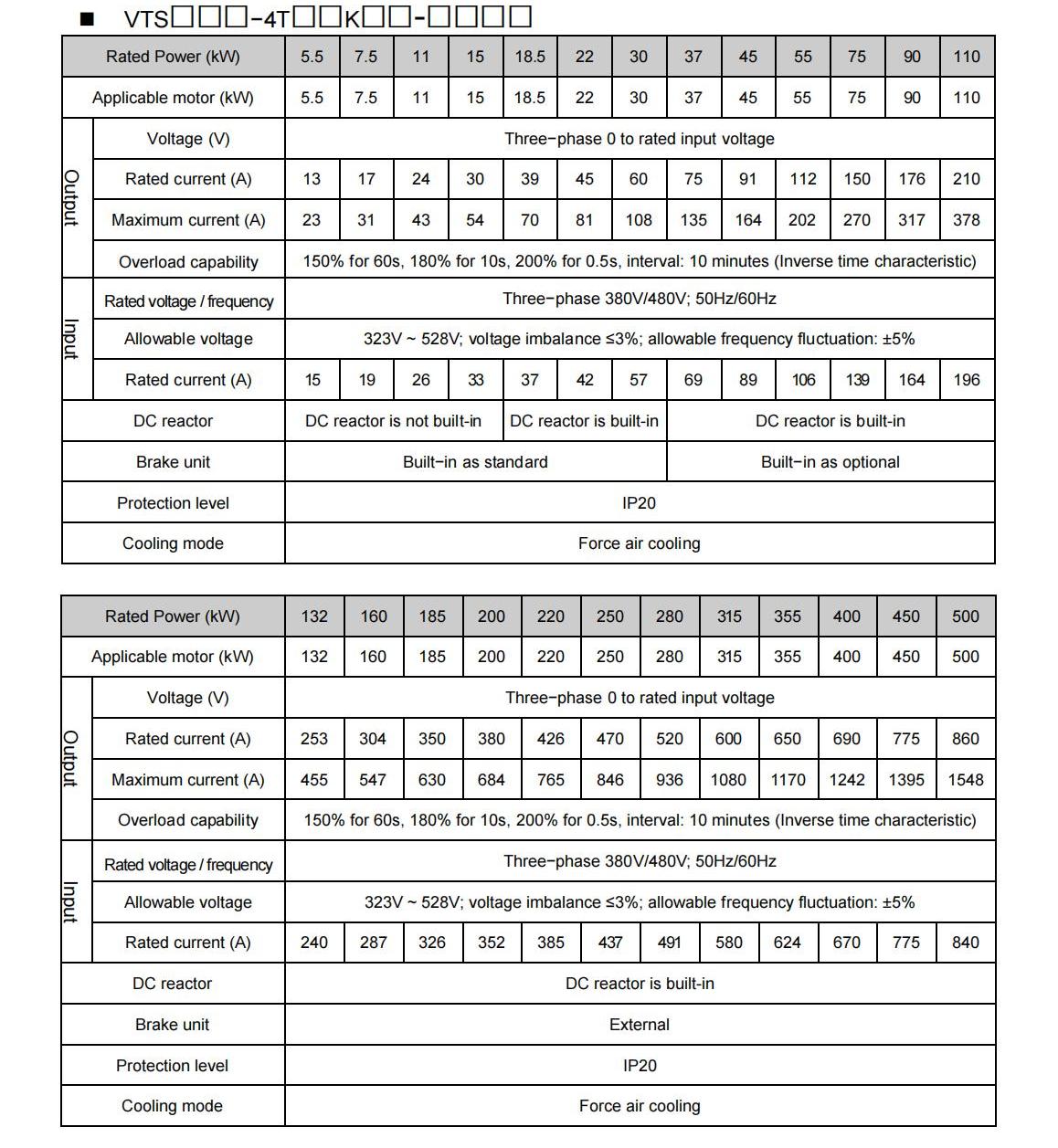

Ratings

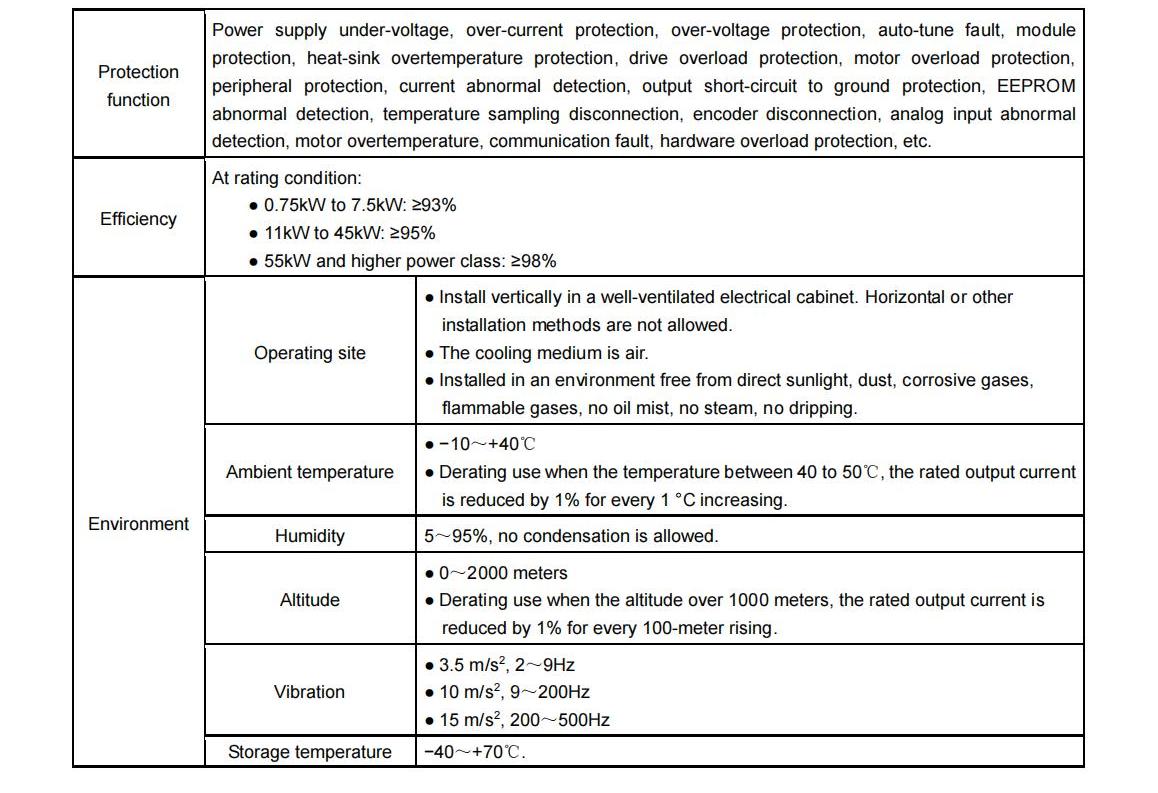

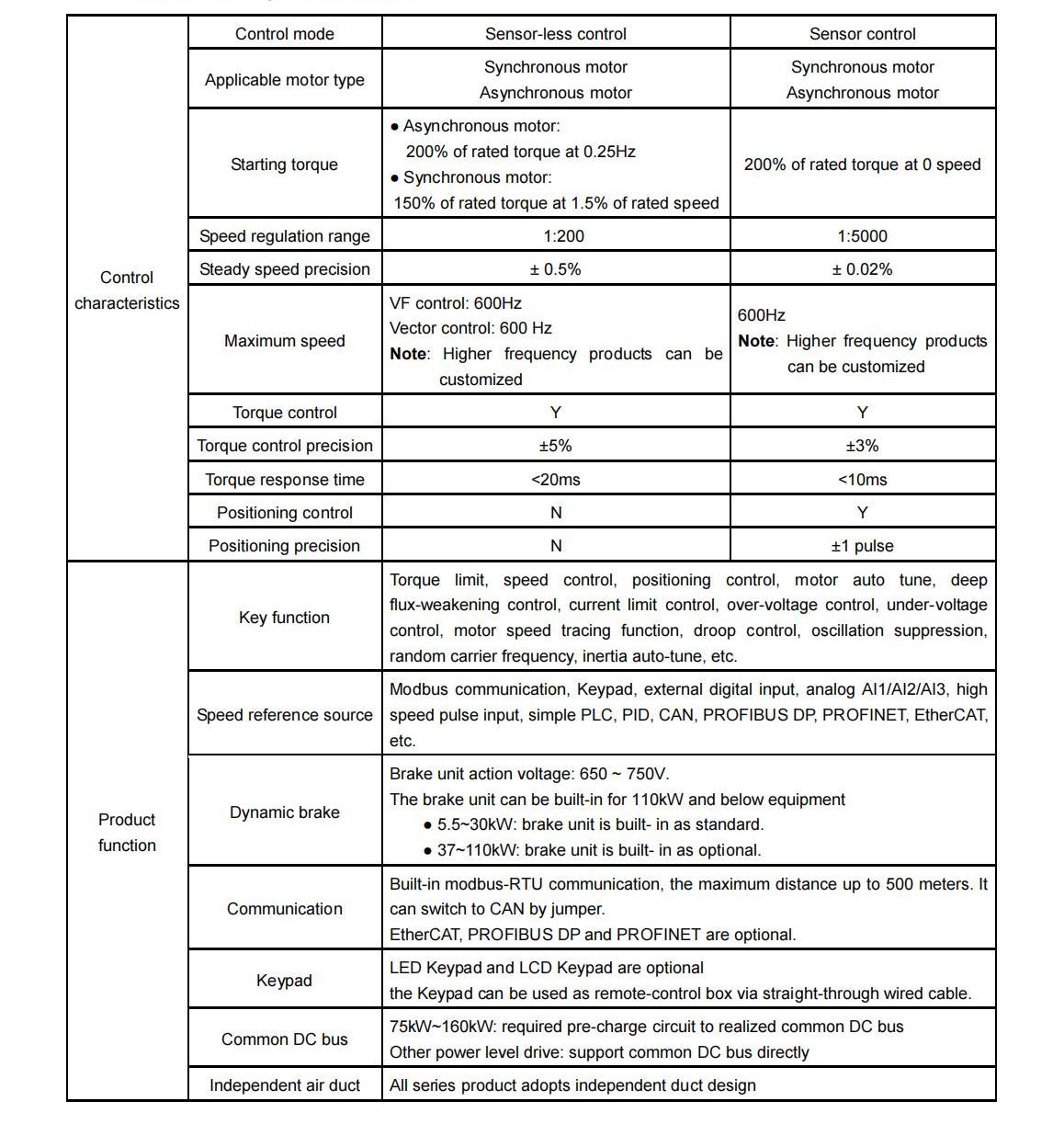

Technical Specification
