606468R21 6-Bolt Hub for Case IH

3 day ago

0 0

NingBo Greenly Machinery Co.,LTD

 14 year year

Product details

1. Essential Functions & Versatile Applications

This product serves as the core load-bearing rotational hub for towed agricultural machinery transport systems. It is primarily mounted on the transport axles of heavy-duty soil tillage equipment to support the massive weight of the machines during road transit and field turns. The hub is universally compatible with an extensive range of major farming implements, including high-capacity tandem disk harrows, row-crop field cultivators, seedbed finishers, deep chisel plows, land rippers, and combination mulch tillers, ensuring smooth and reliable transport under extreme field conditions.

2. Premium Performance Features & Material Properties

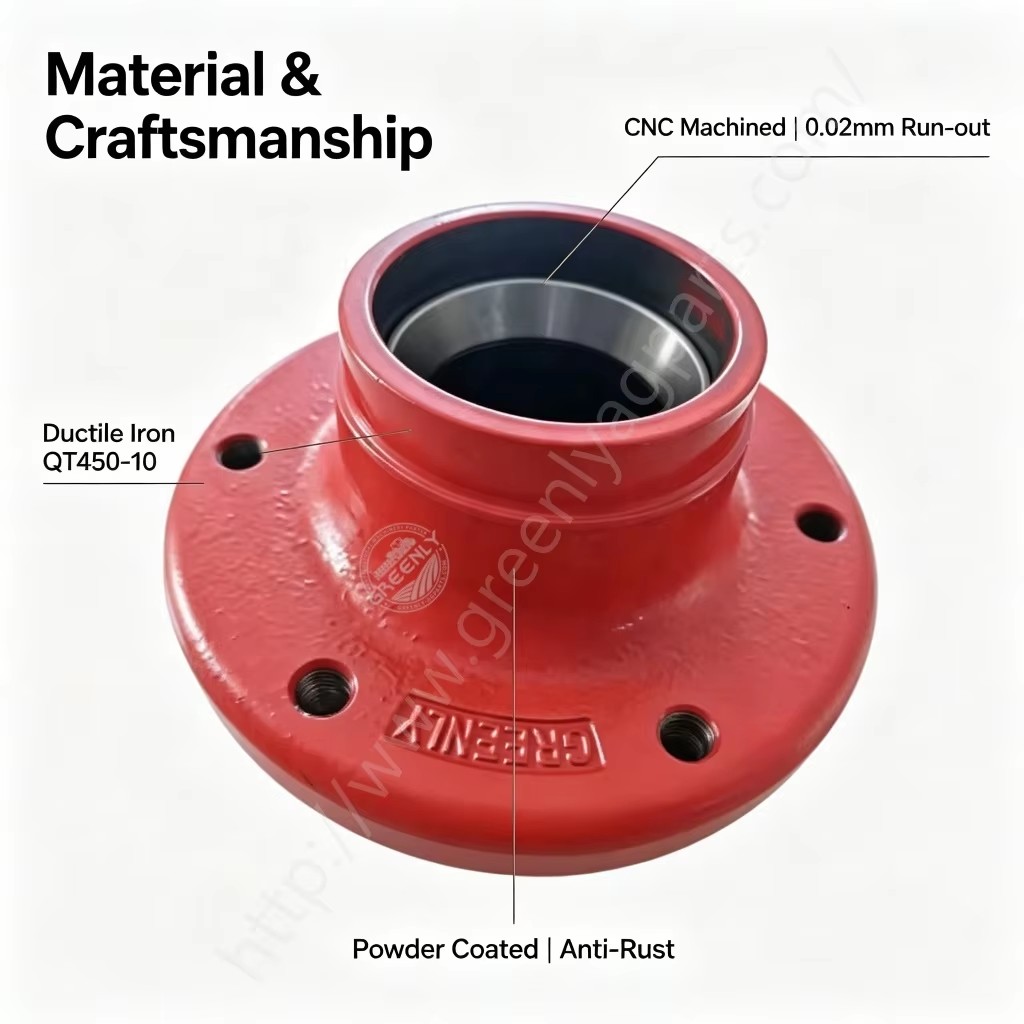

The entire hub body is manufactured from advanced ductile iron, providing exceptional tensile strength and superior fracture toughness compared to traditional gray cast iron. It features a precision-machined 6-bolt mounting pattern on a standard 6-inch bolt circle, ensuring perfect concentricity and uniform wheel load distribution. With a continuous working load rating of up to 4,500 pounds, it easily handles extreme vertical forces and severe lateral impacts. Additionally, the hub comes pre-equipped with high-precision pressed bearing cups and a heavy-duty grease zerk for streamlined lubrication.

3. Installation Guidelines & Structural Safeguards

This hub assembly is designed to slide directly onto standard 2-1/8 inch diameter straight farm wagon or implement spindles, and accepts 1/2"-20 high-tensile wheel bolts. During installation, ensure the internal spindle surface is thoroughly cleaned and coated with premium wheel bearing grease before sliding the pre-assembled hub into place. Tighten the wheel bolts in a star pattern to the manufacturer's recommended torque specifications to prevent uneven stress. Do not exceed the rated 4,500 lbs load capacity per hub, and regularly inject high-quality lithium-based grease through the integrated zerk fitting to purge contaminants and moisture.

4. Market Competitiveness & Our Structural Advantages

Unlike standard aftermarket cast-iron hubs that are prone to brittle cracking under sudden impact, our hub utilizes specialized ductile iron, allowing the metal to absorb severe shock loads without deformation or catastrophic failure. Our advanced machining tolerances ensure tighter bearing cup seating, preventing the outer bearing race from spinning inside the hub bore—a major cause of hub failure in cheaper alternatives. Furthermore, our dual-stage anti-corrosion surface coating offers superior resistance against chemical fertilizers, mud, and harsh weather conditions compared to standard factory primer.

5. Advanced Manufacturing & Precision Engineering Process

Every wheel hub undergoes a rigorous manufacturing process, starting with electric furnace melting of premium scrap steel and precise alloy charging to achieve the ideal nodular graphite micro-structure. After pouring and cooling, the raw castings are processed through computerized CNC multi-axis turning centers to guarantee ultra-precise dimensions for the bearing bores and bolt holes. Each batch is subjected to strict non-destructive ultrasonic testing to detect hidden internal porosities or structural defects, followed by automated coordinate measuring machine (CMM) inspections before receiving its final protective finish.

Parameter	Specification	Engineering Benefit
Material Grade	High-Grade Nodular Ductile Iron	Provides superior tensile strength and fatigue resistance, completely preventing catastrophic body cracking under severe field impacts.
Bolt Geometry	6-Bolt Configuration on 6" Bolt Circle	Ensures 100% accurate OEM replacement, delivering uniform mechanical load distribution and zero hub slop during road transport.
Load Capacity	4,500 lbs Continuous Workload Rating	Optimally balanced for demanding agricultural environments, easily supporting heavy-duty tillage equipment and tandem disk harrows.
Spindle Fitment	Fits 2-1/8" Diameter Straight Spindles	Precision-machined bore tolerances deliver a tight, smooth, micron-level fit to prevent spindle abrasive wear and bearing spinning.
Hardware Standard	Accepts Standard 1/2"-20 Wheel Bolts	Guarantees precision tightening torque, successfully preventing hardware from backing out or loosening under high-vibration field conditions.
Pre-Assembled System	Pre-Pressed Bearing Cups & Integrated Zerk	Eliminates the need for specialized hydraulic press tools in the workshop, enabling faster field servicing and streamlined maintenance.
Anti-Corrosion	Premium Weather-Resistant Coating	Effectively blocks chemical fertilizers, mud, and moisture, ensuring rust-free long-term warehouse storage or sea freight transit.
