Right Angle D SUB Male Machine Pin Connector

Right Angle D SUB Male Machine Pin Connector

6 day ago

1 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description:

Huizhou Antenk Electronics Co., Ltd. manufactures MDR02 MXXXX series right angle D SUB male connectors with 9.4mm footprint machine pins to deliver stable high performance signal transmission for standard PCB layouts, supporting pin counts of 09pin 15pin 25pin and 37pin with dedicated dimension values for each pin variant and unified multi level drawing tolerances to guarantee reliable through hole PCB assembly. This D SUB male connector adopts 30 percent glass filled PBT thermoplastic UL94V 0 rated insulator, brass machine pin contacts and steel shell with full nickel finish, electrically rated for 5A contact current, maximum 30 milliohms contact resistance, 1000V AC dielectric withstanding voltage and minimum 5000 megohms insulation resistance, operating stably from minus 55 degrees Celsius to plus 105 degrees Celsius and complying with RoHS and HSF environmental standards. It provides multiple housing color selections, various gold plating grades and optional bracket mounting accessories to satisfy diverse project customization demands. This industrial interface connector is widely applied in liquid crystal display modules, digital cameras, communication hardware, industrial control panels, digital household appliances, computer peripherals, automotive electronic assemblies and precision measuring instruments requiring robust serial port interconnection. Operators should select suitable pin count plating grade and mounting accessories according to circuit requirements, complete soldering following official PCB layout specifications, avoid excessive thermal stress to prevent insulator deformation, and store finished connectors in dry sealed packages to protect contact plating from corrosion. Unlike competitors outsourcing mold stamping and plating procedures Antenk carries out complete in house production workflow covering self developed precision plastic and metal mold fabrication, brass machine pin stamping, high temperature PBT injection molding and multi grade gold electroplating plus comprehensive laboratory reliability verification, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications compliant with REACH rules. We own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, provide custom solutions and round the clock engineering support, and over seventy percent of our D SUB connector products are exported globally backed by ANTENK brand and stable mass production quality.

1. PBT Glass Filled Insulator offers excellent flame resistance and mechanical stability for long term industrial D SUB connector working scenarios.

2. Machine Pin D SUB Contact ensures stable signal transmission under 5A rated current for reliable right angle PCB soldering applications.

3. Nickel Finished Steel Shell provides solid mechanical protection and shielding performance for male D SUB connector assemblies.

Detailed Specifications:

1. Electrical Parameters

1.1 Rated Current: 5.0 Amps

1.2 Maximum Contact Resistance: 30 milliohms

1.3 Dielectric Withstanding Voltage: 1000V AC minimum

1.4 Minimum Insulation Resistance: 5000 Megohms

2. Material & Plating Options

2.1 Insulator: 30% glass filled PBT thermoplastic, UL94V‑0 flame retardant grade

2.2 Contact Material: Brass machine pin

2.3 Shell: Steel with full nickel finish for front and back shell

2.4 Contact Plating: Full 2u" gold, gold flash, multiple grades of gold‑over plating available

2.5 Insulator Color Options: Black, Grey, White, Blue

3. Structural & Matching Specifications

3.1 Product Type: Right‑Angle D‑SUB male connector with 9.4mm footprint machine pin

3.2 Available Pin Counts: 09pin, 15pin, 25pin, 37pin

3.3 Mounting Options: No accessories, bracket with #4‑40 fitting

4. Dimensional Standards (Unit: mm)

4.1 Independent A, C, D dimension values for each pin‑count variant

4.2 General tolerance rule: X.±0.35, X.X±0.25, X.XX±0.20, X.XXX±0.15

4.3 Provide dedicated PCB layout reference for through‑hole mounting

5. Environmental Performance

5.1 Operating Temperature Range: ‑55°C ~ +105°C

6. Compliance Standard

6.1 Compliant with RoHS and HSF requirements

7. Application Scenarios

7.1 Liquid crystal display modules, digital cameras

7.2 Communication hardware, industrial control panels

7.3 Digital household appliances, computer peripherals

7.4 Automotive electronic assemblies, precision measuring instruments

8. Operation & Storage Precautions

8.1 Select proper pin quantity, plating grade, insulator color and mounting accessories according to practical circuit requirements

8.2 Perform soldering operation strictly following official PCB layout drawing

8.3 Avoid excessive thermal load to prevent insulator deformation or shell damage

8.4 Store finished connectors in dry sealed packages to prevent contact plating corrosion and contamination

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

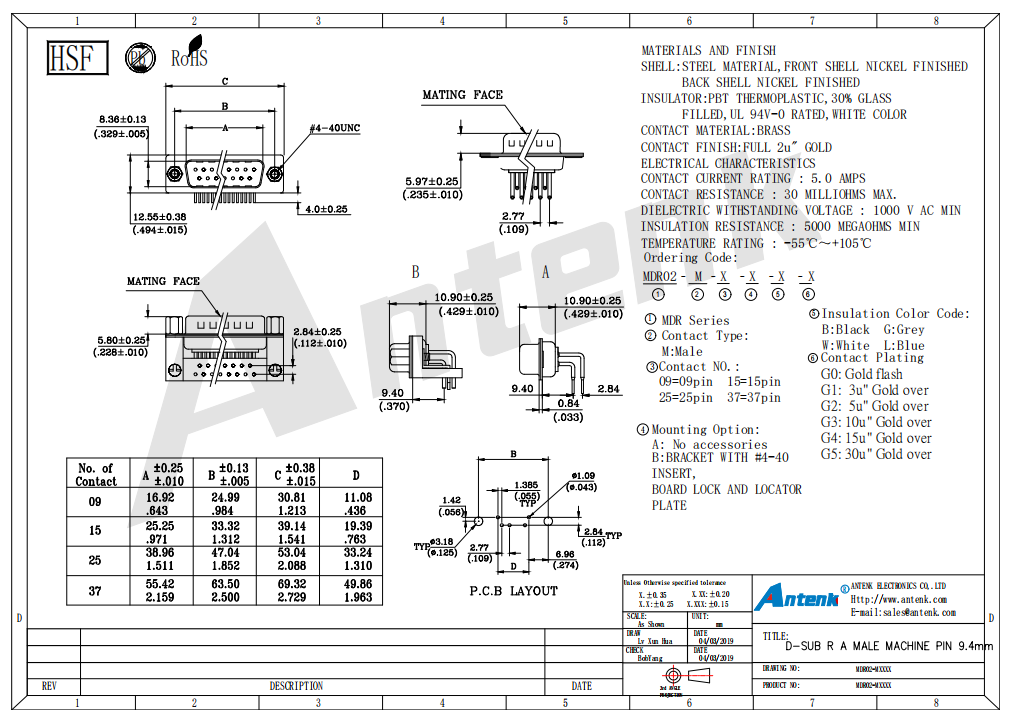

Product Drawing:

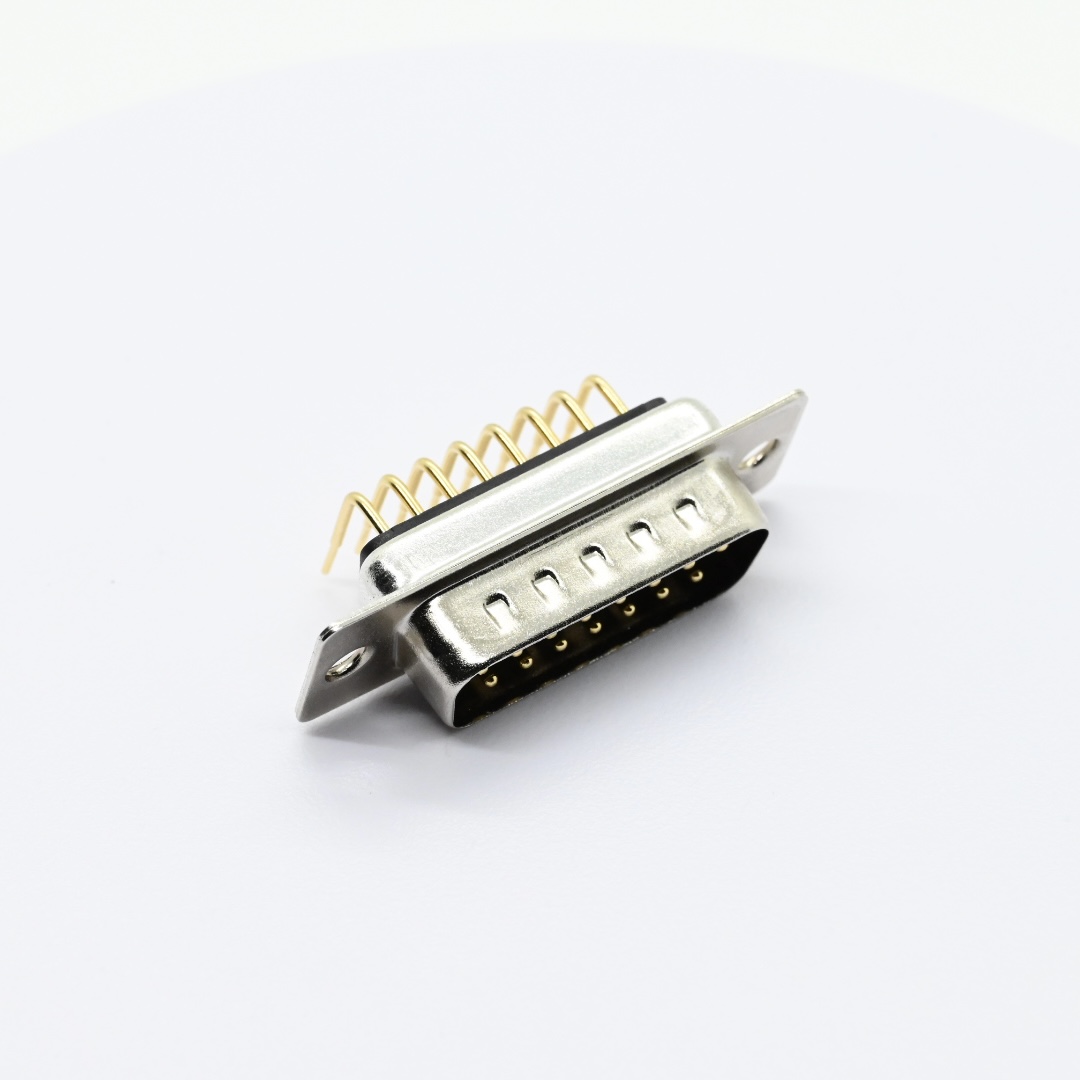

MDR02-M15ABG0+Right Angle D SUB Male Machine Pin Connector（6）

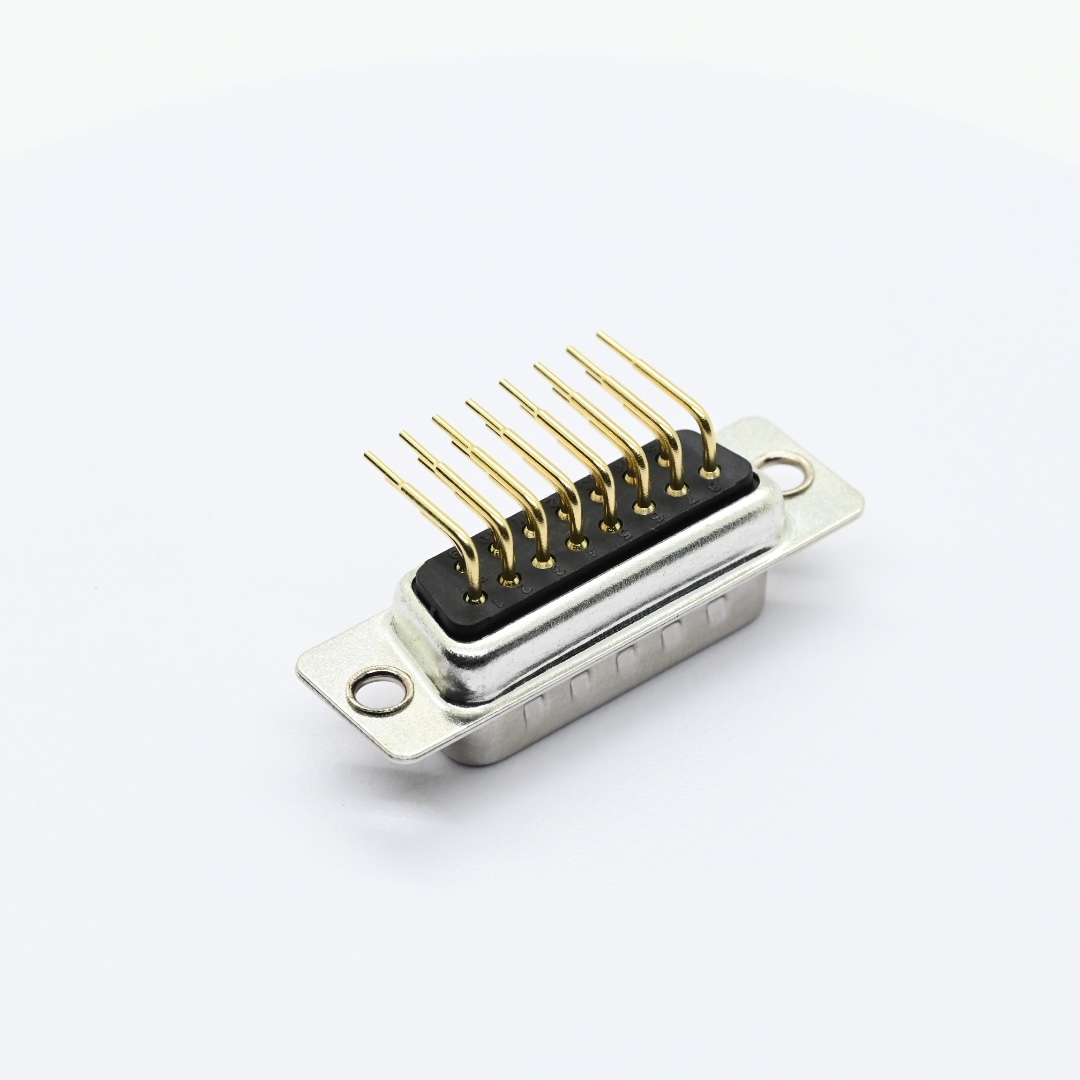

MDR02-M15ABG0+Right Angle D SUB Male Machine Pin Connector（5）

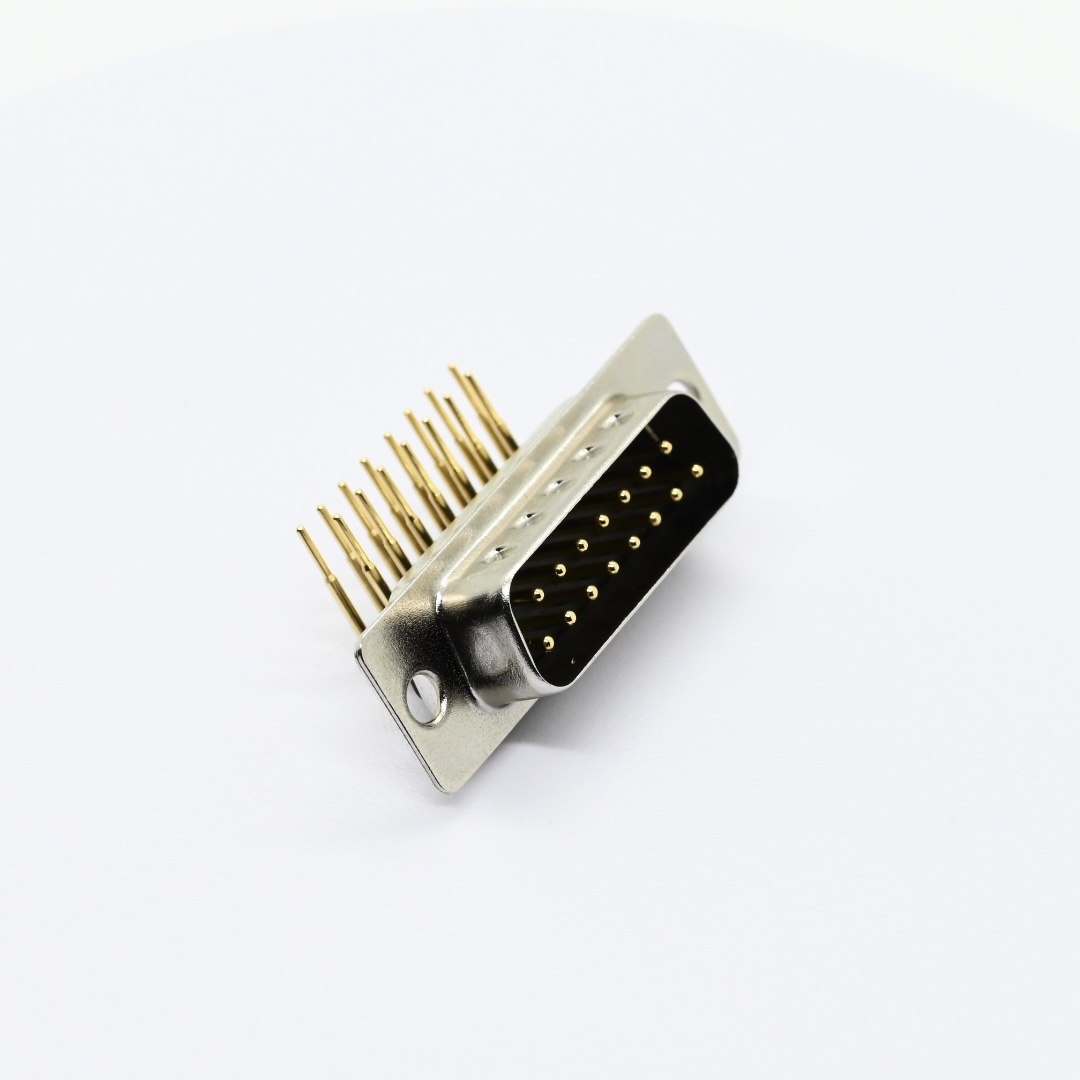

MDR02-M15ABG0+Right Angle D SUB Male Machine Pin Connector（2）

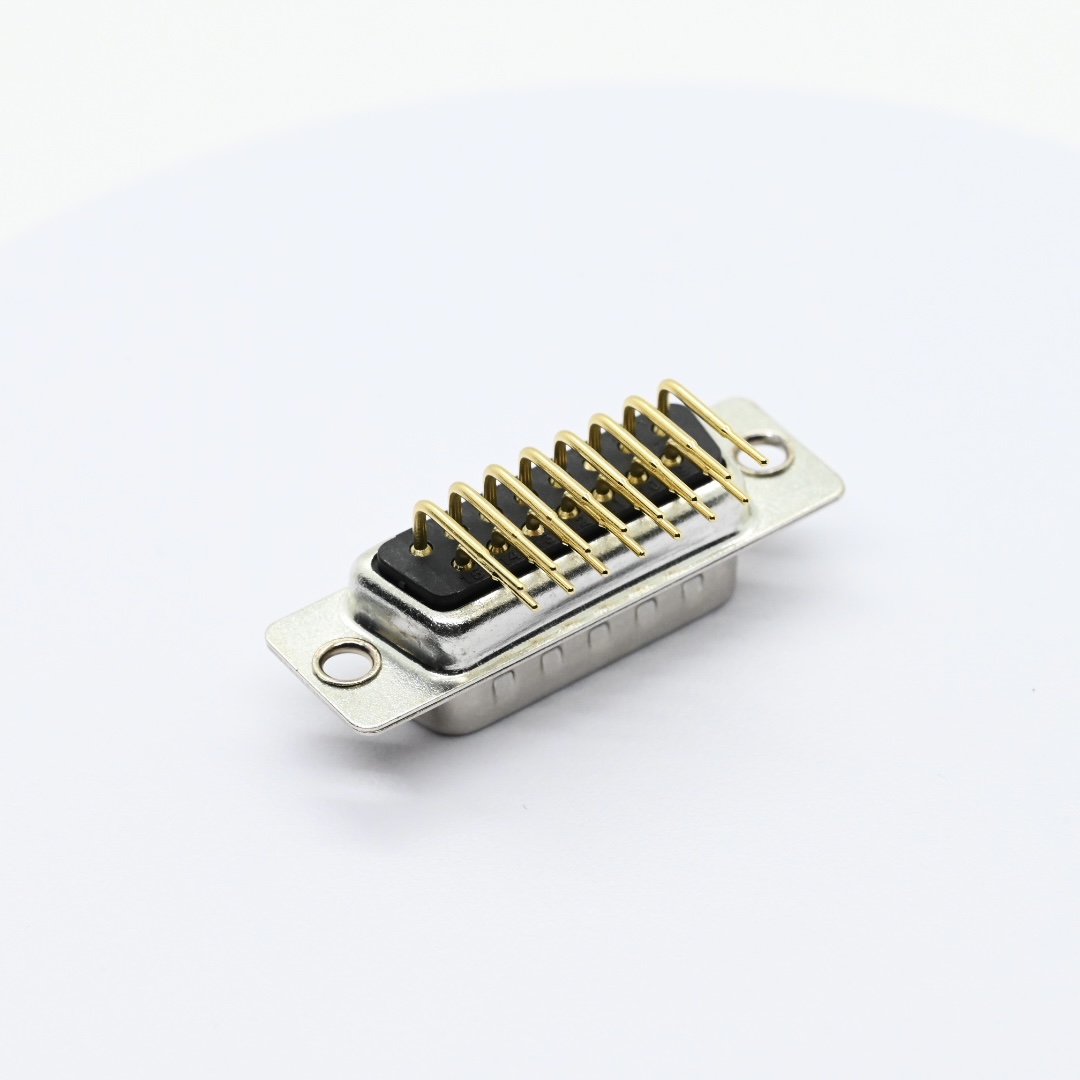

MDR02-M15ABG0+Right Angle D SUB Male Machine Pin Connector（7）

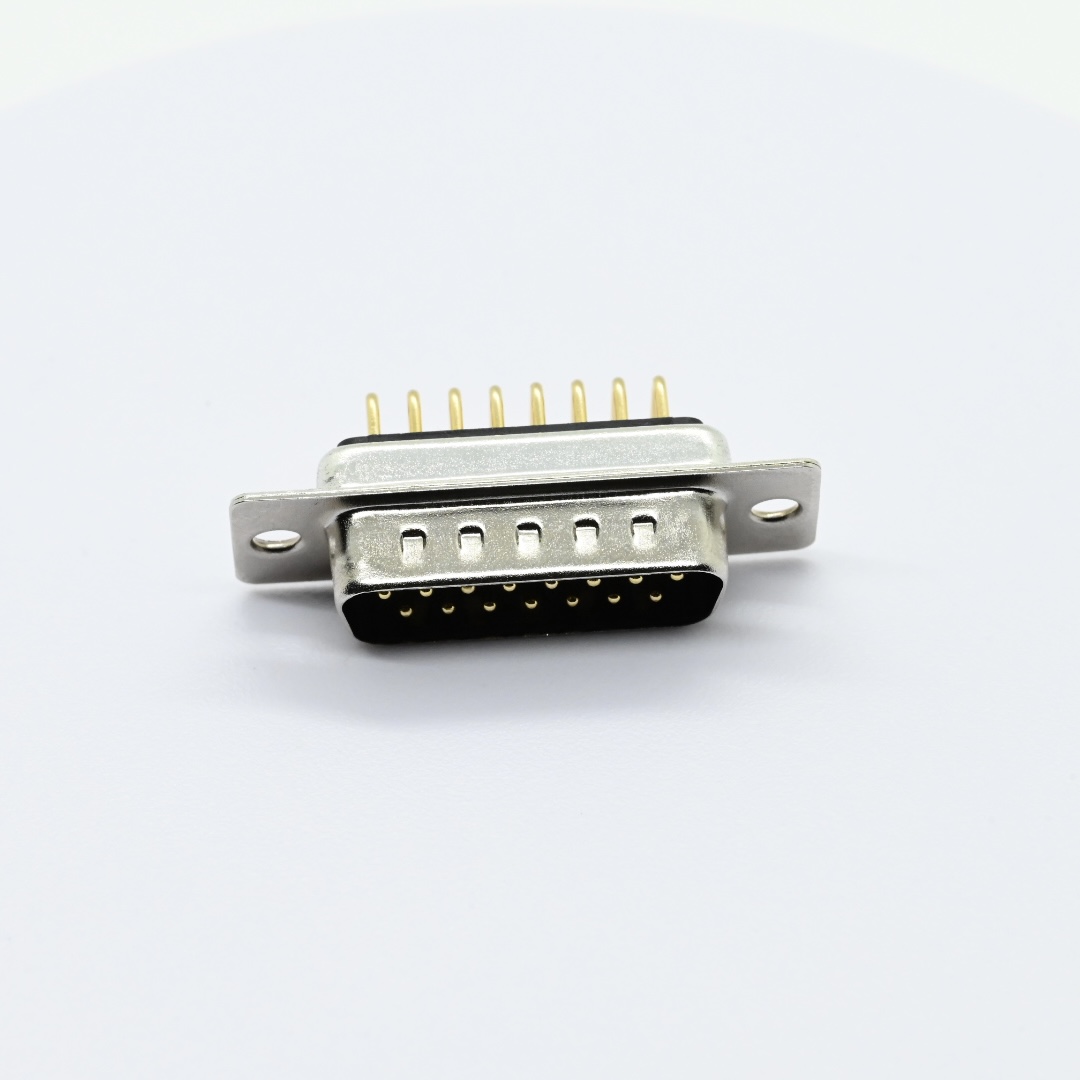

MDR02-M15ABG0+Right Angle D SUB Male Machine Pin Connector（3）

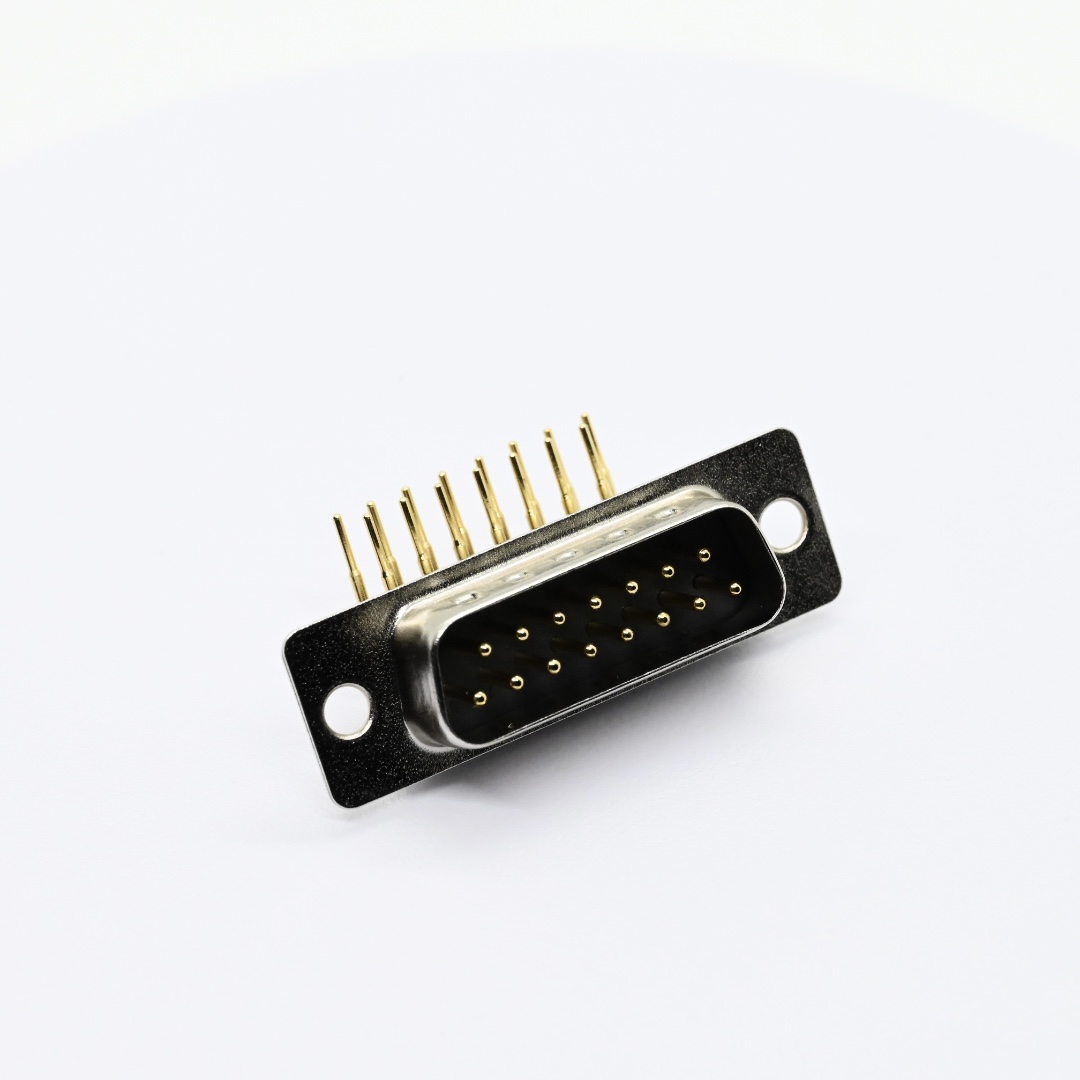

MDR02-M15ABG0+Right Angle D SUB Male Machine Pin Connector（1）
