FTP Network Cable Coupler Module

FTP Network Cable Coupler Module

2 month ago

5 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures FTP coupler modules for Cat5e and Cat6 network cable extension to deliver stable high speed network signal transmission, following precise dimensional tolerances shown on technical drawing to guarantee accurate cable plug in and reliable connection performance. This network coupler adopts glass filled UL94V 0 grade PC insulator housing, phosphor bronze stamp contacts with 0.3mm thickness and nickel plated alloy shell, electrically rated for 125 VAC voltage and 1.5 Amp current, maximum 100 milliohms contact resistance at 500 VDC, 750 VAC 60Hz dielectric strength and minimum 1000 megohms insulation resistance, working temperature ranges from zero degree Celsius to plus seventy degree Celsius and fully compliant with RoHS environmental standards. It supports direct cable to cable butt joint installation without extra accessories for quick network wiring extension. This high performance network coupler is widely applied in communication hardware, industrial control panels, digital household appliances, computer peripherals and precision measuring instruments requiring stable wired network interconnection. Operators should match correct category of network cables during installation, avoid excessive plugging force to prevent contact deformation, and store finished couplers in dry sealed packages to prevent nickel plating oxidation. Unlike competitors outsourcing stamping molding and plating work Antenk completes full in house production workflow covering self developed precision plastic and metal mold manufacturing, phosphor bronze contact high speed stamping, high temperature PC injection molding and nickel electroplating plus comprehensive laboratory performance testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications compliant with REACH rules. We own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, provide custom solutions and round the clock professional engineering support, and over seventy percent of our network connector products are exported globally backed by ANTENK brand and consistent stable mass production quality.

1. Glass Filled Coupler Housing provides good mechanical rigidity and flame retardant property for long term network connection applications.

2. Phosphor Bronze Network Contact maintains stable high speed signal transmission under frequent plug and unplug operations.

3. Nickel Plated Coupler Shell delivers reliable shielding performance and anti corrosion capability for FTP network coupler assemblies.

Detailed Specifications：

1. Electrical Parameters

1.1 Rated Voltage: 125 VAC

1.2 Rated Current: 1.5 Amp

1.3 Maximum Contact Resistance: 100 milliohms at 500 VDC

1.4 Minimum Insulation Resistance: 1000 Megohms

1.5 Dielectric Strength: 750 VAC 60Hz

2. Material & Surface Plating

2.1 Insert Housing: Glass filled PC, UL94V‑0 black grade

2.2 Contact: Phosphor bronze stamp, thickness 0.30mm

2.3 Shell: Copper alloy, 0.25mm thickness with nickel plating

3. Structural Specifications

3.1 Product Type: FTP shielded RJ45 coupler module

3.2 Supported Cable Grade: Cat5e, Cat6

4. Dimensional Standards (Unit: mm)

4.1 Key dimensions: 33.6±0.15, 19.90±0.10, 14.5±0.15, 16.0±0.15, 16.1±0.15

4.2 Other critical dimensions: 2.00±0.20, 1.75±0.25

5. Environmental Performance

5.1 Operating Temperature Range: 0℃ ~ +70℃

6. Compliance Standard

6.1 RoHS compliant

7. Application Scenarios

7.1 Communication hardware and network wiring projects

7.2 Industrial control panels

7.3 Computer peripherals and office network equipment

7.4 Digital household appliances requiring stable network connection

8. Operation & Storage Precautions

8.1 Use matching Cat5e or Cat6 network cables for proper signal performance

8.2 Avoid excessive plugging force to prevent contact deformation

8.3 Keep installation environment within rated operating temperature range

8.4 Store finished coupler modules in dry sealed packages to avoid nickel‑plated shell oxidation

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

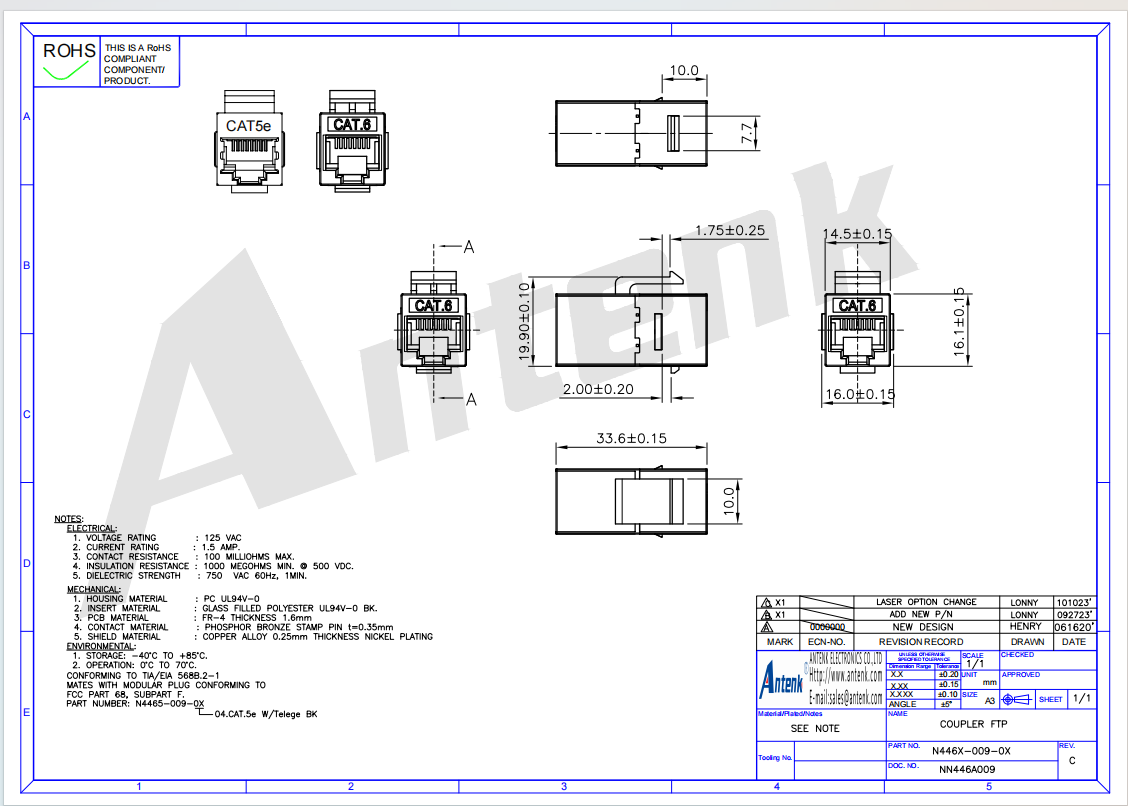

Product Drawing;
