Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures AT2512T‑X series 2.50mm pitch crimp terminals to achieve stable wire crimp connection matching AH2512 series housing for various wire harness assemblies, following precise drawing dimensional specifications to ensure perfect fitting performance during crimping and mating operations. This crimp terminal adopts high elasticity phosphor bronze raw material, supports tin over nickel plating and optional gold plating with minimum MOQ requirement, suitable for AWG22 to AWG28 wire gauge with maximum insulation outer diameter 1.90 millimeter, electrically rated for 500V AC DC voltage and 3A AC DC current, maximum 20 milliohms contact resistance, 500 megohms minimum insulation resistance and 1000V AC per minute withstanding voltage, operating stably within minus 40 degree Celsius to plus 105 degree Celsius and meets RoHS and REACH environmental compliance requirements. This precision crimp terminal is widely applied in liquid crystal display modules, digital cameras, communication hardware, industrial control panels, digital household appliances, computer peripherals, automotive electronic assemblies and precision measuring instruments. Operators need to select proper plating finish according to application environment, use matched crimping tool for wire termination, avoid improper crimp force to prevent terminal deformation, and store finished terminals inside dry sealed packages to keep plating layers away from oxidation. Unlike competitors outsourcing stamping and plating services Antenk implements full in house production workflow covering self developed precision metal mold fabrication, phosphor bronze high speed stamping and multi grade electroplating plus strict laboratory reliability testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications. We own more than two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, provide custom solutions and round the clock engineering support, and over seventy percent of our connector products are exported globally supported by ANTENK brand and stable mass production quality.

1. Phosphor Bronze Crimp Terminal delivers reliable spring performance and long service life for repeated wire crimping and mating cycles.

2. Tin Nickel Plated Contact provides good oxidation resistance and stable electrical conductivity for general‑purpose wiring harness applications.

3. Gold Plated Crimp Contact maintains low contact resistance for high reliability circuits under harsh working environmental conditions.

Detailed Specifications:

1. Electrical Parameters

1.1 Rated Voltage: 500V AC, DC

1.2 Rated Current: 3A AC, DC

1.3 Maximum Contact Resistance: 20 milliohms

1.4 Dielectric Withstanding Voltage: 1000V AC per minute

1.5 Minimum Insulation Resistance: 500 Megohms

2. Material & Plating Options

2.1 Terminal Material: Phosphor Bronze

2.2 Plating Options: Tin over Nickel, optional gold plating with MOQ requirement

2.3 Compatible Housing: AH2512 series housing

2.4 Applicable Wire Gauge: AWG 22‑28

2.5 Max Wire Insulation Outer Diameter: 1.90 mm

3. Structural Specifications

3.1 Product Type: Crimp terminal

3.2 Pitch: 2.50 mm

4. Dimensional Standards (Unit: mm)

4.1 Key drawing dimensions: 6.60, 1.85, 2.20, 2.15, 0.65, 0.95, 3.50, 3.05

5. Environmental Performance

5.1 Operating Temperature Range: ‑40°C ~ +105°C

6. Compliance Standard

6.1 RoHS and REACH compliant

7. Application Scenarios

7.1 Communication hardware and industrial control panels

7.2 Digital household appliances and liquid crystal display modules

7.3 Digital cameras, computer peripherals

7.4 Automotive electronic assemblies and precision measuring instruments

8. Operation & Storage Precautions

8.1 Match with AH2512 series housing during assembly

8.2 Use wires within AWG 22‑28 range, insulation diameter shall not exceed 1.90 mm

8.3 Apply suitable crimping tool, avoid improper crimp force to prevent terminal deformation

8.4 Gold plating option needs to meet minimum order quantity requirement

8.5 Store crimp terminals in dry sealed packages to prevent plating layer oxidation

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

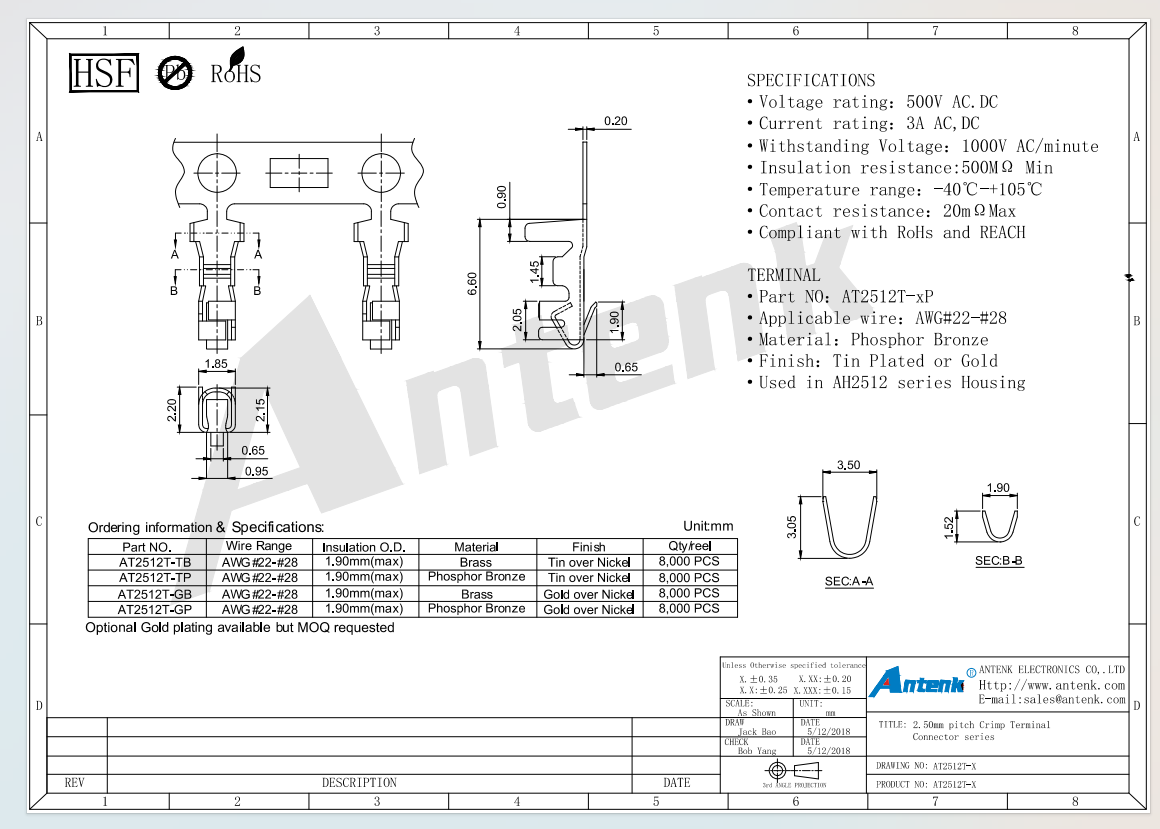

Product Drawing：

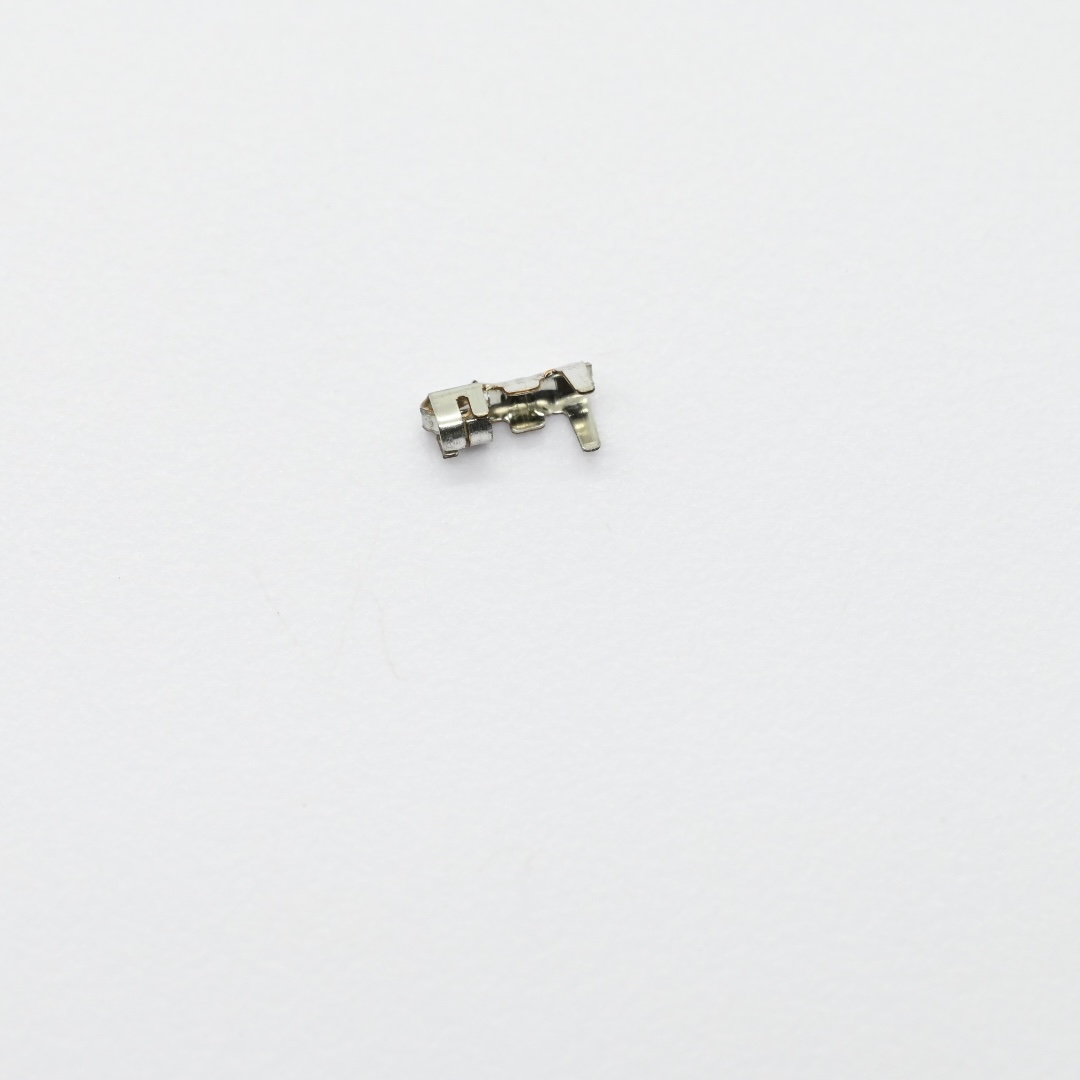

AT2512T-X+2.50mm pitch Crimp Terminal Connector series(6)

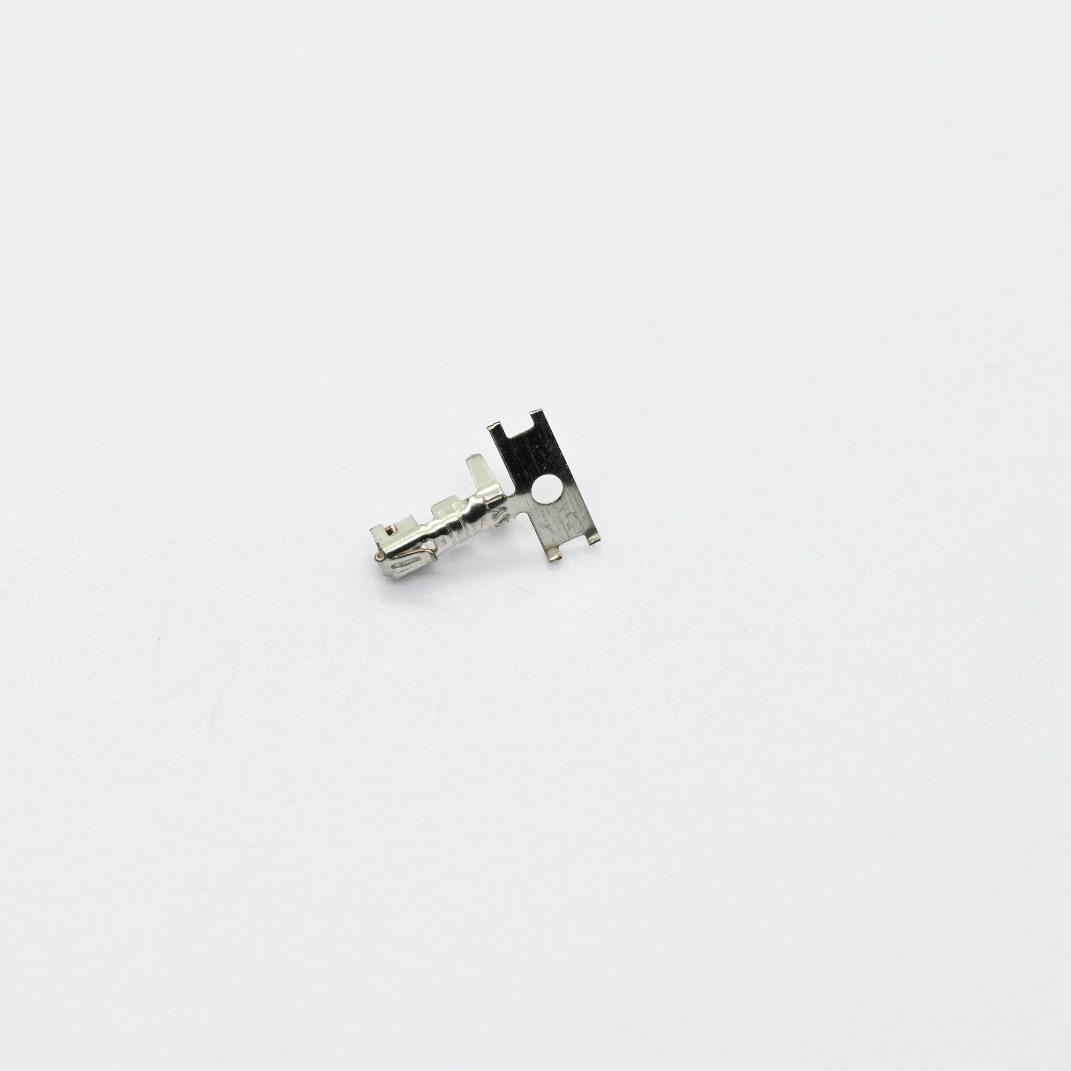

AT2512T-X+2.50mm pitch Crimp Terminal Connector series(4)

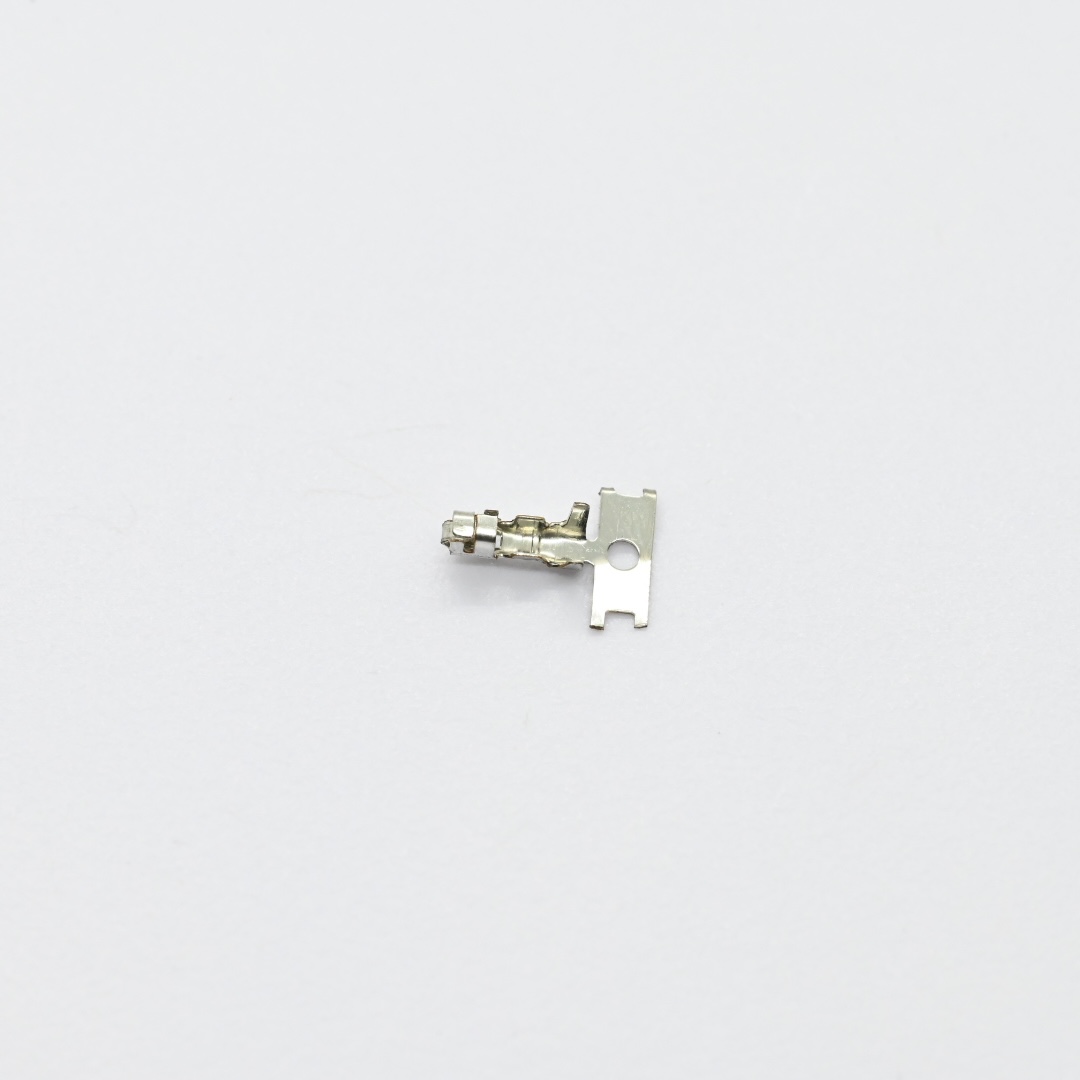

AT2512T-X+2.50mm pitch Crimp Terminal Connector series(1)

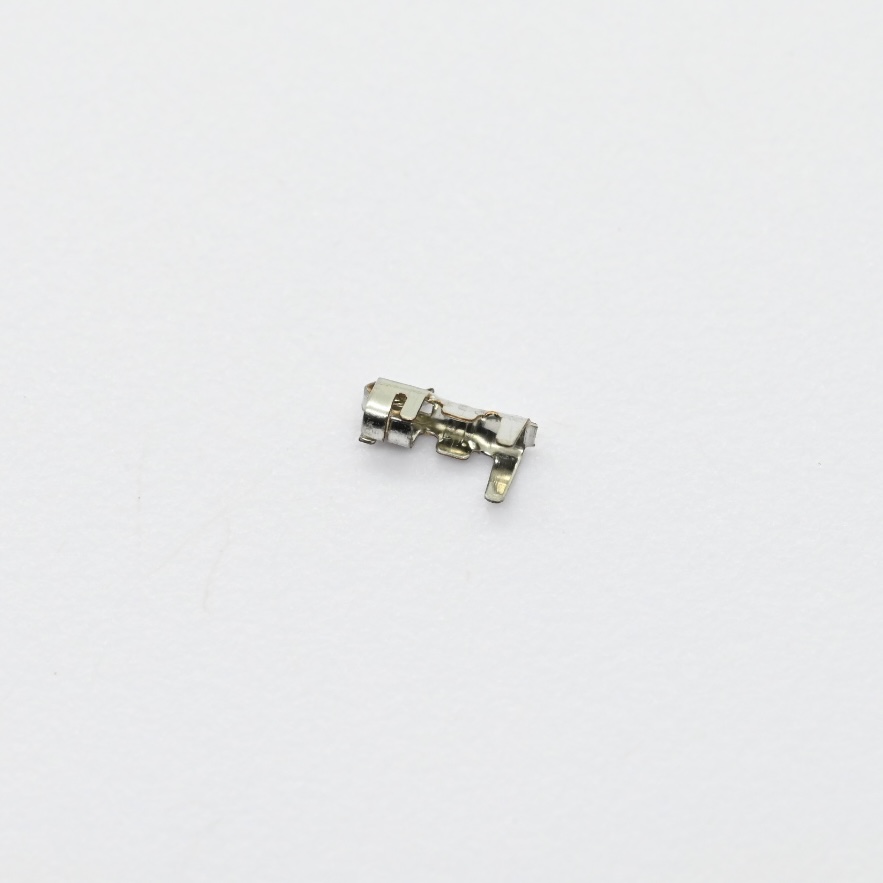

AT2512T-X+2.50mm pitch Crimp Terminal Connector series(5)

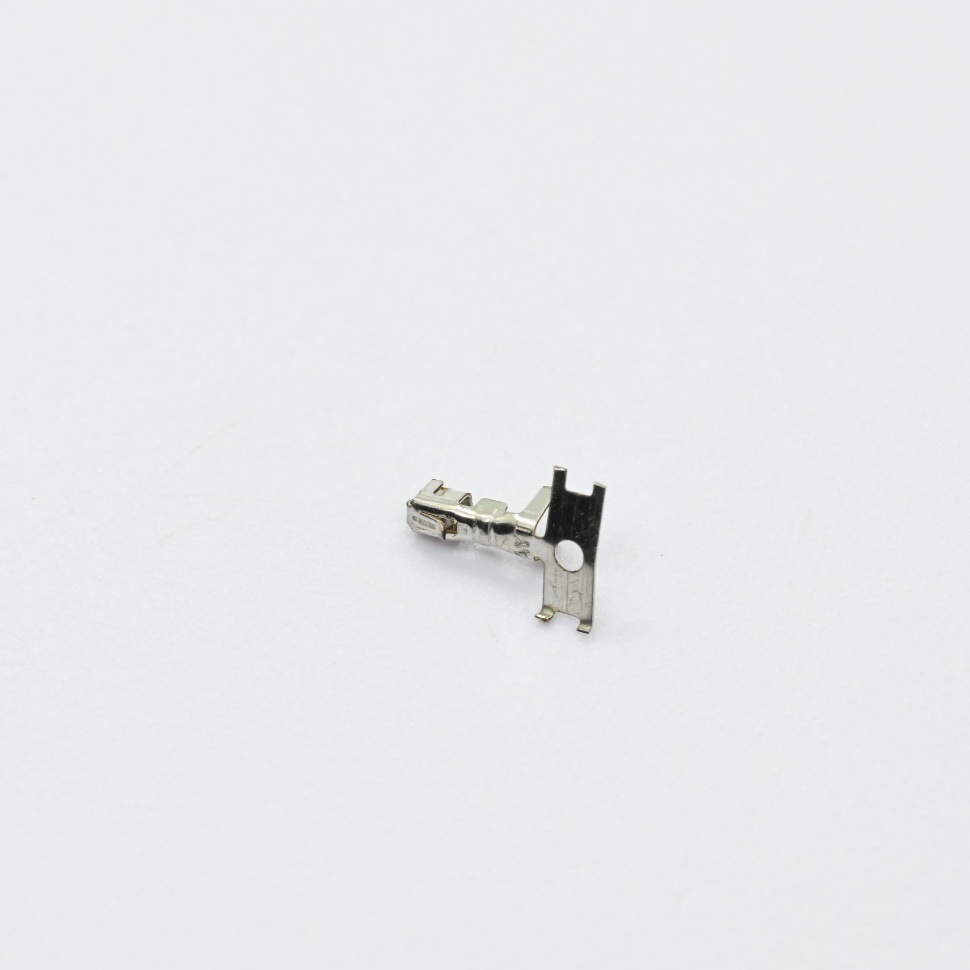

AT2512T-X+2.50mm pitch Crimp Terminal Connector series(2)

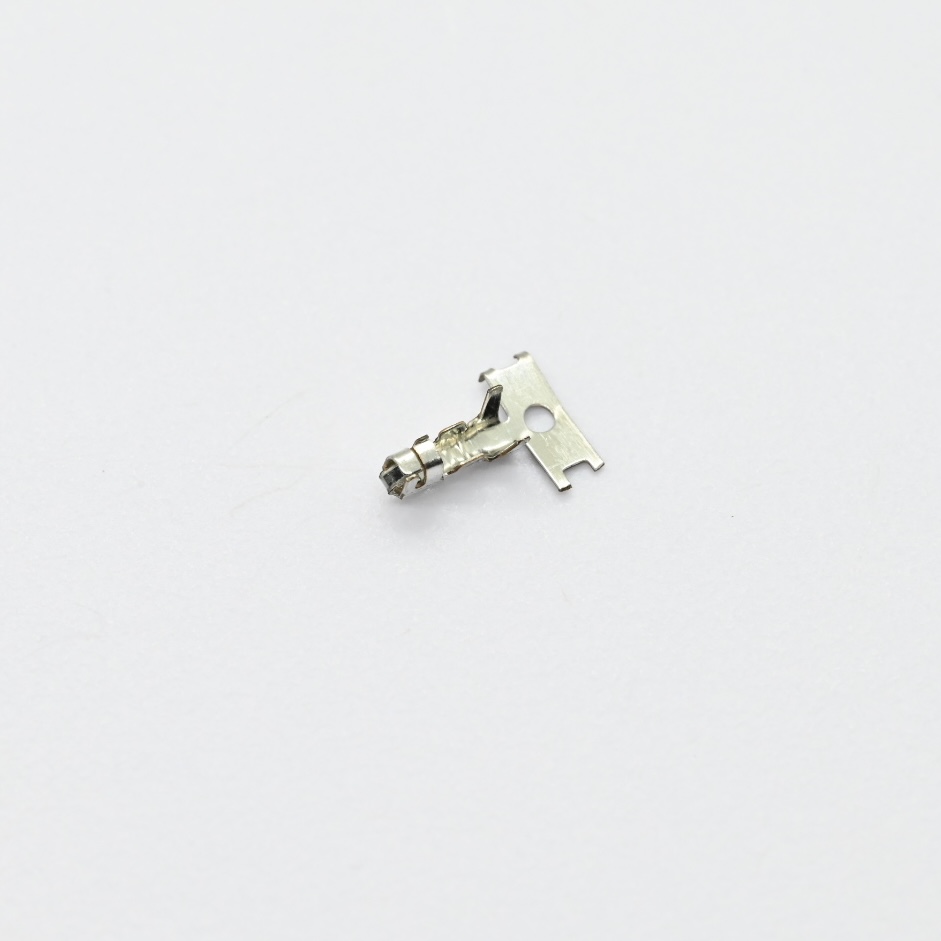

AT2512T-X+2.50mm pitch Crimp Terminal Connector series(3)
