Product details

Product Introduction

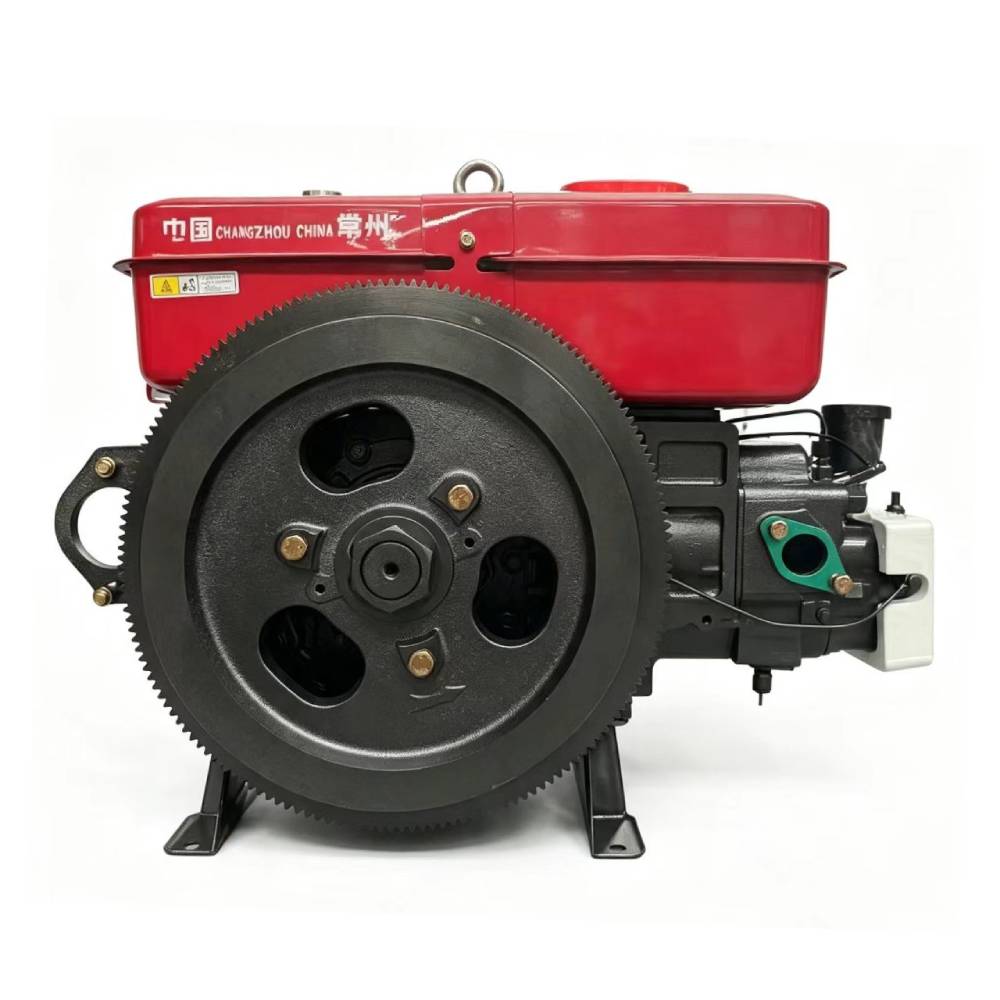

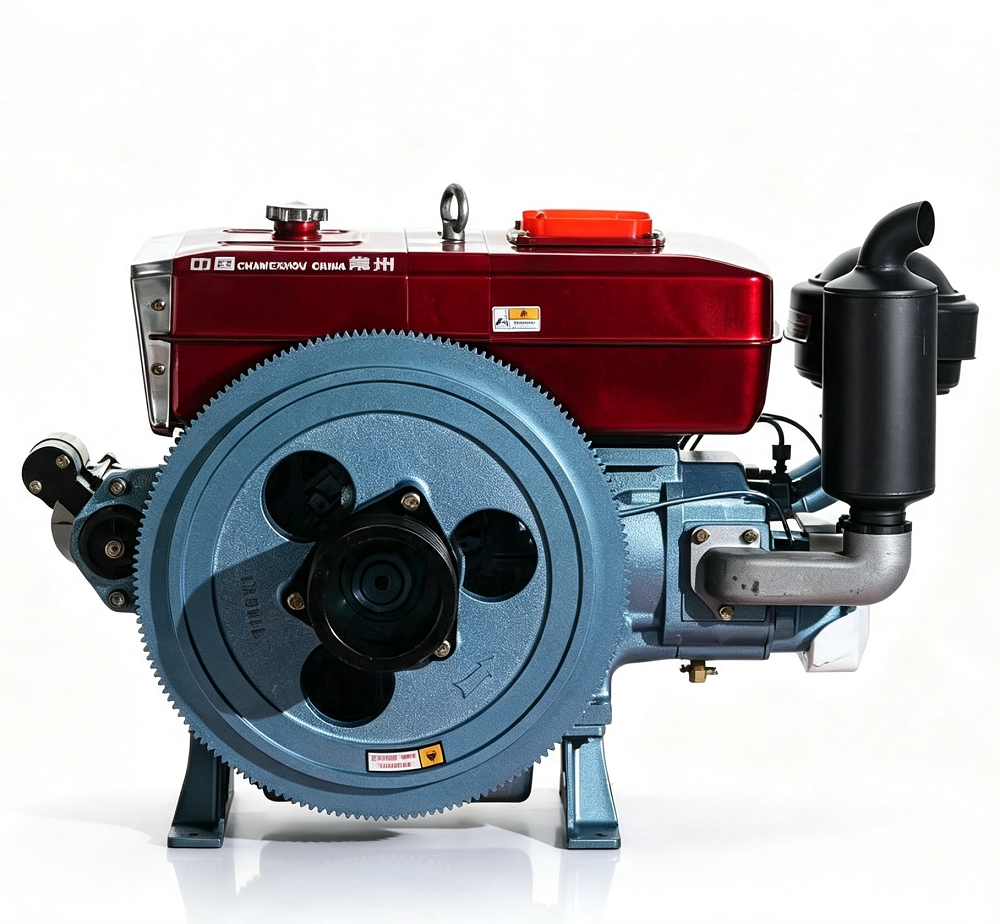

Single Cylinder Water Cooled 8-35 Diesel Engine

The 8‑35 hp single‑cylinder diesel engine is a four‑stroke direct‑injection power unit, covering a power range of 8‑35 hp. This robust water cooled diesel engine, one of our reliable small diesel engine options, works as high‑performance diesel motors and adopts a water‑cooled heat dissipation structure, well‑suited for various agricultural machinery and light industrial equipment including walking tractors, marine outboard motors, water pump units, small generator sets, and agricultural transport equipment. It is a versatile main power model for agricultural operations, inland waterway vessels, and field power generation. It supports both hand‑crank and electric start configurations to meet different procurement needs under various operating conditions.

Product Attributes

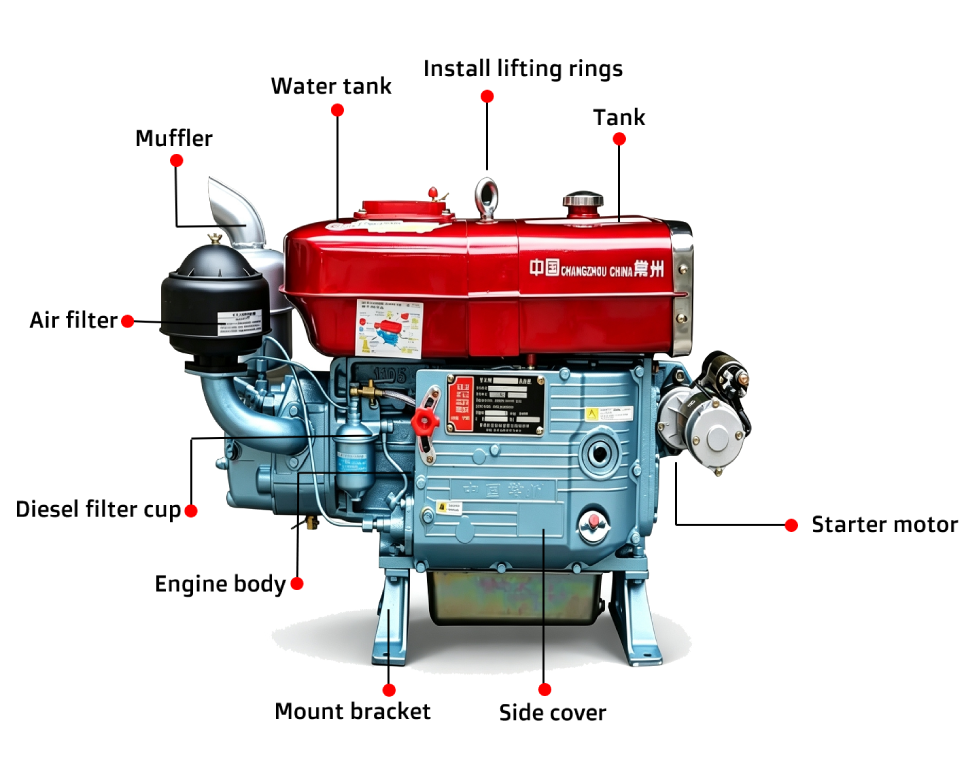

Engine Type: Single-cylinder, four-stroke, water-cooled diesel engine

Power Range: 8-35 hp

Combustion Method: Direct injection combustion

Cooling Method: Water-circulating water cooling

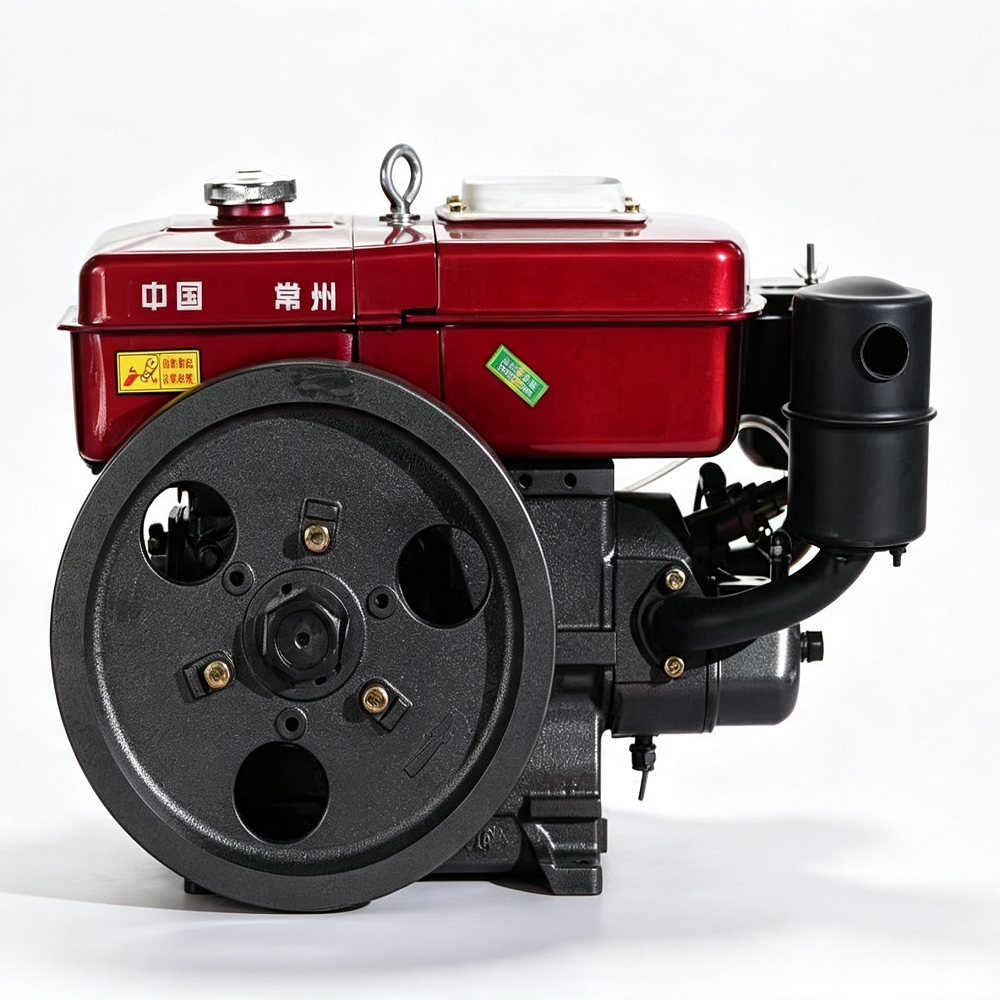

Starting Method: Hand-crank start / Electric start

Lubrication Method: Pressure splash composite lubrication

Engine Body Material: Cast iron body

Rated Speed: 2200-2400 rpm

Compatible Equipment: Walking tractors, outboard motors, water pumps, generators, agricultural transport machinery, small construction machinery

Product Features

Water-cooled circulating heat dissipation prevents overheating during prolonged heavy-load operation, ensuring stable overall operating temperature and adaptability to continuous operation in high-temperature environments.
Direct injection fuel system ensures complete fuel atomization and high torque reserve, minimizing speed drop and power loss under hard surfaces and heavy loads.
Thickened cast iron body provides high strength for core components, offering wear resistance and impact resistance, suitable for harsh operating environments such as fields and waterways. 4. Two starting modes are available: the manual start version is easy to maintain; the electric start version features one-button ignition, reducing operator workload.
Modular structure, highly interchangeable parts, simple disassembly and repair, and convenient maintenance.
Complete power range, suitable for everything from low-horsepower light-duty operations to high-horsepower heavy-duty applications.

Product Advantages

Wide compatibility: 8-35 horsepower full power range, suitable for agricultural machinery, marine applications, power generation, and irrigation; compatible with many domestic main engine equipment.

Durable and reliable: Water-cooled design provides stronger continuous operation capability and lower failure rate compared to air-cooled models, suitable for long-term uninterrupted operation.

Economical and fuel-efficient: Optimized direct injection combustion chamber results in low fuel consumption, reducing daily operating costs, suitable for large-scale, high-frequency operations.

Low maintenance costs: High market parts interchangeability, ample spare parts, simple repair, and no complex maintenance requirements.

Flexible Selection: Hand-crank or electric start versions are available to meet the diverse needs of individual farmers, family farms, and bulk importers.

Excellent Cost-Effectiveness: The single-cylinder structure is mature and stable, with moderate procurement costs, ample power output, and high overall efficiency.
