Product details

Product Description:

Huizhou Antenk Electronics Co., Ltd. manufactures UAFR03 series angle upright DIP USB A Type receptacle to realize stable data and power transmission for printed circuit board assembly, following strict drawing dimensional tolerances to guarantee precise through hole soldering and reliable plug in performance. This USB receptacle adopts PBT LCP thermoplastic insulator housing with UL94V 0 flame retardant grade, phosphor copper contact material and stainless steel shell with nickel plating surface finish, supports multiple contact plating options ranging from gold flash to 30u gold, electrically rated for 1.5A maximum current, 30 milliohms maximum contact resistance and 1000 megohms minimum insulation resistance, complies with RoHS and HSF environmental standards. Tray bag and tape and reel packing options satisfy different mass production requirements. This standard USB socket is widely deployed in liquid crystal display modules, digital cameras, communication hardware, industrial control panels, digital household appliances, computer peripherals, automotive electronic assemblies and precision measuring instruments. Operators should select suitable plating finish and packing form based on actual project needs, follow official PCB layout during DIP soldering, avoid excessive soldering heat to prevent plastic housing deformation, and store finished USB receptacles in dry sealed packages to prevent metal component oxidation. Unlike competitors outsourcing stamping molding and plating services Antenk performs full in house production workflow covering self‑developed precision plastic and metal mold fabrication, phosphor copper high speed stamping, high temperature plastic injection molding and multi grade electroplating plus comprehensive laboratory reliability verification, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications compliant with REACH rules. We own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, provide custom solutions and round the clock professional engineering support, and over seventy percent of our USB connector products are exported globally backed by ANTENK brand and stable mass production quality.

1. PBT LCP USB Housing delivers superior heat resistance and flame retardant performance for high temperature DIP soldering applications.

2. Phosphor Copper USB Contact provides excellent mechanical spring force and stable electrical conductivity for frequent plug and unplug cycles.

3. Nickel Plated USB Shell offers reliable shielding effect and great anti corrosion capability for daily USB signal transmission environments.

Detailed Specifications:

1. Electrical Parameters

1.1 Maximum Rated Current: 1.5A

1.2 Maximum Contact Resistance: 30 milliohms

1.3 Minimum Insulation Resistance: 1000 Megohms

1.4 Dielectric Withstanding Voltage: 500V AC 60 second

2. Material & Plating Options

2.1 Housing Material: Thermoplastics PBT LCP, UL94V‑0 flame retardant grade

2.2 Shell Material: Stainless steel with nickel plating

2.3 Contact Material: Phosphor copper or brass

2.4 Contact Plating Options: Gold flash, 3u Gold, 10u Gold, 15u Gold, 30u Gold

2.5 Solder tails finish: Tin

3. Structural Specifications

3.1 Product Type: Angle Upright DIP USB A Type Receptacle

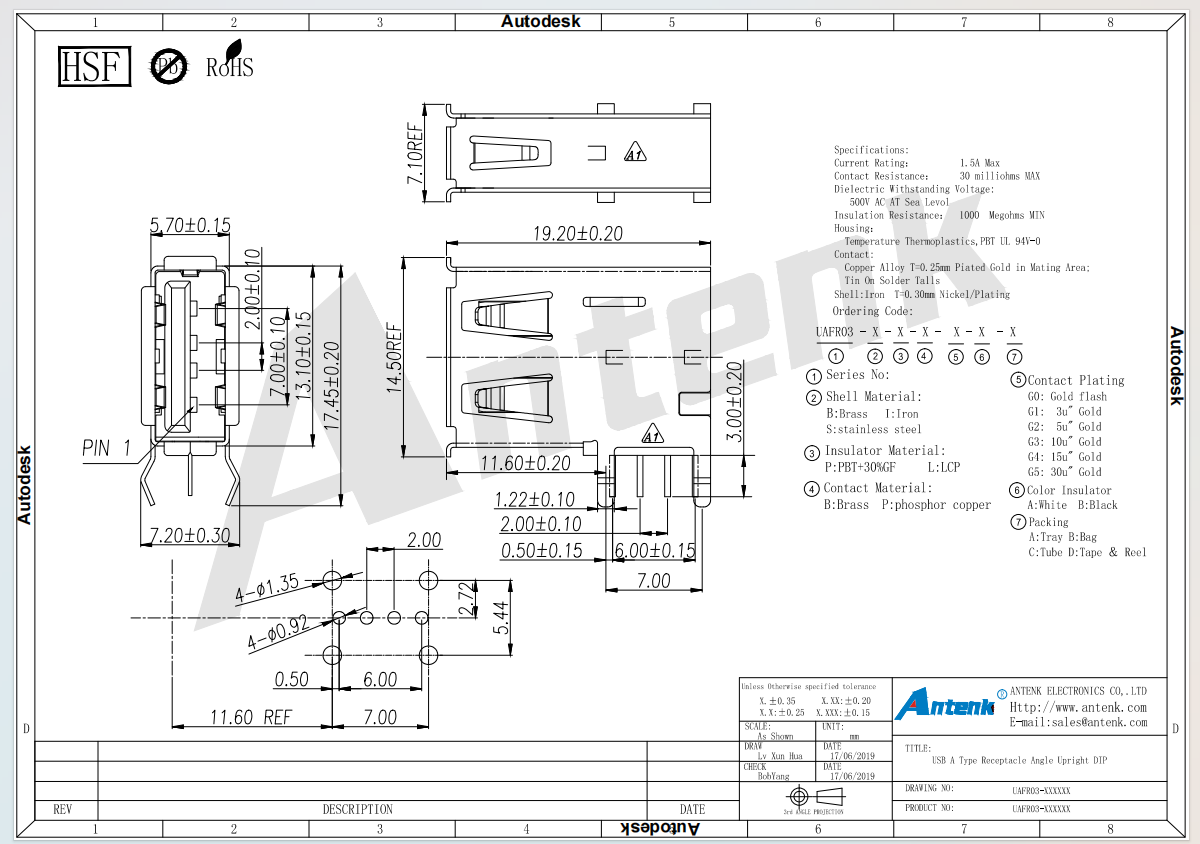

4. Dimensional Standards (Unit: mm)

4.1 Main key dimensions: 19.20, 14.50, 11.60, 7.20, 7.00, 5.70

4.2 Drawing tolerances: ±0.10, ±0.15, ±0.20 for different dimensions

5. Compliance Standard

5.1 RoHS and HSF compliant

6. Packing Selections

6.1 Available packing: Tray, Bag, Tape & Reel

7. Application Scenarios

7.1 Liquid crystal display modules, digital cameras

7.2 Communication hardware, industrial control panels

7.3 Digital household appliances, computer peripherals

7.4 Automotive electronic assemblies, precision measuring instruments

8. Operation & Storage Precautions

8.1 Select appropriate contact plating and packing option according to project requirements

8.2 Follow PCB layout drawing for DIP through‑hole soldering

8.3 Avoid excessive soldering heat to prevent thermoplastic housing deformation

8.4 Store USB receptacles in dry sealed packages to avoid oxidation of metal parts

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

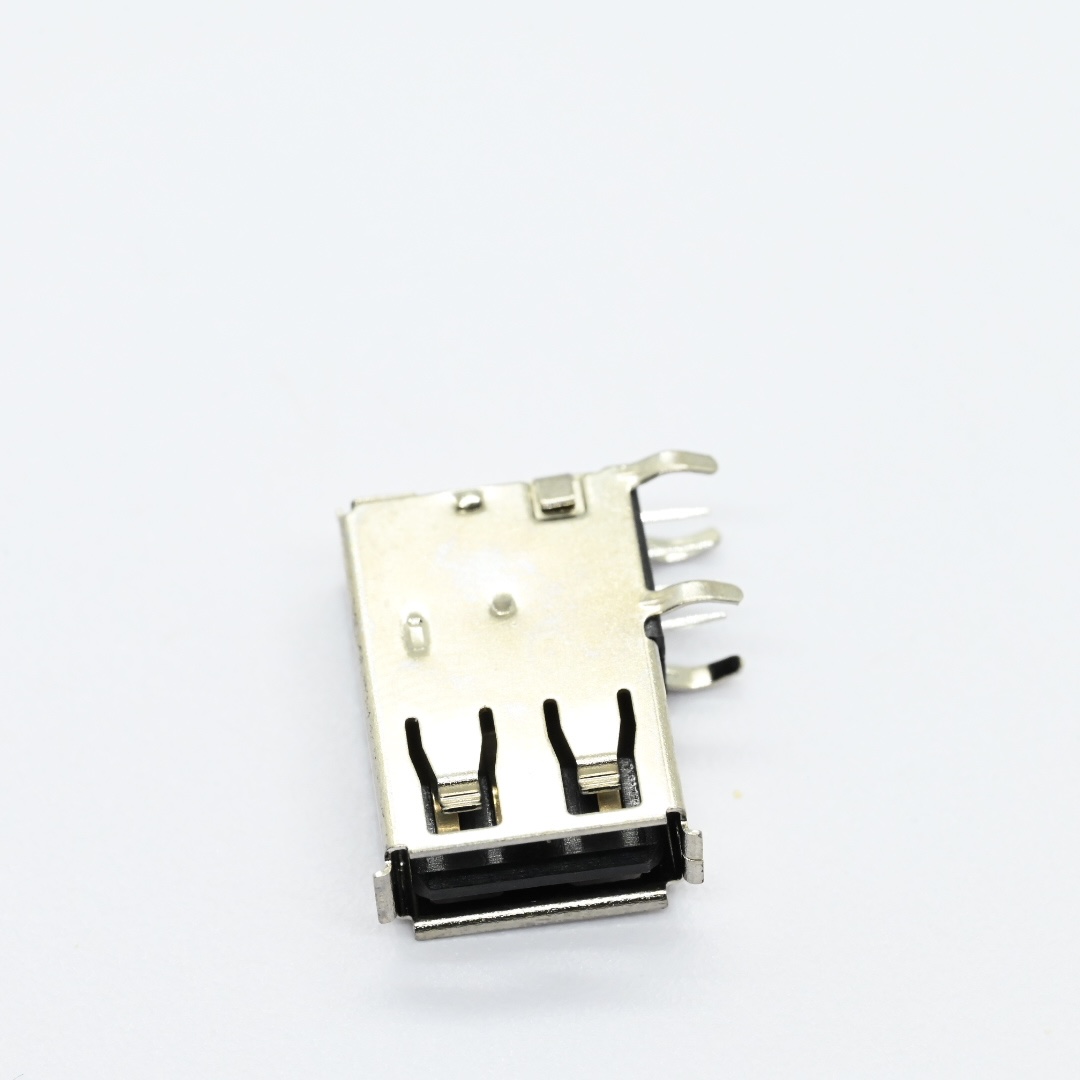

UAFR03-BPBG0BA+USB A Type Receptacle Angle Upright DIP（4）

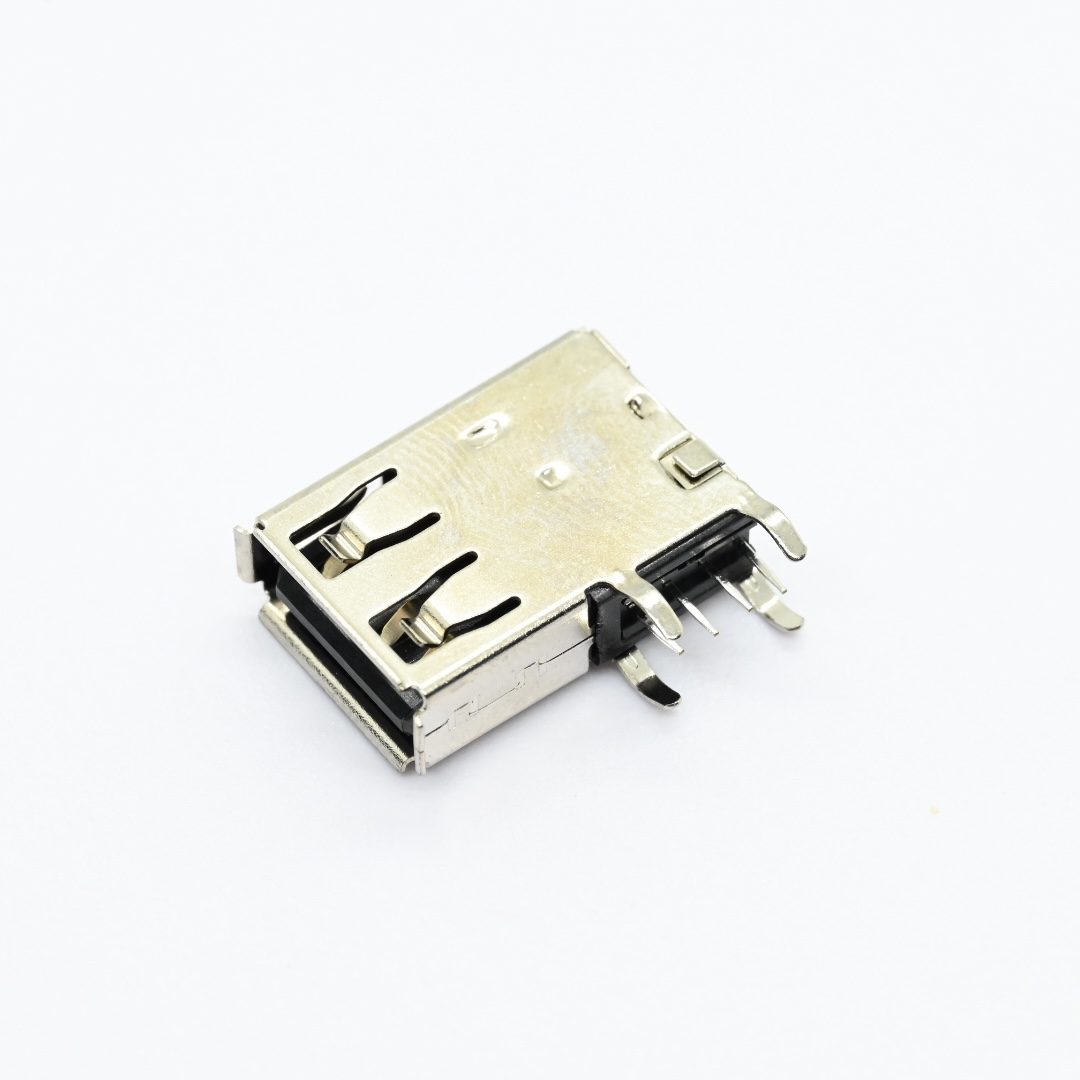

UAFR03-BPBG0BA+USB A Type Receptacle Angle Upright DIP（5）

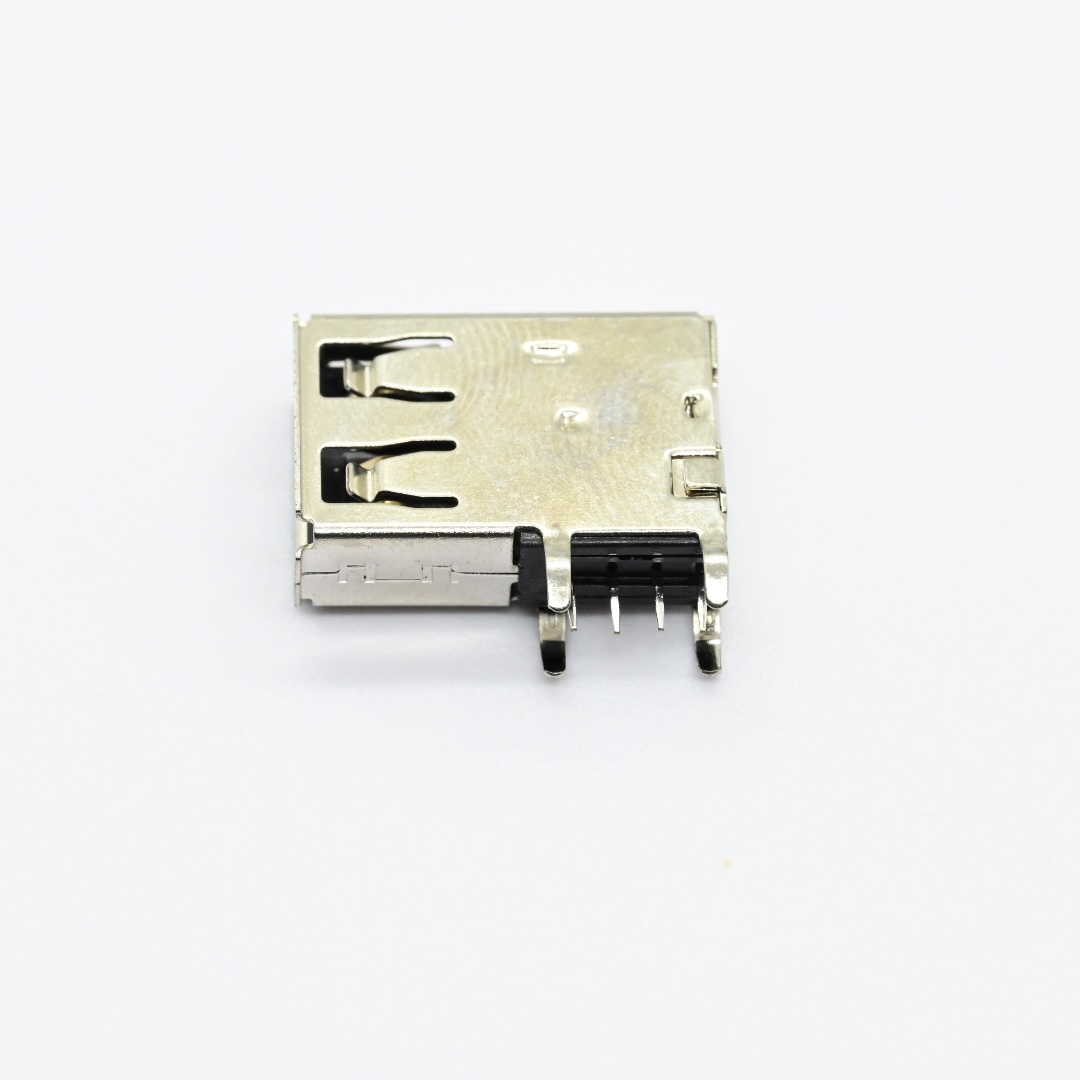

UAFR03-BPBG0BA+USB A Type Receptacle Angle Upright DIP（6）

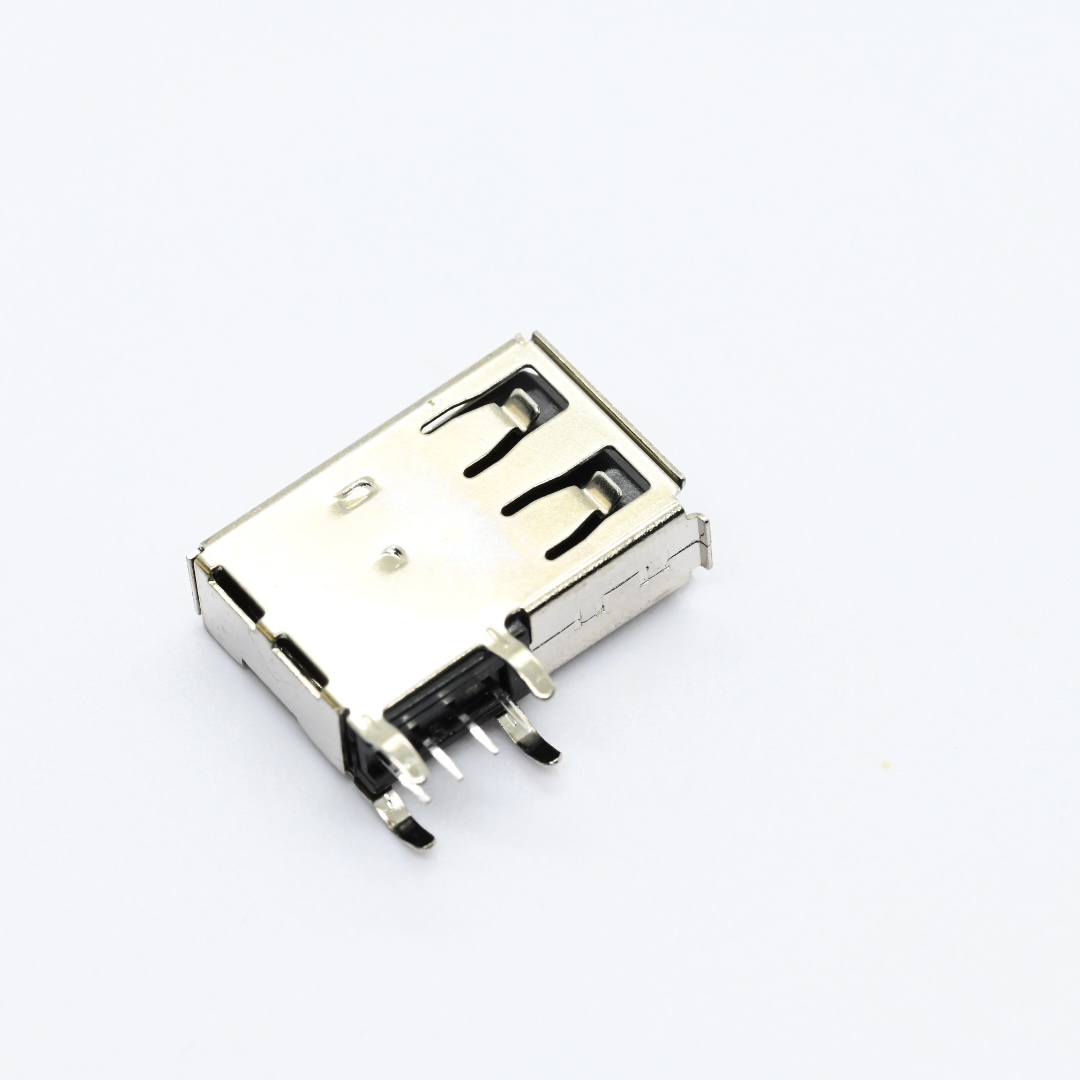

UAFR03-BPBG0BA+USB A Type Receptacle Angle Upright DIP（2）

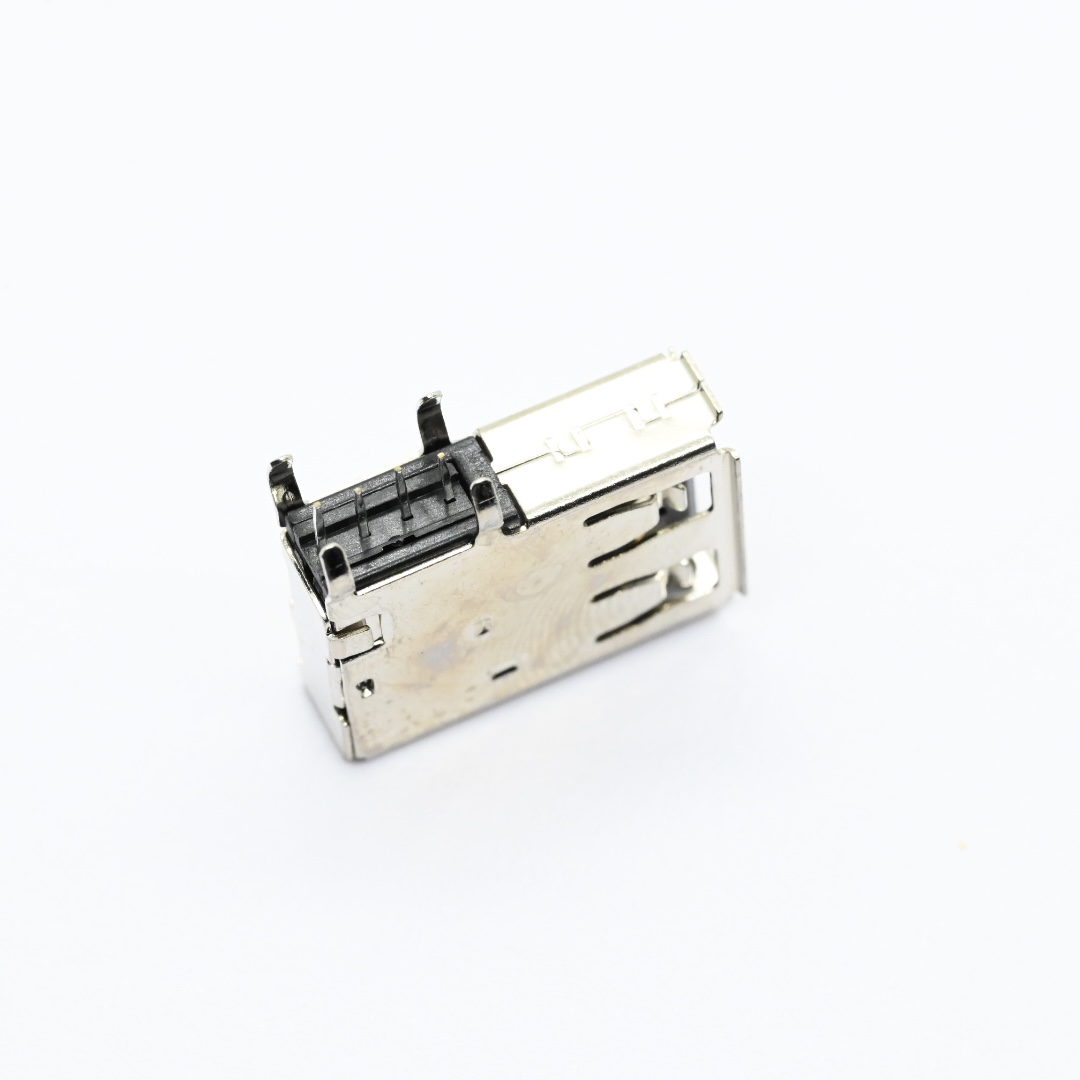

UAFR03-BPBG0BA+USB A Type Receptacle Angle Upright DIP（3）

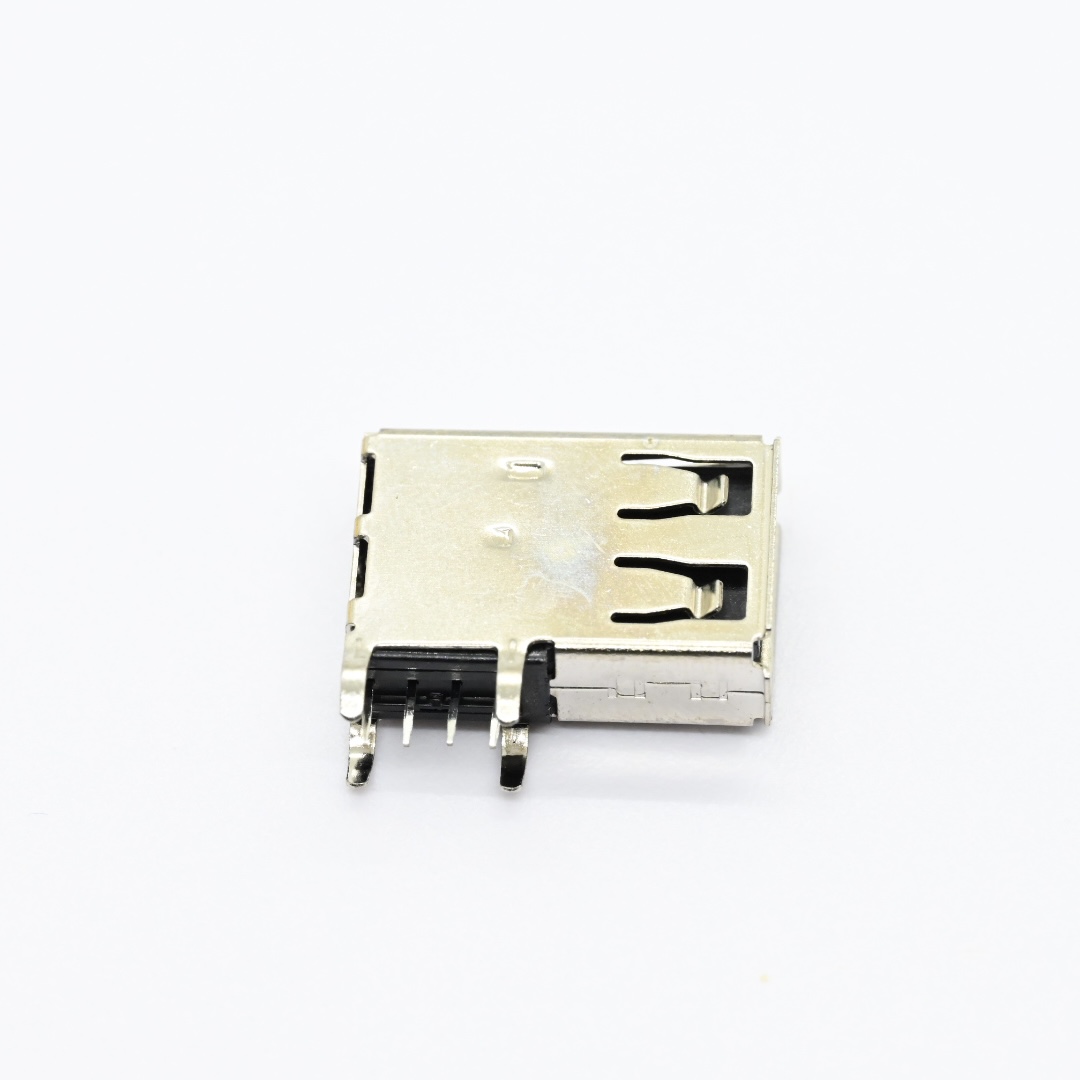

UAFR03-BPBG0BA+USB A Type Receptacle Angle Upright DIP（1）
