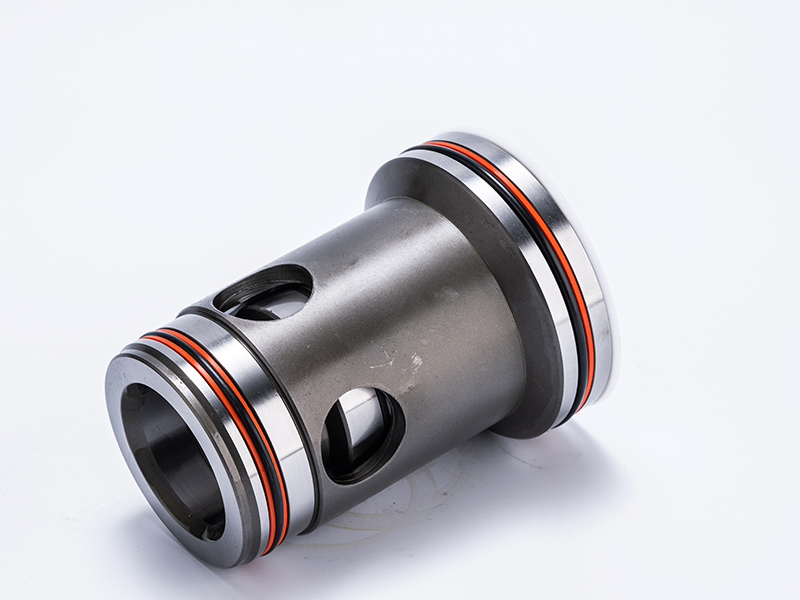

TJ Series 2‑Way Logic Cartridge Valve

Product Overview

TJ Series 2‑Way Logic Cartridge Valve is a poppet‑type high‑flow Hydraulic valve, which belongs to standard CARTRIDGE VALVE. Installed inside integrated manifold blocks, it completes directional, pressure and flow control for the whole hydraulic system. Matched with different control covers, this CARTRIDGE VALVE can realize diverse hydraulic loop functions for heavy‑duty industrial Machine. Featuring large‑flow throughput, low pressure loss and reliable poppet sealing, it is widely used for original equipment assembly, manifold block development, equipment retrofitting and aftermarket spare‑parts replacement.

Technical Specifications

- Model: TJ Series 2‑Way Logic Cartridge Valve

- Product Category: Hydraulic valve, 2‑way logic CARTRIDGE VALVE

- Installation standard: ISO 7368 / DIN 24342, nominal size: NG16‑NG160

- Max working pressure: 31.5 MPa

- Max flow rate: up to 8000 L/min according to different sizes

- Area ratio options: 2:1, 1.46:1

- Optional spring cracking pressure: 0.05‑0.4 MPa

- Working medium: Anti‑wear mineral hydraulic oil for hydraulic system

- Working temperature: ‑20℃ ~ +80℃

- Feature: Hard‑seal poppet construction, ultra‑low internal leakage, strong anti‑pollution capacity, compact insert‑in installation, flexible function combination with control covers, high‑strength steel components, stable performance under frequent switching

- Applicable equipment: Hydraulic press, metallurgical machinery, injection molding machine, engineering machinery and various heavy‑duty industrial Machine

Working Principle

As a key control element of the hydraulic system, this CARTRIDGE VALVE is embedded into manifold block cavities. Pilot control oil acts on the top of poppet unit to control opening and closing of the main oil passage. By assembling different control covers, the Hydraulic valve can perform directional switching, pressure relief, pressure holding and unloading functions. The poppet hard‑seal structure effectively reduces internal leakage under high‑pressure condition. It delivers stable oil‑circuit control for cylinders and actuators of heavy‑duty Machine, ensuring reliable operation of the complete hydraulic system.

Core Advantages

1. Adopts international standard cavity dimension, TJ series CARTRIDGE VALVE possesses good interchangeability for manifold blocks of industrial Machine.

2. Large‑flow capacity with minor pressure drop, effectively cuts down heat generation and energy consumption of hydraulic system.

3. Poppet hard‑seal design achieves excellent pressure‑holding performance, minimal internal leakage during long‑time static pressure maintaining.

4. Highly flexible function configuration. Multiple hydraulic functions can be realized just by replacing control covers, which greatly simplifies loop design of hydraulic system.

5. Robust steel structure, adapts to continuous heavy‑load working environment, easy for disassembly, inspection and spare‑parts replacement.

Application Range

TJ Series 2‑Way Logic CARTRIDGE VALVE is a vital Hydraulic valve for heavy‑duty Machine. It undertakes main‑loop control tasks for large‑flow hydraulic system. Widely applied in hydraulic presses, metallurgical facilities, plastic injection equipment, construction machinery and other heavy‑duty installations. Popular for manifold assembly, technical upgrading and global aftermarket spare‑parts supply.
