Product details

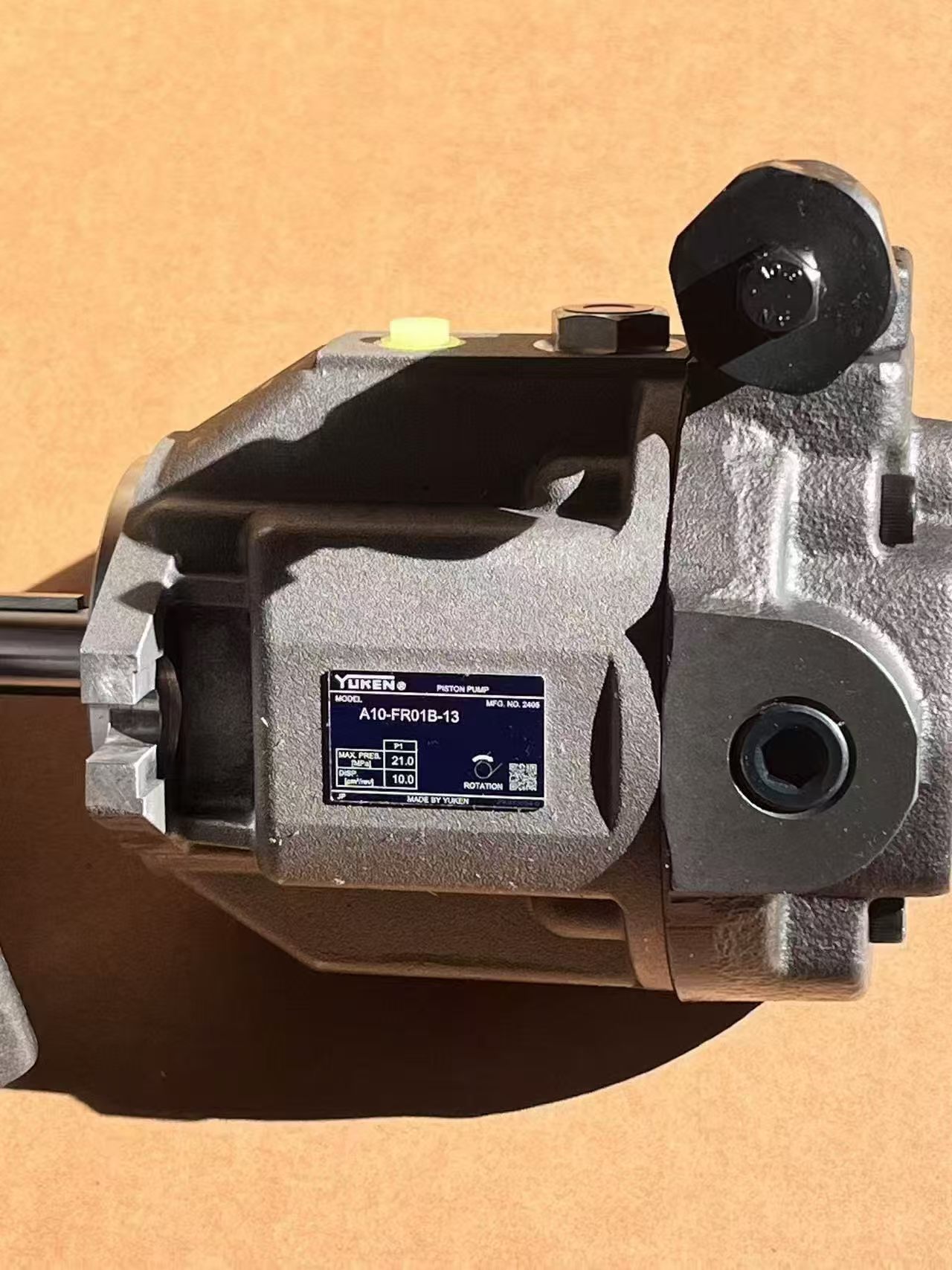

Yuken A Series Piston Pump A10‑FR01B‑13

Product Overview

Yuken A10‑FR01B‑13 is a compact variable‑displacement Hydraulic piston pump of Japanese Yuken A series. As a key power‑supply hydraulic pump, it provides adjustable pressure and flow for complete hydraulic system of various small‑and‑medium industrial Machine. This Hydraulic piston pump adopts swash‑plate variable‑displacement and pressure‑compensated control structure, featuring small footprint, low noise and stable output performance. It is widely used for original equipment assembly, technical renovation and aftermarket spare‑parts replacement for injection‑molding equipment, machine‑tools and general‑purpose industrial Machine .

Technical Specifications

- Model: A10‑FR01B‑13

- Product Category: Hydraulic piston pump, swash‑plate variable‑displacement hydraulic pump

- Geometric displacement: 10 cm³/rev

- Rated pressure: 16 MPa; Max working pressure: 21 MPa

- Rotation direction: Right‑hand rotation, flange mounting

- Control mode: Pressure compensator control (B‑type pressure range)

- Speed range: 600‑1800 r/min, recommended 1200‑1800 r/min

- Approximate weight: 8.5 kg

- Working medium: Anti‑wear mineral hydraulic oil for industrial hydraulic system

- Working temperature: ‑10℃ ~ +80℃

- Feature: Compact size, high volumetric efficiency, low pressure pulsation, cast‑iron pump housing, easy installation and maintenance, perfectly matches the hydraulic system of small‑medium industrial Machine

- Applicable equipment: Small injection molding machine, hydraulic press, CNC machine‑tool and other industrial Machine

Working Principle

Driven by motor, the shaft of this Hydraulic piston pump rotates and pushes pistons for reciprocating motion inside cylinder block. Volume variation in piston chambers completes oil suction and oil pressurization. Built‑in pressure compensator automatically changes swash‑plate angle according to system pressure, adjusts pump displacement to maintain set system pressure. It supplies adjustable continuous oil flow for whole hydraulic system, drives actuators of industrial Machine, and protects the circuit from over‑pressure risk.

Core Advantages

1. Pressure‑compensated variable‑displacement design, automatically adjusts flow according to load, reduces energy consumption and heat generation of complete hydraulic system for industrial Machine.

2. Compact lightweight structure, small installation space requirement, ideal for limited‑space Machine layout.

3. High volumetric efficiency, low pressure pulsation, stable pressure output for long‑time continuous operation.

4. Mature Yuken A‑series design, good interchangeability, convenient for on‑site disassembly and spare‑parts replacement.

5. Wide adaptability, flexible to satisfy various pressure‑adjustment requirements of different Machine’s hydraulic system.

Application Range

Yuken A10‑FR01B‑13 Hydraulic piston pump is a compact variable‑displacement hydraulic pump. It provides adjustable power oil source for industrial Machine’s complete hydraulic system. Mainly applied to small‑tonnage injection‑molding machinery, hydraulic presses, machine‑tools and general‑purpose automation equipment. Widely supplied for OEM manufacturers, factory maintenance workshops and global aftermarket spare‑parts business.
