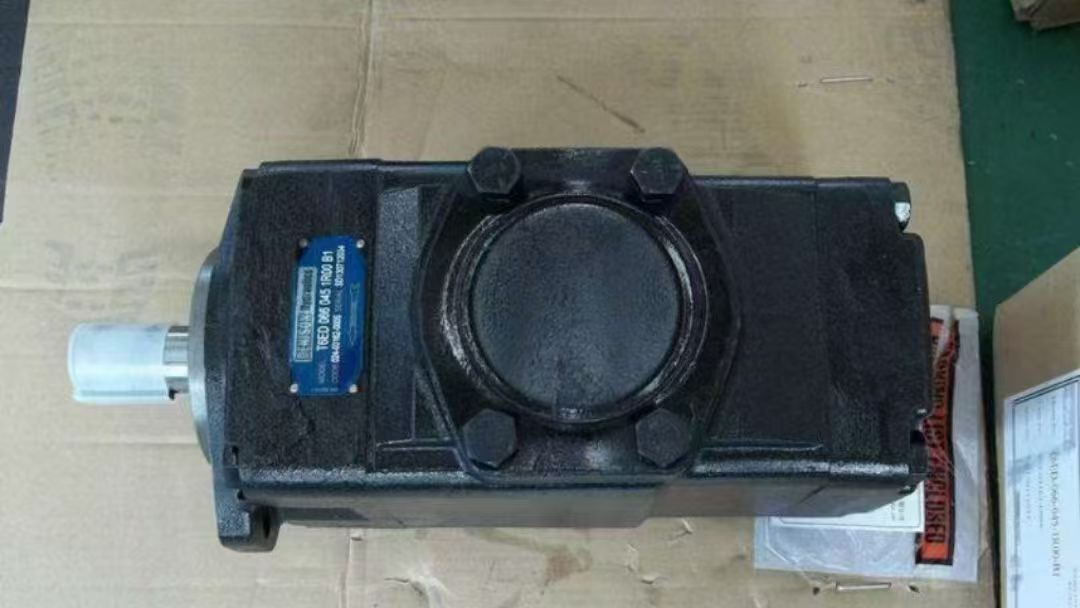

Denison T6ED Series Hydraulic Vane Pump
Product Overview
Denison T6ED Series Hydraulic Vane Pump is a heavy‑duty fixed‑displacement Hydraulic Vane pump, acting as the core power component of industrial and mobile hydraulic pump. As a key oil‑supply unit in the complete hydraulic system, this hydraulic pump converts mechanical energy into stable high‑pressure hydraulic energy, providing continuous flow for various industrial Machine. Adopting dual‑vane and integrated cartridge pump core design, it features low noise, low pressure pulsation, strong anti‑pollution capacity and high volumetric efficiency. It is widely applied for original equipment matching, equipment overhaul and aftermarket spare‑parts replacement of injection molding machines, hydraulic presses, engineering machinery and other heavy‑duty Machine. The operation stability of this Hydraulic Vane pump directly affects the reliability and service life of the whole hydraulic system.
Technical Specifications
- Model: Denison T6ED Series Hydraulic Vane Pump
- Product Type: Fixed‑displacement double‑stage Hydraulic Vane pump, industrial hydraulic pump
- Rated working pressure: Up to 240 bar; peak pressure 275 bar
- Max rotating speed: 2200 rpm
- Displacement range: Multiple combined displacement options for double pump sections
- Structure: Integrated cartridge pump core, cast iron heavy‑duty housing
- Working medium: Anti‑wear hydraulic oil for industrial hydraulic system
- Operating temperature: ‑20℃ ~ +85℃
- Installation: Flange mounting, multiple shaft and port configuration options
- Feature: Low pressure pulsation, high volumetric efficiency, good contamination resistance, compact structure, perfect matching for the hydraulic system of industrial and construction Machine
- Applicable equipment: Injection molding machine, hydraulic press, die‑casting machine, construction machinery and other heavy‑duty industrial Machine
Working Principle
The prime mover drives the input shaft of this Hydraulic Vane pump to rotate. Vanes extend out under centrifugal force and spring pressure, form sealed working chambers with stator and rotor. Volume change of the chambers realizes oil suction and high‑pressure oil discharge. The double‑pump structure outputs two independent oil circuits to supply oil for different actuators of the Machine. When the vanes, stator or rotor are worn, the hydraulic pump will suffer internal leakage, insufficient flow, abnormal noise and pressure drop faults. Replacing qualified pump core assembly can restore the performance of the hydraulic pump and keep the hydraulic system running stably.
Core Advantages
1. Integrated cartridge pump core design, convenient for maintenance and replacement, greatly reduces overhaul cost of industrial Machine.
2. Low‑noise stator curve and optimized vane structure, low pressure pulsation, effectively reduce vibration and noise of the whole hydraulic system.
3. Strong anti‑pollution performance, adapts to harsh working environments with impurities in hydraulic oil, extends service life of the hydraulic pump.
4. High volumetric efficiency, stable output flow, reduces heat generation and energy consumption of the hydraulic system, improves operation economy of Machine.
5. Strict dimensional consistency, good interchangeability, direct replacement for original Denison T6ED pump without secondary machining.
Application Range
Denison T6ED Hydraulic Vane pump is a widely used fixed‑displacement hydraulic pump in industrial transmission field. It provides reliable hydraulic power for the hydraulic system of injection molding equipment, hydraulic presses, construction machinery and other heavy‑duty Machine. It is supplied for machinery OEM manufacturers, maintenance workshops and global aftermarket spare‑parts trading business.
