Product Description:

Huizhou Antenk Electronics Co., Ltd. manufactures AW1256R‑S‑xP series 1.25mm pitch 90 degree SMT wafer connector to deliver stable wire to board signal and power interconnection for compact surface mount printed circuit board assembly, following strict drawing dimensional tolerances to ensure precise reflow soldering and compatible mating performance with AH1256 series housing. This right angle wafer connector adopts white Nylon 6T insulator housing with UL94V 0 flame retardant grade, brass contact pins gold plated over nickel and brass solder tabs tin plated over nickel, electrically rated for 1A AC DC current and 150V AC DC voltage, 500 Megohms minimum insulation resistance and 500V AC one minute withstanding voltage, operating within minus 40 degree Celsius to plus 105 degree Celsius and complies with RoHS and HSF environmental standards. Multiple pole number options satisfy diverse circuit layout demands. This compact SMT wafer connector is widely deployed in liquid crystal display modules, digital cameras, communication hardware, industrial control panels, digital household appliances, computer peripherals, automotive electronic assemblies and precision measuring instruments. Operators should select correct pole count for practical wiring requirements, adopt recommended PCB layout during SMT soldering process, avoid excessive reflow heat to prevent Nylon 6T housing deformation, and store finished wafer connectors inside dry sealed packages to prevent brass terminal oxidation. Unlike competitors outsourcing stamping molding and plating services Antenk completes full in house production workflow covering self‑developed precision plastic and metal mold fabrication, brass terminal high speed stamping, high temperature Nylon 6T injection molding and multi grade electroplating plus comprehensive laboratory reliability verification, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications compliant with REACH rules. We own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, deliver custom solutions and round the clock professional engineering support, and over seventy percent of our wafer connector products are exported globally backed by ANTENK brand and consistent stable mass production quality.

1. White Nylon 6T Insulator Housing provides reliable flame retardant performance and dimensional stability under wide range working temperature conditions.

2. Nickel Base Brass Contact Pin offers excellent electrical conductivity and anti‑oxidation capability for long‑term wire to board connection applications.

3. Right Angle Wire To Board Wafer realizes space saving layout and achieves steady interconnection between wiring harness and printed circuit boards.

Detailed Specifications:

1. Electrical Parameters

1.1 Rated Voltage: 150V AC DC

1.2 Rated Current: 1A AC DC

1.3 Withstanding Voltage: 500V AC per minute

1.4 Minimum Insulation Resistance: 500 Megohms

2. Environmental Parameters

2.1 Operating Temperature Range: ‑40°C to +105°C

3. Material & Plating Information

3.1 Insulator Material: Nylon 6T, UL94V‑0 flame retardant grade, white color

3.2 Contact Pin: Brass with gold plating over nickel base

3.3 Solder Tabs: Brass with tin plating over nickel base

3.4 Mating Compatible Part: AH1256 series housing

4. Structural Specifications

4.1 Product Type: 90 degree right angle SMT wafer connector

4.2 Pitch: 1.25 mm

4.3 Available Pole Count: Multiple poles from 02 up to 30 positions

5. Dimensional Standards (Unit: mm)

5.1 Core pitch dimension: 1.25±0.05

5.2 Key drawing dimensions: 1.90±0.10, 0.70±0.10, 5.65±0.10

5.3 Dimension length changes according to total pole numbers

5.4 PCB layout is provided for component side

5.5 General tolerance: X.±0.35, X.X±0.25, X.XX±0.20, shtur±0.15

6. Compliance Standard

6.1 RoHS and HSF Pb compliant

7. Application Scenarios

7.1 Liquid crystal display modules, digital cameras

7.2 Communication hardware, industrial control panels

7.3 Digital household appliances, computer peripherals

7.4 Automotive electronic assemblies, precision measuring instruments

8. Operation & Storage Precautions

8.1 Select matching pole quantity and pair with AH1256 series housing for correct mating

8.2 Follow suggested PCB layout for SMT reflow soldering operation

8.3 Avoid excessive soldering heat to prevent deformation of Nylon 6T insulator

8.4 Store wafer connectors in dry sealed packages to avoid oxidation of brass pins and solder tabs

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

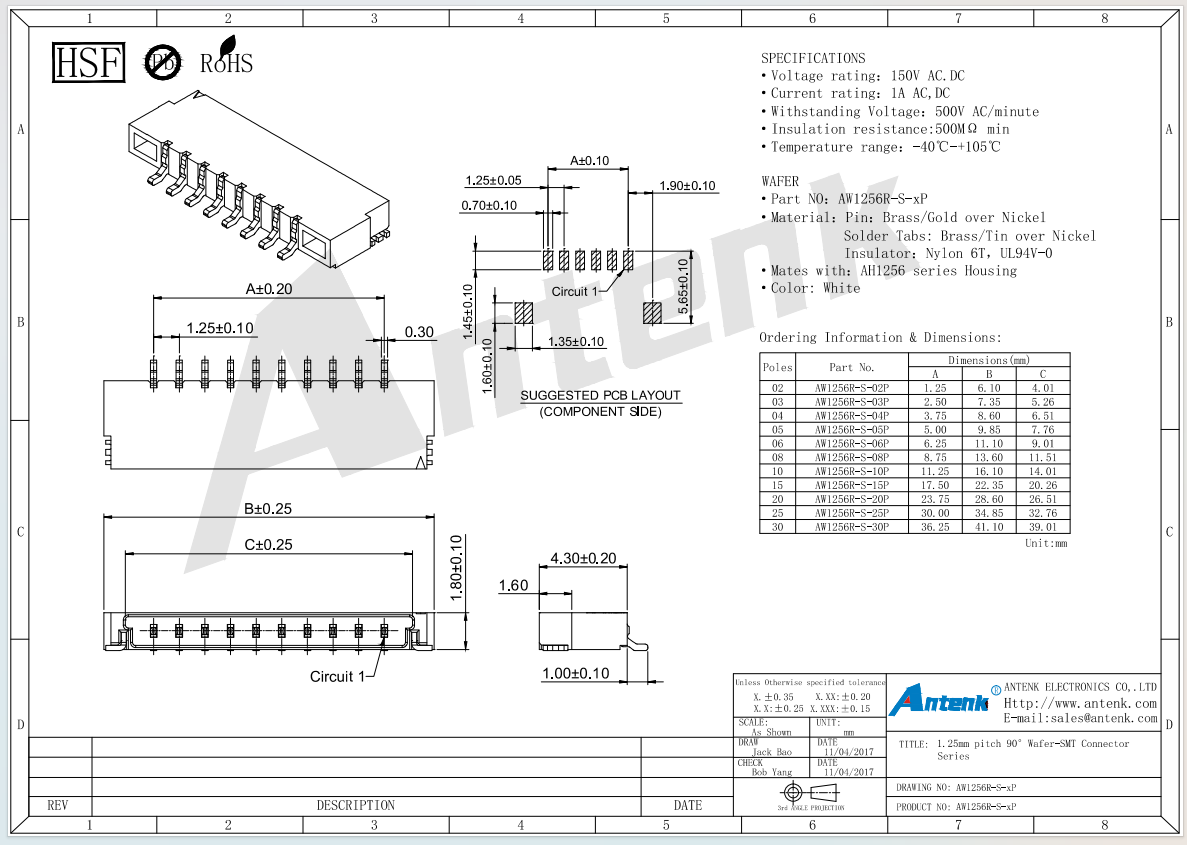

Product Drawing:

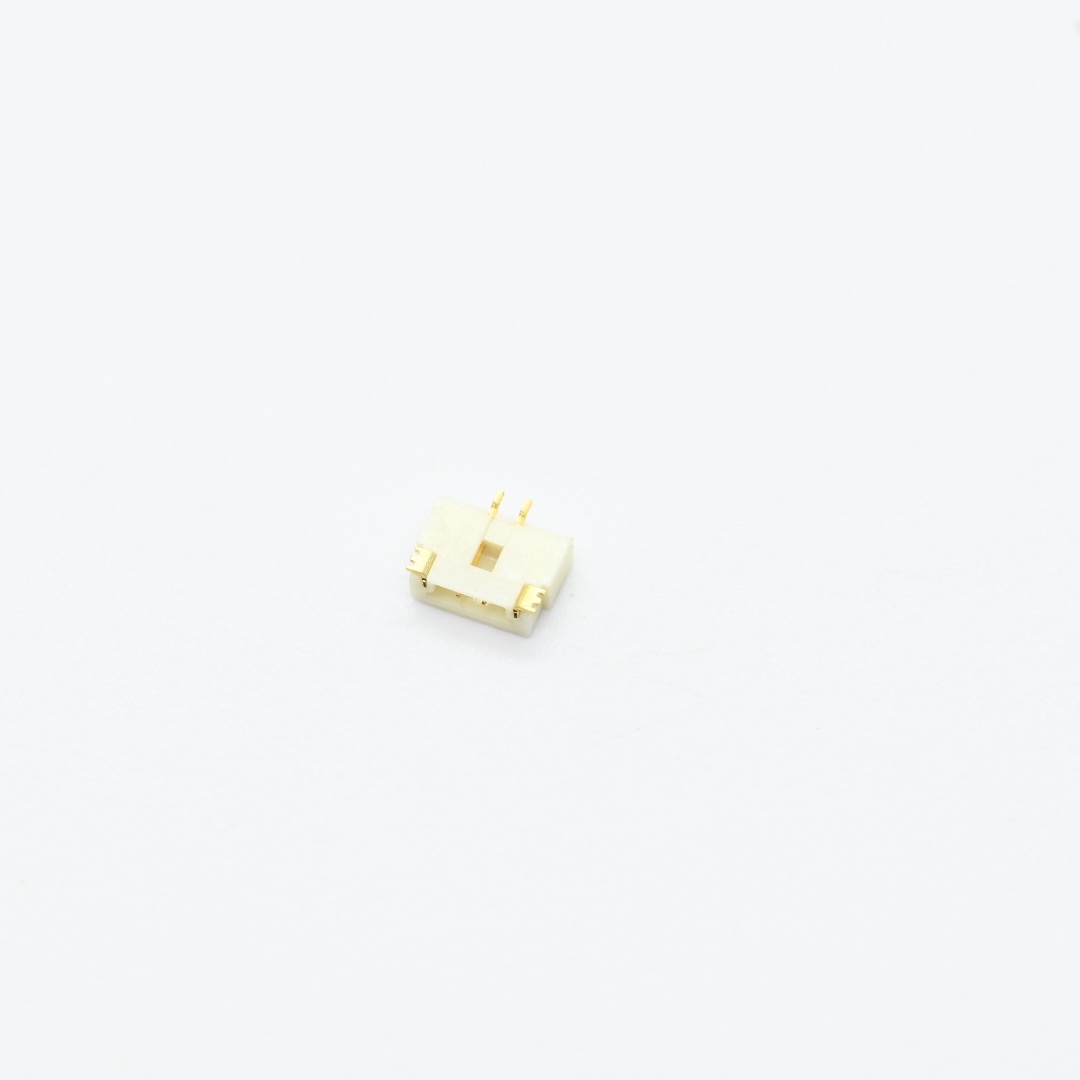

AW1256R-S-02P+1.25mm pitch 90° Wafer-SMT Connector Series（4）

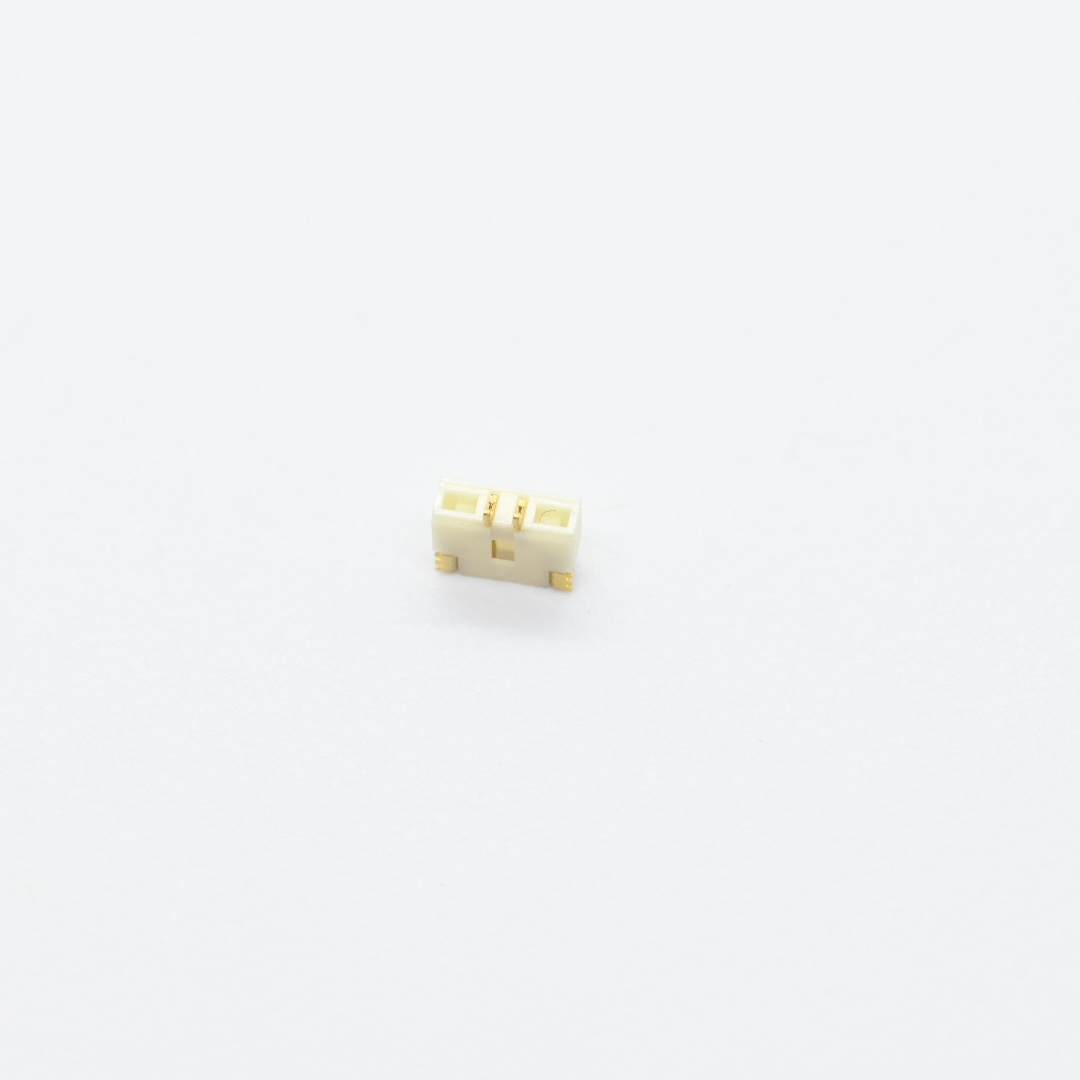

AW1256R-S-02P+1.25mm pitch 90° Wafer-SMT Connector Series（5）

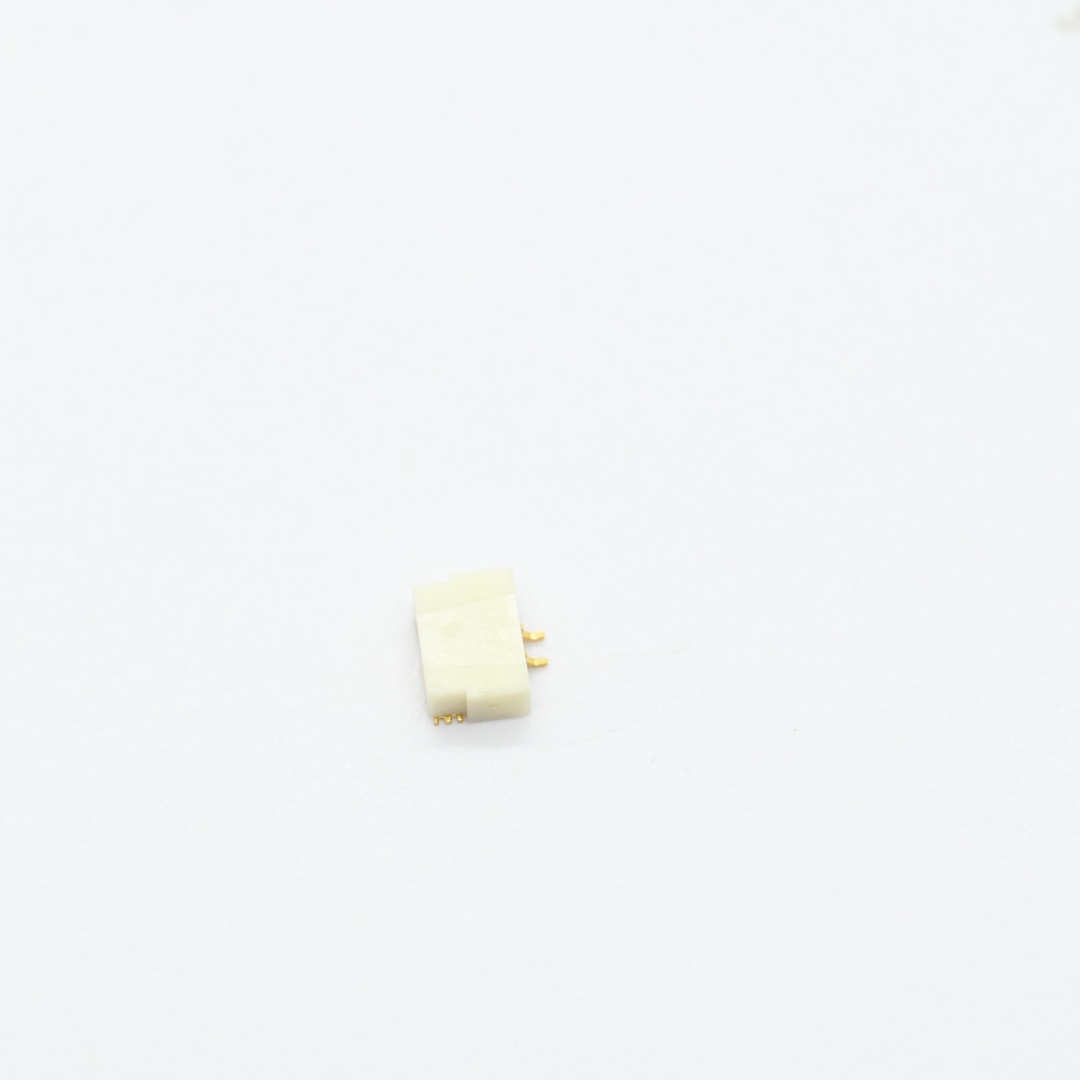

AW1256R-S-02P+1.25mm pitch 90° Wafer-SMT Connector Series（3）

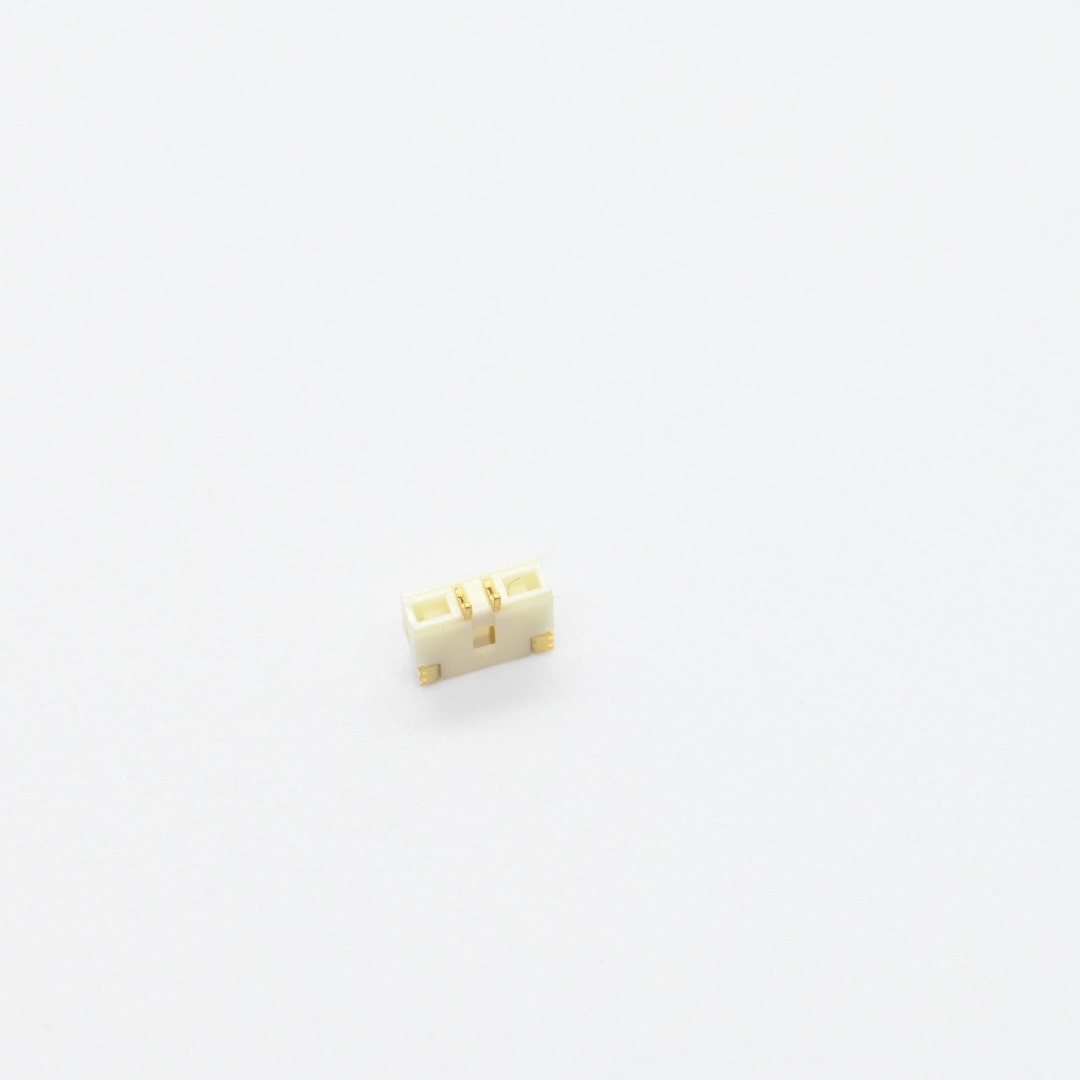

AW1256R-S-02P+1.25mm pitch 90° Wafer-SMT Connector Series（6）

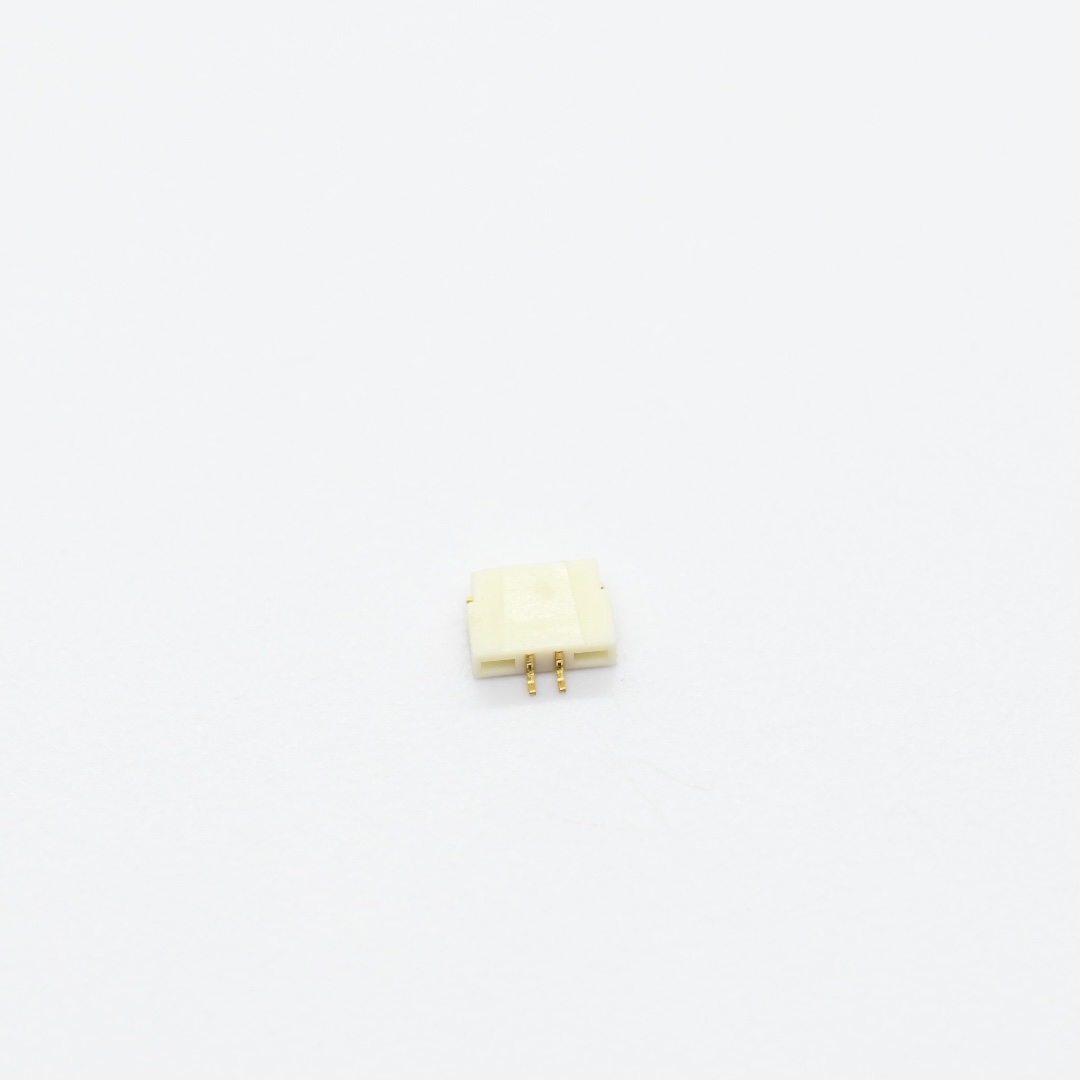

AW1256R-S-02P+1.25mm pitch 90° Wafer-SMT Connector Series（1）

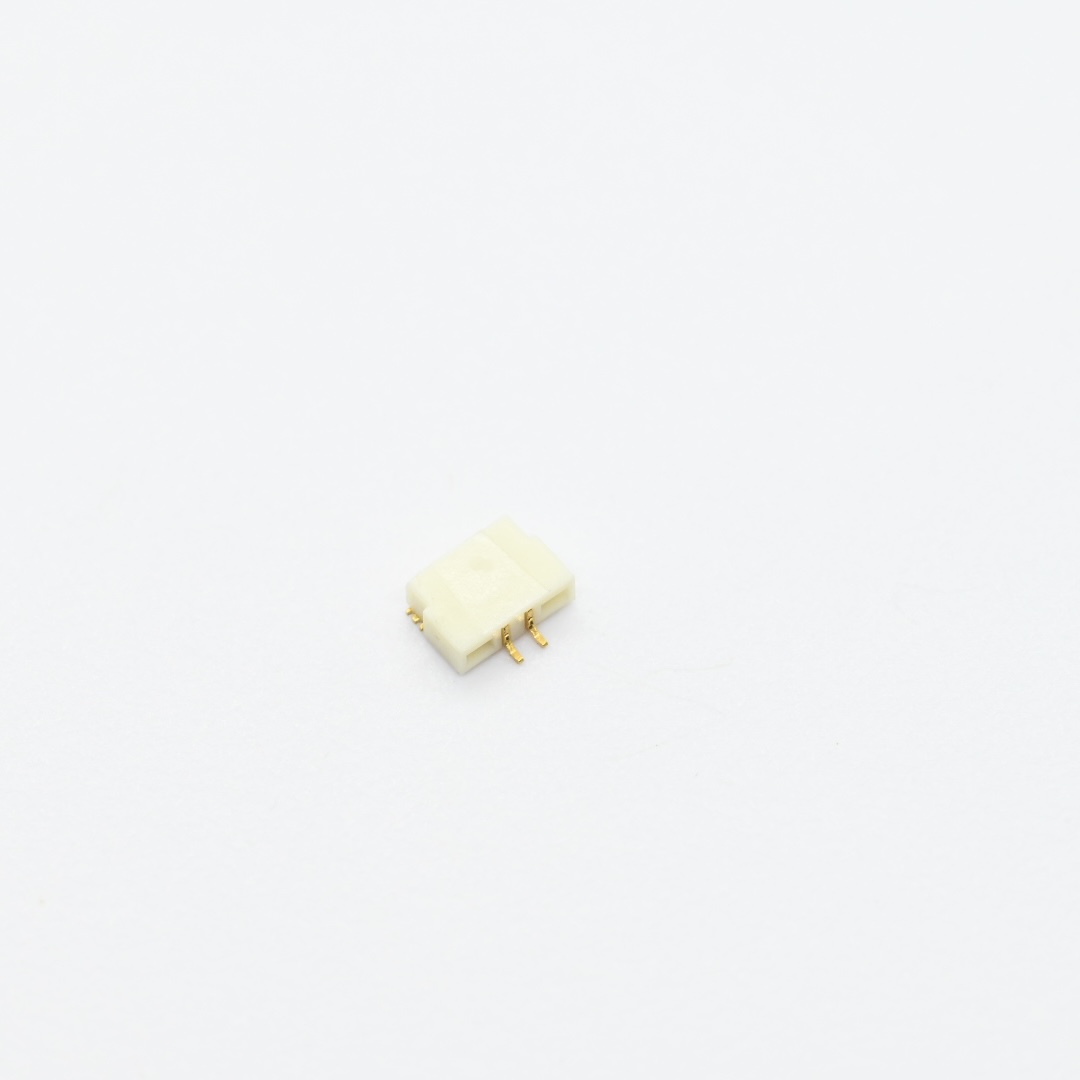

AW1256R-S-02P+1.25mm pitch 90° Wafer-SMT Connector Series（2）
