MYJG50W CO2 Laser PSU for Machine Integration

The MYJG50W is a high-voltage power supply designed for integration into 50W CO2 laser engraving and cutting equipment. Its control terminals support laser firing, power adjustment and water-protection signal connections, making it suitable for machine assembly, maintenance and power supply replacement.

AC110V and AC220V input versions are available. The required input voltage must be confirmed before ordering. An external or built-in current display can also be selected when real-time current observation is required.

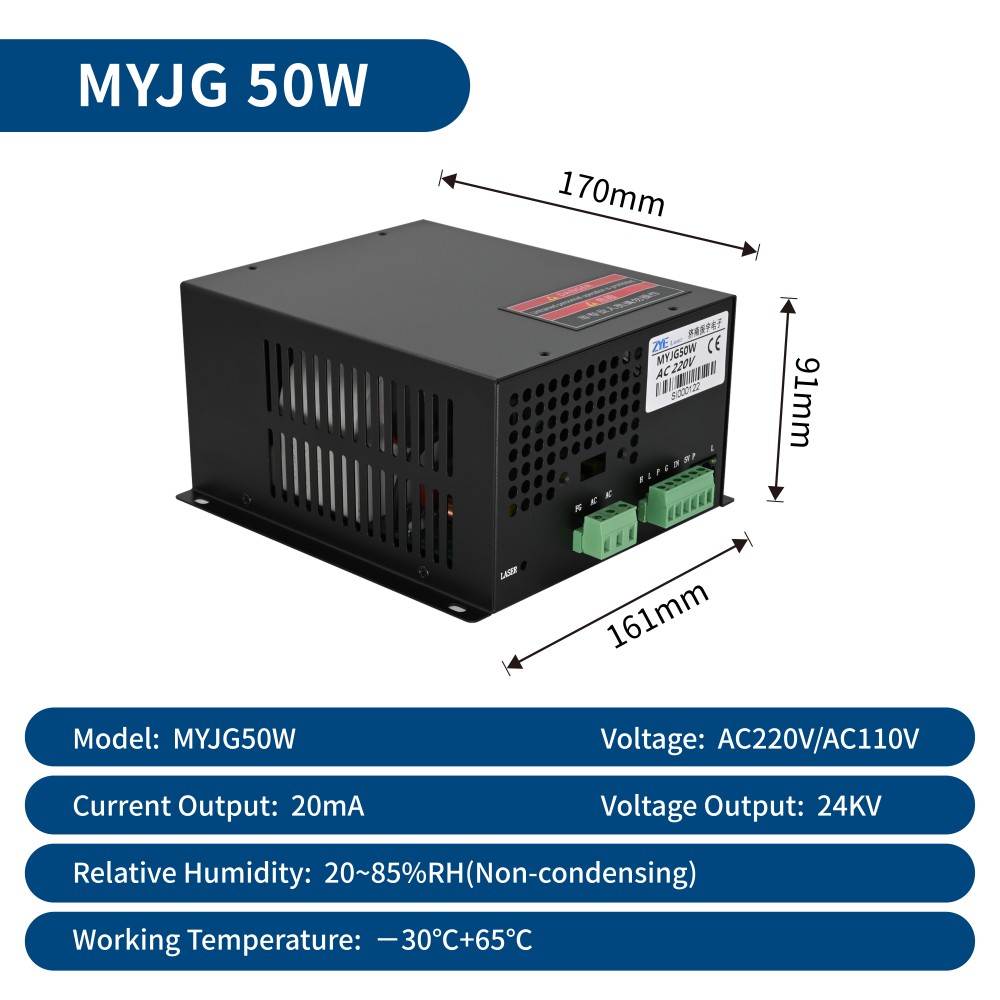

50W CO2 laser power supply technical parameters

Key Features

Designed for 50W CO2 laser equipment
24kV maximum output voltage
20mA maximum output current
0–5V laser power control signal
High-level and low-level laser firing control
Water-protection connection
Fan-cooled black metal enclosure
Optional current display solutions

Technical Specifications

Item	Specification
Model	MYJG50W
Input voltage	AC110V or AC220V
Input frequency	47–440Hz
Maximum output voltage	24kV
Maximum output current	20mA
Dimensions	170 × 161 × 91mm
Cooling	Fan cooling
Working temperature	−30°C to +65°C
Relative humidity	20–85% RH, non-condensing

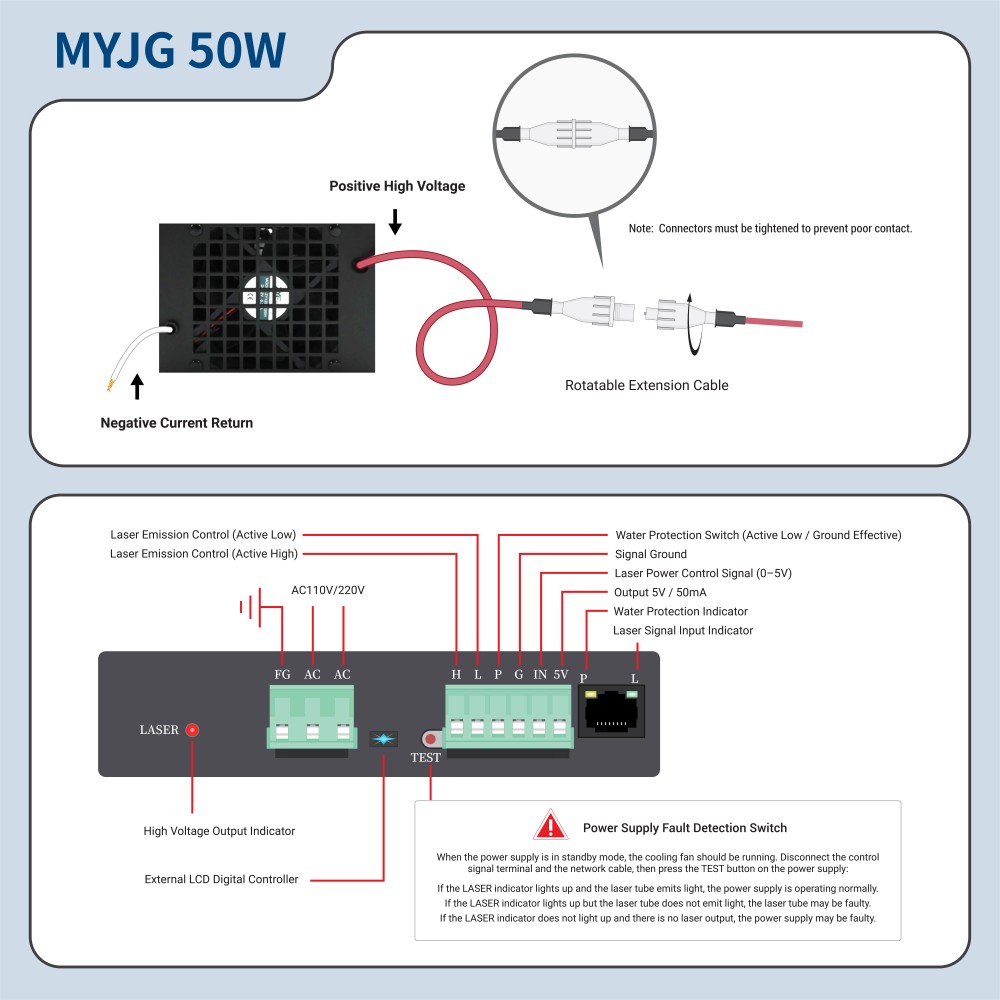

MYJG50W high-voltage cable and wiring interface

Selection and Installation

Before ordering, please confirm the laser tube rating, input voltage, controller interface and available installation space. Wiring and high-voltage connections must be completed by qualified personnel with the equipment disconnected from power.

For model selection or replacement, send us your existing power supply label, laser tube power and required input voltage.

FAQ

Can one unit work with both AC110V and AC220V?

Please select the correct input-voltage version before ordering. Do not assume that the unit switches voltage automatically.

Can the output current be displayed?

Yes. External digital and built-in display options are shown in the product materials. Please confirm the required display type when requesting a quotation.
