1.0mm Pitch Right Angle Upper‑Contact FPC Connector

1.0mm Pitch Right Angle Upper‑Contact FPC Connector

2 week ago

1 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

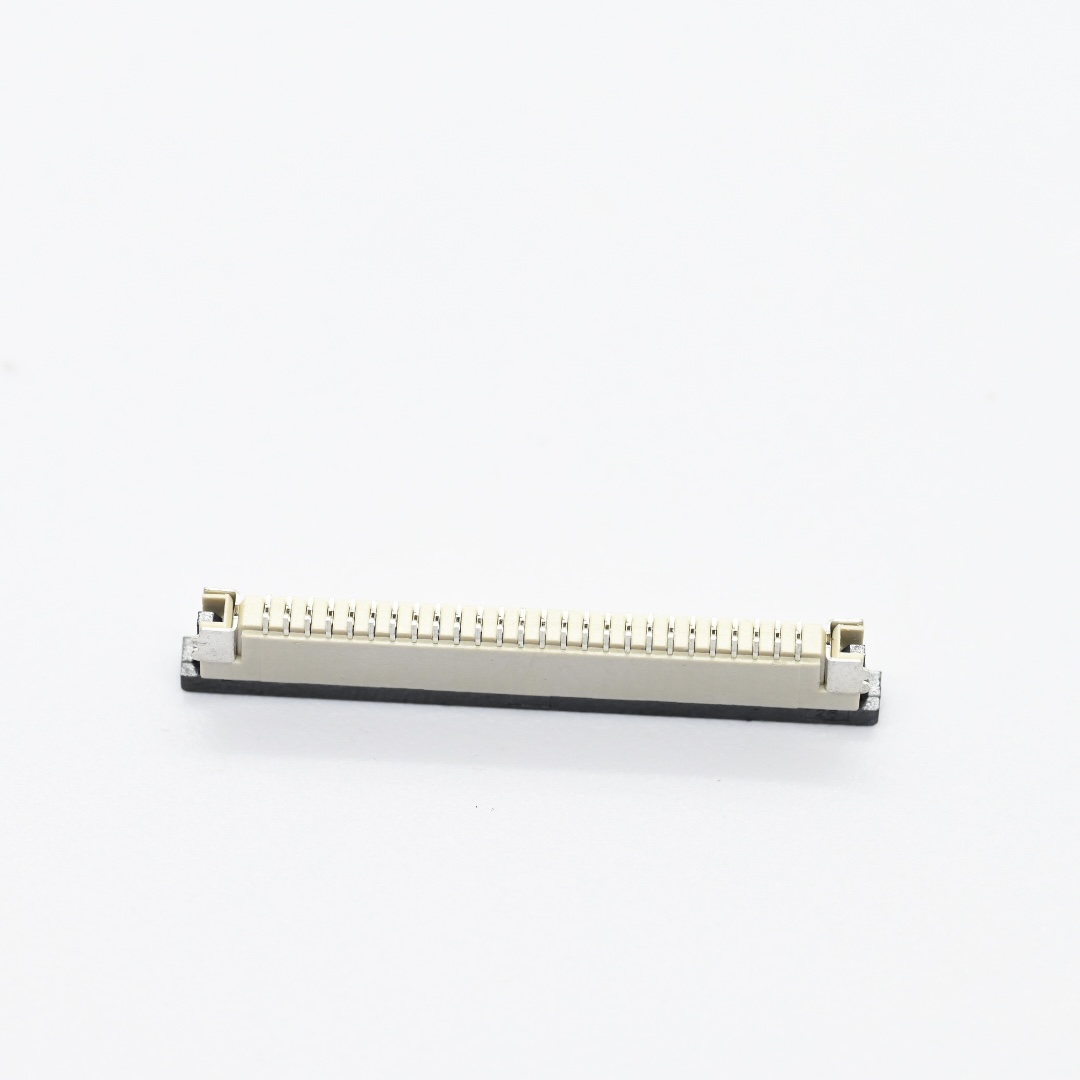

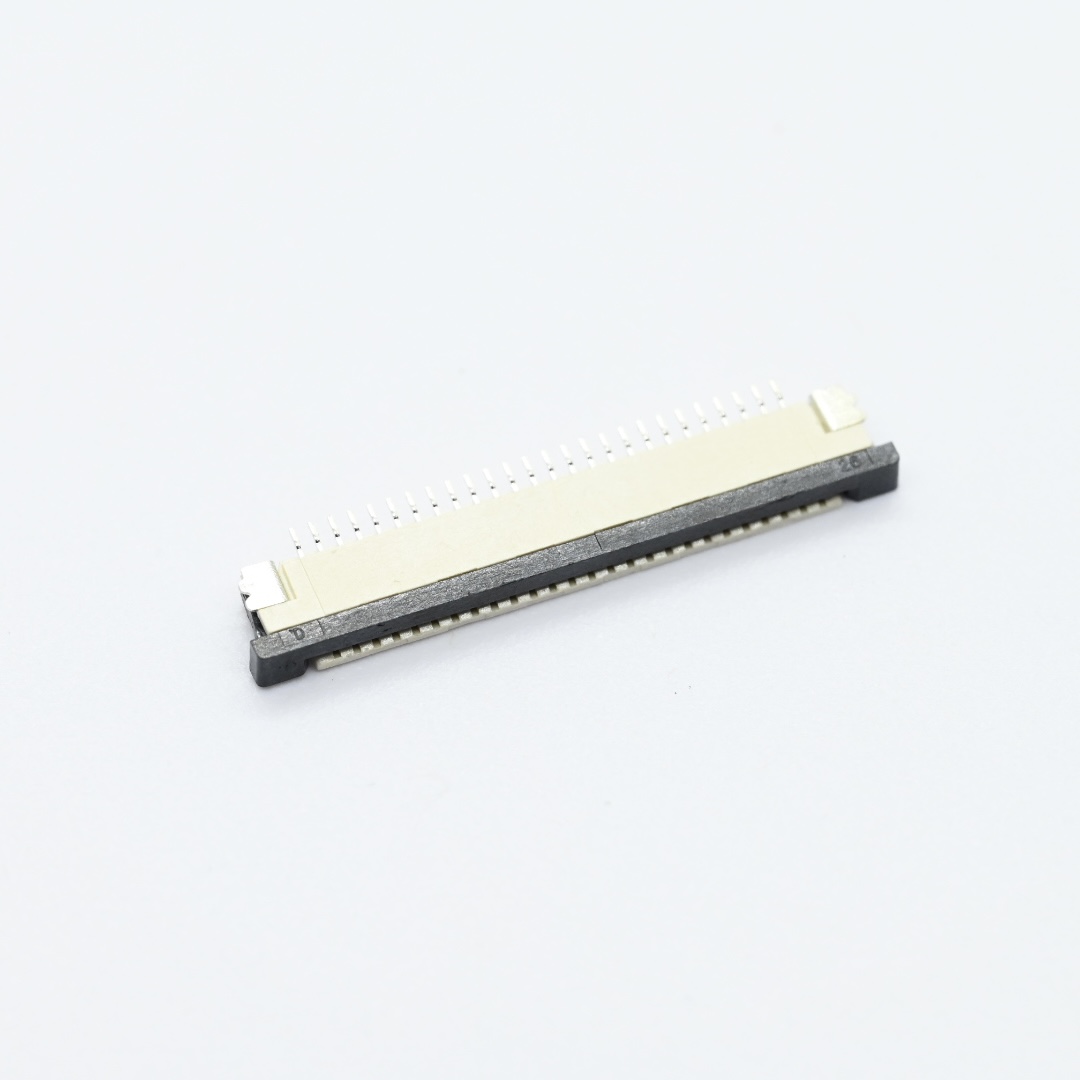

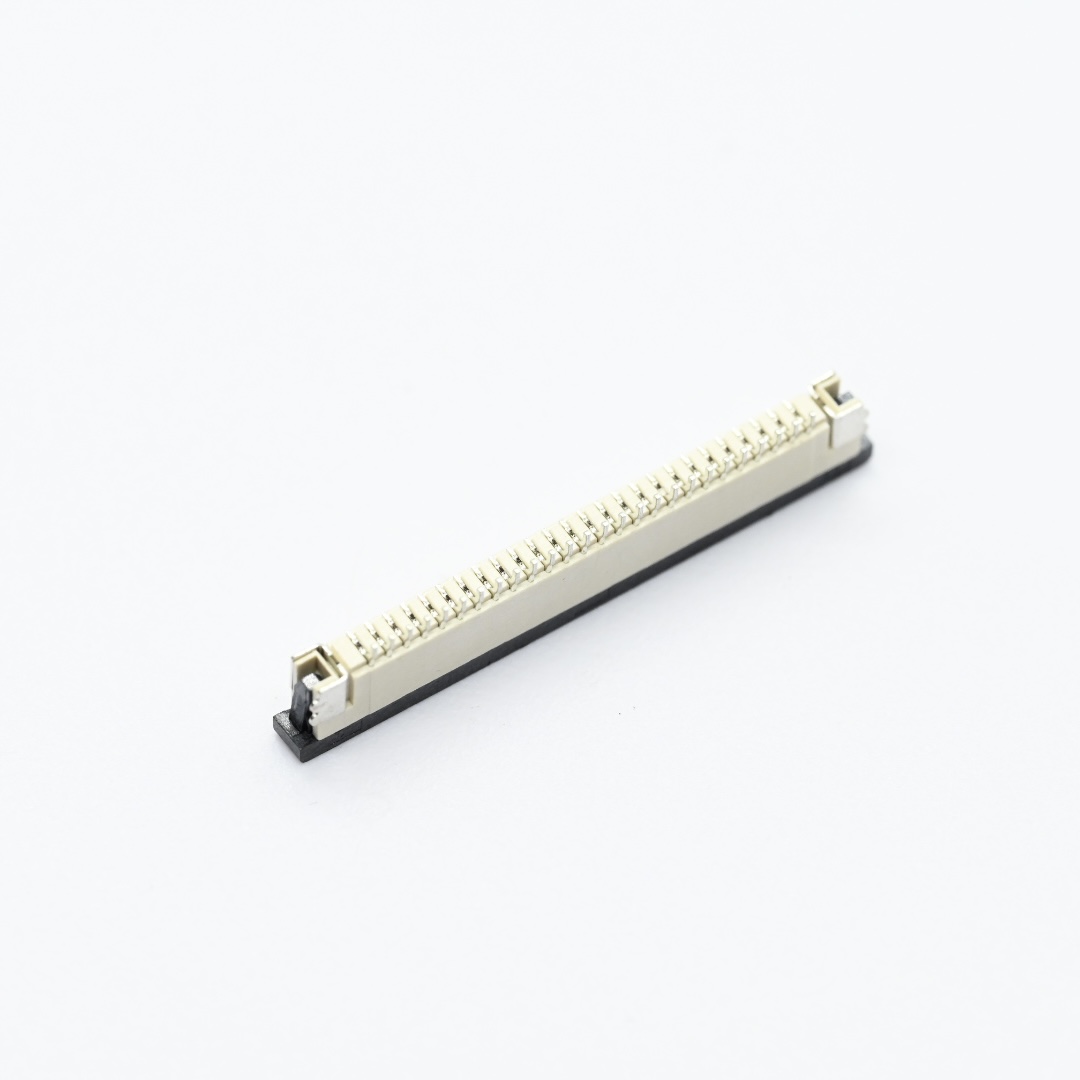

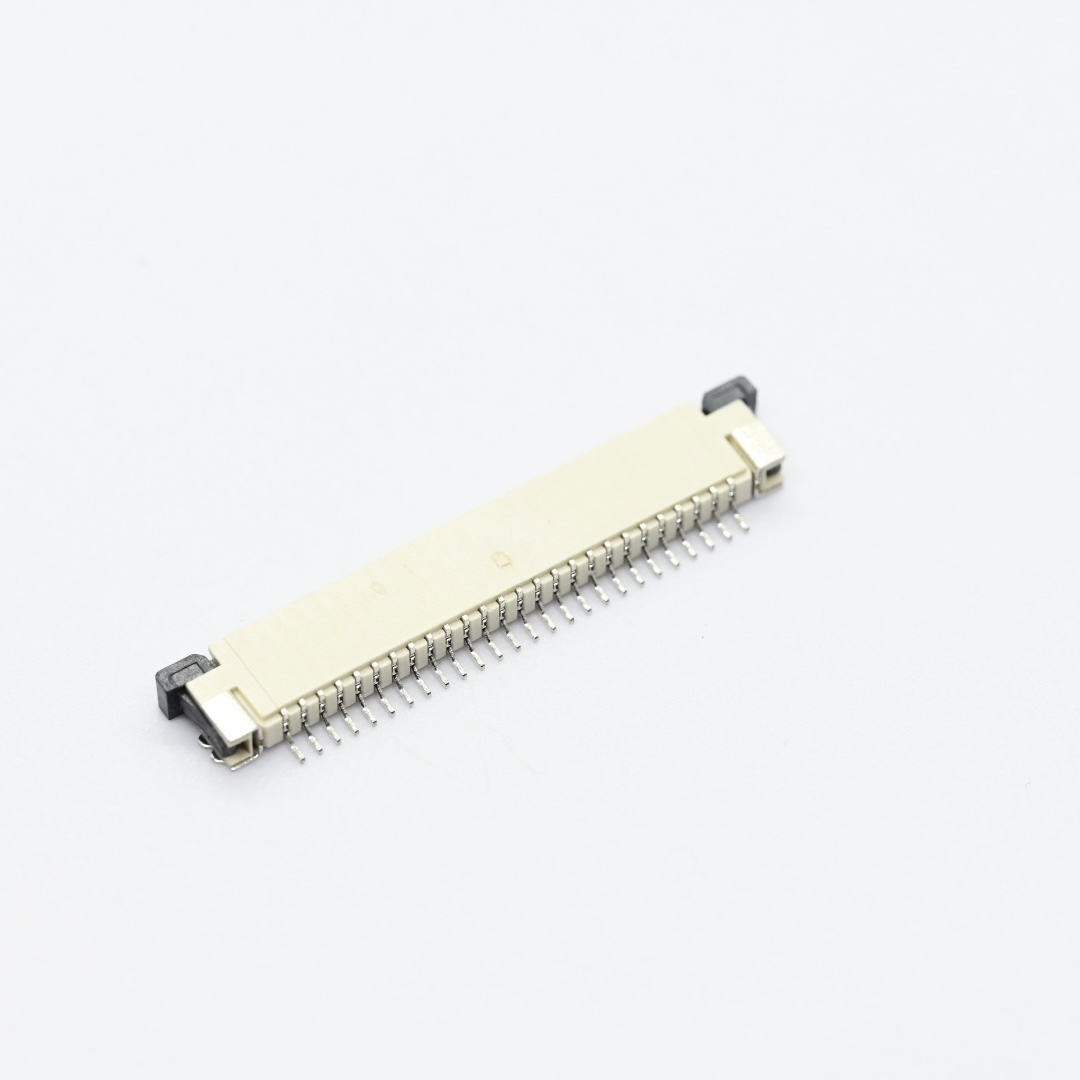

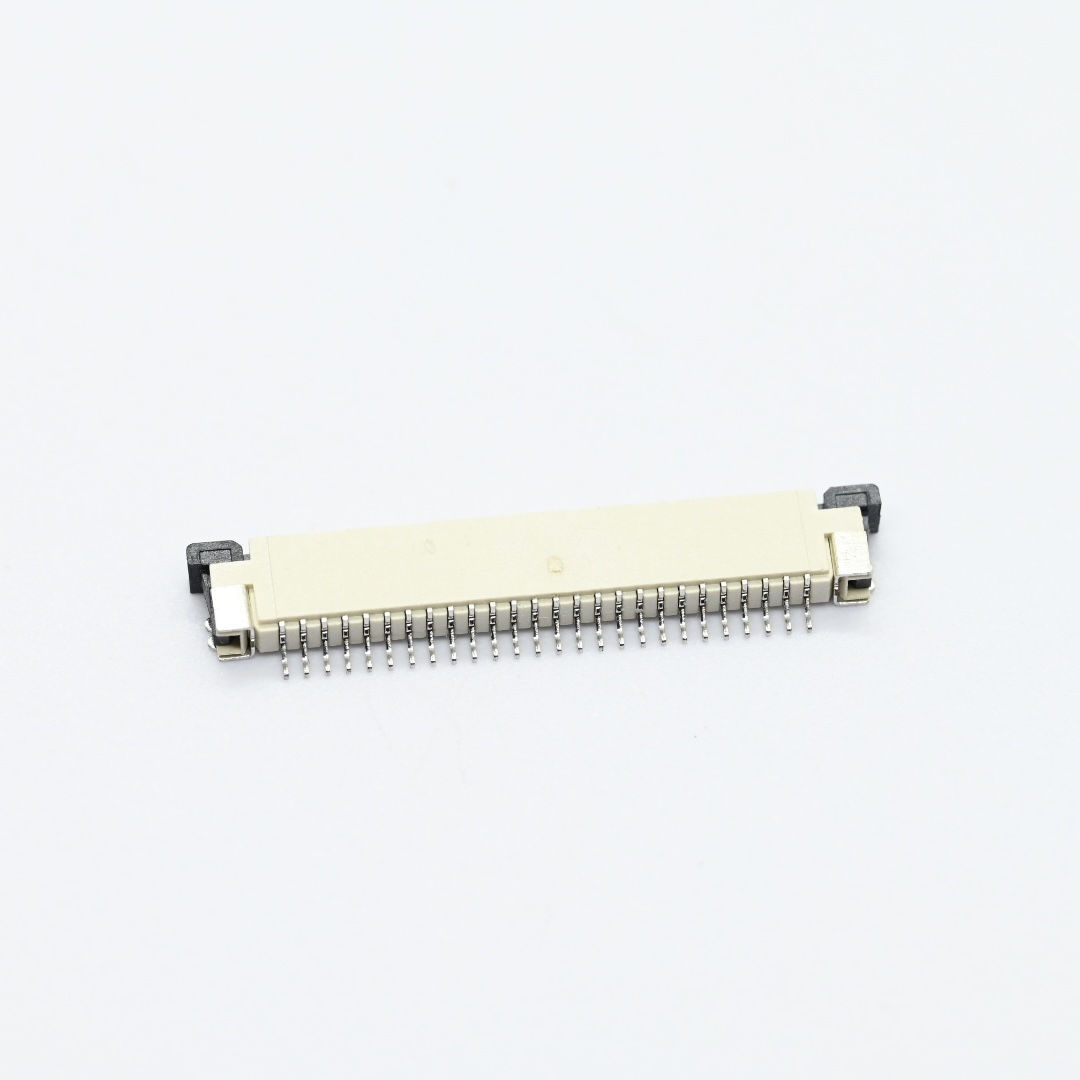

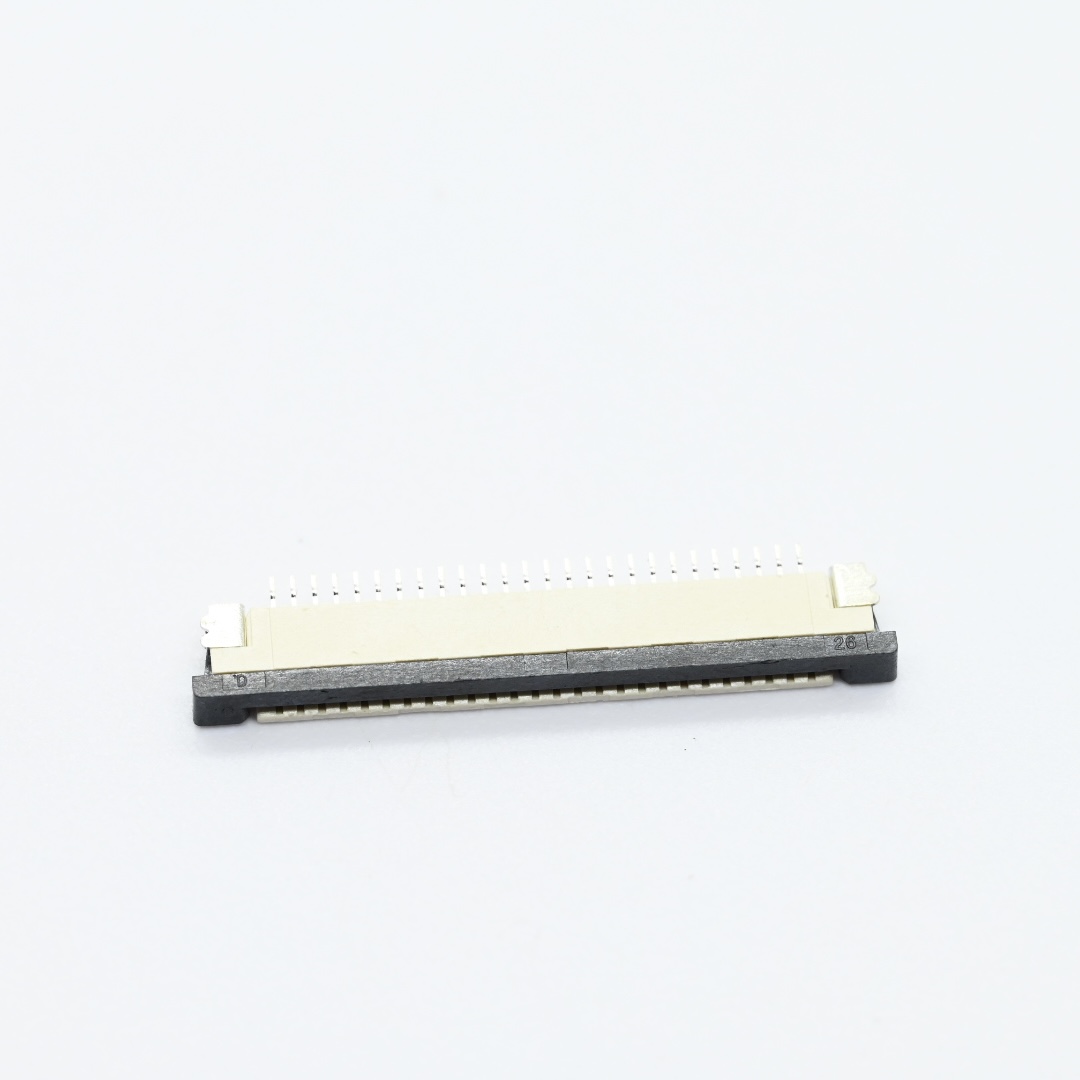

Product details

Product Descrption：

Huizhou Antenk Electronics Co., Ltd. manufactures FPC1.0‑XX‑RM‑U‑X‑X‑5 series 1.0mm pitch right angle upper contact FPC connector to deliver reliable flexible cable to printed circuit board signal transmission for compact surface mount assembly, following strict drawing dimensional tolerances to guarantee precise SMT reflow soldering and stable FPC cable insertion performance. This FPC socket adopts Nylon 66 insulator housing with UL94V 0 flame retardant grade and phosphor bronze contacts finished with tin plating, electrically rated for 1.0 Amp current and 200V AC DC voltage, 20 milliohms maximum contact resistance and 500 Megohms minimum insulation resistance, withstands 500V AC per minute and operates within minus 25 degree Celsius to plus 105 degree Celsius while complying with RoHS environmental standards. Multiple pin count options, diversified plating selections and tray tube tape and reel packing choices satisfy automated high volume production requirements. This compact FPC connector is widely deployed in liquid crystal display modules, digital cameras, communication hardware, industrial control panels, digital household appliances, computer peripherals, automotive electronic assemblies and precision measuring instruments. Operators should select suitable pin number and plating finish for actual project demands, follow official recommended PCB layout for SMT soldering process, avoid excessive reflow temperature to prevent Nylon 66 housing deformation, and store finished connectors in dry sealed packages to protect phosphor bronze contacts against oxidation. Unlike competitors outsourcing stamping molding and plating services Antenk completes full in house production workflow covering self‑developed precision plastic and metal mold fabrication, phosphor bronze terminal high speed stamping, high temperature Nylon 66 injection molding and multi grade electroplating plus comprehensive laboratory reliability testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications compliant with REACH rules. We own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, provide custom solutions and round the clock professional engineering support, and over seventy percent of our FPC connector products are exported globally backed by ANTENK brand and consistent stable mass production quality.

1. Nylon 66 FPC Insulator Housing delivers excellent flame retardant property and structural stability under varied operating temperature conditions.

2. Tin Plated Phosphor Bronze Contact ensures stable signal transmission and good mechanical spring performance for repeated FPC plug in operations.

3. Upper Contact SMT FPC Socket enables space saving PCB layout and achieves reliable connection between flexible flat cable and circuit boards.

Detailed Specifications：

1. Electrical Parameters

1.1 Rated Current: 1.0 Amp

1.2 Rated Voltage: 200V AC DC

1.3 Maximum Contact Resistance: 20 milliohms

1.4 Minimum Insulation Resistance: 500 Megohms

1.5 Withstanding Voltage: 500V AC per minute

2. Environmental Parameters

2.1 Operating Temperature Range: -25°C to +105°C

3. Material & Plating Options

3.1 Insulator Material: Nylon 66, UL94V‑0 flame retardant grade

3.2 Contact Material: Phosphor Bronze

3.3 Plating Options: Matt tin, gold flash, 3u inch full gold or selective gold plating

3.4 Contact Type: Upper side contact

4. Structural Specifications

4.1 Product Type: Right Angle SMT FPC Connector

4.2 Pitch: 1.0 mm

4.3 Available Pin Count: Multiple pins ranging from 04 up to 42 positions

5. Dimensional Standards (Unit: mm)

5.1 Nominal pitch dimension: 1.0±0.1, non‑cumulative tolerance

5.2 Key outline dimensions: 2.45±0.1, 6.8±0.15, 5.3±0.15

5.3 Overall length varies depending on total pin quantity

5.4 PCB mounting dimension defined in drawing

5.5 Standard drawing tolerances apply for all features

6. Compliance Standard

6.1 RoHS compliant

7. Packing Selections

7.1 Available packing: Tray, Tube, Tape & Reel

8. Application Scenarios

8.1 Liquid crystal display modules, digital cameras

8.2 Communication hardware, industrial control panels

8.3 Digital household appliances, computer peripherals

8.4 Automotive electronic assemblies, precision measuring instruments

9. Operation & Storage Precautions

9.1 Select proper pin count and plating finish to match project and FPC cable requirements

9.2 Apply official recommended PCB layout during SMT reflow soldering

9.3 Avoid excessive reflow temperature to prevent Nylon 66 insulator deformation

9.4 Use matching applicable FPC flexible flat cable for reliable mating performance

9.5 Store FPC connectors inside dry sealed packages to prevent oxidation of phosphor bronze contacts

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

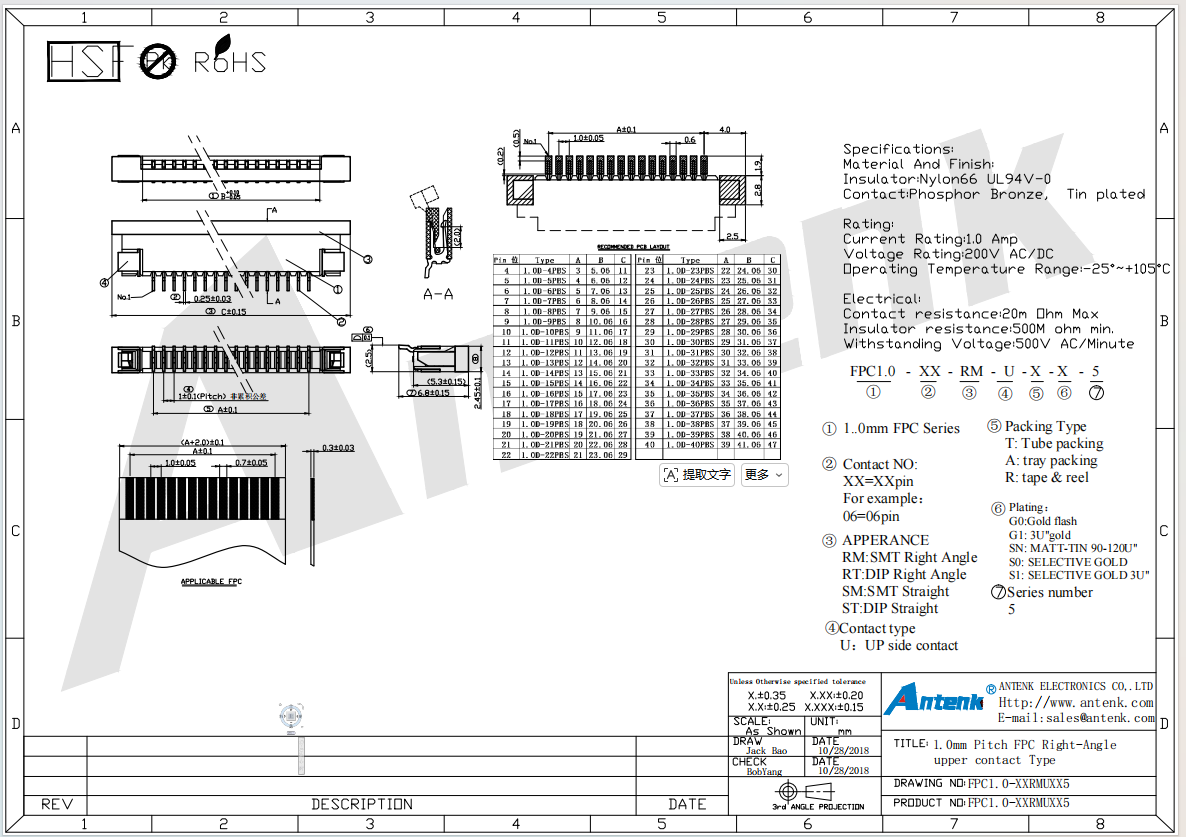

Product Drawing：
