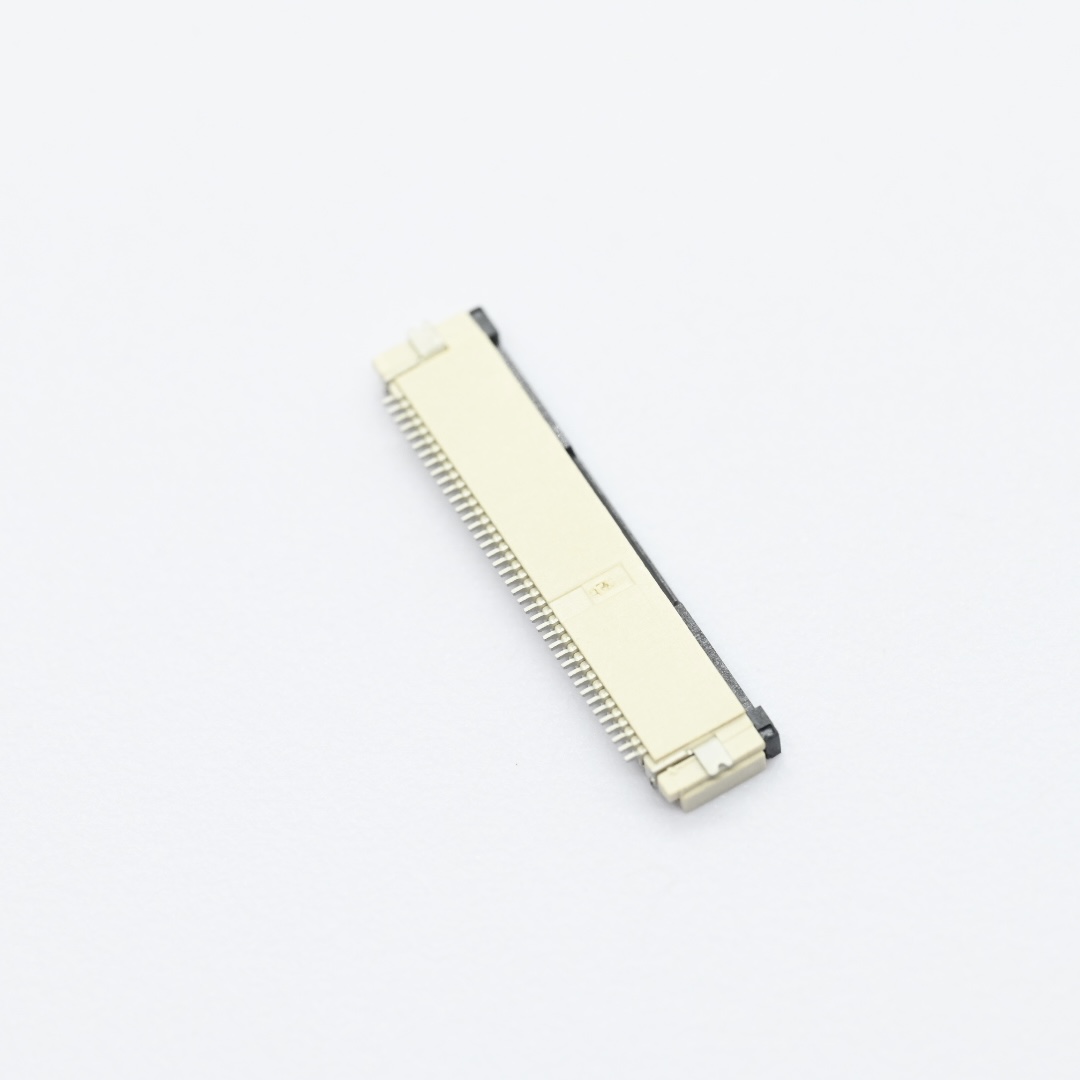

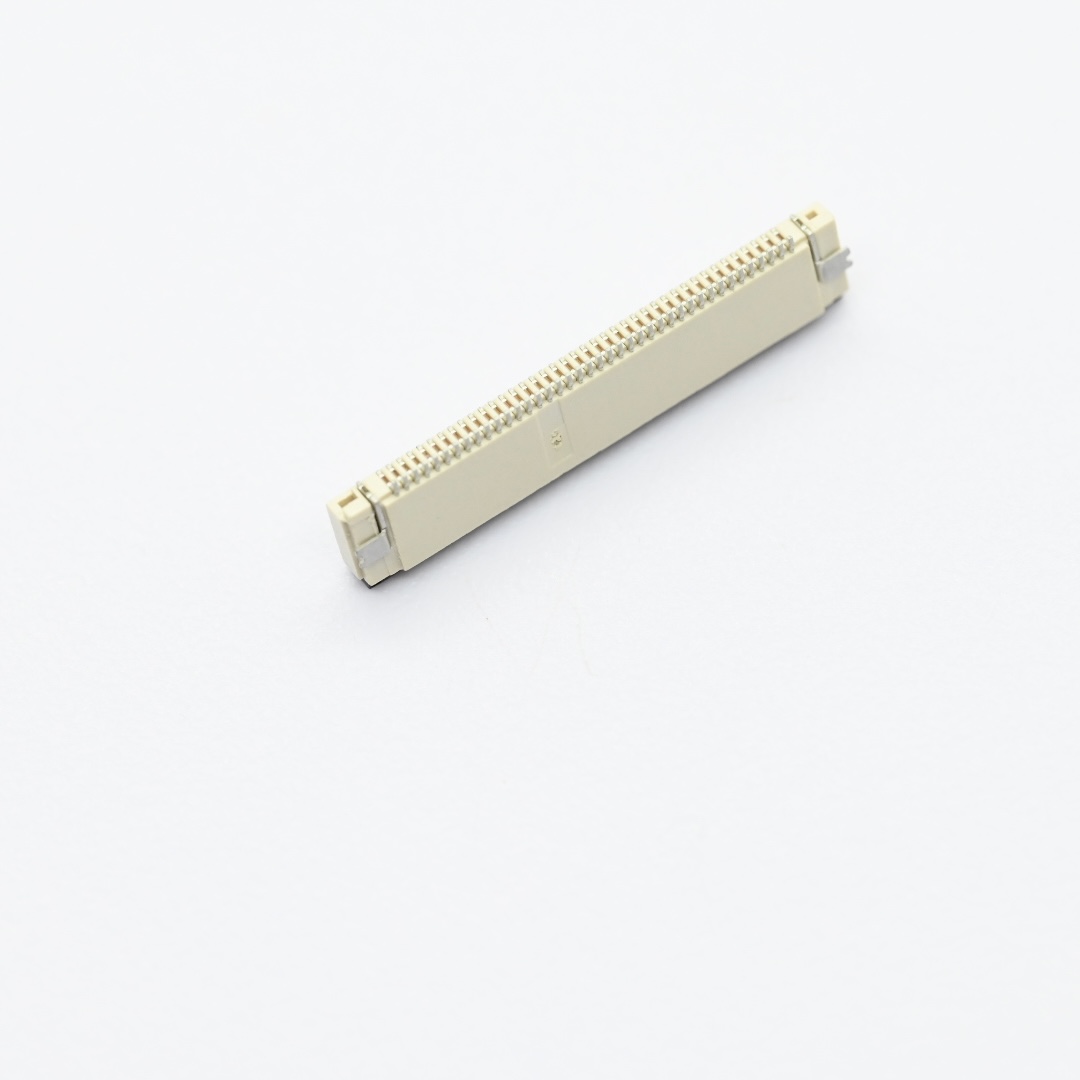

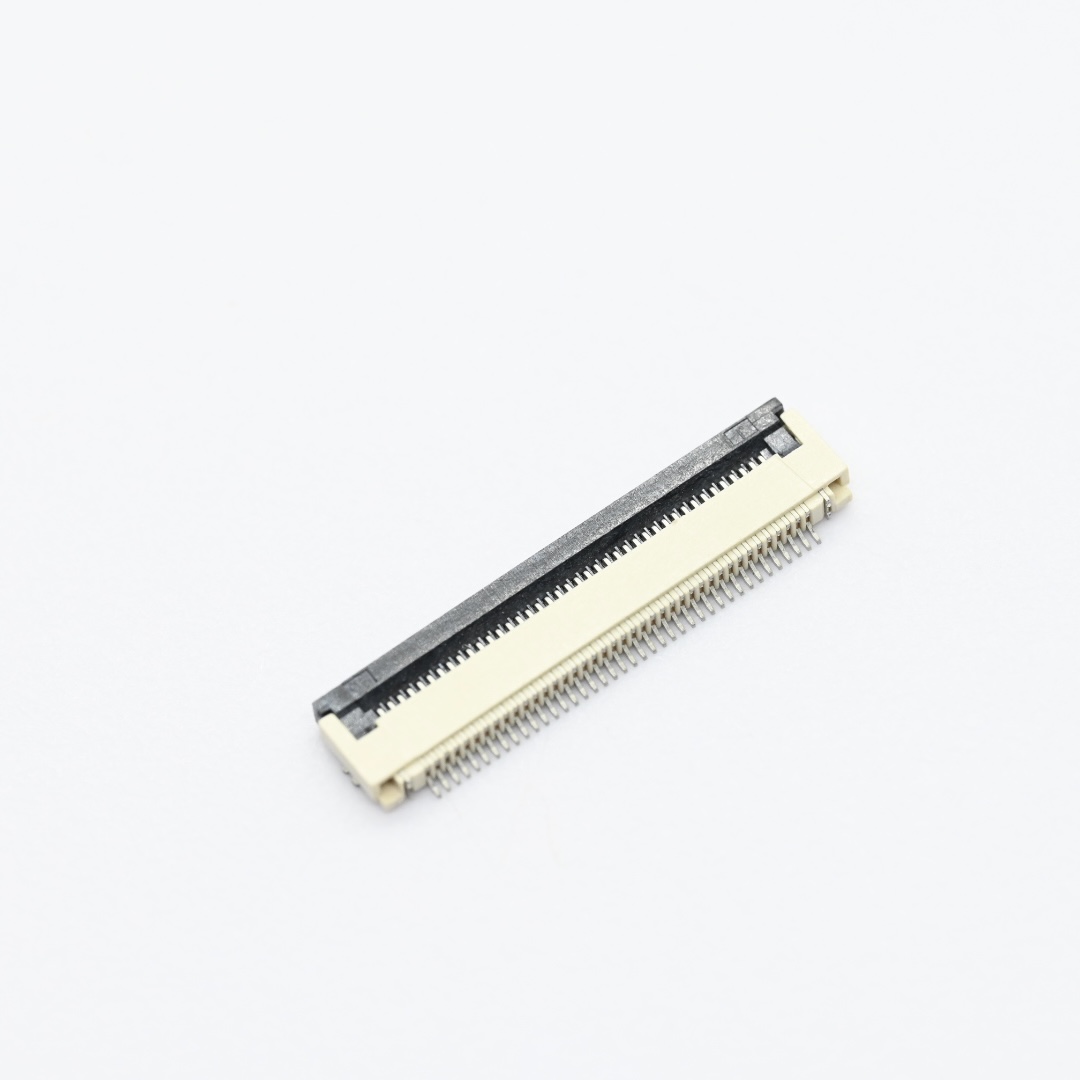

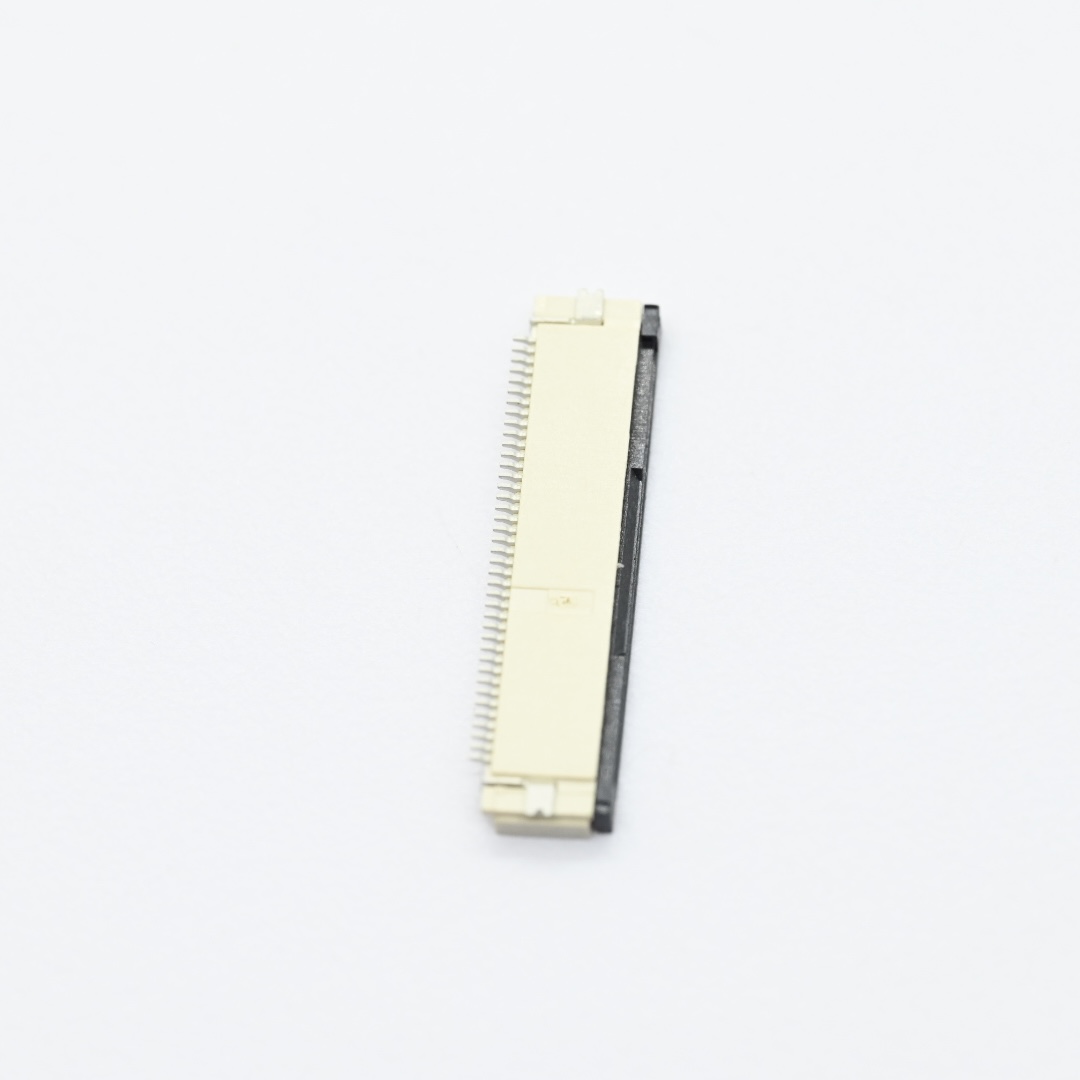

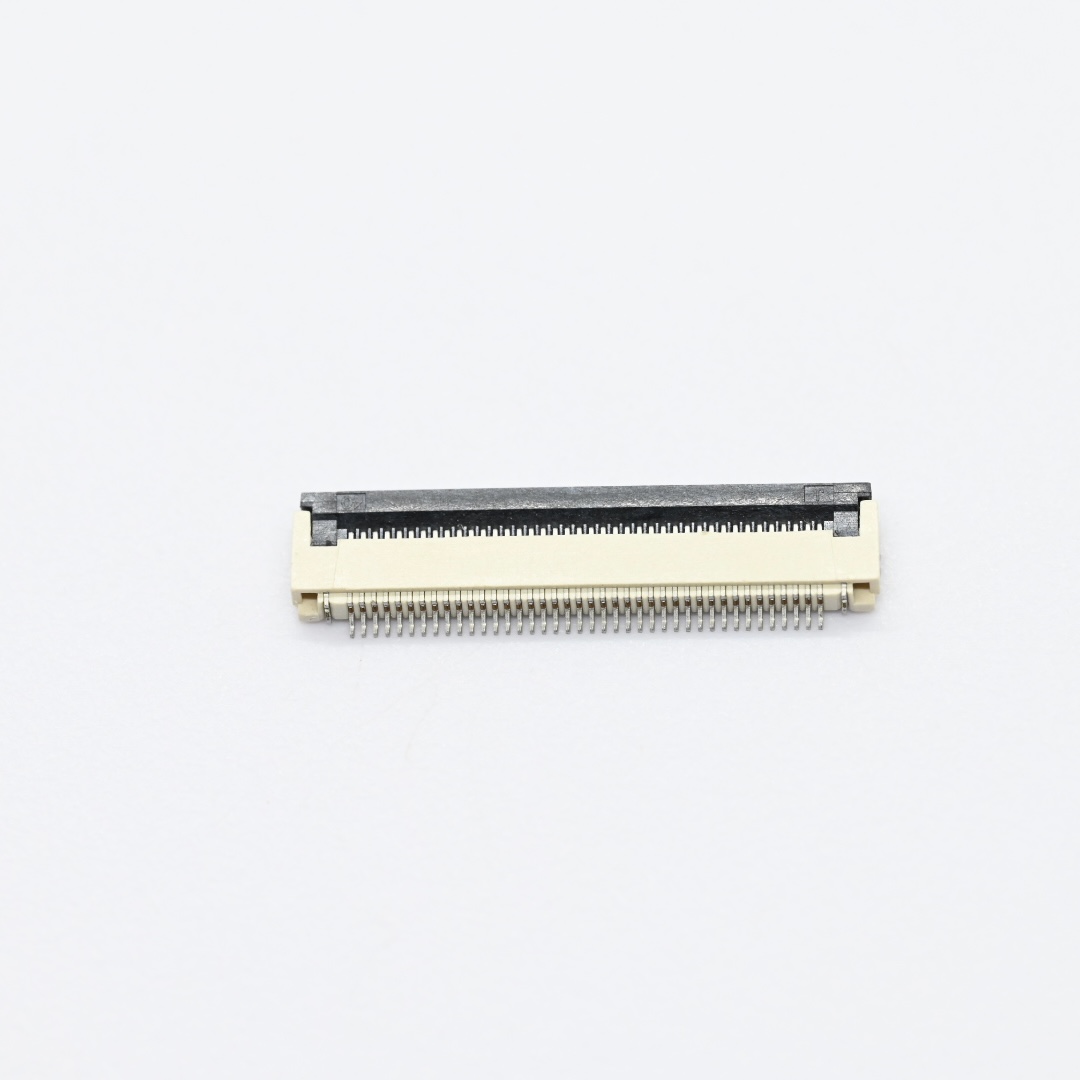

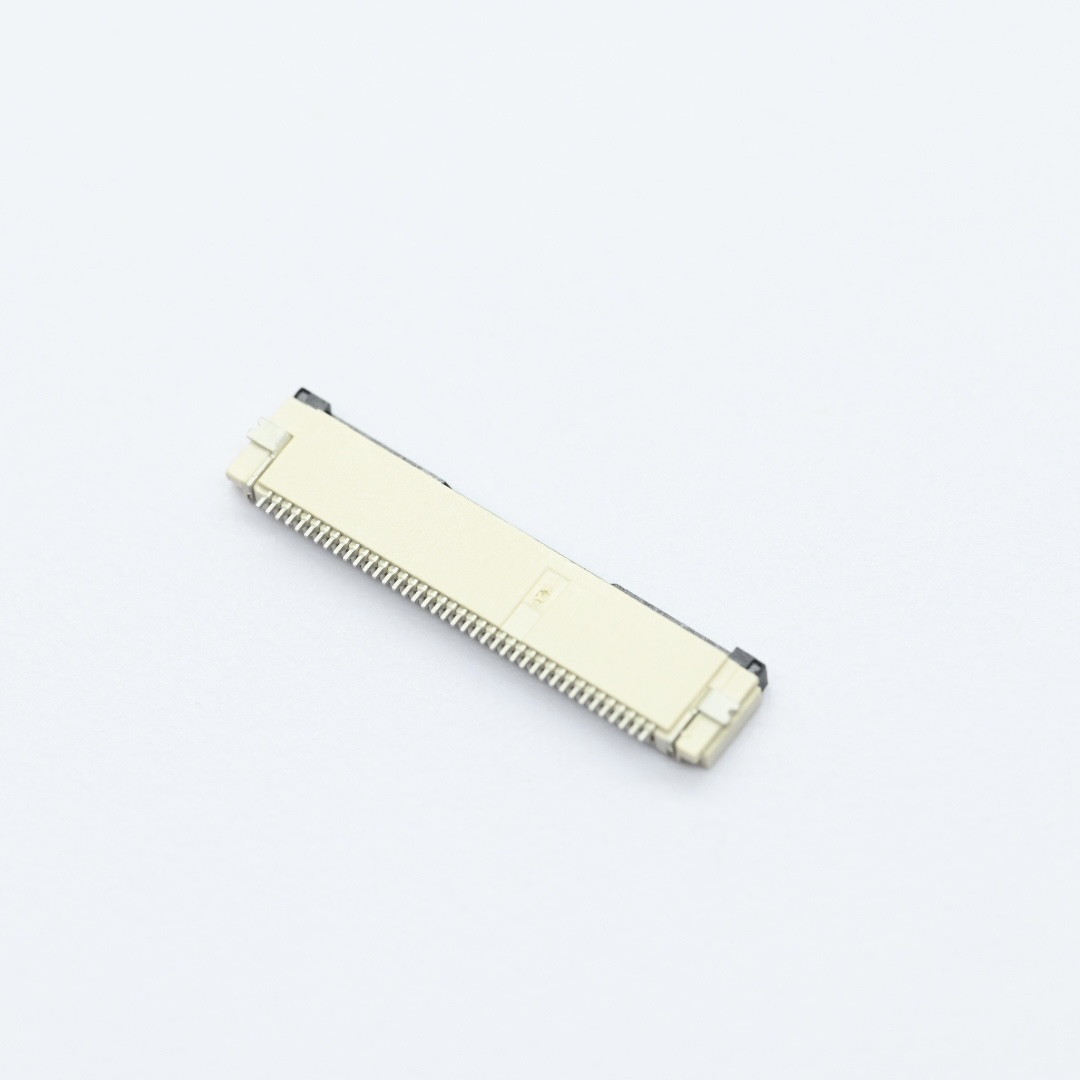

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures FPC0.5‑XX‑RM‑D‑X‑X‑13 series 0.5mm pitch dual contact back flip FPC connector to achieve stable flexible flat cable and printed circuit board signal interconnection for compact high density surface mount assembly, following strict drawing dimensional tolerances to realize precise SMT reflow soldering and reliable cable locking performance with back flip mechanism. This fine pitch FPC socket adopts high temperature resistant thermoplastic housing with UL94V 0 flame retardant grade and dual side contact terminals supporting multiple plating options including gold flash selective gold and matt tin, electrically rated for 0.5 Amp per pin current and 50V AC DC voltage, 100 milliohms maximum initial contact resistance and 500 Megohms minimum insulation resistance, withstands 250V AC for one minute with 20 times minimum mating durability, works within minus 40 degree Celsius to plus 85 degree Celsius under 20 percent to 85 percent humidity and complies with RoHS and HSF environmental standards. Various pin count selections together with tray tube tape and reel packing modes satisfy diverse automated mass‑production requirements. This low profile FPC connector is widely deployed in liquid crystal display modules, digital cameras, communication hardware, industrial control panels, digital household appliances, computer peripherals, automotive electronic assemblies and precision measuring instruments. Operators need to select appropriate pin quantity and plating finish according to project demands, adopt recommended PCB layout during SMT soldering process, avoid excessive reflow temperature to protect thermoplastic housing from damage, and store finished connectors in dry sealed packages to prevent terminal oxidation. Unlike competitors outsourcing stamping molding and plating services Antenk implements full in house production workflow covering self‑developed precision plastic and metal mold fabrication, copper alloy high speed stamping, high temperature thermoplastic injection molding and multi grade electroplating plus comprehensive laboratory reliability testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications compliant with REACH rules. We own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, deliver custom solutions and round the clock professional engineering support, and over seventy percent of our FPC connector products are exported globally backed by ANTENK brand and consistent stable mass production quality.

1. Low Profile Thermoplastic Housing saves valuable board space and maintains structural stability under varied temperature and humidity working environments.

2. Dual Side FPC Contact Terminal provides enhanced contact reliability and stable signal transmission for fine‑pitch flexible flat cable connections.

3. Back Flip SMT FPC Socket enables convenient cable insertion locking and achieves accurate assembly during surface mount production operations.

Detailed Specifications:

1. Electrical Parameters

1.1 Rated Current: 0.5A per pin

1.2 Rated Voltage: 50V AC DC

1.3 Maximum Initial Contact Resistance: 100 milliohms

1.4 Minimum Insulation Resistance: 500 Megohms

1.5 Dielectric Withstanding Voltage: 250V AC for one minute

2. Mechanical & Environmental Parameters

2.1 Minimum Mating Durability: 20 cycles

2.2 Operating Temperature Range: -40°C to +85°C

2.3 Operating Humidity Range: 20% to 85%

3. Material & Plating Options

3.1 Contact Type: Dual contact

3.2 Plating Selections: Gold flash, 3u inch gold, selective gold, matt tin 90‑120u inch

3.3 Insulator: High‑temperature thermoplastic with UL94V‑0 flame retardant grade

4. Structural Specifications

4.1 Product Type: Right Angle SMT FPC Connector

4.2 Pitch: 0.5 mm

4.3 Available Pin Count: Multiple pins from 06 up to 56 positions

5. Dimensional Standards (Unit: mm)

5.1 Nominal pitch dimension: 0.50±0.05

5.2 Key drawing dimensions: 0.50±0.03, 0.30±0.05, 0.40±0.05

5.3 Overall length varies according to total pin number

5.4 Complete recommended PCB layout provided on drawing

5.5 Dimension tolerances follow drawing marked specification

6. Compliance Standard

6.1 RoHS and HSF Pb compliant

7. Packing Selections

7.1 Available packing: Tray, Tube, Tape & Reel

8. Application Scenarios

8.1 Liquid crystal display modules, digital cameras

8.2 Communication hardware, industrial control panels

8.3 Digital household appliances, computer peripherals

8.4 Automotive electronic assemblies, precision measuring instruments

9. Operation & Storage Precautions

9.1 Select correct pin count and plating finish to match FPC cable and project requirements

9.2 Apply recommended PCB layout for SMT reflow soldering

9.3 Avoid excessive reflow temperature to prevent thermoplastic housing damage

9.4 Respect minimum 20‑cycle durability limit during repeated plug and unplug operations

9.5 Store FPC connectors inside dry sealed packages to prevent terminal oxidation under humidity environment

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

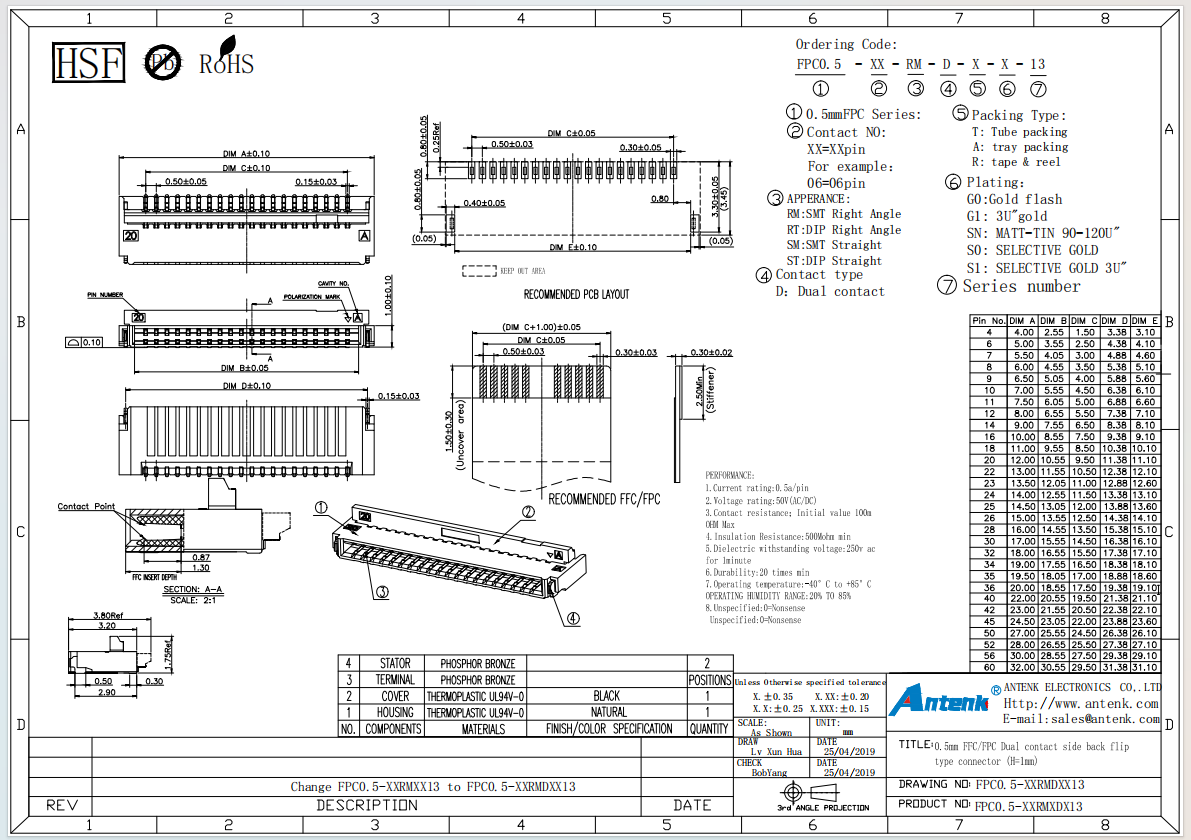

Product Drawing:
