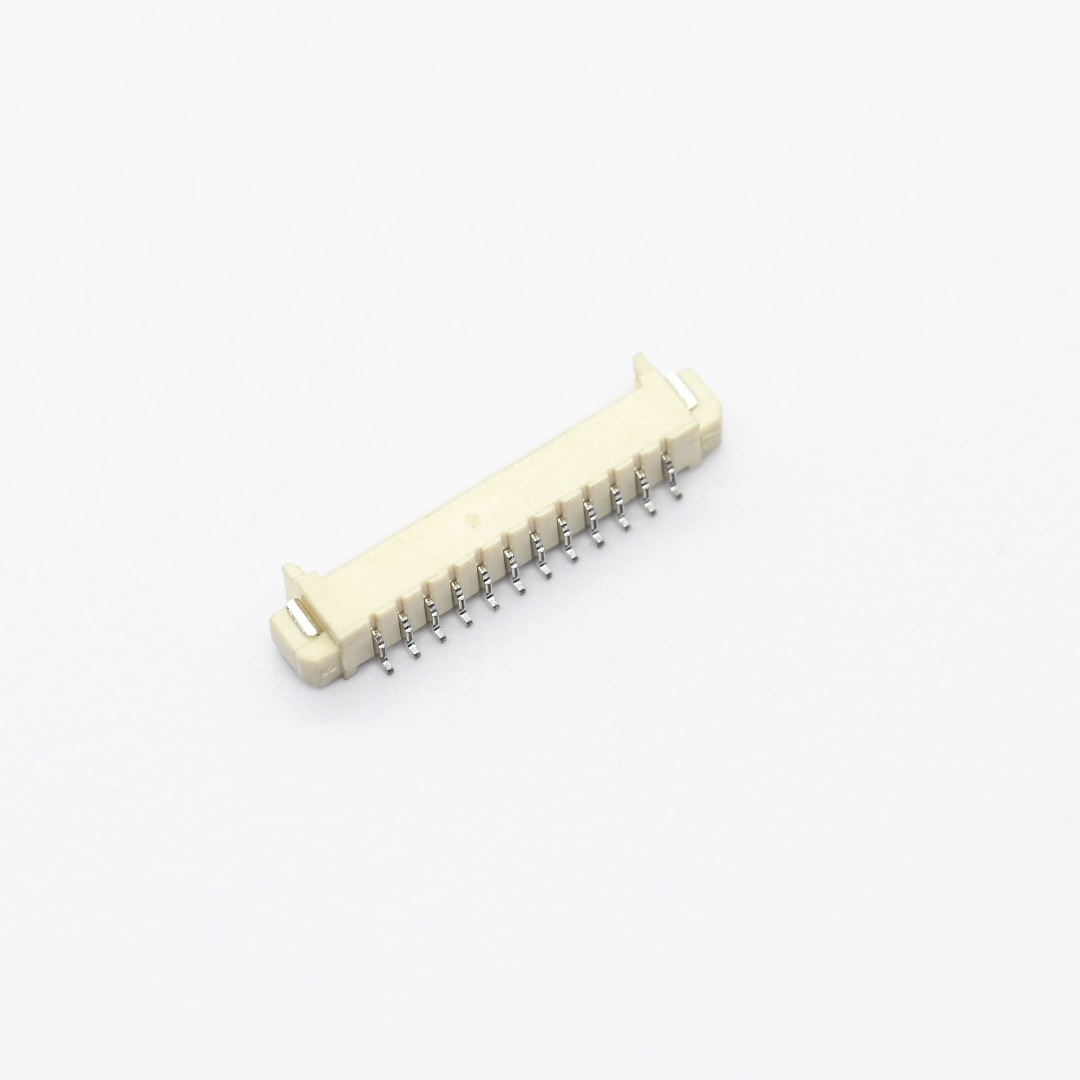

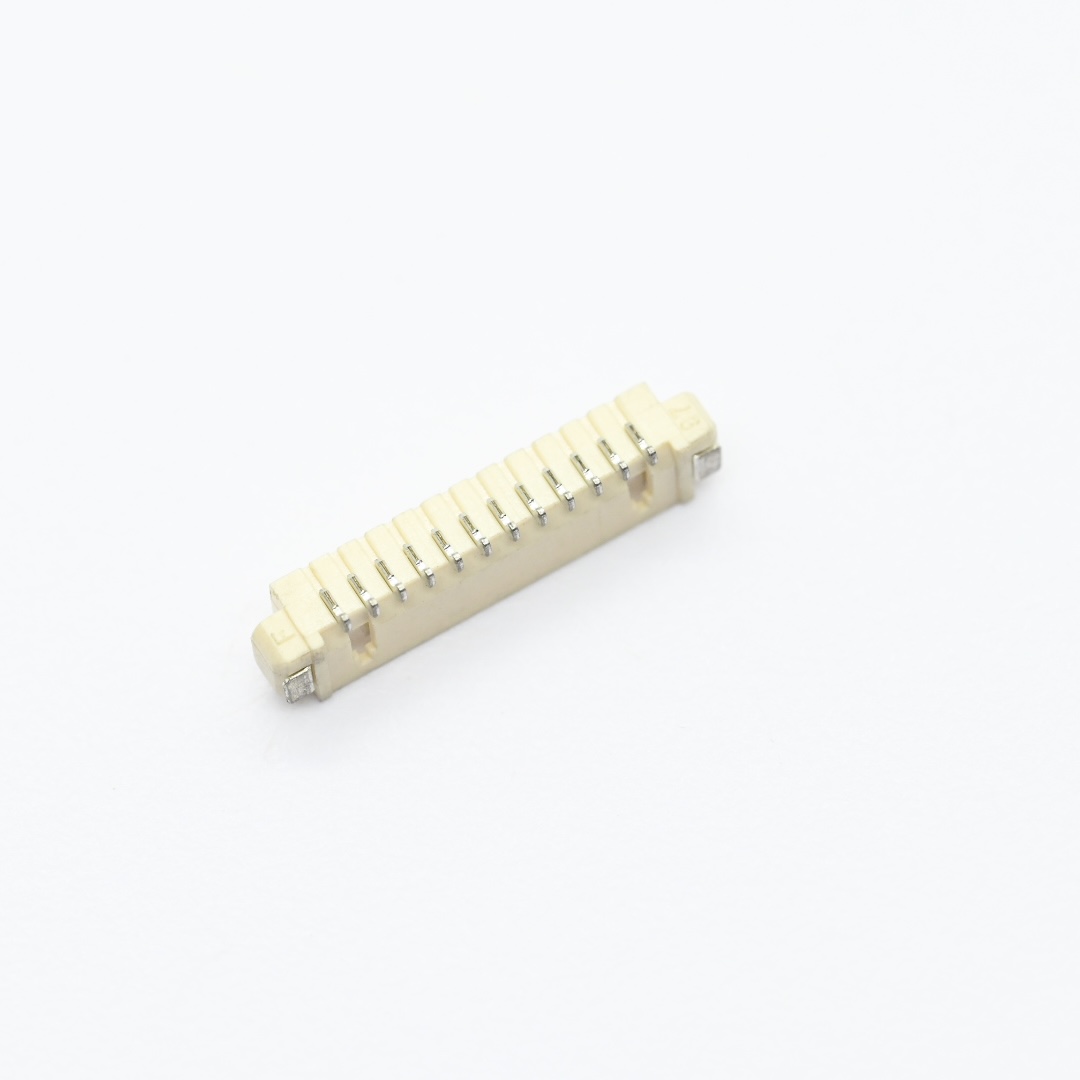

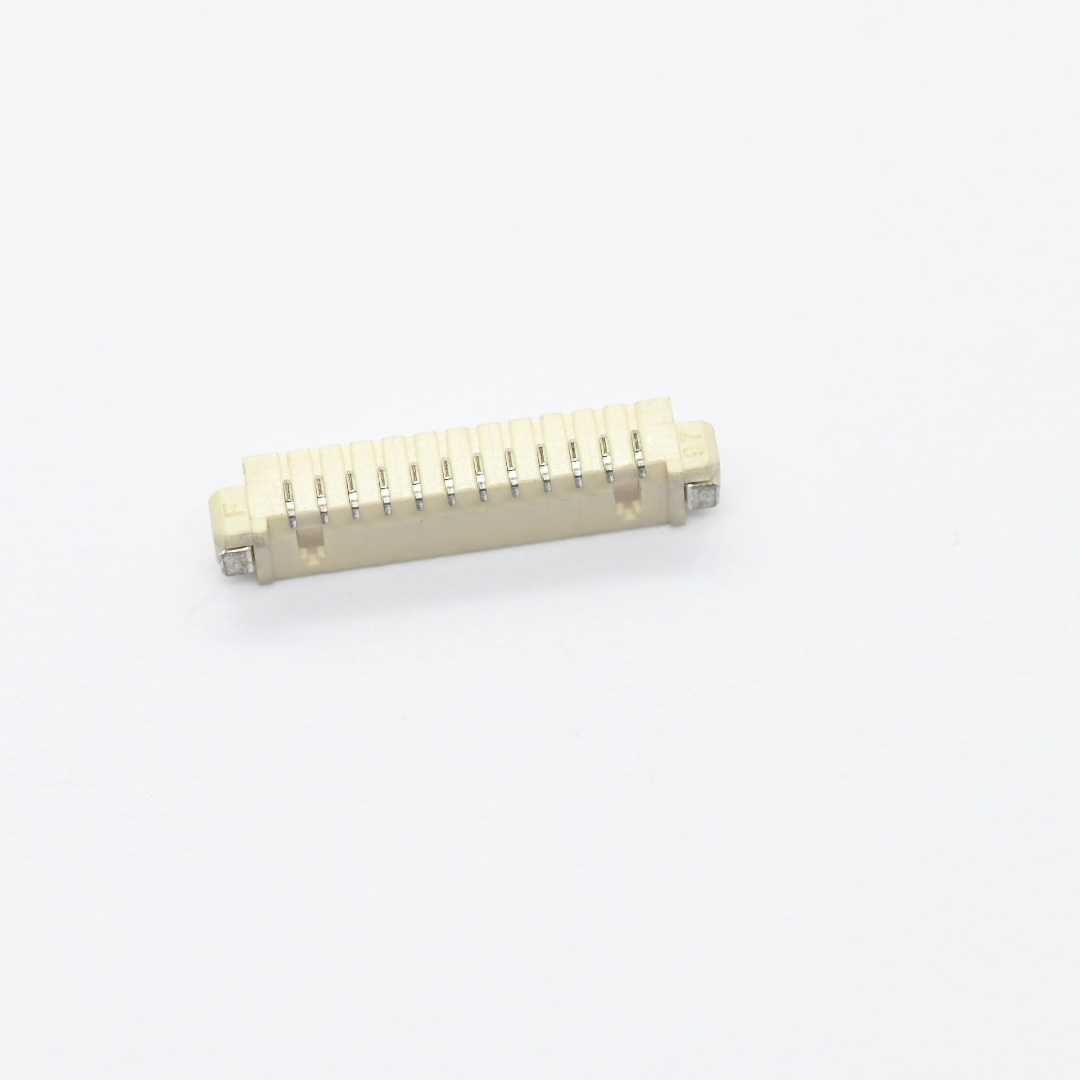

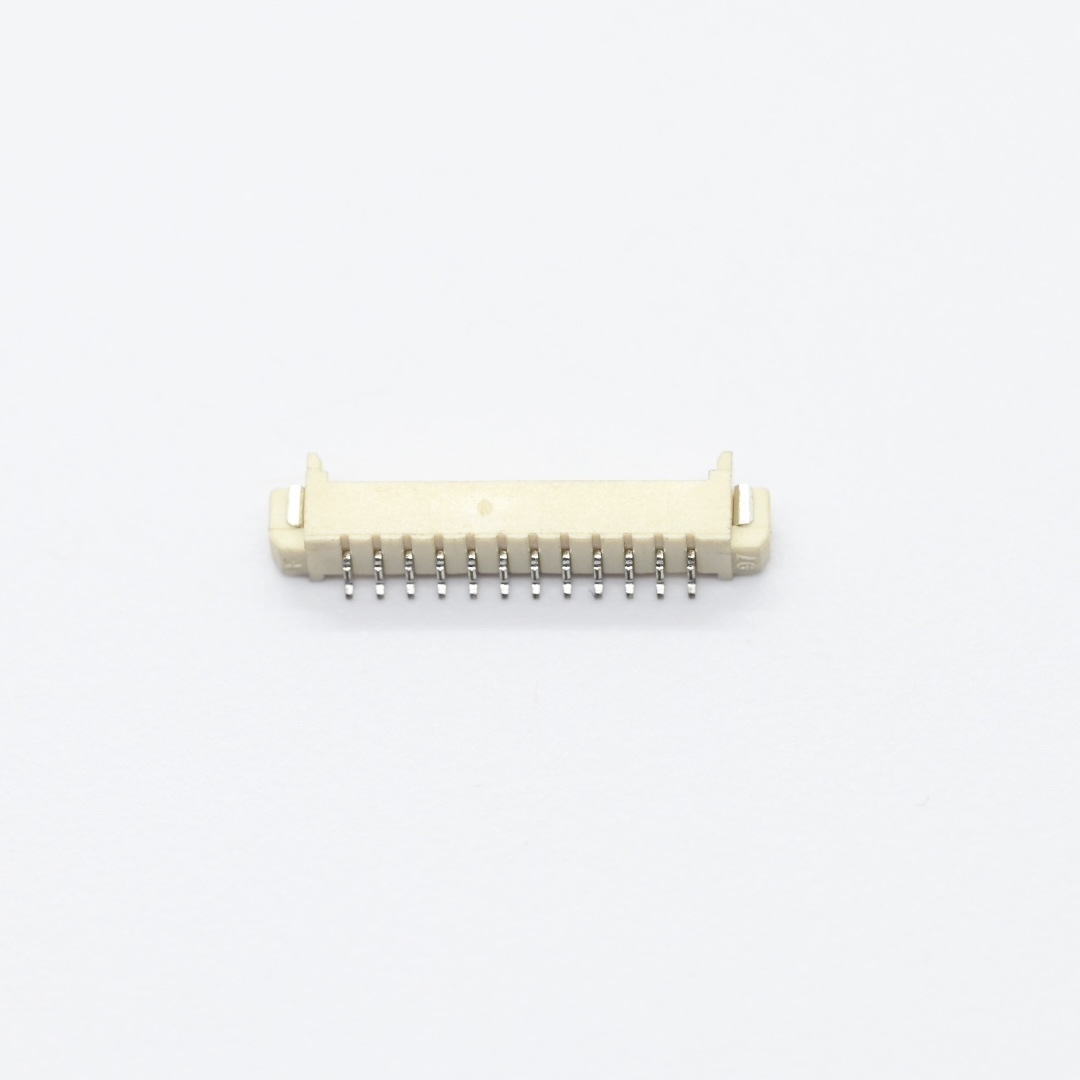

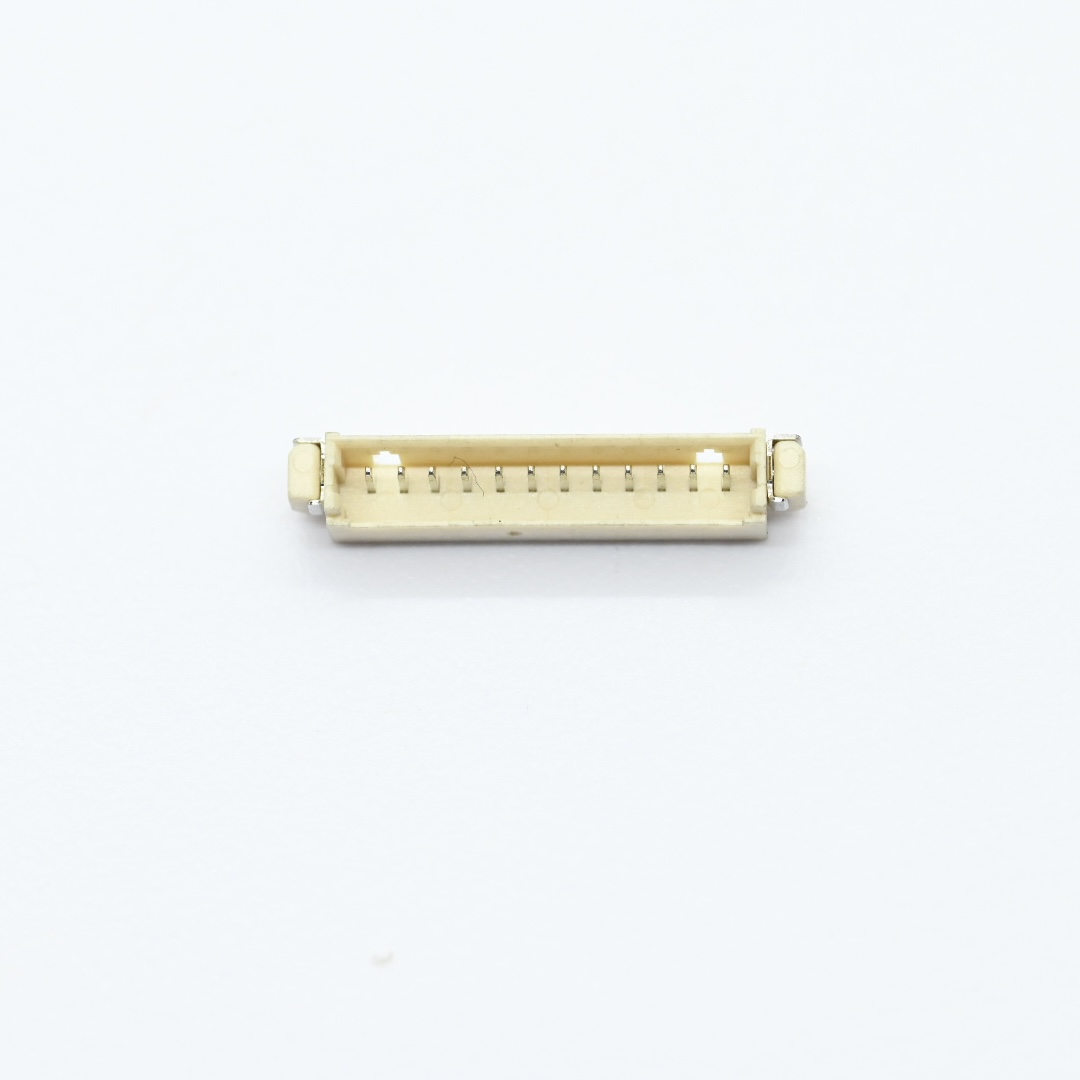

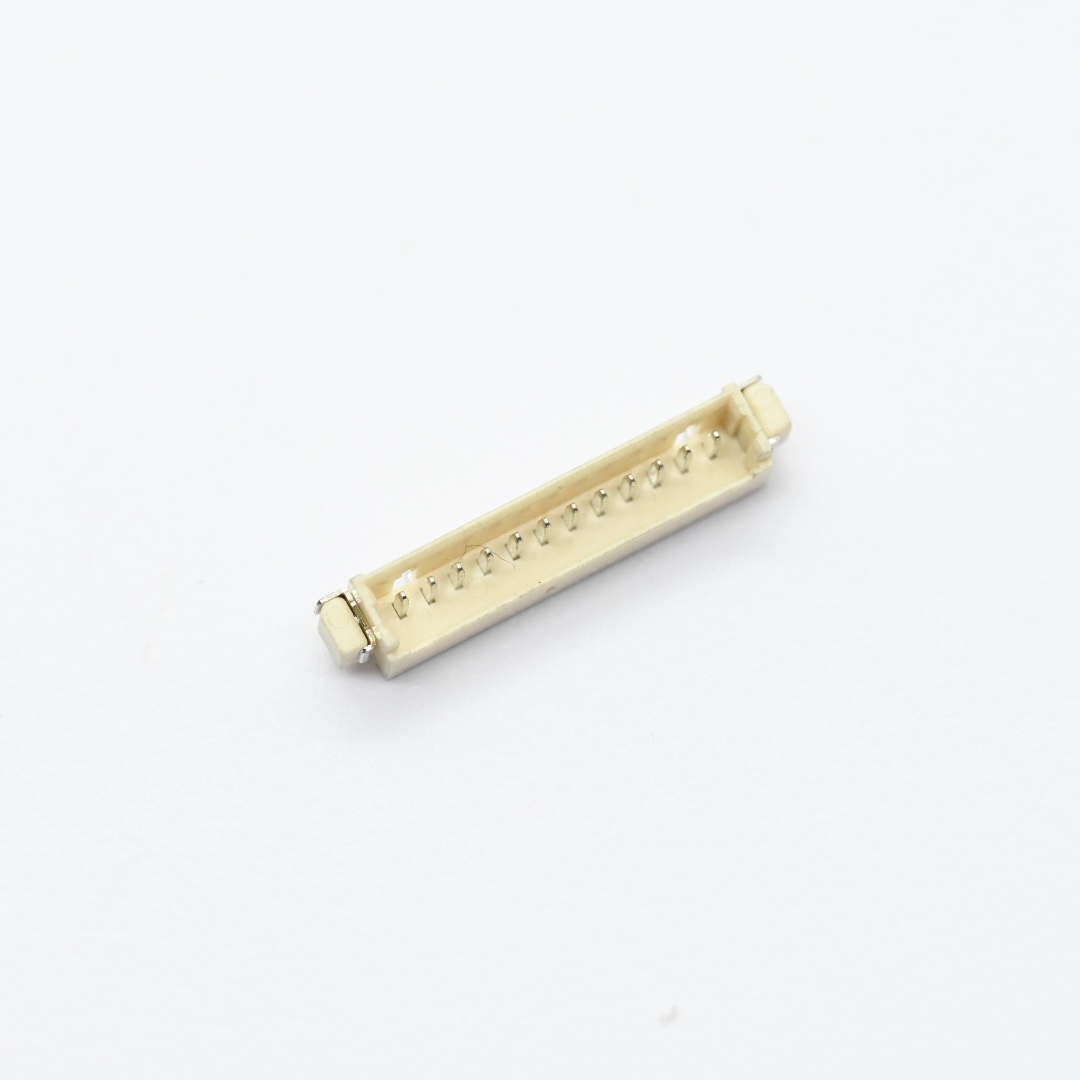

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures AW1251R‑S‑xP series 1.25mm pitch 90 degree SMT wafer connector to deliver reliable wire to board signal and power interconnection for compact surface mount printed circuit board assembly, following strict drawing dimensional tolerances to guarantee precise SMT reflow soldering and stable mating performance matched with AH1251 series housing. This right angle wafer connector adopts ivory Nylon 6T insulator body with UL94V 0 flame retardant grade, phosphor bronze pins and solder tabs finished with tin over nickel, electrically rated for 1A AC DC current and 125V AC DC voltage, 100 Megohms minimum insulation resistance and 500V AC one minute withstanding voltage, operating within minus 40 degree Celsius to plus 105 degree Celsius and complies with RoHS and HSF environmental standards. Multiple pole count options satisfy varied circuit layout requirements for automated high volume production. This compact SMT wafer connector is widely deployed in liquid crystal display modules, digital cameras, communication hardware, industrial control panels, digital household appliances, computer peripherals, automotive electronic assemblies and precision measuring instruments. Operators need to select proper pole quantity and use matching AH1251 series housing for assembly, adopt recommended PCB layout during SMT soldering, avoid excessive reflow heat to prevent Nylon 6T insulator deformation, and store finished connectors in dry sealed packages to protect phosphor bronze terminals against oxidation. Unlike competitors outsourcing stamping molding and plating services Antenk completes full in house production workflow covering self‑developed precision plastic and metal mold fabrication, phosphor bronze terminal high speed stamping, high temperature Nylon 6T injection molding and multi grade electroplating plus comprehensive laboratory reliability verification, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications compliant with REACH rules. We own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, provide custom solutions and round the clock professional engineering support, and over seventy percent of our wafer connector products are exported globally backed by ANTENK brand and consistent stable mass production quality.

1. Ivory Nylon 6T Insulator Body offers outstanding heat resistance and flame retardant performance for SMT reflow soldering conditions.

2. Nickel Tin Phosphor Bronze Pin ensures stable electrical conduction and excellent spring property for repeated plugging operations.

3. Wire To Board Wafer realizes compact space saving connection between wiring harness and printed circuit boards.

Detailed Specifications:

1. Electrical Parameters

1.1 Rated Current: 1A AC DC

1.2 Rated Voltage: 125V AC DC

1.3 Minimum Insulation Resistance: 100 Megohms

1.4 Withstanding Voltage: 500V AC per minute

2. Environmental Parameters

2.1 Operating Temperature Range: -40°C to +105°C

3. Material & Mating Information

3.1 Insulator Material: Nylon 6T, UL94V‑0 flame retardant grade, ivory color

3.2 Pin and Solder Tabs: Phosphor Bronze with tin plating over nickel base

3.3 Compatible Mating Part: AH1251 series housing

4. Structural Specifications

4.1 Product Type: 90 degree right angle SMT wafer connector

4.2 Pitch: 1.25 mm

4.3 Available Pole Count: Multiple poles ranging from 02 up to 19 positions

5. Dimensional Standards (Unit: mm)

5.1 Core pitch dimension: 1.25±0.10

5.2 Key outline dimensions: 3.60±0.10, 2.10±0.10, 4.70±0.25, 5.16±0.25

5.3 Overall length dimension B changes according to total pole numbers

5.4 Complete recommended PCB layout for surface mount assembly is provided

5.5 General drawing tolerance: X.±0.35, X.X±0.25, X.XX±0.20, X.XXX±0.15

6. Compliance Standard

6.1 RoHS and HSF Pb compliant

7. Application Scenarios

7.1 Liquid crystal display modules, digital cameras

7.2 Communication hardware, industrial control panels

7.3 Digital household appliances, computer peripherals

7.4 Automotive electronic assemblies, precision measuring instruments

8. Operation & Storage Precautions

8.1 Select matching pole quantity and pair with AH1251 series housing for proper mating

8.2 Follow official recommended PCB layout during SMT reflow soldering process

8.3 Avoid excessive reflow temperature to prevent deformation of Nylon 6T insulator

8.4 Store wafer connectors in dry sealed packages to avoid oxidation of phosphor bronze pins and solder tabs

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

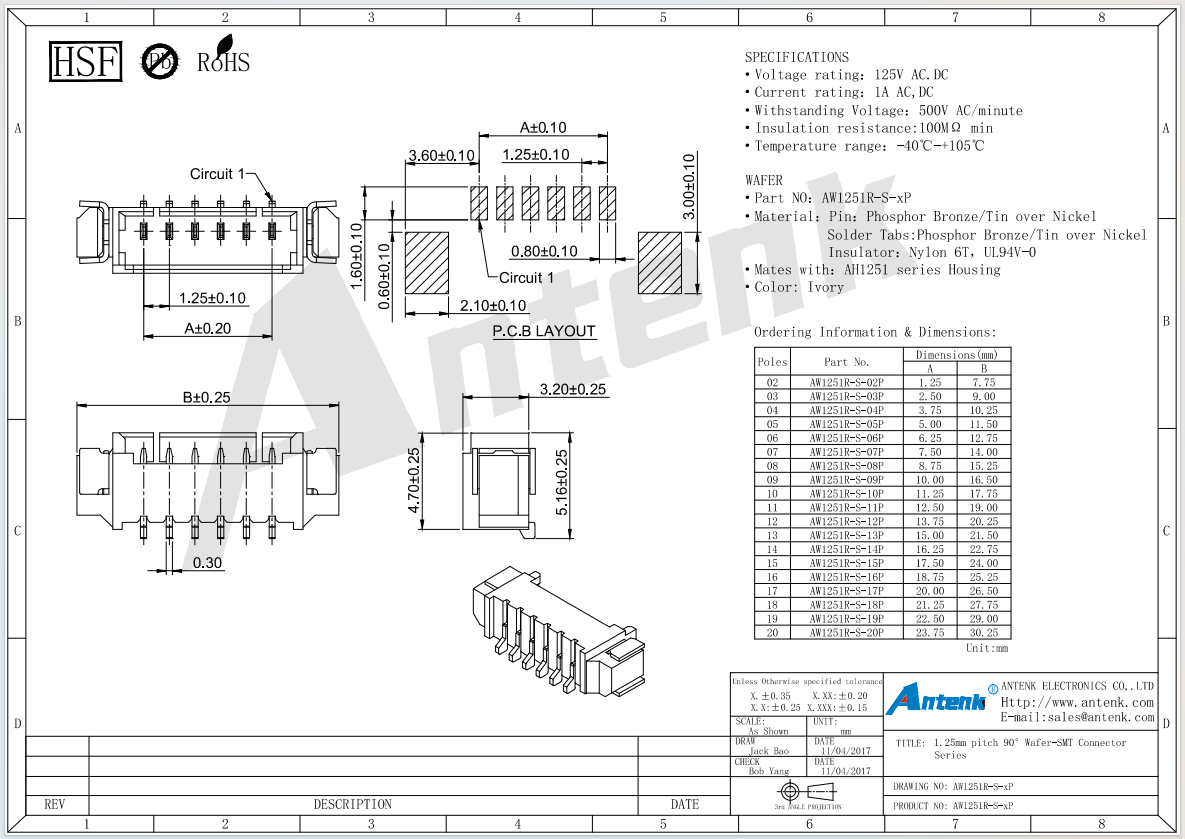

Product Drawing：
