Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures PT18708‑A series 187 type straight PCB tab to deliver stable electrical conduction for through hole printed circuit board assembly, following strict drawing dimensional tolerances to guarantee accurate PCB hole insertion and firm mechanical retention on 1.6 millimeter circuit boards. This straight PCB insert tab is constructed from 0.8 millimeter thick brass material finished with full tin plating to enhance conductivity and anti oxidation performance, key dimension includes overall length 12.45 millimeter and tab thickness T ±0.03 millimeter, matched PCB mounting holes support board thickness of 0.5 millimeter up to 0.8 millimeter with corresponding hole diameters, standard packing quantity reaches 5000 pieces per unit and complies with RoHS environmental standards. This precision stamped metal tab is widely deployed in liquid crystal display modules, digital household appliances, industrial control panels, automotive electronic assemblies and precision measuring instruments. Operators need to select proper PCB hole dimension matching tab specification for through hole assembly, avoid excessive bending force during installation to prevent brass tab deformation, and store finished terminals inside dry sealed packages to protect tin plated surface against corrosion. Unlike competitors outsourcing stamping and plating services Antenk completes full in house production workflow covering self‑developed precision metal mold fabrication, brass material high speed stamping and multi grade electroplating plus comprehensive laboratory reliability testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications compliant with REACH rules. We own over one hundred eighty metal terminal molds, deliver custom stamping solutions and round the clock professional engineering support, and over seventy percent of our metal terminal products are exported globally backed by ANTENK brand and consistent stable mass production quality.

1. Tin Plated Brass PCB Tab provides reliable electrical conductivity and effective anti‑corrosion performance for long‑term PCB working conditions.

2. Straight PCB Mount Terminal achieves firm mechanical retention after through‑hole soldering onto target printed circuit boards.

3. Precision Stamped Brass Tab maintains tight dimensional accuracy to guarantee smooth insertion and matching with corresponding female terminals.

Detailed Specifications:

1. Material and Plating

1.1 Base Material: Brass

1.2 Material Thickness: 0.8 mm

1.3 Surface Plating: Tin plate

2. Dimensional Specifications (Unit: mm)

2.1 Total length: 12.45 ±0.3

2.2 Tab thickness: T ±0.03

2.3 Applicable PCB thickness: 1.6 mm

2.4 PCB mounting hole: 1.3 mm for 0.5 mm board, 1.4 mm for 0.8 mm board

2.5 General drawing tolerances follow drawing marked requirements

3. Product Structure & Packing

3.1 Product Type: 187 4.8 straight through‑hole PCB tab

3.2 Standard packing quantity: 5000 pieces per pack

4. Compliance Standard

4.1 RoHS compliant

5. Application Scenarios

5.1 Digital household appliances, industrial control panels

5.2 Automotive electronic assemblies

5.3 Precision measuring instruments and general electronic equipment

6. Operation & Storage Precautions

6.1 Select matching PCB hole size for corresponding board thickness during through‑hole assembly

6.2 Avoid excessive bending force to prevent brass tab deformation in installation process

6.3 Keep proper alignment when mating with matching female terminals

6.4 Store terminals in dry sealed packages to avoid oxidation of tin plated surface

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

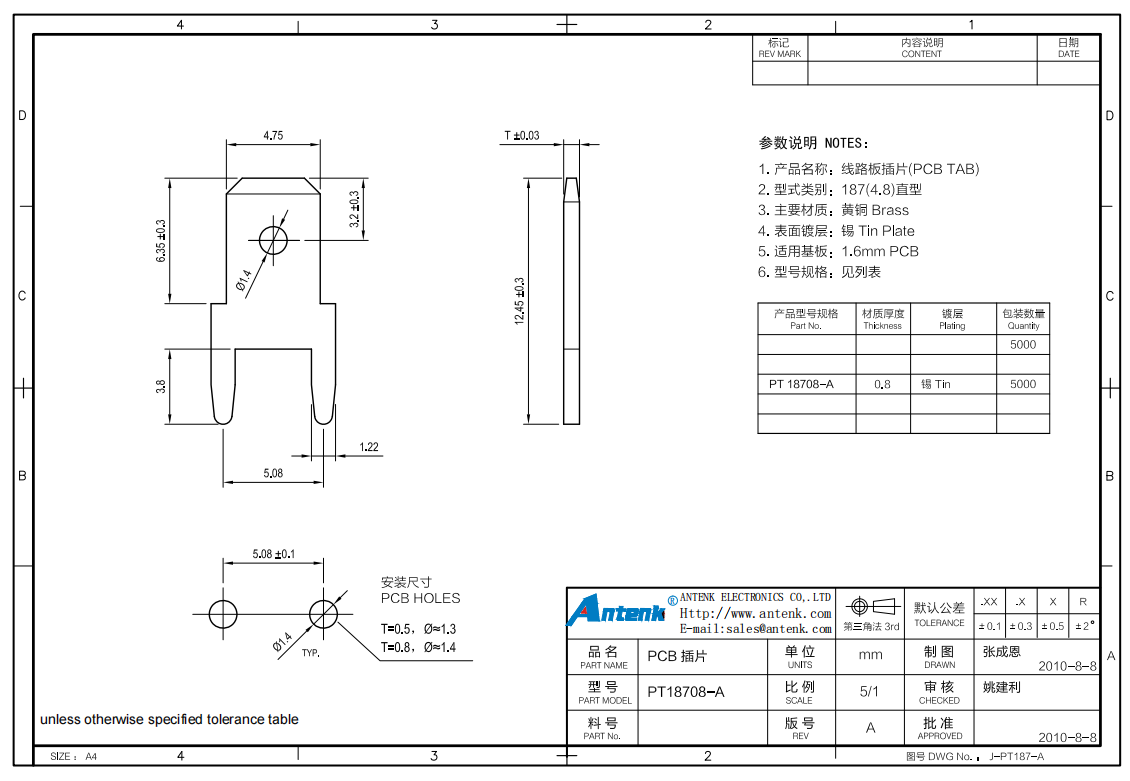

Product Drawing：
