2.54mm Dual Row SMT Female Header H8.5
Acoustic Components Amplifiers and Comparators Capacitors Connectors and Accessories Crystals, Oscillators and Resonators Development Systems Diodes, Transistors and Thyristors Displays, Signage and Optoelectronics EL Products Electronic Accessories & Supplies Electronic Data Systems Electronic Signs Electronics Stocks Filters Inductors Integrated Circuits Microcontrollers, Standard and Specialty Optoelectronic Displays Optoelectronics Other Electronic Components PCB & PCBA Potentiometers Power Driver Modules Power Supplies and Circuit Protection Relay Resistors Sensors Switches Telecommunications Wireless & IoT
Related Video

2.54mm Dual Row SMT Female Header H8.5

Home Electronic Components, Accessories & Telecommunications 2.54mm Dual Row SMT Female Header H8.5
2 day ago
0 0
Female Header section 2.54mm Pitch 2.54mm Dual Row SMT Female Header H8.5
HuiZhou Antenk Electronics Co., LTD
5 year year
Product details
Product Description:
Huizhou Antenk Electronics Co., Ltd. manufactures FHEM19‑XXDXXXX series 2.54mm pitch dual row SMT female header with 8.5 millimeter plastic height to deliver stable board to board signal and power interconnection for compact surface mount printed circuit board assembly, following strict drawing dimensional tolerances to guarantee precise SMT reflow soldering and reliable mating performance with matching male pin header. This dual row female header adopts black PA6T insulator housing with UL94V 0 flame retardant grade and brass contacts supporting diversified plating options including gold flash selective gold and tin finish, electrically rated for 3.0 Amp current, 30 milliohms maximum contact resistance and 1000 Megohms minimum insulation resistance, withstands 500V AC for one minute and operates within minus 40 degree Celsius to plus 105 degree Celsius while complying with RoHS and HSF environmental standards. Multiple contact quantity options together with tray tube tape and reel packing modes and optional pick cap locating peg satisfy automated high volume production requirements. This compact SMT header is widely deployed in liquid crystal display modules, digital cameras, communication hardware, industrial control panels, digital household appliances, computer peripherals, automotive electronic assemblies and precision measuring instruments. Operators need to select proper contact count plating finish and locating peg type for project requirements, adopt recommended PCB layout during SMT soldering process, avoid excessive reflow temperature to prevent PA6T insulator deformation, and store finished connectors in dry sealed packages to protect brass contacts against oxidation. Unlike competitors outsourcing stamping molding and plating services Antenk completes full in house production workflow covering self‑developed precision plastic and metal mold fabrication, brass terminal high speed stamping, high temperature PA6T injection molding and multi grade electroplating plus comprehensive laboratory reliability testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications compliant with REACH rules. We own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, deliver custom solutions and round the clock professional engineering support, and over seventy percent of our header connector products are exported globally backed by ANTENK brand and consistent stable mass production quality.

1. Black PA6T Insulator Housing delivers excellent heat resistance and flame retardant performance for SMT reflow soldering processes.
2. Brass SMT Female Contact ensures stable electrical transmission and dependable spring force for repeated mating cycles.
3. Board To Board SMT Receptacle realizes compact space saving interconnection between two separate printed circuit boards.

Detailed Specifications:
1. Electrical Parameters
    1.1 Rated Current: 3.0 Amp
    1.2 Maximum Contact Resistance: 30 milliohms
    1.3 Minimum Insulation Resistance: 1000 Megohms
    1.4 Dielectric Withstanding Voltage: 500V AC for one minute
2. Environmental Parameters
    2.1 Operating Temperature Range: -40°C to +105°C
3. Material & Configuration Information
    3.1 Contact Material: Brass
    3.2 Insulator Material: PA6T, UL94V‑0 flame retardant grade, black color
    3.3 Available Plating Options: Gold flash, selective gold, tin finish
    3.4 Connector Type: Dual row SMT female header
    3.5 Plastic Height: 8.5 mm
    3.6 Contact Range: 02 to 80 positions
    3.7 Optional Structure: Pick cap, locating peg type A without pegs, type B with pegs
4. Dimensional Standards (Unit: mm)
    4.1 Pitch: 2.54 mm
    4.2 Complete recommended PCB layout for SMT assembly is provided
    4.3 Flatness and mating dimension shall be increased from 1.0 to 0.5 as drawing requirement
    4.4 All dimensions follow drawing specified tolerance requirements
5. Packing Selections
    5.1 Available packing modes: Tray, Tube, Tape and Reel
6. Compliance Standard
    6.1 RoHS and HSF compliant
7. Application Scenarios
    7.1 Liquid crystal display modules, digital cameras
    7.2 Communication hardware, industrial control panels
    7.3 Digital household appliances, computer peripherals
    7.4 Automotive electronic assemblies, precision measuring instruments
8. Operation & Storage Precautions
    8.1 Select suitable contact quantity plating finish and locating peg option according to actual project demands
    8.2 Adopt official recommended PCB layout during SMT reflow soldering
    8.3 Avoid excessive reflow temperature to prevent PA6T insulator housing deformation
    8.4 Improve flatness and mating dimension as specified in drawing
    8.5 Store finished connectors in dry sealed packages to prevent oxidation of brass contacts

FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

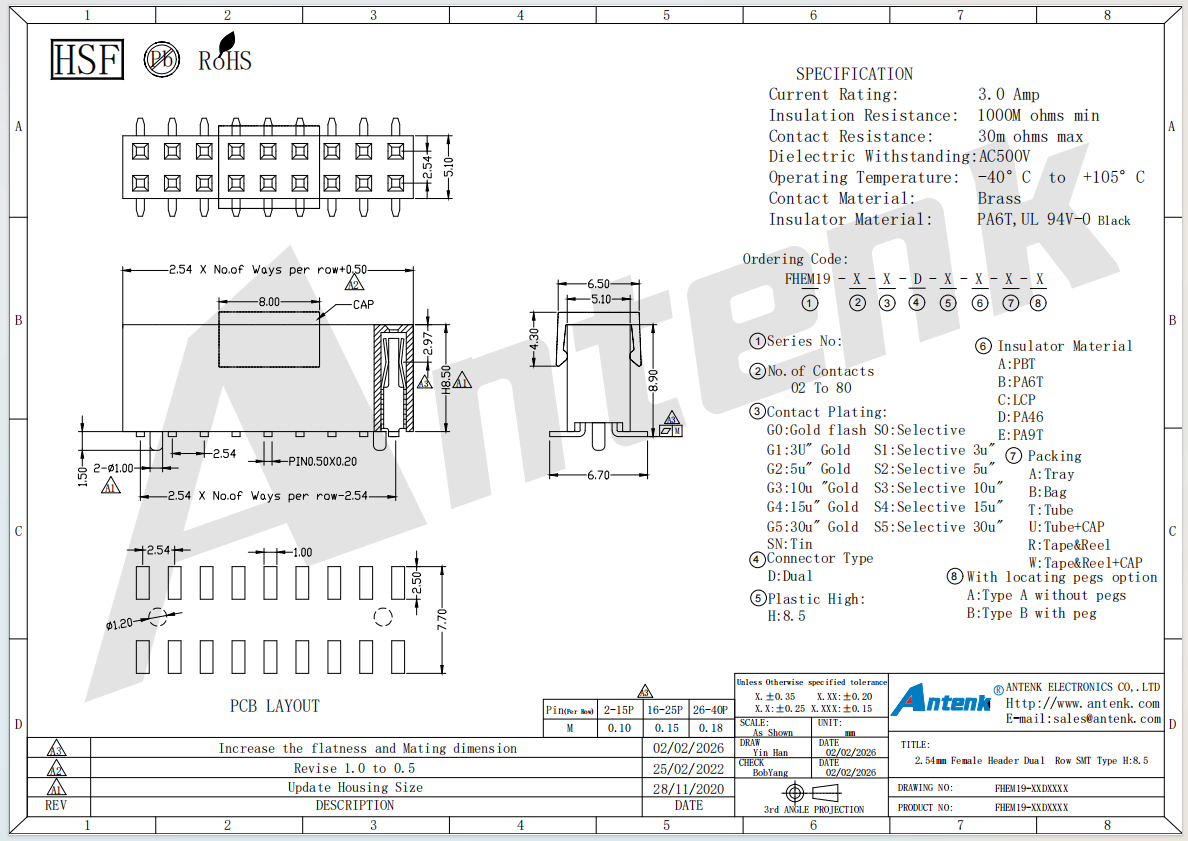

Product Drawing：
FHEM19

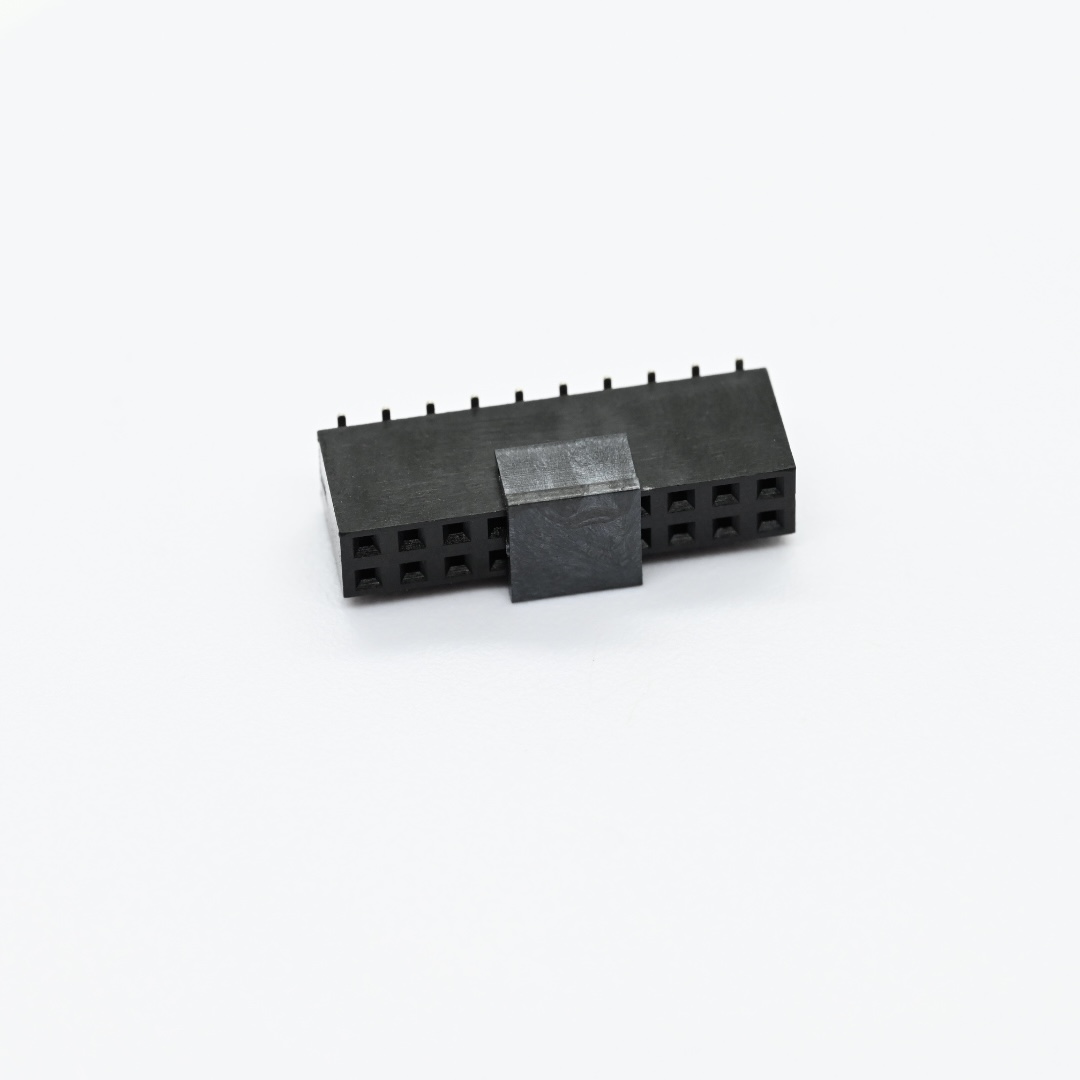

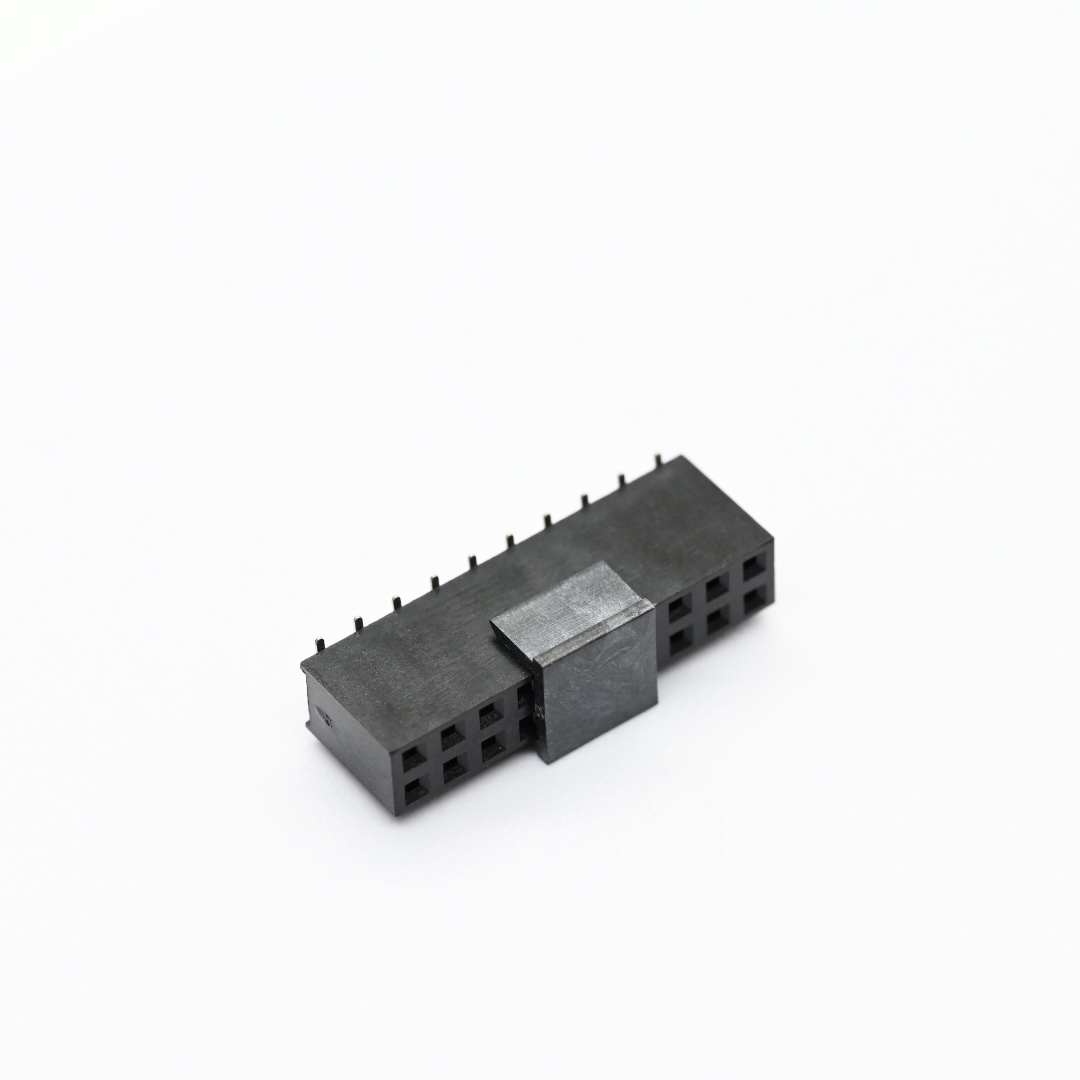

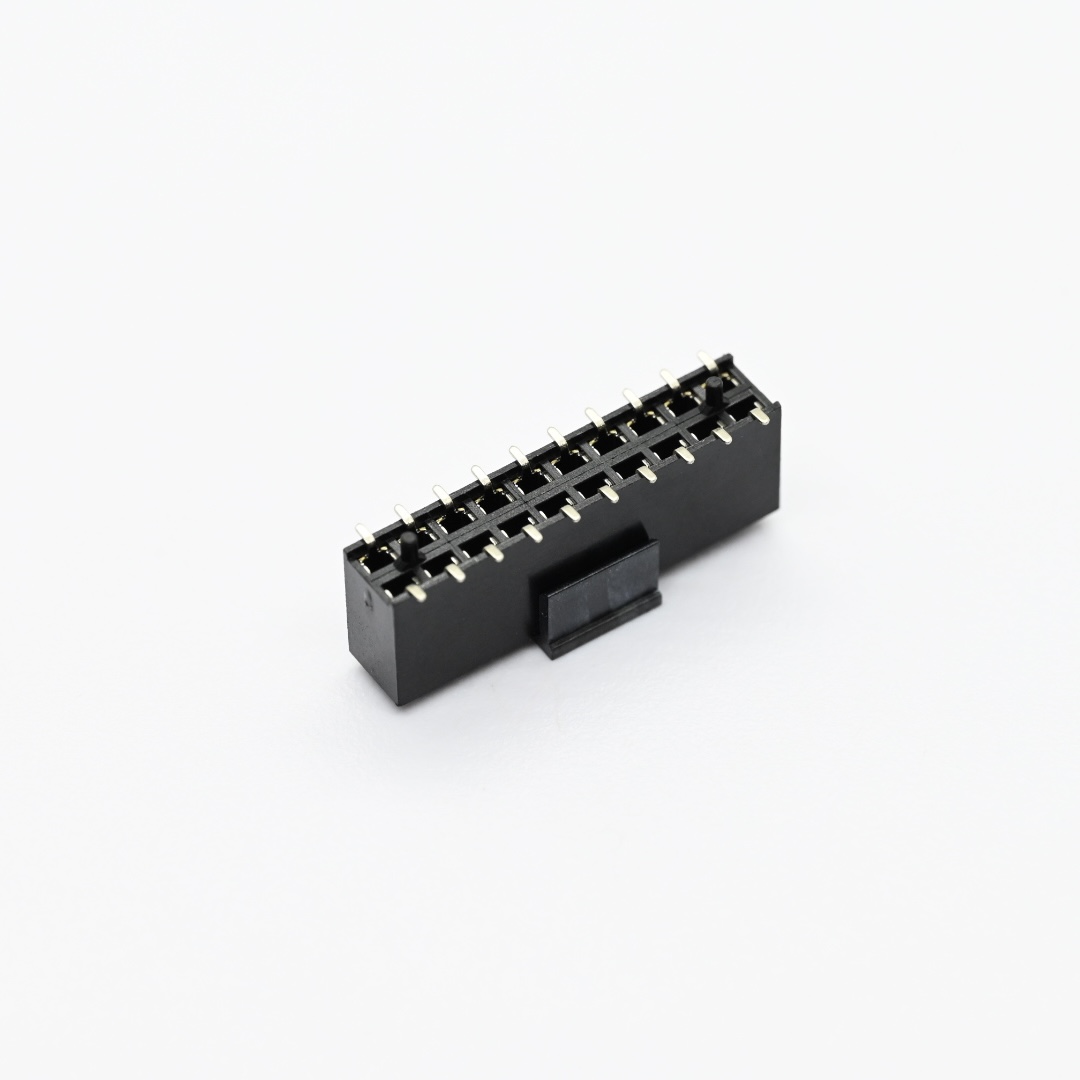

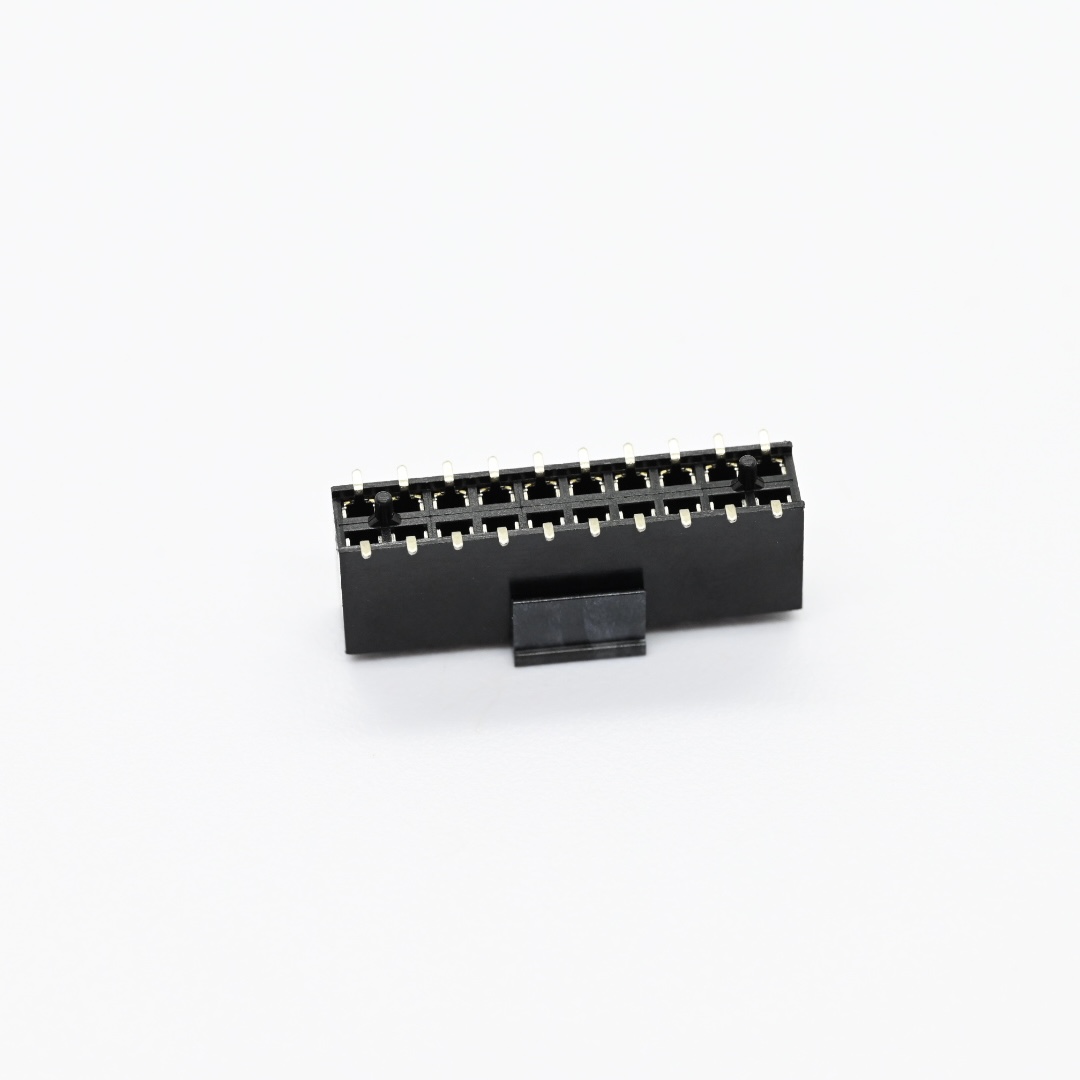

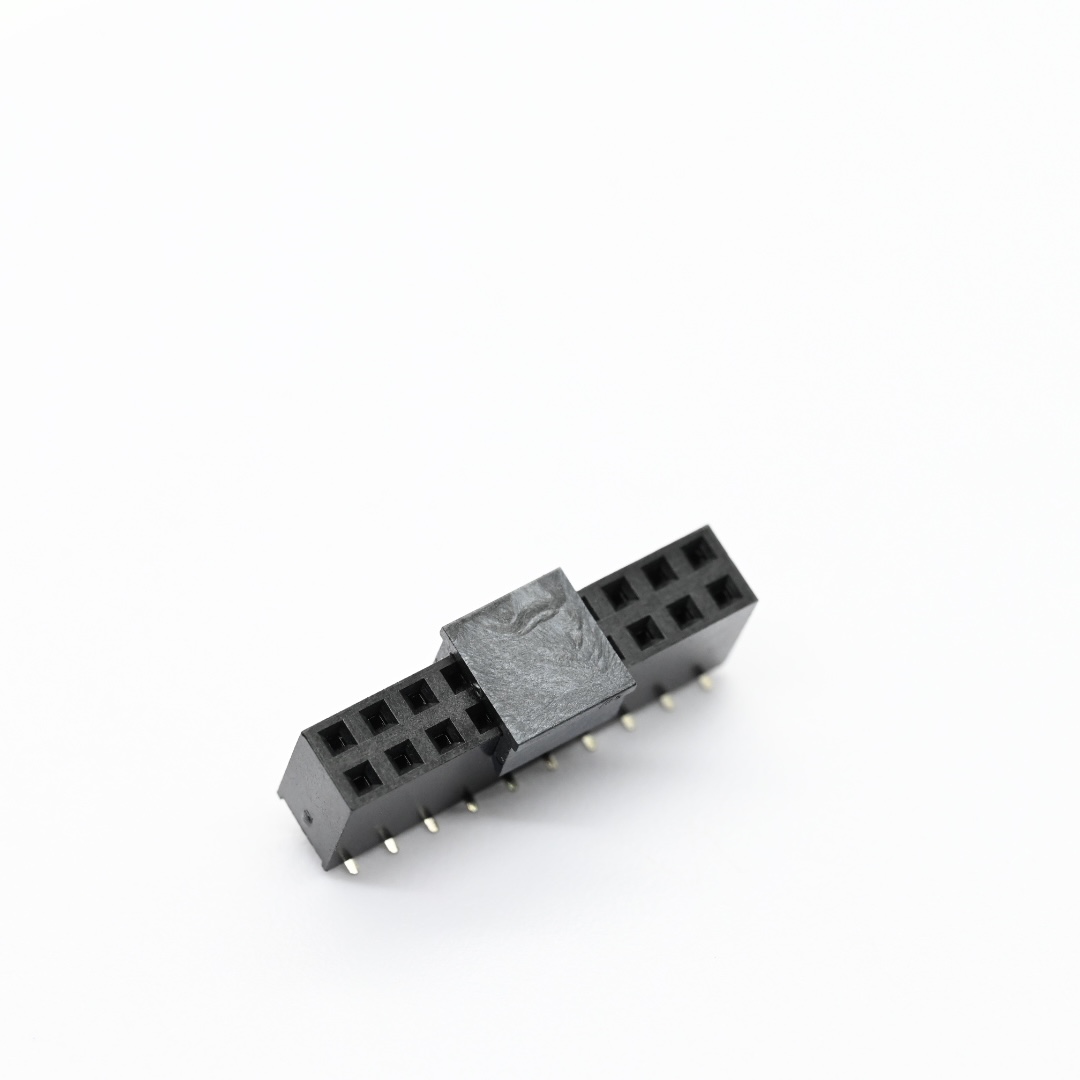

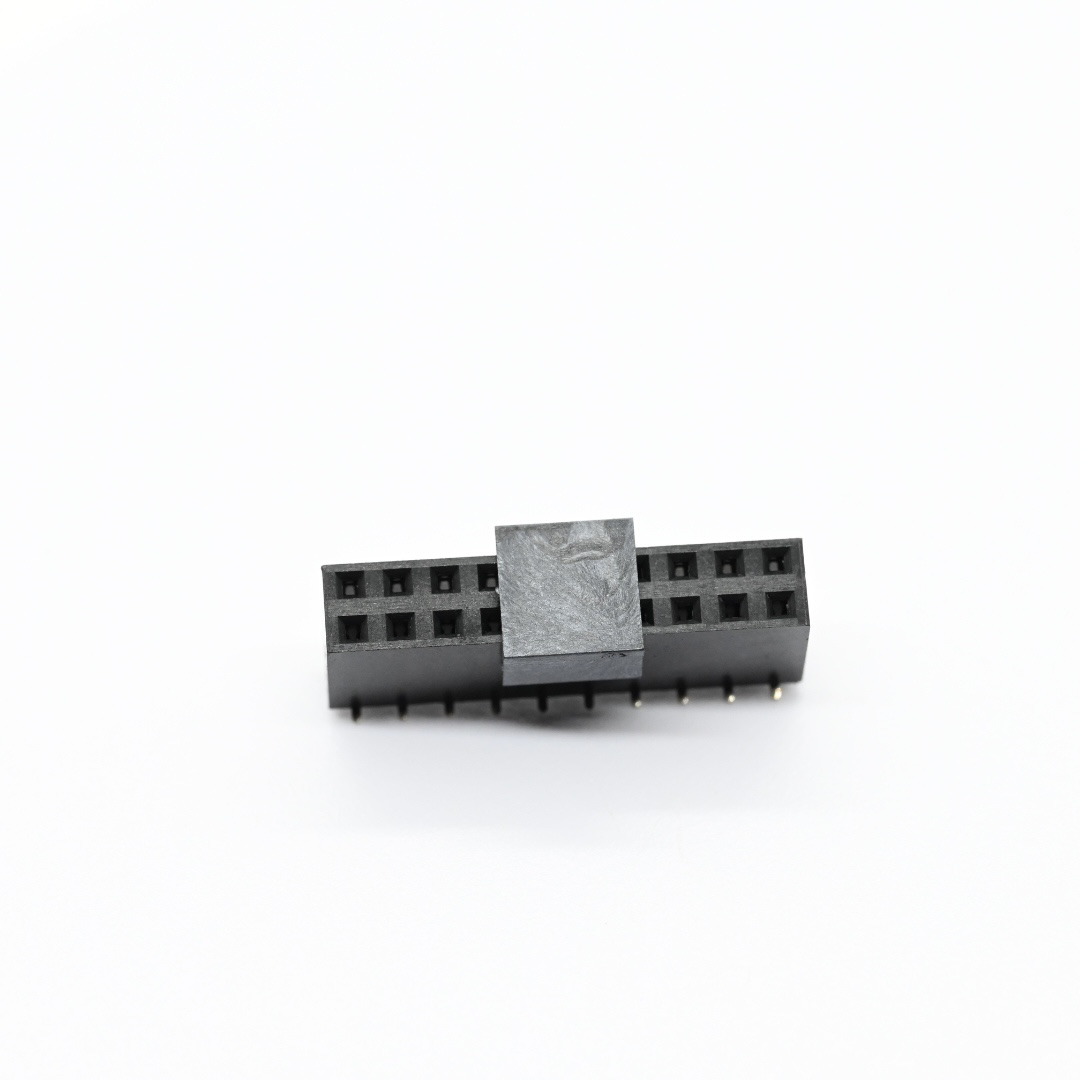

FHEM19-20-G0-D-H8.5-B-W-B（4）FHEM19-20-G0-D-H8.5-B-W-B（1）FHEM19-20-G0-D-H8.5-B-W-B（3）FHEM19-20-G0-D-H8.5-B-W-B（2）FHEM19-20-G0-D-H8.5-B-W-B（5）FHEM19-20-G0-D-H8.5-B-W-B（6）
