Product details

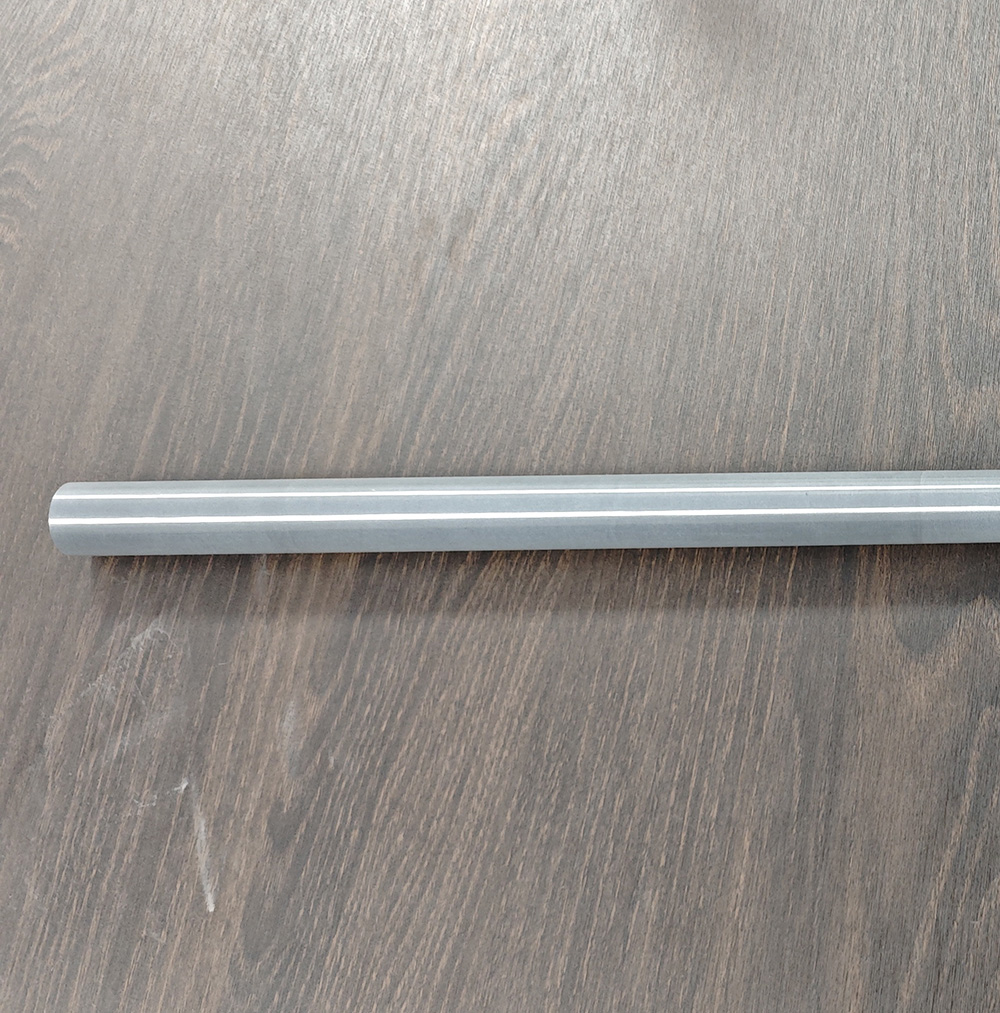

Premium Industrial Alumina Ceramic Tube Solutions for High-Performance Applications

In the realm of advanced materials engineering, reliability under extreme conditions is paramount. Our range of high-purity ceramic tubing represents the pinnacle of thermal and electrical insulation technology, designed specifically for industries that demand unwavering performance. Whether you are working with corrosive chemicals, high-voltage environments, or intense heat sources, our industrial alumina ceramic tube products provide a robust solution that ensures longevity and safety. This comprehensive guide explores the superior qualities of 95% alumina ceramic tube configurations, detailing their unique properties, diverse applications, and the rigorous manufacturing standards that set them apart in the global market.

Overview of Advanced Ceramic Tubing Technology

Alumina ceramic tubes serve as critical components in various industrial sectors, offering an exceptional balance of mechanical strength, chemical inertness, and thermal stability. Unlike traditional metal pipes which may corrode or conduct electricity unexpectedly, these ceramic alternatives provide non-conductive pathways that maintain structural integrity even when exposed to aggressive media. The specific focus on 95% alumina ceramic tube variants offers a cost-effective yet highly efficient material composition that meets the stringent requirements of modern manufacturing processes. These tubes are not merely passive conduits; they are engineered systems designed to withstand thermal shock, resist abrasion, and prevent contamination in sensitive environments. By utilizing aluminum oxide as the primary constituent, manufacturers achieve a material that is harder than most metals and significantly more durable than standard glass or plastic tubing, making it an indispensable asset in high-tech facilities worldwide.

Key Characteristics and Technical Advantages

The superiority of our industrial alumina ceramic tube lineup stems from several distinct physical and chemical attributes. First and foremost is the exceptional dielectric strength, which allows these tubes to function effectively as insulators in high-voltage equipment without risking short circuits or energy loss. This property is particularly vital in electronics manufacturing and power transmission infrastructure. Secondly, the thermal conductivity of 95% alumina ceramic tube structures provides excellent heat dissipation capabilities while maintaining resistance to temperatures exceeding 1600 degrees Celsius. This dual capability ensures that components remain cool during operation while protecting surrounding materials from excessive heat transfer.

Chemical resistance is another defining feature. These tubes exhibit near-total immunity to acids, alkalis, and organic solvents, ensuring that the internal flow remains uncontaminated regardless of the substance being transported. This makes them ideal for laboratory settings and chemical processing plants where purity is non-negotiable. Furthermore, the mechanical hardness of alumina ceramic tube materials provides outstanding wear resistance, extending the service life of equipment subjected to abrasive flows or particulate matter. The low coefficient of thermal expansion also contributes to their durability, minimizing the risk of cracking during rapid temperature fluctuations. Each piece undergoes rigorous quality control to ensure dimensional accuracy and surface finish, guaranteeing seamless integration into existing machinery and systems.

Detailed Product Specifications and Manufacturing Excellence

Our production process for industrial alumina ceramic tube items involves advanced pressing and sintering techniques that result in a dense, uniform microstructure. The use of high-purity aluminum oxide powder ensures that the final product contains minimal impurities, which could otherwise compromise electrical or thermal performance. For applications requiring precise tolerances, we offer custom machining services to achieve exact inner and outer diameters, wall thicknesses, and lengths. The 95% alumina ceramic tube variant strikes an optimal balance between performance and affordability, providing approximately 95% pure aluminum oxide content which delivers superior insulation properties compared to lower-grade ceramics while remaining more economical than 99.9% ultra-high-purity options. This makes it the preferred choice for general industrial applications where extreme purity is not the sole priority but high reliability is essential.The performance is superior to that of Alumina Ceramic & High Purity Alumina Ceramic.

Performance is not lower than that of Zirconia ceramic & Aluminium Nitride ceramic.

AlUMINA TECH DATA

ITEM	UNIT	99.9 ALUMINA
Density	G/cm3	3.94
Bending Resistance	Mpa	500
Compressive Strength	Mpa	3300
Elasticity Modulus	Gpa	400
Shock Strength	Mpam/2	5.2
Vaporization Coefficient	M	12
Vickers Hardness	HV0.5	2000
Thermal Expansivity	10-6K-1	8.0
Conductivity	W/MK	28
Thermal Shock Resistance	AT℃	280
Maximum Service Temperature	℃	1750
20℃ Volume Resistance	Ω	≥1015
Dielectric Strength	KV/mm	30
Apparent Porosity	％	0
Permittivity	Er	10
Dielectric Loss Angle	tanδ	0.001

ALUMINA POWDER TECH DATA

ITEM	LS-110	LS-120	LS-130	LS-110F	LS-220	LS-210
LOI(％)	0.02	0.02	0.05	0.08	0.03	0.01
Na2O(％)	0.05	0.04	0.03	0.05	0.07	0.08
SiO2(％)	0.07	0.07	0.07	0.09	0.02	0.02
Fe2O3(％)	0.03	0.03	0.03	0.03	0.02	0.02
Al2O3(％)	99.9	99.9	99.9	99.9	99.9	99.9
average grain diameter(um)	1.7	2.1	2.2	1.1	2.7	2.9
αgrain diameter(um)	1-2	1-3	2-4	1-2	2-3	3-5
BET Surface Area(m2/g)	1.9	1.4	1.4	3.2	1.6	0.9
Pressure-induced volume density(g/cm3)*	2.22	2.27	2.31	2.29	2.22	2.32
Forming density(g/cm3)**	2.13	2.20	2.23	2.33	2.17	2.30
Sintering volume density(g/cm3)**	3.78	3.79	3.78	3.89	3.81	3.77
Line collection efficiency(％)	18.0	17.2	16.7	15.7	17.5	15.3
