2.54mm Dual Row SMT Female Header H5.0

2.54mm Dual Row SMT Female Header H5.0

3 week ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures FHEM09‑XXDXXXXX series 2.54mm pitch dual row SMT female header with 5.0 millimeter plastic height to realize reliable board to board signal and power interconnection for compact surface mount PCB assembly, adhering to official drawing dimensional specifications for accurate SMT reflow soldering and stable mating performance with matching male pin headers. This low profile female header uses black PA6T insulator housing with UL94V 0 flame retardant grade and brass contacts supporting multiple plating options such as gold flash selective gold and tin finish, electrically rated for 3.0 Amp current, 20 milliohms maximum contact resistance and 1000 Megohms minimum insulation resistance, withstands 500V AC for one minute and works within minus 65 degree Celsius to plus 125 degree Celsius and meets RoHS and HSF environmental standards. It offers contact counts from 02 to 80 positions, optional locating peg type A without pegs type B with pegs, pick cap structure and diverse packing modes for automated mass production. This SMT header is widely used in liquid crystal display modules, digital cameras, communication hardware, industrial control panels, digital household appliances, computer peripherals, automotive electronic assemblies and precision measuring instruments. Operators need to choose suitable contact number plating finish and locating peg style for projects, apply recommended PCB layout for SMT soldering, avoid excessive reflow temperature to protect PA6T housing from deformation and store products inside dry sealed packages to prevent brass terminal oxidation. Unlike competitors outsourcing stamping molding and plating services Antenk implements complete in house production covering independent plastic and metal mold development, brass terminal high speed stamping, high temperature PA6T injection molding and multi grade electroplating plus comprehensive laboratory reliability verification. We hold ISO9001 ISO14001 IATF16949 and UL E472792 certifications complying with REACH rules, own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, provide custom solutions and round the clock engineering support, and over seventy percent header products are exported globally with stable ANTENK brand production quality.

1. Low Profile PA6T Receptacle saves valuable board space while sustaining good flame retardant property during SMT reflow operations.

2. Extended Temp Brass Terminal maintains stable electrical performance under wide ranging extreme working temperature conditions.

3. Cap Assisted SMT Header enables convenient vacuum pickup for high speed automated surface mount assembly processes.

Detailed Specifications：

1. Electrical Parameters

1.1 Rated Current: 3.0 Amp

1.2 Maximum Contact Resistance: 20 milliohms

1.3 Minimum Insulation Resistance: 1000 Megohms

1.4 Dielectric Withstanding Voltage: 500V AC for one minute

2. Environmental Parameters

2.1 Operating Temperature Range: -65°C to +125°C

3. Material & Structural Information

3.1 Contact Material: Brass

3.2 Insulator Material: PA6T, UL94V‑0 flame retardant grade

3.3 Available Plating Options: Gold flash, selective gold, tin finish

3.4 Connector Type: Dual row SMT female header

3.5 Plastic Height: H5.0 mm

3.6 Contact Range: 02 to 80 positions

3.7 Optional Configuration: Pick cap, locating peg Type A without pegs, Type B with pegs; two optional terminal lengths 6.6 mm and 7.5 mm

4. Dimensional Standards (Unit: mm)

4.1 Pitch: 2.54 mm

4.2 Clamping dimension revised from 5.0 mm to 4.4 mm

4.3 Complete recommended PCB layout for SMT assembly is provided

4.4 Flatness and mating dimension should be increased as drawing requirement

4.5 All dimensions comply with drawing specified tolerance rules

5. Packing Selections

5.1 Available packing modes: Bag, Tray, Tube, Tape and Reel, Tape and Reel with Cap

6. Compliance Standard

6.1 RoHS and HSF compliant

7. Application Scenarios

7.1 Liquid crystal display modules, digital cameras

7.2 Communication hardware, industrial control panels

7.3 Digital household appliances, computer peripherals

7.4 Automotive electronic assemblies, precision measuring instruments

8. Operation & Storage Precautions

8.1 Select proper contact quantity, plating finish, locating peg type and terminal length for actual project requirements

8.2 Adopt official recommended PCB layout during SMT reflow soldering

8.3 Avoid excessive reflow temperature to prevent PA6T insulator housing deformation

8.4 Adjust flatness and mating dimension following drawing revision notes

8.5 Store finished connectors in dry sealed packages to avoid oxidation of brass contacts

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

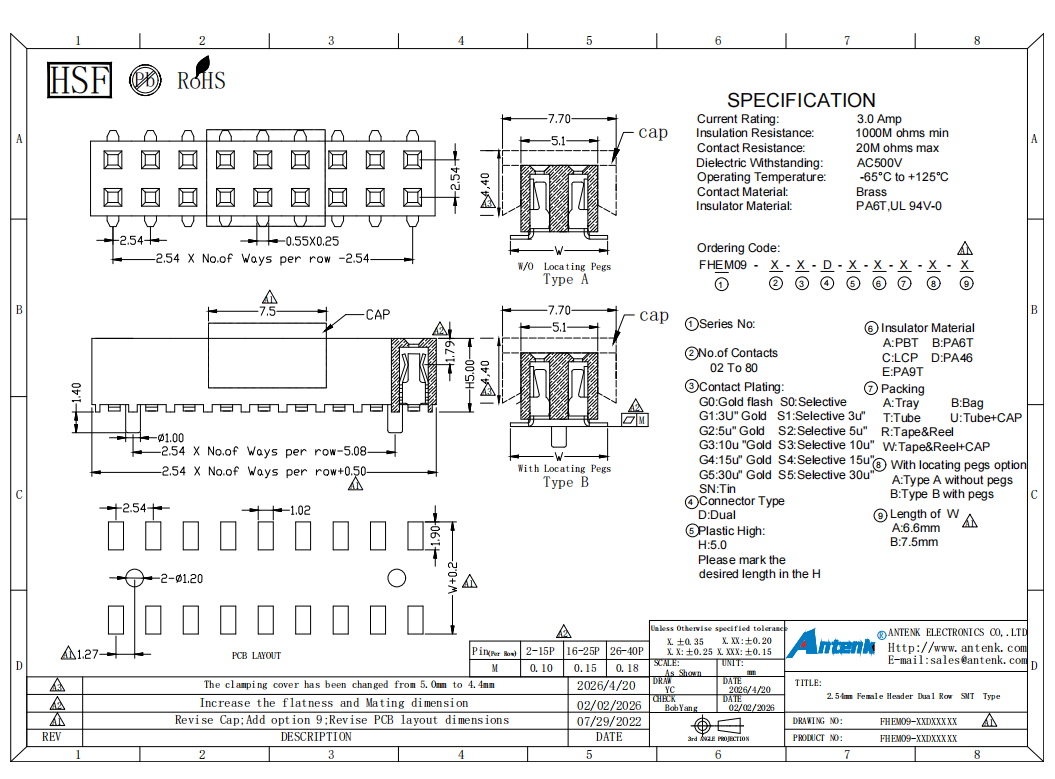

Product Drawing：

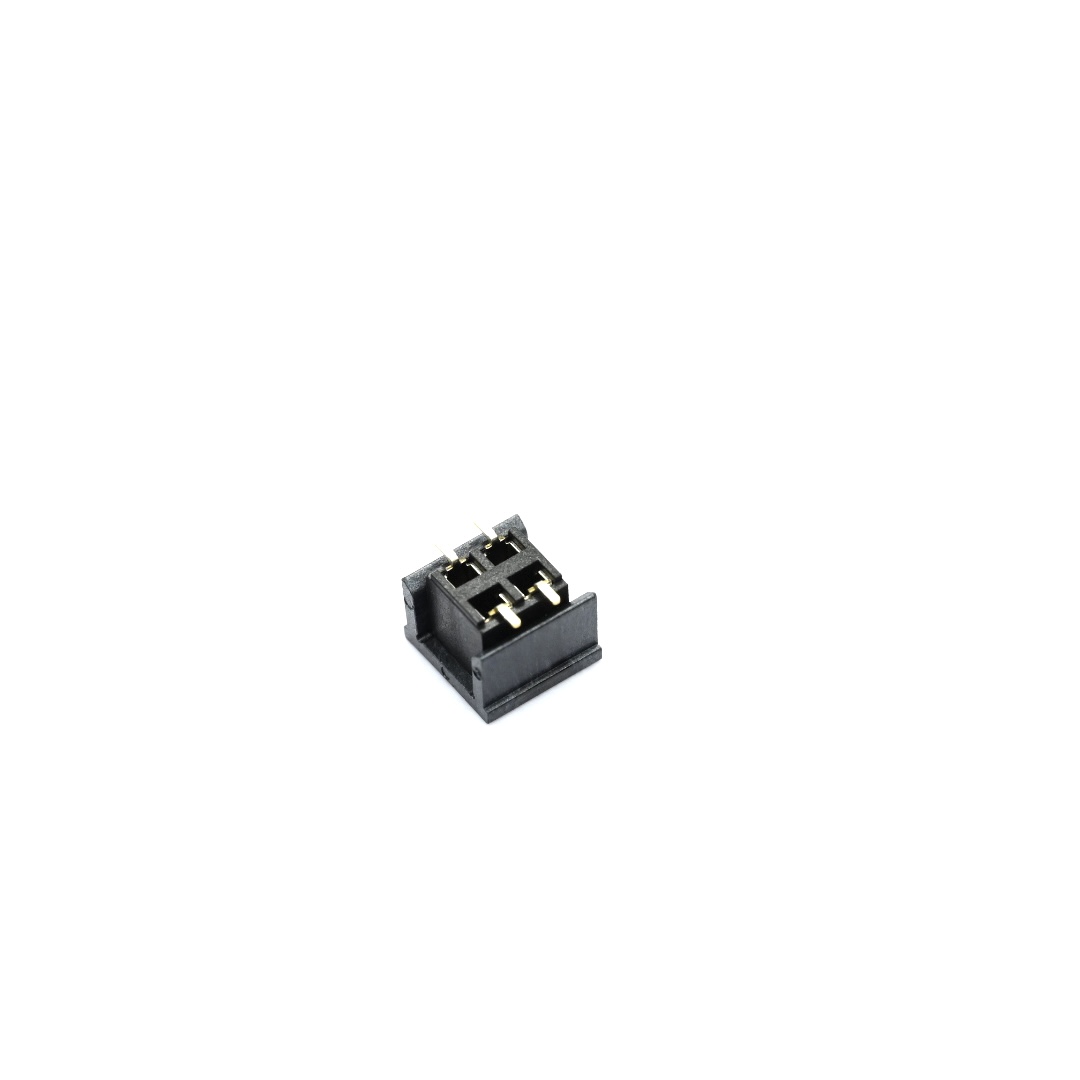

FHEM09-04-G0-D-H5.0-B-W-A-B+2.54mm Female Header Dual Row SMT Type（3）

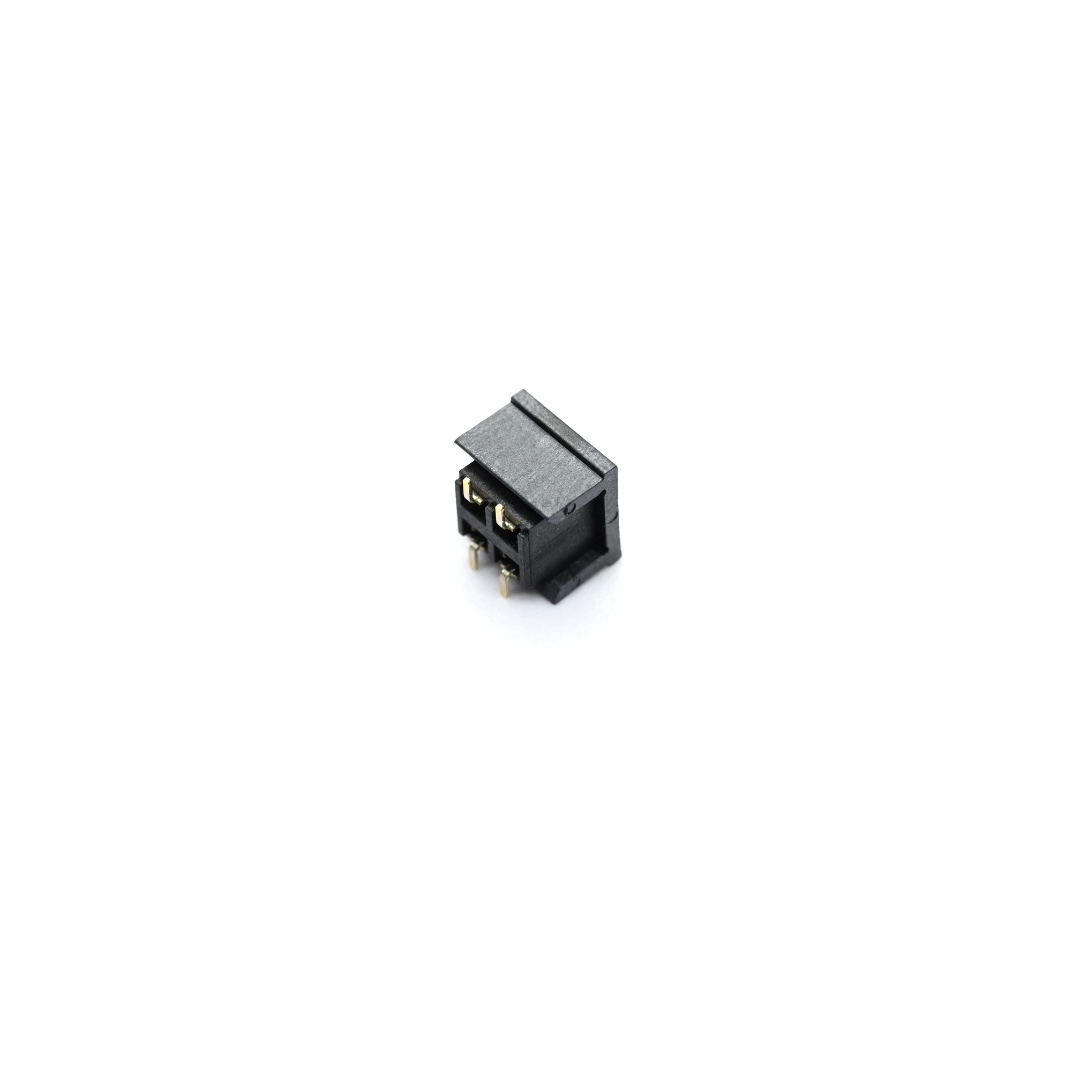

FHEM09-04-G0-D-H5.0-B-W-A-B+2.54mm Female Header Dual Row SMT Type（5）

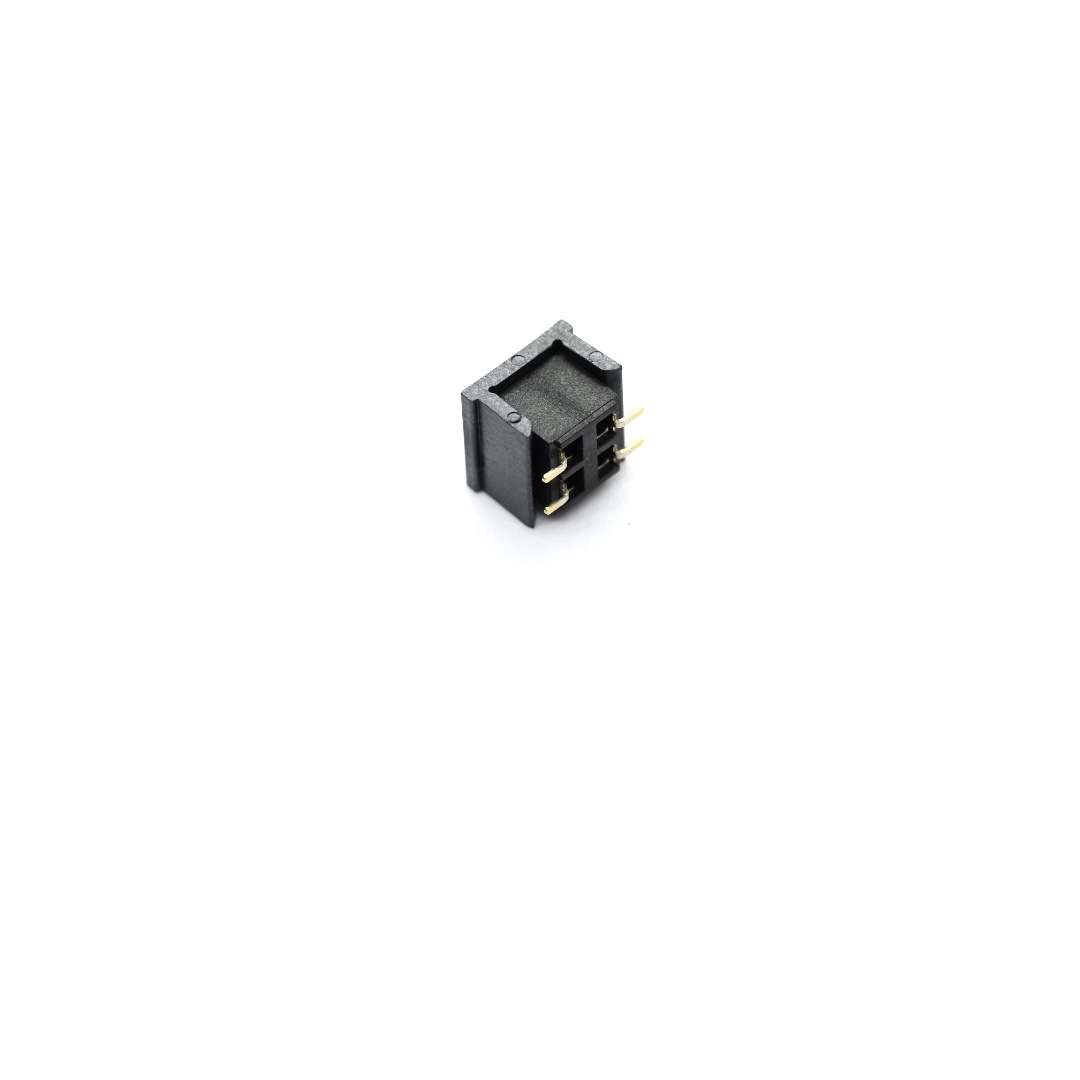

FHEM09-04-G0-D-H5.0-B-W-A-B+2.54mm Female Header Dual Row SMT Type（2）

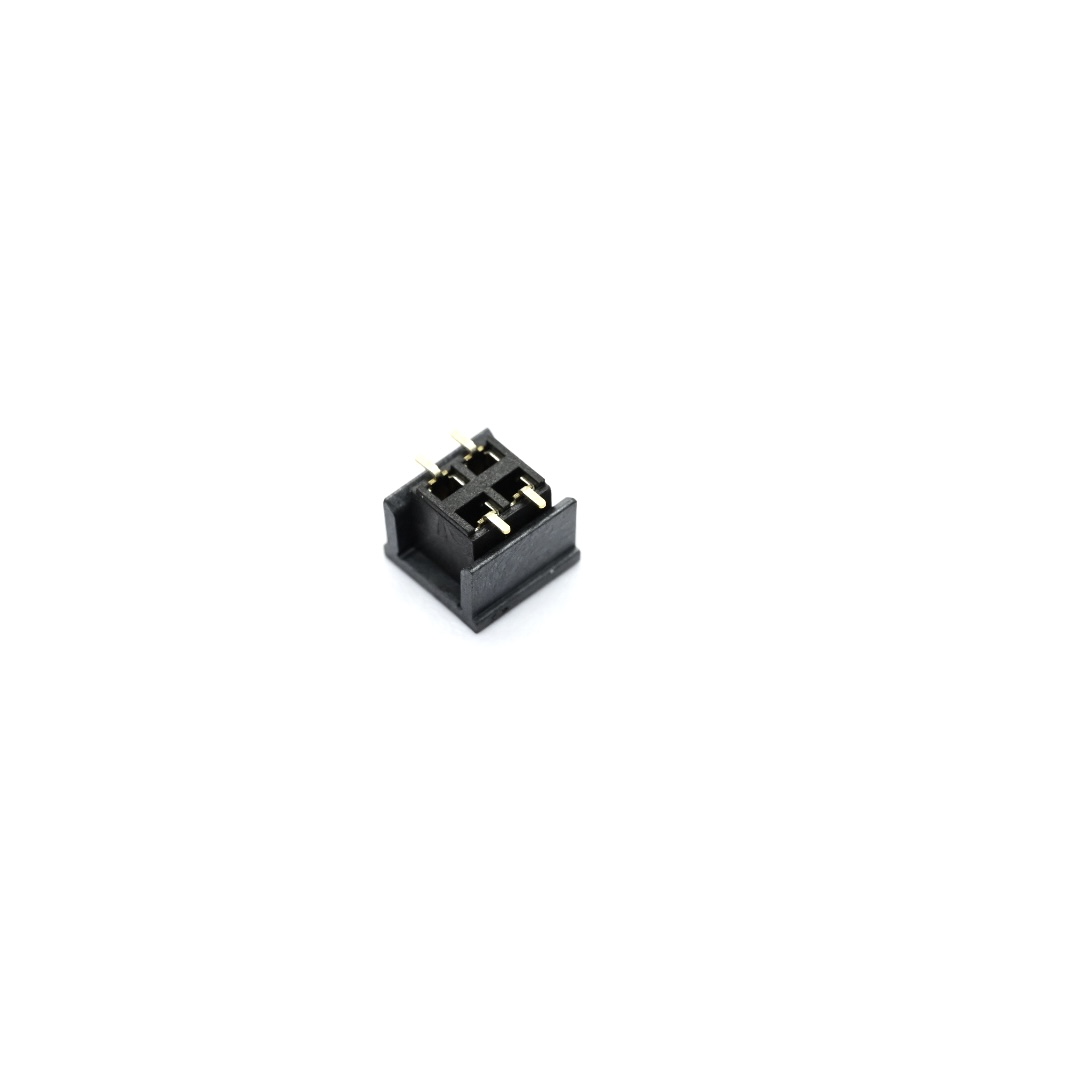

FHEM09-04-G0-D-H5.0-B-W-A-B+2.54mm Female Header Dual Row SMT Type（6）

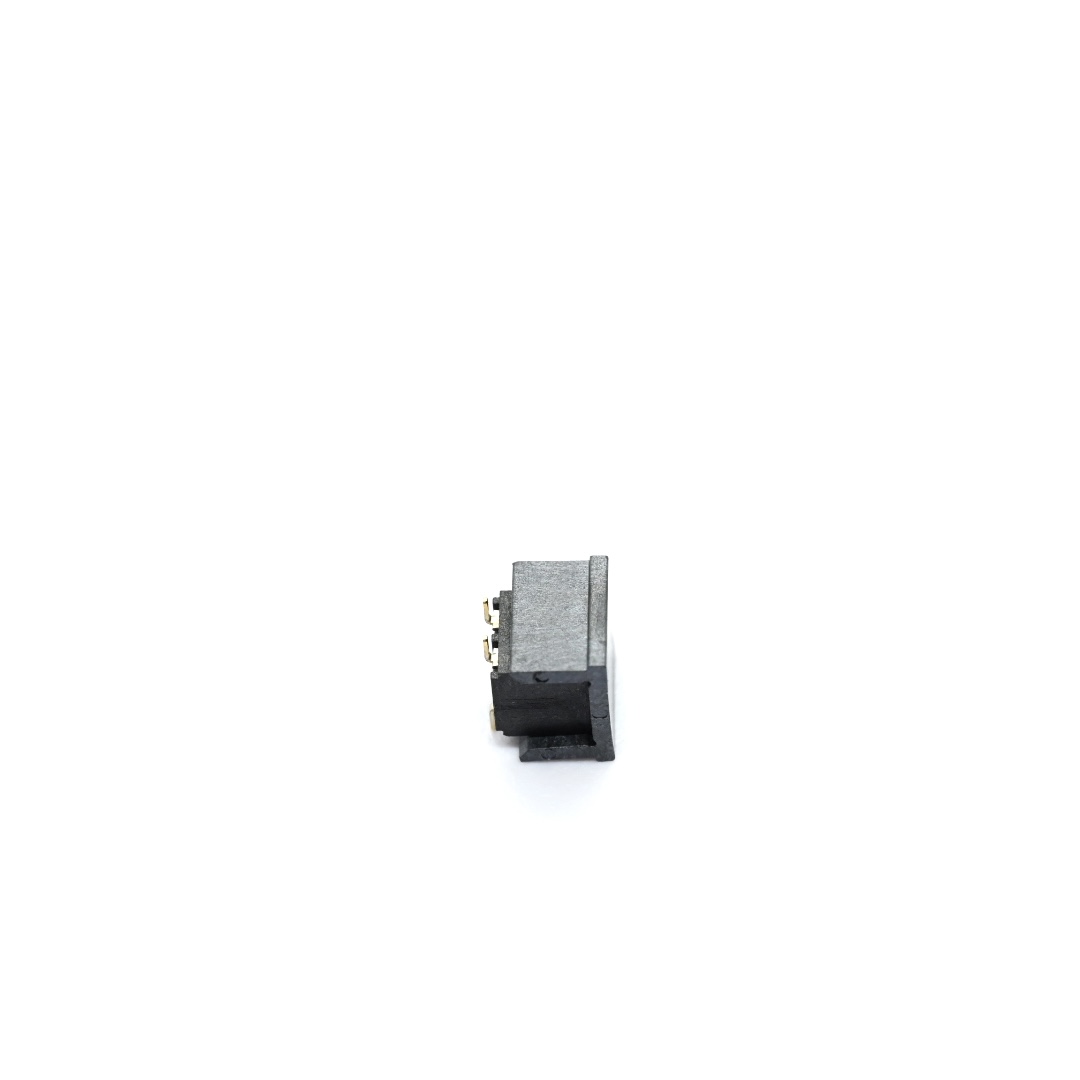

FHEM09-04-G0-D-H5.0-B-W-A-B+2.54mm Female Header Dual Row SMT Type（4）

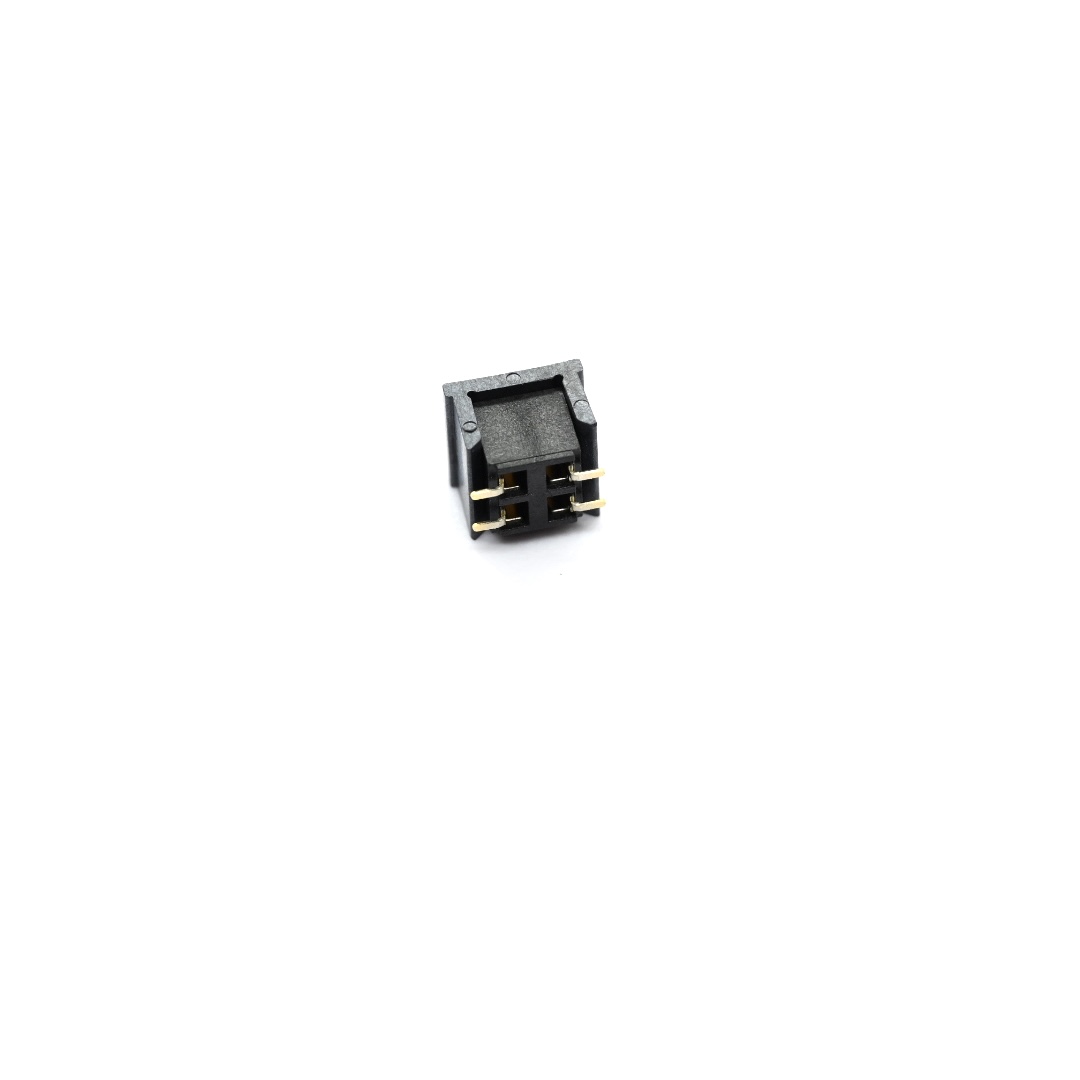

FHEM09-04-G0-D-H5.0-B-W-A-B+2.54mm Female Header Dual Row SMT Type（1）
