Jinyu Machinery's Intelligent Automatic Liquid Silicone Batching Machine:
Typical Metering System Main Target Applications Micro-metering and dripping system: Servo gear pump/high-precision ceramic pump, supply line for multi-color liquid silicone labels, shoe labels, silicone protective sleeves, and micro-injection molded parts. LSR metering and mixing unit (1:1/100:1): Hydraulic or pneumatic plunger pump with closed-loop control, three independent metering systems.

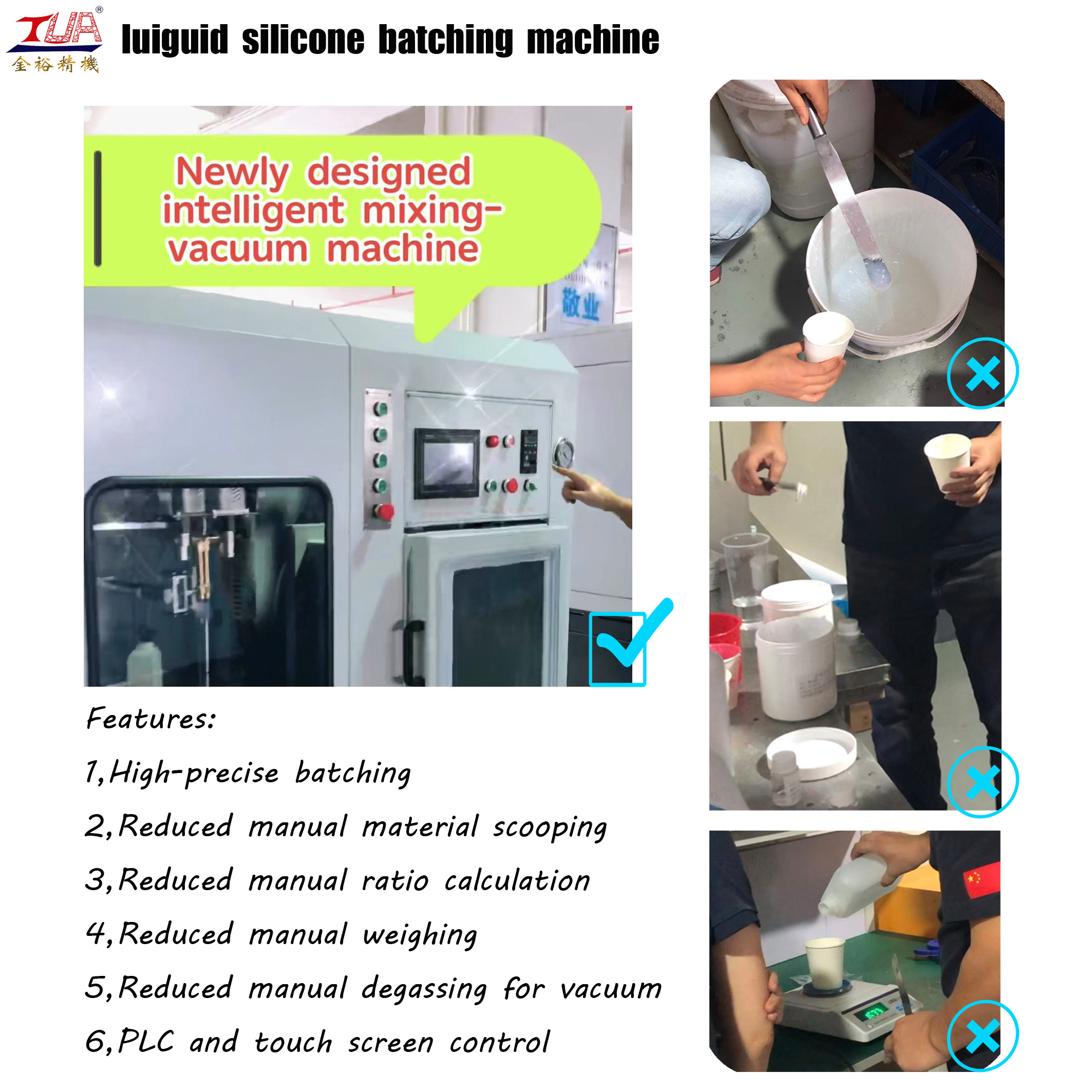

The main silicone material is pressurized by a pressure plate and quantitatively conveyed by a servo motor; the curing agent is independently controlled by a high-precision self-priming metering pump; the diluent is precisely added in micro-volume by a stepper motor. The ratio is set in the intelligent touchscreen, and the system synchronously discharges the material. Flow detection is performed, and raw materials are statically mixed online. It supports continuous feeding to drip molding machines and can also be used for quantitative dispensing from a receiving cylinder. High viscosity vacuum batching line: Dual planetary dynamic mixer with dynamic online degassing function. Large-volume RTV/LSR liquid compound preparation, pigment mixing, and solvent dilution.

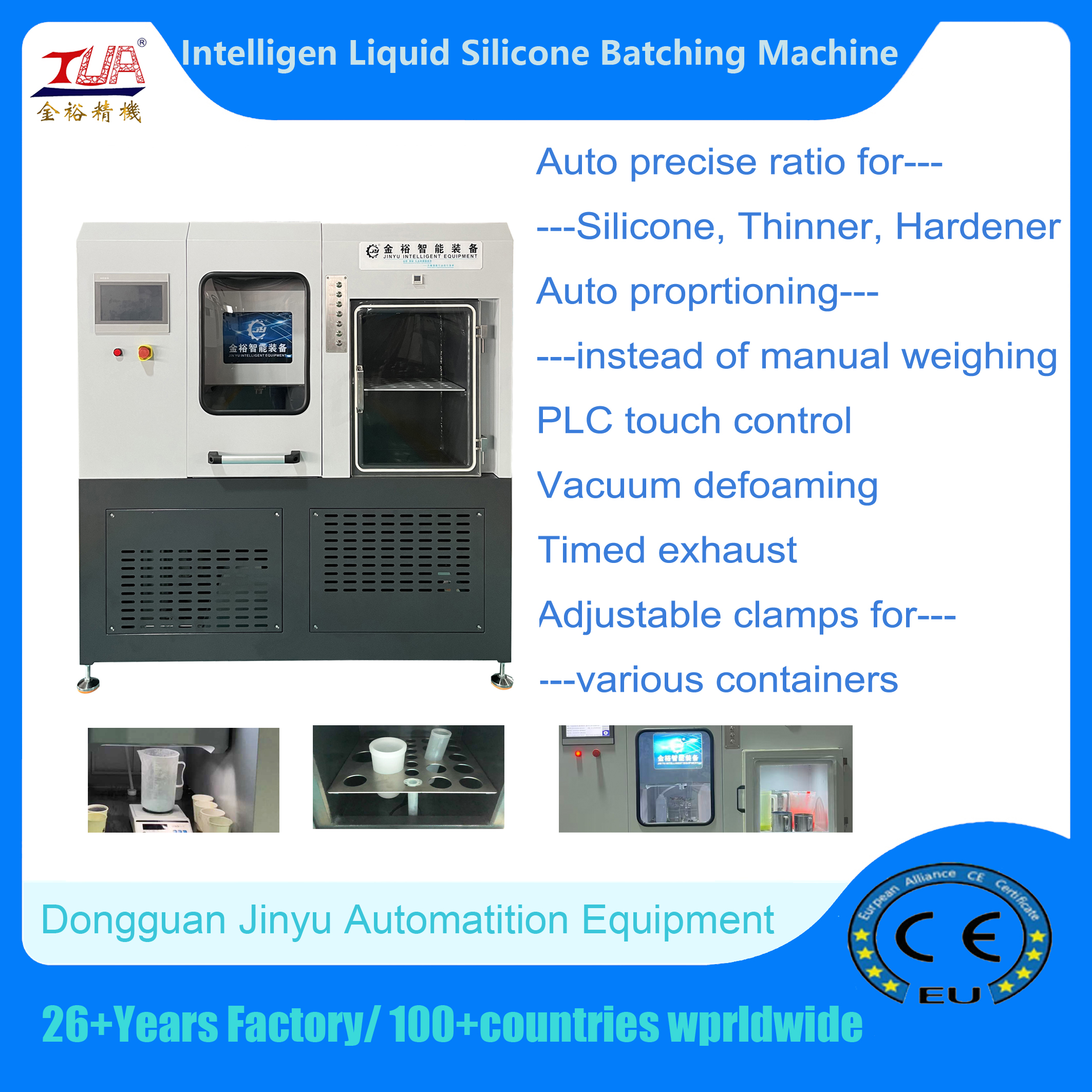

The parameters of Jinyu Machinery's liquid silicone batching machine:
| Name |
Intelligent silicone batching machine |
| Model |
JY-D01-4040-V4 |
| Voltage |
380V,3phase |
| Silicone bucket capacity |
20L |
| Size of vacuum box |
400x390x595mm |
| Vacuum pump power |
4KW |
| Pump type |
XD - 140(Silent type) |
| Motor |
57 stepper |
| Total Power |
5.3KW |
| Weight |
600KG |
| External dimensions |
1553x853x1770mm |
| Syringe capacity |
200ML |
Key Technology Options: Metering Control: Confirm whether the metering unit uses a closed-loop gear pump (for precise, continuous dilute solvent/curing agent flow) or a plunger pump (for abrasive or viscous liquid silicone base materials). Component Ratio: Custom ratio settings can be configured on the Human-Machine Interface (HMI) (e.g., A/B base material ratio of 1:1, plus separate micro-addition channels for 0.5%–10% diluent and curing agent). Voltage and Language Customization: Standard export configurations offer 220V/380V options, English-Chinese bilingual PLC (Inovance, Siemens, or Delta), and standard export wooden crate packaging.
Chinese machinery manufacturers typically offer automated silicone metering and mixing units for export under two main supply models, depending on your operation scale and end application: Major Industrial Centers and Manufacturing Areas: Dongguan and Shenzhen (Guangdong Province): Major clusters for multi-color silicone dispensing, precision microdroplets, and high-precision liquid metering systems. Suppliers typically focus on rapid cycle times, micro-metering of garment labels/patches, electronic potting and integrated 3D liquid silicone label production lines, heavy-duty liquid silicone delivery pumps and large-capacity liquid silicone injection molding auxiliary equipment, and turnkey silicone rubber processing, hydraulic production lines and automated sealant dispensing systems.
Jinyu machinery TUA is widely used in the production of silicone and PVC products for children's products, fashion accessories, electronic components, automotive seals, and beauty tools.
When you purchase equipment from Jinyu Machinery, we provide a complete production line solution and training services to ensure the production of qualified products.
Jinyu Machinery specializes in the R&D and production of complete silicone dispensing and molding equipment. With 26 years of experience in the industry, continuous technological innovation has earned consistent recognition from customers both domestically and internationally. Jinyu Machinery focuses on the R&D, production, and sales of automated molding equipment for silicone and PVC products and silicone gifts. We provide complete production line solutions, primarily targeting non-standard customization and overseas markets.
Our main products include: multi-color dispensing machines/glue dispensers, hydraulic molding machines, vulcanizing machines, LSR silicone injection molding machines, as well as raw material auxiliary equipment, production line material preparation equipment, automatic batching machines, mixers, rubber mixing mills, vacuum degassing machines, baking mold tables, ovens, and other supporting equipment. Check for more new machines.
