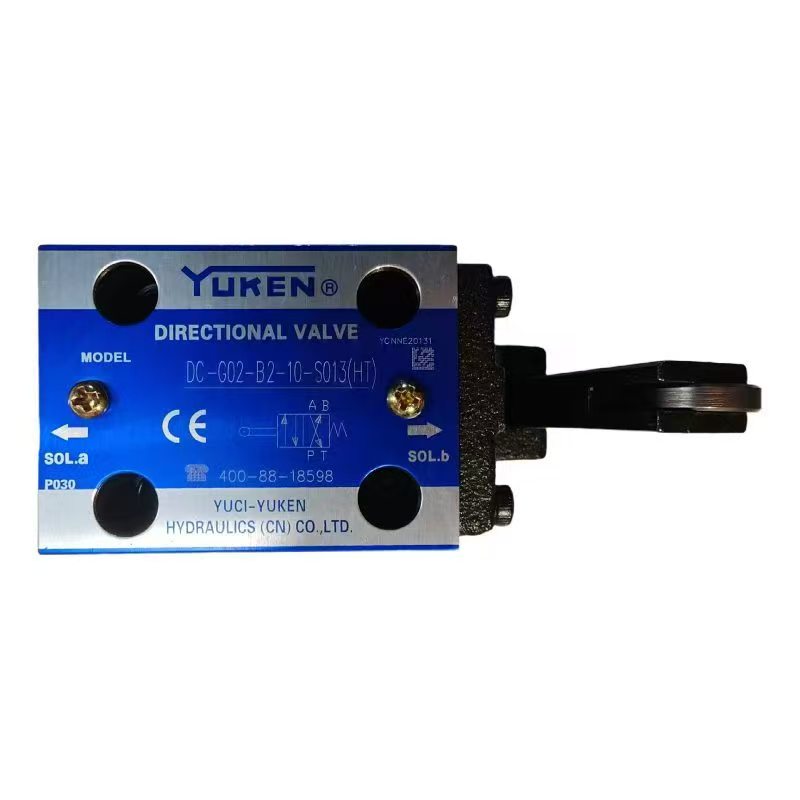

YUKEN DIRECTIONAL VALVE

DC‑G02‑B2S‑10‑S013

Product Overview

YUKEN DC‑G02‑B2S‑10‑S013 is a high‑quality solenoid directional Hydraulic valve, widely adopted as the core flow‑control component of industrial hydraulic system. This reliable Hydraulic valve switches the flowing direction of pressurized hydraulic oil, controls the start‑stop and movement direction of hydraulic cylinders, hydraulic motors and other actuators of the Machine. It features G02 (NG6) standard plate‑mounted installation size, B2S spool function, stable‑performance solenoid coil and S013 special‑specification configuration. With precise spool‑valve matching, fast response speed and excellent anti‑pollution capacity, this Hydraulic valve guarantees accurate action logic and continuous stable operation of the whole hydraulic system. It is suitable for original equipment assembly, equipment overhaul and aftermarket spare‑parts replacement for various industrial Machine.

Technical Specifications

‑ Model: DC‑G02‑B2S‑10‑S013

‑ Brand: YUKEN

‑ Product Type: Solenoid‑operated directional Hydraulic valve

‑ Nominal size: G02 (6‑way, NG6 / Cetop‑03)

‑ Spool type: B2S

‑ Version No.: 10

‑ Special suffix: S013 custom specification

‑ Max working pressure: 31.5 MPa

‑ Rated flow capacity: 63 L/min

‑ Mounting way: Sub‑plate mounting

‑ Working medium: Anti‑wear hydraulic oil for industrial hydraulic system

‑ Operating temperature: ‑20℃ ~ +85℃

‑ Feature: Compact structure, low‑shock spool switching, high response sensitivity, good interchangeability, long service life, stable performance under frequent cyclic operation of industrial Machine.

Working Principle

After receiving the electric control signal, the solenoid generates electromagnetic force to push the internal spool of the Hydraulic valve to move axially. The spool changes the connection status of each oil port inside the valve body, switching the oil‑flow direction of the hydraulic system and driving the executive components of the Machine to complete corresponding actions. When power is cut off, the built‑in return spring pushes the spool back to its original position, resetting the oil circuit. Once the spool gets stuck, internal leakage occurs or the coil fails, the Machine will appear with delayed movement, unstable action or no‑response faults. Replacing a qualified YUKEN directional valve can fully restore the switching function of the hydraulic system.

Core Advantages

1. Original YUKEN‑grade manufacturing quality, stable pressure‑bearing performance, greatly improving the reliability of the whole hydraulic system.

2. High‑precision spool‑valve matching, quick switching response, suitable for high‑frequency repeated‑action working conditions of industrial Machine.

3. Optimized internal flow channel design, effectively reduces hydraulic impact and vibration when the Hydraulic valve switches.

4. Heavy‑duty sealing components, strong resistance to oil contamination, adapting to long‑time continuous‑production workshop environments.

5. Standard G02 installation dimension, convenient for installation, disassembly and direct replacement, no secondary machining required during maintenance.

Application Range

YUKEN DC‑G02‑B2S‑10‑S013 directional Hydraulic valve is a key control element for the open‑loop hydraulic system. It is widely applied to injection molding machines, hydraulic presses, automated production lines and other industrial Machine. Ideal for machinery‑manufacturing factories, hydraulic‑system maintenance workshops and global spare‑parts suppliers.
