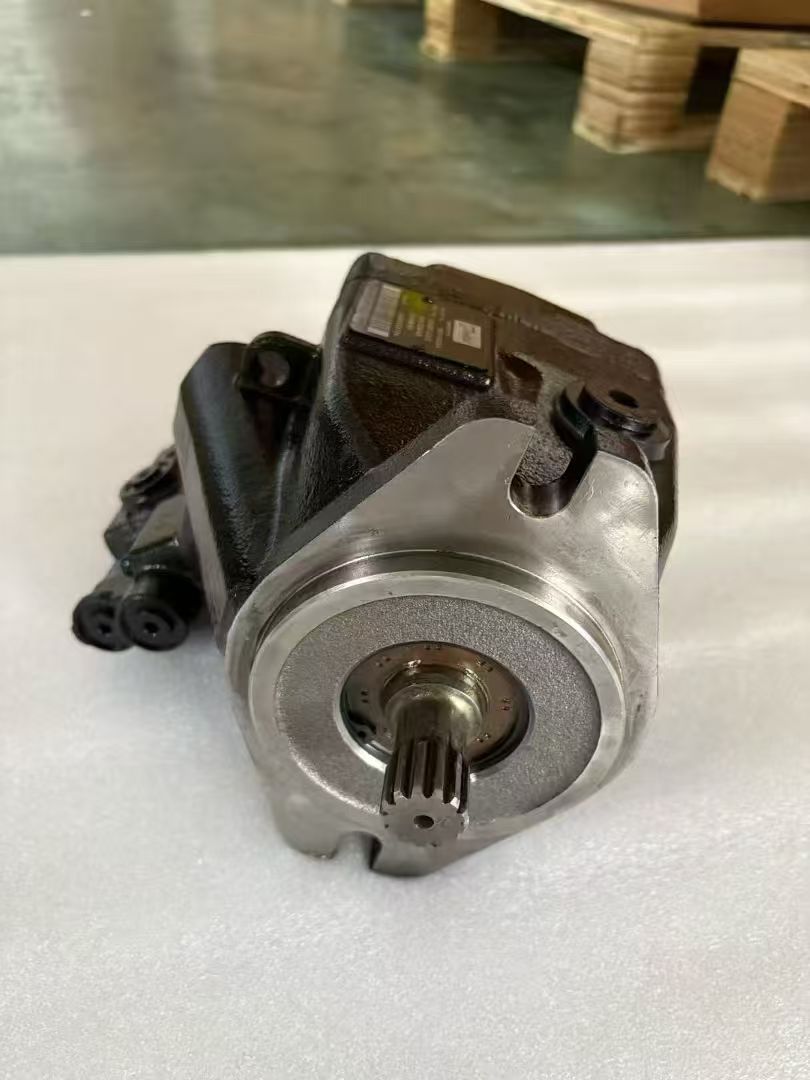

Danfoss LRR Series Open Circuit Variable Displacement Piston Pump

Product Overview

The Danfoss LRR Series is a premium open‑circuit axial Hydraulic piston pump, serving as the core power unit for the mobile and industrial hydraulic system. This high‑efficiency hydraulic pump is specially designed for open‑loop hydraulic circuits, delivering stable variable flow and pressure output to drive various actuators of engineering, agricultural and construction Machine. With compact integrated structure, low noise and excellent load‑adaptive performance, the LRR series can flexibly adjust displacement according to real‑time working load, reducing energy consumption and heat generation of the whole hydraulic system. Its robust design and high‑precision rotating group ensure long‑term reliable operation under heavy‑duty and harsh working conditions, making it ideal for OEM matching, equipment overhaul and aftermarket spare‑parts replacement. The stable operation of this Hydraulic piston pump directly guarantees the working efficiency and service life of the matched Machine.

LR-R-025C-LS-20-20-NN-N-3-C2NF-A6N-PLB-NNN-NNN

LR-R-025C-LS-26-12-NN-N-3-C2NF-A6N-PLB-NNN-NNN

LR-R-025C-PC-25-NN-NN-N-3-C2NG-A6N-KNB-NNN-NNN

LR-R-025C-PC-14-NN-NN-N-3-C2NG-A6N-KNB-NNN-NNN

LR-R-025C-PC-20-NN-NN-N-3-C2AG-A6N-PLB-NNN-NNN

LR-R-025C-LS-26-20-NN-N-3-C2NG-A6N-KNB-NNN-NNN

LR-R-025C-PC-18-NN-NN-N-3-C2NF-A6N-PLB-NNN-NNN

LR-R-025C-PC-21-NN-NN-N-3-C2NF-A6N-PLB-NNN-NNN

LR-R-025C-LS-12-20-NN-N-3-K1NG-A6N-KNB-NNN-NNN

LR-R-025C-LS-20-20-NN-N-3-K1AG-A6N-AAA-NNN-NNN

LR-R-025C-LS-26-20-NN-N-3-C2NF-A6N-AAA-NNN-NNN

LR-R-025C-PC-25-NN-NN-N-3-C2NF-A6N-AAA-NNN-NNN

LR-R-025C-PC-26-NN-NN-N-3-C2NF-A6N-AAA-NNN-NNN

LR-R-025C-LS-26-20-NN-N-3-K1NG-A6N-KNB-NNN-NNN

LR-R-025C-LS-18-14-NN-N-3-C2NF-A6N-AAA-NNN-NNN

LR-R-025C-PC-20-NN-NN-N-3-C2AG-A6N-AAA-NNN-NNN

LR-R-025C-RP-21-20-NN-N-3-C2NF-A6N-AAA-NNN-NNN

LR-R-025C-LS-20-20-NN-N-3-C2NF-A6N-AAA-NNN-NNN

LR-R-025C-PC-26-NN-NN-N-3-K1NF-A6N-AAA-NNN-NNN

LR-R-025C-PC-18-NN-NN-N-3-C2RG-A6N-AAA-NNN-NNN

LR-R-025C-RP-26-20-NN-N-3-K2AG-A6N-AAA-NNN-P00

LR-R-025C-LS-26-20-NN-N-3-C2AG-A6N-AAA-NNN-NNN

LR-R-025C-LS-25-20-NN-N-3-C2AG-A6N-AAA-NNN-NNN

LR-R-025C-LS-25-20-NN-N-3-C2NG-A6N-KNB-NNN-NNN

LR-R-025C-PC-26-NN-NN-N-3-C2NG-A6N-KNB-NNN-NNN

LR-R-025C-PC-19-NN-NN-N-3-C2AR-A6N-PLB-NNN-NNN

LR-R-025C-LS-21-15-NN-N-3-C2NR-A6N-AAA-NNN-NNN

LR-R-025C-PC-20-NN-NN-N-3-K1AG-A6N-AAA-NNN-NNN

LR-R-025C-PC-15-NN-NN-N-3-K2NG-A6N-KNB-NNN-NNN

LR-R-025C-PC-23-NN-NN-J-3-C2BK-A6N-KNB-NNN-NNN

LR-R-025C-EA-21-20-NN-N-3-C3BG-A6N-AAA-NNN-NNN

Technical Specifications

- Brand: Danfoss

- Model Series: LRR Series

- Product Type: Variable‑displacement axial Hydraulic piston pump, main hydraulic pump for open‑circuit hydraulic system

- Circuit Type: Open circuit

- Control Options: Load sensing, pressure limiting, electro‑proportional control

- Rated continuous working pressure: Up to 350 bar

- Peak pressure: Up to 400 bar

- Mounting style: Standard flange mounting, splined shaft connection

- Working medium: Anti‑wear hydraulic oil for mobile hydraulic system

- Operating temperature: -20℃ ~ +85℃

- Feature: High volumetric efficiency, low hydraulic impact, strong anti‑pollution capability, compact footprint, perfect interchangeability, suitable for continuous heavy‑load operation of construction and agricultural Machine

Working Principle

The prime mover drives the input shaft of the Hydraulic piston pump, and pistons inside the cylinder block reciprocate along the swash plate to realize oil suction and high‑pressure oil discharge in the open‑circuit hydraulic system. The built‑in control module adjusts the inclination angle of the swash plate according to load feedback from the Machine, automatically changing the displacement of the hydraulic pump to match the actual flow demand. This variable‑displacement design avoids excess flow throttling loss, greatly optimizing the energy efficiency of the hydraulic system. When internal friction pairs such as pistons, valve plates and cylinder blocks are worn, internal leakage increases, output pressure drops, and the power performance of the Machine declines. Replacing a qualified Danfoss LRR series pump can fully restore the hydraulic power supply capacity of the open circuit.

Core Advantages

1. Authentic Danfoss hydraulic technology, stable high‑pressure output, effectively improving the reliability and durability of the open‑circuit hydraulic system.

2. Multiple optional control modes realize intelligent load matching, reduce energy waste and oil temperature rise, prolonging the service life of the Hydraulic piston pump.

3. Optimized internal flow channel design minimizes pressure loss and hydraulic noise, improving the operation comfort of the Machine.

4. High‑precision machining of friction pairs and heavy‑duty sealing structure, strong contamination resistance, adapting to dusty, high‑temperature harsh construction environments.
