Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures HDP01‑MXXXXX three row straight stamped pin D‑SUB PCB male connector to deliver stable wire to board signal and power interconnection for printed circuit board assembly, complying with drawing dimensional tolerances to ensure precise DIP soldering and consistent mating performance with matching D‑SUB female connectors. This straight through hole male header adopts PBT plus glass fiber thermoplastic housing with UL94V 0 flame retardant grade available in white blue black and grey colors, brass or bronze stamped contacts and 0.35T nickel plated steel shell supporting full range of gold plating and selective gold plating alternatives. Electrically it features 5 Amp rated current, maximum 20 milliohms contact resistance, 500V AC one minute dielectric withstand voltage and minimum 1000 Megohms insulation resistance, and operates within minus 55 degree Celsius to plus 105 degree Celsius while conforming to RoHS and HSF environmental standards. It supplies 15 pin 26 pin and 44 pin configurations together with multiple shell mounting options to satisfy diverse PCB design requirements for automated high volume production. This D‑SUB male connector is widely deployed in industrial control panels, communication hardware, power supply units, digital household appliances, computer peripherals, automotive electronic assemblies and precision measuring instruments. Operators should pick proper pin count shell mounting style contact plating and housing color for real projects, follow recommended PCB layout for DIP soldering, control soldering temperature to avoid PBT housing damage and store finished units in dry sealed packages to prevent metal contact oxidation. Unlike competitors outsourcing stamping molding and plating services Antenk completes full in house manufacturing workflow covering self‑developed precision plastic and metal mold fabrication, brass contact high speed stamping, PBT injection molding and multi grade electroplating plus comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL E472792 certifications compliant with REACH rules, own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, deliver custom solutions and round the clock professional engineering support, and over seventy percent of our D‑SUB connector products are exported globally backed by ANTENK brand and consistent stable mass production quality.

1. Stamped D SUB Contact provides reliable signal transmission with stable electrical performance for three‑row D‑SUB male connectors.

2. PBT GF SUB Housing delivers good flame retardancy and mechanical strength for long‑term PCB assembly environments.

3. Nickel Plated Shell offers effective shielding and corrosion resistance to protect inner contacts from external interference.

Detailed Specifications:

1. Electrical Specifications

1.1 Rated current: 5A

1.2 Maximum contact resistance: 20 milliohms

1.3 Withstanding voltage: 500V AC for 1 minute

1.4 Minimum insulation resistance: 1000 Megohms

1.5 Operating temperature range: -55°C to +105°C

2. Mechanical Specifications

2.1 Contact configurations: 15 pin, 26 pin, 44 pin

2.2 Mounting options: No accessory, front rivet, rear rivet, ground stand‑off, front rivet plus ground stand‑off

2.3 Terminal type: Three row straight DIP stamped pin

2.4 Dimensional tolerance: X.XX ±0.20 mm, shtur ±0.15 mm, C ±0.25 mm

3. Material & Surface Finishing

3.1 Housing material: PBT plus glass fiber thermoplastic, UL94V‑0 flame retardant

3.2 Contact material: Brass or bronze

3.3 Shell material: 0.35T steel with full area nickel plating

3.4 Housing color options: White, Blue, Black, Grey

3.5 Contact plating options: Gold flash, various thickness full gold plating and selective gold plating

4. Dimensional Parameters (Unit:mm)

4.1 Overall length dimensions vary for 15pin,26pin,44pin: 16.92‑53.00 as per drawing

4.2 Compatible stand‑off height options: 4.8mm and 5.8mm

4.3 Follow official PCB layout drawing for through‑hole soldering footprint

5. Compliance Standard

5.1 Compliance: RoHS and HSF compliant

6. Application Scenarios

6.1 Industrial control panels and communication hardware

6.2 Power supply units and digital household appliances

6.3 Computer peripherals, automotive electronics and precision measuring instruments

7. Operation & Storage Precautions

7.1 Select correct pin count, shell mounting style, housing color and contact plating according to project requirements

7.2 Adopt recommended PCB layout for DIP through‑hole soldering process

7.3 Control soldering temperature to prevent thermal damage to PBT plus glass fiber housing

7.4 Do not exceed 5 Amp maximum rated current during working condition

7.5 Store finished connectors in dry sealed packages to avoid oxidation of brass and steel components

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

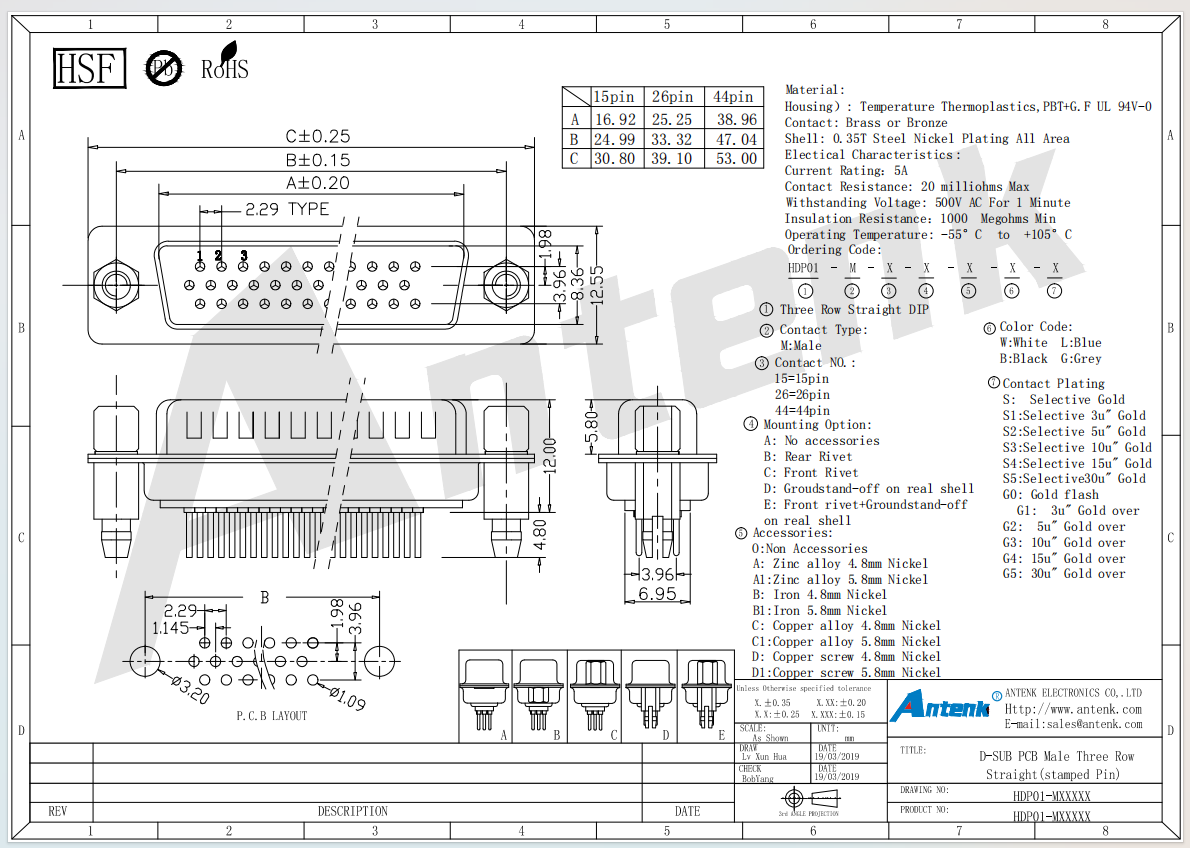

Product Drawing：

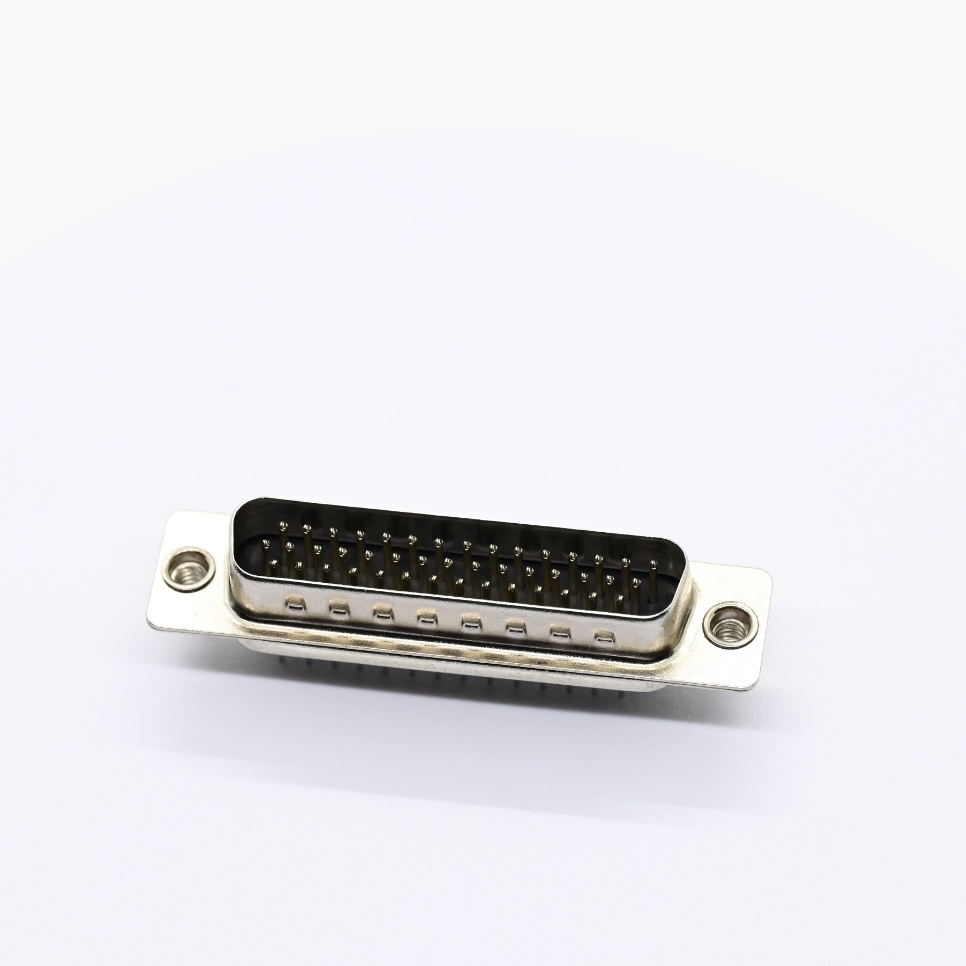

HDP01-M-44-B-A-B-S+D-SUB PCB Male Three Row Straight (stamped Pin)（6）

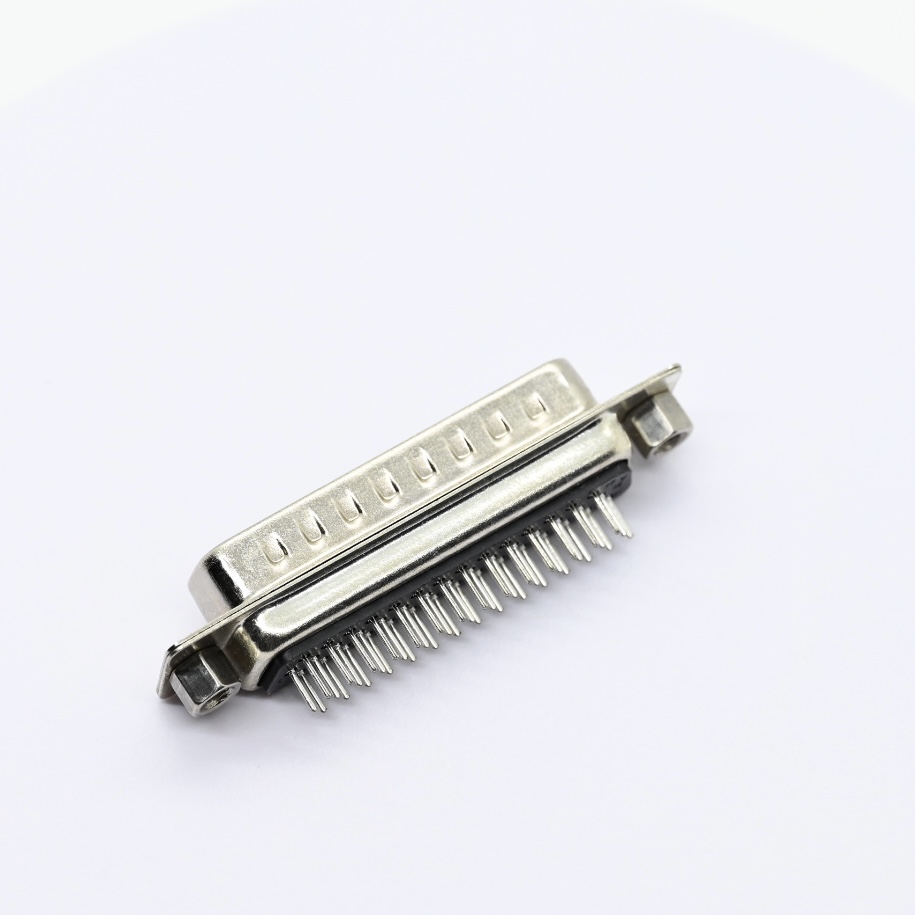

HDP01-M-44-B-A-B-S+D-SUB PCB Male Three Row Straight (stamped Pin)（2）

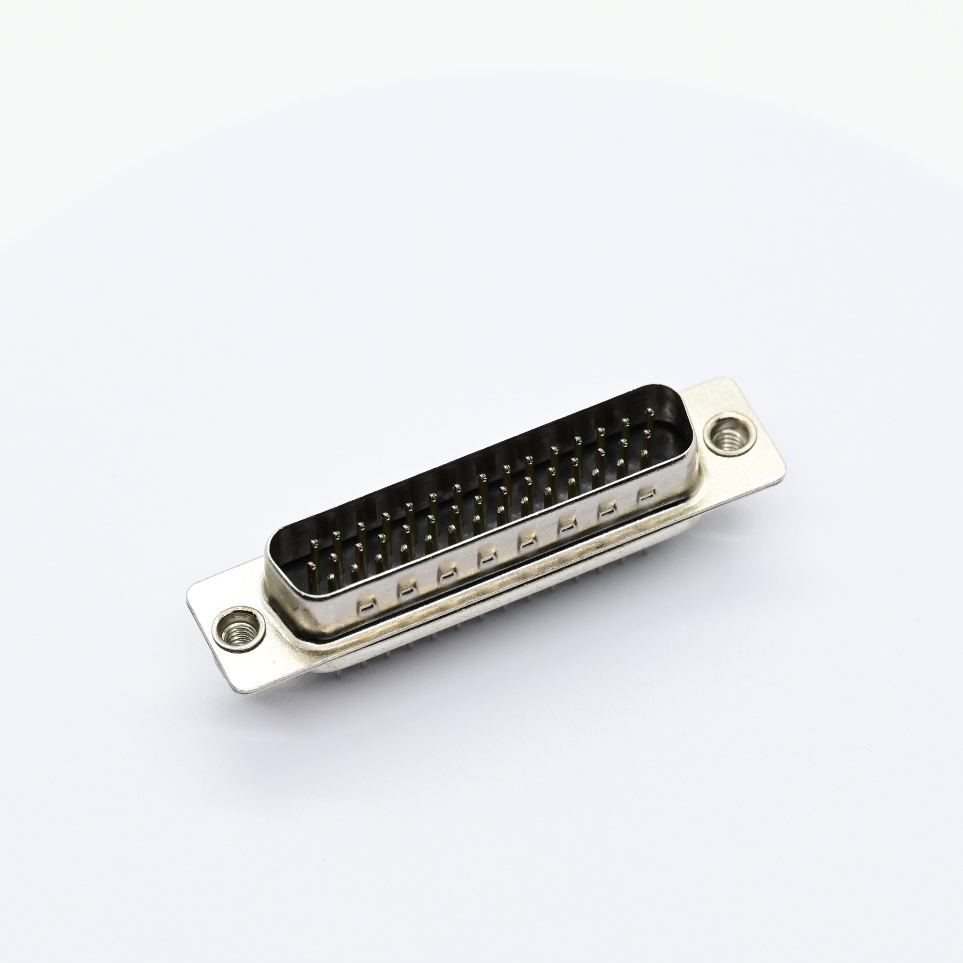

HDP01-M-44-B-A-B-S+D-SUB PCB Male Three Row Straight (stamped Pin)（5）

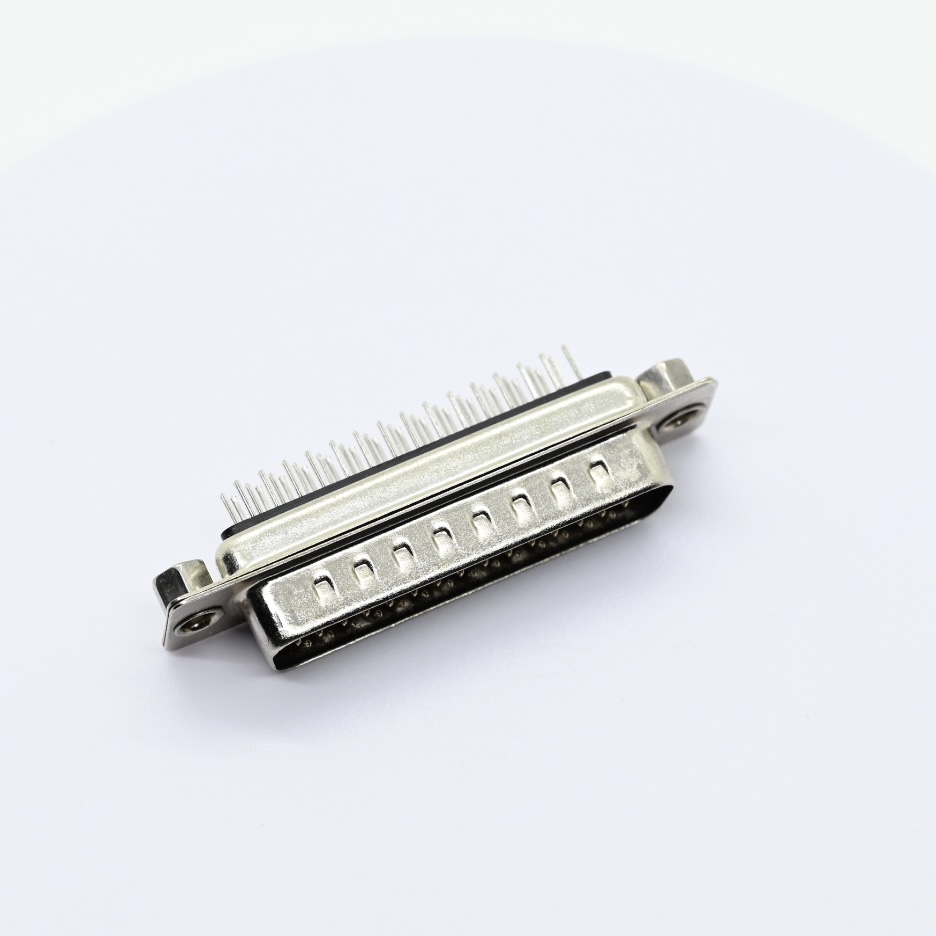

HDP01-M-44-B-A-B-S+D-SUB PCB Male Three Row Straight (stamped Pin)（4）

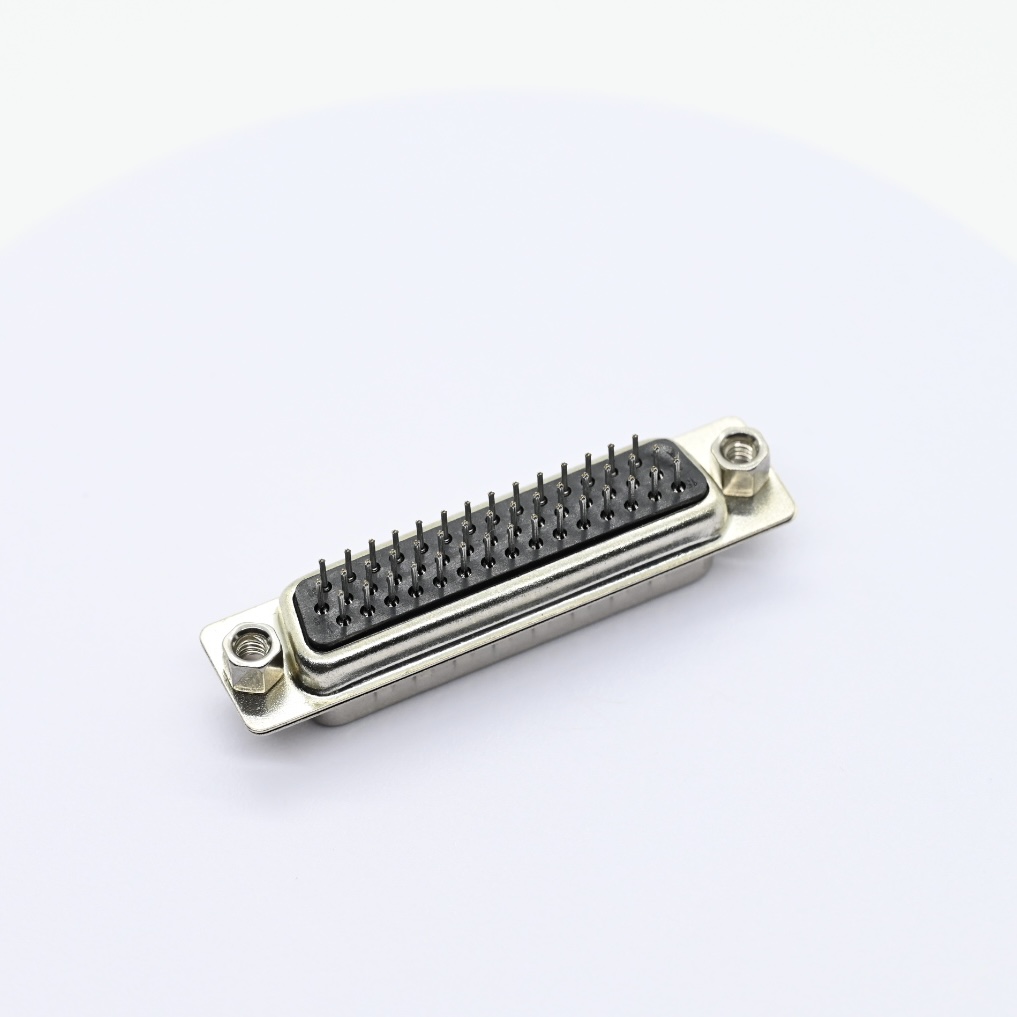

HDP01-M-44-B-A-B-S+D-SUB PCB Male Three Row Straight (stamped Pin)（3）

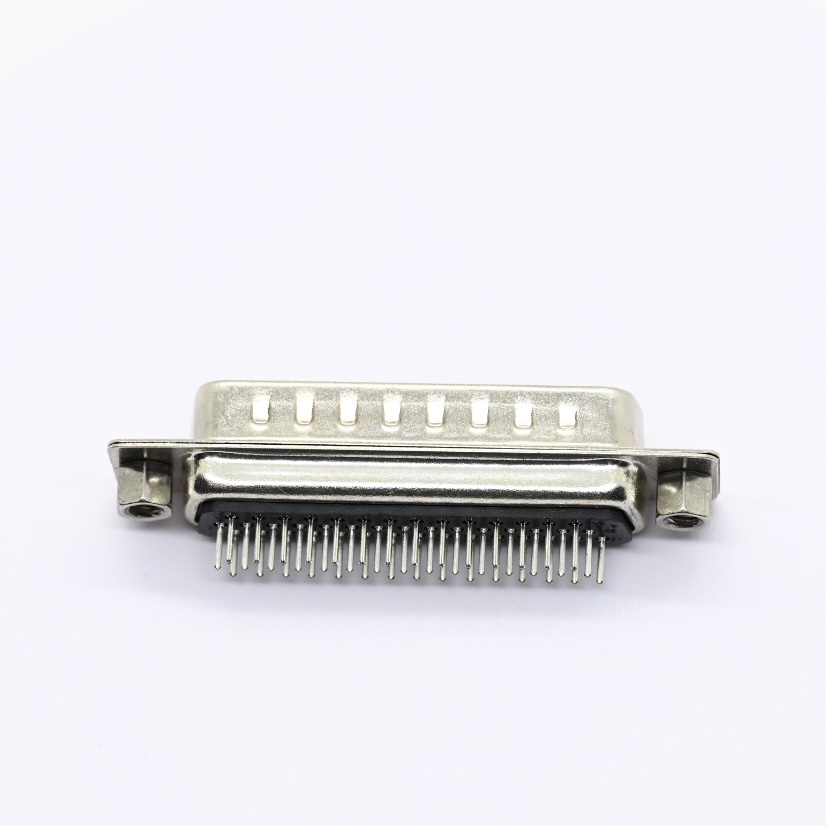

HDP01-M-44-B-A-B-S+D-SUB PCB Male Three Row Straight (stamped Pin)（1）
