30 Seconds to Know the All‑New EX20 Mini Excavator Operating Weight 1.9Ton

4 week ago
1 0
Product details
The all‑new EX20 1.7ton mini excavator is a multi‑purpose compact digging machine built for confined‑space projects, including urban renovation, landscaping, farm work, municipal maintenance and indoor demolition. Combining compact body dimensions with solid performance, this mini excavator solves working‑space limits while retaining powerful digging capacity, becoming the ideal choice for contractors, rental companies and private operators.

Powered by a reliable Kubota diesel engine, the EX20 1.7ton mini excavator meets Euro V and EPA4 emission standards for global market compliance. Full‑hydraulic control delivers smooth and precise movements for complex operating actions. Enlarged 20 L fuel tank extends continuous working hours and reduces frequent refueling downtime.

Core Features
Kubota diesel engine: Euro V and EPA4 emission compliant
Full‑hydraulic control: Responsive, smooth and accurate operation for fine‑grade digging tasks.
Dual‑counterweight design: 56 kg main + 45 kg auxiliary counterweight greatly enhances whole‑machine stability during heavy‑load operation.
Folding dozer blade + retractable track chassis: Adjustable track width adapts to narrow passages; folding dozer blade supports levelling and back‑filling, delivers outstanding terrain adaptability on uneven ground.
Swing boom, zero‑tail + 360° rotation: Perfect for tight yards, alleyways and wall‑side construction.
With mechanical quick coupler: Fast switch between buckets, breakers, grapples and other attachments for multi‑task operation.
20 L enlarged fuel tank: Longer continuous working time, improves jobsite efficiency.
Load-sensitive valves, concealed plunger high/low speed travel motors, hydraulic pilot control, etc.

Specification
EX20 1.7Ton Mini Excavator Specification

Engine Model

KUBOTA D902

Rated power (kw)

 11.8/2500rpm

Operating weight (kg)

 1700kg

Bucket Capacity(m3)

 0.04m³

Pump

 EDDIE

Gradeablity(°)

 30

Working device mode

 Backhoe

Dimension L*W*H(mm)

 3700*1100*1850

Track width(mm)

 230

Track ground length(mm)

 1595

Max.Digging Height(mm)

 3300

Max.Dumping Height(mm)

 2350

Max.Digging Depth(mm)

 2300

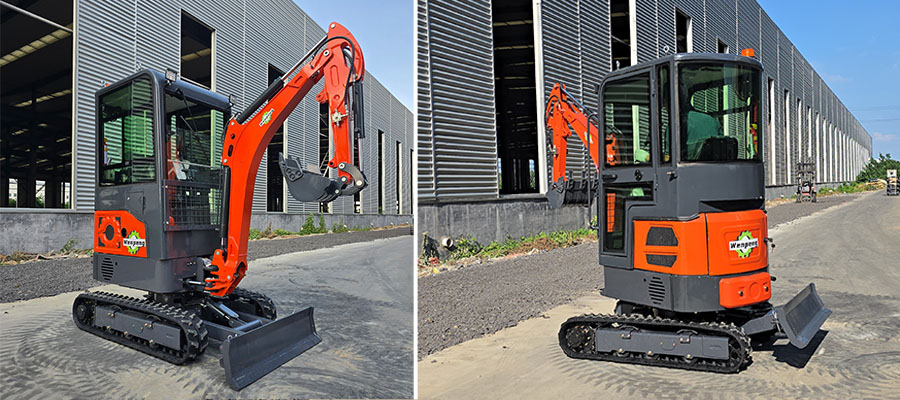

EX20 mini excavator 1.7ton
